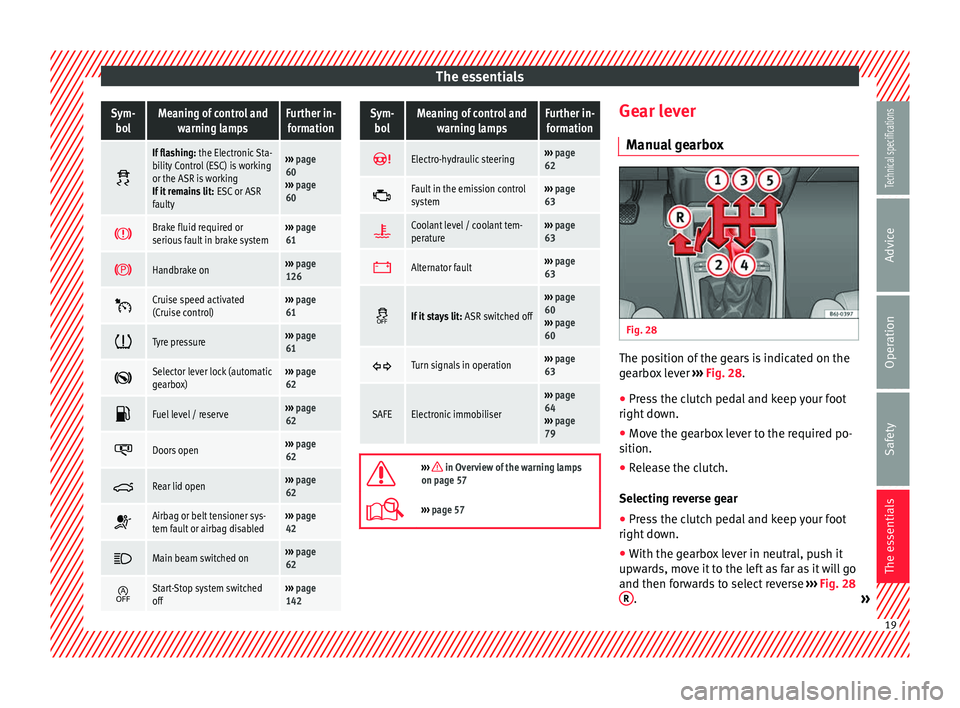

The essentialsSym-
bolMeaning of control and warning lampsFurther in-formation
If flashing:
the Electronic Sta-
bility Control (ESC) is working
or the ASR is working
If it remains lit: ESC or ASR
faulty››› page
60
››› page
60
Brake fluid required or
serious fault in brake system›››
page
61
Handbrake on›››
page
126
Cruise speed activated
(Cruise control)›››
page
61
Tyre pressure›››
page
61
Selector lever lock (automatic
gearbox)›››
page
62
Fuel level / reserve›››
page
62
Doors open›››
page
62
Rear lid open›››
page
62
Airbag or belt tensioner sys-
tem fault or airbag disabled›››
page
42
Main beam switched on›››
page
62
Start-Stop system switched
off›››
page
142
Sym-
bolMeaning of control and warning lampsFurther in-formation
Electro-hydraulic steering›››
page
62
Fault in the emission control
system›››
page
63
Coolant level / coolant tem-
perature›››
page
63
Alternator fault›››
page
63
If it stays lit:
ASR switched off
››› page
60
››› page
60
Turn signals in operation›››
page
63
SAFEElectronic immobiliser
››› page
64
››› page
79
››› in Overview of the warning lamps
on page 57
››› page 57 Gear lever
Manual gearbox Fig. 28
The position of the gears is indicated on the
gearbox lever
››› Fig. 28 .
● Pr e
ss the clutch pedal and keep your foot
right down.
● Move the gearbox lever to the required po-
sition.
● Release the clutch.
Selecting reverse gear
● Press the clutch pedal and keep your foot
right down.
● With the gearbox lever in neutral, push it
upwards, move it to the left as far as it will go
and then forwards to select reverse ››› Fig. 28
R .
» 19
Technical specifications
Advice
Operation
Safety
The essentials
Page 22 of 240
The essentials
● Release the clutch.
››› in Driving with a manual gearbox on
page 128

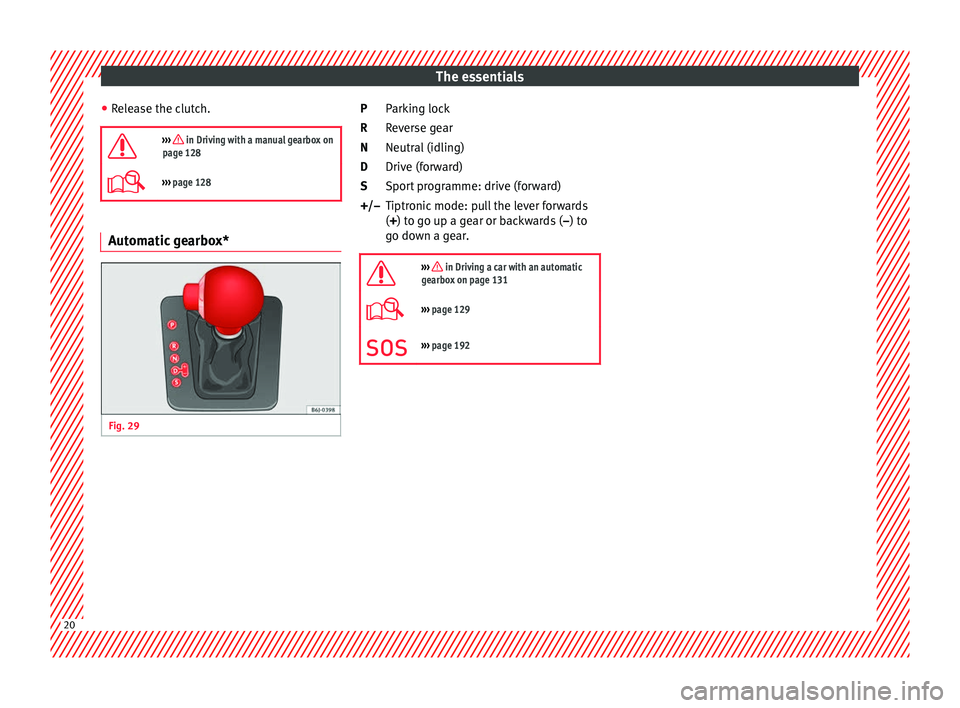

››› page 128 Automatic gearbox*
Fig. 29
Parking lock
Reverse gear
Neutral (idling)
Drive (forward)
Sport programme: drive (forward)
Tiptronic mode: pull the lever forwards
(
+
) to go up a gear or backwards ( –
) to
go do
wn a gear.
››› in Driving a car with an automatic
gearbox on page 131
››› page 129
››› page 192 P
R
N
D
S
+/–
20
Page 23 of 240
The essentials

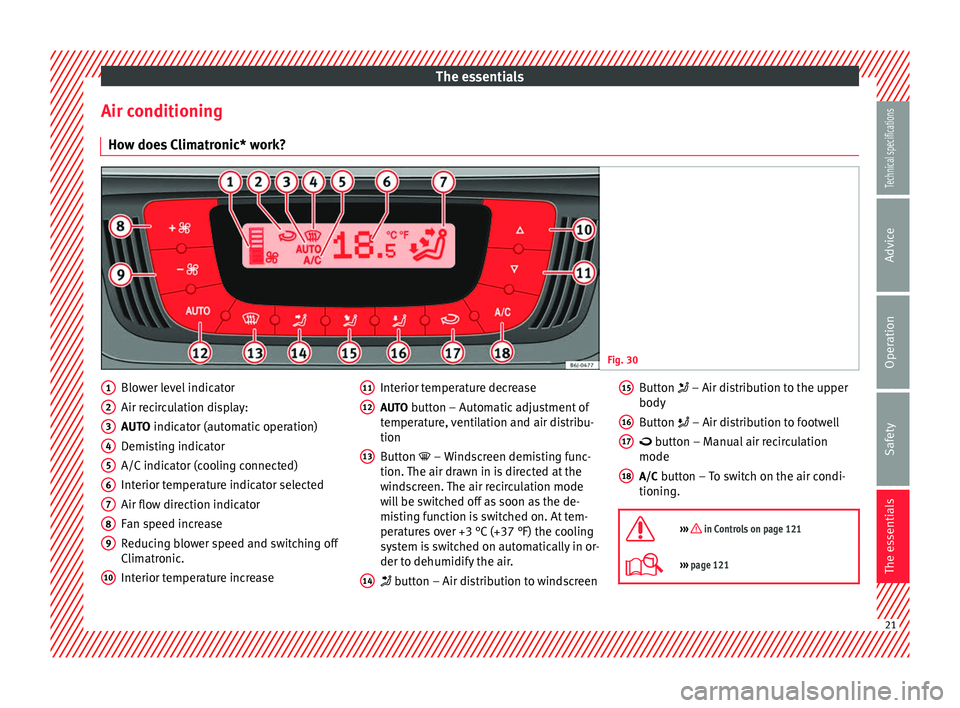

Air conditioning How does Climatronic* work? Fig. 30
Blower level indicator
Air recirculation display:
AUTO
indicator (automatic operation)
D emi
sting indicator
A/C indicator (cooling connected)
Interior temperature indicator selected
Air flow direction indicator
Fan speed increase
Reducing blower speed and switching off
Climatronic.
Interior temperature increase
1 2
3
4
5
6
7
8
9
10 Interior temperature decrease
AUTO button – Automatic adjustment of
temperature, ventilation and air distribu-
tion
Button
– Windscreen demisting func-
tion.
The air drawn in is directed at the
windscreen. The air recirculation mode
will be switched off as soon as the de-
misting function is switched on. At tem-
peratures over +3 °C (+37 °F) the cooling
system is switched on automatically in or-
der to dehumidify the air.
button – Air distribution to windscreen
11 12
13
14 Button
– Air distribution to the upper
body
B
utton
– Air distribution to footwell
button – Manual air recirculation
mode
A/C button – To switch on the air condi-
tioning.
››› in Controls on page 121
››› page 121 15
16
17
18
21
Technical specifications
Advice
Operation
Safety
The essentials
Page 24 of 240
The essentials

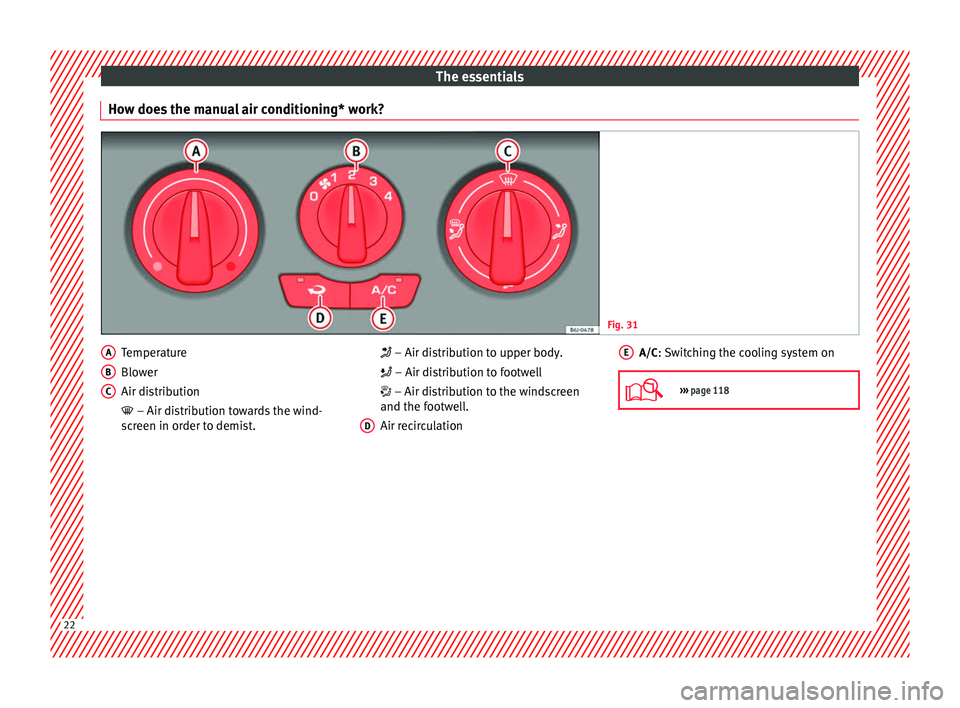

How does the manual air conditioning* work? Fig. 31
Temperature
Blower
Air distribution
– Air distribution towards the wind-
s c
reen in order to demist.
A B
C
– Air distribution to upper body.
– Air di
s
tribution to footwell
– Air distribution to the windscreen
and the footwell.
Air recirculation
D A/C: Switching the cooling system on
››› page 118 E
22
Page 25 of 240
The essentials

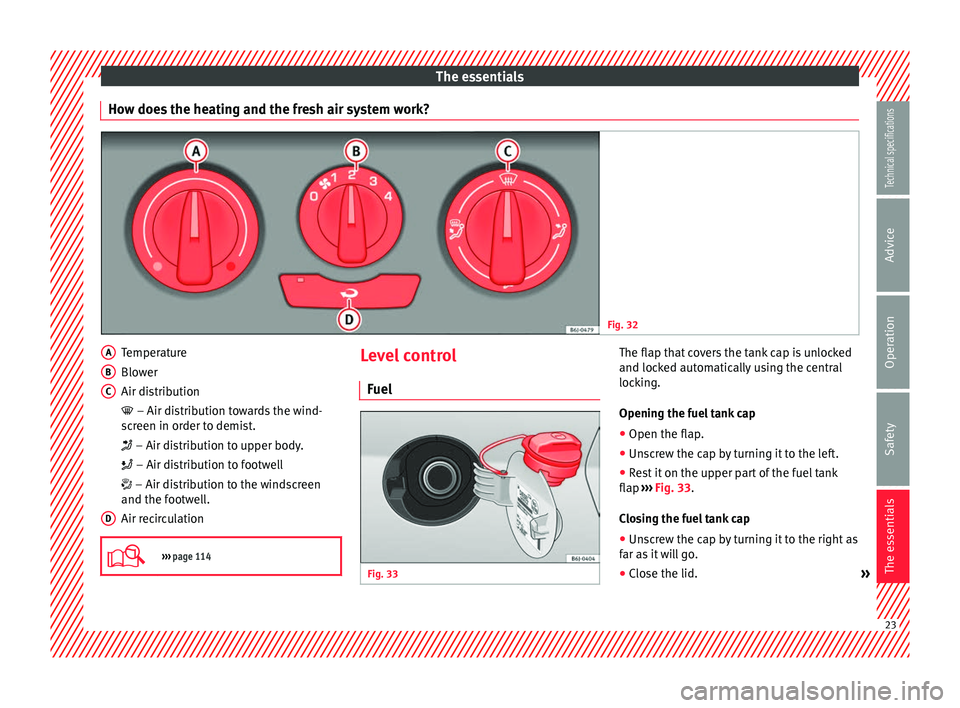

How does the heating and the fresh air system work? Fig. 32
Temperature
Blower
Air distribution
– Air distribution towards the wind-
s c
reen in order to demist.
– Air distribution to upper body.
– Air distribution to footwell
– Air distribution to the windscreen
and the footwell.
Air recirculation
››› page 114 A
B
C
D Level control
Fuel Fig. 33
The flap that covers the tank cap is unlocked
and locked automatically using the central
locking.
Opening the fuel tank cap
●
Open the flap.
● Unscrew the cap by turning it to the left.
● Rest it on the upper part of the fuel tank
flap ››› Fig. 33 .
C lo
sing the fuel tank cap
● Unscrew the cap by turning it to the right as
far as it will go.
● Close the lid. » 23
Technical specifications
Advice
Operation
Safety
The essentials
Page 26 of 240
The essentials
››› in Refuelling on page 164

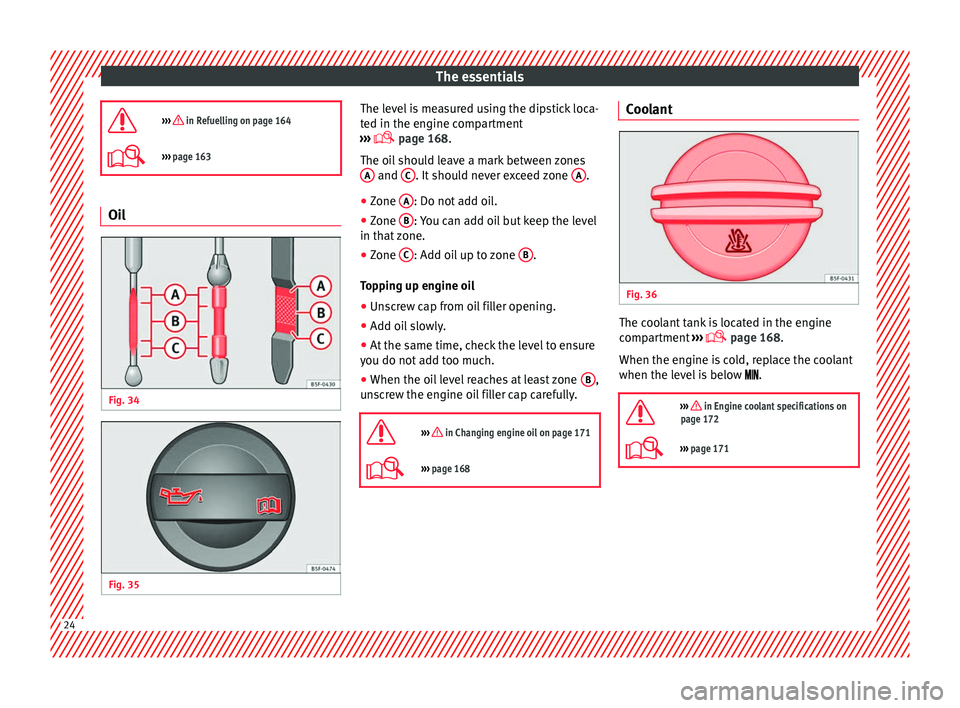

››› page 163 Oil
Fig. 34
Fig. 35
The level is measured using the dipstick loca-
ted in the engine compartment
››› page 168
.
The oi l
should leave a mark between zones
A and
C . It should never exceed zone
A .
● Zone A : Do not add oil.
● Zone B : You can add oil but keep the level
in that zone.
● Zone C : Add oil up to zone
B .
Topping up engine oil
● Unscrew cap from oil filler opening.
● Add oil slowly.
● At the same time, check the level to ensure
you do not add too much.
● When the oil level reaches at least zone B ,
unscrew the engine oil filler cap carefully.
››› in Changing engine oil on page 171
››› page 168 Coolant
Fig. 36
The coolant tank is located in the engine
compartment
›››
page 168
.
When the en gine i
s cold, replace the coolant
when the level is below .
››› in Engine coolant specifications on
page 172
››› page 171 24
Page 27 of 240
The essentials

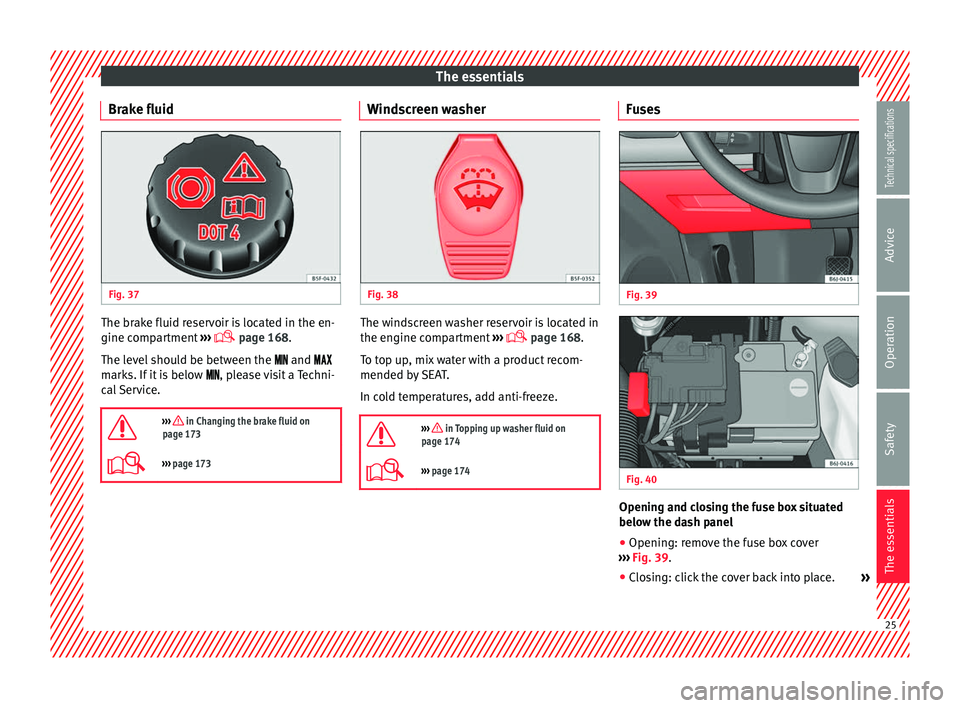

Brake fluid Fig. 37
The brake fluid reservoir is located in the en-
gine compartment
›››
page 168.
The level should be between the and
marks. If it is below , please visit a Techni-
cal Service.
››› in Changing the brake fluid on
page 173
››› page 173 Windscreen washer
Fig. 38
The windscreen washer reservoir is located in
the engine compartment
›››
page 168.
To top up, mix water with a product recom-
mended by SEAT.
In cold temperatures, add anti-freeze.
››› in Topping up washer fluid on
page 174
››› page 174 Fuses
Fig. 39
Fig. 40
Opening and closing the fuse box situated
below the dash panel
●
Opening: remove the fuse box cover
››› Fig. 39 .
● Clo
sing: click the cover back into place. » 25
Technical specifications
Advice
Operation
Safety
The essentials
Page 28 of 240
The essentials
To open the engine compartment fuse box
● Raise the bonnet.
● Press the locking tabs to release the fuse
box cover ››› Fig. 40
● Then lift the cover out.
● To fit
the cover, place it on the fuse box.
P
ush the locking tabs down until they click
audibly into place.
››› in Introduction on page 195
››› page 195 Battery
The battery is located in the engine compart-
ment
›››
page 168
. It does not require
m aint
enance. It is checked as part of the In-
spection Service.
››› in Warnings on handling the battery
on page 174
››› page 174 Action in the event of a
puncture

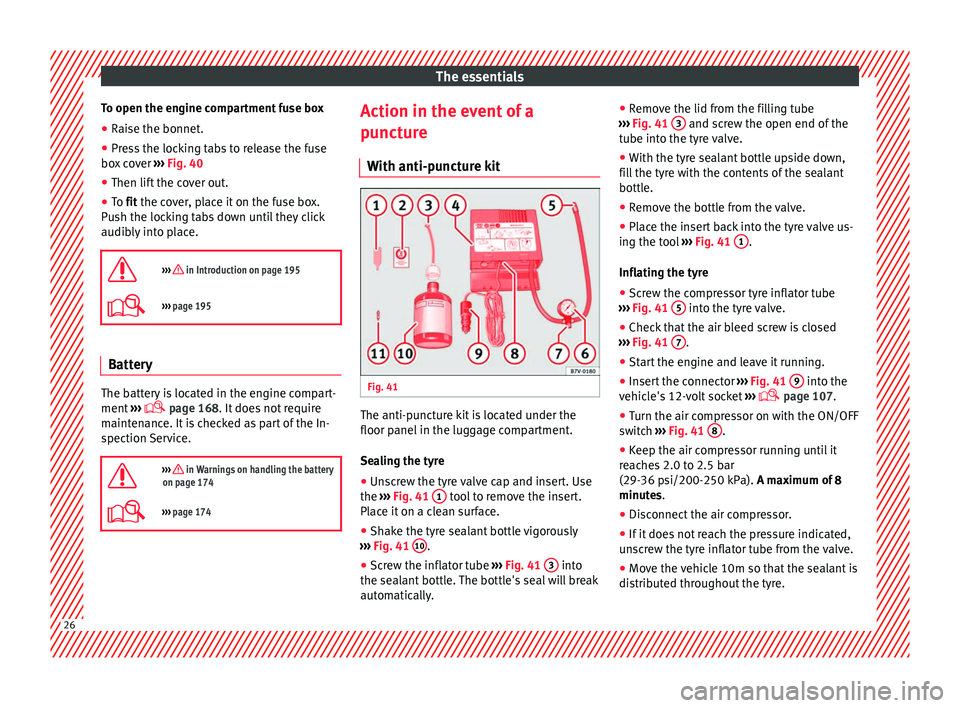

With anti-puncture kit Fig. 41
The anti-puncture kit is located under the
floor panel in the luggage compartment.
Sealing the tyre
●
Unscrew the tyre valve cap and insert. Use
the ››› Fig. 41 1 tool to remove the insert.
Place it on a clean surface.
● Shake the tyre sealant bottle vigorously
››› Fig. 41 10 .
● Screw the inflator tube ››› Fig. 41 3 into
the sealant bottle. The bottle's seal will break
automatically. ●
Remove the lid from the filling tube
››› Fig. 41 3 and screw the open end of the
tube into the tyre valve.
● With the tyre sealant bottle upside down,
fill the tyre with the contents of the sealant
bottle.
● Remove the bottle from the valve.
● Place the insert back into the tyre valve us-
ing the tool ››› Fig. 41 1 .
Inflating the tyre
● Screw the compressor tyre inflator tube
››› Fig. 41 5 into the tyre valve.
● Check that the air bleed screw is closed
››› Fig. 41 7 .
● Start the engine and leave it running.
● Insert the connector ››› Fig. 41 9 into the
vehicle's 12-volt socket ›››
page 107.
● Turn the air compressor on with the ON/OFF
switch ››› Fig. 41 8 .
● Keep the air compressor running until it
reaches 2.0 to 2.5 bar
(29-36 psi/200-250 kPa). A maximum of 8
minutes .
● Di s
connect the air compressor.
● If it does not reach the pressure indicated,
unscrew the tyre inflator tube from the valve.
● Move the vehicle 10m so that the sealant is
distributed throughout the tyre. 26
Page 29 of 240
The essentials
● Screw the compressor tyre inflator into the
valve.
● Repeat the inflation process.
● If the indicated pressure still cannot be
reached, the tyre is too badly damaged. Stop
and request assistance from an authorised
technician.
● Disconnect the air compressor. Unscrew
the tyre inflator tube from the tyre valve.
● When the tyre pressure is between 2.5 and
2.0 bars, continue driving without exceeding
80 km/h (50 mph).
● Check the pressure again after 10 minutes
››› page 188
.
››› in TMS (Tyre Mobility System)* on
page 186

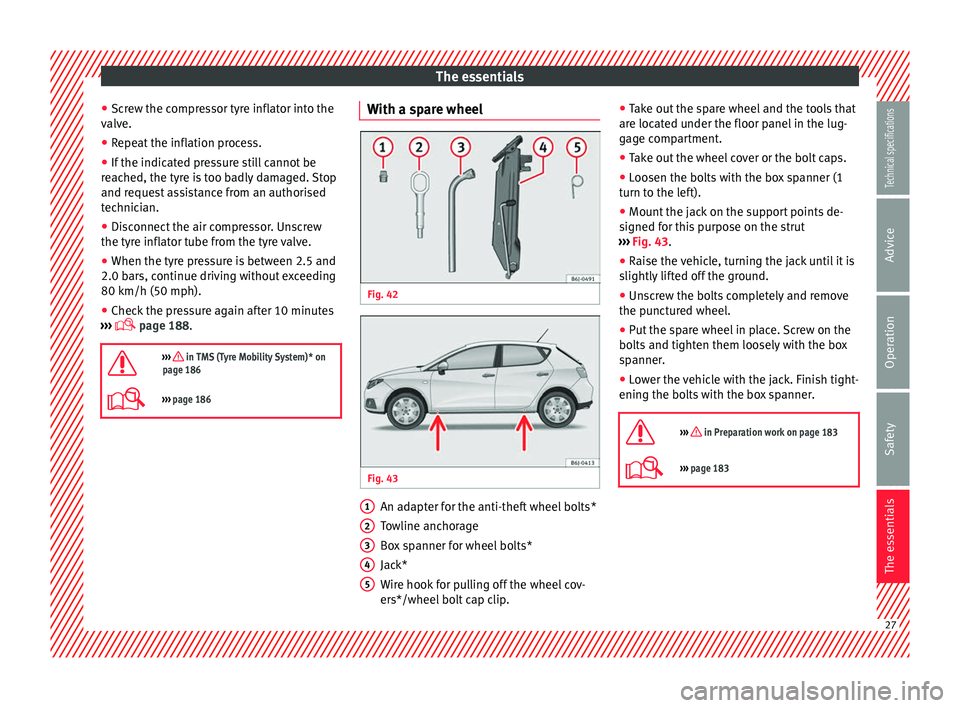

››› page 186 With a spare wheel
Fig. 42
Fig. 43
An adapter for the anti-theft wheel bolts*
Towline anchorage
Box spanner for wheel bolts*
Jack*
Wire hook for pulling off the wheel cov-
ers*/wheel bolt cap clip.
1 2
3
4
5 ●
Take out the spare wheel and the tools that
are located under the floor panel in the lug-
gage compartment.
● Take out the wheel cover or the bolt caps.
● Loosen the bolts with the box spanner (1
turn to the left).
● Mount the jack on the support points de-
signed for this purpose on the strut
››› Fig. 43 .
● Rai
se the vehicle, turning the jack until it is
slightly lifted off the ground.
● Unscrew the bolts completely and remove
the punctured wheel.
● Put the spare wheel in place. Screw on the
bolts and tighten them loosely with the box
spanner.
● Lower the vehicle with the jack. Finish tight-
ening the bolts with the box spanner.
››› in Preparation work on page 183
››› page 183 27
Technical specifications
Advice
Operation
Safety
The essentials
Page 30 of 240
The essentials

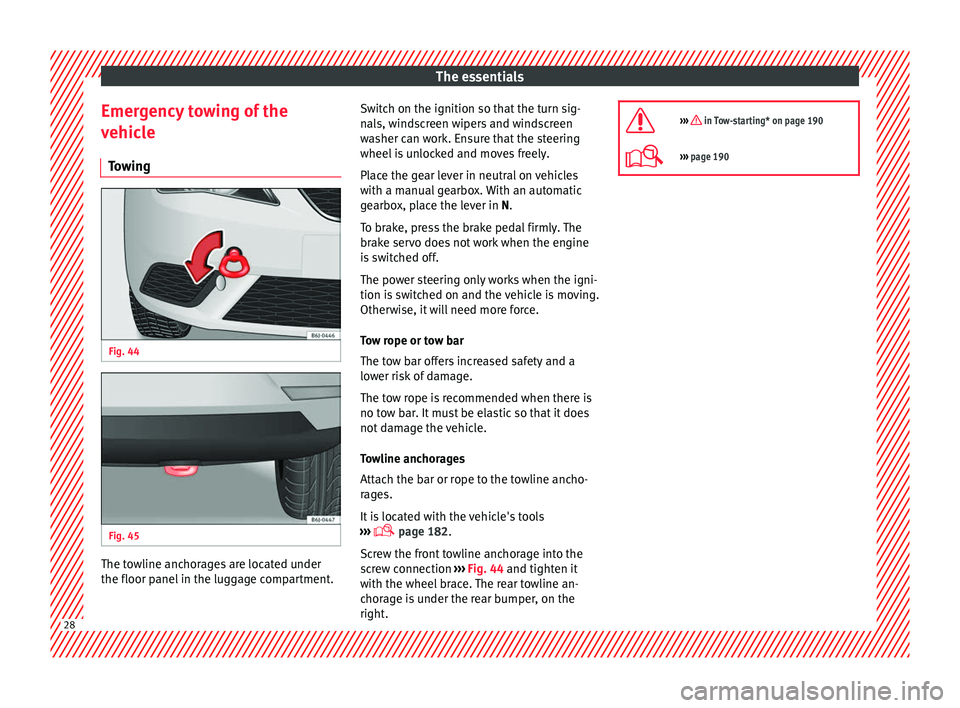

Emergency towing of the
vehicle Towing Fig. 44
Fig. 45
The towline anchorages are located under
the floor panel in the luggage compartment. Switch on the ignition so that the turn sig-
nals, windscreen wipers and windscreen
washer can work. Ensure that the steering
wheel is unlocked and moves freely.
Place the gear lever in neutral on vehicles
with a manual gearbox. With an automatic
gearbox, place the lever in N.
To brake, press the brake pedal firmly. The
brake servo does not work when the engine
is switched off.
The power steering only works when the igni-
tion is switched on and the vehicle is moving.
Otherwise, it will need more force.
Tow rope or tow bar
The tow bar offers increased safety and a
lower risk of damage.
The tow rope is recommended when there is
no tow bar. It must be elastic so that it does
not damage the vehicle.
Towline anchorages
Attach the bar or rope to the towline ancho-
rages.
It is located with the vehicle's tools
››› page 182
.
Sc r
ew the front towline anchorage into the
screw connection ››› Fig. 44 and tighten it
with the wheel
brace. The rear towline an-
chorage is under the rear bumper, on the
right.
››› in Tow-starting* on page 190
›››
page 190 28
