Seat Ibiza SC 2016 Owner's manual

Technical specifications

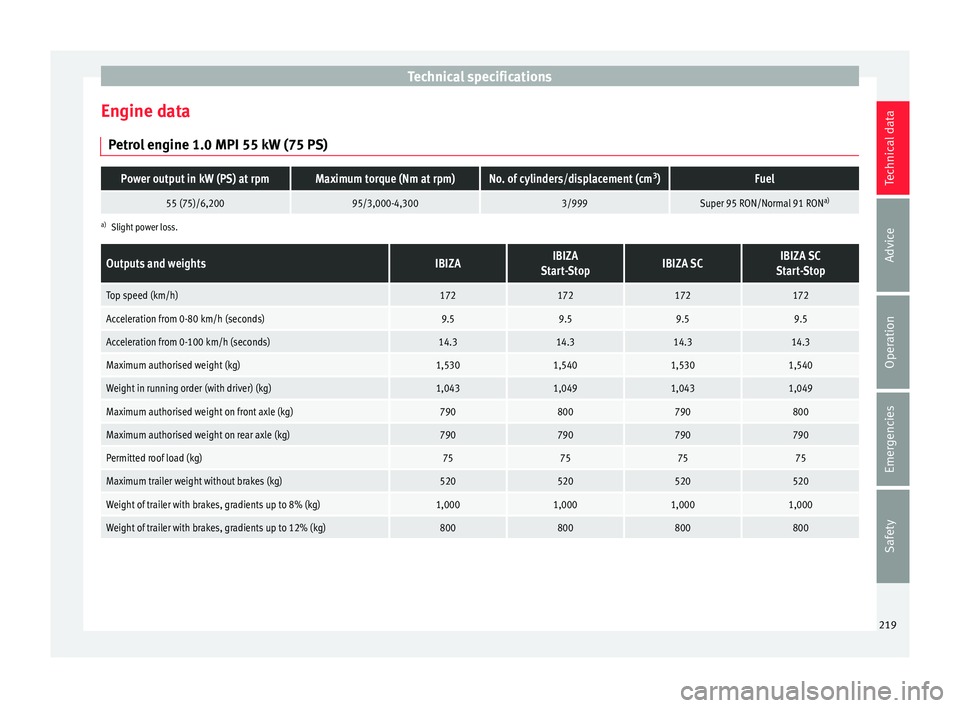

Engine data P etr
o
l engine 1.0 MPI 55 kW (75 PS)
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
55 (75)/6,20095/3,000-4,3003/999Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
Outputs and weightsIBIZAIBIZA
Start-StopIBIZA SCIBIZA SC
Start-Stop
Top speed (km/h)172172172172
Acceleration from 0-80 km/h (seconds)9.59.59.59.5
Acceleration from 0-100 km/h (seconds)14.314.314.314.3
Maximum authorised weight (kg)1,5301,5401,5301,540
Weight in running order (with driver) (kg)1,0431,0491,0431,049
Maximum authorised weight on front axle (kg)790800790800
Maximum authorised weight on rear axle (kg)790790790790
Permitted roof load (kg)75757575
Maximum trailer weight without brakes (kg)520520520520
Weight of trailer with brakes, gradients up to 8% (kg)1,0001,0001,0001,000
Weight of trailer with brakes, gradients up to 12% (kg)800800800800 219
Technical data
Advice
Operation
Emergencies
Safety

Technical data
Petrol engine 1.2 TSI 66 kW (90 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
66 (90)/4,400-5,400160/1,400-3,5004/1,197Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
Outputs and weightsIBIZAIBIZA SC
Top speed (km/h)184184
Acceleration from 0-80 km/h (seconds)7.07.0
Acceleration from 0-100 km/h (seconds)10.710.7
Maximum authorised weight (kg)1,5801,580
Weight in running order (with driver) (kg)1,0891,089
Maximum authorised weight on front axle (kg)840840
Maximum authorised weight on rear axle (kg)790790
Permitted roof load (kg)7575
Maximum trailer weight without brakes (kg)540540
Weight of trailer with brakes, gradients up to 8% (kg)1,1001,100
Weight of trailer with brakes, gradients up to 12% (kg)1,0001,000 220

Technical specifications

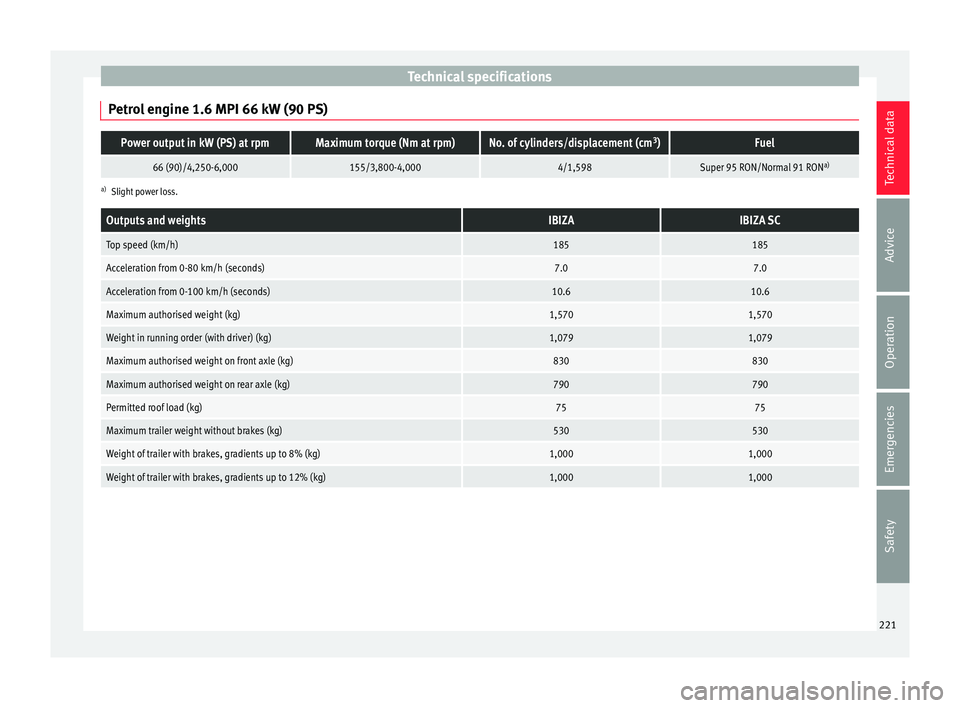

Petrol engine 1.6 MPI 66 kW (90 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
66 (90)/4,250-6,000155/3,800-4,0004/1,598Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
Outputs and weightsIBIZAIBIZA SC
Top speed (km/h)185185
Acceleration from 0-80 km/h (seconds)7.07.0
Acceleration from 0-100 km/h (seconds)10.610.6
Maximum authorised weight (kg)1,5701,570
Weight in running order (with driver) (kg)1,0791,079
Maximum authorised weight on front axle (kg)830830
Maximum authorised weight on rear axle (kg)790790
Permitted roof load (kg)7575
Maximum trailer weight without brakes (kg)530530
Weight of trailer with brakes, gradients up to 8% (kg)1,0001,000
Weight of trailer with brakes, gradients up to 12% (kg)1,0001,000 221
Technical data
Advice
Operation
Emergencies
Safety

Technical data

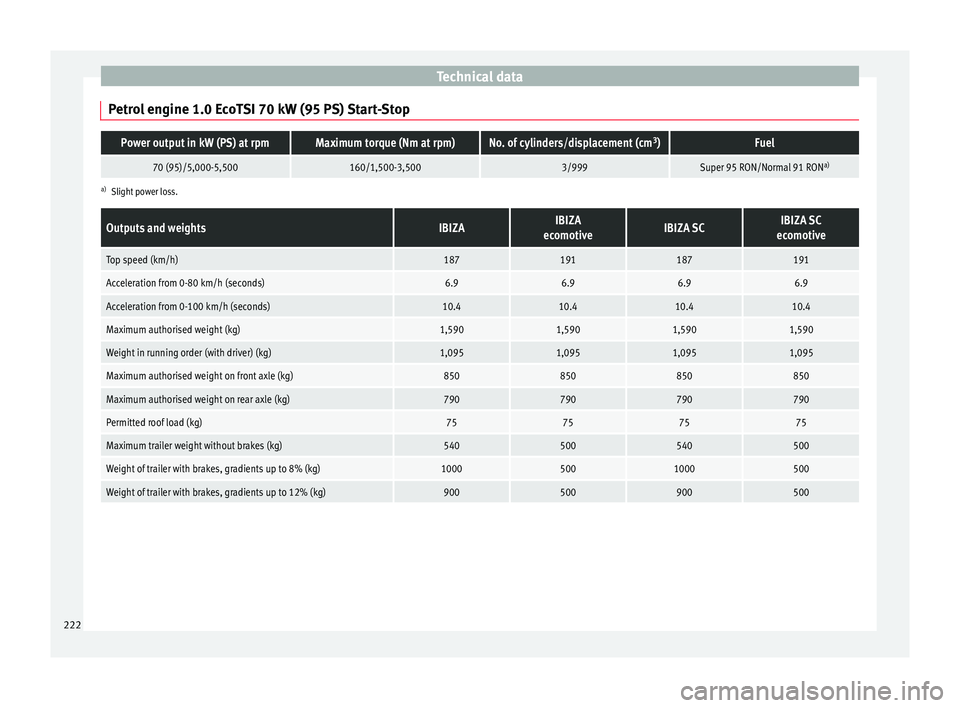

Petrol engine 1.0 EcoTSI 70 kW (95 PS) Start-StopPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
70 (95)/5,000-5,500160/1,500-3,5003/999Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
Outputs and weightsIBIZAIBIZA
ecomotiveIBIZA SCIBIZA SC
ecomotive
Top speed (km/h)187191187191
Acceleration from 0-80 km/h (seconds)6.96.96.96.9
Acceleration from 0-100 km/h (seconds)10.410.410.410.4
Maximum authorised weight (kg)1,5901,5901,5901,590
Weight in running order (with driver) (kg)1,0951,0951,0951,095
Maximum authorised weight on front axle (kg)850850850850
Maximum authorised weight on rear axle (kg)790790790790
Permitted roof load (kg)75757575
Maximum trailer weight without brakes (kg)540500540500
Weight of trailer with brakes, gradients up to 8% (kg)10005001000500
Weight of trailer with brakes, gradients up to 12% (kg)900500900500 222

Technical specifications

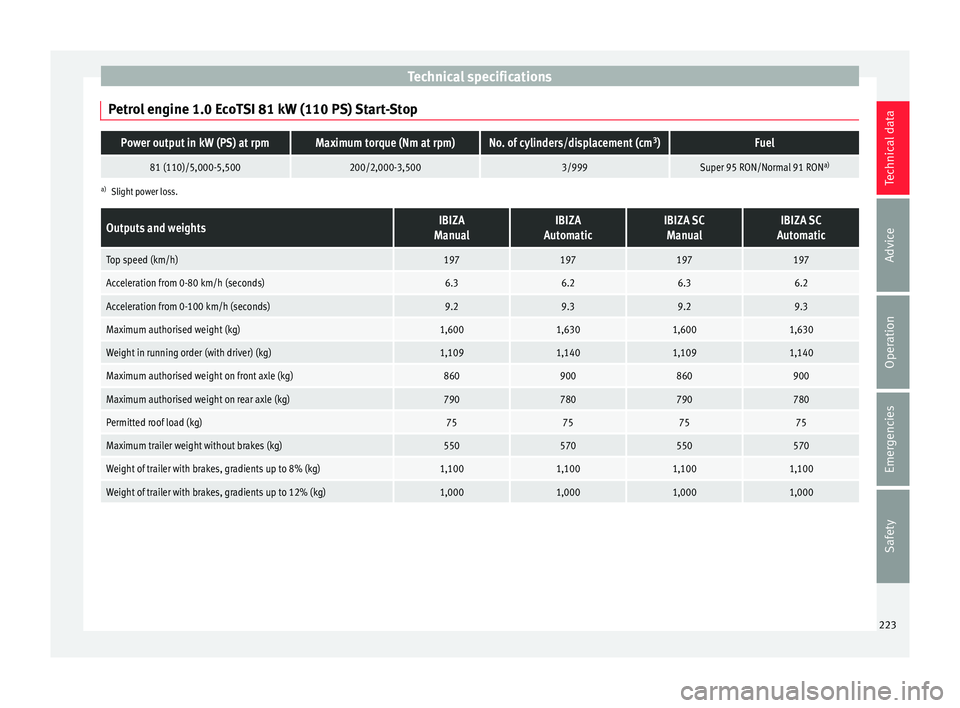

Petrol engine 1.0 EcoTSI 81 kW (110 PS) Start-StopPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
81 (110)/5,000-5,500200/2,000-3,5003/999Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
Outputs and weightsIBIZA
ManualIBIZA
AutomaticIBIZA SC ManualIBIZA SC
Automatic
Top speed (km/h)197197197197
Acceleration from 0-80 km/h (seconds)6.36.26.36.2
Acceleration from 0-100 km/h (seconds)9.29.39.29.3
Maximum authorised weight (kg)1,6001,6301,6001,630
Weight in running order (with driver) (kg)1,1091,1401,1091,140
Maximum authorised weight on front axle (kg)860900860900
Maximum authorised weight on rear axle (kg)790780790780
Permitted roof load (kg)75757575
Maximum trailer weight without brakes (kg)550570550570
Weight of trailer with brakes, gradients up to 8% (kg)1,1001,1001,1001,100
Weight of trailer with brakes, gradients up to 12% (kg)1,0001,0001,0001,000 223
Technical data
Advice
Operation
Emergencies
Safety

Technical data

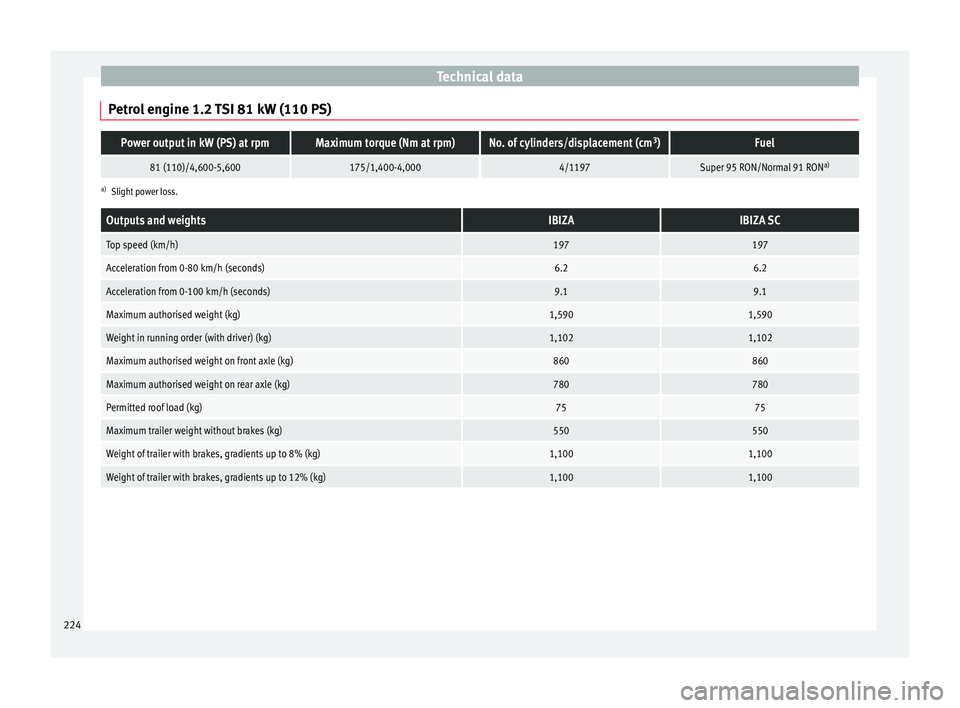

Petrol engine 1.2 TSI 81 kW (110 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
81 (110)/4,600-5,600175/1,400-4,0004/1197Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
Outputs and weightsIBIZAIBIZA SC
Top speed (km/h)197197
Acceleration from 0-80 km/h (seconds)6.26.2
Acceleration from 0-100 km/h (seconds)9.19.1
Maximum authorised weight (kg)1,5901,590
Weight in running order (with driver) (kg)1,1021,102
Maximum authorised weight on front axle (kg)860860
Maximum authorised weight on rear axle (kg)780780
Permitted roof load (kg)7575
Maximum trailer weight without brakes (kg)550550
Weight of trailer with brakes, gradients up to 8% (kg)1,1001,100
Weight of trailer with brakes, gradients up to 12% (kg)1,1001,100 224

Technical specifications

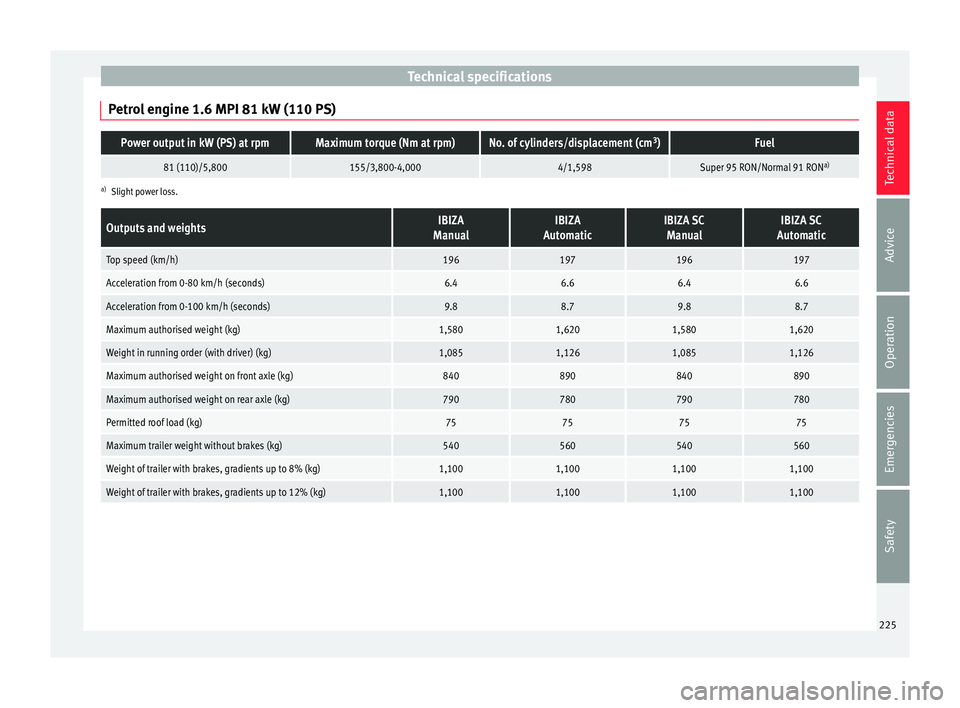

Petrol engine 1.6 MPI 81 kW (110 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
81 (110)/5,800155/3,800-4,0004/1,598Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
Outputs and weightsIBIZA
ManualIBIZA
AutomaticIBIZA SC ManualIBIZA SC
Automatic
Top speed (km/h)196197196197
Acceleration from 0-80 km/h (seconds)6.46.66.46.6
Acceleration from 0-100 km/h (seconds)9.88.79.88.7
Maximum authorised weight (kg)1,5801,6201,5801,620
Weight in running order (with driver) (kg)1,0851,1261,0851,126
Maximum authorised weight on front axle (kg)840890840890
Maximum authorised weight on rear axle (kg)790780790780
Permitted roof load (kg)75757575
Maximum trailer weight without brakes (kg)540560540560
Weight of trailer with brakes, gradients up to 8% (kg)1,1001,1001,1001,100
Weight of trailer with brakes, gradients up to 12% (kg)1,1001,1001,1001,100 225
Technical data
Advice
Operation
Emergencies
Safety

Technical data

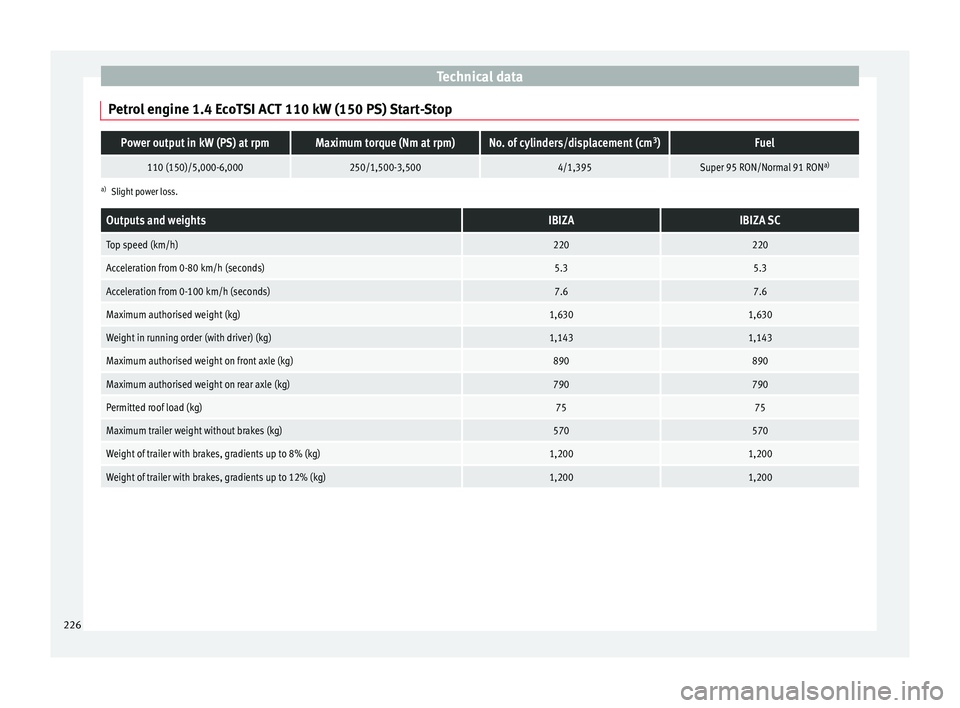

Petrol engine 1.4 EcoTSI ACT 110 kW (150 PS) Start-StopPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
110 (150)/5,000-6,000250/1,500-3,5004/1,395Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
Outputs and weightsIBIZAIBIZA SC
Top speed (km/h)220220
Acceleration from 0-80 km/h (seconds)5.35.3
Acceleration from 0-100 km/h (seconds)7.67.6
Maximum authorised weight (kg)1,6301,630
Weight in running order (with driver) (kg)1,1431,143
Maximum authorised weight on front axle (kg)890890
Maximum authorised weight on rear axle (kg)790790
Permitted roof load (kg)7575
Maximum trailer weight without brakes (kg)570570
Weight of trailer with brakes, gradients up to 8% (kg)1,2001,200
Weight of trailer with brakes, gradients up to 12% (kg)1,2001,200 226

Technical specifications
Petrol engine 1.8 TSI 141 kW (192 PS) Start-StopPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
141 (192)/4,300-6,200320/1,450-4,2004/1,798Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
Outputs and weightsIBIZA SC
Top speed (km/h)235
Acceleration from 0-80 km/h (seconds)5.1
Acceleration from 0-100 km/h (seconds)6.7
Maximum authorised weight (kg)1,700
Weight in running order (with driver) (kg)1,260
Maximum authorised weight on front axle (kg)950
Maximum authorised weight on rear axle (kg)800
Permitted roof load (kg)75
Maximum trailer weight without brakes (kg)–
Weight of trailer with brakes, gradients up to 8% (kg)–
Weight of trailer with brakes, gradients up to 12% (kg)– 227
Technical data
Advice
Operation
Emergencies
Safety

Technical data

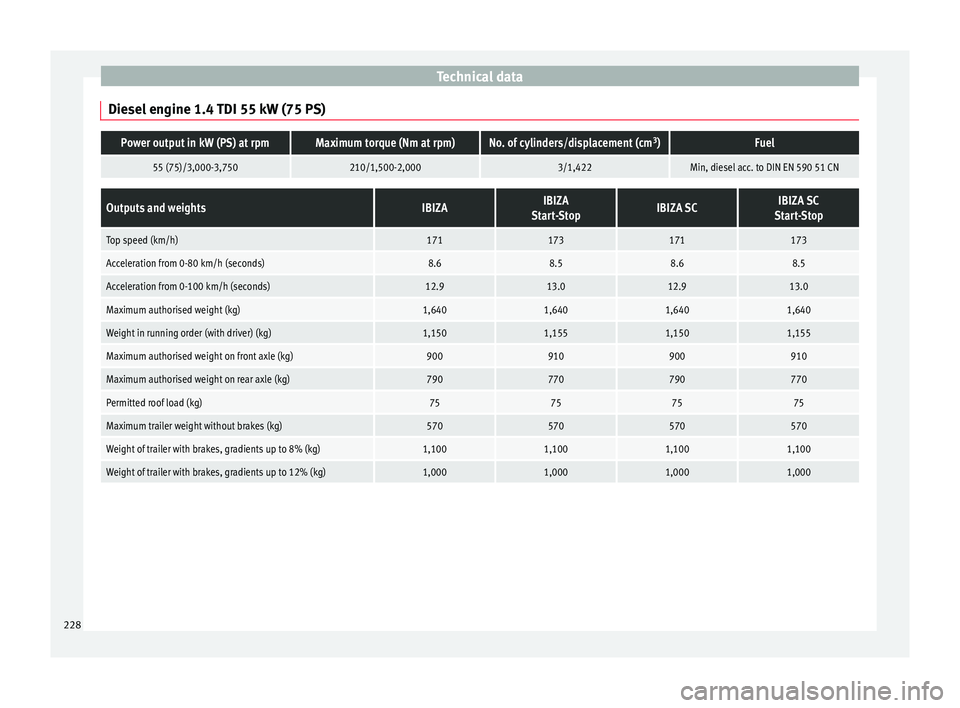

Diesel engine 1.4 TDI 55 kW (75 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
55 (75)/3,000-3,750210/1,500-2,0003/1,422Min, diesel acc. to DIN EN 590 51 CN
Outputs and weightsIBIZAIBIZA
Start-StopIBIZA SCIBIZA SC
Start-Stop
Top speed (km/h)171173171173
Acceleration from 0-80 km/h (seconds)8.68.58.68.5
Acceleration from 0-100 km/h (seconds)12.913.012.913.0
Maximum authorised weight (kg)1,6401,6401,6401,640
Weight in running order (with driver) (kg)1,1501,1551,1501,155
Maximum authorised weight on front axle (kg)900910900910
Maximum authorised weight on rear axle (kg)790770790770
Permitted roof load (kg)75757575
Maximum trailer weight without brakes (kg)570570570570
Weight of trailer with brakes, gradients up to 8% (kg)1,1001,1001,1001,100
Weight of trailer with brakes, gradients up to 12% (kg)1,0001,0001,0001,000 228
