Driving and the environment167
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Economical and environmentally friendly
drivingEconomical and environmentally friendly drivingFuel consumption, environmental pollution and wear to the engine, brakes
and tyres depend mostly on your driving style. By adopting an economical
driving style and anticipating the traffic situation ahead, you can easily
reduce fuel consumption by 10-15%. Some tips on how to help you reduce
pollution while saving money are listed below.
Drive anticipating the traffic situation
A vehicle uses most fuel when accelerating. When you anticipate the situa-
tion, you have to brake less often and, thus, accelerate less. If it is possible,
let the vehicle roll with a gear engaged , for example, if you see a red light
ahead. The braking effect achieved in this way helps to reduce the wear of
brakes and tyres; emissions and fuel consumption are reduced to zero
(disconnection due to inertia).
Change gear early to save energy
An effective way of saving fuel is to change up quickly through the gears.
Running the engine at high rpm in the lower gears uses an unnecessary
amount of fuel.
Manual gearbox: Change from first to second gear as quickly as possible. We
recommend that, whenever possible, you change to a higher gear upon
reaching 2000 rpm. Follow the recommended gear indication that appears on
the instrument panel ⇒page 53.
Avoid driving at high speed
We advise you not to drive at the top speed permitted by the vehicle. Fuel
consumption, exhaust emissions and noise levels all increase very rapidly at
higher speeds. Driving at moderate speeds will help to save fuel. Avoid idling
It is worthwhile switching off the engine when waiting in a traffic jam, at level
crossings or at traffic lights with a long red phase. The fuel saved after only
30 - 40 seconds is greater than the amount of fuel needed to restart the
engine.
The engine takes a long time to warm up when it is idling. Mechanical wear
and pollutant emissions are also especially high during this initial warm-up
phase. It is therefore best to drive off immediately after starting the engine.
Avoid running the engine at high speed.
Periodic maintenance
Periodic maintenance work guarantees that, before beginning a journey, you
will not consume more than the required amount of fuel. A well-serviced
engine gives you the benefit of improved fuel efficiency
as well as maximum
reliability and an enhanced resale value.
A badly serviced engine can consume up to 10% more fuel than necessary.
Avoid short journeys
To reduce the consumption and emission of polluting gases, the engine and
the exhaust filtration systems should reach the optimum service tempera-
ture .
With the engine cold, fuel consumption is proportionally higher. The engine
does not warm up and fuel consumption does not normalise until having
driven approximately four kilometres. This is why we recommend avoiding
short trips whenever possible.
Maintain the correct tyre pressures
Bear in mind that keeping the tyres at an adequate pressure saves fuel. If the
tyre pressure is just one bar too low, fuel consumption can increase by as
much as 5%. Due to the greater rolling resistance, under-inflation also
increases tyre wear and impairs handling.
The tyre pressures should always be checked when the tyres are cold.
IbizaST_EN.book Seite 167 Dienstag, 14. September 2010 1:31 13

Checking and refilling levels

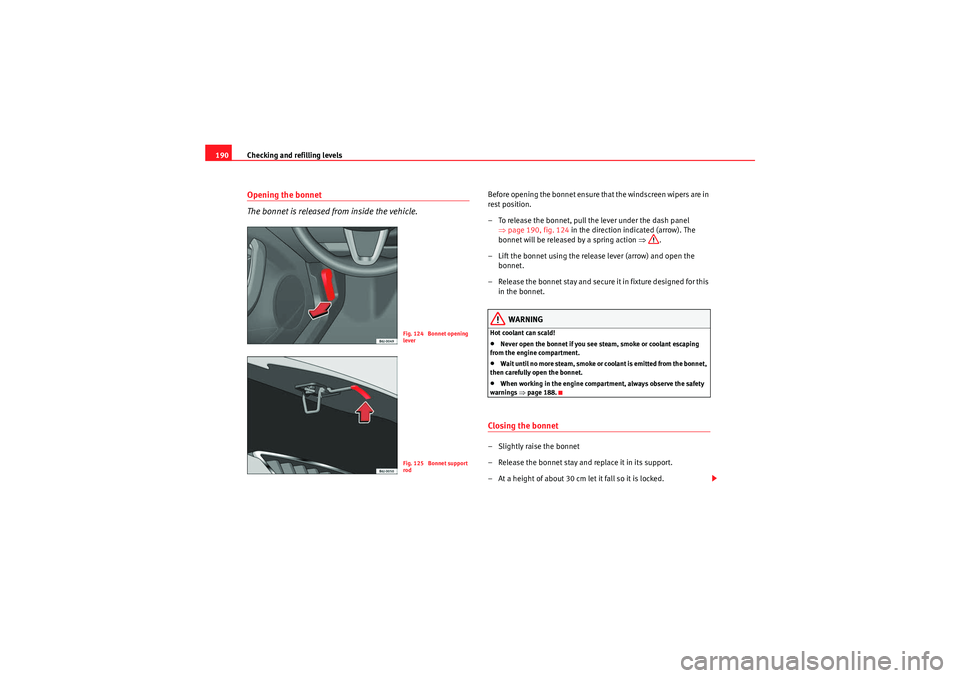

190Opening the bonnet
The bonnet is released from inside the vehicle.
Before opening the bonnet ensure that the windscreen wipers are in
rest position.
– To release the bonnet, pull the lever under the dash panel
⇒page 190, fig. 124 in the direction indicated (arrow). The
bonnet will be released by a spring action ⇒.
– Lift the bonnet using the release lever (arrow) and open the bonnet.
– Release the bonnet stay and secure it in fixture designed for this
in the bonnet.
WARNING
Hot coolant can scald!•Never open the bonnet if you see steam, smoke or coolant escaping
from the engine compartment.•Wait until no more steam, smoke or coolant is emitted from the bonnet,
then carefully open the bonnet.•When working in the engine compartment, always observe the safety
warnings ⇒page 188.
Closing the bonnet– Slightly raise the bonnet
– Release the bonnet stay and replace it in its support.
– At a height of about 30 cm let it fall so it is locked.
Fig. 124 Bonnet opening
leverFig. 125 Bonnet support
rod
IbizaST_EN.book Seite 190 Dienstag, 14. September 2010 1:31 13

Checking and refilling levels197
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Caution
•If you notice a change in the colour of the liquid because it has been in
use for a long time, it is recommended to change it, as it will have lost some
of its properties and could cause damage to the vehicle.•If a lot of coolant fluid has been lost, wait for the engine to cool down
before putting in cold coolant. This avoids damaging the engine. Large
coolant losses are an indication of leaks in the cooling system. See a special-
ised workshop immediately and have the cooling system checked. Other-
wise, there is a risk of engine damage.Washer fluid and windscreen wiper bladesTopping up washer fluid
Y
The water for cleaning the windscreen should always be
mixed with washer fluid.
The windscreen washer and the headlight washers are supplied with fluid
from the windscreen washer fluid container in the engine compartment. The
container holds approx. 2 litres; in vehicles with headlight washers* it holds
approx. 4.5 litres.
The reservoir is located on the right-hand side of the engine compartment.
Plain water is not enough to clean the windscreen and headlights. We recom-
mend that you always add a product to the windscreen washer fluid.
Approved windscreen cleaning products exist on the market with high deter-
gent and anti-freeze properties, these may be added all-year-round. Please
follow the dilution instructions on the packaging.
WARNING
Any work carried out in the engine compartment or on the engine must be
carried out cautiously.•When working in the engine compartment, always observe the safety
warnings ⇒page 188.Caution
•Never put radiator anti-freeze or other additives into the windscreen
washer fluid.•Always use approved windscreen cleansing products diluted as per
instructions. If you use other washer fluids or soap solutions, the tiny holes
in the fan-shaped nozzles could become blocked.
Fig. 129 In the engine
compartment: Cap of
windscreen washer fluid
reservoir.
IbizaST_EN.book Seite 197 Dienstag, 14. September 2010 1:31 13

Checking and refilling levels
200Brake fluidChecking the brake fluid level
The brake fluid is checked at the intervals given in the service
schedule.– Read off the fluid level at the transparent brake fluid reservoir. It
should always be between the “MIN” and “MAX” marks.The position of the brake fluid reservoir is shown in the corresponding engine
compartment illustration ⇒page 241. The brake fluid reservoir has a black
and yellow cap.
The brake fluid level drops slightly when the vehicle is being used as the
brake pads are automatically adjusted as they wear. However, if the level goes down noticeably in a short time, or drops below the
“MIN” mark, there may be a leak in the brake system. A display on the instru-
ment panel will warn you if the brake fluid level is too low
⇒page 58.
WARNING
Before opening the bonnet to check the brake fluid level, read and observe
the warnings ⇒page 188.Changing the brake fluid
The Maintenance Programme indicates the brake fluid
change intervals.We recommend that you have the brake fluid changed by an Authorised
Service Centre.
Before opening the bonnet, please read and follow the warnings ⇒ in
“Safety instructions on working in the engine compartment” on page 188 in
section “Safety notes for working in the engine compartment”.
Brake fluid absorbs moisture. In the course of time, it will absorb water from
the ambient air. If the water content in the brake fluid is too high, the brake
system could corrode. This also considerably reduces the boiling point of the
brake fluid. Heavy use of the brakes may then cause a vapour lock which
could impair the braking effect.
It is important that you use only brake fluid compliant with US standard
FMVSS 116 DOT 4. We recommend the use of Genuine SEAT brake fluid.
WARNING
Brake fluid is poisonous. Old brake fluid impairs the braking effect.
Fig. 132 In the engine
compartment: Brake fluid
reservoir cover
IbizaST_EN.book Seite 200 Dienstag, 14. September 2010 1:31 13

Checking and refilling levels
202charge. Never short the battery terminals. High-energy sparks can cause
injury.•A highly explosive mixture of gases is released when the battery is
under charge. The batteries should be charged in a well-ventilated room
only.•Keep children away from acid and batteries.•Before working on the electrical system, you must switch off the
engine, the ignition and all consumers. The negative cable on the battery
must be disconnected. When a light bulb is changed, you need only switch
off the light.•Deactivate the anti-theft alarm by unlocking the vehicle before you
disconnect the battery! The alarm will otherwise be triggered.•When disconnecting the battery from the vehicle electrical system,
disconnect first the negative cable and then the positive cable.•Switch off all electrical consumers before reconnecting the battery.
Reconnect first the positive cable and then the negative cable. Never
reverse the polarity of the connections. This could cause an electrical fire.•Never charge a frozen battery, or one which has thawed. This could
result in explosions and chemical burns. Always replace a battery which
has frozen. A flat battery can freeze at temperatures around 0 °C.•Ensure that the vent hose is always connected to the battery.•Never use a defective battery. This could cause an explosion. Replace a
damaged battery immediately.•For vehicles with the battery in the luggage compartment: Check that
the battery gas ventilation hose is securely attached.Caution
•Never disconnect the battery if the ignition is switched on or if the engine
is running. This could damage the electrical system or electronic compo-
nents.
•Do not expose the battery to direct sunlight over a long period of time, as
the intense ultraviolet radiation can damage the battery housing.•If the vehicle is left standing in cold conditions for a long period, protect
the battery from freezing. If it freezes it will be damaged.Checking the electrolyte level
The electrolyte level should be checked regularly in high-
mileage vehicles, in hot countries and in older batteries.– Open the engine bonnet and the battery cover ⇒ in “Safety
instructions on working in the engine compartment” on
page 188 ⇒ in “Warnings on handling the battery” on
page 201.
– Check the colour display in the "magic eye" on the top of the battery.
– If there are air bubbles in the window, tap the window gently until they disperse.The position of the battery is shown in the corresponding engine compart-
ment diagram ⇒page 241.
The “magic eye” indicator, located on the top of the battery changes colour,
depending on the charge state and electrolyte level of the battery.
There are two different colours:•Black: correct charge status.•Transparent/clear yellow: the battery must be replaced. Contact a special-
ised workshop.
WARNING (continued)
IbizaST_EN.book Seite 202 Dienstag, 14. September 2010 1:31 13

If and when211
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Snow chains
For technical reasons, snow chains must
not be used on the compact tempo-
rary spare wheel.
If you have a puncture on one of the front wheels when using snow chains, fit
the compact temporary spare in place of one of the rear wheels. You can then
attach the snow chains to the wheel taken from the rear and use this wheel to
replace the punctured front wheel.
WARNING
•The tyre pressures must be checked and corrected as soon as possible.•Do not drive faster than 80 km/h. Higher speeds can cause an accident.•Avoid heavy acceleration, hard braking and fast cornering. Risk of acci-
dent.•Never use two or more compact spare tyres at the same time, risk of
accident.•No other type of tyre (normal summer or winter tyre) may be fitted on
the compact temporary spare wheel rim.
Tyre repair kit*
The tyre repair kit (for vehicles not including a spare wheel) is
stored under the floor panel in the luggage compartment.Your vehicle is equipped with the Tyre Mobility System “Tyre repair kit”.
The tyre repair kit consists of a container with sealing compound to repair the
puncture and a compressor to generate the required tyre pressure. The kit will
reliably seal punctures up to a size of about 4 mm caused by the penetration
of a foreign body into the tyre.
Note
•Seek professional assistance if the repair of a tyre puncture is not
possible with the sealing compound.Changing a wheelPreparation work
What you must do before changing a wheel.– If you have a flat tyre or puncture, park the vehicle as far away from the flow of traffic as possible. Choose a location that is as
level as possible.
– All passengers should leave the vehicle. They should wait in a safe area (for instance behind the roadside crash barrier).
– Switch the engine off. Switch the hazard warning lights on and place the warning triangles in position.
–Apply the handbrake firmly.
– Engage the first gear, or put the selector lever to position P for
those vehicles with an automatic gearbox.
– If you are towing a trailer, unhitch it from your vehicle.
– Take the vehicle tools and the spare wheel out of the luggage
compartment.
IbizaST_EN.book Seite 211 Dienstag, 14. September 2010 1:31 13

If and when219
Safety First
Operating Instructions
Practical Tips
Technical Specifications
The individual electrical circuits are protected by fuses. The fuses are located
behind a cover at the left-hand end of the dash panel. When the steering
wheel is on the right, the fuses are on the right-hand side of the dash panel,
behind a cover.
The electric windows are protected by
circuit breakers. These reset automat-
ically after a few seconds when the overload (caused for example by frozen
windows) has been corrected.
Fuses colour code
WARNING
Never “repair” damaged fuses and never replace them with fuses with a
higher rating. Failure to comply could result in fire. This could also cause
damage to other parts of the electrical system.
Note
•If a newly replaced fuse blows again after a short time, the electrical
system must be checked by a specialised workshop as soon as possible.•If you replace a fuse with higher-rating fuse, you could cause damage to
another location in the electrical system.
•Always keep some spare fuses in the vehicle. These are available from
SEAT dealers.Fuses on left side of dash panelFuses
Colour
Amps
Beige
5
Brown
7.5
Red
10
Blue
15
Ye l l o w
20
Natural (white)
25
Green
30
Number
Consumer
Amps
1
Power steering/Engine operation
7.5
2
Diagnostics/Heater/Autoclimate/Cli-
matronic/Electric anti-dazzle mirror/Naviga-
tor/Air conditioning pressure switch/ Climate
fan/ Kisi/ AFS Control unit/Coming home
relay/Soundaktor
10
3
Petrol engine control unit/Flow meter/Diesel
engine control unit/Relay coils/Engine opera-
tion/Bi-turbo fuel control unit
5
4
ABS/ESP switch (turning sensor)/Light lever
10
5
Reverse light/Heating nozzles
10
6
Instrument panel
5
7
Rear fog light
7.5
8
Va can t
9
Headlight lever
10
10
Headlight lever/Clutch (Petrol)/Brakes (all)
5
11
Airbag control unit
5
12
Automatic gearbox/ Headlight lever
10
13
Exterior mirror control
5
IbizaST_EN.book Seite 219 Dienstag, 14. September 2010 1:31 13

Index
254Selective unlocking system* . . . . . . . . . . . . 75
Unlocking system* . . . . . . . . . . . . . . . . . . . . 76
Central locking button Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Cetane number . . . . . . . . . . . . . . . . . . . . . . . . . 187
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . 211
Changing bulbs interior light and front reading lights . . . . 230
Changing double headlight bulbs . . . . . . . . . . 223 dipped beam . . . . . . . . . . . . . . . . . . . . . . . . 224
main beam and side lights . . . . . . . . . . . . . 223
turn signal . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Changing gear See Manual gearbox . . . . . . . . . . . . . . . . . . 142
Changing gear in tiptronic mode . . . . . . . . . . . 147
Changing rear lights on the tailgate . . . . . . . . . . . . . . . . . . . . . . . 228
on the wing . . . . . . . . . . . . . . . . . . . . . . . . . 227
Changing single headlight bulbs . . . . . . . . . . . 225 turn signal . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Changing the bulbs Luggage compartment light . . . . . . . . . . . . 231
Number plate light . . . . . . . . . . . . . . . . . . . 230
Side turn signals . . . . . . . . . . . . . . . . . . . . . 229
Changing the single headlight bulbs dipped/main beam . . . . . . . . . . . . . . . . . . . 226
Side lights . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Changing windscreen wiper blades . . . . . . . . . 198
Chassis number . . . . . . . . . . . . . . . . . . . . . . . . 238
Checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202 Checking battery electrolyte level . . . . . . . . . . 202
Checking engine oil level . . . . . . . . . . . . . . . . . 192
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Categorisation in groups . . . . . . . . . . . . . . . 41
Group 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Group 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Group 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Groups 0 and 0+ . . . . . . . . . . . . . . . . . . . . . . 41
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . 44
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Child seats on the front passenger seat . . . . . . . . . . . . . 28
Top Tether system . . . . . . . . . . . . . . . . . . . . . 45
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . 116
Cleaning alloy wheels . . . . . . . . . . . . . . . . . . . . 177
Cleaning chrome . . . . . . . . . . . . . . . . . . . . . . . . 176
Cleaning engine compartment . . . . . . . . . . . . . 178
Cleaning steel wheel rims . . . . . . . . . . . . . . . . 177
Cleaning windows . . . . . . . . . . . . . . . . . . . . . . . 175
Climatronic automatic mode . . . . . . . . . . . . . . . . . . . . . 132
controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
General notes . . . . . . . . . . . . . . . . . . . . . . . 134
manual mode . . . . . . . . . . . . . . . . . . . . . . . 133
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Cloth seat covers cleaning . . . . . . . . . . . . . . . . 179
Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Coming home function . . . . . . . . . . . . . . . . . . . . 94
Compartment for on-board documentation . . 112 Control
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . 104
Control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Control lighting . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Controls Electric windows . . . . . . . . . . . . . . . . . . . . . . 86
Convenience closing Sliding/tilting sunroof . . . . . . . . . . . . . . . . . 90
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Convenience opening Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . 195, 196
Coolant level . . . . . . . . . . . . . . . . . . . . . . . . . . . 196 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 67
Coolant loss . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Coolant temperature Safety instructions . . . . . . . . . . . . . . . . . . . . 68
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 67
Correct adjustment of front head restraints . . . 12
Correct sitting position Front passenger . . . . . . . . . . . . . . . . . . . . . . 11
Incorrect sitting position . . . . . . . . . . . . . . . 13
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Cruise control system . . . . . . . . . . . . . . . . . . . . 154 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 65
DDanger of fitting a child seat on the front passenger seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
IbizaST_EN.book Seite 254 Dienstag, 14. September 2010 1:31 13

Index255
Dash panel cleaning . . . . . . . . . . . . . . . . . . . . . 179
Daytime running lights . . . . . . . . . . . . . . . . . . . . 93
Deactivating front passenger airbag
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Deactivating the airbag Front passenger airbag . . . . . . . . . . . . . . . . . 37
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Diesel engine Winter driving . . . . . . . . . . . . . . . . . . . . . . . . 187
Diesel engine particulate filter . . . . . . . . . . . . . 166
Differential lock . . . . . . . . . . . . . . . . . . . . . . . . . 162
Differential lock fault (EDL) Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 64
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Dipped beam headlights . . . . . . . . . . . . . . . . . . 91
Disposal Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Seat belt tensioners . . . . . . . . . . . . . . . . . . . 26
Door lock cylinders . . . . . . . . . . . . . . . . . . . . . . 176
Door release lever . . . . . . . . . . . . . . . . . . . . . . . . 49
Doors Childproof locks . . . . . . . . . . . . . . . . . . . . . . . 78
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 66
Drive wheels traction control system . . . . . . . . 160
Driver See Correct sitting position . . . . . . . . . . . . . . . 9
Driveshaft differential XDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161 Driving
Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 169
Economically / Environmentally friendly . . 167
With a trailer . . . . . . . . . . . . . . . . . . . . 169, 170
Driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . . 169 Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Driving safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Duplicate keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Dust filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Dynamic headlight range control . . . . . . . . . . . . 93
EEconomical driving . . . . . . . . . . . . . . . . . . . . . . 167
EDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 63
Electro-hydraulic steering Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 67
Electronic differential lock . . . . . . . . . . . . . . . . 162 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 63
Electronic immobiliser . . . . . . . . . . . . . . . . . . . . 137
Electronic Stability Programme . . . . . . . . . 64, 161 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Electronic Stability Programme (ESP) Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 64
Emission control system Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 67
Engine Running in . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Engine compartment Working in the engine compartment . . . . . 188 Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Engine fault
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 62
Engine management Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 62
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Checking engine oil level . . . . . . . . . . . . . . 192
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . 192
Specifications . . . . . . . . . . . . . . . . . . . . . . . 191
Topping up . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Engine oil dipstick . . . . . . . . . . . . . . . . . . . . . . . 192
Engine oil pressure Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 62
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167 Environmental friendliness . . . . . . . . . . . . . 168
Environmental tip Avoiding pollution . . . . . . . . . . . . . . . . . . . . 186
Environmentally friendly driving . . . . . . . . . . . . 167
ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64, 161 See also Electronic Stability Programme . . 136
Exhaust gas purification system . . . . . . . . . . . 165
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 175
External aerial . . . . . . . . . . . . . . . . . . . . . . . . . . 182
FFabric trim cleaning . . . . . . . . . . . . . . . . . . . . . . 179
Fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fire extinguisher . . . . . . . . . . . . . . . . . . . . . . . . 119
First-aid kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
IbizaST_EN.book Seite 255 Dienstag, 14. September 2010 1:31 13
