Page 261 of 282

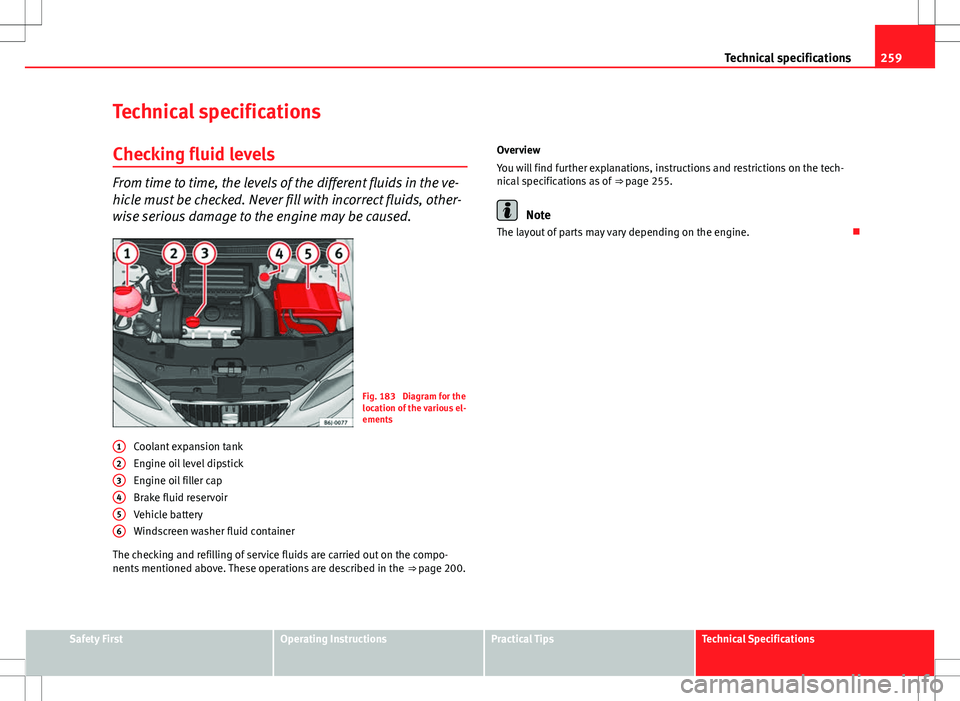

259
Technical specifications
Technical specifications
Checking fluid levels
From time to time, the levels of the different fluids in the ve-
hicle must be checked. Never fill with incorrect fluids, other-
wise serious damage to the engine may be caused.
Fig. 183 Diagram for the
location of the various el-
ements
Coolant expansion tank
Engine oil level dipstick
Engine oil filler cap
Brake fluid reservoir
Vehicle battery
Windscreen washer fluid container
The checking and refilling of service fluids are carried out on the compo-
nents mentioned above. These operations are described in the ⇒ page 200.
1
23456
Overview
You will find further explanations, instructions and restrictions on the tech-
nical specifications as of
⇒ page 255.
Note
The layout of parts may vary depending on the engine.
Safety FirstOperating InstructionsPractical TipsTechnical Specifications
Page 262 of 282

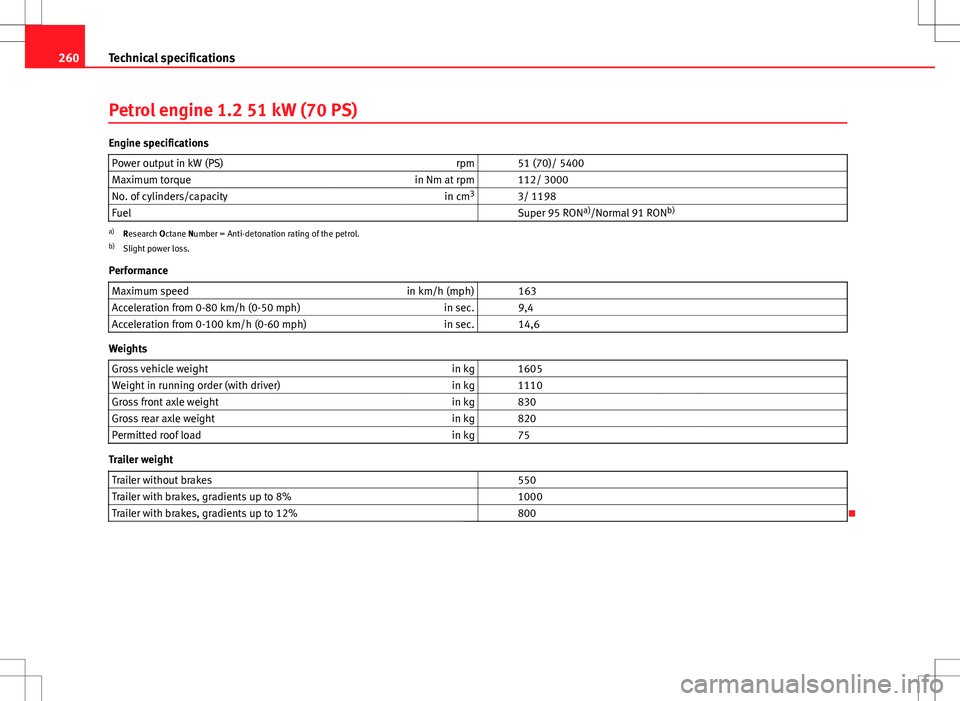

260Technical specifications
Petrol engine 1.2 51 kW (70 PS)
Engine specifications
Power output in kW (PS) rpm 51 (70)/ 5400
Maximum torque in Nm at rpm 112/ 3000
No. of cylinders/capacity in cm3
3/ 1198
Fuel Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
Performance Maximum speed in km/h (mph) 163
Acceleration from 0-80 km/h (0-50 mph) in sec. 9,4
Acceleration from 0-100 km/h (0-60 mph) in sec. 14,6
Weights
Gross vehicle weight in kg 1605
Weight in running order (with driver) in kg 1110
Gross front axle weight in kg 830
Gross rear axle weight in kg 820
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 550
Trailer with brakes, gradients up to 8% 1000
Trailer with brakes, gradients up to 12% 800
Page 263 of 282

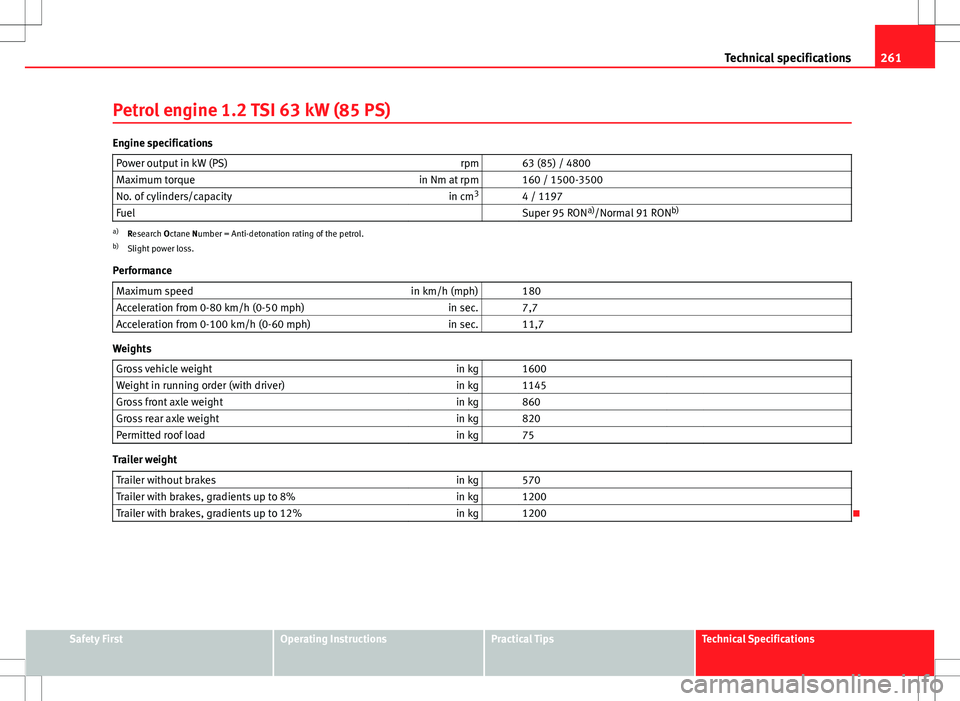

261
Technical specifications
Petrol engine 1.2 TSI 63 kW (85 PS)
Engine specifications Power output in kW (PS) rpm 63 (85) / 4800
Maximum torque in Nm at rpm 160 / 1500-3500
No. of cylinders/capacity in cm3
4 / 1197
Fuel Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
Performance Maximum speed in km/h (mph) 180
Acceleration from 0-80 km/h (0-50 mph) in sec. 7,7
Acceleration from 0-100 km/h (0-60 mph) in sec. 11,7
Weights
Gross vehicle weight in kg 1600
Weight in running order (with driver) in kg 1145
Gross front axle weight in kg 860
Gross rear axle weight in kg 820
Permitted roof load in kg 75
Trailer weight
Trailer without brakes in kg 570
Trailer with brakes, gradients up to 8% in kg 1200
Trailer with brakes, gradients up to 12% in kg 1200
Safety FirstOperating InstructionsPractical TipsTechnical Specifications
Page 264 of 282

262Technical specifications
Petrol engine 1.4 63 kW (85 PS)
Engine specifications
Power output in kW (PS) rpm 63 (85)/ 5000
Maximum torque in Nm at rpm 132/ 3800
No. of cylinders/capacity in cm3
4/ 1390
Fuel Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
Performance Maximum speed in km/h (mph) 177
Acceleration from 0-80 km/h (0-50 mph) in sec. 8
Acceleration from 0-100 km/h (0-60 mph) in sec. 12,4
Weights
Gross vehicle weight in kg 1605
Weight in running order (with driver) in kg 1130
Gross front axle weight in kg 840
Gross rear axle weight in kg 820
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 560
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1000
Page 265 of 282

263
Technical specifications

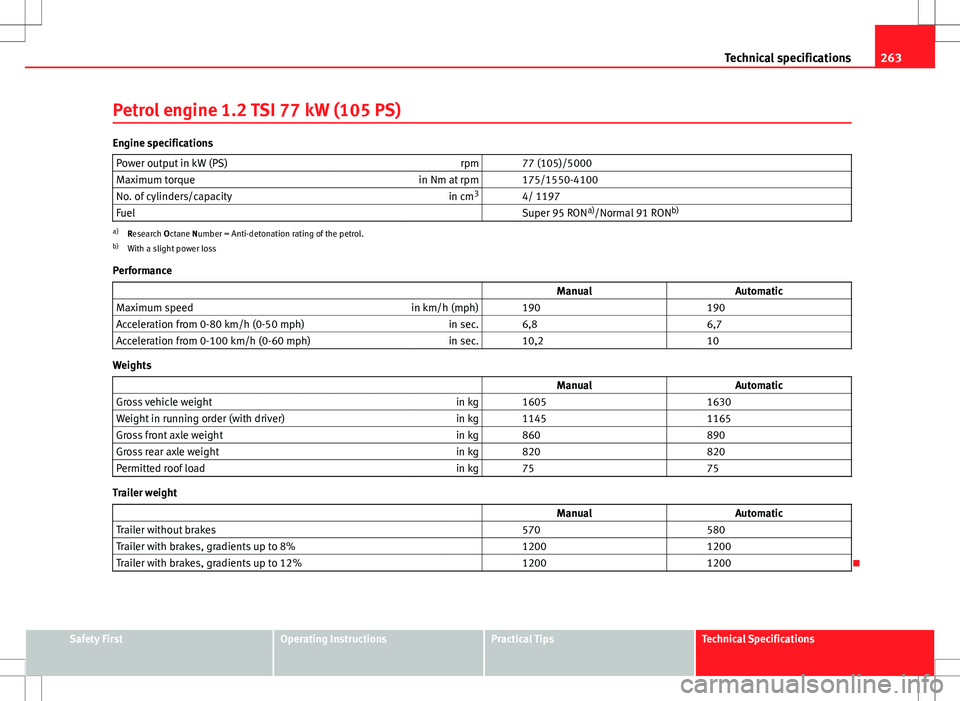

Petrol engine 1.2 TSI 77 kW (105 PS)
Engine specifications Power output in kW (PS) rpm 77 (105)/5000
Maximum torque in Nm at rpm 175/1550-4100
No. of cylinders/capacity in cm3
4/ 1197
Fuel Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) With a slight power loss
Performance ManualAutomatic
Maximum speed in km/h (mph) 190 190
Acceleration from 0-80 km/h (0-50 mph) in sec. 6,8 6,7
Acceleration from 0-100 km/h (0-60 mph) in sec. 10,2 10
Weights
Manual Automatic
Gross vehicle weight in kg 1605 1630
Weight in running order (with driver) in kg 1145 1165
Gross front axle weight in kg 860 890
Gross rear axle weight in kg 820 820
Permitted roof load in kg 75 75
Trailer weight
ManualAutomatic
Trailer without brakes 570 580
Trailer with brakes, gradients up to 8% 1200 1200
Trailer with brakes, gradients up to 12% 1200 1200
Safety FirstOperating InstructionsPractical TipsTechnical Specifications
Page 266 of 282

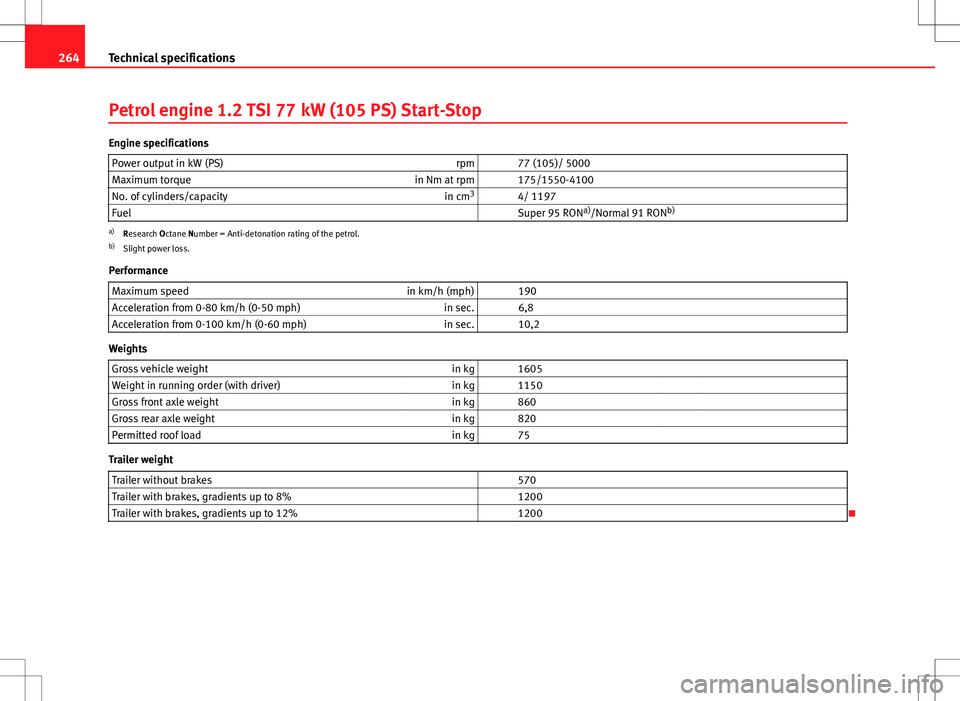

264Technical specifications
Petrol engine 1.2 TSI 77 kW (105 PS) Start-Stop
Engine specifications
Power output in kW (PS) rpm 77 (105)/ 5000
Maximum torque in Nm at rpm 175/1550-4100
No. of cylinders/capacity in cm3
4/ 1197
Fuel Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
Performance Maximum speed in km/h (mph) 190
Acceleration from 0-80 km/h (0-50 mph) in sec. 6,8
Acceleration from 0-100 km/h (0-60 mph) in sec. 10,2
Weights
Gross vehicle weight in kg 1605
Weight in running order (with driver) in kg 1150
Gross front axle weight in kg 860
Gross rear axle weight in kg 820
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 570
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1200
Page 267 of 282

265

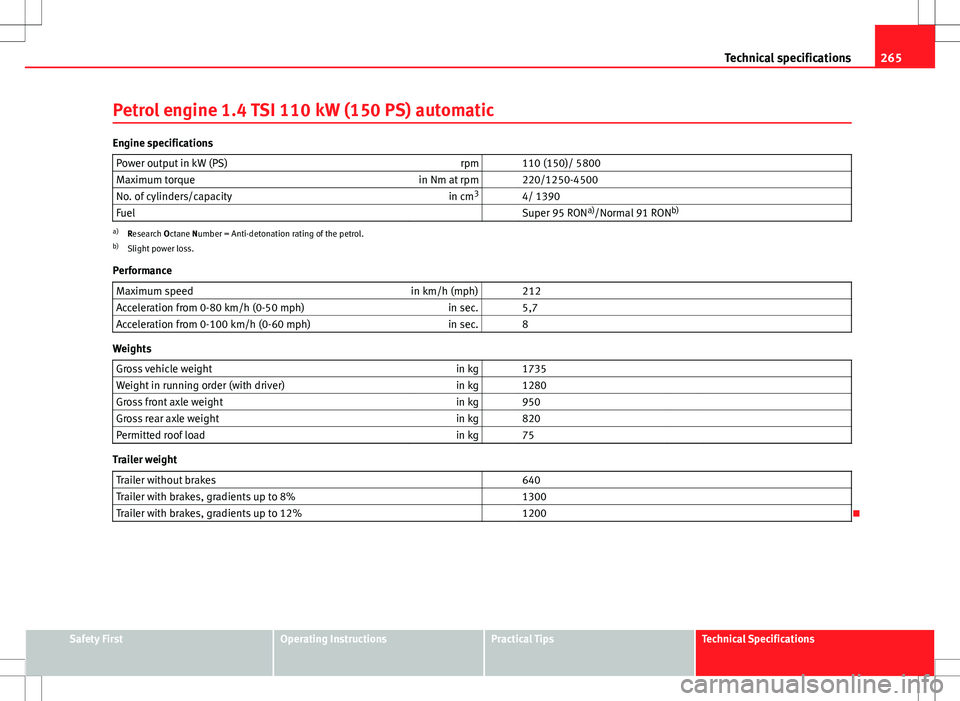

Technical specifications
Petrol engine 1.4 TSI 110 kW (150 PS) automatic
Engine specifications Power output in kW (PS) rpm 110 (150)/ 5800
Maximum torque in Nm at rpm 220/1250-4500
No. of cylinders/capacity in cm3
4/ 1390
Fuel Super 95 RON a)
/Normal 91 RON b)
a)
Research Octane Number = Anti-detonation rating of the petrol.
b) Slight power loss.
Performance Maximum speed in km/h (mph) 212
Acceleration from 0-80 km/h (0-50 mph) in sec. 5,7
Acceleration from 0-100 km/h (0-60 mph) in sec. 8
Weights
Gross vehicle weight in kg 1735
Weight in running order (with driver) in kg 1280
Gross front axle weight in kg 950
Gross rear axle weight in kg 820
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 640
Trailer with brakes, gradients up to 8% 1300
Trailer with brakes, gradients up to 12% 1200
Safety FirstOperating InstructionsPractical TipsTechnical Specifications
Page 268 of 282

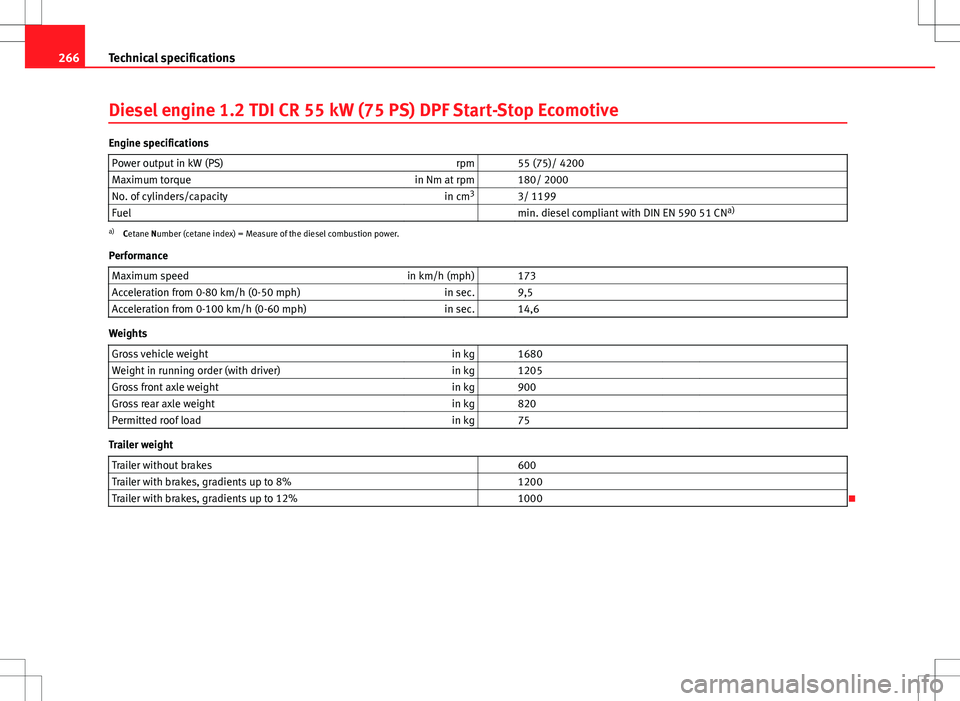

266Technical specifications
Diesel engine 1.2 TDI CR 55 kW (75 PS) DPF Start-Stop Ecomotive
Engine specifications
Power output in kW (PS) rpm 55 (75)/ 4200
Maximum torque in Nm at rpm 180/ 2000
No. of cylinders/capacity in cm3
3/ 1199
Fuel min. diesel compliant with DIN EN 590 51 CN a)
a)
Cetane Number (cetane index) = Measure of the diesel combustion power.
Performance Maximum speed in km/h (mph) 173
Acceleration from 0-80 km/h (0-50 mph) in sec. 9,5
Acceleration from 0-100 km/h (0-60 mph) in sec. 14,6
Weights
Gross vehicle weight in kg 1680
Weight in running order (with driver) in kg 1205
Gross front axle weight in kg 900
Gross rear axle weight in kg 820
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 600
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1000
Page 269 of 282

267

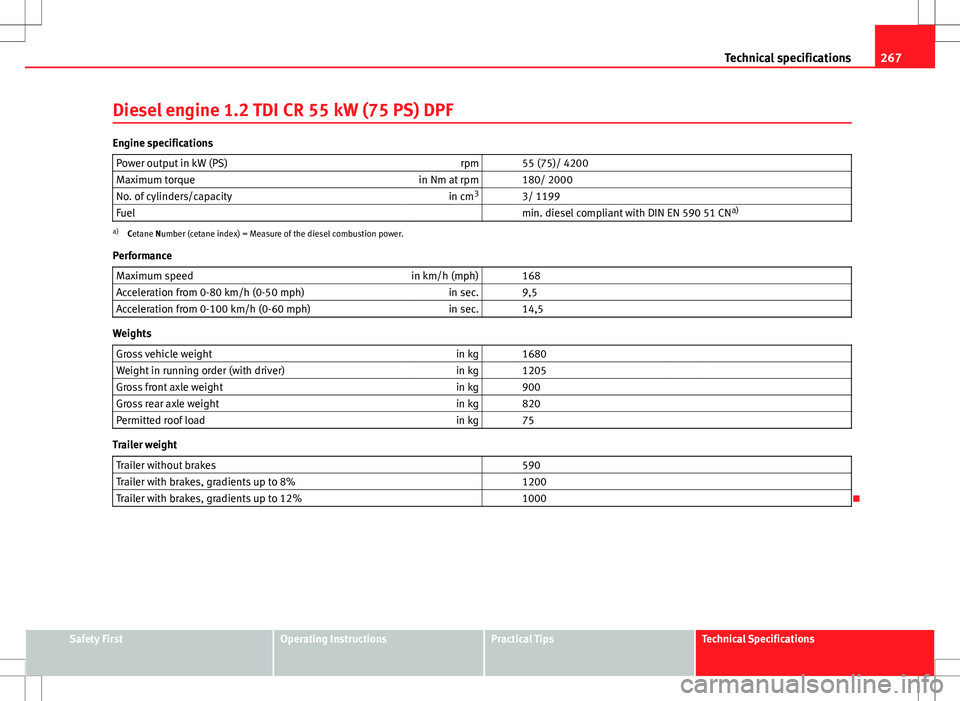

Technical specifications
Diesel engine 1.2 TDI CR 55 kW (75 PS) DPF
Engine specifications Power output in kW (PS) rpm 55 (75)/ 4200
Maximum torque in Nm at rpm 180/ 2000
No. of cylinders/capacity in cm3
3/ 1199
Fuel min. diesel compliant with DIN EN 590 51 CN a)
a)
Cetane Number (cetane index) = Measure of the diesel combustion power.
Performance Maximum speed in km/h (mph) 168
Acceleration from 0-80 km/h (0-50 mph) in sec. 9,5
Acceleration from 0-100 km/h (0-60 mph) in sec. 14,5
Weights
Gross vehicle weight in kg 1680
Weight in running order (with driver) in kg 1205
Gross front axle weight in kg 900
Gross rear axle weight in kg 820
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 590
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1000
Safety FirstOperating InstructionsPractical TipsTechnical Specifications
Page 270 of 282

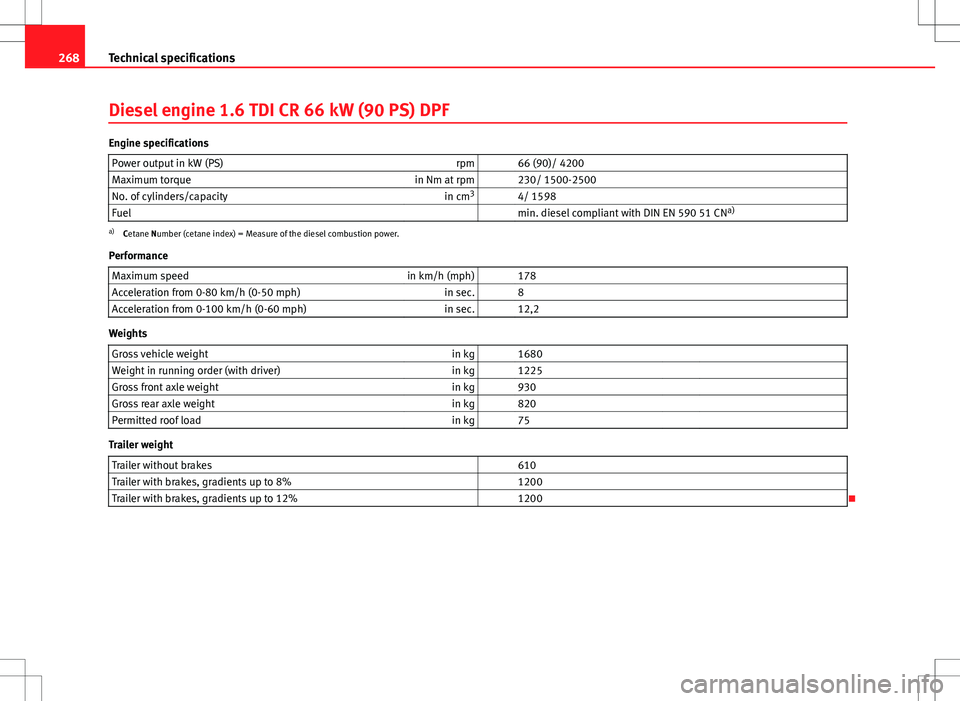

268Technical specifications
Diesel engine 1.6 TDI CR 66 kW (90 PS) DPF
Engine specifications
Power output in kW (PS) rpm 66 (90)/ 4200
Maximum torque in Nm at rpm 230/ 1500-2500
No. of cylinders/capacity in cm3
4/ 1598
Fuel min. diesel compliant with DIN EN 590 51 CN a)
a)
Cetane Number (cetane index) = Measure of the diesel combustion power.
Performance Maximum speed in km/h (mph) 178
Acceleration from 0-80 km/h (0-50 mph) in sec. 8
Acceleration from 0-100 km/h (0-60 mph) in sec. 12,2
Weights
Gross vehicle weight in kg 1680
Weight in running order (with driver) in kg 1225
Gross front axle weight in kg 930
Gross rear axle weight in kg 820
Permitted roof load in kg 75
Trailer weight
Trailer without brakes 610
Trailer with brakes, gradients up to 8% 1200
Trailer with brakes, gradients up to 12% 1200
