Technical specifications

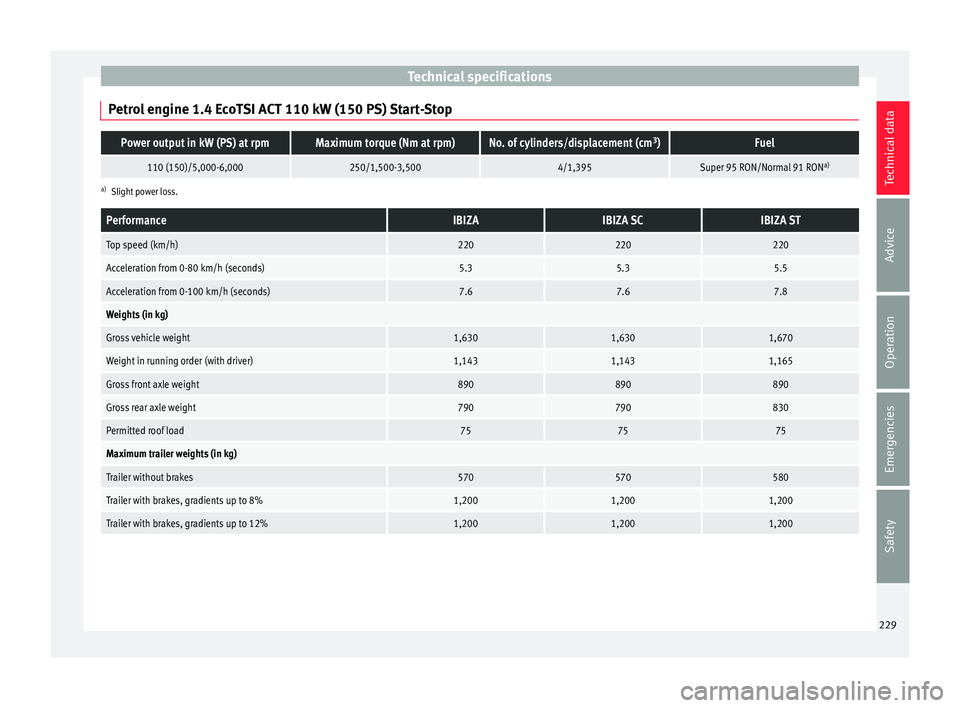

Petrol engine 1.4 EcoTSI ACT 110 kW (150 PS) Start-StopPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
110 (150)/5,000-6,000250/1,500-3,5004/1,395Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
PerformanceIBIZAIBIZA SCIBIZA ST
Top speed (km/h)220220220
Acceleration from 0-80 km/h (seconds)5.35.35.5
Acceleration from 0-100 km/h (seconds)7.67.67.8
Weights (in kg)
Gross vehicle weight1,6301,6301,670
Weight in running order (with driver)1,1431,1431,165
Gross front axle weight890890890
Gross rear axle weight790790830
Permitted roof load757575
Maximum trailer weights (in kg)
Trailer without brakes570570580
Trailer with brakes, gradients up to 8%1,2001,2001,200
Trailer with brakes, gradients up to 12%1,2001,2001,200 229
Technical data
Advice
Operation
Emergencies
Safety
Page 232 of 252

Technical data

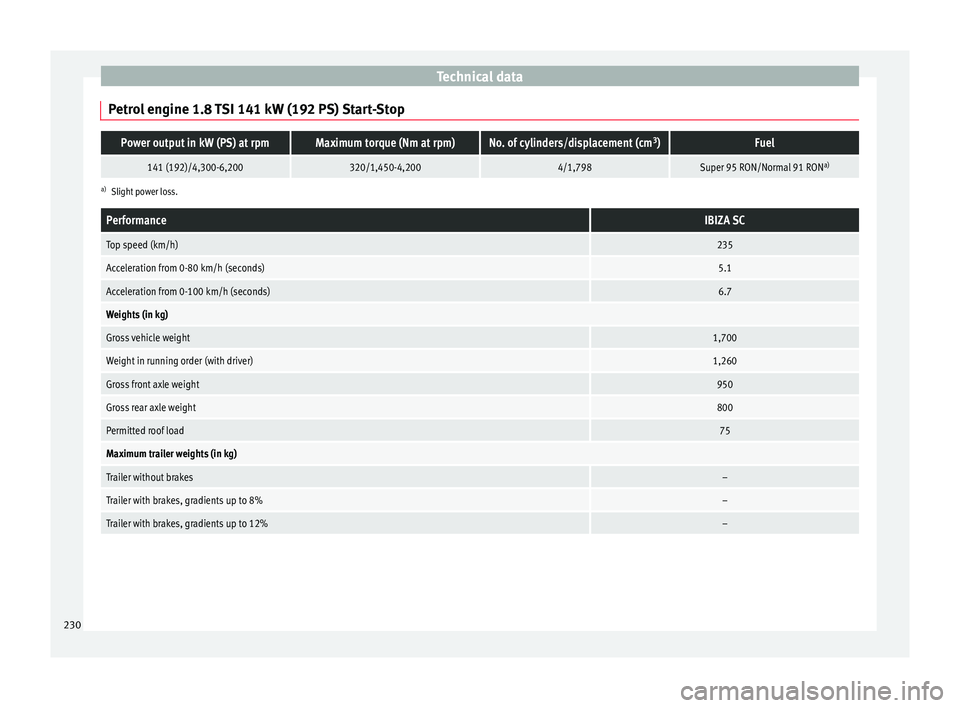

Petrol engine 1.8 TSI 141 kW (192 PS) Start-StopPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
141 (192)/4,300-6,200320/1,450-4,2004/1,798Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
PerformanceIBIZA SC
Top speed (km/h)235
Acceleration from 0-80 km/h (seconds)5.1
Acceleration from 0-100 km/h (seconds)6.7
Weights (in kg)
Gross vehicle weight1,700
Weight in running order (with driver)1,260
Gross front axle weight950
Gross rear axle weight800
Permitted roof load75
Maximum trailer weights (in kg)
Trailer without brakes–
Trailer with brakes, gradients up to 8%–
Trailer with brakes, gradients up to 12%– 230
Page 233 of 252

Technical specifications

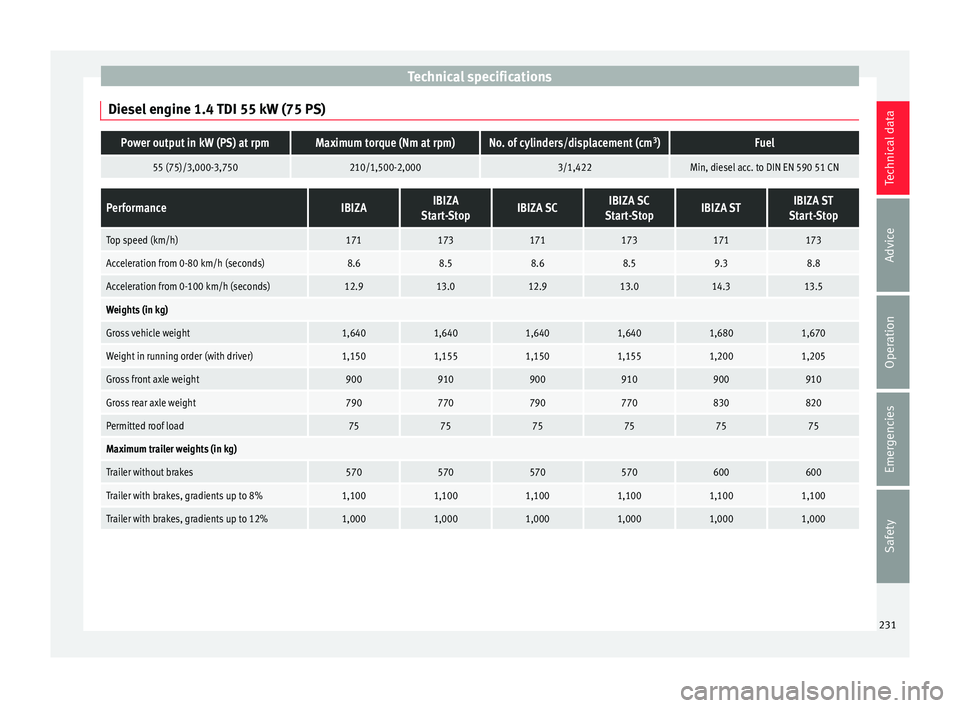

Diesel engine 1.4 TDI 55 kW (75 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
55 (75)/3,000-3,750210/1,500-2,0003/1,422Min, diesel acc. to DIN EN 590 51 CN
PerformanceIBIZAIBIZA
Start-StopIBIZA SCIBIZA SC
Start-StopIBIZA STIBIZA ST
Start-Stop
Top speed (km/h)171173171173171173
Acceleration from 0-80 km/h (seconds)8.68.58.68.59.38.8
Acceleration from 0-100 km/h (seconds)12.913.012.913.014.313.5
Weights (in kg)
Gross vehicle weight1,6401,6401,6401,6401,6801,670
Weight in running order (with driver)1,1501,1551,1501,1551,2001,205
Gross front axle weight900910900910900910
Gross rear axle weight790770790770830820
Permitted roof load757575757575
Maximum trailer weights (in kg)
Trailer without brakes570570570570600600
Trailer with brakes, gradients up to 8%1,1001,1001,1001,1001,1001,100
Trailer with brakes, gradients up to 12%1,0001,0001,0001,0001,0001,000 231
Technical data
Advice
Operation
Emergencies
Safety
Page 234 of 252

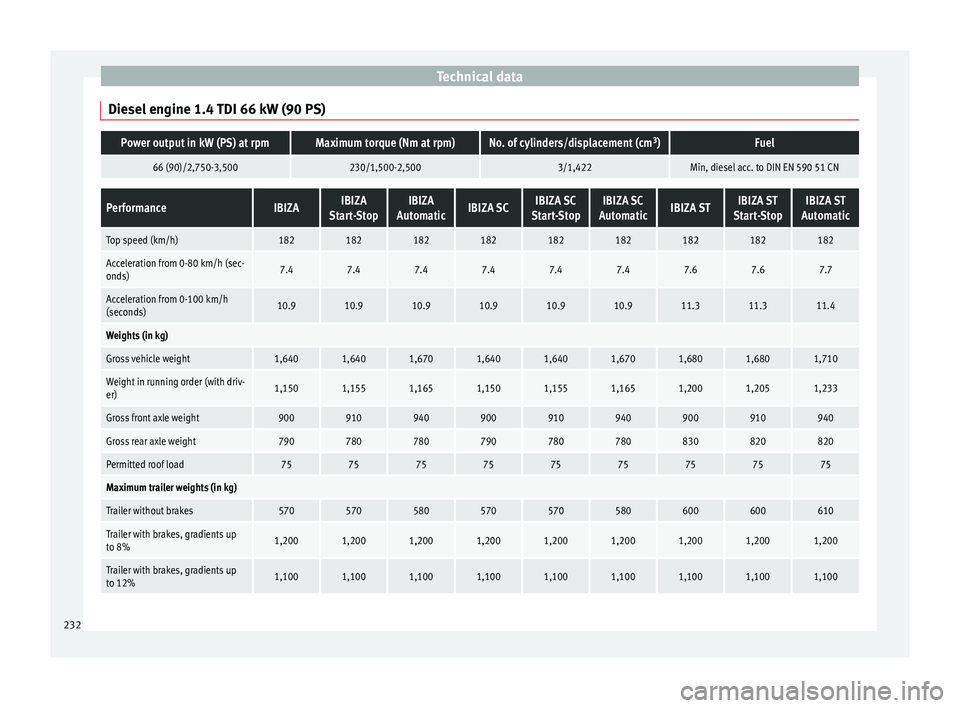

Technical data
Diesel engine 1.4 TDI 66 kW (90 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
66 (90)/2,750-3,500230/1,500-2,5003/1,422Min, diesel acc. to DIN EN 590 51 CN
PerformanceIBIZAIBIZA
Start-StopIBIZA
AutomaticIBIZA SCIBIZA SC
Start-StopIBIZA SC
AutomaticIBIZA STIBIZA ST
Start-StopIBIZA ST
Automatic
Top speed (km/h)182182182182182182182182182
Acceleration from 0-80 km/h (sec-
onds)7.47.47.47.47.47.47.67.67.7
Acceleration from 0-100 km/h
(seconds)10.910.910.910.910.910.911.311.311.4
Weights (in kg)
Gross vehicle weight1,6401,6401,6701,6401,6401,6701,6801,6801,710
Weight in running order (with driv-
er)1,1501,1551,1651,1501,1551,1651,2001,2051,233
Gross front axle weight900910940900910940900910940
Gross rear axle weight790780780790780780830820820
Permitted roof load757575757575757575
Maximum trailer weights (in kg)
Trailer without brakes570570580570570580600600610
Trailer with brakes, gradients up
to 8%1,2001,2001,2001,2001,2001,2001,2001,2001,200
Trailer with brakes, gradients up
to 12%1,1001,1001,1001,1001,1001,1001,1001,1001,100 232
Page 235 of 252

Technical specifications

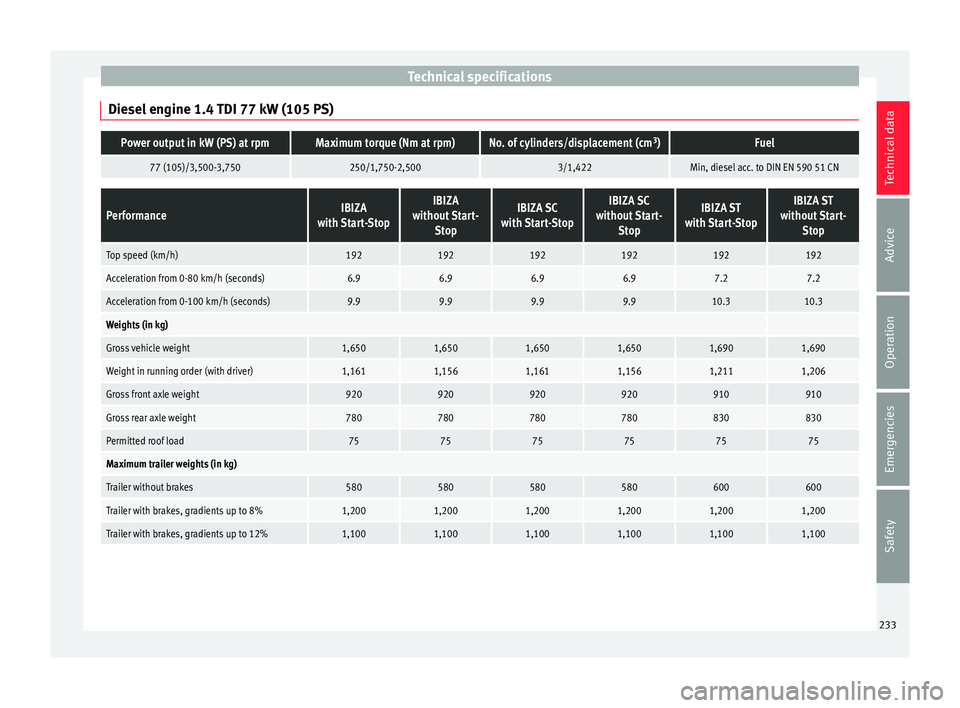

Diesel engine 1.4 TDI 77 kW (105 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
77 (105)/3,500-3,750250/1,750-2,5003/1,422Min, diesel acc. to DIN EN 590 51 CN
PerformanceIBIZA
with Start-StopIBIZA
without Start- StopIBIZA SC
with Start-StopIBIZA SC
without Start- StopIBIZA ST
with Start-StopIBIZA ST
without Start- Stop
Top speed (km/h)192192192192192192
Acceleration from 0-80 km/h (seconds)6.96.96.96.97.27.2
Acceleration from 0-100 km/h (seconds)9.99.99.99.910.310.3
Weights (in kg)
Gross vehicle weight1,6501,6501,6501,6501,6901,690
Weight in running order (with driver)1,1611,1561,1611,1561,2111,206
Gross front axle weight920920920920910910
Gross rear axle weight780780780780830830
Permitted roof load757575757575
Maximum trailer weights (in kg)
Trailer without brakes580580580580600600
Trailer with brakes, gradients up to 8%1,2001,2001,2001,2001,2001,200
Trailer with brakes, gradients up to 12%1,1001,1001,1001,1001,1001,100 233
Technical data
Advice
Operation
Emergencies
Safety
Page 236 of 252

Technical data

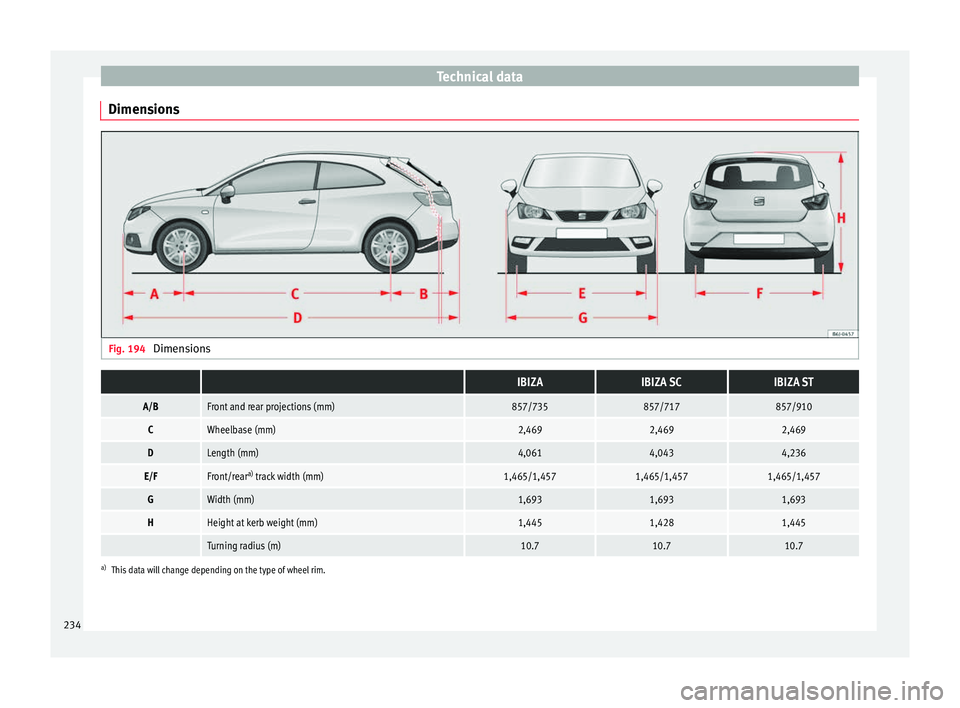

Dimensions Fig. 194
Dimensions IBIZAIBIZA SCIBIZA ST
A/BFront and rear projections (mm)857/735857/717857/910
CWheelbase (mm)2,4692,4692,469
DLength (mm)4,0614,0434,236
E/FFront/rear a)
track width (mm)1,465/1,4571,465/1,4571,465/1,457
GWidth (mm)1,6931,6931,693
HHeight at kerb weight (mm)1,4451,4281,445
Turning radius (m)10.710.710.7
a) This data will change depending on the type of wheel rim.
