Seat Leon 2018 Appendix

Appendix to Owner’s manual
S E AT L e o n

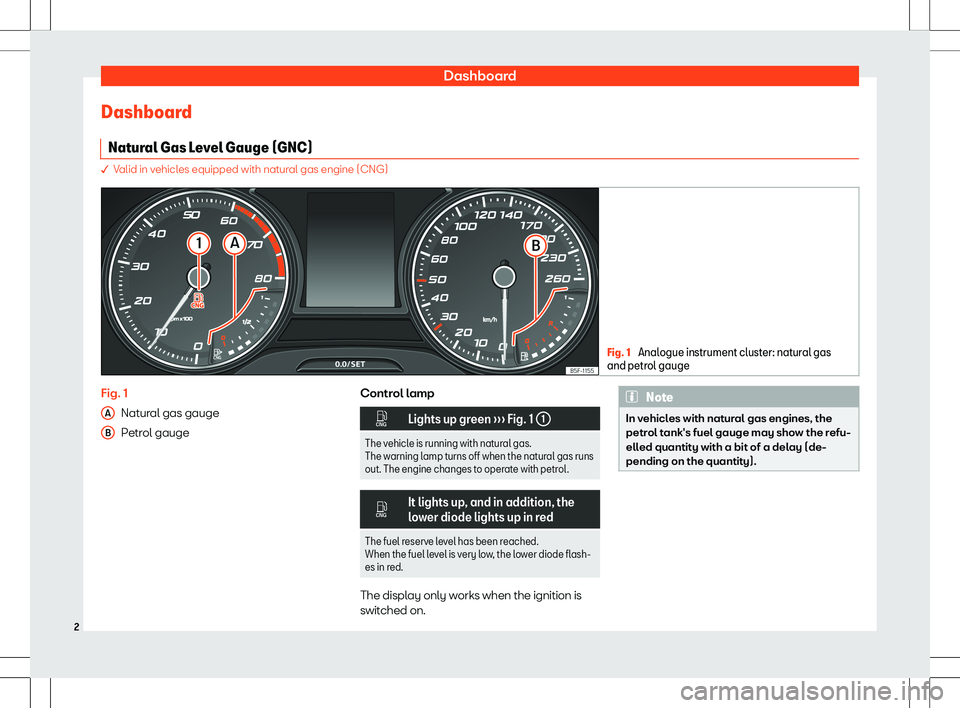

DashboardDashboardNatural Gas Level Gauge (GNC)
 Valid in vehicles equipped with natural gas engine (CNG)
Fig. 1
Analogue instrument cluster: natural gas
and petrol gauge
Fig. 1
Natural gas gauge
Petrol gauge ABControl lamp

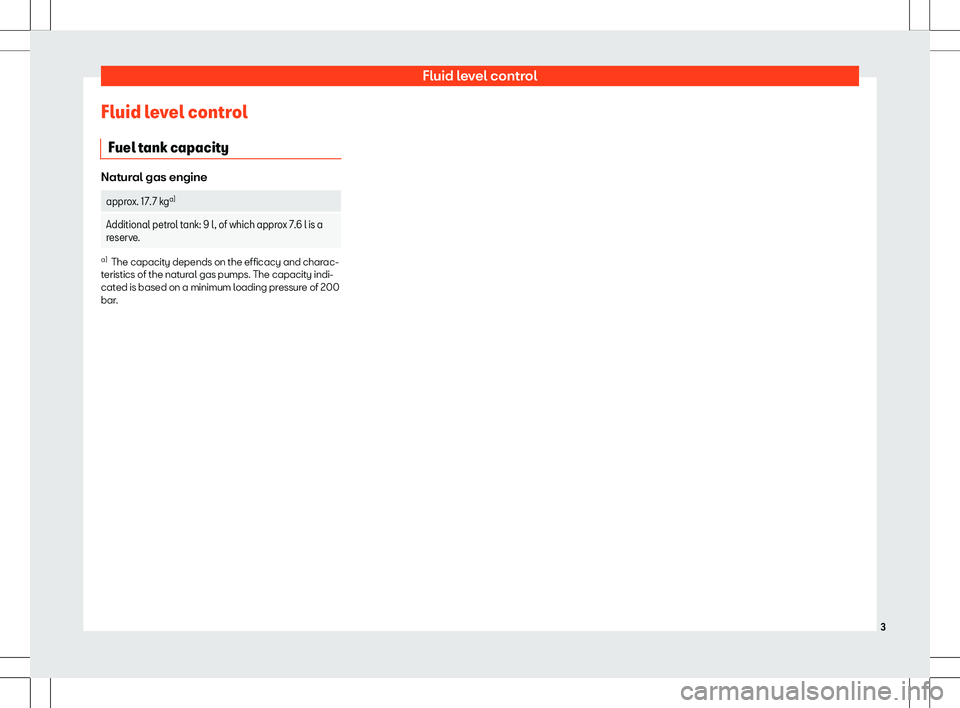

Fluid level controlFluid level controlFuel tank capacity
Natural gas engine
approx. 17. 7 kg a)Additional petrol tank: 9 l, of which approx 7.6 l is a
reserve.a)
The capacity depends on the efficacy and charac-
teristics of the natural gas pumps. The capacity indi-
cated is based on a minimum loading pressure of 200 bar.
3
