Safe driving17
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
– Distribute the load evenly in the luggage compartment.
– Lay and stow heavy luggage as far forward as possible in the luggage compartment.
– Stow heavy luggage as low as possible in the luggage compart- ment.
– Secure heavy objects to the fitted fastening rings ⇒ page 17.
WARNING
•
Loose luggage and other objects in the luggage compartment can
cause serious injuries.
•
Always stow objects in the luggage compartment and secure them on
the fastening rings.
•
Use suitable specialist straps to secure heavy objects.
•
During sudden manoeuvres or accidents, loose objects can be thrown
forward, injuring vehicle occupants. This increased risk of injury will be
further increased if a loose object is struck by an inflating airbag. If this
happens, objects can be transformed into “missiles”. Risk of fatal injury.
•
Please note that the centre of gravity may shift when transporting
heavy objects; this may affect the vehicle's handling and lead to an acci-
dent. Therefore, it is essential to adjust your speed and driving style
accordingly, to avoid accidents.
•
Never exceed the allowed axle loads or allowed maximum weight. If the
allowed axle load or the allowed total weight is exceeded, the driving char-
acteristics of the vehicle may change, leading to accidents, injuries and
damage to the vehicle.
•
Never leave your vehicle unattended, especially when the tailgate is
open. Children could climb into the luggage compartment closing the door
behind them; they will remain trapped without help and there is a mortal
risk.
•
Never allow children to play in or around the vehicle. Close and lock
both the tailgate and all the doors when you leave the vehicle. Before you
lock the vehicle, make sure that ther e are no adults or children in the
vehicle.
•
Never transport passengers in the luggage compartment. Every
passenger must be properly belted in ⇒ page 19.Note
•
Air circulation in the vehicle helps reduce fogging of the windows. Used
air escapes through ventilation slits in the side trim of the luggage compart-
ment. Ensure that the ventil ation slits are never covered.
•
Straps for securing the load to the fastening rings are commercially
available.
Fastening rings
There are four fastening rings in the luggage compartment
which can be used to secure luggage and other objects.– Always use suitable and undamaged straps to secure luggage and other objects to the fastening rings ⇒ in “Loading the
luggage compartment” on page 16.
– Pull up the fastening rings to attach the straps.During a collision or an accident, even small and light objects can build up so
much energy that they can cause very severe injuries. The amount of “kinetic
energy” depends on the speed of the vehicle and the weight of the object.
The most significant factor, however, is the speed of the vehicle.
WARNING (continued)
leon_ingles Seite 17 Donner stag, 20. Oktober 2005 12:14 12

Cockpit
72
Item Symbol Meaning of warning and control lamps Further information

Fuel level / reserve ⇒page 74

Coolant level / coolant temperature ⇒page 74

Rear fog light switched on ⇒page 75


Turn signals in operation ⇒page 75

Trailer turn signals in operation ⇒page 75

Main beam switched on ⇒page 75

Bulb defective ⇒page 75

Cruise control system switched on ⇒page 76

Washer fluid level ⇒page 76


Parking brake applied
or low brake fluid level or
fault in brake system ⇒
page 76

Engine oil pressure ⇒page 77

ABS system fault ⇒page 77


Pollen accumulation in the diesel engine particle filter ⇒page 78

Alternator fault ⇒page 78
A1A2A3A4A5A6A7A8A9A10A11A12A13A14
leon_ingles Seite 72 Donner stag, 20. Oktober 2005 12:14 12

Cockpit75
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
First look at the coolant temperature gauge. If the needle is in the normal
range, top up with coolant at the earliest opportunity ⇒
.
WARNING
•
If your vehicle is immobilised for any technical reasons, move it to a
safe distance from traffic. Turn off the engine, turn on the hazard lights and
place the warning triangle.
•
Never open the bonnet if you can see or hear steam or coolant escaping
from the engine compartment. Risk of scalding. Wait until you can no
longer see or hear escaping steam or coolant.
•
The engine compartment of any motor vehicle is a dangerous area!
Before carrying out any work in the engine compartment, switch off the
engine and allow it to cool down. Always note the corresponding warnings
⇒ page 193.
Rear fog light

This warning lamp lights up when the rear fog light is switched on
. Further
information ⇒page 109.
Turn signals
 
The warning lamp flashes when the turn signals are in oper-
ation.Depending on which turn signal is operated, either the left
 or right
 indi-
cator lamp flashes. Both warning lamps wi ll flash at the same time when the
hazard warning lights are switched on.
If one turn signal fails, the warning lamp will start flashing twice as fast. Further information on the turn signals
⇒page 113.
Trailer turn signals

This warning lamp also flashe s when the turn signals are
operated while towing a caravan or trailer.The warning lamp
 flashes when the turn signals are operated, provided a
trailer is correctly attached and connected to the vehicle.
The warning lamp will not flash if one of the turn signals on the trailer fails.
Main beam headlights

This warning lamp lights up when the main beams are on.The warning lamp
 lights up when the main beams are on or when the
headlight flasher is operated.
Further information ⇒page 113.
Bulb defect

The warning lamp lights up when a bulb in the vehicle's exte-
rior lighting is defective.The warning lamp
 lights up when a bulb in the vehicle's exterior lighting
(e.g. left-hand main beam) is defective.
The following information text displayed in the instrument panel display
10):
LEFT FULL LIGHT FAULT.
leon_ingles Seite 75 Donner stag, 20. Oktober 2005 12:14 12

Unlocking and locking103
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
WARNING
•
Always close the tailgate properly. Risk of accident or injury.
•
The tailgate must not be opened when the reverse or rear fog lights are
lit. This may damage the lighting units.
•
Do not close the tailgate by pushin g it down with your hand on the
window. The glass could shatter. Risk of injury!
•
Ensure the tailgate is locked after closing. If not, it may open unexpect-
edly while driving.
•
Never allow children to play in or ar ound the vehicle. A locked vehicle
can be subjected to extremely high and low temperatures, depending on
the time of year. This could cause serious injuries/illness. It could even
have fatal consequences. Close and lock both the tailgate and all the other
doors when you are not using the vehicle.
•
Never close the tailgate without observing and ensuring it is clear, to do
otherwise could cause serious injury to you and others. Make sure that no
one is in the path of the tailgate.
•
Never drive with the tailgate open or half-closed, exhaust gasses may
penetrate into the interior of th e vehicle. Danger of poisoning!
•
If only the boot is opened then do not leave the key inside. The vehicle
may not be opened if the key is left inside.
Emergency opening
This allows the vehicle to be opened if the central locking
does not operate (for example if the battery is flat)There is a groove in the boot allowing access to the emergency
opening mechanism.
Opening the tailgate from inside the luggage compartment
– Insert the key bit in the groove and unlock the locking system, turning the key from right to left, as shown by the arrow
⇒fig. 67 .
Fig. 67 Tailgate: emer-
gency opening
leon_ingles Seite 103 Donnerstag, 20. Oktober 2005 12:14 12

Lights and visibility109
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Lights and visibilityLightsSwitching lights on and off


Switching on the side lights
– Turn the light switch ⇒ fig. 72 to position

.
Switching on dipped headlights
– Turn the light switch to position

.
Switching off the lights
– Turn the light switch to position 0. Switching on the fog lights*
– Pull the switch out of position

or

to the first stop. The
symbol
 in the light switch lights up.
Switching on the rear fog lights (vehicles with front fog lights)
– Pull the switch out of position

or

to the second stop
⇒ . A warning lamp lights up in the control panel.
Switching on the rear fog lights (vehicles with no front fog lights)
– Pull the switch out of position

to the last stop. A warning lamp
lights up in the instrument panel.
WARNING
Never drive with just the side lights on . Risk of accident. The side lights are
not bright enough to illuminate the road ahead and to ensure that other
road users are able to see you. Always use your dipped headlights if it is
dark or if visibility is poor.
Note
•
The dipped beam headlights will only work with the ignition on. The side
lights come on automatically when the ignition is turned off.
•
If the lights are left on after the key has been taken out of the ignition lock,
a buzzer sounds when the driver door is opened. This is a reminder to switch
off the lights.
Fig. 72 Detail of the dash
panel: Switch for lights,
fog lights and rear fog
light
leon_ingles Seite 109 Donnerstag, 20. Oktober 2005 12:14 12

Lights and visibility
110•
If the coming home* feature is activated, the acoustic signal for the
dipped beam headlights will not sound, it will sound if the position lights are
activated.
•
The rear fog light is so bright that it can dazzle drivers behind you. You
should use the rear fog light only when visibility is very poor.
•
If you are towing a trailer equipped with a rear fog light on a vehicle with
a factory-fitted towing bracket, the rear fog light on the car will automatically
be switched off.
•
The use of the lighting described here is subject to the relevant statutory
requirements.
Automatic lightingActivation
– Rotate the switch to the position “Auto”, this indication will light up.
When the switch is in this position, as soon as visibility conditions are
reduced, the lights are automaticall y activated. The indication “Auto”,
changes to red.
Automatic lighting
If the automatic headlight control is switched on, dipped headlights are auto-
matically switched on by a light-sensitive sensor if you drive into a tunnel, for
example.
The rain function switches on the headlights if the continuous wipe function
is switched on for longer than 5 seconds. The dipped beam headlights are
switched off if the continuous wipe or the intermittent wipe functions are
switched off for longer than 255 seconds.
WARNING
•
If automatic headlight control is switched on, the headlights will not be
switched on in fog or heavy rain. Therefore, the dipped beam must be
switched on.Note
•
For those vehicles with the automatic headlight system, when the key is
removed from the ignition, the acoustic signal will only sound if the light
control is in the position
 or  if the vehicle is not fitt ed with the coming
home function.
•
If the daylight driving automatic light function is switched on, the fog
lights or rear fog light cannot be switched on in addition.
•
The use of the lighting described here is subject to the relevant statutory
requirements.
•
Do not put stickers on the windscreen in front of the sensor. This may
cause disruptions or faults in the automatic lighting system.
Fig. 73 Automatic
lighting
leon_ingles Seite 110 Donnerstag, 20. Oktober 2005 12:14 12

Heating, ventilation and air conditioning
142
The air conditioning system only works when the engine is running
and the blower is switched on.
– Press the temperature control buttons ⇒page 141, fig. 107
or in order to adjust the temperature on the left hand side or
the right hand side respectively.
– The functions will be switched on when the buttons are pressed. When these functions are activate d, they are indicated in the
display. Also, the de-icing and re ar heated window functions will
turn on along with their corresponding yellow symbol. Press the
button again to switch off the function.The temperature can be adjusted separately for the left and right sides of the
vehicle interior.
Display of the selected interior temperature for the left side.
Button – Manual air recirculation mode
Button – Central air distribution
Button – Downward air distribution
Button – Upward air distribution
Display of the selected interior temperature for the right side.
Button – defrost function for the windscreen. The air drawn in from
outside the vehicle is directed at the windscreen. The air recirculation
mode, if switched on, will be switched off as soon as the defrost function
is switched on. At temperatures over 3° C, the air conditioning system
will be switched on automatically and the blower speed will be increased
by one level in order to dry the air. The button lights up yellow and the
symbol appears in the display.
Button – Rear window heating. The heating will be switched off auto-
matically approximately 20 minutes after switching on. However, it may
be turned off by pushing the button. Th e button lights up yellow and the
symbol appears in the display.
Temperature selector for the left side ⇒page 142 Blower control
⇒page 143
Button – Switches the 2C-Climatronic on and off ⇒page 143
Button – Automatic temperature, ventilation and air distribution
control ⇒page 142
Button – Switches air conditioning system off
Temperature selector for the right side ⇒page 142
WARNING
For road safety all windows must be clear of ice, snow, and condensation.
This is essential to ensure good visibility. Please familiarise yourself with
the correct operation of the heating and ventilation system, including the
anti-fog/defrost functions for the windows.
Note
Please observe the general notes ⇒page 145.Automatic mode
In automatic mode air temperatur e, air flow and distribution
are automatically regulated so that a specified temperature is
attained as quickly as possible and then maintained.The temperature can be adjusted separately for the left and right
sides of the vehicle interior.
Switching on automatic mode
– Press the button ⇒page 141, fig. 107 . “AUTO” is shown
on the display.
A9
A14
A1A2

A3

A4

A5

A6A7

A8

A9
A10A11
OFF
A12
AUTO
A13
ECON
A14
AUTO
leon_ingles Seite 142 Donnerstag, 20. Oktober 2005 12:14 12

If and when231
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Bulb changeGeneral notesBefore changing any bulb first turn off the equipment concerned.
Do not touch the bulb glass. Fingerprints vaporise in the heat, causing a
reduction in the bulb life and condensation on the mirror surface, thus
reducing efficiency.
A bulb should only be replaced by one of the same type. The type is inscribed
on the bulb, either on the glass part or on the base.
It is highly recommended to keep a box of spare bulbs in the vehicle. At the
very least, the bulbs that most affect road safety should have spares in the
vehicle.
Main headlights
Dipped beam - H7
Full lights - H1
Front side ligths - W5W
Indicator - PY21W
Xenon headlights
19)
Dipped beam and full lights - D1S
20)
Light burst and additional full lights - H1
Front side lights - W5W
Indicators - PY21W Fog lights
Fog lights - H3
Fixed rear light
Stop/Rear side lights - P21W
21)
Indicator - P21W
Rear tailgate light
Fog light (driver side) - P21W
Reverse gear light (passenger side) - P21W
Rear side lights - W5W
Indicator
Side indicator - W5W
Registration plate light
Registration plate light - C5W
Note
•
Due to the difficulty in accessing the lamps, these must be changed by an
Authorised Service Centre. However, the following is a description of how to
change the bulbs except for the fog lights and interior bulbs.
19)For these type of headlights, the bulbs must be changed by an Authorised Service
Centre, given that complex elements of the vehicle must be removed and that the au-
tomatic control system must be reset.20)Xenon bulbs discharge emit 2.5 times as much light flux and have a useful life five
times greater than halogen bulbs.
21)Electronically controlled single filament bulb for Stop/Side bulbs. If the bulb blows
it will not work or Stop position.
leon_ingles Seite 231 Donnerstag, 20. Oktober 2005 12:14 12

If and when235
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

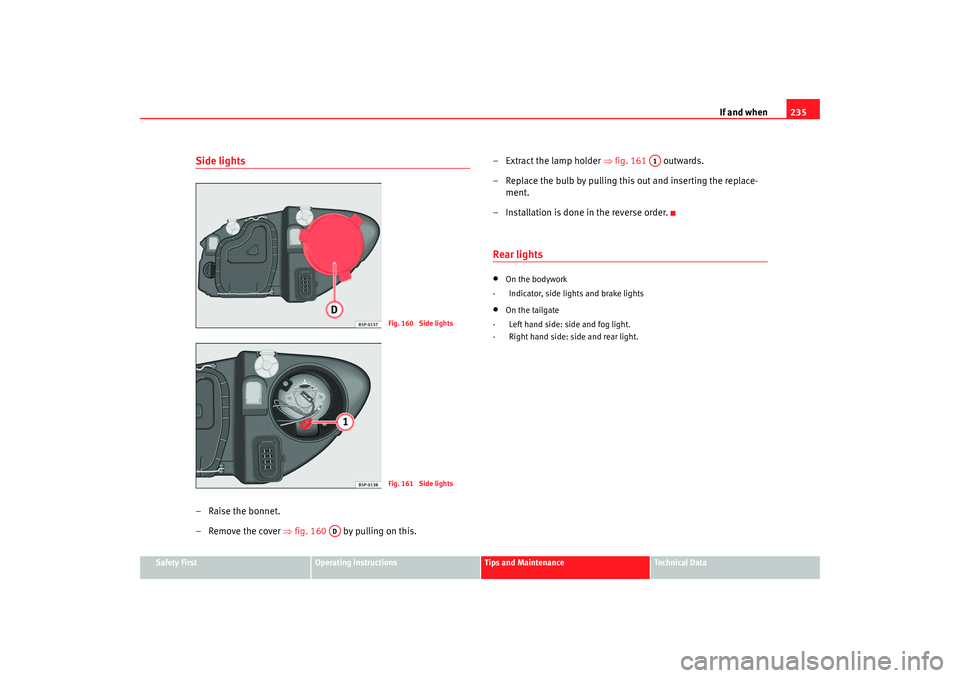

Side lights–Raise the bonnet.
– Remove the cover ⇒fig. 160 by pulling on this. – Extract the lamp holder
⇒fig. 161 outwards.
– Replace the bulb by pulling this out and inserting the replace- ment.
– Installation is done in the reverse order.
Rear lights•
On the bodywork
- Indicator, side lights and brake lights
•
On the tailgate
- Left hand side: side and fog light.
- Right hand side: side and rear light.
Fig. 160 Side lightsFig. 161 Side lights
AD
A1
leon_ingles Seite 235 Donnerstag, 20. Oktober 2005 12:14 12

If and when

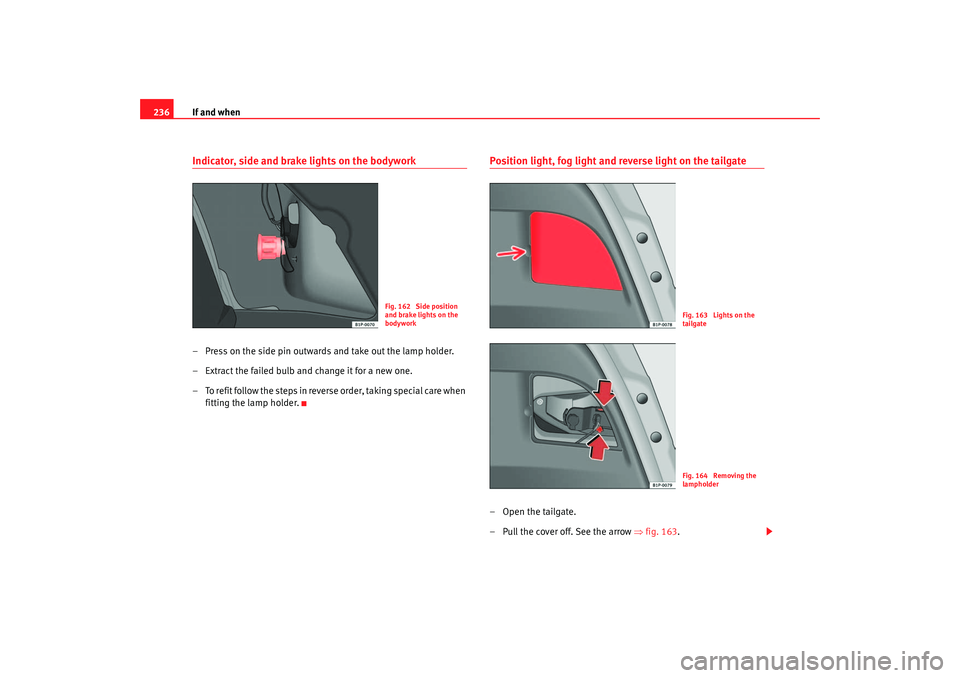

236Indicator, side and brake lights on the bodywork– Press on the side pin outwards and take out the lamp holder.
– Extract the failed bulb and change it for a new one.
– To refit follow the steps in reverse order, taking special care when
fitting the lamp holder.
Position light, fog light and reverse light on the tailgate–Open the tailgate.
– Pull the cover off. See the arrow ⇒fig. 163 .
Fig. 162 Side position
and brake lights on the
bodywork
Fig. 163 Lights on the
tailgateFig. 164 Removing the
lampholder
leon_ingles Seite 236 Donnerstag, 20. Oktober 2005 12:14 12
