Seat Leon 5D 2006 COMMUNICATION SYSTEM

Communication9
Controlling hands-free system from the steering wheel and
multi-function lever
The hands-free system may be operated from the multi-func-
tion wheel and lever
As well as using the speech control, it is possible to use the functions of the
hands-free system from the controls on the steering wheel and from the
multi-function lever.
When the connection is established between your mobile telephone and
hands-free device, the phonebook in your SIM card is downloaded to the
hands-free device.
Depending on the version, when the connection is established between your
mobile telephone and the hands free device, the phonebook in the telephone
is downloaded to the hands free device as well as lost calls, received calls
and last calls. From this moment, the phone book of the telephone as well as
lost calls, received calls and last calls are available on the screen of the
vehicle instrument panel.
By holding in the rocker switch Ÿfig. 7 on the multi-function lever or a
brief press on the button “answer” on the steering wheel controls, the
telephone menu appears on the instrument panel screen, containing the
different telephone options: PHONE BOOK, LOST CALLS, RECEIVED CALLS,
LAST CALLS. Depending on the version, the SIM card phone book will appear
Ÿ fig. 8
Fig. 7 Windscreen wiper
and washer lever: Button
A and rocker switch B
Fig. 8 Agenda menu
depending on version
AB

Communication
10
For example: Last calls / received calls
Using the rocker switch it is possible to move to the options. The desired
option may be selected by pressing on the button “answer” on the steering wheel controls or the button
Ÿpage 9, fig. 7 on the multi-func-
tion lever.
Once selected on the menu:
Using the rocker switch Ÿpage 9, fig. 7 it is possible to move through all
the names in the phone book, last calls, received calls or lost calls
(depending on the phone book only version). A call may be made to the
selected number, by pressing the key “Answer” on the steering wheel
controls or by selecting the option on the instrument panel.
An incoming call may be accepted using the “Answer” key on the controls
on the steering wheel or even using the key Ÿpage 9, fig. 7 on the multi-
function lever.
If the number from which the incoming call is associated with a name in the
existing phone book then the name and the number from the phone book will
be displayed on the instrument panel.
Fig. 9 Example of the last
call on the instrument
panel
Fig. 10 Example of a
received call on the instru-
ment panel
AB
AA
AB

AA

Communication11
Information on the instrument panel display
The hands-free system uses the screen on the instrument
panel to display information.– To access the phone book Ÿfig. 11 . First, access the telephone
menu Ÿpage 9, fig. 8 , by pressing the key “answer” . To
move through the menu, use the rocker switch and select
using the key or press “answer” . Select phone book.
Once selected, the operation is the same for selecting a name.
– For an incoming call the display indicates Ÿfig. 12 . To accept
the call press or select “Accept” with the rocker switch .
WARNING
•The use of an integrated exterior antenna is recommended; this should
be installed professionally for telecommunications equipment, for
example, mobile telephones, specifically with the vehicle occupants in
mind.
•The exterior antenna diverts the electromagnetic fields out of the
vehicle and reduces the field intensity inside the vehicle in comparison to
systems without an exterior antenna.
•The use of the exterior antenna will avoid any of the related health risks
presently under scientific discussion.
•The investigations have concluded that under unfavorable conditions,
the use of a mobile phone inside the vehicle without an exterior antenna
may exceed international health risk limits.
•The use of an exterior antenna may be ineffective for diversion of elec-
tromagnetic fields to the exterior of the vehicle if the installation has not
been completed correctly.
Fig. 11 Phone book on
the instrument panel
Fig. 12 Incoming call
displayed on the instru-
ment panel

AB
AA
AB

Communication
12
Dialogue
The speech control system can be activated via the “Talk”
button on the phone adapter or the button on the multi-func-
tion wheel.
In this manual, Dialogue is defined as the time in which the speech control
system may receive vocal commands and provide assistance for completion
of different functions in case the user is hesitant and unsure how to proceed.
The system also responds by vocal messages. The dialogue is activated and
deactivated by pressing the “talk button” .
If a call is received then the dialogue is interrupted immediately. The call may
be accepted by pressing the key “answer” on the multi -function steering
wheel.
Assistance from the system
If a command is not recognised by the system, it will answer with the cue
and the command can then be given once again clearly. After a
third failure the system will answer with and the dialogue will be
ended. Note the following to ensure that you are properly understood:
•Speak in a normal tone and without pauses or exaggerated pronuncia-
tion.
•Avoid poor articulation of words.
•Keep the doors, windows and sun roof closed if possible to avoid back-
ground noises that might affect the system.
•Keep the air vents directed away from the microphone (located on the
interior light).
•At high speeds, you might need to speak louder to drown out background
noises.
•Avoid other noises in the vehicle during a dialogue (e.g. other passengers
speaking in the vehicle).
•Avoid speaking when the system is saying a cue.
•The hands-free microphone is directed towards the driver, therefore, only
the driver should try to operate the system.
•To make a call when there is heavy background noise we recommend
using the speech controlled telephone book instead of speaking individual
digits. This will help avoid mistakes when specifying telephone numbers.
Controlling the hands-free unit by voice
The hands-free functions are also operated via voice commands.
Help commands
The system confirms acceptance of speech commands verbally and guides
you through the dialogue if necessary.


Speech commandEffect
HELPFollowing this command the system announces possible orders

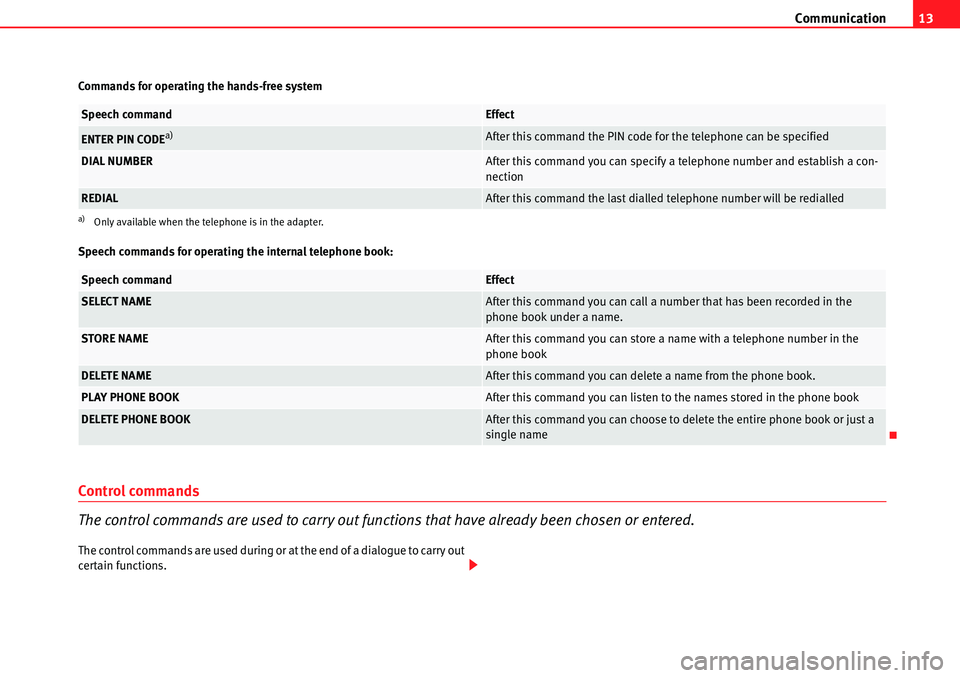

Communication13
Commands for operating the hands-free system
Speech commands for operating the internal telephone book:
Control commands
The control commands are used to carry out functions that have already been chosen or entered.
The control commands are used during or at the end of a dialogue to carry out
certain functions.
Speech commandEffect
ENTER PIN CODEa)
a)Only available when the telephone is in the adapter.
After this command the PIN code for the telephone can be specified
DIAL NUMBERAfter this command you can specify a telephone number and establish a con-
nection
REDIALAfter this command the last dialled telephone number will be redialled
Speech commandEffect
SELECT NAMEAfter this command you can call a number that has been recorded in the
phone book under a name.
STORE NAMEAfter this command you can store a name with a telephone number in the
phone book
DELETE NAMEAfter this command you can delete a name from the phone book.
PLAY PHONE BOOKAfter this command you can listen to the names stored in the phone book
DELETE PHONE BOOKAfter this command you can choose to dele te the entire phone book or just a
single name

Communication
14
Possible commands
PIN code input
A PIN code must be entered before you can use the telephone system.
– Press the talk button .
– After the acoustic tone give the command ENTER PIN.
You can specify your PIN code after giving the command.
It is only possible to enter the PIN code when:
•the ignition and
•the mobile phone are switched on.
•the phone is in the mobile phone adapter. You can specify the digits from
zero to nine . After each block of digits you
specify (separated by a brief pause) the system will repeat the digits.
The system can only recognise single digits (two, three, etc.), and not combi-
nations of digits (e.g. twenty-three).
Speech commandEffect
DIALTelephone number already entered is dialled.
STOREThe name and teleph one number will be stored in the internal phone book or
the entered PIN code will be stored.
CANCELCancels a running dialogue.
REPEATThe specified name or all of the digits specified up to this point will be
repeated. The system will then give the cue so that you can
specify additional digits or commands.
CORRECTIONThe specified name or the last entered block of digits will be deleted. The sys-
tem will then give the cue so that you can specify additional
digits or commands.
ERASEAll specified digits will be deleted. The system will then give the cue number is deleted. The number, please?> so that you can specify new digits or
commands.
.

Communication15
Example for entering a PIN code
A running dialogue can be cancelled at any time with a press of the talk
button .
Note
•If the PIN code is more than 8 digits long, the system will decline and give
the cue .
•If the specified PIN code is incorrect, the system will decline and give the
cue .
•If the wrong PIN code is entered three times, the SIM card will be blocked.
The SIM card can be unblocked with the PUK (personal unblock key). The
personal unblock key (PUK) can only be entered via the phone keypad and
not via the speech control system .
Speech commandConditionSystem cueEffect
ENTER PIN CODEThe SIM card is installed, the tele-
phone is on and fitted to the adapter.Dialogue
for example, ZERO, ONE, TWO, THREEDialogue
If no command is specified, the system responds after about 5 seconds with the next cue.
No command back, delete, or specify additional
digits>Dialogue
STOREDialogue
End of dialogue

Communication
16
Dial number
A telephone number can be vocally specified to the system and then dialled.
– Press the talk button . Activation of the system is confirmed
with by a tone.
– After the tone, say the command DIAL NUMBER.
After this command the system will then request that you specify a telephone
number. A connection will then be established to the specified number. The
telephone number can be specified all at once, in blocks of digits (separated
by a brief pause), or as single digits. You can specify the digits from zero to nine
. After each block of digits you specify (separated by a brief pause) the
system will repeat the digits. The system can only recognise single digits
(two, three, etc.), and not combinations of digits (e.g. twenty-three).
Notes on specifying telephone numbers:•If the telephone number has more than 20 digits, the system will decline
and give the cue .
•A Plus (+) can also be placed ahead of the 20 digits.
Example for entering a telephone number:
A running dialogue can be cancelled at any time with a press of the talk
button .
.
Speech commandConditionSystem cueEffect
DIAL NUMBERPhone switched onDialogue
for example, ZERO, SEVEN, THREE,
ONEDialogue
If no command is specified, the system responds after about 5 seconds with the next cue.
No command correct or specify additional digits>Dialogue
THREE, NINE, TWODialogue
DIALDialogue -The telephone number
0731492 will be dialled
End of dialogue

Communication17
Redial
– Press the talk button .
– After the tone, say the command REDIAL.After giving the command the last number dialled via the hands-free system
will be dialled again.
Example for the REDIAL command:
A running dialogue can be cancelled at any time with a press of the talk
button .
To record names in the phone book
You can store names along with a telephone number in the internal telephone book.
– Press the talk button . The beep tone indicates that the system is ready.
– After the tone, say the command STORE NAME.
After giving the command the system will request you to specify a name and
telephone number to store in the internal telephone book. The telephone book has enough memory for 50 names and numbers. You can specify the
digits from
zero to nine .
The telephone number can be specified all at once, in blocks of digits (sepa-
rated by a brief pause), or as single digits. After each block of digits you
specify (separated by a brief pause) the system will repeat the digits. The
system can only recognise single digits (two, three, etc.), and not combina-
tions of digits (e.g. twenty-three).
Say STORE to store the entry into the telephone book.
.
Speech commandConditionSystem cueEffect
REDIALPhone switched onDialogue
End of dialogue

.
Speech commandConditionSystem cueEffect
STORE NAMETelephone book is not fullDialogue
COMPANY XYZDialogue

Communication
18
A running dialogue can be cancelled at any time with a press of the talk
button .
Note
•If the telephone number has more than 20 digits, the system will decline
and give the cue .
•A Plus (+) can also be placed ahead of the 20 digits.
•Say the command Delete or Back to delete or correct the corresponding
block of digits.
•Say Repeat to have all the digits that have been recognised up to that
point repeated.
•If two or more names sound alike, it is better to save the names including
the first name or some other distinguishing entry.
•A running dialogue can be cancelled at any time with a press of the talk
button .
•The telephone book works only in conjunction with the hands-free speech
control system; the entries are not stored on the phone's SIM card.
COMPANY XYZDialogue
ZERO, ONE, TWO, THREEDialogue
FOUR, FIVE, SIXDialogue
If no command is specified, the system responds after about 5 seconds with the next cue.
No command back, delete, or specify additional
digits>Dialogue
STOREDialogue - The name COMPANY XYZ
with the telephone number 0123456
will be stored
End of dialogue
