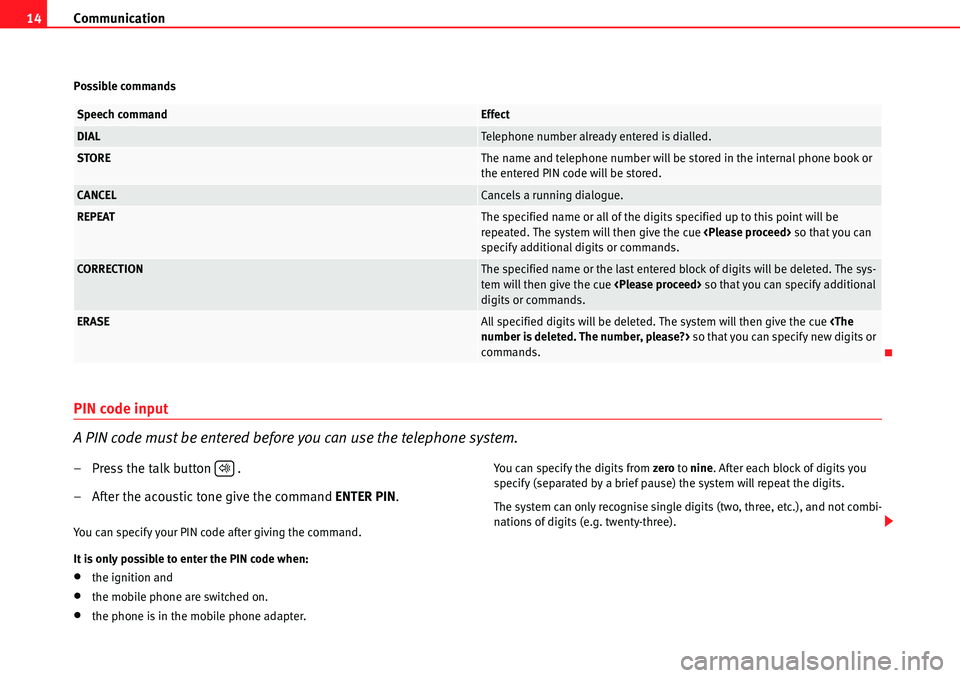

ignition Seat Leon 5D 2006 COMMUNICATION SYSTEM

Communication
14
Possible commands
PIN code input
A PIN code must be entered before you can use the telephone system.
– Press the talk button .
– After the acoustic tone give the command ENTER PIN.
You can specify your PIN code after giving the command.
It is only possible to enter the PIN code when:
•the ignition and
•the mobile phone are switched on.
•the phone is in the mobile phone adapter. You can specify the digits from
zero to nine . After each block of digits you
specify (separated by a brief pause) the system will repeat the digits.
The system can only recognise single digits (two, three, etc.), and not combi-
nations of digits (e.g. twenty-three).
Speech commandEffect
DIALTelephone number already entered is dialled.
STOREThe name and teleph one number will be stored in the internal phone book or
the entered PIN code will be stored.
CANCELCancels a running dialogue.
REPEATThe specified name or all of the digits specified up to this point will be
repeated. The system will then give the cue so that you can
specify additional digits or commands.
CORRECTIONThe specified name or the last entered block of digits will be deleted. The sys-
tem will then give the cue so that you can specify additional
digits or commands.
ERASEAll specified digits will be deleted. The system will then give the cue number is deleted. The number, please?> so that you can specify new digits or
commands.
.

Communication
24
Example for making a call to Great Britain:
Bluetooth®
Bluetooth technology enables wireless connections between
mobile and fixed devices without the need for cables.
Mobile communication and information is gaining ever greater importance
for personal use as well as in today's modern business world.
Information transfer between mobile devices up until recently was only
possible through wired and infrared connections.
These non-standardised connections greatly limited the range of use and
were very complicated to operate.
For this reason, the introduction of the Bluetooth® technology represents a
great change, allowing the establishment of a standardised remote connec-
tion between mobile devices from different manufacturers.
WARNING
The Bluetooth function must be switched off during air travel (please refer
to the phone manual).
Note
Certain software version of some mobile telephones contain errors or limited
functions (for example “Download phone book”). These errors may give rise
to faulty operation of the vehicle hands-free system. In this case, consult the
Authorised Service Centre for your mobile telephone.
Bluetooth® configuration
Before using the functionality of the Bluetooth connection
between the mobile telephone and the hands-free system for
the first time configuration of the connection is required.
It will be necessary that the hands-free system and the mobile telephone
recognise each other. To proceed, first the Bluetooth function on the mobile
telephone must be activated. Then, aft er turning on the ignition, select the
option on the telephone to search for other Bluetooth communication devices
within range, in other words, the hands-free system of the vehicle
(SEAT_UHV). The next step is to select this hands-free system. The complete
Speech commandConditionSystem cueEffect
DIAL NUMBERPhone is switched on.Dialogue
PLUS, FOUR, FOURDialogue
SEVEN, THREE, ONEDialogue
THREE, NINE, TWODialogue
DIALDialogue
End of dialogue

Communication25
instructions for completing this operation should be found in the instruction
manual for the telephone.
The final step for establishing the connection is the introduction of the PIN
code into the hands-free system (initially 1234). If you would like to change
the PIN code for the SEAT _UHV system then contact an official SEAT work-
shop. Once the PIN code is input then the connection is established and the
system can be used with the Bluetooth system. The moment that the connec-
tion is established, the hands-free kit will emit an acute sound.
Once the initial configuration process is finished, each time the telephone is
within range of establishing a Bluetooth connection with the hands-free
system this will be done automatically as long as the ignition is on and
without any need to configure the connection further.
The connection between the telephone and the hands-free system will not be
established if this system is already communicating with another phone.
If there are two or more Bluetooth telephones wi thin communication range of
the hands-free system then the system will connect with the one that was
most recently connected.
Caution
The use of mobile telephones without an exterior antenna generates strong
electromagnetic fields inside the vehicle.
Note
It is important to personalize the device PIN code using a personal 4 digit
code. Consult an official SEAT workshop.
Radiophones and business equipment
Radiophones and fixed installation business equipment
Radiophones
Any retrofit installations of radiophones in the vehicle require prior approval.
SEAT generally authorises in-vehicle installations of approved types of radio-
phones provided that:
•the aerial is installed correctly,
•the aerial is installed on the exterior of the vehicle (and shielded cables
are used together with non-reflective aerial trimming),
•the effective transmitting power does not exceed 10 Watts at the aerial
base.
Your Authorised Service Centre will be able to inform you about options for
installing and operating radiophones with a higher transmitting power.
Business equipment
The retrofit of domestic and business equipment is permitted provided that
these do not have an effect on the concentration of the driver and that they
are CE approved. Equipment retrofitted to the vehicle that may have an effect
on the concentration of the driver must come with a specific licence for this
type of vehicle and with the symbol CE.
Note
•The posterior fitting of electric and electronic equipment in this vehicle
affects its licence type and could lead to the withdrawal of the vehicle regis-
tration document under certain circumstances.
•We would request that you pay special attention to the instructions
regarding the use of mobile te lephones and radio transmitters.
