Front seatsAdjustment of the front seatsThe control elements in ⇒ fig. 90 are mirrored for the front right-
hand seat.
Adjusting the seat forwards and backwards
– Pull up the grip and move the seat forwards or backwards.
– Then release the grip and move the seat further until the catch engages.
Adjusting the seat height*
– Pull the lever up or push down (several times if necessary) from its home position. This adjusts the seat height in stages. Adjusting the backrest angle
– Take your weight off the backrest and turn the hand wheel.
Adjusting the lumbar support*
– Take your weight off the backrest and turn the hand wheel to adjust the lumbar support.
The backrest curvature of the cushioned area is determined by the settings
made in the lumbar region. This supports the natural curvature of the spine
very effectively.
WARNING
•
Never adjust the driver or front passenger seat while the vehicle is in
motion. While adjusting your seat, you will assume an incorrect sitting
position. Risk of fatal accidents. Adjust the driver or front passenger seat
only when the vehicle is stationary.
•
To reduce the risk of injury to the driver and front passenger during
sudden braking manoeuvres or an accide nt, never drive with the backrest
tilted far to the rear. The maximum pr otection of the seat belt can be
achieved only when the backrests are in an upright position and the driver
and front passenger have properly adjusted their seat belts. The further
the backrests are tilted to the rear, the greater the risk of injury due to
improper positioning of the belt web!
•
Exercise caution when adjusting the seat height or forwards/back-
wards position. Injuries can be caused if the backrest is tilted without due
care and attention.
Fig. 90 Front left seat
controls
A1
A1
A2
A3A4
leon_ingles Seite 129 Donnerstag, 24. August 2006 1:56 13

Seats and stowage
130Heated seats*

The front seat cushions and backrests can be heated electri-
cally.
– Turn the appropriate thumb wheel ⇒fig. 91 t o s w i t ch o n t h e s e a t
heating. The seat heating is switched off in the 0 position.The seat heating only works when the ignition is switched on. The left thumb
wheel controls the left seat and the right thumb wheel the right seat.
Caution
To avoid damaging the heating elements, please do not kneel on the seat or
apply sharp pressure at a single point to the seat cushion and backrest.
Rear seat benchFold down the seat back – Pull the release button on the backrest (sectioned backrest)
forwards in the direction of the arrow
– Fold down the backrest. The rear head restraints may have to be removed before folding the seat forwards if the front seats have
been moved far back ⇒page 128.
Fig. 91 Thumb wheel for
the front seat heating
Fig. 92 Folding the seat
backrests down
leon_ingles Seite 130 Donnerstag, 24. August 2006 1:56 13

Seats and stowage131
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Folding up the seat back– Fold the backrest back and push the backrest firmly into the lock.
The red marking should no longer be visible ⇒fig. 93 .
WARNING
•
Please be careful when raising the backrest! Injuries can be caused if
the backrest is tilted without due care and attention.
Stowage compartmentsStowage compartment on the front passenger sideThe compartment can be opened by pulling the lever ⇒fig. 94 .
WARNING
Always keep the stowage compartment cover closed while the vehicle is in
motion to reduce the risk of injury during a sudden braking manoeuvre or
in the event of an accident.The centre console with drinks holder
The centre console has a drinks holder.
Fig. 93 Folding up the
rear seat back
Fig. 94 Passenger side:
Stowage compartment
leon_ingles Seite 131 Donnerstag, 24. August 2006 1:56 13

Seats and stowage
132Stowage compartment under the left -hand side front seat*
There is a stowage locker with a cove r under the front left-
hand side seat.The locker* ⇒fig. 95 is opened by pulling on the cover.
There are two open positions of 15 and 60 degrees depending on the pres-
sure applied to the cover. In the 60 degree position, the cover will collapse if
too much pressure is applied.
To close the drawer, press the cover until it locks into position.
WARNING
•
The drawers will hold a maximum weight of 1.5 kg.
•
Do not drive with the drawer cover open. There is an injury risk for
passengers if the cargo is released in case of sudden braking or an
accident.
Folding table*
Folding tables are fitted to the rear of the front seat backrests.– To open the table, open it up in the direction of the arrow ⇒fig. 96.
WARNING
•
The folding tables may not be folded down whilst the vehicle is in
motion and anyone is seated on the se cond row of seats. Risk of injury
during a sudden braking manoeuvre! The table must therefore be closed
and properly secured whilst the vehicle is in motion.
•
Never place hot drinks in the drink holders. During normal or sudden
driving manoeuvres, sudden braking or an accident, the hot drink could be
spilled. Danger of scalding.
Fig. 95 Stowage area
under the front seats
AA
Fig. 96 Folding table on
left front seat
leon_ingles Seite 132 Donnerstag, 24. August 2006 1:56 13

Seats and stowage133
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Caution
When driving, do not leave open cont ainers in the cup holders. The drink
might be spilt on braking, for example, and could damage the vehicle.Stowage compartment with the CD charger*
The CD* loader is located under the front right hand seatTo access the loader
– Open the external cover by oper ating the button on this cover.
– Pull the sliding internal cover to the right.
– Press the “EJECT” button.
– To close the compartment, reverse the procedure.
WARNING
•
Do not close the external cover with the loader cover open.
Other stowage areasOther stowage areas can be found:•
in the centre console,
•
in the side trims of the luggage compartment,
The hooks for hanging are found on the pillar between the front and rear side
windows.
WARNING
•
Do not store loose objects on the dashboard. These objects could be
flung through the passenger compartment when the vehicle is moving (e.g.
while accelerating, braking or cornering) and distract the driver. Risk of
accident.
•
Ensure that no objects can fall from the centre console or other stowage
areas into the driver foot well while the vehicle is moving. In the event of a
sudden braking manoeuvre, you will not be able to use the brake, clutch or
accelerator. Risk of accident.
•
Clothing hung on the coat hooks must not restrict the driver's view.
Risk of accident. The coat hooks are intended only for use with light arti-
cles of clothing. Do not leave any hard, sharp or heavy objects in hanging
articles of clothing. During sudden br aking manoeuvres or accidents, espe-
cially those involving airbag deployment, these objects could injure the
vehicle occupants.
leon_ingles Seite 133 Donnerstag, 24. August 2006 1:56 13

Seats and stowage

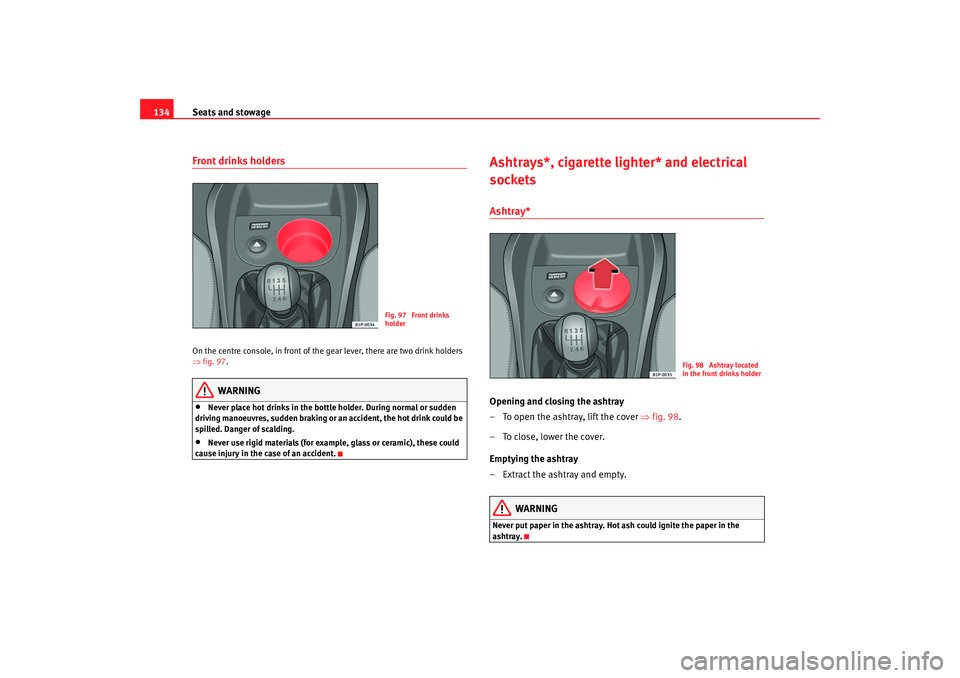

134Front drinks holdersOn the centre console, in front of the gear lever, there are two drink holders
⇒ fig. 97 .
WARNING
•
Never place hot drinks in the bottle holder. During normal or sudden
driving manoeuvres, sudden braking or an accident, the hot drink could be
spilled. Danger of scalding.
•
Never use rigid materials (for example, glass or ceramic), these could
cause injury in the case of an accident.
Ashtrays*, cigarette lighter* and electrical
socketsAshtray* Opening and closing the ashtray
– To open the ashtray, lift the cover ⇒fig. 98 .
– To close, lower the cover.
Emptying the ashtray
– Extract the ashtray and empty.
WARNING
Never put paper in the ashtray. Hot ash could ignite the paper in the
ashtray.
Fig. 97 Front drinks
holder
Fig. 98 Ashtray located
in the front drinks holder
leon_ingles Seite 134 Donnerstag, 24. August 2006 1:56 13

Seats and stowage135
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Cigarette lighter* – Press on the cigarette lighter ⇒fig. 99 to activate it ⇒.
– Wait for the lighter to pop out slightly.
– Pull out the cigarette lighter and light the cigarette on the glowing coil.
WARNING
•
Improper use of the cigarette lighter can lead to serious injuries or start
a fire.
•
Take care when using the cigarette lighter. Carelessness or negligence
when using the cigarette lighter can cause burns, risk of injury.
•
The cigarette lighter also works when the ignition is off and when the
ignition key is removed. To avoid the ri sk of fire, never leave children unsu-
pervised in the vehicle.
Electrical sockets
Electrical equipment can be connected to any of the 12 volt
sockets.Electrical accessories may be connected to the 12 volt socket in the front
centre console ⇒ fig. 100 or to that of the luggage compartment*. The appli-
ances connected to each socket must not exceed a power rating of 120 Watt.
WARNING
The electrical sockets and any appliances connected to them are also func-
tional with the ignition switched off and the key removed. Improper use of
the sockets or electrical accessories can lead to serious injuries or cause a
fire. To avoid the risk of injury, never leave children unsupervised in the
vehicle.
Fig. 99 The cigarette
lighter is located in the
electric socket on the
front of the centre console
Fig. 100 Socket, centre
console, front
leon_ingles Seite 135 Donnerstag, 24. August 2006 1:56 13

Seats and stowage
136
Note•
Using electrical appliances with the engine switched off will drain the
battery.
•
Before using any electrical accessories, see the instructions on
⇒ page 191.
Auxiliary audio connection (AUX-IN)–Lift the AUX cover ⇒ fig. 101.
– Insert the pin fully (see the radio manual).
Apple* iPod connector
®
The iPod connector
® is located below the passenger seat.
For information concerning the use of this equipment, please see the Radio
handbook.
Fig. 101 Auxiliary audio
connection
Fig. 102 iPod connection
below passenger seat
leon_ingles Seite 136 Donnerstag, 24. August 2006 1:56 13

Seats and stowage137
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
USB* Connection
There is a USB port below the passenger seat.For information concerning the use of this equipment, please see the Radio
handbook.
First-aid kit, warning triangle, fire
extinguisherWarning triangleThe emergency warning triangle can be fi tted in the side lining of the boot.
Note
•
The warning triangle is not part of the vehicle's standard equipment.
First-aid kit and fire extinguisherThe first-aid kit* can be housed in a stowage box in the left side lining of the
luggage compartment.
Fig. 103 USB* connec-
tion below passenger seat
Fig. 104 Housing for the
emergency warning
triangle in the boot
leon_ingles Seite 137 Donnerstag, 24. August 2006 1:56 13

Seats and stowage
138The fire extinguisher* is attached to the luggage compartment carpet by
velcro.
Note
•
The first-aid kit and the fire extinguisher are not part of the vehicle's
standard equipment.
• The first -aid kit must comp ly with legal requirements.
• Observe the expiry date of th e contents of the first-aid kit. You should
purchase a new first-aid kit as soon as possible after the shelf-life date of the
first-aid kit has expired.
•
The fire extinguisher must comp ly with legal requirements.
•
Ensure that the fire extinguisher is fully functional. The fire extinguisher
should, therefore, be checked regularly. The sticker on the fire extinguisher
will inform you of the next date for checking.
•
Before acquiring accessories and emergency equipment see the instruc-
tions on ⇒ page 191.
Luggage compartmentStowing luggage
All luggage must be securely stowed.Please observe the following points to ensure the vehicle handles
well at all times:
– Distribute the load as evenly as possible.
– Place heavy objects as far forward in the luggage compartment
as possible. – Secure luggage in the luggage compartment with suitable straps
on the fastening rings.
WARNING
•
Loose luggage and other loose items in the vehicle can cause serious
injuries.
•
Loose objects in the luggage compartment can suddenly move and
change the way the vehicle handles.
•
During sudden manoeuvres or accidents, loose objects in the
passenger compartment can be flung forward, injuring vehicle occupants.
•
Always store objects in the luggage compartment and secure with suit-
able straps. This is especially important for heavy objects.
•
When you transport heavy objects, always keep in mind that a change
in the centre of gravity can also cause changes in vehicle handling.
•
Please observe information on safe driving ⇒page 7, “Safe driving”.Caution
Hard objects on the shelf could chafe against the wires of the heating
element in the rear window and cause damage.
Note
The ventilation slots in front of the rear side windows must not be covered as
this would prevent stale air being extracted from the vehicle.
leon_ingles Seite 138 Donnerstag, 24. August 2006 1:56 13
