technical data Seat Leon 5D 2006 Maintenance programme

Technical Data261
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Petrol engine 1.4 litre 63 kW (86 bhp)General engine data
Performance figures
Weights
Trailer weightsPower output in kW (bhp)
rpm 63 (86)/ 5000
Maximum torque in Nm at rpm 132/ 3800
No. of cylinders, capacity in cm
3
4/ 1390
Compression 10,5 ± 0,3
Fuel 95 Octane petrol
Maximum speed in km/h 172
Acceleration from 0-80 km/h in sec. 9,1
Acceleration from 0-100 km/h in sec. 13,7
Gross vehicle weight in kg 1746
Weight in working order (with driver) in kg 1351
Gross axle weight, front in kg 890
Gross axle weight, rear in kg 895
Permitted roof load in kg 75
With no brakes, gradients up to 12% 620
With brakes, gradients up to 12% 1000
leon_ingles Seite 261 Donnerstag, 24. August 2006 1:56 13

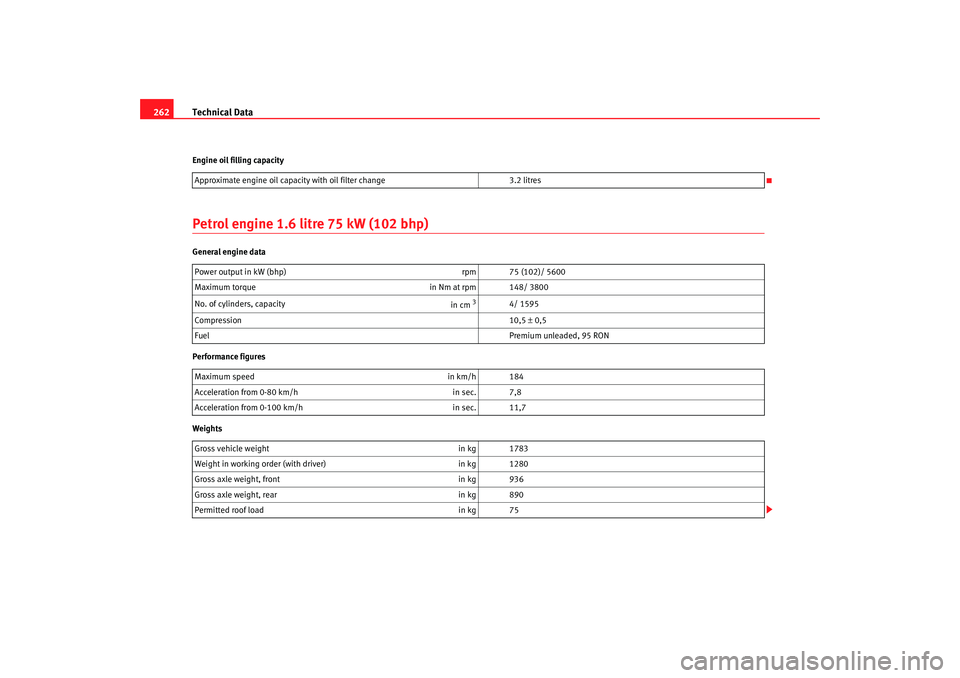

Technical Data
262Engine oil filling capacityPetrol engine 1.6 litre 75 kW (102 bhp)General engine data
Performance figures
Weights Approximate engine oil capacity with oil filter change
3.2 litres
Power output in kW (bhp) rpm 75 (102)/ 5600
Maximum torque in Nm at rpm 148/ 3800
No. of cylinders, capacity in cm
3
4/ 1595
Compression 10,5 ± 0,5
Fuel Premium unleaded, 95 RON
Maximum speed in km/h 184
Acceleration from 0-80 km/h in sec. 7,8
Acceleration from 0-100 km/h in sec. 11,7
Gross vehicle weight in kg 1783
Weight in working order (with driver) in kg 1280
Gross axle weight, front in kg 936
Gross axle weight, rear in kg 890
Permitted roof load in kg 75
leon_ingles Seite 262 Donnerstag, 24. August 2006 1:56 13

Technical Data263
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Trailer weights
Engine oil filling capacity
Petrol engine 2.0 110 kW (150 bhp). ManualGeneral engine data
Performance figures
With no brakes, gradients up to 12%
640
With brakes, gradients up to 12% 1200
Approximate engine oil capacity with oil filter change 4.8 litres
Power output in kW (bhp) rpm 110 (150)/ 6000
Maximum torque in Nm at rpm 200/ 3500
No. of cylinders, capacity in cm
3
4/ 1984
Compression 11,5-0,5
Fuel 98 octane or 95 octane
a)
a)Slight power lossMaximum speedin km/h 210
Acceleration from 0-80 km/h in sec. 6,0
Acceleration from 0-100 km/h in sec. 8,8
leon_ingles Seite 263 Donnerstag, 24. August 2006 1:56 13

Technical Data
264Weights
Trailer weights
Engine oil filling capacityPetrol engine 2.0 110 kW (150 bhp). AutomaticGeneral engine data Gross vehicle weight
in kg 1830
Weight in working order (with driver) in kg 1335
Gross axle weight, front in kg 989
Gross axle weight, rear in kg 883
Permitted roof load in kg 75
With no brakes, gradients up to 12% 660
With brakes, gradients up to 12% 1400
Engine oil capacity with oil filter change. 5.3 litres
Power output in kW (bhp) rpm 110 (150)/ 6000
Maximum torque in Nm at rpm 200/ 3500
No. of cylinders, capacity in cm
3
4/ 1984
Compression 11,5-0,5
Fuel 98 octane or 95 octane
a)
a)With a slight power loss
leon_ingles Seite 264 Donnerstag, 24. August 2006 1:56 13

Technical Data265
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Performance figures
Weights
Trailer weights
Engine oil filling capacity
Maximum speed
in km/h 208
Acceleration from 0-80 km/h in sec. 6,4
Acceleration from 0-100 km/h in sec. 9,4
Gross vehicle weight in kg 1870
Weight in working order (with driver) in kg 1375
Gross axle weight, front in kg 1024
Gross axle weight, rear in kg 888
Permitted roof load in kg 75
With no brakes, gradients up to 12% 680
With brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 5.3 litres
leon_ingles Seite 265 Donnerstag, 24. August 2006 1:56 13

Technical Data
266Petrol engine 2.0l 136 kW (185 bhp)General engine data
Performance figures
Weights
Trailer weights Power output in kW (bhp)
rpm 136 (185)/ 5100-6000
Maximum torque in Nm at rpm 270/ 1800-5000
No. of cylinders, capacity in cm
3
4/ 1984
Compression 10,3 ± 0,5
Fuel 98 octane or 95 octane
a)
a)With a slight power lossMaximum speedin km/h 221
Acceleration from 0-80 km/h in sec. 5,5
Acceleration from 0-100 km/h in sec. 7,8
Gross vehicle weight in kg 1904
Weight in working order (with driver) in kg 1409
Gross axle weight, front in kg 1050
Gross axle weight, rear in kg 896
Permitted roof load in kg 75
With no brakes, gradients up to 12% 700
With brakes, gradients up to 12% 1400
leon_ingles Seite 266 Donnerstag, 24. August 2006 1:56 13

Technical Data267
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Engine oil filling capacity
Petrol engine 2.0l 147 kW (200 bhp). ManualGeneral engine data
Performance figures
Weights
Approximate engine oil capacity with oil filter change
5.3 litres
Power output in kW (bhp) rpm 147 (200)/ 5100-6000
Maximum torque in Nm at rpm 280/ 1800-5000
No. of cylinders, capacity in cm
3
4/ 1984
Compression 10,3 ± 0,5
Fuel 98 octane or 95 octane
a)
a)With a slight power lossMaximum speedin km/h 229
Acceleration from 0-80 km/h in sec. 5,2
Acceleration from 0-100 km/h in sec. 7,3
Gross vehicle weight in kg 1904
Weight in working order (with driver) in kg 1409
Gross axle weight, front in kg 1046
Gross axle weight, rear in kg 897
Permitted roof load in kg 75
leon_ingles Seite 267 Donnerstag, 24. August 2006 1:56 13

Technical Data
268Trailer weights
Engine oil filling capacityPetrol engine 2.0l 147 kW (200 bhp). AutomaticGeneral engine data
Performance figures With no brakes, gradients up to 12%
700
With brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 5.3 litres
Power output in kW (bhp) rpm 147 (200)/ 5100-6000
Maximum torque in Nm at rpm 280/ 1800-5000
No. of cylinders, capacity in cm
3
4/ 1984
Compression 10,3 ± 0,5
Fuel 98 octane or 95 octane
a)
a)With a slight power lossMaximum speedin km/h 229
Acceleration from 0-80 km/h in sec. 5,2
Acceleration from 0-100 km/h in sec. 7,2
leon_ingles Seite 268 Donnerstag, 24. August 2006 1:56 13

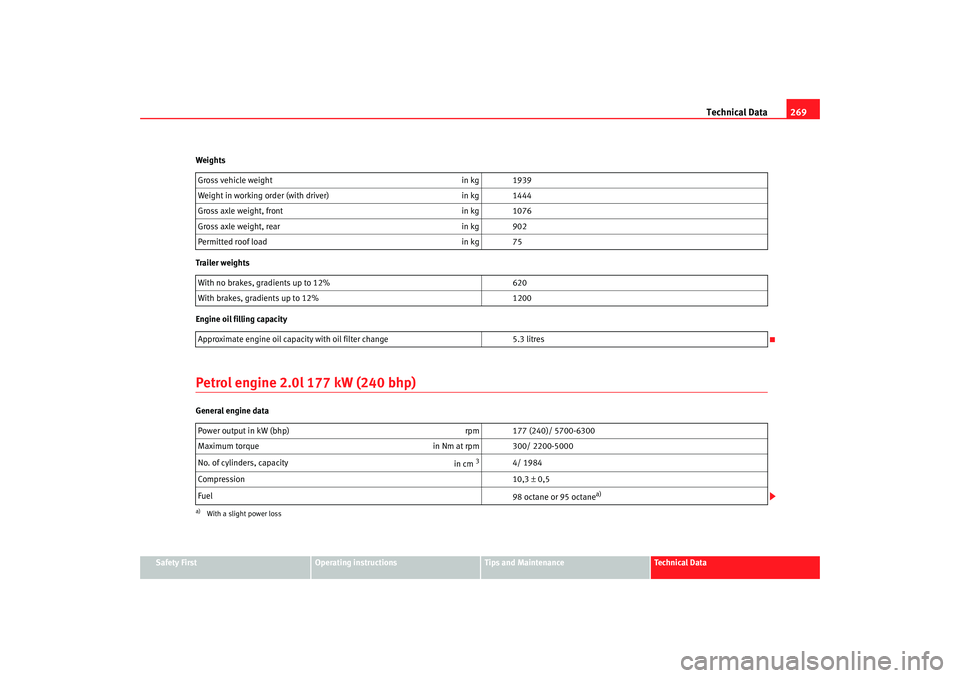

Technical Data269
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Weights
Trailer weights
Engine oil filling capacity
Petrol engine 2.0l 177 kW (240 bhp)General engine data
Gross vehicle weight
in kg 1939
Weight in working order (with driver) in kg 1444
Gross axle weight, front in kg 1076
Gross axle weight, rear in kg 902
Permitted roof load in kg 75
With no brakes, gradients up to 12% 620
With brakes, gradients up to 12% 1200
Approximate engine oil capacity with oil filter change 5.3 litres
Power output in kW (bhp) rpm 177 (240)/ 5700-6300
Maximum torque in Nm at rpm 300/ 2200-5000
No. of cylinders, capacity in cm
3
4/ 1984
Compression 10,3 ± 0,5
Fuel 98 octane or 95 octane
a)
a)With a slight power loss
leon_ingles Seite 269 Donnerstag, 24. August 2006 1:56 13

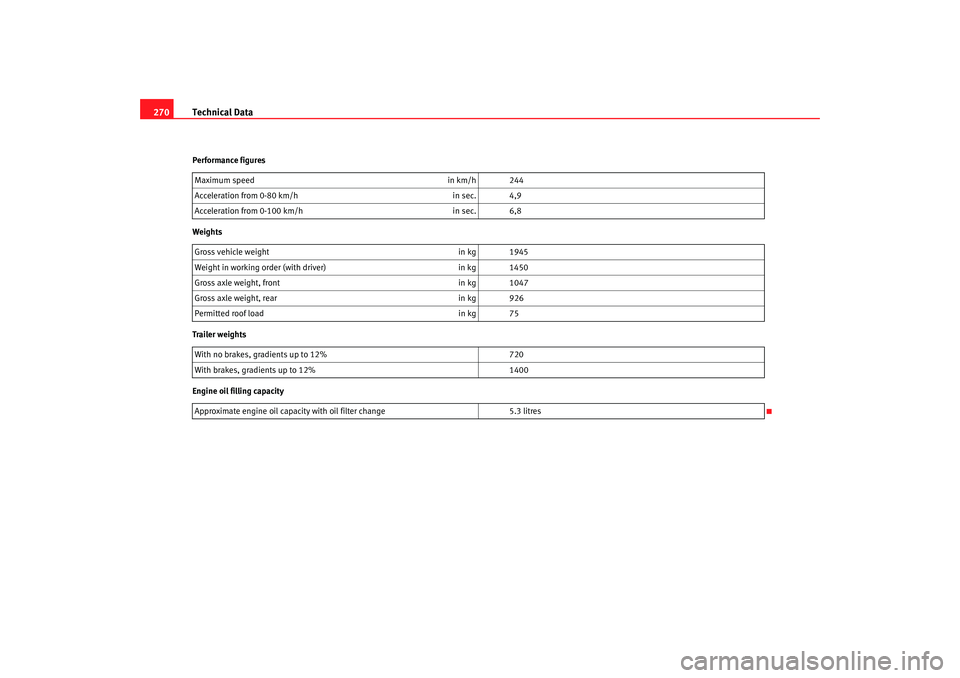

Technical Data
270Performance figures
Weights
Trailer weights
Engine oil filling capacity Maximum speed
in km/h 244
Acceleration from 0-80 km/h in sec. 4,9
Acceleration from 0-100 km/h in sec. 6,8
Gross vehicle weight in kg 1945
Weight in working order (with driver) in kg 1450
Gross axle weight, front in kg 1047
Gross axle weight, rear in kg 926
Permitted roof load in kg 75
With no brakes, gradients up to 12% 720
With brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 5.3 litres
leon_ingles Seite 270 Donnerstag, 24. August 2006 1:56 13
