Navigation39
– To enter stages, route lists, route options and blocked sections
⇒ page 42, “Route options”
– Displays the vehicle position. The actual vehicle position is
displayed as an address (if the location is on the navigation CD) and coordi-
nates. The direction of travel is indicated using a compass on the left hand
side of the screen. The SETUP menu may be used to manually enter the
vehicle position ⇒page 48. While the destination guide is working, visual
indications will be given using symbols ⇒page 53.
– Starts destination guide to the indicated destination. The
guide may be stopped using the function ⇒page 50, “Destina-
tion guide”.
Function buttons used to enter numbers and figures
– To erase the character to the right hand side of the screen (only acti-
vated after entering characters).
– Shows a list from which the destination may be selected.
button on the NAVIGATION menu
More options are available in the Navigation setup menu ⇒page 48.Note
•
If the destination is changed while the guide is being used, you will be
asked if you wish to substitute the actual destination or to indicate a stage. If
a stage is added, route planning is automatically selected ⇒ page 40.
•
A mark may be displayed under certain letters. If these letters are marked
then, after a few seconds, special related symbols will appear (see also
⇒ page 45, fig. 24 ).
•
The entries between square brackets [ ... ] can neither be selected or
edited; insufficient data may have been entered. In the case of address, for
example, the country must first be entered followed by the town then finally
the address.ROUTESYMBOLSSTART GUIDE
END GUIDE
ERASELIST / OKSETUP
RNS MP3_ingles Seite 39 Mittwoch, 10. Mai 2006 7:52 19

Navigation

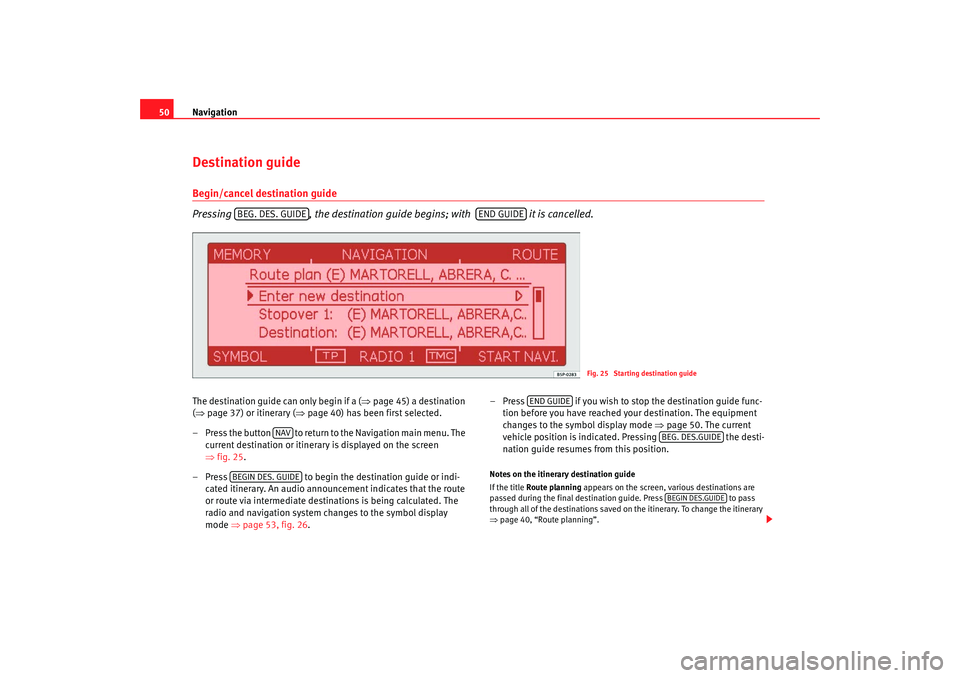

50Destination guideBegin/cancel destination guide
Pressing , the destination guide begins; with it is cancelled. The destination guide can only begin if a ( ⇒page 45) a destination
( ⇒ page 37) or itinerary (⇒ page 40) has been first selected.
– Press the button to return to the Navigation main menu. The
current destination or itinerary is displayed on the screen
⇒ fig. 25 .
– Press to begin the destination guide or indi-
cated itinerary. An audio announcement indicates that the route
or route via intermediate destinations is being calculated. The
radio and navigation system changes to the symbol display
mode ⇒page 53, fig. 26 . – Press if you wish to stop the destination guide func-
tion before you have reached your destination. The equipment
changes to the symbol display mode ⇒page 50. The current
vehicle position is indicated. Pressing the desti-
nation guide resumes from this position.
Notes on the itinerary destination guide
If the title Route planning appears on the screen, various destinations are
passed during the final destination guide. Press to pass
through all of the destinations saved on the itinerary. To change the itinerary
⇒ page 40, “Route planning”.
BEG. DES. GUIDE
END GUIDE
Fig. 25 Starting destination guide
NAV
BEGIN DES. GUIDE
END GUIDE
BEG. DES.GUIDEBEGIN DES.GUIDE
