ECU Seat Leon 5D 2007 Owner's Guide

If and when
232
– Tighten the wheel bolts firmly i n d ia go na l s e q u e n ce wi t h t h e b ox
spanner.
–Replace the hub cap.After changing a wheel
After changing the wheel there are still tasks to complete.– Put the tools and jack back in the luggage compartment.
– Place the wheel with the defective tyre in the luggage compart- ment and secure it.
– Check the tyre pressure of the newly fitted tyre as soon as
possible.
– Have the tightening torque of the wheel bolts checked as soon as possible with a torque wrench. The prescribed torque is 120 Nm.
Note•
If you notice that the wheel bolts are corroded and difficult to turn when
changing a wheel, they must be replaced before having the wheel bolt torque
checked.
•
In the interest of safety, drive at moderate speeds until the wheel bolt
torque has been checked.
Wheel trims
The wheel trims must be removed to gain access to the wheel
bolts.Removing
– Insert the extraction hook from the tools into the designated
ring, located in one of the bolt hole covers of the wheel cover
⇒ fig. 154.
–Pull off the hub cap.
Fig. 154 Changing the
wheel: Removing a hub
cap
leon ingles.book Seite 232 Dienst ag, 11. September 2007 1:47 13

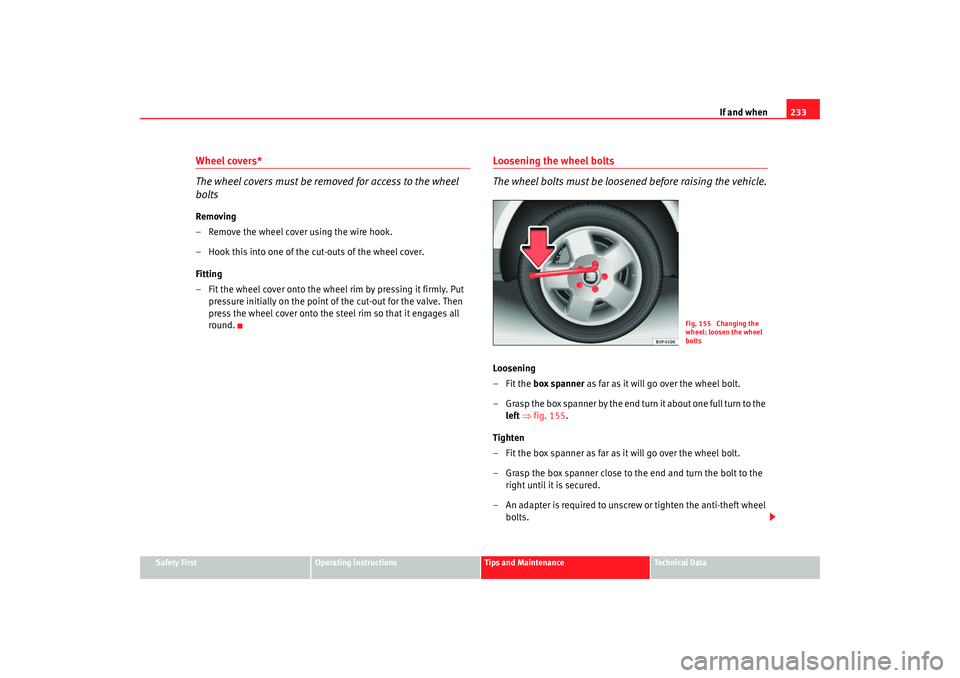

If and when233
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Wheel covers*
The wheel covers must be removed for access to the wheel
boltsRemoving
– Remove the wheel cover using the wire hook.
– Hook this into one of the cut-outs of the wheel cover.
Fitting
– Fit the wheel cover onto the wheel rim by pressing it firmly. Put pressure initially on the point of the cut-out for the valve. Then
press the wheel cover onto the steel rim so that it engages all
round.
Loosening the wheel bolts
The wheel bolts must be loosened before raising the vehicle.Loosening
–Fit the box spanner as far as it will go over the wheel bolt.
– Grasp the box spanner by the end turn it about one full turn to the left ⇒ fig. 155 .
Tighten
– Fit the box spanner as far as it will go over the wheel bolt.
– Grasp the box spanner close to the end and turn the bolt to the right until it is secured.
– An adapter is required to unscrew or tighten the anti-theft wheel bolts.
Fig. 155 Changing the
wheel: loosen the wheel
bolts
leon ingles.book Seite 233 Dienst ag, 11. September 2007 1:47 13

If and when
252
– Take the lampholder out pressing on the securing pins and extract it outwards ⇒page 251, fig. 172 .
– Replace the faulty lamp, rotating it to the left and outwards.
– Installation is done in the reverse order.Side indicators– Press the indicator on one of its sides to take it out.
– Remove the lamp holder from the indicator.
– Remove the failed glass bulb and replace with a new bulb.
– Insert the lamp holder in the indicator guide until it clicks into place. – First place the indicator in the opening in the bodywork, fixing
the tabs ⇒fig. 173 , arrow .
– Insert the lamp as shown by the arrow ⇒fig. 173.
Fig. 173 Side indicator
A1
A2
leon ingles.book Seite 252 Dienst ag, 11. September 2007 1:47 13

Index
292Brake servo . . . . . . . . . . . . . . . . . . . . . . . . 171, 176
Brake system . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Brake servo . . . . . . . . . . . . . . . . . . . . . . . . . 174
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 77
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Braking distance . . . . . . . . . . . . . . . . . . . . . . . . 176
Bulb changes general notes . . . . . . . . . . . . . . . . . . . . . . . 246
Bulb defect warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 77
Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118, 154CCar care Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Car care products . . . . . . . . . . . . . . . . . . . . . . . 190
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . 178
CD loader* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Central locking . . . . . . . . . . . . . . . . . . . . . . . . . . 93 Automatic speed dependent locking and un-locking system* . . . . . . . . . . . . . . . . . . . . . 95
Emergency unlocking system . . . . . . . . . . . . 95
Locking system for invo luntary unlocking . . 95
Selective unlocking system* . . . . . . . . . . . . 94
Unlocking system* . . . . . . . . . . . . . . . . . . . . 95
Central locking button Central locking . . . . . . . . . . . . . . . . . . . . . . . 97
unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Centre console with drinks holder . . . . . . . . . . 132 Cetane number . . . . . . . . . . . . . . . . . . . . . . . . . 203
Changing gear
See Manual gearbox . . . . . . . . . . . . . . . . . . 158
Changing the lamps Main headlight lamps . . . . . . . . . . . . . . . . . 247
rear lights . . . . . . . . . . . . . . . . . . . . . . . . . . 250
Changing the main headlight lamps dipped beam lights . . . . . . . . . . . . . . . . . . . 248
main beam lights . . . . . . . . . . . . . . . . . . . . 249
Side lights . . . . . . . . . . . . . . . . . . . . . . . . . . 250
turn signal lamps . . . . . . . . . . . . . . . . . . . . 247
Changing the rear light lamps Position light, fog ligh t and rear light on the
tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . 251
Changing the rear lights Indicator, side and brake lights on the bodywork . . . . . . . . . . . . . . . . . . . . . . . . . 251
luggage compartment lights . . . . . . . . . . . 253
Chassis number . . . . . . . . . . . . . . . . . . . . . . . . 262
Checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Checking battery electrolyte level . . . . . . . . . . 219
Checking engine oil level . . . . . . . . . . . . . . . . . 209
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Categorisation in groups . . . . . . . . . . . . . . . 48
Group 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Group 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Group 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Groups 0 and 0+ . . . . . . . . . . . . . . . . . . . . . . 48
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 Child seats
ISOFIX and Toptether systems . . . . . . . . . . . 52
on the front passenger seat . . . . . . . . . . . . . 31
Cigarette lighter* . . . . . . . . . . . . . . . . . . . . . . . 136
Cleaning alloy wheels . . . . . . . . . . . . . . . . . . . . 195
Cleaning and caring for your vehicle . . . . . . . . 190
Cleaning chrome . . . . . . . . . . . . . . . . . . . . . . . . 194
Cleaning cloth seat covers . . . . . . . . . . . . . . . . 197
Cleaning dash panel . . . . . . . . . . . . . . . . . . . . . 197
Cleaning engine compartment . . . . . . . . . . . . . 196
Cleaning fabric trim . . . . . . . . . . . . . . . . . . . . . 197
Cleaning leather . . . . . . . . . . . . . . . . . . . . . . . . 197
Cleaning plastic parts . . . . . . . . . . . . . . . . . . . . 197
Cleaning seat belts . . . . . . . . . . . . . . . . . . . . . . 198
Cleaning steel wheels . . . . . . . . . . . . . . . . . . . . 195
Cleaning windows . . . . . . . . . . . . . . . . . . . . . . . 193
Cleaning wooden trim . . . . . . . . . . . . . . . . . . . . 197
Climatic* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Climatronic General notes . . . . . . . . . . . . . . . . . . . . . . . 151
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Clothes hook . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Control Light switches . . . . . . . . . . . . . . . . . . . . . . . 112
Control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Control lighting . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Controls Electric windows . . . . . . . . . . . . . . . . . . . . . 106
