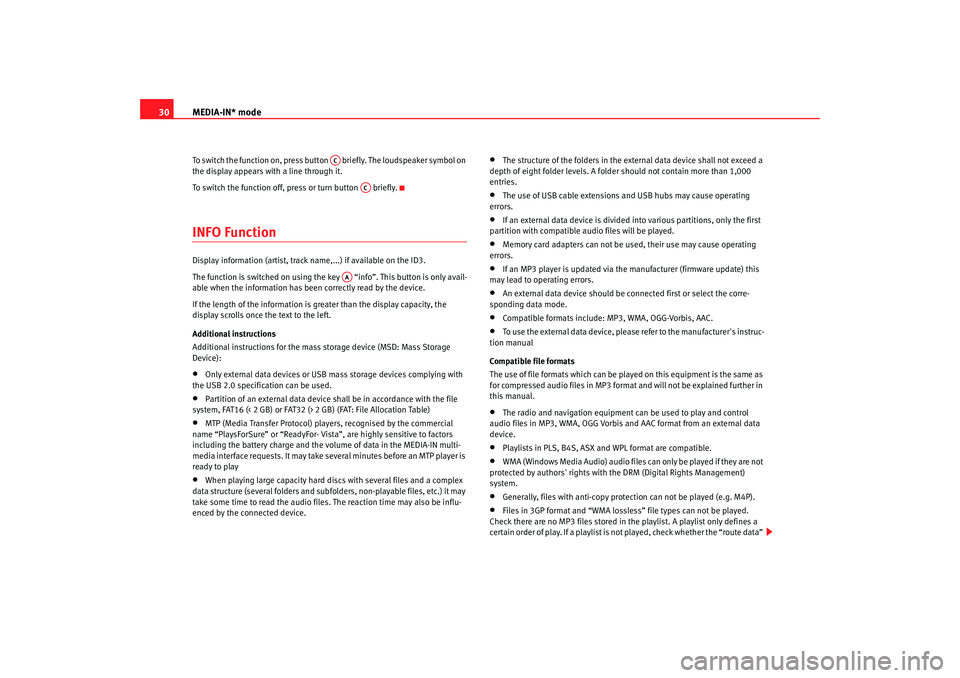

Seat Leon 5D 2008 CAR STEREO MP3

MEDIA-IN* mode
30To switch the function on, press button briefly. The loudspeaker symbol on
the display appears with a line through it.
To switch the function off, press or turn button briefly.INFO FunctionDisplay information (artist, track name,...) if available on the ID3.
The function is switched on using the key “info”. This button is only avail-
able when the information has been correctly read by the device.
If the length of the information is greater than the display capacity, the
display scrolls once the text to the left.
Additional instructions
Additional instructions for the mass storage device (MSD: Mass Storage
Device):•
Only external data devices or USB mass storage devices complying with
the USB 2.0 specification can be used.
•
Partition of an external data device shall be in accordance with the file
system, FAT16 (< 2 GB) or FAT32 (> 2 GB) (FAT: File Allocation Table)
•
MTP (Media Transfer Protocol) players, recognised by the commercial
name “PlaysForSure” or “ReadyFor- Vista”, are highly sensitive to factors
including the battery charge and the volume of data in the MEDIA-IN multi-
media interface requests. It may take several minutes before an MTP player is
ready to play
•
When playing large capacity hard discs with several files and a complex
data structure (several folders and subfolders, non-playable files, etc.) it may
take some time to read the audio files . The reaction time may also be influ-
enced by the connected device.
•
The structure of the folders in the external data device shall not exceed a
depth of eight folder levels. A fold er should not contain more than 1,000
entries.
•
The use of USB cable extensions and USB hubs may cause operating
errors.
•
If an external data device is divided into various partitions, only the first
partition with compatible audio files will be played.
•
Memory card adapters can not be used, their use may cause operating
errors.
•
If an MP3 player is updated via the manufacturer (firmware update) this
may lead to operating errors.
•
An external data device should be connected first or select the corre-
sponding data mode.
•
Compatible formats include: MP3, WMA, OGG-Vorbis, AAC.
•
To use the external data device, please refer to the manufacturer's instruc-
tion manual
Compatible file formats
The use of file formats which can be played on this equipment is the same as
for compressed audio files in MP3 format and will not be explained further in
this manual.
•
The radio and navigation equipment can be used to play and control
audio files in MP3, WMA, OGG Vorbis and AAC format from an external data
device.
•
Playlists in PLS, B4S, ASX and WPL format are compatible.
•
WMA (Windows Media Audio) audio files can only be played if they are not
protected by authors' rights with the DRM (Digital Rights Management)
system.
•
Generally, files with anti-copy protec tion can not be played (e.g. M4P).
•
Files in 3GP format and “WMA lossless” file types can not be played.
Check there are no MP3 files stored in the playlist. A playlist only defines a
certain order of play. If a playlist is not played, check whether the “route data”
AC
AC
AA
car_stereo_ingles Seite 30 Donn erstag, 18. Dezember 2008 12:43 12

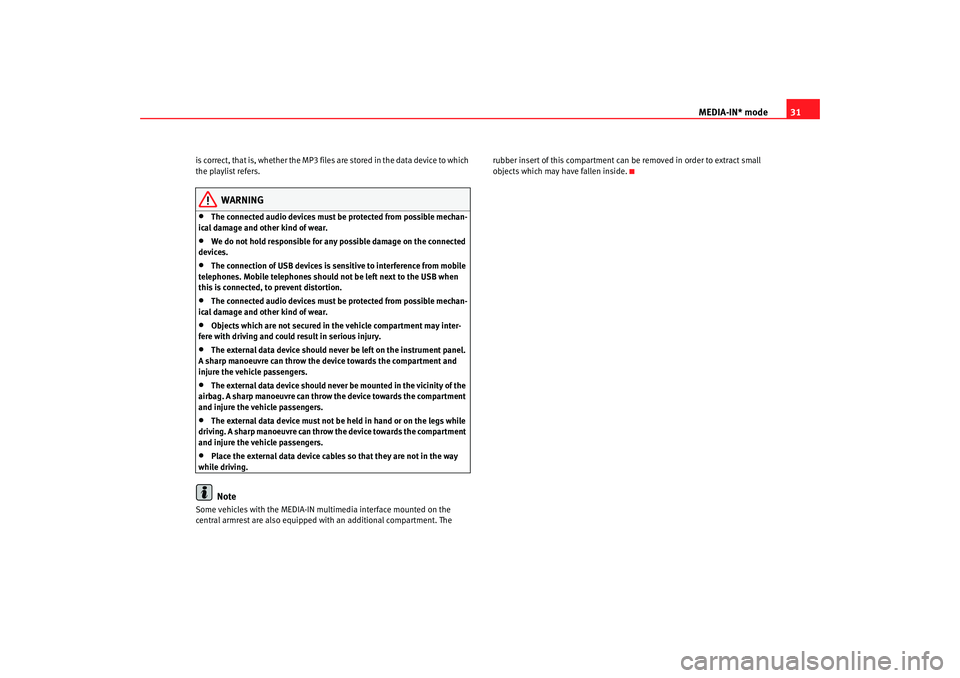

MEDIA-IN* mode31
is correct, that is, whether the MP3 files are stored in the data device to which
the playlist refers.
WARNING
•
The connected audio devices must be protected from possible mechan-
ical damage and other kind of wear.
•
We do not hold responsible for any possible damage on the connected
devices.
•
The connection of USB devices is sensitive to interference from mobile
telephones. Mobile telephones should not be left next to the USB when
this is connected, to prevent distortion.
•
The connected audio devices must be protected from possible mechan-
ical damage and other kind of wear.
•
Objects which are not secured in the vehicle compartment may inter-
fere with driving and could result in serious injury.
•
The external data device should neve r be left on the instrument panel.
A sharp manoeuvre can throw the de vice towards the compartment and
injure the vehicle passengers.
•
The external data device should never be mounted in the vicinity of the
airbag. A sharp manoeuvre can throw the device towards the compartment
and injure the vehicle passengers.
•
The external data device must not be held in hand or on the legs while
driving. A sharp manoeuvre can throw the device towards the compartment
and injure the vehicle passengers.
•
Place the external data device cables so that they are not in the way
while driving.Note
Some vehicles with the MEDIA-IN multimedia interface mounted on the
central armrest are also equipped with an additional compartment. The rubber insert of this compartment can be removed in order to extract small
objects which may have fallen inside.
car_stereo_ingles Seite 31 Donn
erstag, 18. Dezember 2008 12:43 12

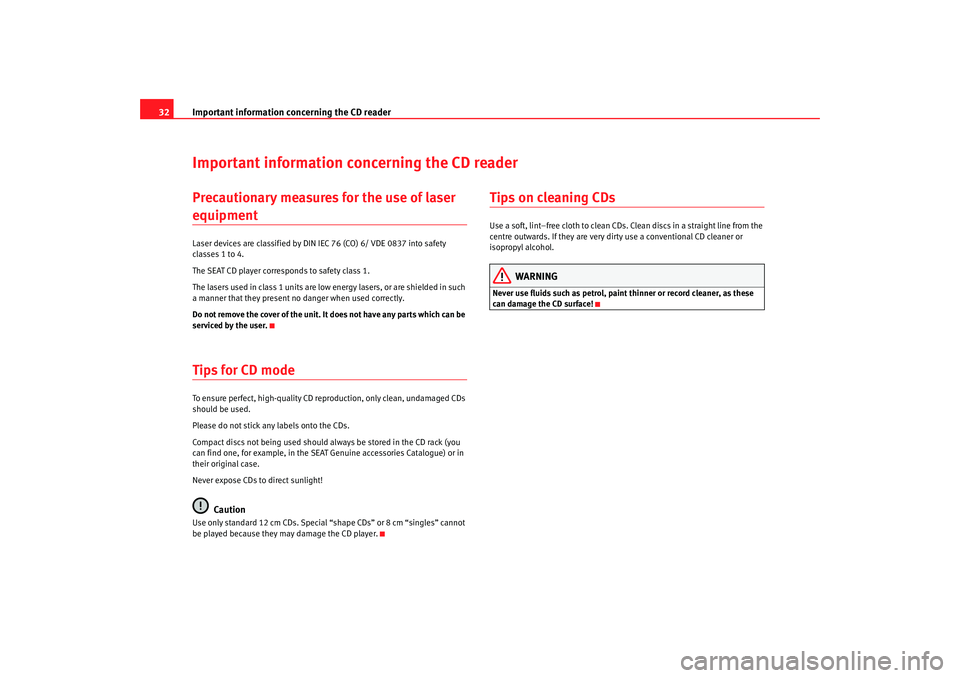

Important information concerning the CD reader
32Important information concerning the CD readerPrecautionary measures for the use of laser equipmentLaser devices are classified by DIN IEC 76 (CO) 6/ VDE 0837 into safety
classes 1 to 4.
The SEAT CD player corresponds to safety class 1.
The lasers used in class 1 units are low energy lasers, or are shielded in such
a manner that they present no danger when used correctly.
Do not remove the cover of the unit. It does not have any parts which can be
serviced by the user.Tips for CD modeTo ensure perfect, high-quality CD reproduction, only clean, undamaged CDs
should be used.
Please do not stick any labels onto the CDs.
Compact discs not being used should always be stored in the CD rack (you
can find one, for example, in the SEAT Genuine accessories Catalogue) or in
their original case.
Never expose CDs to direct sunlight!
Caution
Use only standard 12 cm CDs. Special “shape CDs” or 8 cm “singles” cannot
be played because they may damage the CD player.
Tips on cleaning CDsUse a soft, lint–free cloth to clean CDs. Clean discs in a straight line from the
centre outwards. If they are very dirty use a conventional CD cleaner or
isopropyl alcohol.
WARNING
Never use fluids such as petrol, paint thinner or record cleaner, as these
can damage the CD surface!
car_stereo_ingles Seite 32 Donn erstag, 18. Dezember 2008 12:43 12

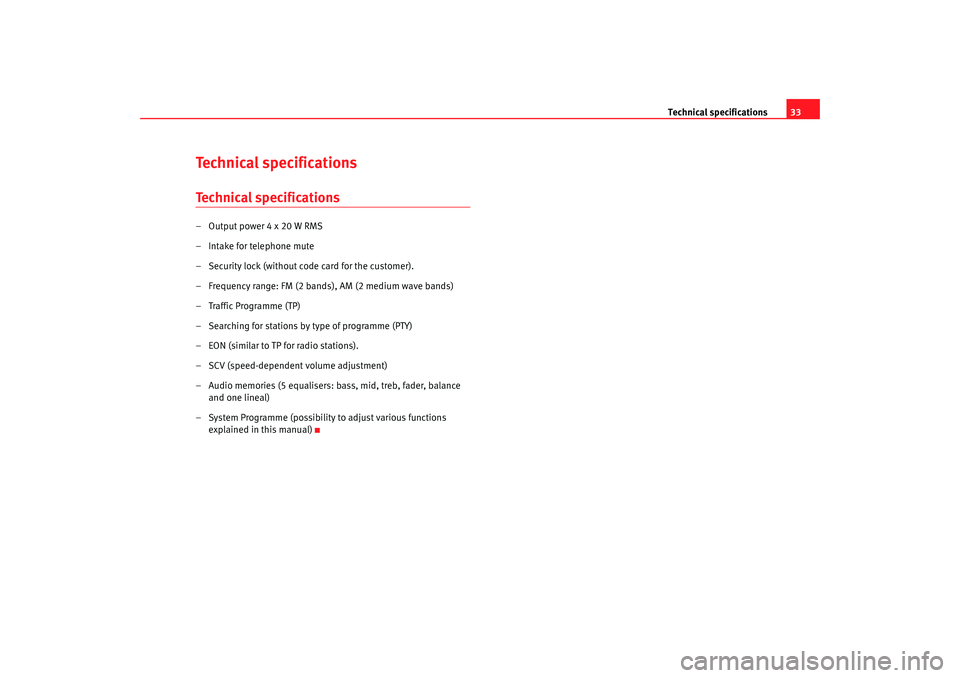

Technical specifications33
Technical specificationsTechnical specifications– Output power 4 x 20 W RMS
– Intake for telephone mute
– Security lock (without code card for the customer).
– Frequency range: FM (2 bands), AM (2 medium wave bands)
– Traffic Programme (TP)
– Searching for stations by type of programme (PTY)
– EON (similar to TP for radio stations).
– SCV (speed-dependent volume adjustment)
– Audio memories (5 equalisers: bass, mid, treb, fader, balance
and one lineal)
– System Programme (possibility to adjust various functions explained in this manual)
car_stereo_ingles Seite 33 Donn erstag, 18. Dezember 2008 12:43 12

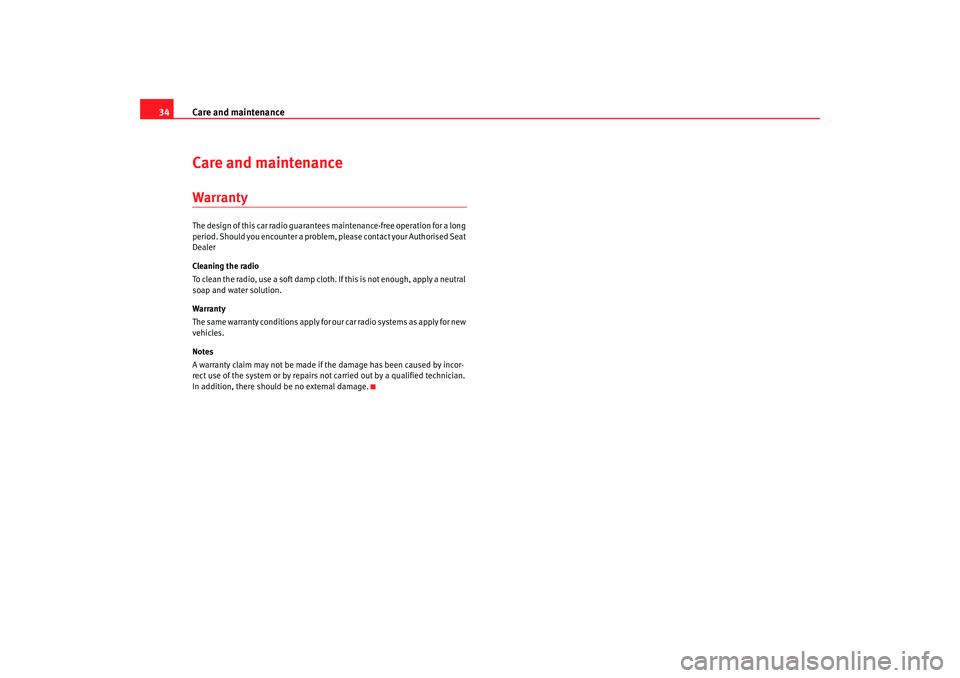

Care and maintenance
34Care and maintenanceWarrantyThe design of this car radio guarantees maintenance-free operation for a long
period. Should you encounter a problem, please contact your Authorised Seat
Dealer
Cleaning the radio
To clean the radio, use a soft damp cloth. If this is not enough, apply a neutral
soap and water solution.
Warranty
The same warranty conditions apply for our car radio systems as apply for new
vehicles.
Notes
A warranty claim may not be made if the damage has been caused by incor-
rect use of the system or by repairs not carried out by a qualified technician.
In addition, there should be no external damage.
car_stereo_ingles Seite 34 Donn erstag, 18. Dezember 2008 12:43 12

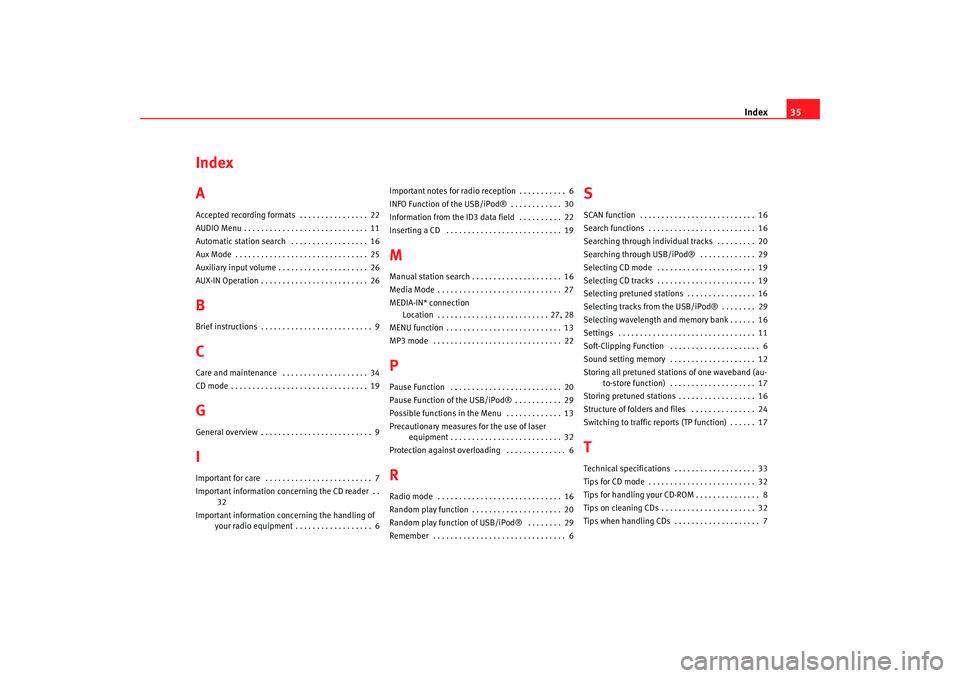

Index35
Index
AAccepted recording formats . . . . . . . . . . . . . . . . 22
AUDIO Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Automatic station search . . . . . . . . . . . . . . . . . . 16
Aux Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Auxiliary input volume . . . . . . . . . . . . . . . . . . . . . 26
AUX-IN Operation . . . . . . . . . . . . . . . . . . . . . . . . . 26BBrief instructions . . . . . . . . . . . . . . . . . . . . . . . . . . 9CCare and maintenance . . . . . . . . . . . . . . . . . . . . 34
CD mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19GGeneral overview . . . . . . . . . . . . . . . . . . . . . . . . . . 9IImportant for care . . . . . . . . . . . . . . . . . . . . . . . . . 7
Important information concerning the CD reader . .
32
Important information conc erning the handling of
your radio equipment . . . . . . . . . . . . . . . . . . 6 Important notes for radio reception . . . . . . . . . . . 6
INFO Function of the USB/iPod® . . . . . . . . . . . . 30
Information from the ID3 data field . . . . . . . . . . 22
Inserting a CD . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
MManual station search . . . . . . . . . . . . . . . . . . . . . 16
Media Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
MEDIA-IN* connection
Location . . . . . . . . . . . . . . . . . . . . . . . . . . 27, 28
MENU function . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
MP3 mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22PPause Function . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Pause Function of the USB/iPod® . . . . . . . . . . . 29
Possible functions in the Menu . . . . . . . . . . . . . 13
Precautionary measures for the use of laser equipment . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Protection against overloading . . . . . . . . . . . . . . 6RRadio mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Random play function . . . . . . . . . . . . . . . . . . . . . 20
Random play function of USB/iPod® . . . . . . . . 29
Remember . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
SSCAN function . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Search functions . . . . . . . . . . . . . . . . . . . . . . . . . 16
Searching through individual tracks . . . . . . . . . 20
Searching through USB/iPod® . . . . . . . . . . . . . 29
Selecting CD mode . . . . . . . . . . . . . . . . . . . . . . . 19
Selecting CD tracks . . . . . . . . . . . . . . . . . . . . . . . 19
Selecting pretuned stations . . . . . . . . . . . . . . . . 16
Selecting tracks from the USB/iPod® . . . . . . . . 29
Selecting wavelength and memory bank . . . . . . 16
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Soft-Clipping Function . . . . . . . . . . . . . . . . . . . . . 6
Sound setting memory . . . . . . . . . . . . . . . . . . . . 12
Storing all pretuned stations of one waveband (au- to-store function) . . . . . . . . . . . . . . . . . . . . 17
Storing pretuned stations . . . . . . . . . . . . . . . . . . 16
Structure of folders and files . . . . . . . . . . . . . . . 24
Switching to traffic reports (TP function) . . . . . . 17TTechnical specifications . . . . . . . . . . . . . . . . . . . 33
Tips for CD mode . . . . . . . . . . . . . . . . . . . . . . . . . 32
Tips for handling your CD-ROM . . . . . . . . . . . . . . . 8
Tips on cleaning CDs . . . . . . . . . . . . . . . . . . . . . . 32
Tips when handling CDs . . . . . . . . . . . . . . . . . . . . 7
car_stereo_ingles Seite 35 Donn erstag, 18. Dezember 2008 12:43 12

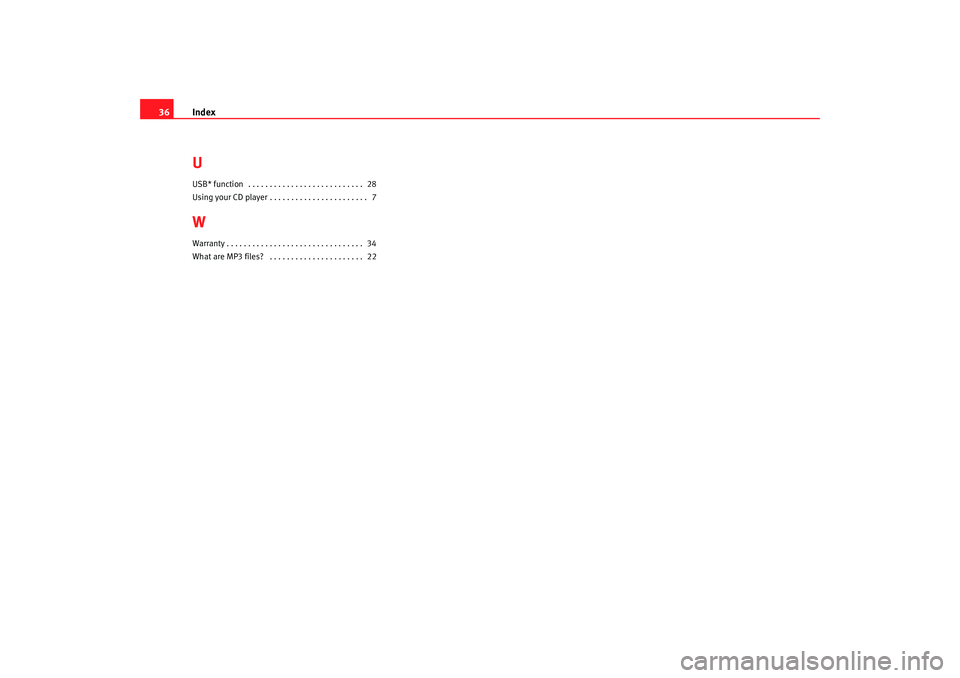

Index
36UUSB* function . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Using your CD player . . . . . . . . . . . . . . . . . . . . . . . 7WWarranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
What are MP3 files? . . . . . . . . . . . . . . . . . . . . . . 22
car_stereo_ingles Seite 36 Donn erstag, 18. Dezember 2008 12:43 12
