Seat Leon 5D 2008 Owner's manual

Seats and stowage
130 Front seatsAdjustment of the front seatsThe control elements in ⇒fig. 90 are mirrored for the front right-
hand seat.
Adjusting the seat forwards and backwards
– Pull up the grip and move th e seat forwards or backwards.
– Then release the grip and move the seat further until the catch engages.
Adjusting the seat height*
– Pull the lever up or push down (s everal times if necessary) from
its home position. This adjusts the seat height in stages. Adjusting the backrest angle
– Take your weight off the backrest and turn the hand wheel.
Adjusting the lumbar support*
– Take your weight off the backrest and turn the hand wheel to adjust the lumbar support.
The backrest curvature of the cushioned area is determined by the settings
made in the lumbar region. This supports the natural curvature of the spine
very effectively.
WARNING
•
Never adjust the driver or front passenger seat while the vehicle is in
motion. While adjusting your seat, you will assume an incorrect sitting
position. Risk of fatal accidents. Adju st the driver or front passenger seat
only when the vehicle is stationary.
•
To reduce the risk of injury to the driver and front passenger in case of
a sudden braking or an accident, neve r drive with the backrest tilted
towards the rear. The maximum protection of the seat belt can be achieved
only when the backrests are in an uprigh t position and the driver and front
passenger have properly adjusted their seat belts. The further the back-
rests are tilted to the rear, the greater the risk of injury due to improper
positioning of the belt web!
•
Exercise caution when securing th e seat height into forwards/back-
wards position. Injuries can be caused if the backrest is tilted without due
care and attention.
Fig. 90 Front left seat
controls
A1
A1
A2
A3A4
leon_ingles Seite 130 Montag, 26. Januar 2009 4:29 16

Seats and stowage131
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

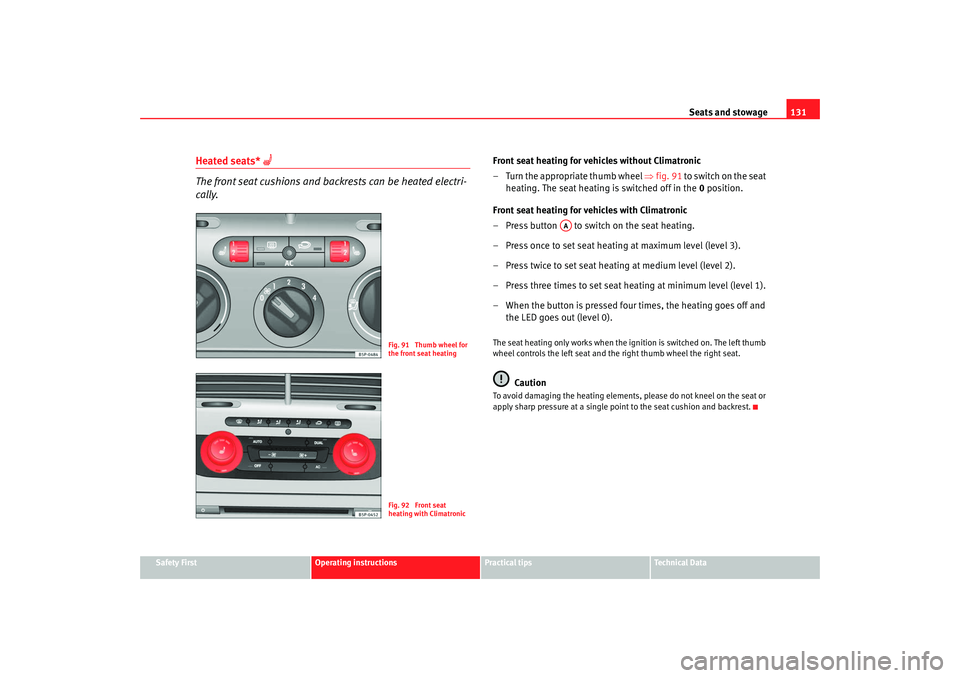

Heated seats*

The front seat cushions and backrests can be heated electri-
cally.
Front seat heating for vehicles without Climatronic
– Turn the appropriate thumb wheel ⇒ fig. 91 to switch on the seat
heating. The seat heating is switched off in the 0 position.
Front seat heating for vehicles with Climatronic
– Press button to switch on the seat heating.
– Press once to set seat heating at maximum level (level 3).
– Press twice to set seat heating at medium level (level 2).
– Press three times to set seat heating at minimum level (level 1).
– When the button is pressed four times, the heating goes off and the LED goes out (level 0).The seat heating only works when the ignition is switched on. The left thumb
wheel controls the left seat and the right thumb wheel the right seat.
Caution
To avoid damaging the heating elements, please do not kneel on the seat or
apply sharp pressure at a single point to the seat cushion and backrest.
Fig. 91 Thumb wheel for
the front seat heatingFig. 92 Front seat
heating with Climatronic
AA
leon_ingles Seite 131 Montag, 26. Januar 2009 4:29 16

Seats and stowage

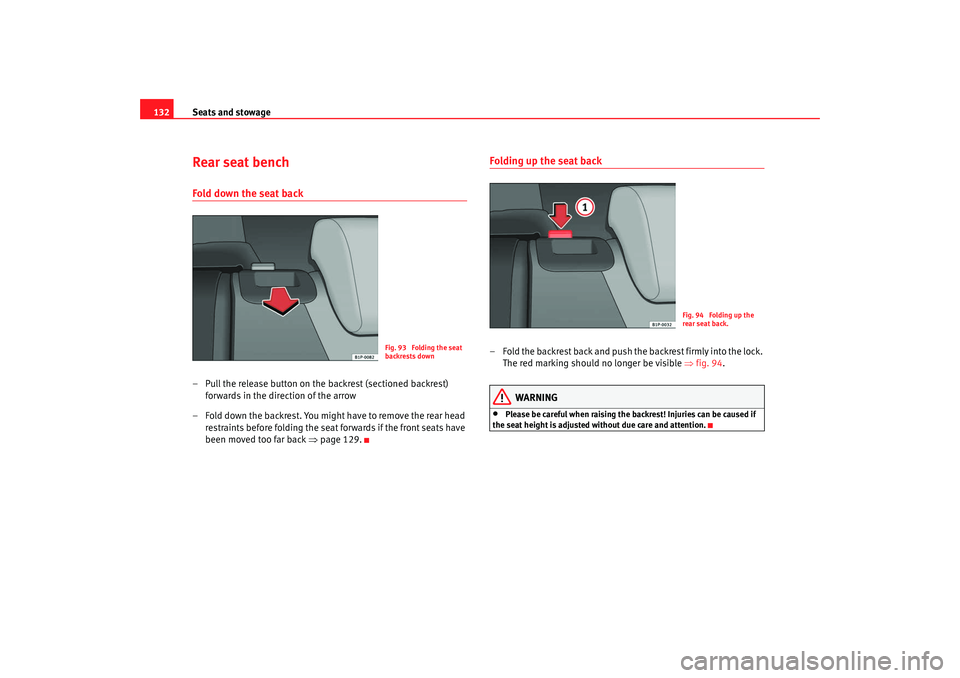

132Rear seat benchFold down the seat back – Pull the release button on the backrest (sectioned backrest)
forwards in the direction of the arrow
– Fold down the backrest. You might have to remove the rear head restraints before folding the seat forwards if the front seats have
been moved too far back ⇒page 129.
Folding up the seat back– Fold the backrest back and push the backrest firmly into the lock.
The red marking should no longer be visible ⇒fig. 94.
WARNING
•
Please be careful when raising the backrest! Injuries can be caused if
the seat height is adjusted wi thout due care and attention.
Fig. 93 Folding the seat
backrests down
Fig. 94 Folding up the
rear seat back.
leon_ingles Seite 132 Montag, 26. Januar 2009 4:29 16

Seats and stowage133
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a

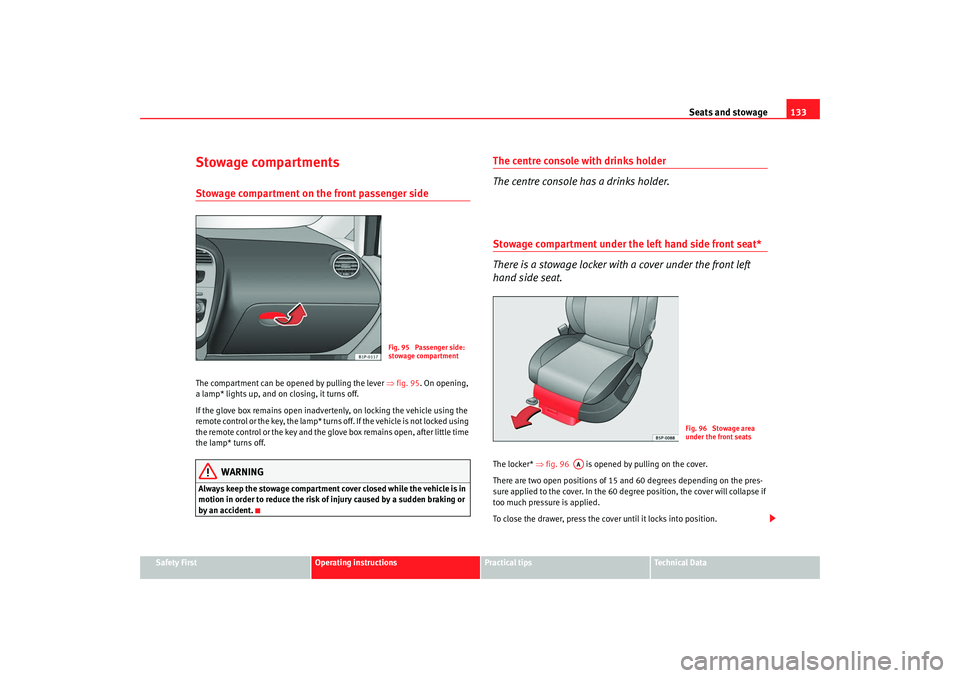

Stowage compartmentsStowage compartment on the front passenger sideThe compartment can be opened by pulling the lever ⇒fig. 95 . On opening,
a lamp* lights up, and on closing, it turns off.
If the glove box remains open inadvertenly, on locking the vehicle using the
remote control or the key, the lamp* turns off. If the vehicle is not locked using
the remote control or the key and the glove box remains open, after little time
the lamp* turns off.
WARNING
Always keep the stowage compartment cover closed while the vehicle is in
motion in order to reduce the risk of injury caused by a sudden braking or
by an accident.
The centre console with drinks holder
The centre console has a drinks holder.Stowage compartment under the left hand side front seat*
There is a stowage locker with a cover under the front left
hand side seat.The locker* ⇒fig. 96 is opened by pulling on the cover.
There are two open positions of 15 and 60 degrees depending on the pres-
sure applied to the cover. In the 60 degree position, the cover will collapse if
too much pressure is applied.
To close the drawer, press the cover until it locks into position.
Fig. 95 Passenger side:
stowage compartment
Fig. 96 Stowage area
under the front seats
AA
leon_ingles Seite 133 Montag, 26. Januar 2009 4:29 16

Seats and stowage
134
WARNING
•
The drawers will hold a maximum weight of 1.5 kg.
•
Do not drive with the drawer cover open. There is an injury risk for
passengers if the cargo is released in case of sudden braking or an
accident.
Folding table*
Folding tables are fitted to the rear of the front seat backrests.– To open the table, open it up in the direction of the arrow ⇒fig. 97 .
WARNING
•
The folding tables may not be folded down whilst the vehicle is in
motion and anyone is seated on the seco nd row of seats. There is a risk on
injury during a sudden braking manoeuvre! The table must therefore be
closed and properly secured whilst the vehicle is in motion.
•
Never place hot drinks in the drink holders. During normal or sudden
driving manoeuvres, sudden braking or an accident, the hot drink could be
spilled. Danger of scalding.Caution
When driving, do not leave open cans in the cup holders. The drink might be
spilt on braking, for example, and could damage the vehicle.Other stowage areasOther stowage areas can be found:•
in the centre console,
•
in the side trims of the luggage compartment,
The hooks for hanging are found on the pillar between the front and rear side
windows.
WARNING
•
Do not store loose objects on the dashboard. These objects could be
flung through the passenger compartment when the vehicle is moving (e.g.
while accelerating, braking or cornerin g) and distract the driver. Risk of
accident.
•
Ensure that no objects can fall from the centre console or other stowage
areas into the driver foot well while the vehicle is moving. In the event of a
Fig. 97 Folding table of
front left seat
leon_ingles Seite 134 Montag, 26. Januar 2009 4:29 16

Seats and stowage135
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
sudden braking manoeuvre, you will not be able to use the brake, clutch or
accelerator. Risk of accident.
•
Clothing hung on the coat hooks must not restrict the driver's view.
Risk of accident. The coat hooks are intended only for use with light arti-
cles of clothing. Do not leave any ha rd, sharp or heavy objects in hanging
articles of clothing. During sudden braking manoeuvres or accidents, espe-
cially those involving airbag deployment, these objects could injure the
vehicle occupants.

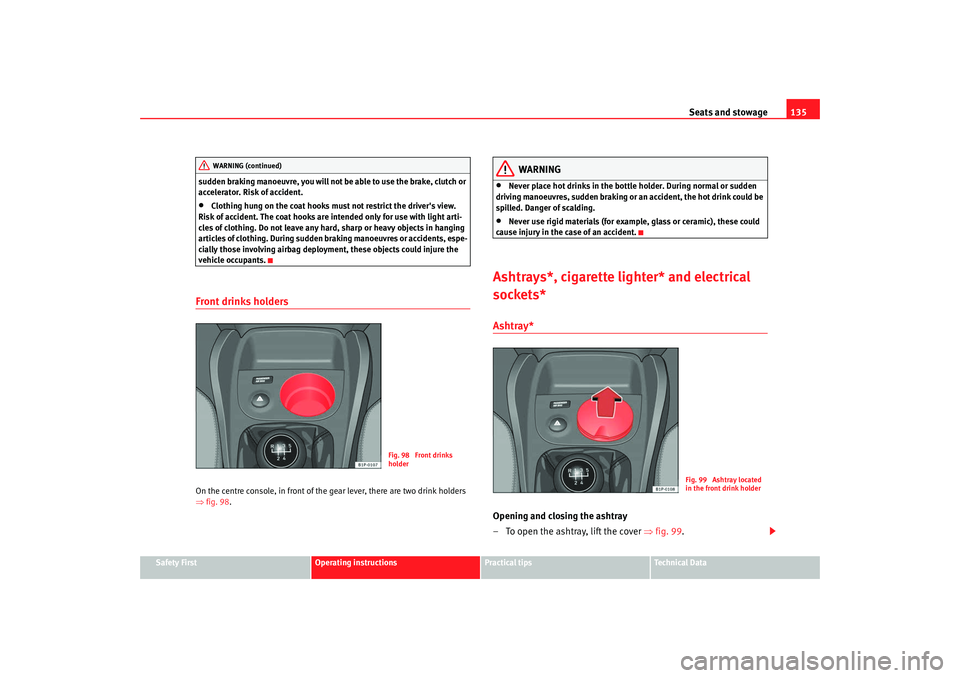

Front drinks holdersOn the centre console, in front of the gear lever, there are two drink holders
⇒ fig. 98 .
WARNING
•
Never place hot drinks in the bottle holder. During normal or sudden
driving manoeuvres, sudden braking or an accident, the hot drink could be
spilled. Danger of scalding.
•
Never use rigid materials (for example, glass or ceramic), these could
cause injury in the case of an accident.
Ashtrays*, cigarette lighter* and electrical
sockets*Ashtray* Opening and closing the ashtray
– To open the ashtray, lift the cover ⇒fig. 99 .
WARNING (continued)
Fig. 98 Front drinks
holder
Fig. 99 Ashtray located
in the front drink holder
leon_ingles Seite 135 Montag, 26. Januar 2009 4:29 16

Seats and stowage
136
– To close, push the cover down.
Emptying the ashtray
– Extract the ashtray and empty it.
WARNING
Never put paper in the ashtray. Hot ash could ignite the paper in the
ashtray and cause a fire.Cigarette lighter* – Press on the cigarette lighter ⇒fig. 100 to activate it ⇒.
– Wait for the lighter to pop out slightly. – Pull out the cigarette lighter and light the cigarette on the
glowing coil.
WARNING
•
Improper use of the cigarette lighter can lead to serious injuries or start
a fire.
•
Using the lighter carefully. Carelessness or negligence when using the
cigarette lighter can cause burns, risk of injury.
•
The lighter only works when the ignition is turned on or the engine is
running. To avoid the risk of fire, never leave children alone inside the
vehicle.
Electrical sockets*
Electrical equipment can be connected to any of the 12 volt
sockets.
Fig. 100 The cigarette
lighter is located in the
electric socket on the
front of the centre console
Fig. 101 Socket, centre
console, front
leon_ingles Seite 136 Montag, 26. Januar 2009 4:29 16

Seats and stowage137
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
Electrical accessories may be connected
to the 12 volt power point in the front
centre console ⇒page 136, fig. 101 of the passenger compartment and that
of the boot* The appliances connected to each power point must not exceed
a power rating of 120 Watt.
WARNING
The current power points and the connected accessories will only operate
when the ignition is on or when the engine is running. Improper use of the
sockets or electrical accessories can lead to serious injuries or cause a fire.
To avoid the risk of injury, never leave children alone inside the vehicle.
Note
•
The use of electrical appliances with the engine switched off will cause a
battery discharge.
•
Before using any electrical accessories, see the instructions on
⇒ page 200.
Auxiliary audio connection (AUX-IN)*– Lift the AUX. cover ⇒fig. 102.
– Insert the pin as far as possible (see Radio manual).
Fig. 102 Auxiliary audio
connection
leon_ingles Seite 137 Montag, 26. Januar 2009 4:29 16

Seats and stowage
138MEDIA-IN* connectorFor information concerning the use of this equipment, please see the Radio
handbook.
First-aid kit, warning triangle, fire
extinguisherWarning triangleThe emergency warning triangle can be fitted in the side lining of the boot.
Note
•
The warning triangle is not part of the vehicle's standard equipment.
First-aid kit and fire extinguisherThe first-aid kit* can be housed in a stow age box in the left side lining of the
luggage compartment.
Fig. 103 Opening
connector on central
consoleFig. 104 Connector on
the central console
Fig. 105 Housing for the
emergency warning
triangle in the boot
leon_ingles Seite 138 Montag, 26. Januar 2009 4:29 16

Seats and stowage139
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
The fire extinguisher* is attached to the luggage compartment carpet by
velcro.
Note
•
The first-aid kit and the fire extinguisher are
not part of the vehicle's
standard equipment.
•
The first aid kit must comply with legal requirements.
•
Observe the expiry date of the contents of the first aid kit. You should
purchase a new first-aid kit as soon as possible after the shelf-life date of the
first-aid kit has expired.
•
The fire extinguisher must comply with legal requirements.
•
Ensure that the fire extinguisher is fu lly functional. The fire extinguisher
should, therefore, be checked regularly. The sticker on the fire extinguisher
will inform you of the next date for checking.
•
Before acquiring accessories and emergency equipment see the instruc-
tions on ⇒page 200.
BootStowing luggage
All luggage must be securely stowed.Please observe the following points to ensure the vehicle handles
well at all times:
– Distribute the load as evenly as possible.
– Place heavy objects as far forward in the luggage compartment
as possible. – Secure luggage in the luggage compartment with suitable straps
on the fastening rings.
WARNING
•
Loose luggage and other loose items in the vehicle can cause serious
injuries.
•
Loose objects in the luggage compartment can suddenly move and
change the way the vehicle handles.
•
During sudden manoeuvres or ac cidents, loose objects in the
passenger compartment can be flung forward, injuring vehicle occupants.
•
Always store objects in the luggage compartment and secure with suit-
able straps. This is especially important for heavy objects.
•
When you transport heavy objects, always take in account that a
change in the centre of gravity can also cause changes in vehicle handling.
•
Please observe information on safe driving ⇒page 7, “Safe driving”.Caution
Hard objects on the shelf could chafe against the wires of the heating
element in the rear window and cause damage.
Note
The ventilation slots in front of the r ear side windows must not be covered as
this would prevent stale air being extracted from the vehicle.
leon_ingles Seite 139 Montag, 26. Januar 2009 4:29 16
