Checking and refilling levels
208•
Wait until no more steam, smoke or coolant is emitted from the bonnet,
then carefully open the bonnet.
•
When working in the engine compartment, always observe the safety
warnings ⇒ page 205.
Closing the bonnet– Raise the bonnet slightly.
– Release the bonnet stay and replace it in its support.
– At a height of about 30 cm let it fall so it is locked.If the bonnet does not close, do not press downwards. Open it once more and
let it fall as before.
WARNING
If the bonnet is not closed properly, it could open while you are driving and
completely obscure your view of the road. Risk of accident.•
After closing the bonnet, always check that it is properly secured. The
bonnet must be flush with the surrounding body panels.
•
If you notice that the bonnet latch is not secured when the vehicle is
moving, stop the vehicle immediately and close the bonnet properly. Risk
of accident.
Engine oilEngine oil specifications
The engine oil used must conform with exact specifications.Specifications
The engine comes with a special, high quality, multi grade oil that can be
used in all seasons of the year except for those regions affected by extreme
cold.
As the use of high quality oil is essential for the correct operation of the
engine and its long useful life, when topping up or replacement is necessary
use only those oils that conform to the requirements of the VW standards.
If it is not possible to find oil conforming to the VW standards then oil
conforming to the ACEA or API standards with an appropriate viscosity at
atmospheric temperature should be used in stead. The use of this type of oil
may have some repercussions on the performance of the engine for example,
long starting time, increased consumption and a higher emission level.
If a top up is required then different oils may be mixed as long as they all
conform to the VW standards.
The specifications (VW standards) set out in the following page should
appear on the container of the service oil; the container will display together
the different standards for petrol and diesel engines, the oil can be used for
both types of engines.
WARNING (continued)
leon_ingles Seite 208 Montag, 26. Januar 2009 4:29 16

Checking and refilling levels
218However, if the level goes down noticeably in a short time, or drops below the
“MIN” mark, there may be a leak in the brake system. A display on the instru-
ment panel will warn you if the brake fluid level is too low ⇒page 73.
WARNING
Before opening the bonnet to check the brake fluid level, read and observe
the warnings ⇒page 205.Changing the brake fluid
The Maintenance Program indicates the brake fluid change
intervals.We recommend that you have the brake fluid changed by an Authorised
Service Centre.
Before opening the bonnet, please read and follow the warnings ⇒ in
“Safety instructions on working in the engine compartment” on page 205 in
“Working in the engine compartment”.
Brake fluid absorbs moisture. In the cour se of time, it will absorb water from
the ambient air. If the water content in the brake fluid is too high, the brake
system could corrode. This also considerably reduces the boiling point of the
brake fluid. Heavy use of the brakes may then cause a vapour lock which
could impair the braking effect.
It is important that you use only brake fluid compliant with the US standard
FMVSS 116 DOT 4. We recommend the use of Genuine SEAT brake fluid.
WARNING
Brake fluid is poisonous. Old brake fluid impairs the braking effect.
•
Before opening the bonnet to check the brake fluid level, read and
observe the warnings ⇒page 205.
•
Brake fluid should be stored in the closed original container in a safe
place out of reach of children. There is a toxic risk.
•
Complete the brake fluid change according to the Maintenance
Program. Heavy use of the brakes may cause a vapour lock if the brake fluid
is left in the system for too long. Th is would seriously affect the efficiency
of the brakes and the safety of the vehicle. This may cause an accident.Caution
Brake fluid could damage the paintwork. Wipe off any brake fluid from the
paintwork immediately.
For the sake of the environment
Brake fluid must be drained and disposed of in the proper manner observing
environmental regulations.
WARNING (continued)
leon_ingles Seite 218 Montag, 26. Januar 2009 4:29 16

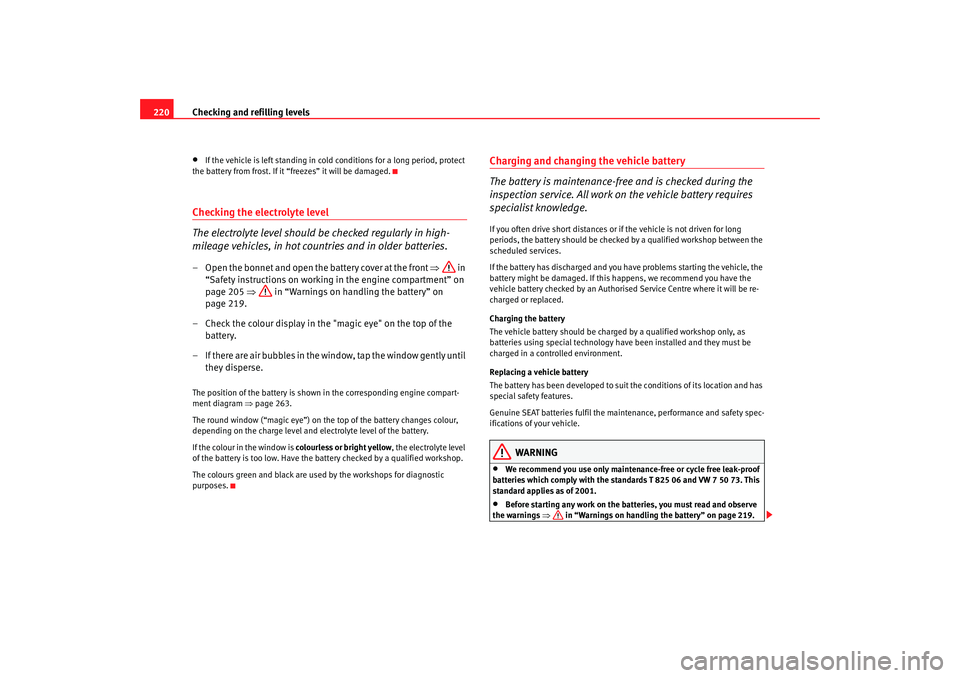

Checking and refilling levels
220•
If the vehicle is left standing in cold conditions for a long period, protect
the battery from frost. If it “freezes” it will be damaged.
Checking the electrolyte level
The electrolyte level should be checked regularly in high-
mileage vehicles, in hot countries and in older batteries.– Open the bonnet and open the battery cover at the front ⇒ in
“Safety instructions on working in the engine compartment” on
page 205 ⇒ in “Warnings on handling the battery” on
page 219.
– Check the colour display in the "magic eye" on the top of the battery.
– If there are air bubbles in the window, tap the window gently until they disperse.The position of the battery is shown in the corresponding engine compart-
ment diagram ⇒page 263.
The round window (“magic eye”) on the top of the battery changes colour,
depending on the charge level and electrolyte level of the battery.
If the colour in the window is colourless or bright yellow, the electrolyte level
of the battery is too low. Have the battery checked by a qualified workshop.
The colours green and black are used by the workshops for diagnostic
purposes.
Charging and changing the vehicle battery
The battery is maintenance-free and is checked during the
inspection service. All work on the vehicle battery requires
specialist knowledge.If you often drive short distances or if the vehicle is not driven for long
periods, the battery should be checked by a qualified workshop between the
scheduled services.
If the battery has discharged and you have problems starting the vehicle, the
battery might be damaged. If this happens, we recommend you have the
vehicle battery checked by an Authorised Service Centre where it will be re-
charged or replaced.
Charging the battery
The vehicle battery should be charged by a qualified workshop only, as
batteries using special technology have been installed and they must be
charged in a controlled environment.
Replacing a vehicle battery
The battery has been developed to suit the conditions of its location and has
special safety features.
Genuine SEAT batteries fulfil the maintenance, performance and safety spec-
ifications of your vehicle.
WARNING
•
We recommend you use only maintenance-free or cycle free leak-proof
batteries which comply with the standards T 825 06 and VW 7 50 73. This
standard applies as of 2001.
•
Before starting any work on the batteries, you must read and observe
the warnings ⇒ in “Warnings on handling the battery” on page 219.
leon_ingles Seite 220 Montag, 26. Januar 2009 4:29 16

Wheels and tyres223
Safety First
Operating instructions
Practical tips
Te c h n i c a l D a t a
2. The tyre pressures should only be checked when the tyres are
cold. The slightly raised pressures of warm tyres must not be
reduced.
3. Adjust the tyre pressure to the load you are carrying.Tyre pressure
The correct tyre pressure is especially important at high speeds. The pressure
should therefore be checked at least once a month and before starting a
journey.
The sticker with the tyre pressure values can be found on the inside of the
tank flap. The tyre pressure values given are for cold tyres. The slightly raised
pressures of warm tyres must not be reduced ⇒.
WARNING
•
Check the tyre pressure at least once per month. Checking tyre pressure
value is very important. If the tyre pre ssure is too high or too low, there is
an increased danger of accidents - particularly at high speeds.
•
A tyre can easily burst if the pressure is too low, causing an accident!
•
At continuously high speeds, a tyre with insufficient pressure flexes
more. In this way it becomes too hot, and this can cause tread separation
and tyre blow-out. Always observe the recommended tyre pressures.
•
If the tyre pressure is too low or too high, the tyres will wear prema-
turely and the vehicle will not handle well. Risk of accident!For the sake of the environment
Under-inflated tyres will increase fuel consumption.
Tyre pressure monitoring*
The tyre pressure monitoring system constantly checks the
pressure of the tyres.The system uses the speed sensors of the ABS wheels. It operates by
analysing the speed and frequency spectrum of each wheel.
For optimum performance, use genuine SEAT tyres. In addition, check and
adjust tyre pressures regularly.
Whenever the tyre pressures are changed or one or more tyres are changed,
the system should be Reset by pressing the SET switch on the central console.
The system warns the driver in the event of a loss of pressure by means of
symbols and messages in the instrument cluster display. The system uses
ESP ⇒page 177.
Note that tyre pressure also depends on tyre temperature. Tyre pressure
increases about 0.1 bar for each 10°C in tyre temperature increase. The tyre
heats up while the vehicle is being driven and the tyre pressure will rise
accordingly. For this reason, you should only adjust the tyre pressures when
they are cold (i.e. approximately at ambient temperature).
To ensure that the tyre pressure monitoring system works reliably, you should
check and, if necessary, adjust the tyre pressures at regular intervals and
store the correct pressures (reference values) in the system.
A tyre pressure information label is attached to the inside of the fuel tank flap.
WARNING
•
Never adjust tyre pressure when the tyres are hot. This may damage or
even burst the tyres. Risk of accident!
•
An insufficiently inflated tyre flexes a lot more at high speeds and
causes significant heating of the ty re. Under these conditions, the tyre
bead may be released or the tyre may burst. Risk of accident!
leon_ingles Seite 223 Montag, 26. Januar 2009 4:29 16

Wheels and tyres
224
For the sake of the environmentUnder-inflated tyres lead to increased fuel consumption and tyre wear.Significant tyre pressure lossThe tyre symbol
 is displayed and indicates that the tyre pressure for a least
one tyre is insufficient.
– Stop the vehicle.
– Switch the engine off.
– Check the tyre(s).
– Change the wheel if necessary.
Tyre service life
The service life of tyres is dependent on tyre pressure, driving
style and fitting.
Fig. 147 Tyre tread wear
indicatorsFig. 148 Diagram for
changing wheels
leon_ingles Seite 224 Montag, 26. Januar 2009 4:29 16

Wheels and tyres
226
Driving with anti-puncture tyres (emergency gear)
– Leave the ESP/TCS (electronic stabilisation programme) switched on, or switch on ⇒page 176.
– Continue driving carefully and slowly (80 km/h maximum).
– Avoid sudden manoeuvres and sharp turns.
– Avoid driving over obstacles (for example kerbs) or potholes.
– Look out for the ESP/TCS intervening often, smoke coming from the tyres or the smell of rubber, the vehicle vibrating or a clat-
tering noise. If any of these occur, stop the vehicle.The anti-puncture tyres have a tag on the side of the tyre, with the description:
“DSST”, “Eufonia”, “RFT”, “ROF”, “RSC”, “SSR” or “ZP”.
The sides of this type of tyre are reinforced. When the tyres lose air they are
supported on the sides (emergency driving).
The loss of pressure in the tyre is shown on the instrument panel. You can
then drive a maximum of 80 km and if the circumstances are favourable (for
example, low load), even more.
The damaged tyre should be changed as soon as possible. The rim should be
checked in a specialist workshop to detect possible damage and replace it if
necessary. We recommend you contact Technical Service. If more than one
tyre is being used under emergency co nditions, this reduces the distance
which can be travelled.
Starting driving in emergency conditions
When the loss in tyre pressure is displayed on the instrument panel, this
implies that at least one tyre is being driven in emergency conditions ⇒.
End of emergency operation
Do not drive on if:
•
smoke is coming from one of the tyres,
•
there is a smell of rubber,
•
the vehicle vibrates,
•
there is a rattling noise.
When is it no longer possible to co ntinue driving even using anti-puncture
tyres?
•
If one of the tyres has been severely damaged in an accident, etc. If a tyre
has been badly damaged there is a risk that parts of the tread can be thrown
off and cause damage to the fuel lines, brake pipes or fuel filler.
•
It is also advisable to stop driving if severe vibrations occur, or if the wheel
starts overheating and gives off smoke.
WARNING
When driving in emergency conditions, the driving quality of the vehicle is
considerably impaired.•
The maximum permitted speed of 80 km/h is subject to road and
weather conditions. Please observe legal requirements when doing so.
•
Avoid sharp turns and rapid manoeuvres, and brake earlier than usual.
•
Avoid driving over obstacles (for example kerbs) or potholes.
•
If one or more tyres is being driven in emergency conditions, the driving
quality of the vehicle is impaired and there is a risk of accident.Note
•
The anti-puncture tyres do not “deflate” on losing pressure because they
are supported on the reinforced sides. Th erefore defects in the tyre can not be
detected with a visual inspection.
•
Snow chains must not be used on front tyres used in emergency
conditions.
leon_ingles Seite 226 Montag, 26. Januar 2009 4:29 16

Index283
Index
AABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 77
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Acoustic signal . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Acoustic warning . . . . . . . . . . . . . . . . . . . . . . . . 156
Adjusting the seat belt height . . . . . . . . . . . . . . 26
AFS (curve lights) . . . . . . . . . . . . . . . . . . . . . . . . 113
Air conditioner* 2C-Climatronic* . . . . . . . . . . . . . . . . . . . . . . 148
Air conditioning system General notes . . . . . . . . . . . . . . . . . . . . . . . . 152
Air conditioning* . . . . . . . . . . . . . . . . . . . . . . . . 144
Air recirculation mode 2C-Climatronic . . . . . . . . . . . . . . . . . . . . . . . 152
Manual air conditioning . . . . . . . . . . . . . . . 146
Airbag covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . 40
front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 30
Alarm system Switching off . . . . . . . . . . . . . . . . . . . . . . . . 100
Alternator Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 78
Ambient temperature display . . . . . . . . . . . . 62, 69 Anti-freeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Anti-lock brake system . . . . . . . . . . . . . . . . . . . 176
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 77
Anti-puncture tyres . . . . . . . . . . . . . . . . . . . . . . 225
Anti-theft alarm system . . . . . . . . . . . . . . . . . . . 100 Switching off . . . . . . . . . . . . . . . . . . . . . . . . 100
Anti-theft wheel bolts . . . . . . . . . . . . . . . . . . . . 234
Aquaplaning . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Ashtray* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Aspects to take into account before starting the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Automatic anti-dazzle interior mirror* Activating the anti-dazzle function . . . . . . 124
Deactivating anti-dazzle function . . . . . . . . 124
Automatic car wash tunnel . . . . . . . . . . . . . . . . 192
Automatic gearbox / DS G automatic gearbox . 161
Automatic lighting . . . . . . . . . . . . . . . . . . . . . . . 110
Automatic mode 2C-Climatronic . . . . . . . . . . . . . . . . . . . . . . . 150
Automatic wiper/wash function for the rear window 122
Auxiliary audio connection: AUX-IN . . . . . . . . . 137
BBall coupling . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
BAS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175 Battery
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Winter conditions . . . . . . . . . . . . . . . . . . . . 219
Before starting the vehicle . . . . . . . . . . . . . . . . . . 8
Belt tension device Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 30
Belt tension devices . . . . . . . . . . . . . . . . . . . . . . 27
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Biodiesel fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Brake assist system . . . . . . . . . . . . . . . . . . . . . 175
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217 Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Brake pads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Brake servo . . . . . . . . . . . . . . . . . . . . . . . 175, 182
Brake system . . . . . . . . . . . . . . . . . . . . . . . . . . . 217 Brake servo . . . . . . . . . . . . . . . . . . . . . . . . . 180
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 79
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Braking distance . . . . . . . . . . . . . . . . . . . . . . . . 182
Bulb changes general notes . . . . . . . . . . . . . . . . . . . . . . . . 244
leon_ingles Seite 283 Montag, 26. Januar 2009 4:29 16

Index
284Bulb defect
warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 80
Buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116, 156CCar care Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . 183
Central locking . . . . . . . . . . . . . . . . . . . . . . . . . . 91 Automatic locking system for involuntary unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Automatic speed dependent locking and un- locking system* . . . . . . . . . . . . . . . . . . . . . 93
Emergency unlocking system . . . . . . . . . . . . 93
Selective unlocking system* . . . . . . . . . . . . 92
Unlocking system* . . . . . . . . . . . . . . . . . . . . 93
Central locking button Central locking . . . . . . . . . . . . . . . . . . . . . . . 94
unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Centre console with drinks holder . . . . . . . . . . 133
Cetane number . . . . . . . . . . . . . . . . . . . . . . . . . 204
Changing gear See Manual gearbox . . . . . . . . . . . . . . . . . . 160
Changing the lamps Main headlight lamps . . . . . . . . . . . . . . . . . 245
rear lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
Changing the main headlight lamps
dipped beam lights . . . . . . . . . . . . . . . . . . . 246
main beam lights . . . . . . . . . . . . . . . . . . . . 247
Side lights . . . . . . . . . . . . . . . . . . . . . . . . . . 248
turn signal lamps . . . . . . . . . . . . . . . . . . . . 246 Changing the rear light lamps
Position light, fog ligh t and rear light on the
tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
Changing the rear lights Indicator, side and brake lights on the bodywork . . . . . . . . . . . . . . . . . . . . . . . . . 249
luggage compartment lights . . . . . . . . . . . 251
Chassis number . . . . . . . . . . . . . . . . . . . . . . . . 260
Checking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Checking battery electrolyte level . . . . . . . . . . 220
Checking engine oil level . . . . . . . . . . . . . . . . . 209
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Categorisation in groups . . . . . . . . . . . . . . . 47
Group 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Group 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Group 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Groups 0 and 0+ . . . . . . . . . . . . . . . . . . . . . . 47
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . 50
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Child seats on the front passenger seat . . . . . . . . . . . . . 30
Cigarette lighter* . . . . . . . . . . . . . . . . . . . . . . . . 136
Cleaning alloy wheel rims . . . . . . . . . . . . . . . . 196
Cleaning and caring for your vehicle . . . . . . . . 191
Cleaning chrome . . . . . . . . . . . . . . . . . . . . . . . . 195
Cleaning engine compartment . . . . . . . . . . . . . 197
Cleaning steel wheel rims . . . . . . . . . . . . . . . . 196
Cleaning windows . . . . . . . . . . . . . . . . . . . . . . . 194
Climatic* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144 Climatronic
General notes . . . . . . . . . . . . . . . . . . . . . . . 152
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Cloth seat covers cleaning . . . . . . . . . . . . . . . . 198
Clothes hook . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Control lighting . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Controls Electric windows . . . . . . . . . . . . . . . . . . . . . 104
Light switches . . . . . . . . . . . . . . . . . . . . . . . 109
Convenience closing Sliding/tilting roof . . . . . . . . . . . . . . . . . . . 107
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Convenience opening Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . 212, 213 Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Coolant Level . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Coolant level warning light . . . . . . . . . . . . . . . . . . . . . . . . . 75
Coolant Loss . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Coolant temperature Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Safety instructions . . . . . . . . . . . . . . . . . . . . 76
Cruise control system . . . . . . . . . . . . . . . . . . . . 170 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 80
Cruise control* Turning off the cruise control system . . . . 173
leon_ingles Seite 284 Montag, 26. Januar 2009 4:29 16

Index285
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 41DDanger of fitting a child seat on the front passenger seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Dash panel cleaning . . . . . . . . . . . . . . . . . . . . . 198
Daytime lights . . . . . . . . . . . . . . . . . . . . . . . . . . 111 activating . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
deactivating . . . . . . . . . . . . . . . . . . . . . . . . . 111
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Diesel engine Winter driving . . . . . . . . . . . . . . . . . . . . . . . . 205
Diesel engine particulate filter . . . . . . . . . . . . . 184
Differential lock . . . . . . . . . . . . . . . . . . . . . . . . . 178
Differential lock fault (EDL) warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 82
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Dipped headlights . . . . . . . . . . . . . . . . . . . . . . . 109
Disabling front passenger airbag Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Disabling the airbag Disabling front passenger airbag . . . . . . . . . 43
Display (without warning or information texts) . 58
Displays in the Multi-function display Memory displays . . . . . . . . . . . . . . . . . . . . . . 61
Disposal Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Door lock cylinders . . . . . . . . . . . . . . . . . . . . . . 195
Door release lever . . . . . . . . . . . . . . . . . . . . . . . . 53
Doors
Childproof locks . . . . . . . . . . . . . . . . . . . . . . . 96
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 80
Drive wheels traction control system . . . . . . . . 176
Driveshaft differential XDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Driving Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 186
Economically / With Respect for the Environment . . . . . . . . . . . . . . . . . . . . . . . 184
With a trailer . . . . . . . . . . . . . . . . . . . . . . . . . 188
Driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . . 186 Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Driving programmes . . . . . . . . . . . . . . . . . . . . . 161
Driving safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Driving with an automati c gearbox / DSG automatic
gearbox* . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Duplicate keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Dust filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Dynamic curve lights . . . . . . . . . . . . . . . . . . . . . 113
Dynamic headlight range control . . . . . . . . . . . 113
EEconomical driving . . . . . . . . . . . . . . . . . . . . . . 184
EDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
EDS Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 77
Electrical sockets . . . . . . . . . . . . . . . . . . . . . . . . 136 Electronic differential lock . . . . . . . . . . . . . . . . 178
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 77
Electronic immobiliser . . . . . . . . . . . . . . . . 82, 157
Electronic stabilisation program . . . . . . . . . . . 177
Electronic stabilisation programme . . . . . . . . . . 81 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Warning light . . . . . . . . . . . . . . . . . . . . . . . . 156
Electronic stabilisation programme (ESP) warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 81
Emergency braking function . . . . . . . . . . 115, 175
emergency manual locking . . . . . . . . . . . . . . . . . 95
Emergency opening Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Emission control system warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 81
Engine Running in . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Engine compartment Working in the engine compartment . . . . . 205
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Engine fault Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 76
Engine management Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 76
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Checking level . . . . . . . . . . . . . . . . . . . . . . . 209
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . 209
Specifications . . . . . . . . . . . . . . . . . . . . . . . 208
Topping up . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Engine oil dipstick . . . . . . . . . . . . . . . . . . . . . . . 209
leon_ingles Seite 285 Montag, 26. Januar 2009 4:29 16

Index287
Heated window
2C-Climatronic . . . . . . . . . . . . . . . . . . . . . . . 149
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
High pressure cleaners . . . . . . . . . . . . . . . . . . . 193
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53IIdentification number . . . . . . . . . . . . . . . . . . . . 260
Ignition key . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Indicators indication lamp . . . . . . . . . . . . . . . . . . . . . . . 76
Information texts in the display . . . . . . . . . . . . . 62
Instrument and switch lighting . . . . . . . . . . . . . 113
Instrument lighting . . . . . . . . . . . . . . . . . . . . . . . 53
Instrument panel . . . . . . . . . . . . . . . . . . . . . . . . . 53
Instrument panel menu Configuration menu . . . . . . . . . . . . . . . . . . . . 70
Example of menu use . . . . . . . . . . . . . . . . . . 64
Lights and visibility menu . . . . . . . . . . . . . . . 72
Instrument panel menus Main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Vehicle status menu . . . . . . . . . . . . . . . . . . . 69
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Intermittent wipe, windscreen . . . . . . . . . . . . . 120
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
JJump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . 253KKey tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97LLeather cleaning . . . . . . . . . . . . . . . . . . . . . . . . 198
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Load compartment in the boot See Luggage compartment . . . . . . . . . . . . . . 16
Locker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Luggage compartment . . . . . . . . . . . . . . . . . . . . 16 See also Luggage compartment . . . . . . . . . . 16
Luggage compartment cover . . . . . . . . . . . . . . 140MMain beam . . . . . . . . . . . . . . . . . . . . . . . . 109, 116
Main beam headlights Indicator lamp . . . . . . . . . . . . . . . . . . . . . . . . 77
Main headlight lamps . . . . . . . . . . . . . . . . . . . . 245
Maintenance airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . 160 Manual mode
2C-Climatronic . . . . . . . . . . . . . . . . . . . . . . . 151
MEDIA-IN connector . . . . . . . . . . . . . . . . . . . . . . 138
MFD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Mileage display . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Mirrors Exterior mirrors, electrical . . . . . . . . . . . . . . 124
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . 123
Make-up mirrors . . . . . . . . . . . . . . . . . . . . . 119
Mobile telephones and radiotelephones . . . . 201
Multi-function display . . . . . . . . . . . . . . . . . . . . . 60
NNumber of seats . . . . . . . . . . . . . . . . . . . . . . . . . 19OObservations . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Octane number . . . . . . . . . . . . . . . . . . . . . . . . . 203
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
One-touch opening and closing Electric windows . . . . . . . . . . . . . . . . . . . . . 105
Opening and locking . . . . . . . . . . . . . . . . . . . . . 102
Overview Control lamps . . . . . . . . . . . . . . . . . . . . . . . . 73
Instrument panel . . . . . . . . . . . . . . . . . . . . . . 53
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . . 73
leon_ingles Seite 287 Montag, 26. Januar 2009 4:29 16
