SEAT maintenance programme
8SEAT maintenance programmeGeneral informationThis maintenance programme will inform you of the work to carry out regularly
on your vehicle in order to ensure the safety, reliability and durability
required.
Using the “vehicle identification” data or the data contained in this docu-
ment, the correct spare parts your vehicle could require in case of repairs are
specified, even after many years from the initial purchase.
We recommend that you keep this maintenance programme with the vehicle
documents. The inspection receipts are one of the essential requirements for
exercising your rights under warranty.
The maintenance programme shows the date of delivery, and this indicates
the starting date of the vehicle warranty.Maintenance ProgrammeThe SEAT maintenance programme consists of the different inspection serv-
ices which are carried out according to the time since the vehicle purchase or
its mileage.
Each Inspection Service, as well as any additional operation required already
has a pre-established work time. This will allow you to know the total cost of
the service beforehand.
The SEAT Service Centre network is equipped with modern workshop tech-
nology and well-trained specialists. Many SEAT Service Centres offer different
service packages at special prices.
Adverse conditionsThe Service Centre “service advisor” will inform you of any necessary addi-
tional work within the intervals defined by the Inspection Service, according
to the conditions and environment in which the vehicle is used. For example,
an oil change where the vehicle is used only for frequent short journeys or is
subject to extreme temperatures. Likewise, when the vehicle is used in dusty
conditions, dust and pollen filter cartridges must be changed more often and
the timing belt must be checked.Diesel fuelThe Service Centre “service advisor” can provide information about which
co untr i es us e fue l wi th a hi gh sulp hu r co nten t . I n th ese cas es , t he oil m ust b e
changed every 7,500 km (5,000 miles).
Caution
•Vehicles with the label “UNSUITABLE FOR BIODIESEL” on the fuel cover
cannot be driven using biodiesel.•To be certain if your vehicle can be used with biodiesel according to the
DIN EN 14214 (FAME) standard, consult your Service Centre.•DIN is a German abbreviation for “ Deutsches Institut für N ormung e.V.”,
the German standards institute.•EN means European Norm.•FAME is the English abbreviation for “ Fatty Acid Methyl Ester”.
PM PQ35_EN Seite 8 Montag, 31. August 2009 4:09 16
Page 13 of 43
General programme for Inspection Services11
Example of maintenance according to time
However, there are different specific “additional jobs” depending on the
distance covered or the time passed since delivery. For example:•Timing belt change (depending on the mileage).•Change of brake fluid (for the first time after 3 years or 200,000 km
(130,000 miles), then every two years).Inspection Service every 15,000 km (10,000 miles) or 1 yearOperations to be carried out on your vehicle•“Next service” sticker: Write the date and mileage, and attach it onto the
door frame.•Engine oil and oil filter: Replace.
•Front and rear brake pads: Check.•Service interval indicator on the instrument panel: Reset to zero.•Tyres, including the spare wheel: Check surface, tread and tyre pressure.•Interior and glove compartment lighting, lighter, warning lights and horn:
Check operation.•Front/rear lights, luggage compartment lighting, indicators and hazard
lights: Check operation.•Windscreen wiper and headlight wiper system: Check operation and look
for possible damage, fill if necessary.•Exhaust system : Check fastenings and absence of leaks and damageInspection Service every 30,000 km (20,000 miles) or 2 yearsOperations to be performed on your vehicle:•“Next service” sticker: Write the date and mileage, and attach it onto the
door frame.•Engine oil and oil filter: Replace.•Brake system: Check for damage and losses in previous and subsequent
brake pads.•Service interval indicator on the instrument panel: Reset to zero.•Tyres, including the spare wheel: Check surface, tread and tyre pressure.•Interior and glove compartment lighting, lighter, warning lights and horn:
Check operation.
Time
1 year
2 years
3 years
4 years
5 years
6 years
Inspection Service
every 15,000 km
(10,000 miles) or 1
year
x
x
x
Inspection Service
every 30,000 km
(20,000 miles) or 2
years
x
x
Inspection Service
every 60,000 km
(40,000 miles) or 4
years
x
PM PQ35_EN Seite 11 Montag, 31. August 2009 4:09 16
Page 16 of 43
General programme for Inspection Services
14At 90,000 km (60,000 miles) the first time, then every 30,000 km (20,000 miles)•Timing belt for camshaft: Check condit ion and replace if necessary (only
petrol engines, except 2.0 FSI and TFSI).Every 120,000 km (80,000 miles)•Particulate filters Check (only 125 kW diesel engine).Every 150,000 km (100,000 miles)•Particulate filters Check (except 125 kW diesel engine).•Timing belt for camshaft: Replacement (only diesel engines with pump
injector).Every 180,000 km (120,000 miles)•Timing belt for camshaft: Replac e (TDI Common Rail engines).•Timing belt for camshaft: Replace (2.0 FSI and TFSI engines).
Every 300,000 km (200,000 miles)•Camshaft timing belt tension roller : Replacement (only diesel engines
with pump injector).Every 360,000 km (240,000 miles)•Camshaft timing belt tension roller: Replace (TDI Common Rail engines).Every 2 years•Dust and pollen filter for the passenger compartment: Replace.After 3 years the first time around, then every 2 years•Brake fluid: Replace•Check gas installation: check all components are operating correctly, and
that there are no leaks and damage (ALTEA-ALTEA XL-LEON operating with
LPG.)
PM PQ35_EN Seite 14 Montag, 31. August 2009 4:09 16
Page 23 of 43
Service Record21
Service RecordDate: Km/Miles:
Work completed: yes no
Inspection Service
Additional work to the Inspection Service: Inspection completed:
Km/Miles
Years
Brake fluid service
Authorised Service Centre stamp
Timing belt changes
Air filter element replaced
Recommentaion for repairs
Next Service to be carried out:
We recommend that you visit an Authorised SEAT Service Centre whenever
you require any work done on your vehicle. Scrupulously following the Gen-
eral Programme for Inspection Services in Authorised SEAT Service Centres
will ensure you maintain greater value for your vehicle. Date:
Km/Miles:
(whichever is first)
√ : Completed
PM PQ35_EN Seite 21 Montag, 31. August 2009 4:09 16
Page 24 of 43
Service Record
22Service RecordDate: Km/Miles:
Work completed: yes no
Inspection Service
Additional work to the Inspection Service: Inspection completed:
Km/Miles
Yea rs
Brake fluid service
Authorised Service Centre stamp
Timing belt changes
Air filter element replaced
Recommentaion for repairs
Next Service to be carried out:
We recommend that you visit an Authorised SEAT Service Centre whenever
you require any work done on your vehicle. Scrupulously following the Gen-
eral Programme for Inspection Services in Authorised SEAT Service Centres
will ensure you maintain greater value for your vehicle. Date:
Km/Miles:
(whichever is first)
√ : Completed
PM PQ35_EN Seite 22 Montag, 31. August 2009 4:09 16
Page 25 of 43
Service Record23
Service RecordDate: Km/Miles:
Work completed: yes no
Inspection Service
Additional work to the Inspection Service: Inspection completed:
Km/Miles
Years
Brake fluid service
Authorised Service Centre stamp
Timing belt changes
Air filter element replaced
Recommentaion for repairs
Next Service to be carried out:
We recommend that you visit an Authorised SEAT Service Centre whenever
you require any work done on your vehicle. Scrupulously following the Gen-
eral Programme for Inspection Services in Authorised SEAT Service Centres
will ensure you maintain greater value for your vehicle. Date:
Km/Miles:
(whichever is first)
√ : Completed
PM PQ35_EN Seite 23 Montag, 31. August 2009 4:09 16
Page 26 of 43
Service Record
24Service RecordDate: Km/Miles:
Work completed: yes no
Inspection Service
Additional work to the Inspection Service: Inspection completed:
Km/Miles
Yea rs
Brake fluid service
Authorised Service Centre stamp
Timing belt changes
Air filter element replaced
Recommentaion for repairs
Next Service to be carried out:
We recommend that you visit an Authorised SEAT Service Centre whenever
you require any work done on your vehicle. Scrupulously following the Gen-
eral Programme for Inspection Services in Authorised SEAT Service Centres
will ensure you maintain greater value for your vehicle. Date:
Km/Miles:
(whichever is first)
√ : Completed
PM PQ35_EN Seite 24 Montag, 31. August 2009 4:09 16
Page 27 of 43
Service Record25
Service RecordDate: Km/Miles:
Work completed: yes no
Inspection Service
Additional work to the Inspection Service: Inspection completed:
Km/Miles
Years
Brake fluid service
Authorised Service Centre stamp
Timing belt changes
Air filter element replaced
Recommentaion for repairs
Next Service to be carried out:
We recommend that you visit an Authorised SEAT Service Centre whenever
you require any work done on your vehicle. Scrupulously following the Gen-
eral Programme for Inspection Services in Authorised SEAT Service Centres
will ensure you maintain greater value for your vehicle. Date:
Km/Miles:
(whichever is first)
√ : Completed
PM PQ35_EN Seite 25 Montag, 31. August 2009 4:09 16
Page 28 of 43
Service Record
26Service RecordDate: Km/Miles:
Work completed: yes no
Inspection Service
Additional work to the Inspection Service: Inspection completed:
Km/Miles
Yea rs
Brake fluid service
Authorised Service Centre stamp
Timing belt changes
Air filter element replaced
Recommentaion for repairs
Next Service to be carried out:
We recommend that you visit an Authorised SEAT Service Centre whenever
you require any work done on your vehicle. Scrupulously following the Gen-
eral Programme for Inspection Services in Authorised SEAT Service Centres
will ensure you maintain greater value for your vehicle. Date:
Km/Miles:
(whichever is first)
√ : Completed
PM PQ35_EN Seite 26 Montag, 31. August 2009 4:09 16
Page 29 of 43

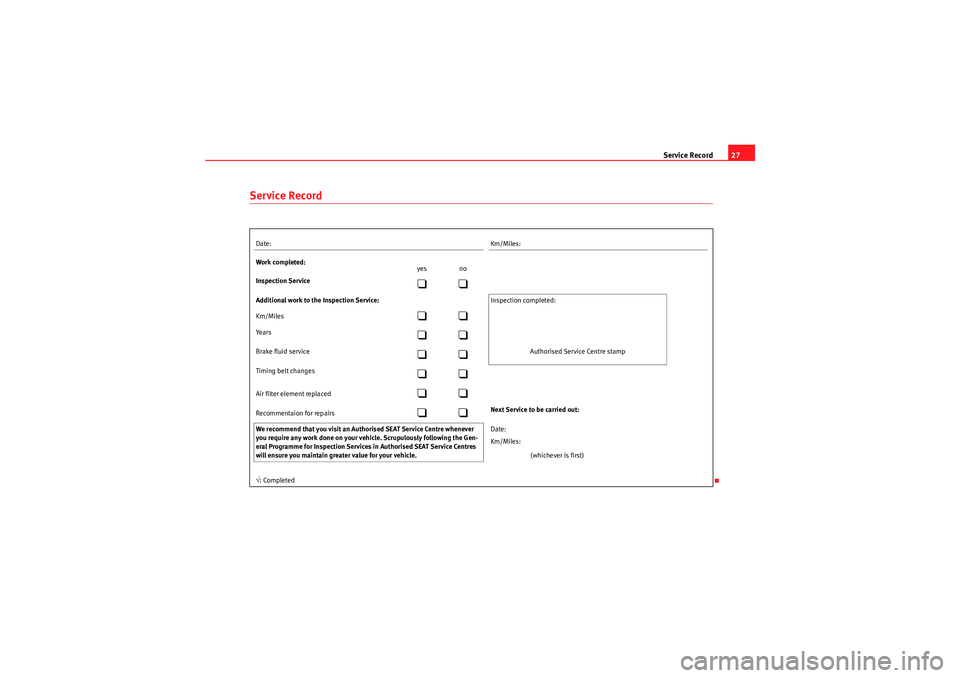

Service Record27
Service RecordDate: Km/Miles:
Work completed: yes no
Inspection Service
Additional work to the Inspection Service: Inspection completed:
Km/Miles
Years
Brake fluid service
Authorised Service Centre stamp
Timing belt changes
Air filter element replaced
Recommentaion for repairs
Next Service to be carried out:
We recommend that you visit an Authorised SEAT Service Centre whenever
you require any work done on your vehicle. Scrupulously following the Gen-
eral Programme for Inspection Services in Authorised SEAT Service Centres
will ensure you maintain greater value for your vehicle. Date:
Km/Miles:
(whichever is first)
√ : Completed
