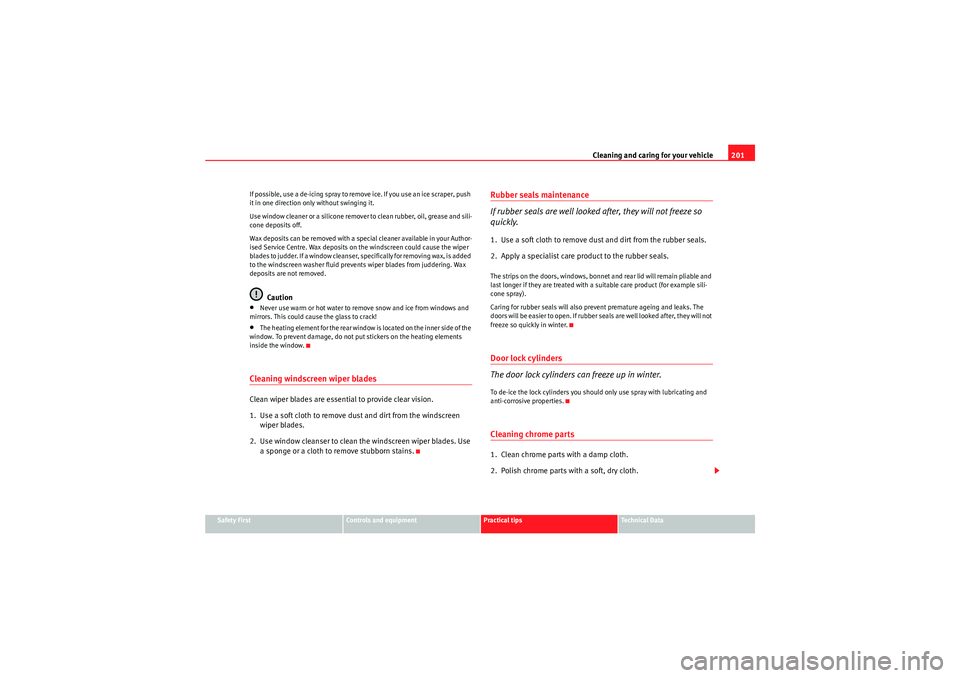

Cleaning and caring for your vehicle201
Safety First
Controls and equipment
Practical tips
Technical Data
If possible, use a de-icing spray to remove ice. If you use an ice scraper, push
it in one direction only without swinging it.
Use window cleaner or a silicone remover
to clean rubber, oil, grease and sili-
cone deposits off.
Wax deposits can be removed with a special cleaner available in your Author-
ised Service Centre. Wax deposits on the windscreen could cause the wiper
blades to judder. If a window cleanser, specifically for removing wax, is added
to the windscreen washer fluid prevents wiper blades from juddering. Wax
deposits are not removed.
Caution
•Never use warm or hot water to remove snow and ice from windows and
mirrors. This could cause the glass to crack!•The heating element for the rear window is located on the inner side of the
window. To prevent damage, do not put stickers on the heating elements
inside the window.Cleaning windscreen wiper bladesClean wiper blades are essent ial to provide clear vision.
1. Use a soft cloth to remove dust and dirt from the windscreen wiper blades.
2. Use window cleanser to clean the windscreen wiper blades. Use
a sponge or a cloth to remove stubborn stains.
Rubber seals maintenance
If rubber seals are well looked after, they will not freeze so
quickly.1. Use a soft cloth to remove dust and dirt from the rubber seals.
2. Apply a specialist care product to the rubber seals.The strips on the doors, windows, bonnet and rear lid will remain pliable and
last longer if they are treated with a suitable care product (for example sili-
cone spray).
Caring for rubber seals will also prevent premature ageing and leaks. The
doors will be easier to open. If rubber seals are well looked after, they will not
freeze so quickly in winter.Door lock cylinders
The door lock cylinders can freeze up in winter.To de-ice the lock cylinders you should only use spray with lubricating and
anti-corrosive properties.Cleaning chrome parts1. Clean chrome parts with a damp cloth.
2. Polish chrome parts with a soft, dry cloth.
Leon_EN.book Seite 201 Dienstag, 8. September 2009 5:25 17

If and when
252Fuses on left side of dash panelFusesNumber
Consumer
Amperes
1
Diagnosis Switchboard/ Instrument lighting/
Headlight control switchboard/ Flow meter/
Heated wipers/ Engine management/ AFS Head-
lamps
10
2
Engine control unit/ ABS-ESP switchboard/ Auto-
matic gearbox/ Instrument panel/ Trailer switch-
board/ Light switch / Brake sensor/ Power
steering/ Right and left headlights
10
3
Airbag
5
4
Heating/ Reverse switch / ASR-ESP switch/ Elec-
trochrome mirror/ Park Pilot/ Oil level sensor
5
5
Right xenon headlight
10
6
Left xenon headlight
10
7
Vacant
8
Trailer hook pre-installation assistant
5
9
Vacant
10
Vacant
11
Vacant
12
Central locking
15
13
Diagnosis/ Light switch/ Rain sensor/ Heated rear
window
10
14
Automatic gearbox / Heating/ Automatic gearbox
lever
10
15
Vacant
16
Vacant
17
Alarm
5
18
Kombi / levers with START STOP
5
19
Fog light aid
20
20
Navigation/radio with START STOP
15
21
Engine management
10
22
Fan switch
40
23
Electric windows (front)
30
24
Body Control Unit
20
25
Rear window heater
25
26
Rear electric windows
30
27
Engine (fuel control unit/pump relay)
15
28
Convenience controls
30
29
Vacant
30
Automatic gearbox
20
31
Vacuum pum p
20
32
Vacant
33
Sunroof
25
34
Comfort switchboard/Central locking system
25
35
Vacant
36
Headlight washer system
20
37
Heated seats
30
38
Engine management
10
39
Te lep ho ne wi th START STOP
10
Number
Consumer
Amperes
Leon_EN.book Seite 252 Dienstag, 8. September 2009 5:25 17

Index
296Engine compartment
Working in the engine compartment . . . . . 215
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . 222
Engine fault Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 78
Engine management Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 78
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Checking level . . . . . . . . . . . . . . . . . . . . . . . 219
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . 219
Specifications . . . . . . . . . . . . . . . . . . . . . . . 218
Topping up . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Engine oil dipstick . . . . . . . . . . . . . . . . . . . . . . . 219
Engine oil pressure monitor indicator . . . . . . . . . . . . . . . . . . . . . . 64
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 82
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . 190 Environmental friendliness . . . . . . . . . . . . 191
Environmental tip Avoiding pollution . . . . . . . . . . . . . . . . . . . . 209
Environmentally friendly driving . . . . . . . . . . . 190
ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83, 183
Example of menu use Program a speed limit warning . . . . . . . . . . 67
To activate and deactivate the speed limit warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 Example of the use of the menus
Open the Configuration menu with the MFD lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Open the Configuration menu with the steering wheel controls . . . . . . . . . . . . . . . . . . . . . . 67
Examples of menu use Open the main menu . . . . . . . . . . . . . . . . . . 66
Open the winter tyres menu . . . . . . . . . . . . . 67
To close the winter tyres menu . . . . . . . . . . 67
Exhaust gas purification system . . . . . . . . . . . 189
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 200
FFabric trim cleaning . . . . . . . . . . . . . . . . . . . . . 204
Fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Fire extinguisher . . . . . . . . . . . . . . . . . . . . . . . . 139
First-aid kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Fog lights with cornering function . . . . . . . . . . 116
Foot brake Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 84
Four wheel drive . . . . . . . . . . . . . . . . . . . . . . . . 185
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Front drinks holders . . . . . . . . . . . . . . . . . . . . . 136
Front interior light Switching off . . . . . . . . . . . . . . . . . . . . . . . . 119
Switching on . . . . . . . . . . . . . . . . . . . . . . . . 119
Front passenger airbag deactivation . . . . . . . . . 42 Front reading lights . . . . . . . . . . . . . . . . . . . . . . 120
Front seat adjustment
Lumbar support . . . . . . . . . . . . . . . . . . . . . . 132
Frontal airbags Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Fuel Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Fuel level Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Fuel reserve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77 warning message . . . . . . . . . . . . . . . . . . . . . 65
Fuel Tank Opening the fuel tank flap . . . . . . . . . . . . . 208
Fuel tank See Fuel reserve . . . . . . . . . . . . . . . . . . . . . . 77
Fuel: save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
GG 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Gear shift pattern . . . . . . . . . . . . . . . . . . . . . . . 165
General overview of the engine compartment 273
Glove compartment . . . . . . . . . . . . . . . . . . . . . 135
Glow plug system . . . . . . . . . . . . . . . . . . . . . . . 159 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 78
GRA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Leon_EN.book Seite 296 Dienstag, 8. September 2009 5:25 17

Index
298OObservations . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Octane number . . . . . . . . . . . . . . . . . . . . . . . . . 213
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
218
Oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
One-touch opening and closing
Electric windows . . . . . . . . . . . . . . . . . . . . . 107
Opening and locking . . . . . . . . . . . . . . . . . . . . 104
Overview Control lamps . . . . . . . . . . . . . . . . . . . . . . . . 75
Dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . 75PPaintworkPolishing . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Parking lights . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Parking system . . . . . . . . . . . . . . . . . . . . . . . . . 173
Parking system plus . . . . . . . . . . . . . . . . . . . . . 174
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Parts replacement . . . . . . . . . . . . . . . . . . . . . . . 206
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213 Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 192
Petrol additives . . . . . . . . . . . . . . . . . . . . . . . . . 214
Petrol engines, starting . . . . . . . . . . . . . . . . . . 158 Physical principles of a frontal collision . . . . . . 20
Plastic parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Plastic parts cleaning . . . . . . . . . . . . . . . . . . . . 204
Pollen filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Power steering . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Power steering system
warning light . . . . . . . . . . . . . . . . . . . . . . . . . 82
Products for vehicle maintenance . . . . . . . . . . 197
RRadio frequency remote control Changing the battery . . . . . . . . . . . . . . . . . 101
Radio navigation Steering wheel controls audio + telephone version . . . . . . . . . . . . . . 89
audio version . . . . . . . . . . . . . . . . . . . . . . . . . 89
Radio wave remote control . . . . . . . . . . . . . . . . 100
Rain sensor* . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Rear fog light Indication lamp . . . . . . . . . . . . . . . . . . . . . . 111
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 78
Rear interior lights . . . . . . . . . . . . . . . . . . . . . . 120
Rear lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Rear reading lights . . . . . . . . . . . . . . . . . . . . . . 120
Rear seat bench . . . . . . . . . . . . . . . . . . . . . . . . . 134
Rear window heating Heating element wires . . . . . . . . . . . . . . . . 201
Rear window wiper . . . . . . . . . . . . . . . . . . . . . . 124
Rear-view mirror . . . . . . . . . . . . . . . . . . . . . . . . 125
Recommended gear display . . . . . . . . . . . . . . . . 60 Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Registration light . . . . . . . . . . . . . . . . . . . . . . . 262
Remote control key
Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Synchronising . . . . . . . . . . . . . . . . . . . . . . . 101
Removing and fitting the wheel . . . . . . . . . . . . 246
Repairs airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Replacement keys . . . . . . . . . . . . . . . . . . . . . . . . 99
Rev counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Reverse gear Manual gearbox . . . . . . . . . . . . . . . . . . . . . 165
Roll-back function Sliding/tilting roof . . . . . . . . . . . . . . . . . . . 110
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Roof aerial* . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Roof carrier* . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Rubber seals . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Running in Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
SSafe driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Safety equipment . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety instructionsCoolant temperature . . . . . . . . . . . . . . . . . . . 78
Safety notes Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Belt tension devices . . . . . . . . . . . . . . . . . . . 27
Leon_EN.book Seite 298 Dienstag, 8. September 2009 5:25 17

Index299
Curtain airbags . . . . . . . . . . . . . . . . . . . . . . . 40
Disabling front passenger airbag . . . . . . . . . 43
frontal airbags . . . . . . . . . . . . . . . . . . . . . . . . 35
side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Using child seats . . . . . . . . . . . . . . . . . . . . . . 45
Using seat belts . . . . . . . . . . . . . . . . . . . . . . . 22
Safety system- safe . . . . . . . . . . . . . . . . . . . . . . . 94
Seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Seat adjustment . . . . . . . . . . . . . . . . . . . 129, 132
Seat belt position Pregnant women . . . . . . . . . . . . . . . . . . . . . . 25
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Seat belt release . . . . . . . . . . . . . . . . . . . . . . . . . 26
Seat belt warning lamp . . . . . . . . . . . . . . . . . . . . 19
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Incorrectly fastened . . . . . . . . . . . . . . . . . . . . 27
Not worn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . 19
Seat belts cleaning . . . . . . . . . . . . . . . . . . . . . . 205
Seat belts protection . . . . . . . . . . . . . . . . . . . . . . 22
Seat heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Selective opening* . . . . . . . . . . . . . . . . . . . . . . . 94
Selector lever locking . . . . . . . . . . . . . . . . . . . . 167
Selector lever positions . . . . . . . . . . . . . . . . . . . 166
Service interval display . . . . . . . . . . . . . . . . . . . . 60
servotronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Shoes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Side lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Sitting position Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Front passenger . . . . . . . . . . . . . . . . . . . . . . . 11
Incorrect sitting position . . . . . . . . . . . . . . . . 15
Passengers . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Sitting position, occupants . . . . . . . . . . . . . . . . . 10
Sliding/tilting roof . . . . . . . . . . . . . . . . . . . . . . . 108
Snow chains . . . . . . . . . . . . . . . . . . . . . . . 239, 272
Soot accumulation in the diesel engine particulate filter
Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
Starting Petrol engines . . . . . . . . . . . . . . . . . . . 159
Starting the engine . . . . . . . . . . . . . . . . . 158, 159 After the fuel tank has been run dry . . . . . . 159
Start-Stop deactivating and activating . . . . . . . . . . . . 164
function . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Steam jets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155 Steering lock . . . . . . . . . . . . . . . . . . . . . . . . 157
Steering wheel audio controls audio + telephone version . . . . . . . . . . . . . . 85
audio version . . . . . . . . . . . . . . . . . . . . . . . . . 85
Steering wheel height adjustment . . . . . . . . . . 155 Stowage area
Other stowage areas . . . . . . . . . . . . . . . . . . 136
Stowage compartment Front passenger side . . . . . . . . . . . . . . . . . . 135
Stowage compartments Front left hand side seat . . . . . . . . . . . . . . . 135
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Sunroof blind Sliding/tilting roof . . . . . . . . . . . . . . . . . . . . 109
Switch Hazard warning lights . . . . . . . . . . . . . . . . . 116
Switches Electric windows . . . . . . . . . . . . . . . . . . . . . 106
Electrical exterior mirrors . . . . . . . . . . . . . . 126
Sliding/tilting roof . . . . . . . . . . . . . . . . . . . . 108
Switching off the engine . . . . . . . . . . . . . . . . . . 160
TTailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104 Emergency opening . . . . . . . . . . . . . . . . . . . 105
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 82
Tank fuel level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
reserve indicator . . . . . . . . . . . . . . . . . . . . . . 56
tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . 56
TCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
TCS (Traction control system) Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 84
Technical modifications . . . . . . . . . . . . . . . . . . 206
Leon_EN.book Seite 299 Dienstag, 8. September 2009 5:25 17
