Lights and visibility127
Safety First
Controls and equipment
Practical tips
Technical Data
2. Turn the rotary knob to positi on the mirror so that you have a
good view to the rear of the vehicle.
3. Turn knob to position R (right exterior mirror ).
4. Swivel the rotary knob to position the mirror so that you have a good view to the rear of the car ⇒.
Heating the exterior mirrors*
– Turn the knob forwards to the central position ⇒page 126,
fig. 87 so that the heated rear view mirrors warm up and the
heated windscreen* in the wiper blade rest area is activated
⇒ page 122.
– The wing mirror heating is not activated in temperatures above approximately 20°C.
Folding in exterior mirrors*
–Turn the control ⇒page 126, fig. 87 to position
 to fold in the
exterior mirrors. You should always fold in the exterior mirrors if
you are driving through an automa tic car wash. This will help
prevent damage.
Folding rear view mirrors with convenience control*
– The outer rear view mirror will fold back automatically with convenience closing (with the remote or the key).
– To unfold it again, open the door and use the contact.
Folding exterior mirrors back out to the extended position*
– Turn the knob to another position to fold the exterior mirrors back out ⇒ . Synchronised mirror adjustment
1. Turn the control to the position
L ( left exterior mirror ).
2. Turn the rotary knob to positi on the mirror so that you have a
good view to the rear of the vehicle. The right exterior mirror will
be adjusted at the same time (synchronised).
WARNING
•The rear view convex or aspheric mirror increase the field of vision
however the objects appear smaller and further away in the mirrors. If you
use these mirrors to estimate the distance to vehicles behind you when
changing lane, you could make a mistake. Risk of accident.•If possible, use the interior mirror to estimate distances to vehicles
behind you.•Make sure that you do not get your finger trapped between the mirror
and the mirror base when folding back the mirrors. Risk of injury!For the sake of the environment
The exterior mirror heating should be switched off when it is no longer
needed. Otherwise, it is an unnecessary fuel waste.
Note
•If the electrical adjustment ever fails to operate, the mirrors can be
adjusted by hand by lightly pressing the edge of the mirror glass.•In vehicles with electric wing mirrors, the following points should be
observed: if, due to an external force (e.g. a knock while manoeuvring), the
adjustment of the mirror housing is altered, the mirror will have to be
completely folded electrically. D o n o t r e a d j us t t h e m i r r o r h o us i n g b y ha n d , a s
this will interfere with the mirror adjuster function.
A1
Leon_EN.book Seite 127 Dienstag, 8. September 2009 5:25 17

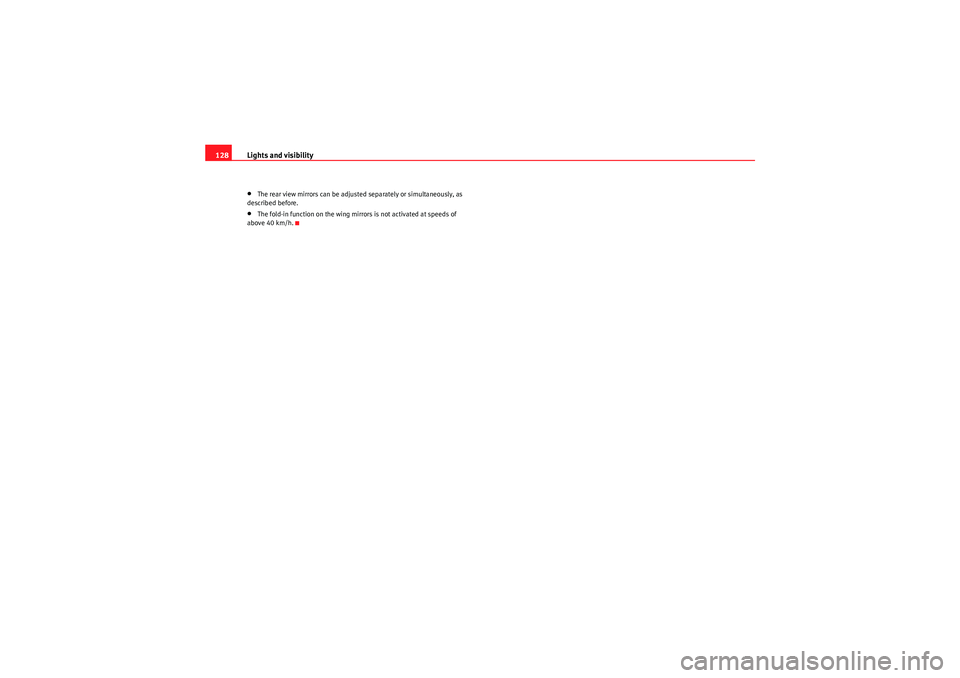

Lights and visibility
128•The rear view mirrors can be adjusted separately or simultaneously, as
described before.•The fold-in function on the wing mirrors is not activated at speeds of
above 40 km/h.
Leon_EN.book Seite 128 Dienstag, 8. September 2009 5:25 17

Driving
174always detect them. Always pay attention when reversing to avoid acci-
dents.•Always keep a close eye on the area around the vehicle and make full
use of the rear-view mirrors.Caution
Please note that low obstacles detected by the system may no longer be
registered by the sensors as the car moves closer, so the system will not give
any further warning. Certain kinds of obstacles (such as wire fences, chains,
thin painted posts or trailer draw bars, etc) may not always be detected by the
system, so take care not to damage the vehicle in such cases.
Note
Please refer to the notes on towing ⇒page 175.SEAT Parking System Plus*: Description
The parking system plus is an acoustic and optical parking
aid.Sensors are located in the front and rear bumpers. When the sensors detect
an obstacle, you are alerted by acoustic and optical signals. The measuring
range of the sensors starts at about: The acoustic signals sound with increasing frequency as you approach the
obstacle. When the vehicle is less than approx. 0.30 m away from the
obstacle, the warning tone will sound continuously. Stop moving immedi-
ately!
The volume of the warning beeps will be gradually reduced after about 4
seconds if the vehicle remains at a constant distance from a detected
obstacle (it does not affect the permanent acoustic signal).
Enabling/DisablingEnabling
– Connects the radio navigator.
–Press the switch
 on the central console ⇒
fig. 131 or on the
gear selector gate. You will hear a brief acknowledgement tone
and the LED on the switch will light up.
Front
Side
0,90
Centre
1,20
Rear
Side
0,60
Centre
1,60
WARNING (continued)
Fig. 131 Centre console:
Switch for parking aid
Leon_EN.book Seite 174 Dienstag, 8. September 2009 5:25 17

Driving175
Safety First
Controls and equipment
Practical tips
Technical Data
Disabling
– Drive forwards faster than 10 km/h, or
–Press the switch
 or
– Switch the ignition off.
Segments in the optical display
Som e colour segments in front and behin d and an acoustic signal enable the
driver to assess the distance with respect to an obstacle. The amber colour
segments combined with a discontinuous beep indicate the presence of an
obstacle. As the vehicle gets closer to the obstacle, the colour of the segment
changes to red and the acoustic signal beeps continuously. When the penul-
timate segment is displayed, this means that the vehicle has reached the
collision zone. Stop moving immediately! ⇒.
WARNING
•The parking aid is not a replacement for driver awareness. The driver is
personally responsible for safe parking and other manoeuvres.•The sensors have blind spots in which obstacles are not registered.
Always look out for small children and animals because the system will not
always detect them. Always pay attention when reversing to avoid acci-
dents.•Always keep a close eye on the area around the vehicle and make full
use of the rear-view mirrors.Caution
Please note that low obstacles detected by the system may no longer be
registered by the sensors as the car moves closer, so the system will not give
any further warning. Certain kinds of obstacles (such as wire fences, chains,
thin painted posts or trailer draw bars, etc) may not always be detected by the
system, so take care not to damage the vehicle in such cases.
Note
•Please refer to the notes on towing ⇒page 175.•There is a slight delay in the picture display.To w i n g b r a c k e tIn towing mode, the rear parking sensors are not enabled when you select
reverse gear or press the switch
. This function may not be guaranteed on
towing brackets that are not factory fitted. This results in the following restric-
tions:
SEAT Parking System*
No warning is given.
SEAT Parking System Plus*
There is no rear distance warning. The system will still give a warning when
obstacles are detected while driving forwards. The optical display changes to
towing mode.
Fault messagesIf you hear a long beep for a few seconds and the LED on the switch
* starts
flashing when you switch on the parking aid, a system fault has occurred.
Please refer the problem to an Authorised SEAT dealer or specialised work-
shop.
Leon_EN.book Seite 175 Dienstag, 8. September 2009 5:25 17

Index
298OObservations . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Octane number . . . . . . . . . . . . . . . . . . . . . . . . . 213
Oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
218
Oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
One-touch opening and closing
Electric windows . . . . . . . . . . . . . . . . . . . . . 107
Opening and locking . . . . . . . . . . . . . . . . . . . . 104
Overview Control lamps . . . . . . . . . . . . . . . . . . . . . . . . 75
Dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Warning lamps . . . . . . . . . . . . . . . . . . . . . . . 75PPaintworkPolishing . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Parking lights . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Parking system . . . . . . . . . . . . . . . . . . . . . . . . . 173
Parking system plus . . . . . . . . . . . . . . . . . . . . . 174
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Parts replacement . . . . . . . . . . . . . . . . . . . . . . . 206
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213 Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 192
Petrol additives . . . . . . . . . . . . . . . . . . . . . . . . . 214
Petrol engines, starting . . . . . . . . . . . . . . . . . . 158 Physical principles of a frontal collision . . . . . . 20
Plastic parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Plastic parts cleaning . . . . . . . . . . . . . . . . . . . . 204
Pollen filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Power steering . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Power steering system
warning light . . . . . . . . . . . . . . . . . . . . . . . . . 82
Products for vehicle maintenance . . . . . . . . . . 197
RRadio frequency remote control Changing the battery . . . . . . . . . . . . . . . . . 101
Radio navigation Steering wheel controls audio + telephone version . . . . . . . . . . . . . . 89
audio version . . . . . . . . . . . . . . . . . . . . . . . . . 89
Radio wave remote control . . . . . . . . . . . . . . . . 100
Rain sensor* . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Rear fog light Indication lamp . . . . . . . . . . . . . . . . . . . . . . 111
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 78
Rear interior lights . . . . . . . . . . . . . . . . . . . . . . 120
Rear lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 258
Rear reading lights . . . . . . . . . . . . . . . . . . . . . . 120
Rear seat bench . . . . . . . . . . . . . . . . . . . . . . . . . 134
Rear window heating Heating element wires . . . . . . . . . . . . . . . . 201
Rear window wiper . . . . . . . . . . . . . . . . . . . . . . 124
Rear-view mirror . . . . . . . . . . . . . . . . . . . . . . . . 125
Recommended gear display . . . . . . . . . . . . . . . . 60 Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Registration light . . . . . . . . . . . . . . . . . . . . . . . 262
Remote control key
Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Synchronising . . . . . . . . . . . . . . . . . . . . . . . 101
Removing and fitting the wheel . . . . . . . . . . . . 246
Repairs airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Replacement keys . . . . . . . . . . . . . . . . . . . . . . . . 99
Rev counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Reverse gear Manual gearbox . . . . . . . . . . . . . . . . . . . . . 165
Roll-back function Sliding/tilting roof . . . . . . . . . . . . . . . . . . . 110
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Roof aerial* . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Roof carrier* . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Rubber seals . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Running in Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
SSafe driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Safety equipment . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety instructionsCoolant temperature . . . . . . . . . . . . . . . . . . . 78
Safety notes Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Belt tension devices . . . . . . . . . . . . . . . . . . . 27
Leon_EN.book Seite 298 Dienstag, 8. September 2009 5:25 17
