bluetooth Seat Leon 5D 2010 MEDIA SYSTEM 2.2

Introduction
10General operating informationIntroductionDue to changes to its settings, some aspects of the unit's operation may
differ from the descriptions given in this manual. For this reason, SEAT recom-
mends that you reset the unit to its factory settings the first time you use it
⇒ page 87.
Additional Information:•Safety notes
’ ⇒ page 6
•Unit overview ⇒page 8•Multifunction steering wheel, to change track or station ⇒Booklet
“Owner's Manual”, Section “Vehicle overview” Note
Lightly pressing the buttons or briefly pressing the touchscreen is sufficient
to operate the unit.
Note
Never press a button down for longer than 10 minutes. Otherwise the system
will interpret this as a malfunction ( button jammed).
Note
Due to country-specific legislation, certain functions cannot be selected on
the screen when the vehicle is travelling above a certain speed.
Note
Using a mobile telephone in the vehicle may cause noise from the vehicle
speakers.
Note
In some vehicles equipped with a parking distance warning system, the
volume of the current audio source is automatically lowered when reverse
gear is engaged.
Note
Restrictions on the use of devices using Bluetooth technology may be appli-
cable in some countries. Please ask your local authority for further
information.Switching on and offPress the rotary/push knob
D ⇒ page 8, fig. 1 briefly to manually switch
the unit on or off.
When the system is switched on, the sound source which was playing when
the unit was switched off will come on.
When the engine is off, the unit will automatically switch off after 30 minutes
(timeout).
Anti-theft code
The anti-theft code is stored in the vehicle once it has been entered (conven-
ience radio code). The anti-theft coding lock then only needs to be released
manually if the unit is installed in another vehicle. In such a case, a keypad
field and a prompt to enter the code will appear when the unit is switched on.
In this case, you should contact a SEAT dealer.
If the vehicle battery has been disconnected, switch on the ignition before re-
connecting the unit.
A1
MediaSystem2.1_EN.book Seite 10 Donnerstag, 29. April 2010 4:18 16

Audio mode29
Media modeIntroduction“Media sources ” are audio sources containing audio files on various different
data media (e.g. CD, memory card, exte rnal MP3 player). These audio files
can be played by the radio and navigation system from its corresponding
drives or audio input sockets (internal CD changer, memory card slot, AUX-IN
multimedia socket etc.).
The supported file formats listed are collectively referred to below as “audio
files”. A CD containing audio files of these types is referred to as an “audio
data CD”.
Additional Information:•Safety notes
’ ⇒ page 6
•Unit overview ⇒ page 8•Multimedia interface ⇒ page 42WARNING
Inserting a data medium while you are driving could distract you from the
road and result in accident.Media source and audio file requirementsFactory-fitted CD players conform to safety class 1 according to
DIN IEC 76 (CO) 6/ VDE 0837.
The unit only accepts 12-cm standard CDs and memory cards with the dimen-
sions 32 mm x 24 mm x 2.1 mm or 1.4 mm.
Media source
Requirements for playing in the unit
IAudio CDs with CD Digital
Audio logo
.
- CD Digital Audio specification.
ICD-ROM, CD-R and CD-RW
audio data CDs up to max.
700 MB (megabytes) compli-
ant with ISO 9660 or in the
Joliet file system.KSD and MMC memory
cards up to max. 2 GB (giga-
bytes) and SDHC memory
cards up to max. 32 GB.
- MP3 files (.mp3) with bit rates of between
48 and 320 kbit/s or with variable bit rate.
- WMA files (.wma) up to 9.2 mono/stereo
without copy protection.
- Playlists in the formats PLS, M3U and WPL.
- File names and paths no longer than 256
characters.
- Folder structures with a maximum of eight
levels.
- Audio data CDs with max. 50 folders and
max. 500 files.
- Memory cards with max. 5000 folders and
max. 15000 files with max. 6000 files per
folder.

Playing audio files via Blue-
tooth
®a).
a)Bluetooth
® is a registered trademark of Bluetooth SIG, Inc.
- The external audio source must be compat-
ible with the Bluetooth A2DP profile.
AUX. External audio source.
– Audio output is possible with a 3.5 mm
jack connector ⇒page 8, fig. 1 .
MDI. External data medium.
- Compatible with MEDIA-IN multimedia
interface ⇒page 42.
AUX2 . Additional external
source
- Depending on the vehicle equipment, this
source can be used to play audio from an
external player connected to a Rear Seat
Entertainment system (only if the vehicle
does not have MDI).
A9
MediaSystem2.1_EN.book Seite 29 Donnerstag, 29. April 2010 4:18 16

Audio mode
36External audio source connected via Bluetooth
®
In Bluetooth audio mode, audio files from an external audio source
connected by Bluetooth
® can be played over the vehicle speakers. The
external audio source must be compatible with the Bluetooth A2DP profile. The external audio source connected via Bluetooth
®
cannot be controlled via
the radio-navigation system.
Starting Bluetooth audio transfer
•Pair and connect the external audio source with the Bluetooth interface of
the mobile telephone provision as described in the owner's manual.•Lower the base volume on the radio-navigation system ⇒page 10.•Start playback on the Bluetooth external audio source.
Depending on the unit, you can start playback of the Bluetooth audio source
via the Media selection menu ⇒page 36.
Starting Bluetooth audio playback•In the MEDIA main menu, press the unit button to open the Media
selection menu .•Select the Bluetooth function button for the mode described
⇒ page 37.
Bluetooth Audio mode is indicated by BT audio or

on the screen.
When playback on the external audio source is stopped, the radio-navigation
system remains in the Bluetooth audio menu ⇒fig. 30. To switch to another
audio source, it must be selected manually ⇒page 37.
Note
The output volume of the connected external audio source should be
adjusted to the volume of the other audio sources ⇒page 41.
Note
Always switch off the warning and service tones on a connected Bluetooth
audio source, e.g. key tones on a mobile telephone, to prevent interference
noise and malfunctions.
Fig. 30 Bluetooth audio
mode.Fig. 31 Media selection
menu with BT audio
selected.
MEDIA


MediaSystem2.1_EN.book Seite 36 Donnerstag, 29. April 2010 4:18 16

Audio mode37
Selecting a media sourceThe media source currently being played is displayed in the centre of the
bottom line of the screen in the MEDIA main menu ⇒fig. 32 . Other inserted or connected media sources must be selected from the media selection
menu
.
Opening the media selection menu and selecting a media source
•In the MEDIA main menu, press the unit button. The media selec-
tion menu opens ⇒ fig. 33.•Select the desired media source by pressing its symbol.•Alternatively: Turn the setting knob ⇒page 8, fig. 1 to select an
available media source and press to switch it on.•Alternatively: Press the unit button as often as required to scroll
between the available media sources.•Press the unit button to close the Media selection menu without
changing it.
If a media source is currently not available, it is shown as disabled, e.g. the function button ⇒ fig. 33.
If a media source that has already been played is selected again, playback is
resumed from the point that was last played. Exception: audio source
connected to AUX IN multimedia socket ⇒page 33 or unit in Bluetooth Audio
mode ⇒page 36 or the AUX2 auxiliary source ⇒ page 34.
Available media sources in the media selection menu
Fig. 32 MEDIA main
menu.Fig. 33 Media selection
menu.
Function button: Media source CD : Internal CD player ⇒ page 32. SD card : Inserted memory card ⇒page 33.: 3.5 mm jack connected to AUX-IN multimedia socket ⇒page 8, fig. 1
⇒ page 33.: Data medium in MEDIA-IN multimedia interface ⇒ page 42. BT-Au dio : Bluetooth external audio source connected ⇒page 36.: Additional external audio source ⇒ page 34.
MEDIA
A10
MEDIAE
AUXIKAUXA9MDI
AUX2
MediaSystem2.1_EN.book Seite 37 Donnerstag, 29. April 2010 4:18 16

Audio mode
40Starting and stopping a playback mode
The range of playback modes available depends on the selected media
source and the type of audio files played.•During playback, press the function button in the MEDIA main
menu.•In the pop-up window, press one of the playback modes listed by turning
and pressing the setting knob ⇒page 8, fig. 1 .•The pop-up window will close. The selected playback mode is indicated in
the function button ( page 39, fig. 37 ).•Briefly pressing this function button ends the playback mode and
resumes normal playback at the current track.
Refer to the information on the playing order of files and folders ⇒ page 30.
The scan function can also be started or stopped by briefly pressing the
setting knob ⇒ page 8, fig. 1 .
Available playback modes
Setup Menu Media (SETUP)In Media mode, press the unit button to open the Media setup menu.
The selection options depend on the type of unit and equipment.
Function button: Result
: Each track of the current folder or current media source will be
played for 10 seconds. The scan function starts at the next track.: The tracks of the current audio CD will be played in random order.
: The tracks of the current folder will be played in random order.: The tracks of the current data medium will be played in random
order.
: Repeats the currently playing title.
Extras
A10
Mix all
A10
ScanMixMix folderMix allRepeat track
: At the end of the current audio CD, its tracks will be played
again.: At the end of the current folder, its tracks will be played
again.
The random play and repeat functions remain active for the corresponding
media source until they are closed for that source.Function button: Result
: Subfolders are included in the selected play-
back mode ⇒page 39.
This setting must be defined before the playback mode is activated.
: Adjust the input volume for an external audio source in the
AUX-IN multimedia socket ⇒page 8, fig. 1 to the output volume of the
other audio sources ⇒ page 33.: Adjust the input volume for an iPod
® or iPhone
® connected
to the MEDIA-IN multimedia interface to the playback volume of the other
audio sources ⇒ page 42.
a): Adjust the input volume for a Bluetooth audio source to
the playback volume of the other audio sources.
a)These functions can only be selected if the unit has the function.
: Adjust the input volume for an AUX2 external audio source
to the ⇒ table on page 40 playback volume of the other audio sources
⇒ page 33.
Function button: ResultRepeat CDRepeat folder
SETUP
’Scan/Mix/Repeat incl. GbAUX volume
A9
b MDI volumeBT-Audio volumebAUX2 volume
MediaSystem2.1_EN.book Seite 40 Donnerstag, 29. April 2010 4:18 16

Telephone control (Phone)75
Telephone control (Phone)IntroductionIntroductionThe telephone functions described below can be controlled from the radio
and navigation system provided there is a mobile phone switched on and
connected to the radio and navigation system.
The connection will depend on the appliance.•Link and connect a mobile phone to the radio and navigation system
⇒ page 77.•Link and connect a mobile phone through the instrument panel.
For the connection between the mobile phone and the radio and navigation
system, the mobile phone must have Bluetooth
®.
If no mobile phone is connected to the radio and navigation system, tele-
phone control will not be available.
Please observe instructions concerning the use of mobile phones in vehicles
without an external aerial ⇒page 76.
WARNING
Telephone calls and the use of the mobile phone pre-installation while
driving may distract the driver from the road and result in accident.•You should always drive with due care and attention.•Select volume settings that allow you to easily hear signals from
outside the vehicle at all times, e.g. emergency service sirens.•Your call may be cut off or you may be unable to make calls if you are in
an area with no mobile phone network coverage, an area where the network is very weak or, in some cases, in a tunnel, garage or underpass.
This also means that no emergency calls can be made.
WARNING
If your mobile phone is loose and is not securely fastened, it could be
thrown around the vehicle interior in the event of sudden braking, sharp
movements or accident and cause injury to passengers.•While the vehicle is in motion, always secure the mobile phone prop-
erly outside the airbag deployment zone.WARNING
Mobile phones may affect the operation of pacemakers. Always maintain a
suitable distance between the phone and the pacemaker.•Maintain a gap of roughly 20 centimetres between the aerials of the
mobile phone and the pacemaker, as mobile phones may affect the func-
tioning of pacemakers.•Do not keep mobile phones in breast pockets directly above pace-
makers.•Switch off the mobile phone immediately if you suspect there may be
interference.WARNING
An unfolded armrest may restrict the driver's movements causing a serious
accident.•While driving, the armrest should always be closed.WARNING (continued)
MediaSystem2.1_EN.book Seite 75 Donnerstag, 29. April 2010 4:18 16

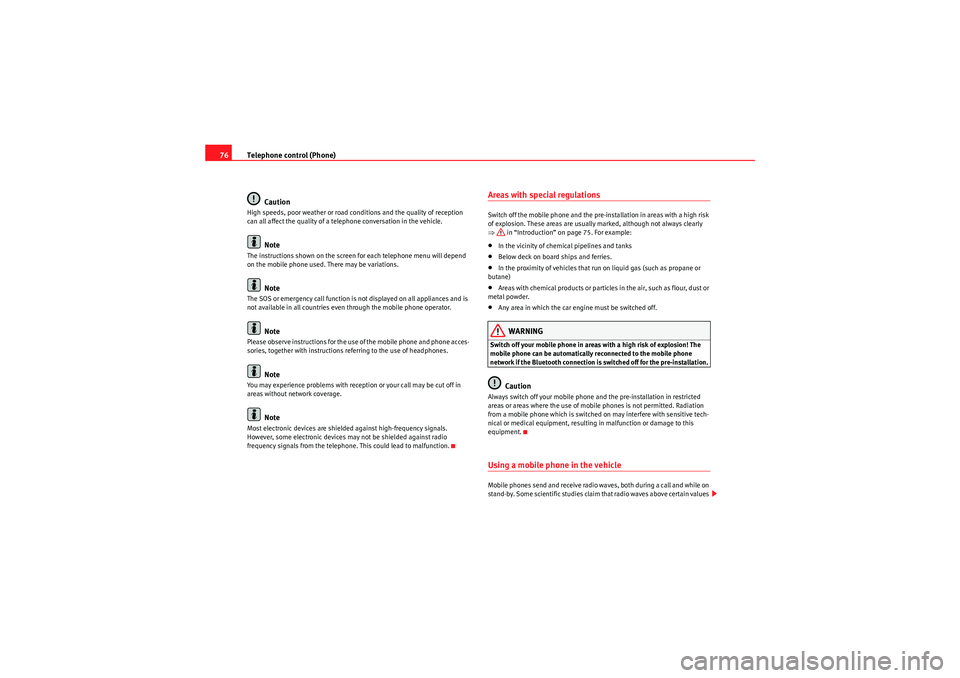

Telephone control (Phone)
76
CautionHigh speeds, poor weather or road conditions and the quality of reception
can all affect the quality of a telephone conversation in the vehicle.
Note
The instructions shown on the screen for each telephone menu will depend
on the mobile phone used. There may be variations.
Note
The SOS or emergency call function is not displayed on all appliances and is
not available in all countries even through the mobile phone operator.
Note
Please observe instructions for the use of the mobile phone and phone acces-
sories, together with instructions referring to the use of headphones.
Note
You may experience problems with reception or your call may be cut off in
areas without network coverage.
Note
Most electronic devices are shielded against high-frequency signals.
However, some electronic devices may not be shielded against radio
frequency signals from the telephone. This could lead to malfunction.
Areas with special regulationsSwitch off the mobile phone and the pre-installation in areas with a high risk
of explosion. These areas are usually marked, although not always clearly
⇒ in “Introduction” on page 75. For example:•In the vicinity of chemical pipelines and tanks•Below deck on board ships and ferries.•In the proximity of vehicles that run on liquid gas (such as propane or
butane)•Areas with chemical products or particles in the air, such as flour, dust or
metal powder.•Any area in which the car engine must be switched off.WARNING
Switch off your mobile phone in areas with a high risk of explosion! The
mobile phone can be automatically reconnected to the mobile phone
network if the Bluetooth connection is switched off for the pre-installation.
Caution
Always switch off your mobile phone and the pre-installation in restricted
areas or areas where the use of mobile phones is not permitted. Radiation
from a mobile phone which is switched on may interfere with sensitive tech-
nical or medical equipment, resulting in malfunction or damage to this
equipment.Using a mobile phone in the vehicleMobile phones send and receive radio waves, both during a call and while on
stand-by. Some scientific studies claim that radio waves above certain values
MediaSystem2.1_EN.book Seite 76 Donnerstag, 29. April 2010 4:18 16

Telephone control (Phone)77
may be harmful to the human body. The authorities and international commit-
tees have defined limits and directives to ensure that electromagnetic radia-
tion from mobile telephones remains within limits which are not harmful to
human health. Nevertheless, there is no conclusive scientific evidence that
wireless telephones are totally safe.
Therefore, some experts recommend moderate use of mobile phones until
the results of further research currently underway are published.Link and connect the mobile phone to a radio and navigation system
To use a mobile phone via the radio and navigation system, it is necessary to
establish a connection between both units once.
The mobile phone can be connected to the radio and navigation system in
two ways:•active connection•passive connection
With the active connection, the search for the unit is started using the radio
and navigation system . With the passive connection, the search for the unit
is started using the mobile phone . The following settings in the mobile phone
and in the radio and navigation system are required for both types of connec-
tion:•The Bluetooth
® function must be on or visible in the mobile phone and in
the radio and navigation system.
•The mobile phone keypad must be unlocked.•The mobile phone notification and keypad tones should be switched off.
It will be necessary to enter information using the telephone keypad during
the connection process. Therefore, the mobile phone should be to hand.
Fig. 76 Setup: Bluetooth
settings.
Fig. 77 Bluetooth
settings: BT equipment.
MediaSystem2.1_EN.book Seite 77 Donnerstag, 29. April 2010 4:18 16

Telephone control (Phone)
78Start active connection of the mobile phone
When making an active connection, any existing connections to other mobile
phones are ended.•Press the unit button.•Press the unit button.•Press the function button
5).
•Press the function button.
The search process may last 15 to 20 seconds. On completion, the names of
any mobile phones found are displayed on the screen.•Select the entry corresponding to the mobile phone to be connected from
the list of Bluetooth devices ⇒page 77, fig. 77.•Establish a connection by pressing the function button.•Alternatively: establish the connection by pressing the right unit button.•Alternatively: establish the connection by pressing the name of the
phone in the entry in the list.
Now establish a connection between the mobile phone and the radio and
navigation system. To confirm the connection between the two units, certain
information should be entered in the mobile phone.•Confirm connection in the mobile phone.•Enter PIN shown on the radio and navigation display via the mobile phone
and confirm.
When the PIN has been correctly entered, a message confirming the connec-
tion is displayed on the radio and navigation system screen. The address
book stored in the mobile phone and the call lists are automatically loaded.
The time taken to load the information will depend upon the quantity of data
stored in the mobile phone. Once the data has been loaded, the telephone control data will be available in the radio and navigation system. The main
menu,
PHONE , is displayed on the screen.
Start passive connection of the mobile phone
•Press the unit button.•Press the unit button.•Press the function button
5).
•Press the function button.•Start searching for Bluetooth audio accessories in the mobile phone.
The search process may last 15 to 20 seconds. On completion of the proce-
dure, the radio and navigation system is shown in the mobile phone as
SEAT_BT .•Select SEAT_BT on the mobile phone, in the list of entries of Bluetooth
audio accessories found and establish connection.
Now establish a connection between the mobile phone and the radio and
navigation system. To end the connection between the two units, certain
information should be entered in the mobile phone.•Enter PIN shown on the radio and navigation display via the mobile phone
and confirm.
When the PIN has been correctly entered, the mobile phone address book
and call lists are automatically loaded. The time taken to load the information
will depend upon the quantity of data stored in the mobile phone. Once the
data has been loaded, the telephone control data will be available in the
radio and navigation system. The main menu, PHONE, is displayed on the
screen.
If the PIN is not entered correctly, the Bluetooth visibility automatically
switches off in the radio and navigation system. To reconnect the phone
again, visibility should be reactivated via the Bluetooth settings.
5)If the connection button is not available, the device should be linked through the in-
strument panel.
PHONESETUPBluetooth SettingsBluetooth Settings
Connect
PHONESETUPBluetooth SettingsEstablish BT visibility
MediaSystem2.1_EN.book Seite 78 Donnerstag, 29. April 2010 4:18 16

Telephone control (Phone)79
Connection of more than one mobile phone
A maximum of four mobile phones can be connected to the radio and naviga-
tion system. When the radio and navigation system is switched on, it auto-
matically connects to the last connected mobile phone. If it is not possible to
connect to this mobile phone, the system will try to automatically connect to
the next mobile phone on the list of connected units.
If there are already four phones connected and you wish to connect an addi-
tional phone, it will be necessary to delete one of the phones from the list of
units connected.•Press the unit button.•Press the function button
5).
•Alternatively: select the by turning the setting knob
⇒ page 8, fig. 1 and press knob to confirm.•Press the function button.•ALTERNATIVELY: Select the function button by
turning the setting knob and press knob to confirm.•Select the mobile phone to be deleted from the list of connected units.•Press the function button or the lower button to confirm the proce-
dure.
After deleting the phone, there will only be three entries in the list of
connected units. It will now be possible to start a new connection to another
mobile phone.Note
For safety reasons, Bluetooth visibility in the radio and navigation system is
limited to exactly five minutes.
Note
The Bluetooth connection has a maximum range of 10 metres. An existing
Bluetooth connection will be disconnected if the distance between the connected units is greater than this. The connection is
automatically
resumed when the units are back within the range.
PHONE main menuAfter the connection procedure, the radio and navigation system uses the
data from the mobile phone address book and call lists, which can be viewed
and used via the PHONE main menu.•Press the unit button to open the PHONE main menu.
Displays on PHONE main menu
The name of the connected phone is displayed in the centre of the PHONE
main menu screen, (in fig. 78FON 01 ) and the name of the operator (mobile
phone supplier).
The symbol

in the upper left corner of the display indicates an existing Blue-
tooth
® connection.
SETUPBluetooth Settings
Bluetooth Settings
A10List of connected units
List of connected units
Delete
Fig. 78 PHONE main
menu.
PHONE
MediaSystem2.1_EN.book Seite 79 Donnerstag, 29. April 2010 4:18 16
