engine Seat Leon 5D 2010 Owner's manual

Technical Specifications

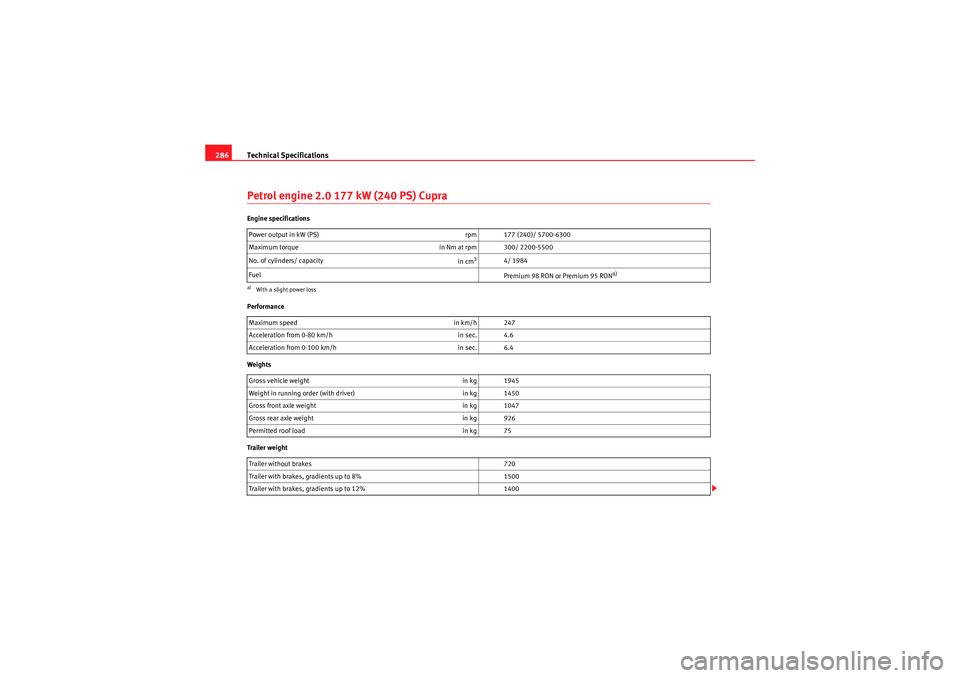

286Petrol engine 2.0 177 kW (240 PS) CupraEngine specifications
Performance
Weights
Trailer weight Power output in kW (PS)
rpm 177 (240)/ 5700-6300
Maximum torque in Nm at rpm 300/ 2200-5500
No. of cylinders/ capacity in cm
3
4/ 1984
Fuel Premium 98 RON or Premium 95 RON
a)
a)With a slight power lossMaximum speedin km/h 247
Acceleration from 0-80 km/h in sec. 4.6
Acceleration from 0-100 km/h in sec. 6.4
Gross vehicle weight in kg 1945
Weight in running order (with driver) in kg 1450
Gross front axle weight in kg 1047
Gross rear axle weight in kg 926
Permitted roof load in kg 75
Trailer without brakes 720
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
Leon_EN.book Seite 286 Mittwoch, 1. September 2010 6:16 18

Technical Specifications287
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Engine oil filling capacity
Petrol engine 2.0 195 kW (265 PS) Cupra REngine specifications
Performance
Weights
Approximate engine oil capacity with oil filter change
4.8 litres
Power output in kW (PS) rpm 195 (265)/ 6000
Maximum torque in Nm at rpm 350/ 2500-5000
No. of cylinders/ capacity in cm
3
4/ 1984
Fuel Premium 98 RON or Premium 95 RON
a)
a)With a slight power lossMaximum speedin km/h 250 (limited)
Acceleration from 0-80 km/h in sec. 4.5
Acceleration from 0-100 km/h in sec. 6.2
Gross vehicle weight in kg 1945
Weight in running order (with driver) in kg 1450
Gross front axle weight in kg 1050
Gross rear axle weight in kg 925
Permitted roof load in kg 75
Leon_EN.book Seite 287 Mittwoch, 1. September 2010 6:16 18

Technical Specifications
288Trailer weight
Engine oil filling capacityDiesel engine 1.6 TDI CR 77 kW (105 PS) with/without DPFEngine specifications
Performance Trailer without brakes
720
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.8 litres
Power output in kW (PS) rpm 77 (105) 4400
Maximum torque in Nm at rpm 250/1500-2500
No. of cylinders/ capacity in cm
3
4/1598
Fuel Min. 51 CN
Manual Automatic
Maximum speed in km/h 185185
Acceleration from 0-80 km/h in sec. 7.77.6
Acceleration from 0-100 km/h in sec. 11.711.7
Leon_EN.book Seite 288 Mittwoch, 1. September 2010 6:16 18

Technical Specifications289
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Weights
Trailer weight
Engine oil filling capacity
Diesel engine 1.6 TDI CR 77 kW (105 PS) DPF Start&StopEngine specifications
Manual
Automatic
Gross vehicle weight in kg 18601880
Weight in running order (with driver) in kg 13651385
Gross front axle weight in kg 10101030
Gross rear axle weight in kg 890890
Permitted roof load in kg 7575
Manual Automatic
Trailer without brakes 680690
Trailer with brakes, gradients up to 8% 15001500
Trailer with brakes, gradients up to 12% 14001400
Approximate engine oil capacity with oil filter change 4.5 litres
Power output in kW (PS) rpm 77 (105) 4400
Maximum torque in Nm at rpm 250/1500-2500
No. of cylinders/ capacity in cm
3
4/1598
Fuel Min. 51 CN
Leon_EN.book Seite 289 Mittwoch, 1. September 2010 6:16 18

Technical Specifications
290Performance
Weights
Trailer weight
Engine oil filling capacity Maximum speed
in km/h 185
Acceleration from 0-80 km/h in sec. 7.5
Acceleration from 0-100 km/h in sec. 11.3
Gross vehicle weight in kg 1820
Weight in running order (with driver) in kg 1325
Gross front axle weight in kg 1010
Gross rear axle weight in kg 890
Permitted roof load in kg 75
Trailer without brakes 660
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
Approximate engine oil capacity with oil filter change 4.5 litres
Leon_EN.book Seite 290 Mittwoch, 1. September 2010 6:16 18

Technical Specifications291
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Diesel engine 1.6 TDI CR 77 kW (105 PS) DPF EcomotiveEngine specifications
Performance
Weights
Trailer weightPower output in kW (PS)
rpm 77 (105) 4400
Maximum torque in Nm at rpm 250/1500-2500
No. of cylinders/ capacity in cm
3
4/1598
Fuel Min. 51 CN
Maximum speed in km/h 190
Acceleration from 0-80 km/h in sec. 7.4
Acceleration from 0-100 km/h in sec. 11.5
Gross vehicle weight in kg 1820
Weight in running order (with driver) in kg 1325
Gross front axle weight in kg 1010
Gross rear axle weight in kg 890
Permitted roof load in kg 75
Trailer without brakes 660
Trailer with brakes, gradients up to 8% 1500
Trailer with brakes, gradients up to 12% 1400
Leon_EN.book Seite 291 Mittwoch, 1. September 2010 6:16 18

Technical Specifications
292Engine oil filling capacityDiesel engine 2.0 TDI CR 103 kW (140 PS) DPFEngine specifications
Performance
Weights Approximate engine oil capacity with oil filter change
4.5 litres
Power output in kW (PS) rpm 103 (140)/ 4200
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders/ capacity in cm
3
4/ 1968
Fuel Min. 51 CN
Manual Automatic
Maximum speed in km/h 205205
Acceleration from 0-80 km/h in sec. 6.36.3
Acceleration from 0-100 km/h in sec. 9.39.3
Manual Automatic
Gross vehicle weight in kg 18751895
Weight in running order (with driver) in kg 13801400
Gross front axle weight in kg 10451060
Gross rear axle weight in kg 890890
Permitted roof load in kg 7575
Leon_EN.book Seite 292 Mittwoch, 1. September 2010 6:16 18

Technical Specifications293
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Trailer weight
Engine oil filling capacity
Diesel engine 2.0 TDI PD 103 kW (140 PS) without DPFEngine specifications
Performance
Manual
Automatic
Trailer without brakes 690700
Trailer with brakes, gradients up to 8% 15001500
Trailer with brakes, gradients up to 12% 14001400
Approximate engine oil capacity with oil filter change 4.5 litres
Power output in kW (PS) rpm 103 (140)/ 4000
Maximum torque in Nm at rpm 320/ 1750 - 2500
No. of cylinders/ capacity in cm
3
4/ 1968
Fuel Min. 51 CN
Manual Automatic
Maximum speed in km/h 205205
Acceleration from 0-80 km/h in sec. 6.36.3
Acceleration from 0-100 km/h in sec. 9.39.3
Leon_EN.book Seite 293 Mittwoch, 1. September 2010 6:16 18

Technical Specifications
294Weights
Trailer weight
Engine oil filling capacityDiesel engine 2.0 TDI CR 125 kW (170 PS) DPFEngine specifications Manual
Automatic
Gross vehicle weight in kg 18851925
Weight in running order (with driver) in kg 13901430
Gross front axle weight in kg 10421077
Gross rear axle weight in kg 885890
Permitted roof load in kg 7575
Manual Automatic
Trailer without brakes 690710
Trailer with brakes, gradients up to 8% 15001500
Trailer with brakes, gradients up to 12% 14001400
Approximate engine oil capacity with oil filter change 4.3 litres
Power output in kW (PS) rpm 125 (170)/ 4200
Maximum torque in Nm at rpm 350/ 1750-2500
No. of cylinders/ capacity in cm
3
4/ 1968
Fuel Min. 51 CN
Leon_EN.book Seite 294 Mittwoch, 1. September 2010 6:16 18

Technical Specifications295
Safety First
Operating Instructions
Practical Tips
Technical Specifications
Performance
Weights
Trailer weight
Engine oil filling capacity
Manual
Automatic
Maximum speed in km/h 214214
Acceleration from 0-80 km/h in sec. 5.95.6
Acceleration from 0-100 km/h in sec. 8.28
Manual Automatic
Gross vehicle weight in kg 18901915
Weight in running order (with driver) in kg 13951420
Gross front axle weight in kg 10451075
Gross rear axle weight in kg 890895
Permitted roof load in kg 7575
Manual Automatic
Trailer without brakes 690710
Trailer with brakes, gradients up to 8% 15001500
Trailer with brakes, gradients up to 12% 14001400
Approximate engine oil capacity with oil filter change 4.5 litres
Leon_EN.book Seite 295 Mittwoch, 1. September 2010 6:16 18
