143
Seats and storage
CAUTION
Incorrect handling of the net partition may cause damage.
● Do not “release” the partition net on lowering it; otherwise the net and
other parts of the vehicle might be damaged. Roll down the net partition by
hand. 
Applies to the model: LEON ST
Use of the net partition with the rear seat backrests folded
down

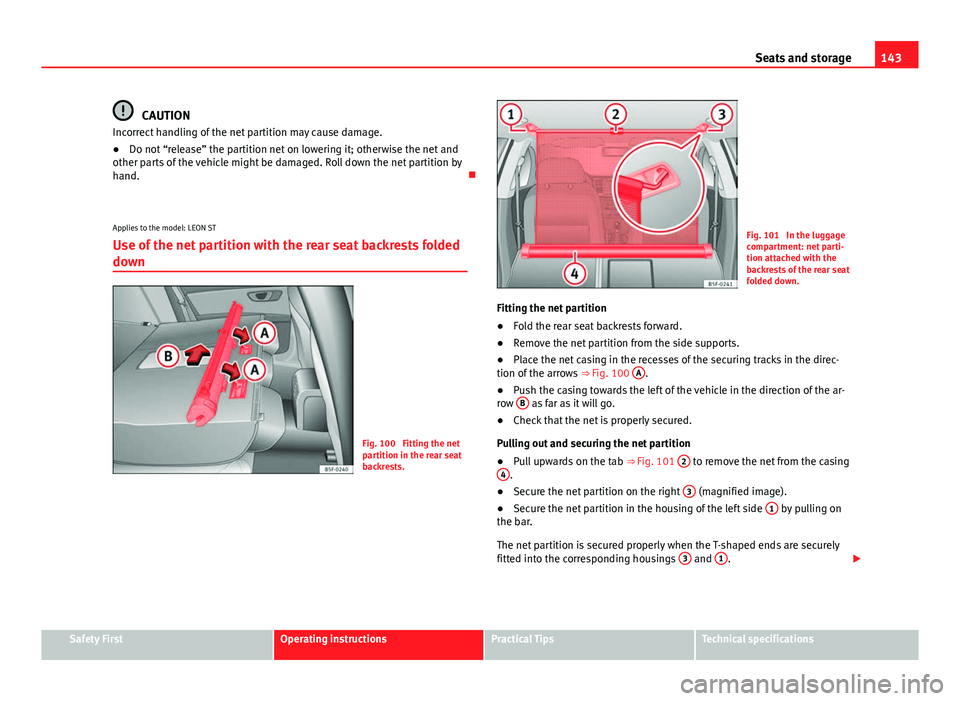

Fig. 100 Fitting the net
partition in the rear seat
backrests.
Fig. 101 In the luggage
compartment: net parti-
tion attached with the
backrests of the rear seat
folded down.
Fitting the net partition
● Fold the rear seat backrests forward.
● Remove the net partition from the side supports.
● Place the net casing in the recesses of the securing tracks in the direc-
tion of the arrows ⇒ Fig. 100 A
.
● Push the casing towards the left of the vehicle in the direction of the ar-
row B
as far as it will go.
● Check that the net is properly secured.
Pulling out and securing the net partition
● Pull upwards on the tab
⇒ Fig. 101 2
to remove the net from the casing
4.
● Secure the net partition on the right 3 (magnified image).
● Secure the net partition in the housing of the left side 1 by pulling on
the bar.
The net partition is secured properly when the T-shaped ends are securely
fitted into the corresponding housings 3
and 1.

Safety FirstOperating instructionsPractical TipsTechnical specifications

145
Seats and storage
To avoid soiling the inside, any dirty objects should be wrapped (in a blan-
ket, for example) before they are entered through the tailboard.
When the armrest is lowered, nobody is allowed to travel in the centre rear
seat.
Opening the tailboard
● Lower the centre armrest.
● Pull on the release lever in the direction of the arrow and fold the tail-
board cover ⇒  Fig. 102 1
completely forwards.
● Open the rear lid.
● Enter long objects through the gap from the luggage compartment.
● Fasten the objects securely with the safety belt.
● Close the rear lid.
Closing the tailboard
● Turn the tailboard cover clockwise until it engages. The red marking
should not be seen on the luggage compartment side.
● Close the rear lid.
● Fold up the centre armrest if necessary.
Note
The tailboard can also be opened from the luggage compartment. To do so,
press the release lever downwards, in the direction of the arrow, and the

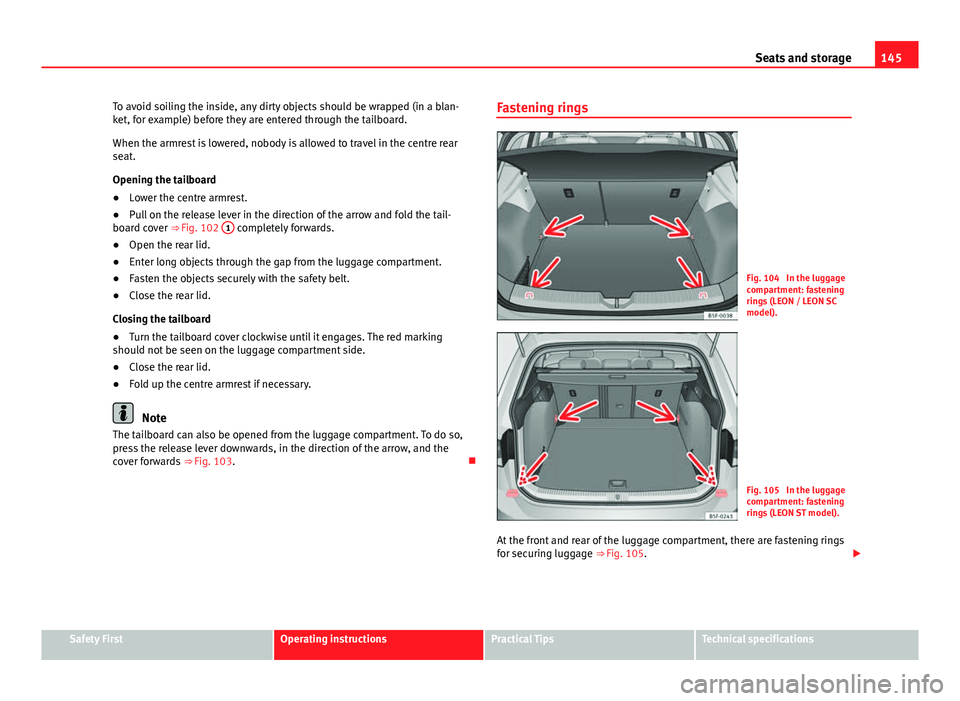

cover forwards ⇒ Fig. 103. Fastening rings
Fig. 104 In the luggage
compartment: fastening
rings (LEON / LEON SC
model).
Fig. 105 In the luggage
compartment: fastening
rings (LEON ST model).
At the front and rear of the luggage compartment, there are fastening rings
for securing luggage ⇒ Fig. 105. 
Safety FirstOperating instructionsPractical TipsTechnical specifications

147
Seats and storage
The retaining hooks have been designed to hold light shopping bags.
At the front and rear of the luggage compartment there are fastening rings
for securing luggage ⇒  Fig. 104, ⇒ Fig. 105.
WARNING
Never use retaining hooks as fastening rings. In the event of sudden
braking or an accident, the hooks could break.
CAUTION
Each hook is designed for a maximum load of 2.5 kg. 
Net bag*

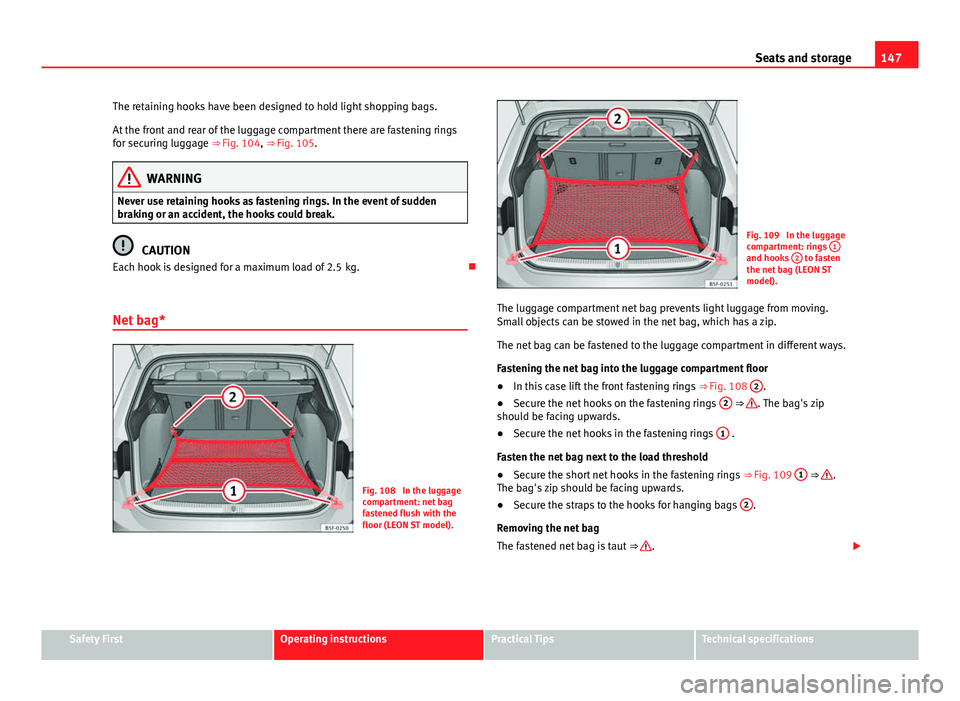

Fig. 108 In the luggage
compartment: net bag
fastened flush with the
floor (LEON ST model).
Fig. 109 In the luggage
compartment: rings 1
and hooks 2 to fasten
the net bag (LEON ST
model).
The luggage compartment net bag prevents light luggage from moving.
Small objects can be stowed in the net bag, which has a zip.
The net bag can be fastened to the luggage compartment in different ways.
Fastening the net bag into the luggage compartment floor
● In this case lift the front fastening rings
⇒ Fig. 108 2
.
● Secure the net hooks on the fastening rings 2
⇒ . The bag's zip
should be facing upwards.
● Secure the net hooks in the fastening rings 1
.
Fasten the net bag next to the load threshold
● Secure the short net hooks in the fastening rings
⇒ Fig. 109 1

⇒ .
The bag's zip should be facing upwards.
● Secure the straps to the hooks for hanging bags 2
.
Removing the net bag
The fastened net bag is taut ⇒ 
. 
Safety FirstOperating instructionsPractical TipsTechnical specifications

149
Seats and storage

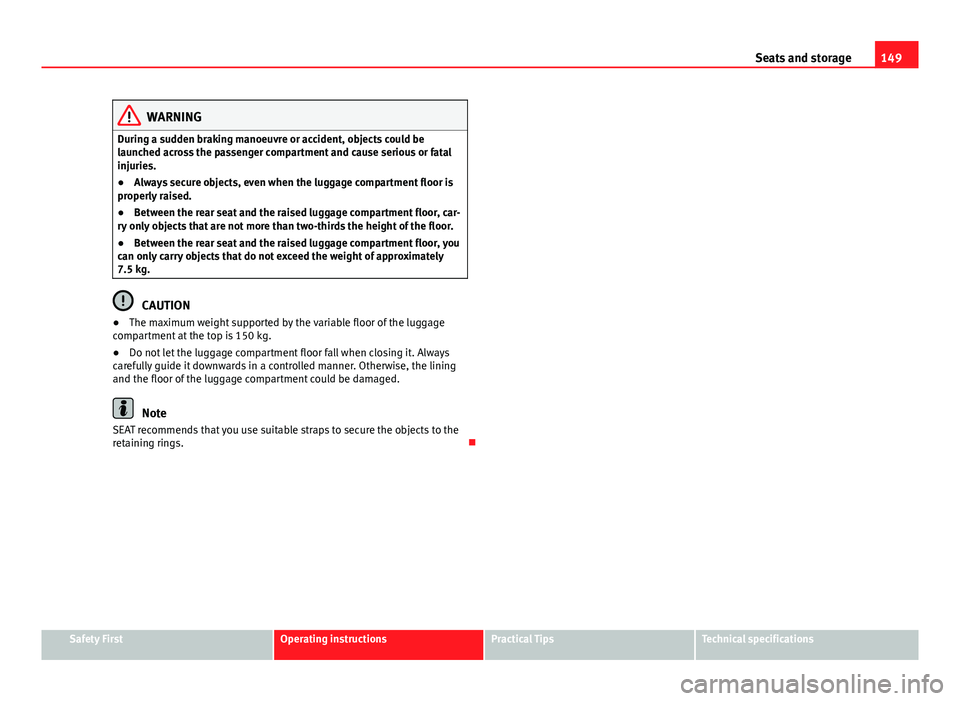

WARNING
During a sudden braking manoeuvre or accident, objects could be
launched across the passenger compartment and cause serious or fatal
injuries.
● Always secure objects, even when the luggage compartment floor is
properly raised.
● Between the rear seat and the raised luggage compartment floor, car-
ry only objects that are not more than two-thirds the height of the floor.
● Between the rear seat and the raised luggage compartment floor, you
can only carry objects that do not exceed the weight of approximately
7.5 kg.
CAUTION
● The maximum weight supported by the variable floor of the luggage
compartment at the top is 150 kg.
● Do not let the luggage compartment floor fall when closing it. Always
carefully guide it downwards in a controlled manner. Otherwise, the lining
and the floor of the luggage compartment could be damaged.
Note
SEAT recommends that you use suitable straps to secure the objects to the
retaining rings. 
Safety FirstOperating instructionsPractical TipsTechnical specifications

151
Seats and storage
Applies to the model: LEON ST
Securing the cross bars and roof carrier system

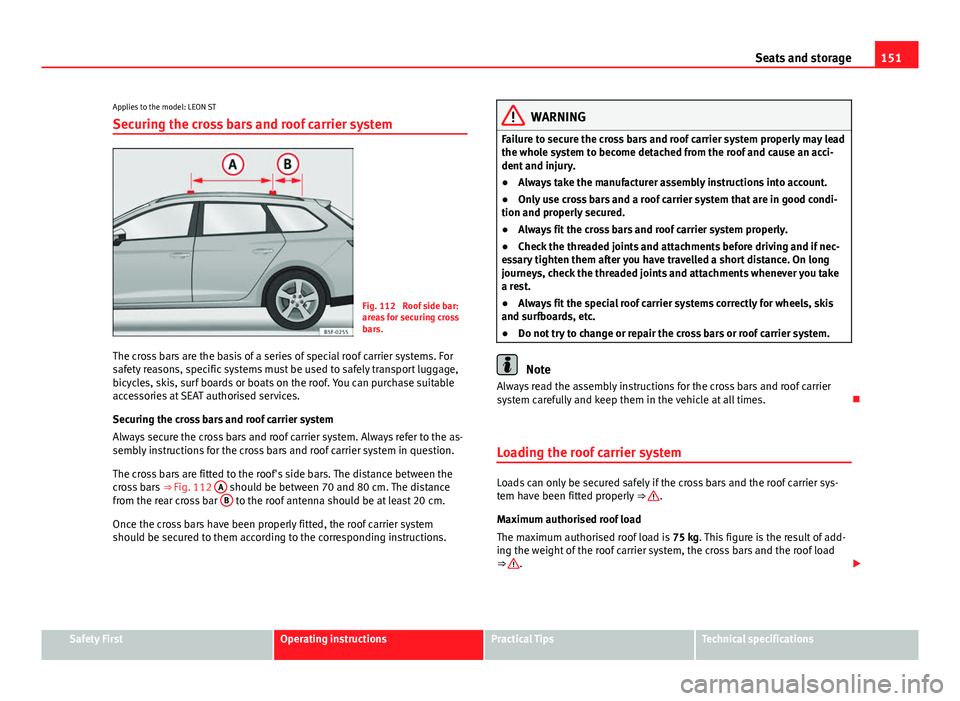

Fig. 112 Roof side bar:
areas for securing cross
bars.
The cross bars are the basis of a series of special roof carrier systems. For
safety reasons, specific systems must be used to safely transport luggage,
bicycles, skis, surf boards or boats on the roof. You can purchase suitable
accessories at SEAT authorised services.
Securing the cross bars and roof carrier system
Always secure the cross bars and roof carrier system. Always refer to the as-
sembly instructions for the cross bars and roof carrier system in question.
The cross bars are fitted to the roof's side bars. The distance between the
cross bars ⇒ Fig. 112 A
should be between 70 and 80 cm. The distance
from the rear cross bar B to the roof antenna should be at least 20 cm.
Once the cross bars have been properly fitted, the roof carrier system
should be secured to them according to the corresponding instructions.
WARNING
Failure to secure the cross bars and roof carrier system properly may lead
the whole system to become detached from the roof and cause an acci-
dent and injury.
● Always take the manufacturer assembly instructions into account.
● Only use cross bars and a roof carrier system that are in good condi-
tion and properly secured.
● Always fit the cross bars and roof carrier system properly.
● Check the threaded joints and attachments before driving and if nec-
essary tighten them after you have travelled a short distance. On long
journeys, check the threaded joints and attachments whenever you take
a rest.
● Always fit the special roof carrier systems correctly for wheels, skis
and surfboards, etc.
● Do not try to change or repair the cross bars or roof carrier system.
Note
Always read the assembly instructions for the cross bars and roof carrier
system carefully and keep them in the vehicle at all times. 
Loading the roof carrier system
Loads can only be secured safely if the cross bars and the roof carrier sys-
tem have been fitted properly ⇒ .
Maximum authorised roof load
The maximum authorised roof load is 75 kg. This figure is the result of add-
ing the weight of the roof carrier system, the cross bars and the roof load
⇒ 
. 
Safety FirstOperating instructionsPractical TipsTechnical specifications

153
Air conditioning

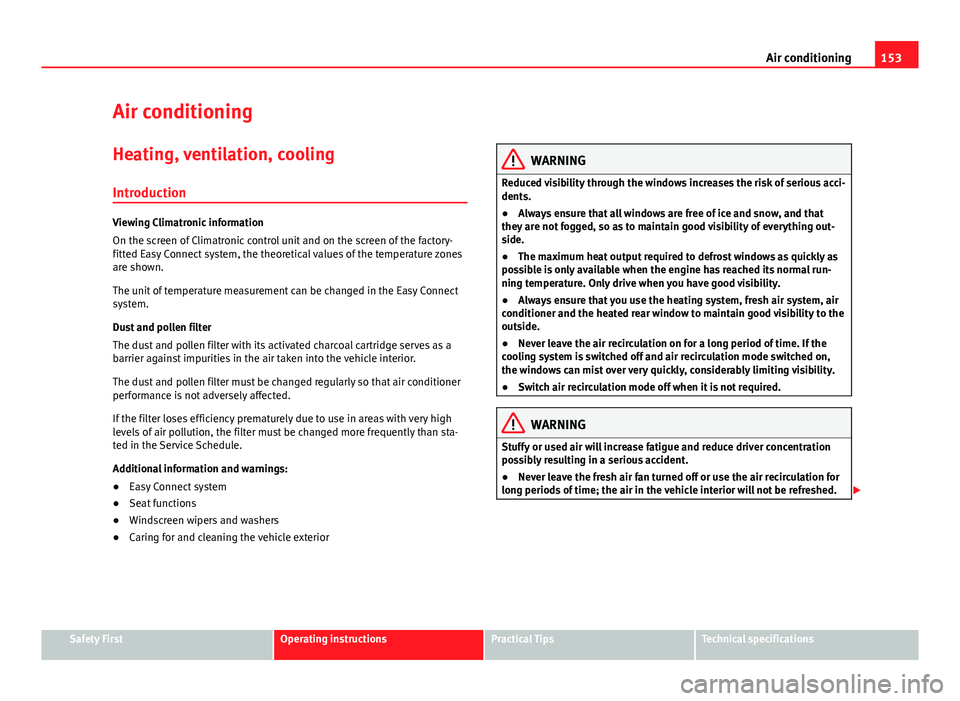

Air conditioning Heating, ventilation, cooling
Introduction
Viewing Climatronic information
On the screen of Climatronic control unit and on the screen of the factory-
fitted Easy Connect system, the theoretical values of the temperature zones
are shown.
The unit of temperature measurement can be changed in the Easy Connect
system.
Dust and pollen filter
The dust and pollen filter with its activated charcoal cartridge serves as a
barrier against impurities in the air taken into the vehicle interior.
The dust and pollen filter must be changed regularly so that air conditioner
performance is not adversely affected.
If the filter loses efficiency prematurely due to use in areas with very high
levels of air pollution, the filter must be changed more frequently than sta-
ted in the Service Schedule.
Additional information and warnings:
● Easy Connect system
● Seat functions
● Windscreen wipers and washers
● Caring for and cleaning the vehicle exterior
WARNING
Reduced visibility through the windows increases the risk of serious acci-
dents.
● Always ensure that all windows are free of ice and snow, and that
they are not fogged, so as to maintain good visibility of everything out-
side.
● The maximum heat output required to defrost windows as quickly as
possible is only available when the engine has reached its normal run-
ning temperature. Only drive when you have good visibility.
● Always ensure that you use the heating system, fresh air system, air
conditioner and the heated rear window to maintain good visibility to the
outside.
● Never leave the air recirculation on for a long period of time. If the
cooling system is switched off and air recirculation mode switched on,
the windows can mist over very quickly, considerably limiting visibility.
● Switch air recirculation mode off when it is not required.
WARNING
Stuffy or used air will increase fatigue and reduce driver concentration
possibly resulting in a serious accident.
● Never leave the fresh air fan turned off or use the air recirculation for
long periods of time; the air in the vehicle interior will not be refreshed. 
Safety FirstOperating instructionsPractical TipsTechnical specifications

155
Air conditioning

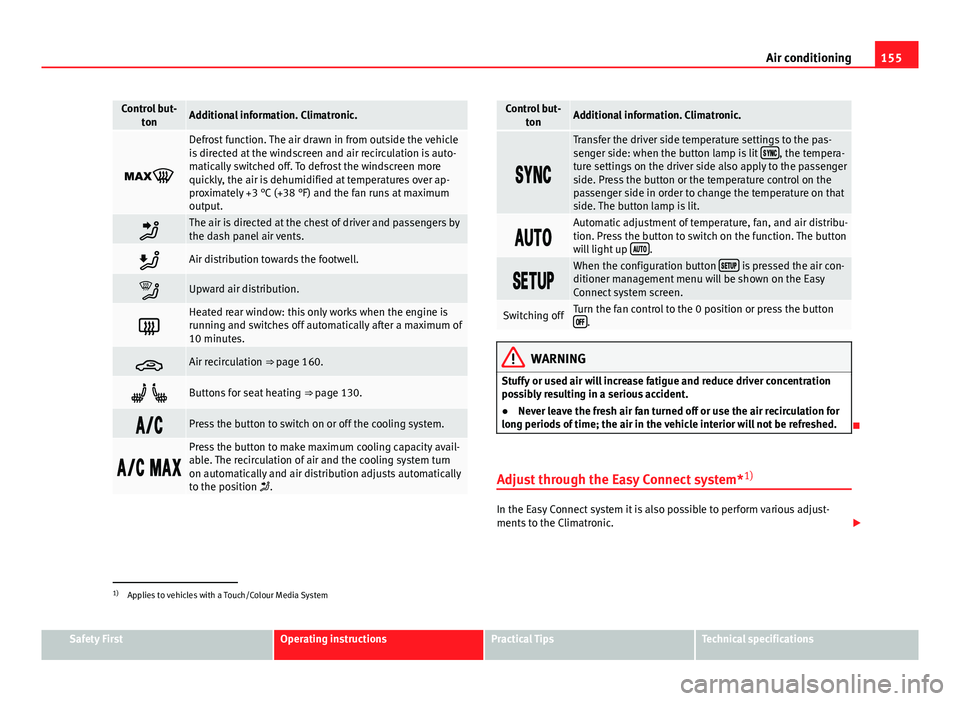

Control but-
tonAdditional information. Climatronic.

Defrost function. The air drawn in from outside the vehicle
is directed at the windscreen and air recirculation is auto-
matically switched off. To defrost the windscreen more
quickly, the air is dehumidified at temperatures over ap-
proximately +3 °C (+38 °F) and the fan runs at maximum
output.
The air is directed at the chest of driver and passengers by
the dash panel air vents.
Air distribution towards the footwell.
Upward air distribution.

Heated rear window: this only works when the engine is
running and switches off automatically after a maximum of
10 minutes.
Air recirculation ⇒ page 160.
 Buttons for seat heating ⇒ page 130.
Press the button to switch on or off the cooling system.
 
Press the button to make maximum cooling capacity avail-
able. The recirculation of air and the cooling system turn
on automatically and air distribution adjusts automatically
to the position  .
Control but-
tonAdditional information. Climatronic.

Transfer the driver side temperature settings to the pas-
senger side: when the button lamp is lit , the tempera-
ture settings on the driver side also apply to the passenger
side. Press the button or the temperature control on the
passenger side in order to change the temperature on that
side. The button lamp is lit.

Automatic adjustment of temperature, fan, and air distribu-
tion. Press the button to switch on the function. The button
will light up 
.

When the configuration button  is pressed the air con-
ditioner management menu will be shown on the Easy
Connect system screen.
Switching offTurn the fan control to the 0 position or press the button .
WARNING
Stuffy or used air will increase fatigue and reduce driver concentration
possibly resulting in a serious accident.
● Never leave the fresh air fan turned off or use the air recirculation for
long periods of time; the air in the vehicle interior will not be refreshed.

Adjust through the Easy Connect system* 1)
In the Easy Connect system it is also possible to perform various adjust-
ments to the Climatronic.

1)
Applies to vehicles with a Touch/Colour Media System
Safety FirstOperating instructionsPractical TipsTechnical specifications

157
Air conditioning
Manual air conditioning controls

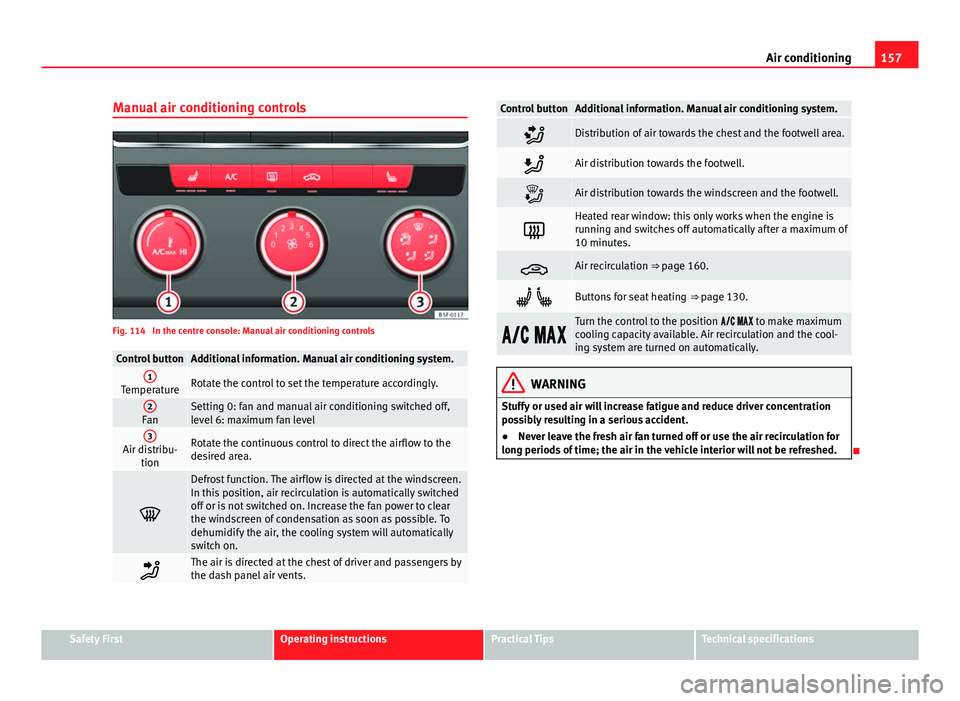

Fig. 114 In the centre console: Manual air conditioning controls
Control buttonAdditional information. Manual air conditioning system.1TemperatureRotate the control to set the temperature accordingly.
2FanSetting 0: fan and manual air conditioning switched off,
level 6: maximum fan level
3Air distribu- tionRotate the continuous control to direct the airflow to the
desired area.

Defrost function. The airflow is directed at the windscreen.
In this position, air recirculation is automatically switched
off or is not switched on. Increase the fan power to clear
the windscreen of condensation as soon as possible. To
dehumidify the air, the cooling system will automatically
switch on.
The air is directed at the chest of driver and passengers by
the dash panel air vents.
Control buttonAdditional information. Manual air conditioning system.
Distribution of air towards the chest and the footwell area.
Air distribution towards the footwell.
Air distribution towards the windscreen and the footwell.

Heated rear window: this only works when the engine is
running and switches off automatically after a maximum of
10 minutes.
Air recirculation ⇒ page 160.
 Buttons for seat heating ⇒ page 130.
 Turn the control to the position   to make maximum
cooling capacity available. Air recirculation and the cool-
ing system are turned on automatically.
WARNING
Stuffy or used air will increase fatigue and reduce driver concentration
possibly resulting in a serious accident.
● Never leave the fresh air fan turned off or use the air recirculation for
long periods of time; the air in the vehicle interior will not be refreshed.

Safety FirstOperating instructionsPractical TipsTechnical specifications

159
Air conditioning
Instructions for use of the air conditioner
The interior cooling system only works when the engine is running and fan
is switched on.
The air conditioner operates most effectively with the windows and the pan-
oramic sliding sunroof closed. However, if the vehicle has heated up after
standing in the sun for some time, the air inside can be cooled more quickly
by opening the windows and the panoramic sliding sunroof briefly.
Setting for conditions of optimal visibility
When the air conditioning is switched on, the temperature and the air hu-
midity in the vehicle interior drop. Hence, when the outside air humidity is
high, the windows do not mist over and comfort for the vehicle occupants is
improved:
With manual air conditioning
● Switch off air recirculation.
● Set the fan to the required setting.
● Turn the temperature control to the centre position.
● Open and direct all the air outlets in the dash panel.
● Turn the air distribution control to the required position.
● Press the button 
to switch on the cooling system. The button will
light up.
With Climatronic
● Press button 
.
● Set the temperature to +22 °C (+72 °F).
● Open and direct all the air outlets in the dash panel.
Climatronic: change the temperature unit on the screen of the radio or on
the factory-fitted navigation system
Changing the temperature display from Celsius to Fahrenheit on radio or on
the factory-fitted navigation system is done using the menu on the instru-
ment panel ⇒ page 73. The cooling system cannot be activated
If the air conditioning system cannot be switched on, this may be caused by
the following:
●
The engine is not running.
● The fan is switched off.
● The air conditioner fuse has blown.
● The outside temperature is lower than approximately +3 °C (+38 °F).
● The air conditioner compressor has been temporarily switched off be-
cause the engine coolant temperature is too high.
● Another fault in the vehicle. Have the air conditioner checked by a speci-
alised workshop.
Special Characteristics
If the humidity and temperature outside the vehicle are high, condensation
can drip off the evaporator in the cooling system and form a pool under-
neath the vehicle. This is normal and does not indicate a leak!
Note
After starting the engine, any residual humidity in the air conditioner could
mist over the windscreen. Switch on the defrost function as soon as possi-
ble to clear the windscreen of condensation. 
Safety FirstOperating instructionsPractical TipsTechnical specifications

161
Air conditioning

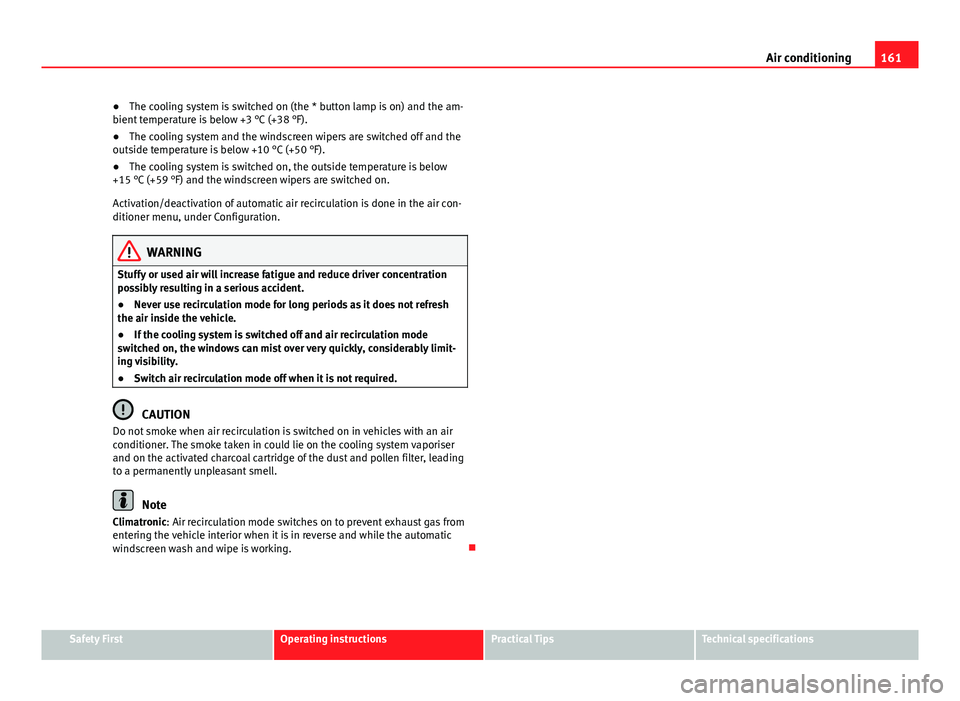

● The cooling system is switched on (the * button lamp is on) and the am-
bient temperature is below +3 °C (+38 °F).
● The cooling system and the windscreen wipers are switched off and the
outside temperature is below +10 °C (+50 °F).
● The cooling system is switched on, the outside temperature is below
+15 °C (+59 °F) and the windscreen wipers are switched on.
Activation/deactivation of automatic air recirculation is done in the air con-
ditioner menu, under Configuration.
WARNING
Stuffy or used air will increase fatigue and reduce driver concentration
possibly resulting in a serious accident.
● Never use recirculation mode for long periods as it does not refresh
the air inside the vehicle.
● If the cooling system is switched off and air recirculation mode
switched on, the windows can mist over very quickly, considerably limit-
ing visibility.
● Switch air recirculation mode off when it is not required.
CAUTION
Do not smoke when air recirculation is switched on in vehicles with an air
conditioner. The smoke taken in could lie on the cooling system vaporiser
and on the activated charcoal cartridge of the dust and pollen filter, leading
to a permanently unpleasant smell.
Note
Climatronic: Air recirculation mode switches on to prevent exhaust gas from
entering the vehicle interior when it is in reverse and while the automatic
windscreen wash and wipe is working. 
Safety FirstOperating instructionsPractical TipsTechnical specifications
