Technical specifications
Technical specifications
Technical specifications Important The information in the vehicle documentation
always takes precedence over the informa-
tion in this Instruction Manual.
All technical specifications provided in this
documentation are valid for the standard
model in Spain. The vehicle data card inclu-
ded in the Maintenance Programme or the
vehicle registration documents shows which
engine is installed in the vehicle.
The figures may be different depending
whether additional equipment is fitted, for
different models, for special vehicles and for
other countries.
Abbreviations used in the Technical
Specifications sectionAb-
brevia- tionMeaning
kWKilowatt, engine power measurement.
PSPferdestärke (horsepower), formerly used to
denote engine power.
rpmRevolutions per minute - engine speed.
NmNewton metres, unit of engine torque.
litresper
100 kmFuel consumption in litres per 100 km (70
miles).
g/kmCarbon dioxide emissions in grams per km
(mile) travelled.
CO 2Carbon dioxide
CNCetane number, indication of the diesel com-
bustion power.
RONResearch octane number, indication of the
knock resistance of petrol. Vehicle identification data
Fig. 225
Vehicle data sticker (boot). Fig. 226
Chassis number.
» 241
Technical specifications
Advice
Operation
Safety
The essentials

Technical specifications
VIN in the Easy Connect – Select: Function button CAR > control but-
ton (Car)* Systems > Service & Control >
Ch a
ssis number .
Chassis number
The VIN is located in the Easy Connect, on the
vehicle data sticker and under the wind-
screen, on the driver side ››› Fig. 226. Addi-
tional

ly, the chassis number is located in the
engine compartment, on the right-hand side.
The number is engraved on the top side rail,
and is partially covered.
Type plate
The type plate is located on the right side
door pillar. Vehicles for certain export coun-
tries do not have a type plate.
Vehicle data sticker
The vehicle data sticker is under the carpet
trim in the luggage compartment, in the
spare wheel well. A sticker with the vehicle
data is attached to the inside cover of the
Maintenance Programme.
The following information is provided on the
vehicle data sticker: ››› Fig. 225
Vehicle identification number (chassis
number)
1 Vehicle type, model, capacity, engine
type, finish, engine power and gearbox
type
Engine code, gearbox code, external
paint code and internal equipment code
Optional extras and PR numbers
Consumption values (l/100 km) and CO
2
emissions (g/km)
A Urban cycle consumption
B Out-of-town consumption
C Combined consumption and CO
2
emissions
Identifying letters
The identifying letters of the engine can be
viewed on the instrument panel when the en-
gine is switched off and the ignition is on.
● Hold down the 0.0/SET
4
››› Fig. 82 button
for more than 15 seconds.
Information on fuel
consumption
Fuel consumption The consumption and emission details
shown on the vehicle data sticker differ from
one vehicle to another.2 3
4
5 Vehicle fuel consumption and CO
2 emissions
appear on the vehicle data sticker in the
spare wheel well, inside the boot and on the
rear cover of the Maintenance Programme.
The fuel consumption and CO 2 emission val-
ues refer to the weight category assigned to
your vehicle according to the engine and
gearbox combination, as well as the specific
equipment fitted, and is only used to com-
pare between the different models.
The fuel consumption and CO 2 emissions do
not depend only on the performance of the
vehicle, they can also differ from the estab-
lished values depending on other factors
such as driving style, road conditions, traffic
conditions, environmental conditions, load
and number of passengers.
Calculation of fuel consumption
The consumption values have been calcula-
ted based on measurements performed or
supervised by certified CE laboratories ac-
cording to the latest version of directives
715/2007/EC and 80/1268/CEE (for more in-
formation consult the European Union Publi-
cations Office at EUR-Lex: © European Union,
http://eur-lex.europa.eu/en/index.htm) and
are valid for the kerb weight indicated for the
vehicle.
242

Technical specifications
Note
In practice, and considering all the factors
mentioned here, consumption values can dif-
fer from those calculated in the current Euro-
pean regulations. Weights
Kerb weight refers to the basic model with a
fuel tank filled to 90% capacity and without
optional extras. The figure quoted includes
75 kg to allow for the weight of the driver.
Special versions, optional equipment fittings
or retro-fitting accessories will increase the
weight of the vehicle
››› .
WARNING
● Please note that the centre of gravity may
shift when transporting heavy objects; this
may affect vehicle handling and lead to an ac-
cident. Always adjust your speed and driving
style to suit road conditions and require-
ments.
● Never exceed the gross axle weight rating
or the gross vehicle weight rating. If the per-
missible axle load or the permissible total
weight is exceeded, the driving characteris-
tics of the vehicle may change, which could
lead to accidents, injuries and damage to the
vehicle. Towing a trailer
Trailer weights Trailer weight
The trailer weights and drawbar loads ap-
proved are selected in intensive trials accord-
ing to precisely defined criteria. The ap-
proved trailer weights apply to vehicles in the
EU and generally for maximum speeds of 80
km/h (100 km/h in c
er
tain circumstances).
The figures may be different in other coun-
tries. All data in the official vehicle documen-
tation takes precedence over these data at all
times ››› .
Drawbar loads
The maximum
permitted drawbar load on the
b

all joint of the towing bracket must not ex-
ceed
80 kg.
In the interest of road safety, we recommend
that you always tow approaching the maxi-
mum drawbar load. The response of the trail-
er on the road will be poor, if the drawbar
load is too small.
If the maximum permissible drawbar load
cannot be met (e.g. with small, empty and
light-weight single axle trailers or tandem
axle trailers with a wheelbase of less than 1
metre), a minimum of 4% of the actual trailer
weight is legally required for the drawbar
load. WARNING
● For safety reasons, do not exceed the 80
km/h (50 mph) limit. This is also valid in
countries where higher speeds are permitted.
● Never exceed the maximum trailer weights
or the drawbar load. If the permissible axle
load or the permissible total weight is excee-
ded, the driving characteristics of the vehicle
may change, leading to accidents, injuries
and damage to the vehicle. Wheels
Tyre pressure, snow chains, wheel
bolts Tyre pressures
The sticker with the tyre pressure values can
be found on the inside of the fuel tank flap.
The tyre pressure values given there are for
cold
tyres. The slightly raised pressures of
w arm ty

res must not be reduced. ››› Snow chains
Snow chains may be fitted only to the front
wheels, and only for the following tyres:
»
243
Technical specifications
Advice
Operation
Safety
The essentials

Technical specifications195/65 R15Chains with links of maximum 15 mm
205/55 R16Chains with links of maximum 15 mm
205/50 R17Chains with links of maximum 15 mm
225/45 R17Chains with links of maximum 9 mm
225/40 R18Chains with links of maximum 9 mm
225/35 R19Chains with links of maximum 7 mm
205/55 R17Snow chains are not permitted
225/45 R18Snow chains are not permitted
Wheel bolts
After the wheels have been changed, the
tightening torque
of the wheel bolts should
be c hec

ked as soon as possible with a torque
wrench ››› . The tightening torque for steel
and alloy wheels is 120 Nm. WARNING
● Check the tyre pressure at least once per
month. Checking the tyre pressure is very im-
portant. If the tyre pressure is too high or too
low, there is an increased danger of accidents
- particularly at high speeds.
● If the tightening torque of the wheel bolts
is too low, they could loosen while the vehi-
cle is in motion. Risk of accident! If the tight-
ening torque is too high, the wheel bolts and
threads can be damaged. Note
We recommend that you ask your Technical
Service for information about appropriate
wheel, tyre and snow chain size. 244

Technical specifications
Engine specifications Petrol engine 1.2 63 kW (85 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
63 (86)/4,300-5,300160/1,400-3,5004/1,197Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
PerformanceLEONLEON SCLEON ST
Top speed (km/h)178 (V)178 (V)178 (V)
Acceleration from 0-80 km/h (seconds)7.67.57.8
Acceleration from 0-100 km/h (seconds)11.911.812.1
Weights (in kg)
Gross vehicle weight1,6901,7001,800
Weight in running order (with driver)1,1881,1681,233
Gross front axle weight880880890
Gross rear axle weight860870960
Permitted roof load757575
Maximum trailer weights (in kg)
Trailer without brakes590580610
Trailer with brakes, gradients up to 8%1,3001,3001,300
Trailer with brakes, gradients up to 12%1,1001,1001,100 245
Technical specifications
Advice
Operation
Safety
The essentials

Technical specifications
Petrol engine 1.2 77 kW (105 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
77 (105)/4,500-5,500175/1,400-4,0004/1,197Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
PerformanceLEON
ManualLEON
Start-StopLEON
AutomaticLEON SC ManualLEON SC
Start-StopLEON SC
AutomaticLEON ST ManualLEON ST
Start-StopLEON ST
Automatic
Top speed (km/h)191 (V)191 (V)191 (VI)191 (V)191 (V)191 (V)191 (V)191 (V)191 (VI)
Acceleration from 0-80 km/h (sec-
onds)6.86.86.86.76.76.76.96.87.0
Acceleration from 0-100 km/h (sec-
onds)10.210.210.210101010.410.310.3
Weights (in kg)
Gross vehicle weight1,7201,7201,7501,7101,7101,7301,8101,8201,850
Weight in running order (with driv-
er)1,1991,2091,2351,1791,1891,2151,2441,2541,280
Gross front axle weight890890920880890920880890920
Gross rear axle weight880880880880870860980980980
Permitted roof load757575757575757575
Maximum trailer weights (in kg)
Trailer without brakes590600610580590600620620640
Trailer with brakes, gradients up to
8%1,5001,5001,5001,5001,5001,5001,5001,5001,500
Trailer with brakes, gradients up to
12%1,3001,3001,3001,3001,3001,3001,3001,3001,300 246

Technical specifications
Petrol engine 1.2 TSI 81 kW (110 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
81 (110)/4,600-5,600175/1,400-4,0004/1,197Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
PerformanceLEONLEON SCLEON ST
ManualStart-StopAutomaticManualStart-StopAutomaticManualStart-StopAutomatic
Top speed (km/h)194 (V)194 (V)194 (V)194 (V)194 (V)194 (VI)194 (V)194 (V)194 (VI)
Acceleration from 0-80 km/h (seconds)6.66.66.66.56.56.56.76.76.7
Acceleration from 0-100 km/h (seconds)9.99.99.99.79.79.710.110.110.1
Weights (in kg)
Gross vehicle weight1,7401,7401,7601,7101,7201,7501,7901,8001,820
Weight in running order (with driver)1,2061,2131,2411,1861,1931,2211,2401,2471,275
Gross front axle weight900900930890890920890890920
Gross rear axle weight890890880870880880950960950
Permitted roof load757575757575757575
Maximum trailer weights (in kg)
Trailer without brakes600600620590590610620620630
Trailer with brakes, gradients up to 8%1,5001,5001,5001,5001,5001,5001,5001,5001,500
Trailer with brakes, gradients up to 12%1,3001,3001,3001,3001,3001,3001,3001,3001,300 247
Technical specifications
Advice
Operation
Safety
The essentials

Technical specifications
Petrol engine 1.4 90 kW (122 PS) Start-StopPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
90 (122)/5,000-6,000200/1,400-4,0004/1,395Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
PerformanceLEON
Start-StopLEON SC
Start-StopLEON ST
Start-Stop
Top speed (km/h)202 (V&VI)202 (V&VI)202 (V&VI)
Acceleration from 0-80 km/h (seconds)6.36.26.5
Acceleration from 0-100 km/h (seconds)9.39.19.6
Weights (in kg)
Gross vehicle weight1,7401,7101,840
Weight in running order (with driver)1,2241,2041,269
Gross front axle weight910910910
Gross rear axle weight880850980
Permitted roof load757575
Maximum trailer weights (in kg)
Trailer without brakes610600630
Trailer with brakes, gradients up to 8%1,7001,7001,700
Trailer with brakes, gradients up to 12%1,4001,4001,400 248

Technical specifications
Petrol engine 1.4 92 kW (125 PS) Start-StopPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
92 (125)/5,000-6,000200/1,400-4,0004/1,395Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
PerformanceLEONLEON SCLEON ST
Top speed (km/h)203 (V&VI)203 (V&VI)203 (V&VI)
Acceleration from 0-80 km/h (seconds)6.26.16.4
Acceleration from 0-100 km/h (seconds)9.18.99.4
Weights (in kg)
Gross vehicle weight1,7701,7501,840
Weight in running order (with driver)1,2331,2131,267
Gross front axle weight920910910
Gross rear axle weight900890970
Permitted roof load757575
Maximum trailer weights (in kg)
Trailer without brakes610600630
Trailer with brakes, gradients up to 8%1,7001,7001,700
Trailer with brakes, gradients up to 12%1,4001,4001,400 249
Technical specifications
Advice
Operation
Safety
The essentials

Technical specifications

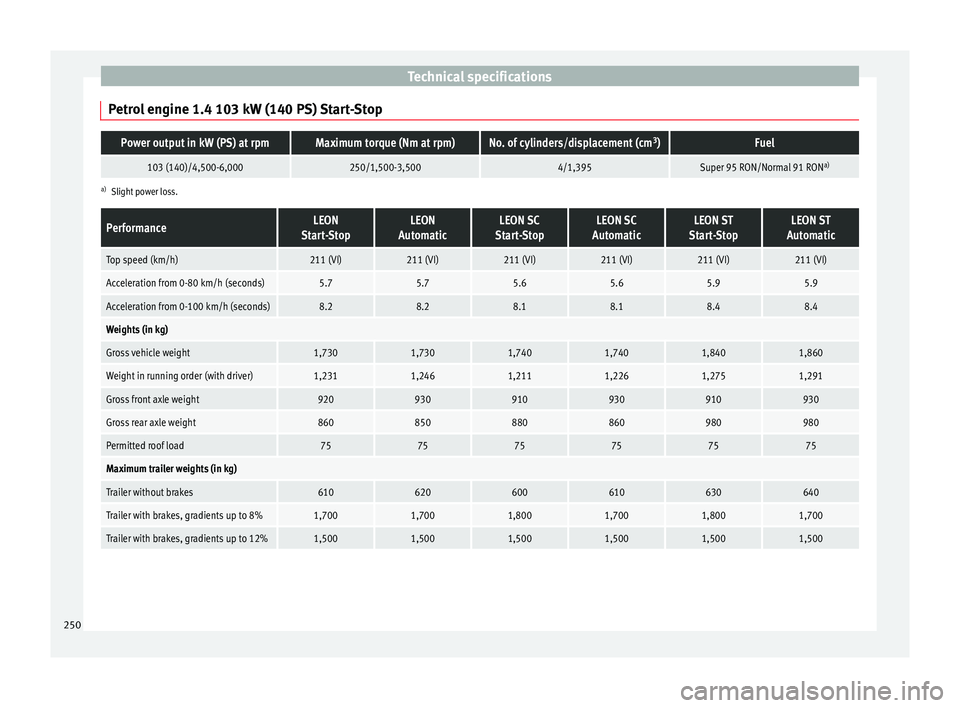

Petrol engine 1.4 103 kW (140 PS) Start-StopPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
103 (140)/4,500-6,000250/1,500-3,5004/1,395Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
PerformanceLEON
Start-StopLEON
AutomaticLEON SC
Start-StopLEON SC
AutomaticLEON ST
Start-StopLEON ST
Automatic
Top speed (km/h)211 (VI)211 (VI)211 (VI)211 (VI)211 (VI)211 (VI)
Acceleration from 0-80 km/h (seconds)5.75.75.65.65.95.9
Acceleration from 0-100 km/h (seconds)8.28.28.18.18.48.4
Weights (in kg)
Gross vehicle weight1,7301,7301,7401,7401,8401,860
Weight in running order (with driver)1,2311,2461,2111,2261,2751,291
Gross front axle weight920930910930910930
Gross rear axle weight860850880860980980
Permitted roof load757575757575
Maximum trailer weights (in kg)
Trailer without brakes610620600610630640
Trailer with brakes, gradients up to 8%1,7001,7001,8001,7001,8001,700
Trailer with brakes, gradients up to 12%1,5001,5001,5001,5001,5001,500 250
