Driver assistance systems
● When c ornerin
g
● On r
oads in poor condition
● In unfavourable weather conditions
● When a sporty driving style is employed
● In the event of a serious distraction to the
driver
Fatigue det

ection will be restored when the
vehicle is stopped for more than 15 minutes,
when the ignition is switched off or when the
driver has unbuckled their seat belt and
opened the door.
In the event of slow driving during a long pe-
riod of time (below 65 km/h, 40 mph) the
system automatically re-establishes the tired-
ness calculation. When driving at a faster
speed the driving behaviour will be recalcula-
ted.
Parking aid
Relat
ed video Fig. 224
Safety General information
Assorted assistance systems – which vary
depending on the equipment
fitt

ed in the car
– will help you when parking or manoeu-
vring.
The rear parking aid is an audible assistant
that warns about obstacles located behind
the vehicle ››› page 238.
During parking, Parking System Plus assists
the driver by visually and audibly warning
them about obstacles detected in front and
behind the vehicle ››› page 239. WARNING
● Alw a

ys pay attention, also when looking
straight ahead, to traffic and the vehicle sur-
roundings. The assistance systems are not a
replacement for driver awareness. When in-
serting or removing the vehicle from a park-
ing space, or when performing similar ma-
noeuvres the driver always assumes the re-
sponsibility.
● Adapt your speed and driving style at all
times t
o suit visibility, weather, road and traf-
fic conditions.
● The ultrasound sensors have blind spots in
which ob
stacles and people are not regis-
tered. Pay special attention to children and
animals.
● Always keep visual control of the vehicle
surrou
ndings: use the mirrors for additional
help. CAUTION
Parking Aid functions may be negatively af-
fect ed b

y different factors that may lead to
damage to the vehicle or its immediate sur-
rounds:
● Under certain circumstances, the system
does not
detect or display certain objects:
– Objects such as chains, trailer draw bars,
fences, posts and thin trees.
– Objects that are located above the sen-
sors, such as protrusions in a wall.
– Objects with certain surfaces or struc-
tures, such as wire mesh fences or pow-
der snow.
● Certain surfaces of objects and garments
do not refl
ect the ultrasound sensors' sig-
nals. The system cannot detect, at least cor-
rectly, these objects or people wearing such
clothes.
● Ultrasound sensor signals may be affected
by e
xternal sound sources. In certain circum-
stances this may prevent them from detect-
ing people or objects.
● Please note that low obstacles detected by
the syst
em may no longer be registered by
the sensors as the car moves closer, so the
system will not give any further warning. In
certain circumstances, objects such as high
kerbs that could damage the bottom of the
vehicle are not detected either.
● If the first warning from the ParkPilot is ig-
nored, the v
ehicle could suffer considerable
damage. » 237
Technical data
Advice
Operation
Emergencies
Safety

Operation
●

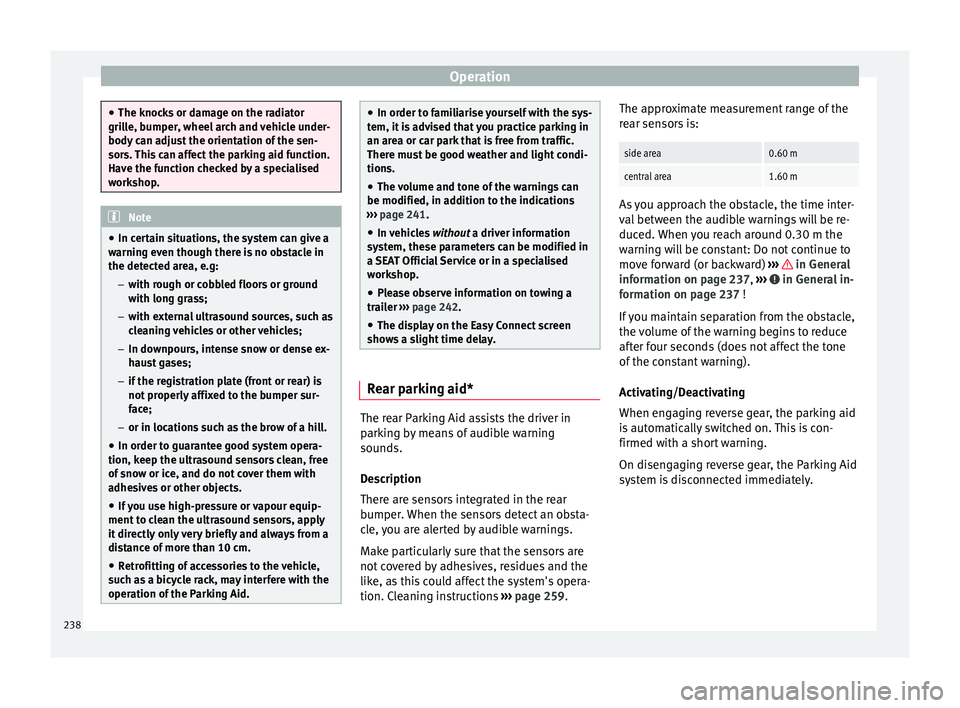

The knock s
or damage on the radiator
grille, bumper, wheel arch and vehicle under-
body can adjust the orientation of the sen-
sors. This can affect the parking aid function.
Have the function checked by a specialised
workshop. Note
● In c ert

ain situations, the system can give a
warning even though there is no obstacle in
the detected area, e.g:
–with rough or cobbled floors or ground
with long grass;
– with external ultrasound sources, such as
cleaning vehicles or other vehicles;
– In downpours, intense snow or dense ex-
haust gases;
– if the registration plate (front or rear) is
not properly affixed to the bumper sur-
face;
– or in locations such as the brow of a hill.
● In order to guarantee good system opera-
tion, keep the ultr
asound sensors clean, free
of snow or ice, and do not cover them with
adhesives or other objects.
● If you use high-pressure or vapour equip-
ment to c
lean the ultrasound sensors, apply
it directly only very briefly and always from a
distance of more than 10 cm.
● Retrofitting of accessories to the vehicle,
such a
s a bicycle rack, may interfere with the
operation of the Parking Aid. ●
In order t o f

amiliarise yourself with the sys-
tem, it is advised that you practice parking in
an area or car park that is free from traffic.
There must be good weather and light condi-
tions.
● The volume and tone of the warnings can
be modified, in addition t
o the indications
››› page 241.
● In vehicles without a driv
er information
system, these parameters can be modified in
a SEAT Official Service or in a specialised
workshop.
● Please observe information on towing a
trail
er ››› page 242.
● The display on the Easy Connect screen
shows
a slight time delay. Rear parking aid*
The rear Parking Aid assists the driver in
p
ark
in

g by means of audible warning
sounds.
Description
There are sensors integrated in the rear
bumper. When the sensors detect an obsta-
cle, you are alerted by audible warnings.
Make particularly sure that the sensors are
not covered by adhesives, residues and the
like, as this could affect the system's opera-
tion. Cleaning instructions ››› page 259. The approximate measurement range of the
rear sen

sors is:
side area0.60 m
central area1.60 m As you approach the obstacle, the time inter-
val
betw

een the audible warnings will be re-
duced. When you reach around 0.30 m the
warning will be constant: Do not continue to
move forward (or backward) ››› in General
inform ation on p

age 237, ››› in General in-
form ation on p
age 237 !
If you maintain separation from the obstacle,
the volume of the warning begins to reduce
after four seconds (does not affect the tone
of the constant warning).
Activating/Deactivating
When engaging reverse gear, the parking aid
is automatically switched on. This is con-
firmed with a short warning.
On disengaging reverse gear, the Parking Aid
system is disconnected immediately.
238

Driver assistance systems
Parking aid plus* Fig. 225
Represented area. Parking system plus assists you audibly and
v
i
s
ually when parking.
There are sensors integrated in the front and
rear bumpers. When they detect an obstacle,
you are alerted by audible warnings and visu-
ally on the Easy Connect system.
In the event of danger of a frontal collision,
the audible warnings come from the front of
the vehicle, and in the event of the danger of
a rear-end collision they come from the rear.
Make particularly sure that the sensors are
not covered by adhesives, residues and the like, as this could affect the system's opera-
tion. Cle

aning instructions ››› page 259.
The approximate measurement range of the
sensors is:
1.20 m
0.60 m
1.60 m
0.60 m
As you approach the obstacle, the time inter-
val between the audible warnings will be re-
duced. When you reach around 0.30 m the
warning will be constant: do not continue to
move forward (or backward)!
If you maintain separation from the obstacle,
the volume of the warning begins to reduce
after four seconds (does not affect the tone
of the constant warning). A B
C
D Parking Aid operation
Fig. 226
Centre console: parking aid button. Manual connection of Parking Aid
● Press the  butt
on
once.
Manual disconnection of Parking Aid
● Press the  button
again.
Manual disconnection of Parking Aid display
(the audible sounds remain active)
● Press a button on the main menu of the fac-
tory
-assembled infotainment system.
● OR: press the BACK fu
nction button. »
239
Technical data
Advice
Operation
Emergencies
Safety

Operation
Automatic activation
 on
– activ
at
es the Automatic activa-
tion option ››› page 240.
 off – deactivates the Automatic ac-
tivation option ››› page 240.
Front volume*
Volume in the front and rear area.
Front sound settings/sharpness*
Frequency (tone) of the sound in the front
area.
Rear volume*
Volume in the rear area.
Rear sound settings/sharpness*
Frequency (tone) of the sound in the rear
area.
Adjust volume
With the parking aid switched on, the active
audio/video source volume will be reduced
to the intensity of the selected setting.
Error messages When the Parking Aid is activated or when it
i
s
sw

itched on, if a message reporting a Park- ing aid error is displayed on the instrument
panel, there i

s a fault in the system.
If the fault doesn't disappear before discon-
necting the ignition, next time that parking
aid is engaged in reverse, it will not be indi-
cated.
Parking System Plus*
If there is a fault in the parking aid system a
message will appear on the instrument panel
indicating the error. In addition the  key
LED will blink.
If there is a fault in a sensor, the symbol  is
displayed on the Easy Connect display in
front of/behind the vehicle. If a rear sensor is
faulty, only the obstacles in the areas A and
B are displayed
››
›
Fig. 225. If a front sensor
is faulty, only the obstacles in the areas C and
D are displayed.
Hav e the f
au

lt corrected by a specialised
workshop without delay.
Towing bracket In vehicles equipped with a towing bracket
dev
ic
e fr

om the factory, when the trailer is
connected electrically, the Parking Aid rear
sensors will not be activated when reverse
gear is engaged, when the selector lever is
turned to position R or when the button  is
pressed. Parking System Plus
The dist

ance to possible obstacles at the rear
of the vehicle will not be displayed on the
screen and nor will it be indicated by means
of audible sound signals.
The Easy Connect system screen will only dis-
play objects detected at the front, and the ve-
hicle's trajectory will be hidden.
Braking while manoeuvring function* 3 Only
valid with Parking System Plus
As
soon as an obstacle is detected while re-
versing, the braking while manoeuvring func-
tion activates the emergency braking. De-
pending on the equipment, the braking while
manoeuvring function can also activate
emergency braking while moving forwards.
The emergency braking function is used to
minimise collisions. Vehicle speed must not
be higher than 10 km/h.
The braked manoeuvre function is active or
inactive when the parking light is lit or off, re-
spectively. If an emergency braking is activa-
ted, the function will remain inactive until the
gear is changed.
The Parking System’s limitations apply.
The braking while manoeuvring function is
controlled in the Easy Connect system with
242

Advice

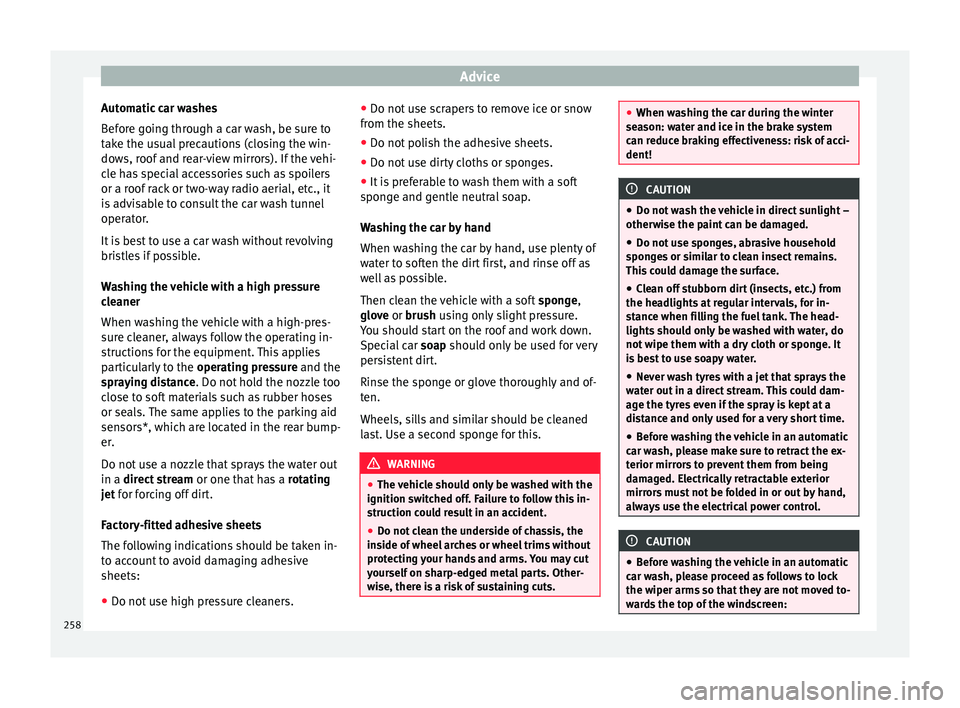

Automatic car washes
B ef
or
e going through a car wash, be sure to
take the usual precautions (closing the win-
dows, roof and rear-view mirrors). If the vehi-
cle has special accessories such as spoilers
or a roof rack or two-way radio aerial, etc., it
is advisable to consult the car wash tunnel
operator.
It is best to use a car wash without revolving
bristles if possible.
Washing the vehicle with a high pressure
cleaner
When washing the vehicle with a high-pres-
sure cleaner, always follow the operating in-
structions for the equipment. This applies
particularly to the operating pressure and the
spraying distance. Do not hold the nozzle too
close to soft materials such as rubber hoses
or seals. The same applies to the parking aid
sensors*, which are located in the rear bump-
er.
Do not use a nozzle that sprays the water out
in a direct stream or one that has a rotating
jet for forcing off dirt.
Factory-fitted adhesive sheets
The following indications should be taken in-
to account to avoid damaging adhesive
sheets:
● Do not use high pressure cleaners. ●
Do not use s crapers to remove ice or snow
from the sheets.
● Do not polish the adhesive sheets.
● Do not use dirty cloths or sponges.
● It is preferable to wash them with a soft
spong
e and gentle neutral soap.
Washing the car by hand
When washing the car by hand, use plenty of
water to soften the dirt first, and rinse off as
well as possible.
Then clean the vehicle with a soft sponge,
glove or brush using only slight pressure.
You should start on the roof and work down.
Special car soap should only be used for very
persistent dirt.
Rinse the sponge or glove thoroughly and of-
ten.
Wheels, sills and similar should be cleaned
last. Use a second sponge for this. WARNING
● The v ehic

le should only be washed with the
ignition switched off. Failure to follow this in-
struction could result in an accident.
● Do not clean the underside of chassis, the
inside of
wheel arches or wheel trims without
protecting your hands and arms. You may cut
yourself on sharp-edged metal parts. Other-
wise, there is a risk of sustaining cuts. ●
When wa shin

g the car during the winter
season: water and ice in the brake system
can reduce braking effectiveness: risk of acci-
dent! CAUTION
● Do not wa

sh the vehicle in direct sunlight –
otherwise the paint can be damaged.
● Do not use sponges, abrasive household
spong
es or similar to clean insect remains.
This could damage the surface.
● Clean off stubborn dirt (insects, etc.) from
the headlight
s at regular intervals, for in-
stance when filling the fuel tank. The head-
lights should only be washed with water, do
not wipe them with a dry cloth or sponge. It
is best to use soapy water.
● Never wash tyres with a jet that sprays the
water out
in a direct stream. This could dam-
age the tyres even if the spray is kept at a
distance and only used for a very short time.
● Before washing the vehicle in an automatic
car wa
sh, please make sure to retract the ex-
terior mirrors to prevent them from being
damaged. Electrically retractable exterior
mirrors must not be folded in or out by hand,
always use the electrical power control. CAUTION
● Bef or

e washing the vehicle in an automatic
car wash, please proceed as follows to lock
the wiper arms so that they are not moved to-
wards the top of the windscreen: 258

Care and maintenance
–
the bonnet mu s
t be closed.
– switch the ignition on and off.
– press the windscreen wiper lever forward
briefly (windscreen washer function).
This will lock the wiper arms. For the sake of the environment
The car should only be washed in special
w ash b

ays. These areas are prepared to pre-
vent oily water from getting into the public
drains. In some places, washing vehicles out-
side the areas intended for this purpose is
prohibited. Camera sensors and lenses
●
Use a small brush to remove snow and a
de-ic er s
pr

ay to remove ice.
● Clean the sensors with a solvent-free prod-
uct and a soft, dr
y cloth.
● Moisten the camera lens using a standard
alcohol-b
ased glass cleaning agent and
clean the lens with a dry cloth. In the active
lane assist*, the area in front of the lens is
normally cleaned with the windscreen wash-
er. CAUTION
● When y ou c

lean the vehicle with a pressure
washer: –
Sta y

a suitable distance from the sensors
on the front and rear bumpers.
– Do not clean the camera lenses or sur-
rounding area with the pressure washer.
● Never use warm or hot water to remove
snow and ic
e from the reverse camera lens,
as it could crack the lens.
● Never use abrasive cleaning agents on the
lens. Waxing and polishing
Care
W
ax
in

g protects the paintwork. It is time to
apply a coat of good wax when water no lon-
ger forms droplets and rolls off the clean
paintwork.
Even if a wax solution is used regularly in the
vehicle washing tunnel, it is advisable to pro-
tect the paint with a hard wax coating at least
twice a year.
In the summer, you will find it is much easier
to remove dead insects (which accumulate
on the bumper and the front of the bonnet) if
the car has been treated with care products
recently.
Polishing
Polishing is only necessary if the paint has
lost its shine, and the gloss cannot be
brought back by putting on wax. If the polish does not contain wax, a wax
product shou

ld be applied after polishing. CAUTION
● Do not u se po

lishes and hard wax on pain-
ted parts with a matt finish or on plastic
parts.
● Do not apply paint polishes to the side trim
that ru
ns around the panoramic roof and ends
on the windscreen. However, it can be treated
with hard wax. Trims
In respect for the environment, the silver-
p
l
at

ed trims on the body are made of pure
aluminium (they do not contain chrome).
Dirt or marks on the trim mouldings should
be removed with a cleaning product with a
neutral PH (do not use a chrome cleaner).
Body polish is also unsuitable for use on trim
mouldings. The intensive cleaning fluids of-
ten used before the car goes into a car wash
may contain alkaline substances, which can
cause dull or milky patches when they dry
out.
SEAT Official Services carry stocks of cleaning
products which have been tested for use on
your vehicle and are not harmful to the envi-
ronment.
259
Technical data
Advice
Operation
Emergencies
Safety

Wheels
Tyre monitoring indicator Fig. 253
Instrument panel: warning of loss of
ty r
e pr
essure. The tyre monitor indicator compares wheel
r
ev
o

lutions and, with this information, the
tread of each wheel using the ABS sensors. If
the rolling circumference of one or more
wheels has changed, the tyre monitoring in-
dicator will indicate this on the instrument
panel through a warning lamp and a warning
to the driver ››› Fig. 253. When only one spe-
cific tyre is affected, its position within the
vehicle will be indicated.
 Loss of pressure: Check left
tyre pressure!
Wheel tread change
The wheel tread changes when: ●
Tyr
e pressure is manually changed
● Tyre pressure is insufficient
● Tyre structure is damaged
● The vehicle is unbalanced because of a
load
● The wheel

s on an axle are subject to a
heavier lo
ad (e.g. with a heavy load).
● The vehicle is fitted with snow chains
● The temporary spare wheel is fitted
● The wheel on one axle is changed
There ma
y be a delay in the reaction of the
tyre  monitoring indicator or it may not in-
dicate anything under certain circumstances
(e.g. sporty driving, snow-covered or un-
paved roads, or when driving with snow
chains). Calibrating the tyre monitoring indica-
tor Fig. 254
Glove compartment: tyre control
sw it
c

h. After changing the tyre pressure or replacing
one or mor
e wheel
s, the ty

re monitoring indi-
cator must be recalibrated. Do the same, for
example, when the front and rear wheels are
swapped.
● Switch the ignition on.
● Store the new tyre pressure in the Easy
Connect sy
stem with the  button and the
f u
nction b
utton Setup
› ›
›
 page 33 or us-
ing the switch located in the glove compart-
ment 1)
››› Fig. 254.
● In vehicles without radio : pres
s and hold
down the   button with the ignition on,
until an acoustic signal is heard. »1)
In vehicles without the Infotainment system:
285
Technical data
Advice
Operation
Emergencies
Safety

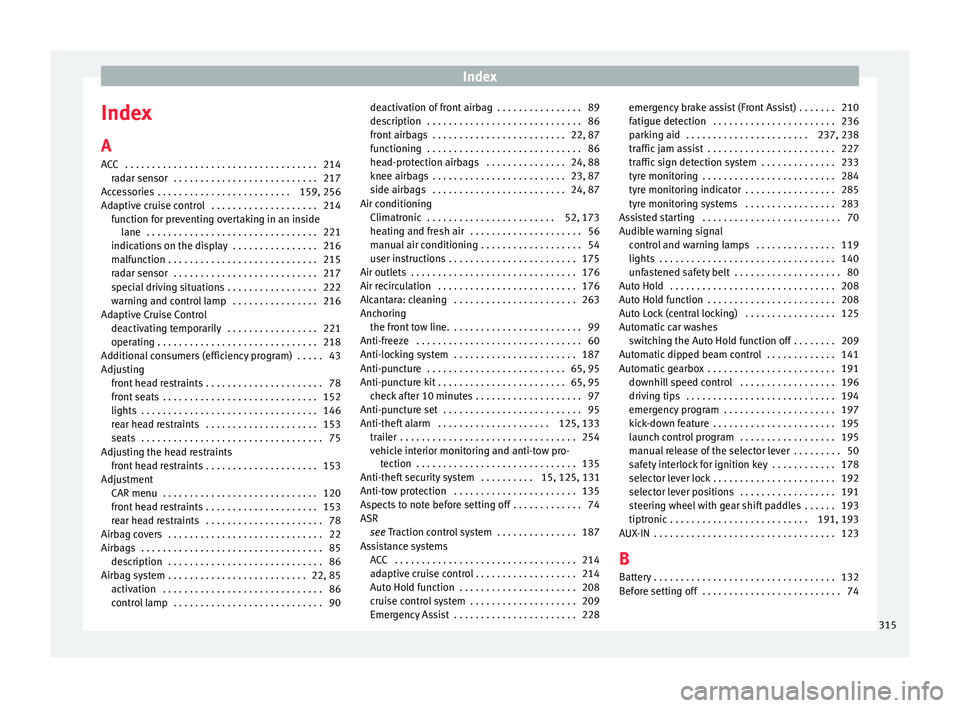

Index
Index
A
A C
C
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
radar sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . 159, 256
Adaptive cruise control . . . . . . . . . . . . . . . . . . . . 214 function for preventing overtaking in an insidelane . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
indications on the display . . . . . . . . . . . . . . . . 216
malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
radar sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
special driving situations . . . . . . . . . . . . . . . . . 222
warning and control lamp . . . . . . . . . . . . . . . . 216
Adaptive Cruise Control deactivating temporarily . . . . . . . . . . . . . . . . . 221
operating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Additional consumers (efficiency program) . . . . . 43
Adjusting front head restraints . . . . . . . . . . . . . . . . . . . . . . 78
front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
rear head restraints . . . . . . . . . . . . . . . . . . . . . 153
seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Adjusting the head restraints front head restraints . . . . . . . . . . . . . . . . . . . . . 153
Adjustment CAR menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
front head restraints . . . . . . . . . . . . . . . . . . . . . 153
rear head restraints . . . . . . . . . . . . . . . . . . . . . . 78
Airbag covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85 description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . 22, 85 activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 deactivation of front airbag . . . . . . . . . . . . . . . . 89
desc
ription . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
front airbags . . . . . . . . . . . . . . . . . . . . . . . . . 22, 87
functioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
head-protection airbags . . . . . . . . . . . . . . . 24, 88
knee airbags . . . . . . . . . . . . . . . . . . . . . . . . . 23, 87
side airbags . . . . . . . . . . . . . . . . . . . . . . . . . 24, 87
Air conditioning Climatronic . . . . . . . . . . . . . . . . . . . . . . . . 52, 173
heating and fresh air . . . . . . . . . . . . . . . . . . . . . 56
manual air conditioning . . . . . . . . . . . . . . . . . . . 54
user instructions . . . . . . . . . . . . . . . . . . . . . . . . 175
Air outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Air recirculation . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Alcantara: cleaning . . . . . . . . . . . . . . . . . . . . . . . 263
Anchoring the front tow line. . . . . . . . . . . . . . . . . . . . . . . . . 99
Anti-freeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Anti-locking system . . . . . . . . . . . . . . . . . . . . . . . 187
Anti-puncture . . . . . . . . . . . . . . . . . . . . . . . . . . 65, 95
Anti-puncture kit . . . . . . . . . . . . . . . . . . . . . . . . 65, 95 check after 10 minutes . . . . . . . . . . . . . . . . . . . . 97
Anti-puncture set . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Anti-theft alarm . . . . . . . . . . . . . . . . . . . . . 125, 133 trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254
vehicle interior monitoring and anti-tow pro-tection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Anti-theft security system . . . . . . . . . . 15, 125, 131
Anti-tow protection . . . . . . . . . . . . . . . . . . . . . . . 135
Aspects to note before setting off . . . . . . . . . . . . . 74
ASR see Traction control system . . . . . . . . . . . . . . . 187
Assistance systems ACC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 214
adaptive cruise control . . . . . . . . . . . . . . . . . . . 214
Auto Hold function . . . . . . . . . . . . . . . . . . . . . . 208
cruise control system . . . . . . . . . . . . . . . . . . . . 209
Emergency Assist . . . . . . . . . . . . . . . . . . . . . . . 228 emergency brake assist (Front Assist) . . . . . . . 210
fatigue detection
. . . . . . . . . . . . . . . . . . . . . . . 236
parking aid . . . . . . . . . . . . . . . . . . . . . . . 237, 238
traffic jam assist . . . . . . . . . . . . . . . . . . . . . . . . 227
traffic sign detection system . . . . . . . . . . . . . . 233
tyre monitoring . . . . . . . . . . . . . . . . . . . . . . . . . 284
tyre monitoring indicator . . . . . . . . . . . . . . . . . 285
tyre monitoring systems . . . . . . . . . . . . . . . . . 283
Assisted starting . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Audible warning signal control and warning lamps . . . . . . . . . . . . . . . 119
lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
unfastened safety belt . . . . . . . . . . . . . . . . . . . . 80
Auto Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Auto Hold function . . . . . . . . . . . . . . . . . . . . . . . . 208
Auto Lock (central locking) . . . . . . . . . . . . . . . . . 125
Automatic car washes switching the Auto Hold function off . . . . . . . . 209
Automatic dipped beam control . . . . . . . . . . . . . 141
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . . 191 downhill speed control . . . . . . . . . . . . . . . . . . 196
driving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
emergency program . . . . . . . . . . . . . . . . . . . . . 197
kick-down feature . . . . . . . . . . . . . . . . . . . . . . . 195
launch control program . . . . . . . . . . . . . . . . . . 195
manual release of the selector lever . . . . . . . . . 50
safety interlock for ignition key . . . . . . . . . . . . 178
selector lever lock . . . . . . . . . . . . . . . . . . . . . . . 192
selector lever positions . . . . . . . . . . . . . . . . . . 191
steering wheel with gear shift paddles . . . . . . 193
tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . 191, 193
AUX-IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
B Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Before setting off . . . . . . . . . . . . . . . . . . . . . . . . . . 74
315

Index
Driving mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Driv in
g pr
ofile . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Driving through water . . . . . . . . . . . . . . . . . . . . . 204
DSG . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Duplicate keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Dust and pollen filter . . . . . . . . . . . . . . . . . . . . . . 173
Dynamic lights range control . . . . . . . . . . . . . . . . 146
E E10 see Ethanol (fuel) . . . . . . . . . . . . . . . . . . . . . . . 266
Easy Connect . . . . . . . . . . . . . . . . . . . . . . . . 33, 120
Efficiency program additional consumers . . . . . . . . . . . . . . . . . . . . 43
saving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Electrical accessories see Power socket . . . . . . . . . . . . . . . . . . . . . . . 159
Electrical socket trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Electric windows . . . . . . . . . . . . . . . . . . . . . . 18, 136 convenience opening and closing . . . . . . . . . 137
Electromechanical steering . . . . . . . . . . . . . . . . . 198 lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Electronic differential lock control . . . . . . . . . . . 187
Electronic immobiliser . . . . . . . . . . . . . . . . . . . . . . 15
Electronic parking brake . . . . . . . . . . . . . . . . . . . 183
Electronic self-locking . . . . . . . . . . . . . . . . . . . . . 187
Electronic Stability Control (ESC) . . . . . . . . . . . . 187
Electronic torque management (XDS) . . . . . . . . . 187
Emergencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95 anti-puncture kit . . . . . . . . . . . . . . . . . . . . . . . . . 95
automatic gearbox emergency program . . . . . 197
bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . 66
emergency towing of the vehicle . . . . . . . . . . . . 69
fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
hazard warning lights . . . . . . . . . . . . . . . . . . . 145 jump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
manual u
nlocking and locking . . . . . . . . . . . . . 97
puncture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
replacing a blown fuse . . . . . . . . . . . . . . . . . . . . 63
replacing the battery . . . . . . . . . . . . . . . . . . . . 278
vehicle tool kit . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Emergency Assist . . . . . . . . . . . . . . . . . . . . . . . . . 228 switching off . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
switching on . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Emergency braking assistance system indications on the display . . . . . . . . . . . . . . . . 210
malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
operating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
radar sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
switching off temporarily . . . . . . . . . . . . . . . . . 213
system limitations . . . . . . . . . . . . . . . . . . . . . . 214
Emergency braking function . . . . . . . . . . . . . . . . 184
Emergency braking warning . . . . . . . . . . . . . . . . 145
Emergency operation front passenger door . . . . . . . . . . . . . . . . . . . . . 16
selector lever . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Emission control system catalytic converter . . . . . . . . . . . . . . . . . . . . . . 203
control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
diesel particulate filter . . . . . . . . . . . . . . . . . . . 203
Emissions data . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
Engine assisted starting . . . . . . . . . . . . . . . . . . . . . . . . . 70
noises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
preheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
running in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Start-Stop system . . . . . . . . . . . . . . . . . . . . . . . 205
starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
starting up (driver messages with the mechan- ical contact) . . . . . . . . . . . . . . . . . . . . . . . . . . 178
switching off (key) . . . . . . . . . . . . . . . . . . . . . . 179 Engine and ignition
automatic ignition switch-off . . . . . . . . . . . . . . 180
My Beat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
preheating the engine . . . . . . . . . . . . . . . . . . . 181
starting the engine . . . . . . . . . . . . . . . . . . . . . . 181
starting the engine with Press & Drive . . . . . . 181
stopping the engine . . . . . . . . . . . . . . . . . . . . . 182
Engine compartment . . . . . . . . . . . . . . . . . . 17, 270 battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61, 277
brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . 61, 275
closing the bonnet . . . . . . . . . . . . . . . . . . . . . . 271
coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . 60, 274
engine oil . . . . . . . . . . . . . . . . . . . . . 59, 272, 273
opening the bonnet . . . . . . . . . . . . . . . . . . . . . 271
safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
windscreen washer reservoir . . . . . . . . . . 61, 276
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 G 12 plus-plus . . . . . . . . . . . . . . . . . . . . . . . . . . 60
G 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Engine data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
Engine fault control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Engine management . . . . . . . . . . . . . . . . . . . . . . 202 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . 59, 272 changing . . . . . . . . . . . . . . . . . . . . . . . . . 272, 274
checking oil level . . . . . . . . . . . . . . . . . . . . . . . 273
consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
inspection service . . . . . . . . . . . . . . . . . . . . . . 272
maintenance intervals . . . . . . . . . . . . . . . . . . . 272
oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
specifications . . . . . . . . . . . . . . . . . . . . . . 60, 272
temperature display . . . . . . . . . . . . . . . . . . . . . . 43
topping up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
318

Index
O O domet
er
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
reset button . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
total . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
trip recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Oil change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 274
Oil properties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
On-board computer see Driver information system . . . . . . . . . . . . . . 36
One-touch opening and closing electric windows . . . . . . . . . . . . . . . . . . . . . . . . 138
Open and close . . . . . . . . . . . . . . . . . . . . . . . . . . 125 panoramic sliding sunroof . . . . . . . . . . . . . . . . 138
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125 bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271
fuel tank flap . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
panoramic sliding sunroof . . . . . . . . . . . . . . . . 138
the fuel tank cap . . . . . . . . . . . . . . . . . . . . . . . . 264
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Opening and closing . . . . . . . . . . . . . . . . . . . . . . . 15 bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 271
by remote control . . . . . . . . . . . . . . . . . . . . . . . 127
fuel cap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
fuel tank flap . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
in the door cylinder . . . . . . . . . . . . . . . . . . . . . . 15
rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
with the central locking switch . . . . . . . . . . . . 128
Outside temperature . . . . . . . . . . . . . . . . . . . . . . . 42
P Paint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259 care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
damage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260
Paintwork code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290 Panoramic sliding sunroof
clos ing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
convenience closing . . . . . . . . . . . . . . . . . . . . . 139
convenience opening . . . . . . . . . . . . . . . . . . . . 139
convenience opening and closing . . . . . . . . . 137
fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
roll-back function . . . . . . . . . . . . . . . . . . . . . . . 139
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185, 194
Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237 adjusting the display and audible warnings . 241
automatic activation . . . . . . . . . . . . . . . . . . . . 240
malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
parking aid plus . . . . . . . . . . . . . . . . . . . . . . . . 239
rear parking aid . . . . . . . . . . . . . . . . . . . . . . . . 238
sensors and camera: cleaning . . . . . . . . . . . . . 259
surrounds warning . . . . . . . . . . . . . . . . . . . . . . 239
towing bracket . . . . . . . . . . . . . . . . . . . . . . . . . 242
visual indication . . . . . . . . . . . . . . . . . . . . . . . . 241
Parking aid system see Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . 237
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184 activate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
automatic activation . . . . . . . . . . . . . . . . . . . . 184
automatic release . . . . . . . . . . . . . . . . . . . . . . . 183
emergency braking function . . . . . . . . . . . . . . 184
release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Parking distance warning system see Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . 237
Parking (automatic gearbox) . . . . . . . . . . . . . . . . 194
ParkPilot see Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . 237
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
Passenger see Correct sitting position . . . . . . . . . 75, 76, 77 Passenger-side instrument panel
left -hand drive . . . . . . . . . . . . . . . . . . . . . . . . . . 12
right-hand drive . . . . . . . . . . . . . . . . . . . . . . . . . 13
Passenger seat backrest folding down . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
lifting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Petrol additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
Plastic parts: cleaning . . . . . . . . . . . . . . . . 260, 261
Polishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259
Positioning seat belts during pregnancy . . . . . . . . . . . . . . . . . . . . . . . . 84
seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Power management . . . . . . . . . . . . . . . . . . . . . . . 201
Power socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Power steering see Electromechanical steering . . . . . . . . . . . . 198
Pre-heating system control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Preheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Preheating the engine . . . . . . . . . . . . . . . . . . . . . 181
Press & Drive starter button . . . . . . . . . . . . . . . . . . . . . . . . . . 180
starting the engine . . . . . . . . . . . . . . . . . . . . . . 181
Progressive steering . . . . . . . . . . . . . . . . . . . . . . 198
Puncture action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
R Racks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Radar sensor . . . . . . . . . . . . . . . . . . . . . . . . 212, 217
Radio-operated remote control see Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Radio screen: cleaning . . . . . . . . . . . . . . . . . . . . 261
322
