Wheels
CAUTION
● Some v ehic
les, for example those with the
Start-Stop system* are fitted with a special
battery (AGM-type or EFB-type battery). If any
other type of battery is fitted, the Start-Stop
function may be considerably reduced and
the vehicle may not stop on repeated occa-
sions.
● Make sure that the vent hose is always at-
tached t
o the original opening on the side of
the battery. Gases or battery acid can other-
wise escape and possibly cause damage.
● The battery holder and clamps must always
be correctly
secured.
● Before starting any work on the battery, al-
way
s observe the warnings listed under
››› page 277, Important safety warnings for
handling a vehicle battery .
● Do not forget to replace the battery cover-
ings, wher
e applicable. It is a protection for
high temperatures. This in turn extends the
vehicle service life. For the sake of the environment
 Batteries contain toxic substances includ-
in g s

ulphuric acid and lead. They must be
disposed of appropriately and must not be
disposed of with ordinary household waste.
Make sure disconnected batteries cannot tip
over. Sulphuric acid could be spilt! Wheels
Wheel s
and ty

res
General notes –
When driving with new tyr e
s, be especially
careful during the first 500 km (300 miles).
– If you have to drive over a kerb or similar
obs

tacle, drive very slowly and as near as
possible at a right angle to the obstacle.
– Check from time to time if the tyres are
dam ag

ed (punctures, cuts, cracks or
dents). Remove any foreign objects embed-
ded in the treads.
– Damaged wheels and tyres must be re-
plac

ed immediately.
– Keep grease, oil and fuel off the tyres.
– Replace any missing valve caps as soon as
poss

ible.
– Mark the wheels before taking them off so
that they

rotate in the same direction when
put back.
– When removed, the wheels or tyres should
be stor

ed in a cool, dry and preferably dark
place.
New tyres
New tyres do not give maximum grip straight
away and should therefore be “run in” by driving carefully and at moderate speeds for
about the firs

t 500 km (300 miles). This will
also increase the useful life of the tyres.
The tread depth of new tyres may vary, ac-
cording to the type and make of tyre and the
tread pattern.
Concealed damage
Damage to tyres and rims is often not readily
visible. If you notice unusual vibration or the
car pulling to one side, this may indicate that
one of the tyres is damaged. Reduce speed
immediately if there is any reason to suspect
that damage may have occurred. Inspect the
tyres for damage. If no external damage is
visible, drive slowly and carefully to the near-
est specialised workshop and have the car
inspected.
Tyres with directional tread pattern
An arrow on the tyre sidewall indicates the di-
rection of rotation on single drive tyres. Al-
ways note the direction of rotation indicated
when mounting the wheel. This guarantees
optimum grip and helps to avoid aquaplan-
ing, excessive noise and wear.
Retrofitting accessories
If you wish to change or fit wheels, rims or
wheel trims, we recommend that you consult
with a SEAT Official Service centre for advice
regarding current techniques.
279
Technical data
Advice
Operation
Emergencies
Safety

Advice
Tyre monitoring control lamp If a light appears
The pressure in one or more tyres has
clearly reduced in comparison to the
tyre pressure set by the driver or the
tyre has structural damage.
Additionally, an audible warning can be heard and a text
message can be seen on the instrument panel display.
Stop! Reduce speed immediately! Stop the vehicle
safely as soon as possible. Avoid sudden manoeuvres
and braking! Check all tyres and pressures. Replace any
damaged tyres. If flashing

System malfunction
The control lamp flashes for approximately one minute
and then lights up permanently.
If tyre pressure is correct, switch the ignition off and on
again. If the control lamp remains lit up, the tyre moni-
toring indicator can be calibrated. Have the system
checked by a specialised workshop.
Several warning and control lamps light up
f
or a f
ew sec

onds when the ignition is switch-
ed on while the function is verified. They will
switch off after a few seconds. WARNING
When the tyres are inflated at different pres-
sur e

s or at a pressure that is too low then a
tyre may be damaged resulting in a loss of control of the vehicle and a serious or fatal
acc
ident

.
● If the warning lamp  lights up
, stop im-
mediately and check the tyres.
● If the tyres are inflated at different pres-
sure
s or if a tyre pressure is too low, this will
increase tyre wear, negatively affecting vehi-
cle stability and increasing braking distan-
ces.
● If tyres are inflated at different pressures or
a tyre pr
essure is too low, a tyre may be dam-
aged and burst resulting in a loss of control
of the vehicle.
● The driver is responsible for ensuring that
all
of the vehicle tyres are correctly inflated
to the right pressure. The recommended tyre
pressure is indicated on the label
››› page 291.
● The tyre monitoring system can only oper-
ate corr
ectly if all of the tyres are inflated to
the correct pressure when cold.
● Driving with tyres at the wrong pressure
can dam
age them and result in an accident.
Ensure that the tyre pressures of all the tyres
correspond to the vehicle load.
● Before starting a journey, always inflate
tyre
s to the correct pressure.
● Tyres with insufficient pressure are subjec-
ted to mor
e flexing. Due to this, the tyre
could become excessively hot, causing tread
separation and also tyre blow-out.
● With an overloaded vehicle at high speed,
the tyre
s can overheat and burst resulting in
a loss of vehicle control. ●
Ty r

e pressures which are too high or too
low reduce the useful life of the tyre, affect-
ing vehicle performance.
● If a tyre has not been punctured and it does
not hav
e to be changed immediately, drive to
the nearest specialised workshop at a moder-
ate speed and have the tyre checked and in-
flated to the correct pressure. WARNING
Observe the safety warnings ›
››
in Warning
and contr o
l lamps on page 119. Note
● If e x

cessively low tyre pressure is detected
with the ignition on, an audible warning will
sound. In the event that there is a fault in the
system, an audible warning will sound.
● Driving on dirt tracks for a long period of
time or driving in a s
porty style can tempora-
rily deactivate the TPMS. The control lamp
shows a fault, but disappears when road con-
ditions or the driving style change. 284

Advice
When driving, the system self-calibrates the
ty r
e pr
essure provided by the driver and the
wheels fitted. After a long journey with varied
speeds the programmed values are collected
and monitored.
With the wheels under very heavy loads, the
tyre pressure must be increased to the total
recommended tyre pressure before the cali-
bration ››› page 291. Note
● The tyr e monit

oring indicator does not
function when there is a fault in the ESC or
ABS ››› page 187.
● An erroneous indication may be given when
snow c
hains are in use because they increase
the tread of the wheel. Temporary spare wheel
Gener a
l

information Fig. 255
Compact temporary spare wheel:
r ai
sed floor p

anel. The temporary spare wheel has been de-
s
igned t
o be u

sed for short periods of time.
Have the tyres checked, and if necessary, re-
placed as soon as possible at a SEAT Official
Service or at a specialised workshop.
Please note the following restrictions when
using the compact temporary spare wheel.
The compact temporary spare wheel is de-
signed specifically for this model. For this
reason, do not use a temporary spare wheel
from a different type of vehicle.
Removing the temporary spare wheel
– Lift and hold up the floor panel to remove
the temporar

y spare wheel ››› Fig. 255. –
Turn the thumb wheel anti-c
lockwise.
– Take out the temporary spare wheel.
Chains
F

or technical reasons, snow chains must not
be used on the temporary spare wheel.
If you have a puncture on one of the front
wheels when using snow chains, fit the tem-
porary spare wheel in place of one of the rear
wheels. Fit the snow chains on the rear wheel
that you have removed and replace the punc-
tured front wheel with this wheel. WARNING
● Aft er fittin

g the temporary spare wheel,
check the tyre pressures as soon as possible.
Failure to do so may cause an accident. The
tyre pressures are listed on the inside of the
fuel tank flap.
● Do not drive at over 80 km/h (50 mph)
when the temporar
y spare wheel is fitted on
the vehicle: risk of accident!
● Avoid heavy acceleration, hard braking and
fas
t cornering: risk of accident!
● Never use more than one temporary spare
wheel at the s
ame time, risk of accident.
● No other type of tyre (normal summer or
winter ty
re) may be fitted on the compact
temporary spare wheel rim.
● If you are driving using the spare wheel,
the ACC
system could automatically switch
off during the journey. Switch off the system
when starting off. 286

Wheels
Extraction of the spare wheel in vehi-
c l
e
s with SEAT SOUND 10 speakers
(with subwoofer)* Fig. 256
In the luggage compartment: re-
mo v
e the s

ubwoofer. To remove the spare wheel, you must first re-
mo
v
e the

subwoofer.
– Disassemble the subwoofer's
floor panel
(carpet) as follows:
– LEON/LEON SC model: first, p
ull the carpet
in the direction of the backrest and then
pull it upwards to remove it. LEON ST mod-
el: lift and secure the floor storage com-
partment as explained in ››› page 170.
– Disconnect the subwoofer’s
speaker cable
››› Fig. 256 1 . –
Turn the sec urin

g wheel anti-clockwise 2 .
– Remove the s ub
woofer
speaker and the
spare wheel.
– When re-mounting the spare tyre, place the
subwoofer

on the base of the wheel rim
with care. When doing so, the tip of the
“FRONT” arrow on the subwoofer should
point forward.
– Reconnect the speaker cable and firmly ro-
tate the sec

uring wheel clockwise so that
the subwoofer system and wheel are firmly
in place.
Winter service Winter ty
res –
Winter tyres must be fitted on al
l
four
wheels.
– Only use winter tyres that are approved for
your v

ehicle.
– Please note that the maximum permissible
speed for w

inter tyres may be lower than
for summer tyres.
– Also note that winter tyres are no longer ef-
fective when the

tread is worn down. –
After fittin
g the wheels you must always
check the tyre pressures. When doing so,
take into account the correct tyre pressures
listed on the rear of the front left door
frame ››› page 280.
In winter road conditions winter tyres will
considerably improve vehicle handling. The
design of summer tyres (width, rubber com-
pound, tread pattern) gives less grip on ice
and snow. This applies particularly to vehi-
cles equipped with wide section tyres or with
high speed tyres (code letters H, V or Y on
the sidewall).
Only use winter tyres of the correct type ap-
proved for your vehicle. The sizes of these
tyres are specified in the vehicle's docu-
ments (e.g. EC Certificate of Conformity or
COC 1)
). The vehicle documentation varies de-
pending on the country of residence. See al-
so ››› page 281.
Winter tyres lose a great deal of their proper-
ties when the tread is worn down to a depth
of 4 mm.
The performance of winter tyres is also se-
verely impaired by ageing, even if the tread is
still much deeper than 4 mm.
Winter tyres are subject to the following max-
imum speed limits according to speed rating
code letter: ››› »
1)
COC = certificate of conformity.
287
Technical data
Advice
Operation
Emergencies
Safety

Technical data

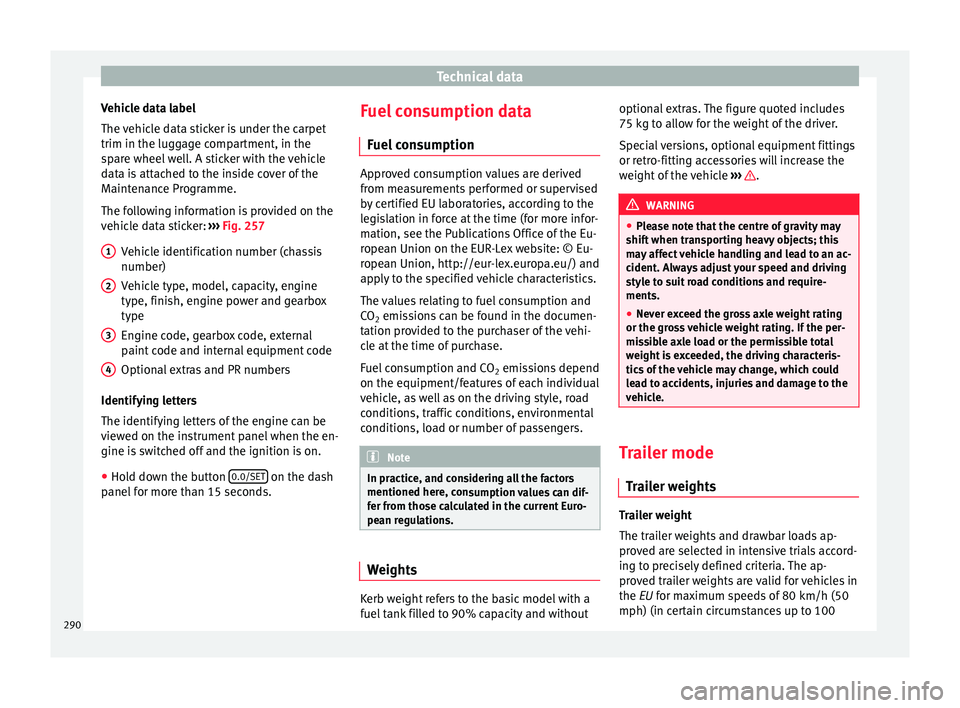

Vehicle data label
The v
ehic
le data sticker is under the carpet
trim in the luggage compartment, in the
spare wheel well. A sticker with the vehicle
data is attached to the inside cover of the
Maintenance Programme.
The following information is provided on the
vehicle data sticker: ››› Fig. 257
Vehicle identification number (chassis
number)
Vehicle type, model, capacity, engine
type, finish, engine power and gearbox
type
Engine code, gearbox code, external
paint code and internal equipment code
Optional extras and PR numbers
Identifying letters
The identifying letters of the engine can be
viewed on the instrument panel when the en-
gine is switched off and the ignition is on.
● Hold down the button 0.0/SET on the dash
p anel
f

or more than 15 seconds.
1 2
3
4 Fuel consumption data
Fuel
c

onsumption Approved consumption values are derived
from me
a

surements performed or supervised
by certified EU laboratories, according to the
legislation in force at the time (for more infor-
mation, see the Publications Office of the Eu-
ropean Union on the EUR-Lex website: © Eu-
ropean Union, http://eur-lex.europa.eu/) and
apply to the specified vehicle characteristics.
The values relating to fuel consumption and
CO 2 emissions can be found in the documen-
tation provided to the purchaser of the vehi-
cle at the time of purchase.
Fuel consumption and CO 2 emissions depend
on the equipment/features of each individual
vehicle, as well as on the driving style, road
conditions, traffic conditions, environmental
conditions, load or number of passengers. Note
In practice, and considering all the factors
mentioned here, c on

sumption values can dif-
fer from those calculated in the current Euro-
pean regulations. Weights
Kerb weight refers to the basic model with a
f
uel
t

ank filled to 90% capacity and without optional extras. The figure quoted includes
75 kg to al

low for the weight of the driver.
Special versions, optional equipment fittings
or retro-fitting accessories will increase the
weight of the vehicle ››› .
WARNING
● Ple a

se note that the centre of gravity may
shift when transporting heavy objects; this
may affect vehicle handling and lead to an ac-
cident. Always adjust your speed and driving
style to suit road conditions and require-
ments.
● Never exceed the gross axle weight rating
or the gros
s vehicle weight rating. If the per-
missible axle load or the permissible total
weight is exceeded, the driving characteris-
tics of the vehicle may change, which could
lead to accidents, injuries and damage to the
vehicle. Trailer mode
Tr
ai

ler weights Trailer weight
The tr
ai
l

er weights and drawbar loads ap-
proved are selected in intensive trials accord-
ing to precisely defined criteria. The ap-
proved trailer weights are valid for vehicles in
the EU for maximum speeds of 80 km/h (50
mph) (in certain circumstances up to 100
290

Index
Environment ec o
logic
al driving . . . . . . . . . . . . . . . . . . . . . . . 200
environmental compatibility . . . . . . . . . . . . . . 199
Environmental tips filling the tank . . . . . . . . . . . . . . . . . . . . . . . . . 265
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
Equipment . . . . . . . . . . . . . . . . . . . . . . . . . 159, 256
ESC electronic stability control . . . . . . . . . . . . . . . . 187
Multi-collision Brake . . . . . . . . . . . . . . . . . . . . 188
Sport Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Ethanol (fuel) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
Event Data Recorder . . . . . . . . . . . . . . . . . . . . . . . . 94
Exhaust pipe: cleaning . . . . . . . . . . . . . . . . . . . . 261
Extending the luggage compartment . . . . . . . . . . . . . . . . 155
Exterior lighting changing a bulb . . . . . . . . . . . . . . . . . . . . . . . . 103
Exterior mirrors adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Exterior rear-view mirrors adjusting the exterior rear-view mirrors . . . . . 151
exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Exterior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7, 8
External aerial . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
F Fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Fatigue detection . . . . . . . . . . . . . . . . . . . . . . . . . 236
Filling the fuel tank . . . . . . . . . . . . . . . . . . . . . . . 264
Filling the tank . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Fluid level control . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Fog light bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Folding table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158 Four-wheel drive . . . . . . . . . . . . . . . . . . . . . . . . . . 204
snow c hains . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
winter tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . 22, 87
Front armrest . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Front Assist indications on the display . . . . . . . . . . . . . . . . 210
Front passenger front airbag control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
deactivation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Front seat manual adjustment . . . . . . . . . . . . . . . . . . . . . . 19
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . 290
diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
ethanol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
natural gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
saving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Fuel consumption engine cut-off due to inertia . . . . . . . . . . . . . . 200
why does fuel consumption increase? . . . . . . 203
Fuel tank cap opening and closing . . . . . . . . . . . . . . . . . . . . . 58
Full-LED Headlights . . . . . . . . . . . . . . . . . . . . . . . 103
Function Coming Home . . . . . . . . . . . . . . . . . . . . 143
Function Leaving Home . . . . . . . . . . . . . . . . . . . . 144
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63, 101 fuse box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
identifying blown fuses . . . . . . . . . . . . . . . . . . . 63
identifying by colours . . . . . . . . . . . . . . . . . . . . . 63
preparation before replacing . . . . . . . . . . . . . . . 63
replacing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 G
Gear-c
hange indicator . . . . . . . . . . . . . . . . . . . . . . 42
Gearbox DSG see Automatic gearbox . . . . . . . . . . . . . . . . . . . 191
Gearbox lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Gear change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
kick-down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . 190
manual gear change . . . . . . . . . . . . . . . . . . . . . . 50
Gear engaged . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Gear recommendation . . . . . . . . . . . . . . . . . . . . . . 42
Gear shift paddles (automatic gearbox) . . . . . . . 193
General instrument panel control lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
controls and displays . . . . . . . . . . . . . . . . . . . . 113
engine compartment . . . . . . . . . . . . . . . . . . . . 270
warning lamps . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Glove compartment . . . . . . . . . . . . . . . . . . . . . . . 158
H Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184 warning lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 185
see also Parking brake . . . . . . . . . . . . . . . . . . . 183
Hazard warning lights . . . . . . . . . . . . . . . . . 31, 145
Head-on collisions and their laws of physics . . . . 82
Head-protection airbags description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
safety instructions . . . . . . . . . . . . . . . . . . . . . . . 88
Headlights changing a bulb . . . . . . . . . . . . . . . . . . . . . . . . 103
driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . 146
headlight washers . . . . . . . . . . . . . . . . . . . . . . 149
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
front head restraints . . . . . . . . . . . . . . . . . . . . . . 78
rear head restraints . . . . . . . . . . . . . . . . . . . . . . 78 319

Index
Headrests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 adju
s
tment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Heated rear window . . . . . . . . . . . . . . . . . . . . . 53, 55
Heating and fresh air . . . . . . . . . . . . . . . . . . . . . . . 56
Hill driving assistant . . . . . . . . . . . . . . . . . . . . . . 190
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
How to jump start . . . . . . . . . . . . . . . . . . . . . . . . . . 70 description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
I Identification plate . . . . . . . . . . . . . . . . . . . . . . . . 289
Identifying letters on engine . . . . . . . . . . . . . . . . 290
Ignition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30, 178
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . 30, 178 see also Starter button . . . . . . . . . . . . . . . . . . . 180
Incorrect position . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Indications on the display . . . . . . . . . . . . . . . . . . 115 ACT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
adaptive cruise control . . . . . . . . . . . . . . . . . . . 216
assist systems submenu . . . . . . . . . . . . . . . . . . 40
compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
distance travelled . . . . . . . . . . . . . . . . . . . . . . . 116
doors, bonnet and rear lid open . . . . . . . . . . . . 41
driver information system . . . . . . . . . . . . . . . . . 36
driving data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
ECO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
emergency brake assist system (Front Assist) 210
engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
MKB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
outside temperature . . . . . . . . . . . . . . . . . . . . . . 42
recommended gear . . . . . . . . . . . . . . . . . . . . . 116
second speed display . . . . . . . . . . . . . . . . . . . 116
selector lever positions . . . . . . . . . . . . . . . . . . 116
service intervals . . . . . . . . . . . . . . . . . . . . . . . . . 44
speed warning . . . . . . . . . . . . . . . . . . . . . . . . . 116
Start-Stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116 time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
traffic s
igns . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
tyre monitoring . . . . . . . . . . . . . . . . . . . . . . . . . 285
warning and control lamps . . . . . . . . . . . . . . . 216
warning and information messages . . . . . . . . . 41
Indications on the screen SEAT Drive Profile . . . . . . . . . . . . . . . . . . . . . . . 230
selector lever positions . . . . . . . . . . . . . . . . . . 191
Inertia mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Infotainment system . . . . . . . . . . . . . . . . . . . . . . . 33
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272
Inspection service . . . . . . . . . . . . . . . . . . . . . . . . 272
Instrument panel . . . . . . . . . . . . . . . . . . . . . . . . . 114 display . . . . . . . . . . . . . . . . . . . . . . . . . . . 114, 115
instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
service interval indication . . . . . . . . . . . . . . . . . 44
warning and control lamps . . . . . . . . . . . . . . . 119
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Interior view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
ISOFIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27, 29
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . 27, 29
J Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66, 95 mounting points . . . . . . . . . . . . . . . . . . . . . . . . . 67
Journey data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Jump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
K
Key-operated switch . . . . . . . . . . . . . . . . . . . . . . . . 89
Keyless Access Keyless Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Keyless Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Press & Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . 180 special characteristics . . . . . . . . . . . . . . . . . . . 131
star
ting the engine . . . . . . . . . . . . . . . . . . . . . . 181
unlocking and locking the vehicle . . . . . . . . . . 129
Keyless Access lock and ignition system: see Keyless Access . . . . . . . . . . . . . . . . . . . . . . 129
Keyless Entry see Keyless Access . . . . . . . . . . . . . . . . . . . . . . 129
Keyless Exit see Keyless Access . . . . . . . . . . . . . . . . . . . . . . 129
Keys assign key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
car key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
driver messages (mechanical contact) . . . . . . 178
remote control . . . . . . . . . . . . . . . . . . . . . . . . . 126
replacing the battery . . . . . . . . . . . . . . . . . . . . 132
spare key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
synchronising . . . . . . . . . . . . . . . . . . . . . . . . . . 132
unlocking and locking . . . . . . . . . . . . . . . 15, 127
Kick-down automatic gearbox . . . . . . . . . . . . . . . . . . . . . . 195
manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . 232
Knee airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87 safety information . . . . . . . . . . . . . . . . . . . . . . . 23
L
Lane Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224 cleaning the camera area . . . . . . . . . . . . . . . . . 259
Lane Assist system see Lane Assist . . . . . . . . . . . . . . . . . . . . . . . . . 224
Launch control (automatic gearbox) . . . . . . . . . . 195
Leather: care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262
Leaving Home . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Lifting the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Light Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Lighting of the instrument panel . . . . . . . . . . . . . 147
320

Index
Radio transmitters . . . . . . . . . . . . . . . . . . . . . . . . 256
R ain sen
sor
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
control of the function . . . . . . . . . . . . . . . . . . . 150
Raising the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 67
Rear headrests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Rear-view mirror anti-dazzle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
interior anti-dazzle . . . . . . . . . . . . . . . . . . . . . . 150
Rear Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243 instructions for use . . . . . . . . . . . . . . . . . . . . . 244
parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
special characteristics . . . . . . . . . . . . . . . . . . . 244
Rear Assist system . . . . . . . . . . . . . . . . . . . . . . . . 243
Rear bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Rear bulbs in the side panel disassembling the rear light . . . . . . . . . . . . . . 108
Rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16, 17 see also Luggage compartment . . . . . . . . . . . 135
Rear lights in the rear lid disassembling the bulb holder . . . . . . . . . . . . 109
Rear lights on the side panel summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Rear seat folding down and raising the backrest . . . . . . 155
Rear seat backrest folding down . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
folding down and lifting the backrest . . . . . . . 156
lifting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Rear seat passengers see Correct sitting position . . . . . . . . . 75, 76, 77
Rear shelf storing . . . . . . . . . . . . . . . . . . . . . . . . . . . 163, 164
Rear View Camera . . . . . . . . . . . . . . . . . . . . . . . . . 243 Refuelling
fuel g auge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
gas gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
natural gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
opening the fuel tank cap . . . . . . . . . . . . . . . . 264
Remote control key unlocking and locking . . . . . . . . . . . . . . . . . . . 127
Removing and attaching head restraints . . . . . . 153
Repair work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
Replacement parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
Replacement parts . . . . . . . . . . . . . . . . . . . . . . . . 256
Replacing the battery of the vehicle key . . . . . . . . . . . . . . . . . . . . . . . 132
Reset the trip recorder . . . . . . . . . . . . . . . . . . . . . 117
Retaining hooks . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Retractable rear shelf . . . . . . . . . . . . . . . . . . . . . . 162
Rev counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Reverse gear (automatic gearbox) . . . . . . . . . . . 191
Revolution counter . . . . . . . . . . . . . . . . . . . . . . . . 114
Rims changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . 66
cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260
Roll-back function panoramic sliding sunroof . . . . . . . . . . . . . . . . 139
sun blind . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
RON (petrol) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
Roof carrier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Roof carrier system . . . . . . . . . . . . . . . . . . . . . . . . 170
Roof load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172 technical data . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Roof luggage rack attach the cross bars . . . . . . . . . . . . . . . . . . . . 171
Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170 Running in
new brake p ads . . . . . . . . . . . . . . . . . . . . . . . . 186
new engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
new tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 279
S Safe driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Safelock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131 see also Anti-theft security system . . . . . . . . . 125
Safety child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
deactivating the front passenger airbag . . . . . . 23
safe driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Safety equipment . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Safety information knee airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Safety instructions belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . . . 84
head-protection airbags . . . . . . . . . . . . . . . . . . 88
side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
use of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . 81
using child seats . . . . . . . . . . . . . . . . . . . . . 25, 91
Safety interlock for ignition key . . . . . . . . . . . . . . 178
Saving fuel inertia mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Saving tips (efficiency program) . . . . . . . . . . . . . . 43
Seat belt position for pregnant women . . . . . . . . . . . . . . . . . . . . . . 20
seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80 adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . 20, 83
cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
protective function . . . . . . . . . . . . . . . . . . . . . . . 81
purpose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80, 85
323
