Seat Leon Sportstourer 2013 Owner's manual

309
Technical specifications
Engine specifications
Checking fluid levels
From time to time, the levels of the different fluids in the ve-
hicle must be checked. Never fill with incorrect fluids, other-
wise serious damage to the engine may be caused.

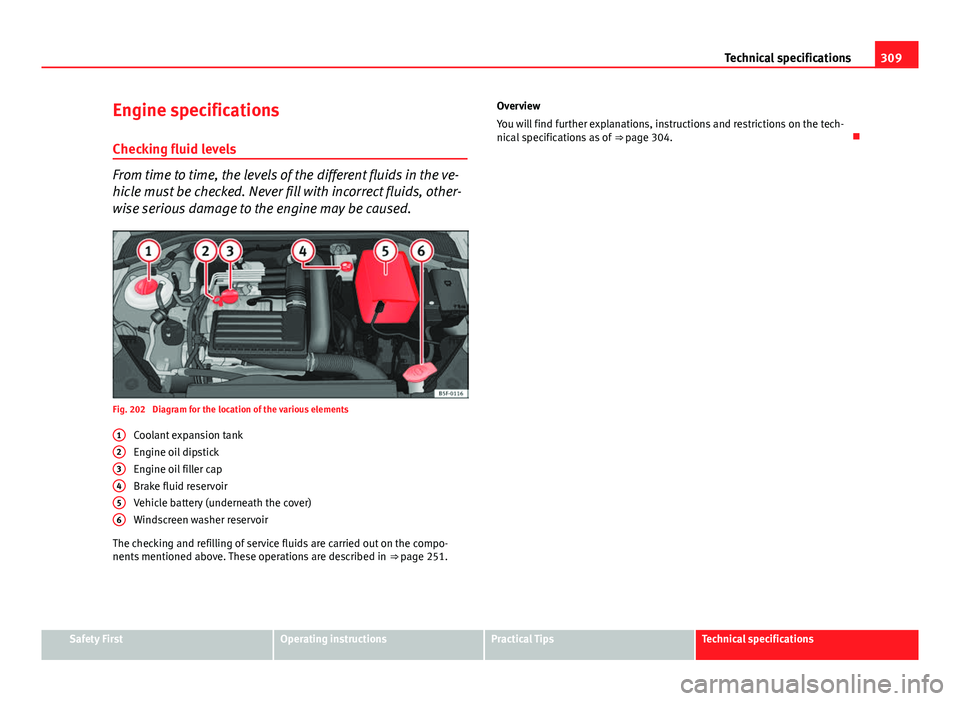

Fig. 202 Diagram for the location of the various elements Coolant expansion tank
Engine oil dipstick
Engine oil filler cap
Brake fluid reservoir
Vehicle battery (underneath the cover)
Windscreen washer reservoir
The checking and refilling of service fluids are carried out on the compo-
nents mentioned above. These operations are described in ⇒ page 251.
1
23456
Overview
You will find further explanations, instructions and restrictions on the tech-
nical specifications as of
⇒ page 304. 
Safety FirstOperating instructionsPractical TipsTechnical specifications

310Technical specifications

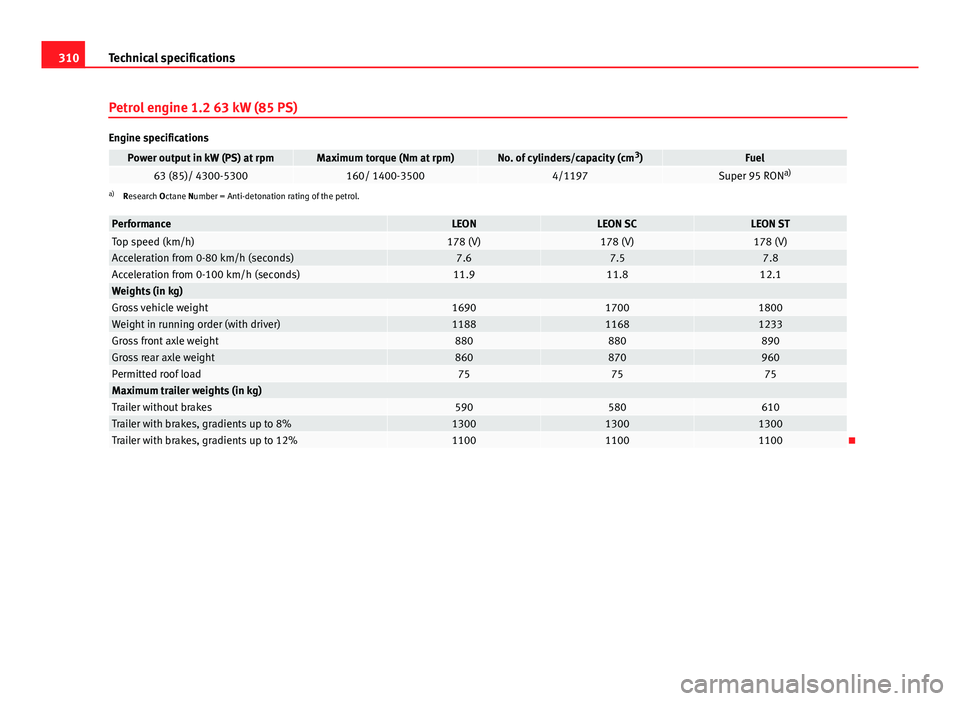

Petrol engine 1.2 63 kW (85 PS)
Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/capacity (cm 3
)Fuel63 (85)/ 4300-5300160/ 1400-35004/1197Super 95 RON a)a)
Research Octane Number = Anti-detonation rating of the petrol.
PerformanceLEONLEON SCLEON STTop speed (km/h)178 (V)178 (V)178 (V)Acceleration from 0-80 km/h (seconds)7.67.57.8Acceleration from 0-100 km/h (seconds)11.911.812.1Weights (in kg)Gross vehicle weight169017001800Weight in running order (with driver)118811681233Gross front axle weight880880890Gross rear axle weight860870960Permitted roof load757575Maximum trailer weights (in kg)Trailer without brakes590580610Trailer with brakes, gradients up to 8%130013001300Trailer with brakes, gradients up to 12%110011001100

311
Technical specifications

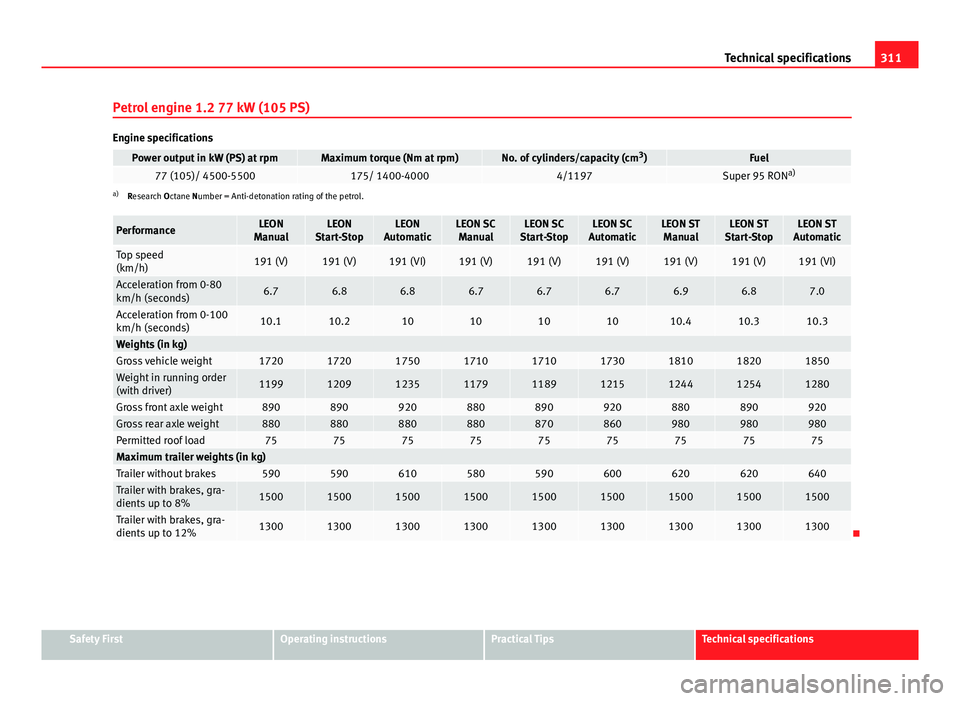

Petrol engine 1.2 77 kW (105 PS)
Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/capacity (cm 3
)Fuel77 (105)/ 4500-5500175/ 1400-40004/1197Super 95 RON a)a)
Research Octane Number = Anti-detonation rating of the petrol.
PerformanceLEON
ManualLEON
Start-StopLEON
AutomaticLEON SC ManualLEON SC
Start-StopLEON SC
AutomaticLEON ST ManualLEON ST
Start-StopLEON ST
Automatic
Top speed
(km/h)191 (V)191 (V)191 (VI)191 (V)191 (V)191 (V)191 (V)191 (V)191 (VI)
Acceleration from 0-80
km/h (seconds)6.76.86.86.76.76.76.96.87.0
Acceleration from 0-100
km/h (seconds)10.110.21010101010.410.310.3
Weights (in kg)Gross vehicle weight172017201750171017101730181018201850Weight in running order
(with driver)119912091235117911891215124412541280
Gross front axle weight890890920880890920880890920Gross rear axle weight880880880880870860980980980Permitted roof load757575757575757575Maximum trailer weights (in kg)Trailer without brakes590590610580590600620620640Trailer with brakes, gra-
dients up to 8%150015001500150015001500150015001500
Trailer with brakes, gra-
dients up to 12%130013001300130013001300130013001300
Safety FirstOperating instructionsPractical TipsTechnical specifications

312Technical specifications

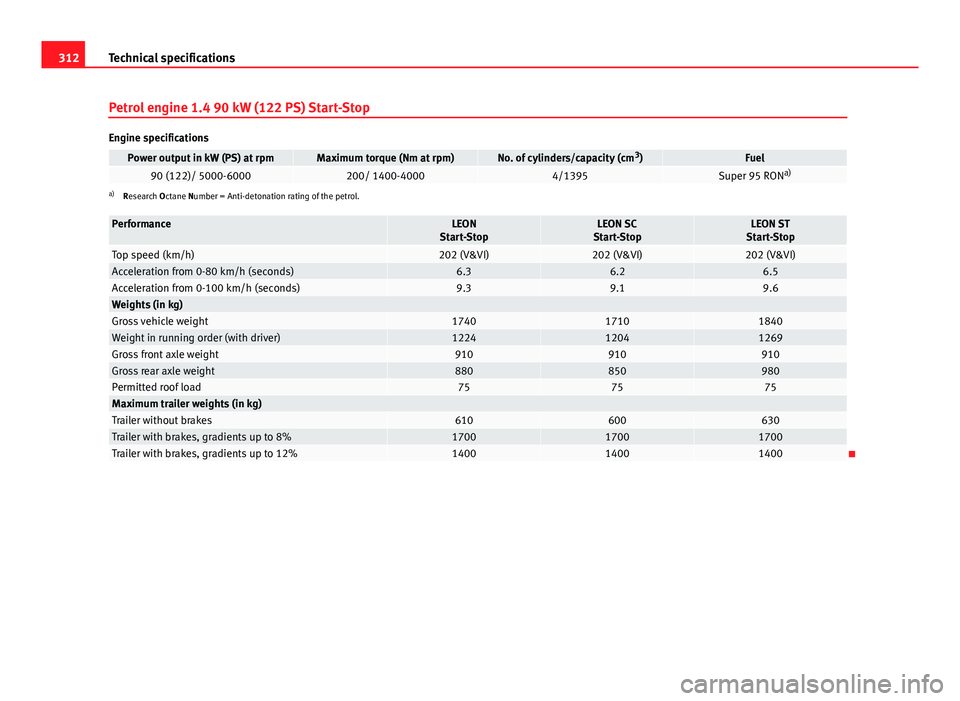

Petrol engine 1.4 90 kW (122 PS) Start-Stop
Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/capacity (cm 3
)Fuel90 (122)/ 5000-6000200/ 1400-40004/1395Super 95 RON a)a)
Research Octane Number = Anti-detonation rating of the petrol.
PerformanceLEON
Start-StopLEON SC
Start-StopLEON ST
Start-Stop
Top speed (km/h)202 (V&VI)202 (V&VI)202 (V&VI)Acceleration from 0-80 km/h (seconds)6.36.26.5Acceleration from 0-100 km/h (seconds)9.39.19.6Weights (in kg)Gross vehicle weight174017101840Weight in running order (with driver)122412041269Gross front axle weight910910910Gross rear axle weight880850980Permitted roof load757575Maximum trailer weights (in kg)Trailer without brakes610600630Trailer with brakes, gradients up to 8%170017001700Trailer with brakes, gradients up to 12%140014001400

313
Technical specifications
Petrol engine 1.4 103 kW (140 PS) Start-Stop
Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/capacity (cm 3
)Fuel103 (140)/ 4500-6000250/ 1500-35004/1395Super 95 RON a)
/Normal 91 RON b)a)
Research Octane Number = Anti-detonation rating of the petrol.
b) With a slight power loss
PerformanceLEON
Start-StopLEON SC
Start-StopLEON ST
Start-Stop
Top speed (km/h)211 (VI)211 (VI)211 (VI)Acceleration from 0-80 km/h (seconds)5.75.65.9Acceleration from 0-100 km/h (seconds)8.28.18.4Weights (in kg)Gross vehicle weight173017401840Weight in running order (with driver)123112111275Gross front axle weight920910910Gross rear axle weight860880980Permitted roof load757575Maximum trailer weights (in kg)Trailer without brakes610600630Trailer with brakes, gradients up to 8%180018001800Trailer with brakes, gradients up to 12%150015001500
Safety FirstOperating instructionsPractical TipsTechnical specifications

314Technical specifications

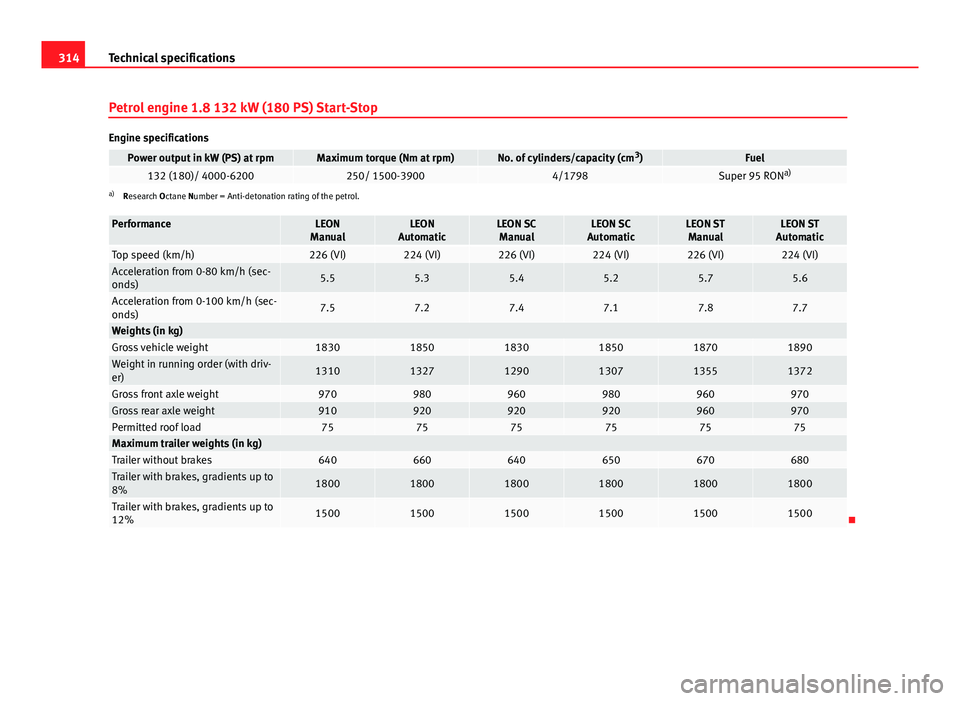

Petrol engine 1.8 132 kW (180 PS) Start-Stop
Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/capacity (cm 3
)Fuel132 (180)/ 4000-6200250/ 1500-39004/1798Super 95 RON a)a)
Research Octane Number = Anti-detonation rating of the petrol.
PerformanceLEON
ManualLEON
AutomaticLEON SC ManualLEON SC
AutomaticLEON ST ManualLEON ST
Automatic
Top speed (km/h)226 (VI)224 (VI)226 (VI)224 (VI)226 (VI)224 (VI)Acceleration from 0-80 km/h (sec-
onds)5.55.35.45.25.75.6
Acceleration from 0-100 km/h (sec-
onds)7.57.27.47.17.87.7
Weights (in kg)Gross vehicle weight183018501830185018701890Weight in running order (with driv-
er)131013271290130713551372
Gross front axle weight970980960980960970Gross rear axle weight910920920920960970Permitted roof load757575757575Maximum trailer weights (in kg)Trailer without brakes640660640650670680Trailer with brakes, gradients up to
8%180018001800180018001800
Trailer with brakes, gradients up to
12%150015001500150015001500

315
Technical specifications

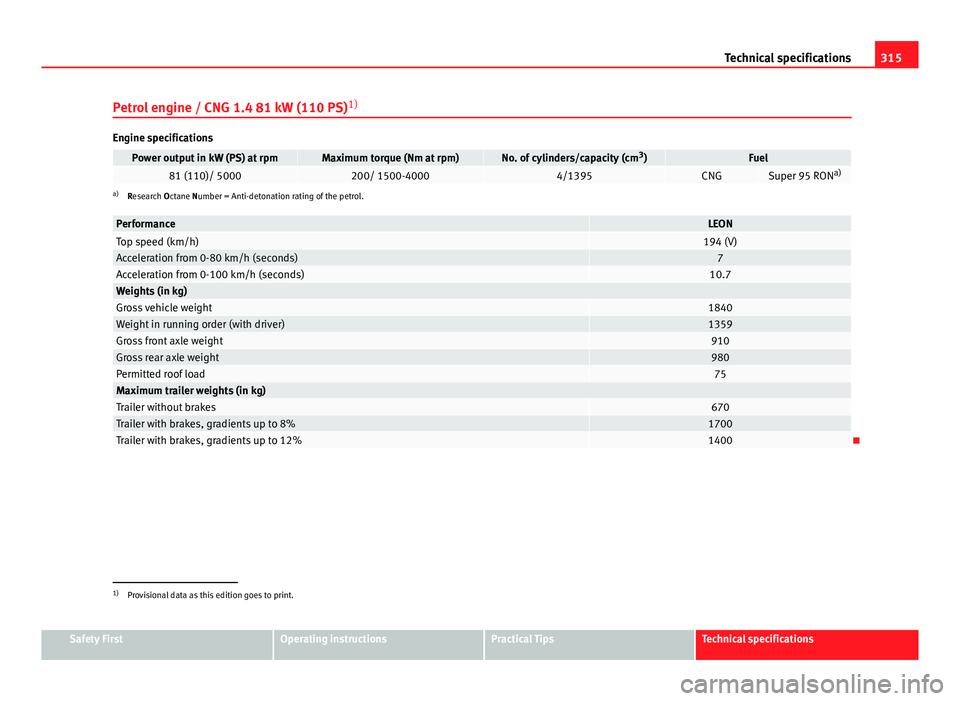

Petrol engine / CNG 1.4 81 kW (110 PS) 1)
Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/capacity (cm
3
)Fuel81 (110)/ 5000200/ 1500-40004/1395CNGSuper 95 RON a)a)
Research Octane Number = Anti-detonation rating of the petrol.
PerformanceLEONTop speed (km/h)194 (V)Acceleration from 0-80 km/h (seconds)7Acceleration from 0-100 km/h (seconds)10.7Weights (in kg)Gross vehicle weight1840Weight in running order (with driver)1359Gross front axle weight910Gross rear axle weight980Permitted roof load75Maximum trailer weights (in kg)Trailer without brakes670Trailer with brakes, gradients up to 8%1700Trailer with brakes, gradients up to 12%1400
1) Provisional data as this edition goes to print.
Safety FirstOperating instructionsPractical TipsTechnical specifications

316Technical specifications

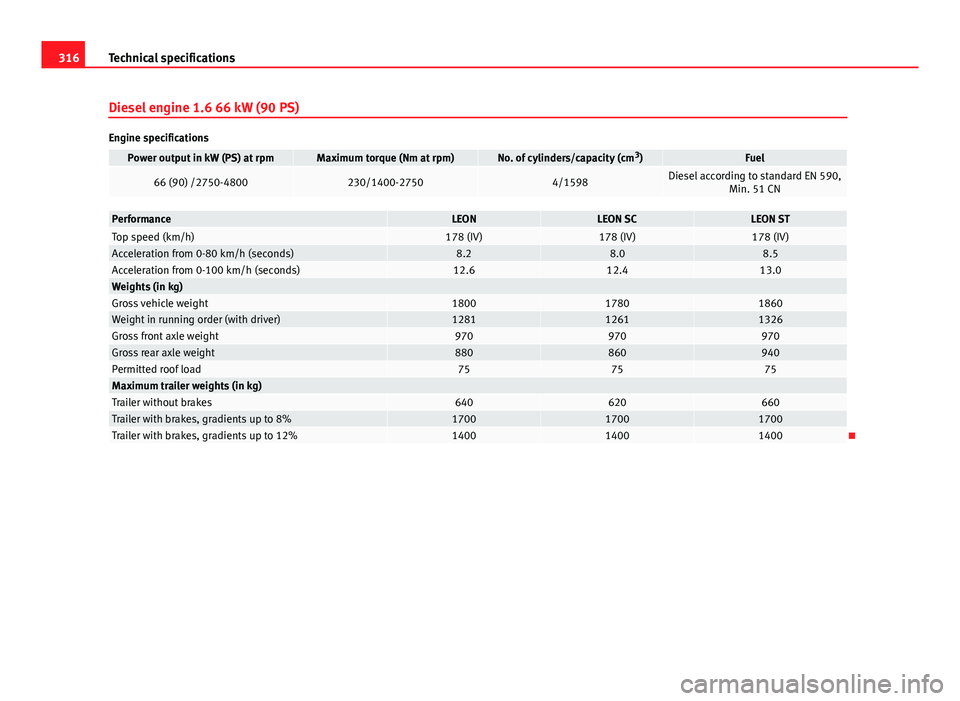

Diesel engine 1.6 66 kW (90 PS)
Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/capacity (cm 3
)Fuel
66 (90) /2750-4800230/1400-27504/1598Diesel according to standard EN 590,
Min. 51 CN
PerformanceLEONLEON SCLEON STTop speed (km/h)178 (IV)178 (IV)178 (IV)Acceleration from 0-80 km/h (seconds)8.28.08.5Acceleration from 0-100 km/h (seconds)12.612.413.0Weights (in kg)Gross vehicle weight180017801860Weight in running order (with driver)128112611326Gross front axle weight970970970Gross rear axle weight880860940Permitted roof load757575Maximum trailer weights (in kg)Trailer without brakes640620660Trailer with brakes, gradients up to 8%170017001700Trailer with brakes, gradients up to 12%140014001400

317
Technical specifications

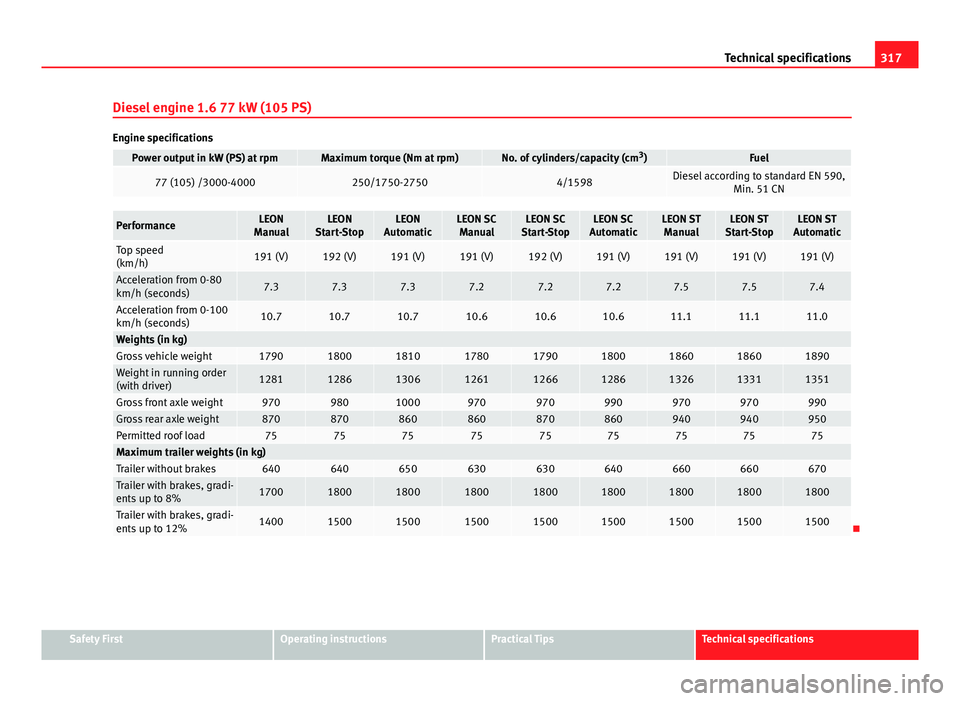

Diesel engine 1.6 77 kW (105 PS)
Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/capacity (cm 3
)Fuel
77 (105) /3000-4000250/1750-27504/1598Diesel according to standard EN 590,
Min. 51 CN
PerformanceLEON
ManualLEON
Start-StopLEON
AutomaticLEON SC ManualLEON SC
Start-StopLEON SC
AutomaticLEON ST ManualLEON ST
Start-StopLEON ST
Automatic
Top speed
(km/h)191 (V)192 (V)191 (V)191 (V)192 (V)191 (V)191 (V)191 (V)191 (V)
Acceleration from 0-80
km/h (seconds)7.37.37.37.27.27.27.57.57.4
Acceleration from 0-100
km/h (seconds)10.710.710.710.610.610.611.111.111.0
Weights (in kg)Gross vehicle weight179018001810178017901800186018601890Weight in running order
(with driver)128112861306126112661286132613311351
Gross front axle weight9709801000970970990970970990Gross rear axle weight870870860860870860940940950Permitted roof load757575757575757575Maximum trailer weights (in kg)Trailer without brakes640640650630630640660660670Trailer with brakes, gradi-
ents up to 8%170018001800180018001800180018001800
Trailer with brakes, gradi-
ents up to 12%140015001500150015001500150015001500
Safety FirstOperating instructionsPractical TipsTechnical specifications

318Technical specifications
Diesel engine 1.6 81 kW (110 PS) CR Ecomotive
Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/capacity (cm 3
)Fuel
81 (110) /3200-4000250/1500-30004/1598Diesel according to standard EN 590,
Min. 51 CN
PerformanceLEONLEON SCLEON STTop speed (km/h)197 (V)197 (V)197 (V)Acceleration from 0-80 km/h (seconds)76.97.1Acceleration from 0-100 km/h (seconds)10.510.410.6Weights (in kg)Gross vehicle weight173017301750Weight in running order (with driver)126012401280Gross front axle weight960960940Gross rear axle weight820820860Permitted roof load757575Maximum trailer weights (in kg)Trailer without brakes630620640Trailer with brakes, gradients up to 8%130013001300Trailer with brakes, gradients up to 12%100010001000
