deactivated. If the vehicle has no power
supply or ther
e is an el
ectric system fault,
the engine must be jump-started
››› page 54 to deactivate the electronic
parking brake and the electronic lock of the

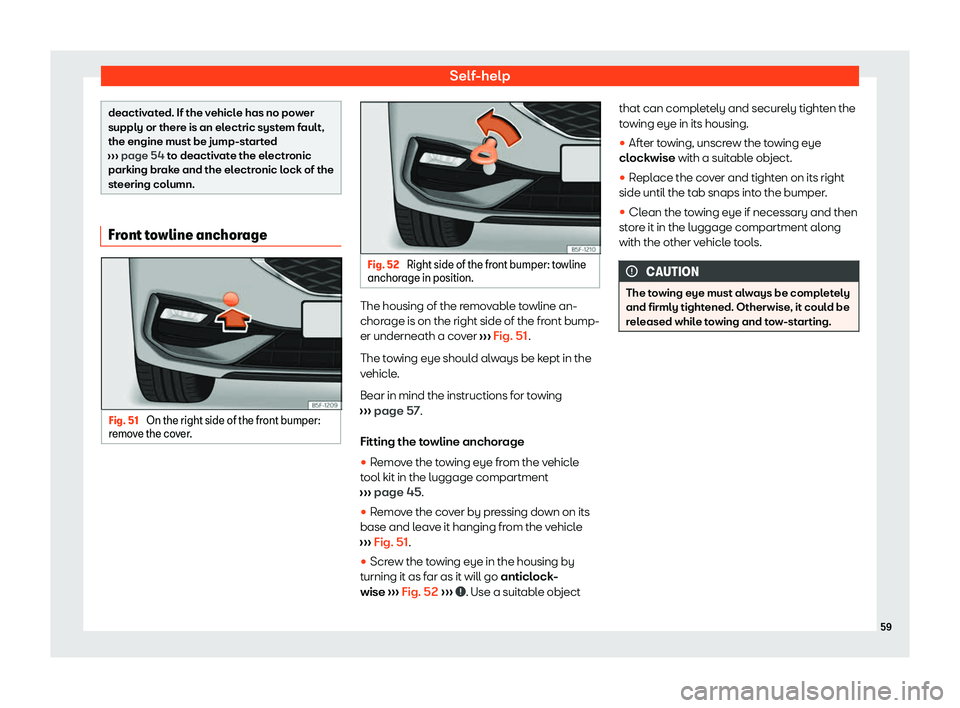

steering column. Front towline anchorage
Fig. 51
On the right side of the front bumper:
r emo

ve the cover. Fig. 52
Right side of the front bumper: towline
anchor age in position. The housing of the removable towline an-
chor
age is on the right side of the fr

ont bump-
er underneath a cover ››› Fig. 51
.
The towing eye should always be kept in the
vehicle.
Bear in mind the instructions for towing
››› page 57.
Fitting the towline anchorage

Emergencies

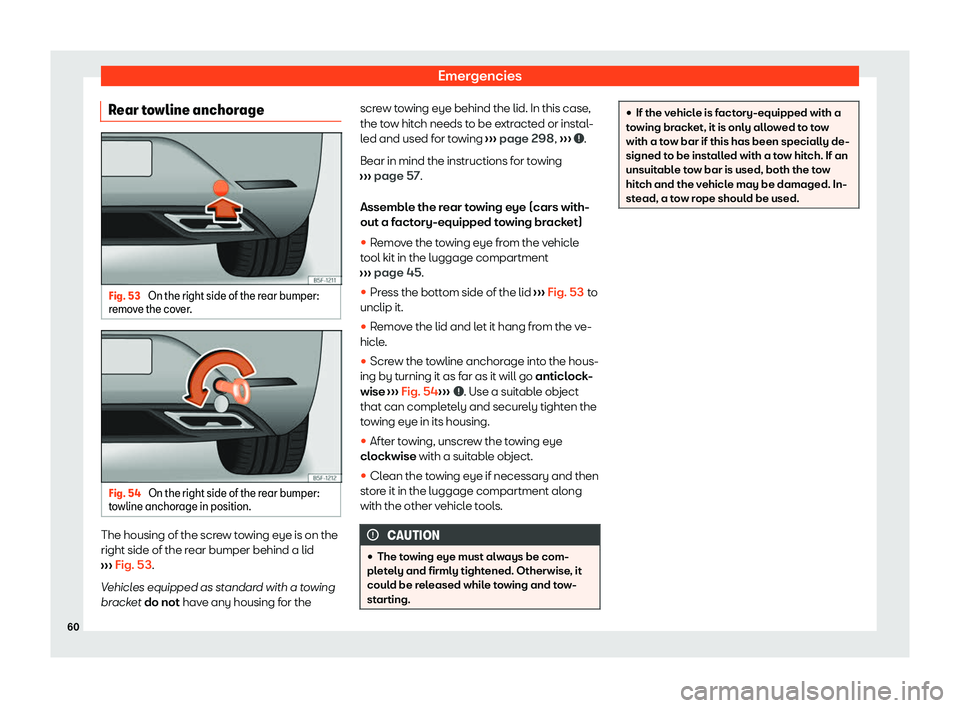

Rear towline anchorage Fig. 53
On the right side of the rear bumper:
r emo
ve the cover. Fig. 54
On the right side of the rear bumper:
t o

wline anchorage in position. The housing of the screw towing eye is on the
right side of the r
ear bumper behind a lid
›

›› Fig. 53.
Vehicles equipped as standard with a towing
bracket do not have any housing for the screw towing eye behind the lid. In this case,
the to

w hitch needs to be extracted or instal-
led and used for towing ››› page 298
,
››› .
Bear in mind the instructions f or t

owing
››› page 57.
Assemble the rear towing eye (cars with-
out a factory-equipped towing bracket)

Fuses and bulbs
Fuses and bulbs

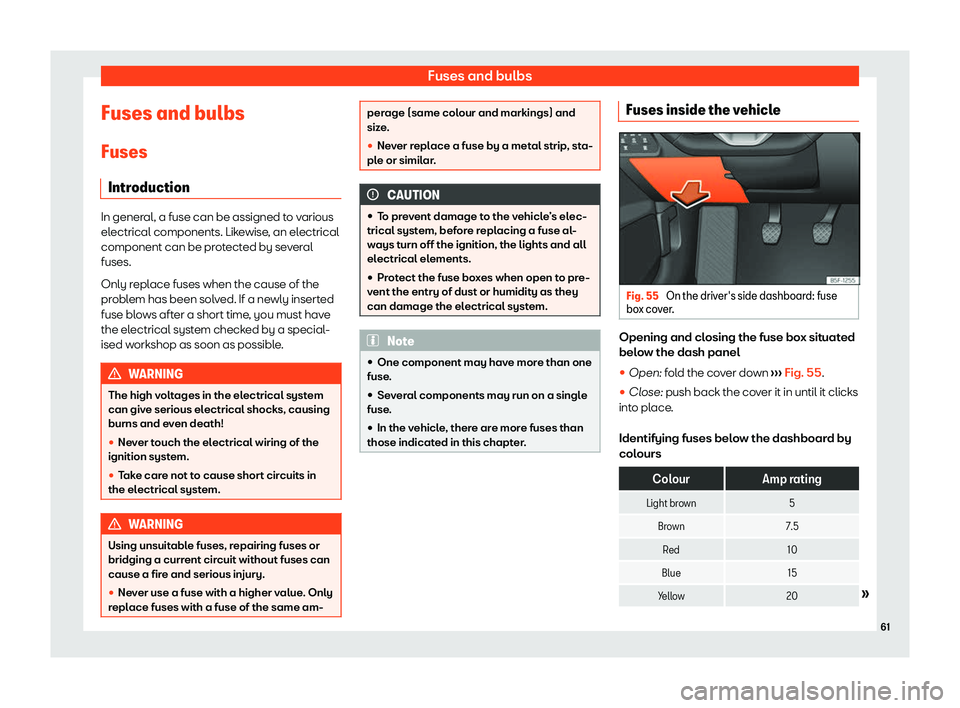

Fuses Intr oduction In general, a fuse can be assigned to various
el
ectrical components. Lik
ewise, an electrical
component can be protected by several
fuses.
Only replace fuses when the cause of the
problem has been solved. If a newly inserted
fuse blows after a short time, you must have
the electrical system checked by a special-
ised workshop as soon as possible. WARNING
The high voltages in the electrical system
can giv e serious el

ectrical shocks, causing
burns and even death!

Emergencies

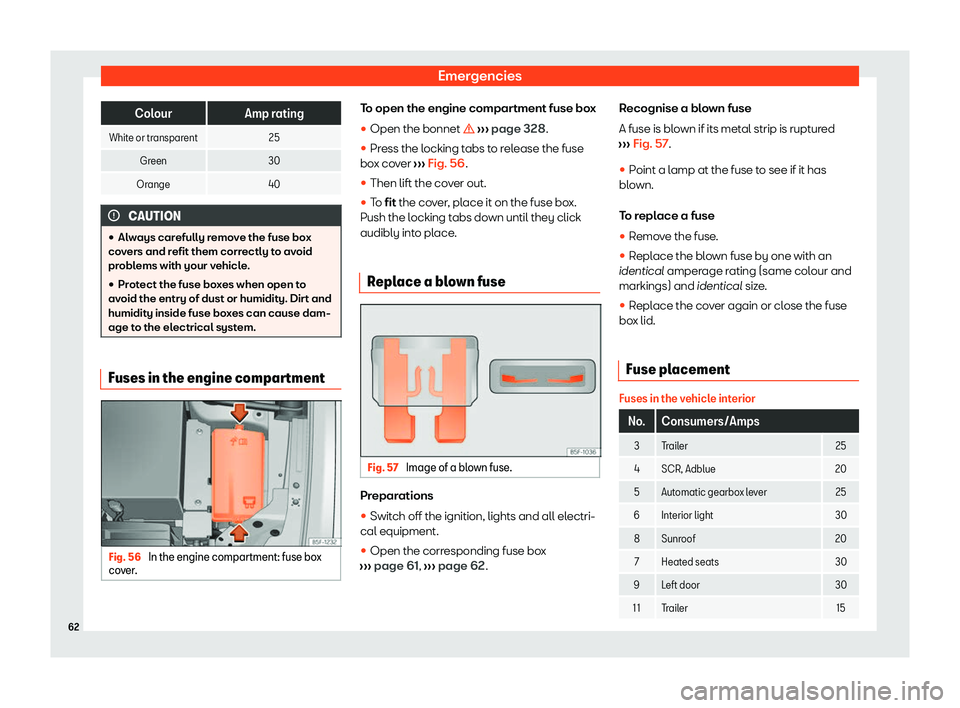

Colour
Amp rating
White or transparent 25
Green 30
Orange 40CAUTION

Fuses and bulbs

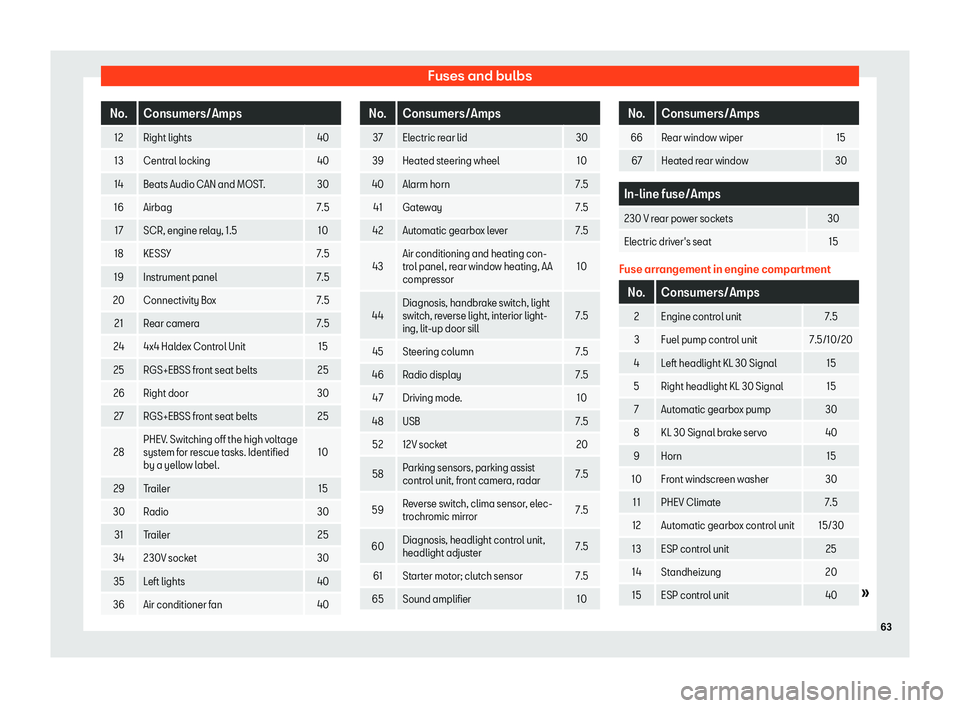

No. Consumers/Amps
12 Right lights 40
13 Central locking 40
14 Beats Audio CAN and MOST. 30
16 Airbag 7.5
17 SCR, engine relay, 1.5 10
18 KESSY 7.5
19 Instrument panel 7.5
20 Connectivity Box 7.5
21 Rear camera 7.5
24 4x4 Haldex Control Unit 15
25 RGS+EBSS front seat belts 25
26 Right door 30
27 RGS+EBSS front seat belts 25
28 PHEV. Switching off the high voltage
syst
em f
or rescue tasks. Identified
by a yellow label. 10
29 Trailer 15
30 Radio 30
31 Trailer 25
34 230V socket 30
35 Left lights 40
36 Air conditioner fan 40 No. Consumers/Amps
37 Electric rear lid 30
39 Heated steering wheel 10
40 Alarm horn 7.5
41 Gateway 7.5
42 Automatic gearbox lever 7.5
43 Air conditioning and heating con-
tr
ol panel

, rear window heating, AA
compressor 10
44 Diagnosis, handbrake switch, light
s
wit

ch, reverse light, interior light-
ing, lit-up door sill 7.5
45 Steering column 7.5
46 Radio display 7.5
47 Driving mode. 10
48 USB 7.5
52 12V socket 20
58 Parking sensors, parking assist
control unit, fr

ont camera, radar 7.5
59 Reverse switch, clima sensor, elec-
trochr

omic mirror 7.5
60 Diagnosis, headlight control unit,
headlight adjuster 7.5
61

Starter motor; clutch sensor 7.5
65 Sound amplifier 10 No. Consumers/Amps
66 Rear window wiper 15
67 Heated rear window 30 In-line fuse/Amps
230 V rear power sockets 30
Electric driver

Emergencies

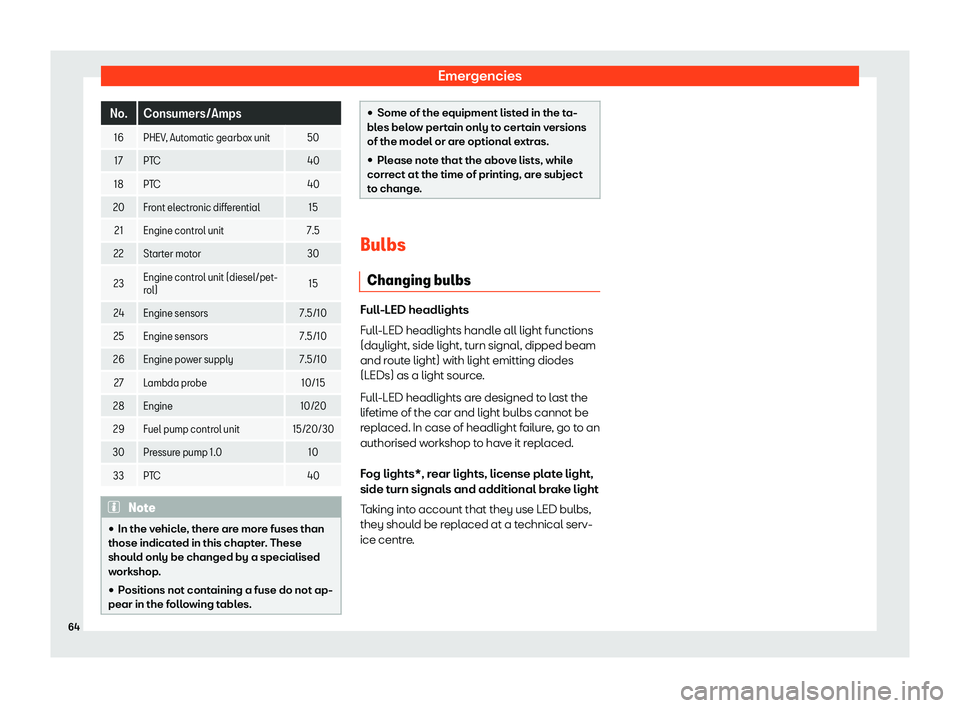

No. Consumers/Amps
16 PHEV, Automatic gearbox unit 5017 PTC 40
18 PTC 40
20 Front electronic differential 15 21 Engine control unit 7.5
22 Starter motor 30
23 Engine control unit (diesel/pet-
r
ol) 15
2
4 Engine sensors 7.5/10
25 Engine sensors 7.5/10
26 Engine power supply 7.5/10
27 Lambda probe 10/15
28 Engine 10/20
29 Fuel pump control unit 15/20/30
30 Pressure pump 1.0 10
33 PTC 40Note

Operation
Fig. 58
Instruments and controls.66

Controls and displays
Operation
Contr ol
s and displays

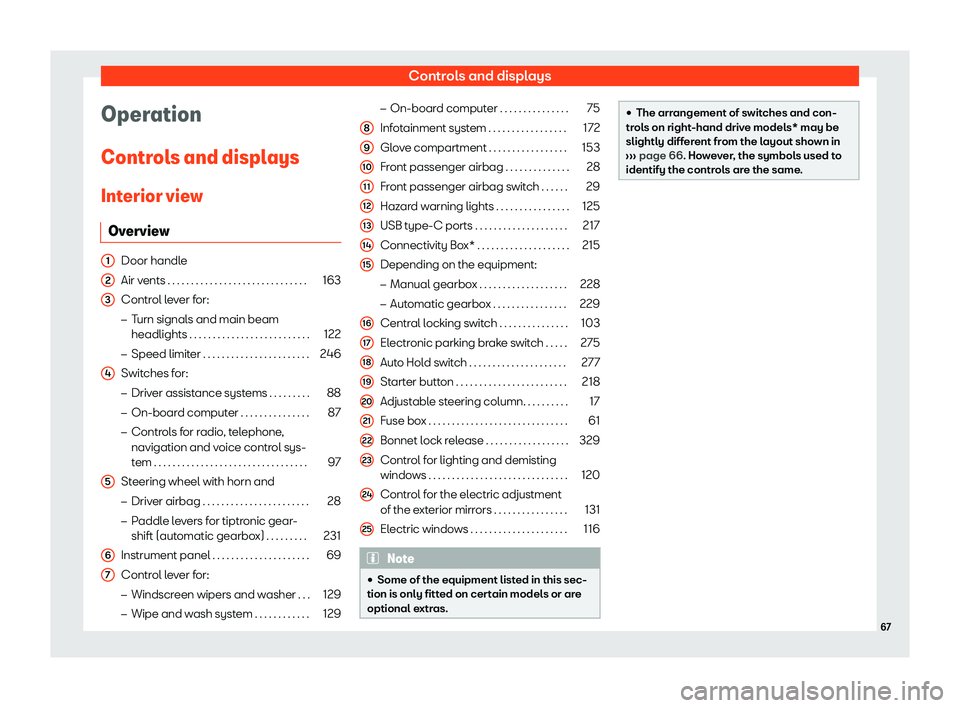

Interior view Overview Door handle
Air v
ents

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Control lever for:

Operation
Instruments and warn-
ing/contr ol l
amps

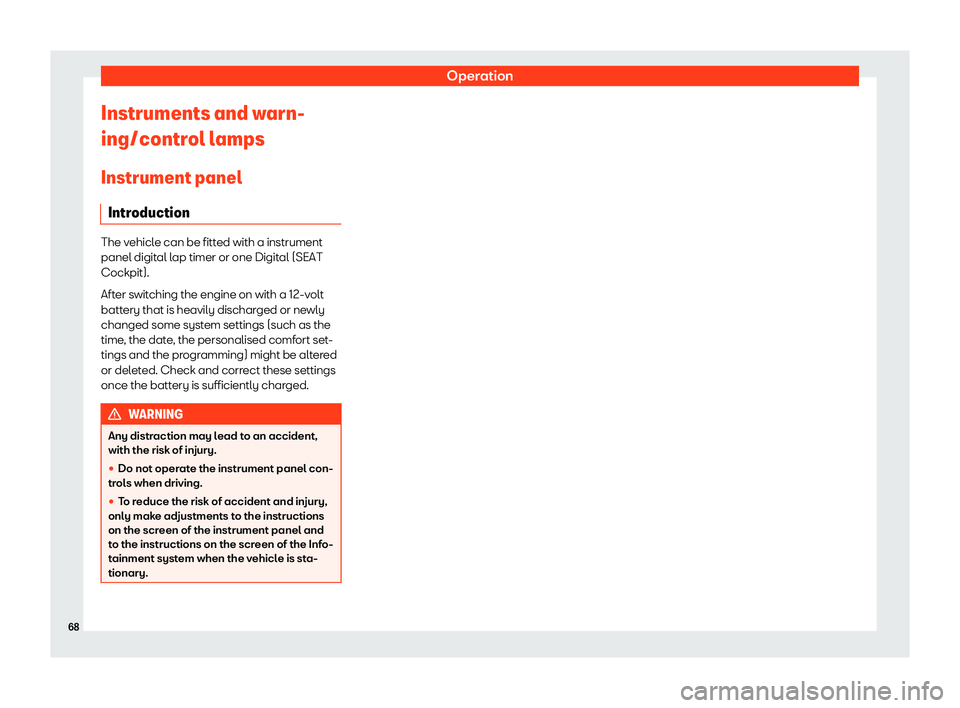

Instrument panel Introduction The vehicle can be fitted with a instrument
panel digit
al l

ap timer or one Digital (SEAT
Cockpit).
After switching the engine on with a 12-volt
battery that is heavily discharged or newly
changed some system settings (such as the
time, the date, the personalised comfort set-
tings and the programming) might be altered
or deleted. Check and correct these settings
once the battery is sufficiently charged. WARNING
Any distraction may lead to an accident,
with the risk of injury.
