Instruments and warning/control lamps

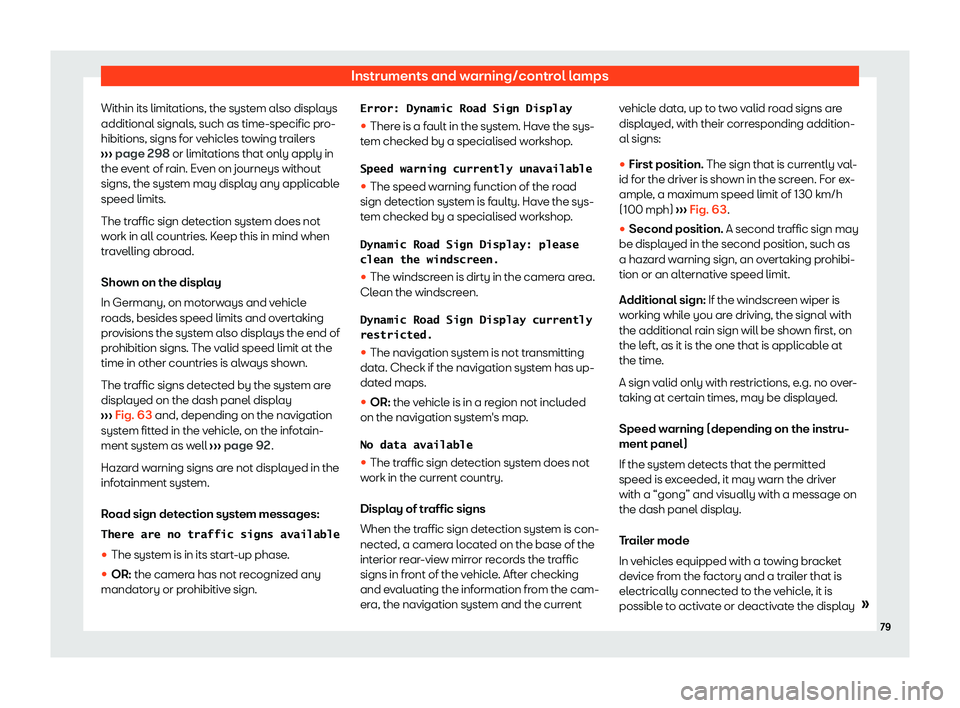

Within its limitations, the system also displays
additional signal s, such as time-specific pr
o-
hibitions, signs for vehicles towing trailers
››› page 298 or limitations that only apply in
the event of rain. Even on journeys without
signs, the system may display any applicable
speed limits.
The traffic sign detection system does not
work in all countries. Keep this in mind when
travelling abroad.
Shown on the display
In Germany, on motorways and vehicle
roads, besides speed limits and overtaking
provisions the system also displays the end of
prohibition signs. The valid speed limit at the
time in other countries is always shown.
The traffic signs detected by the system are
displayed on the dash panel display
››› Fig. 63 and, depending on the navigation
system fitted in the vehicle, on the infotain-
ment system as well ››› page 92
.
Hazard warning signs are not displayed in the
infotainment system.
Road sign detection system messages: There are no traffic signs available

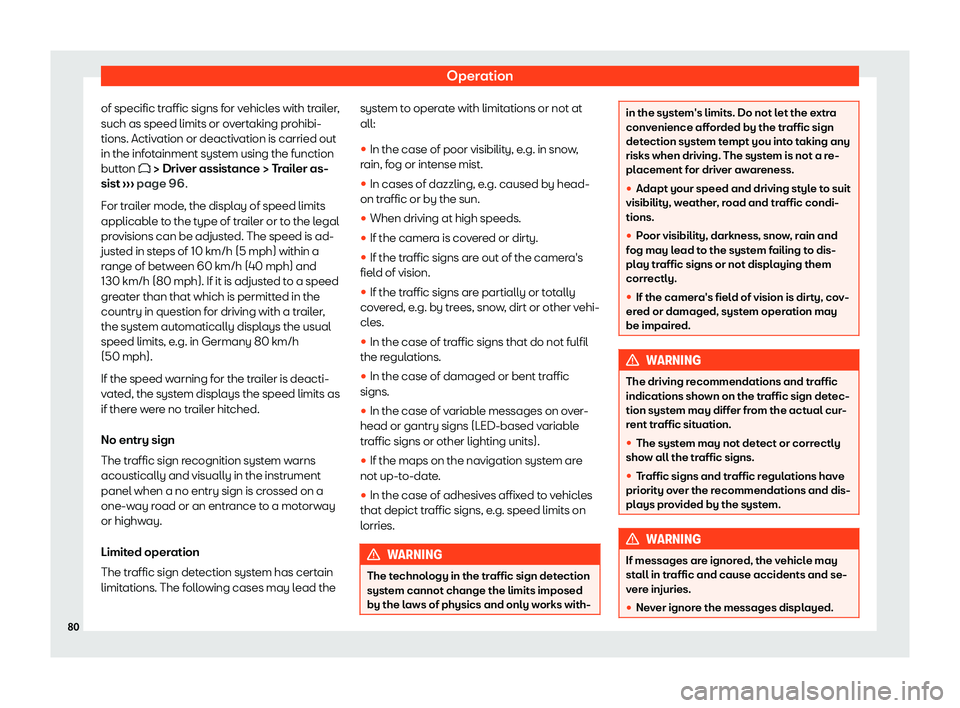

Operation
of specific traffic signs for vehicles with trailer,
such as speed limits or o v
ertaking prohibi-
tions. Activation or deactivation is carried out
in the infotainment system using the function
button  > Driver assistance > Trailer as- sist ››› page 96
.
For trailer mode, the display of speed limits
applicable to the type of trailer or to the legal
provisions can be adjusted. The speed is ad-
justed in steps of 10 km/h (5 mph) within a
range of between 60 km/h (40 mph) and
130 km/h (80 mph). If it is adjusted to a speed
greater than that which is permitted in the
country in question for driving with a trailer,
the system automatically displays the usual
speed limits, e.g. in Germany 80 km/h
(50 mph).
If the speed warning for the trailer is deacti-
vated, the system displays the speed limits as
if there were no trailer hitched.
No entry sign
The traffic sign recognition system warns
acoustically and visually in the instrument
panel when a no entry sign is crossed on a
one-way road or an entrance to a motorway
or highway.
Limited operation
The traffic sign detection system has certain
limitations. The following cases may lead the system to operate with limitations or not at
all:

Instruments and warning/control lamps

Operation
Note

Instruments and warning/control lamps

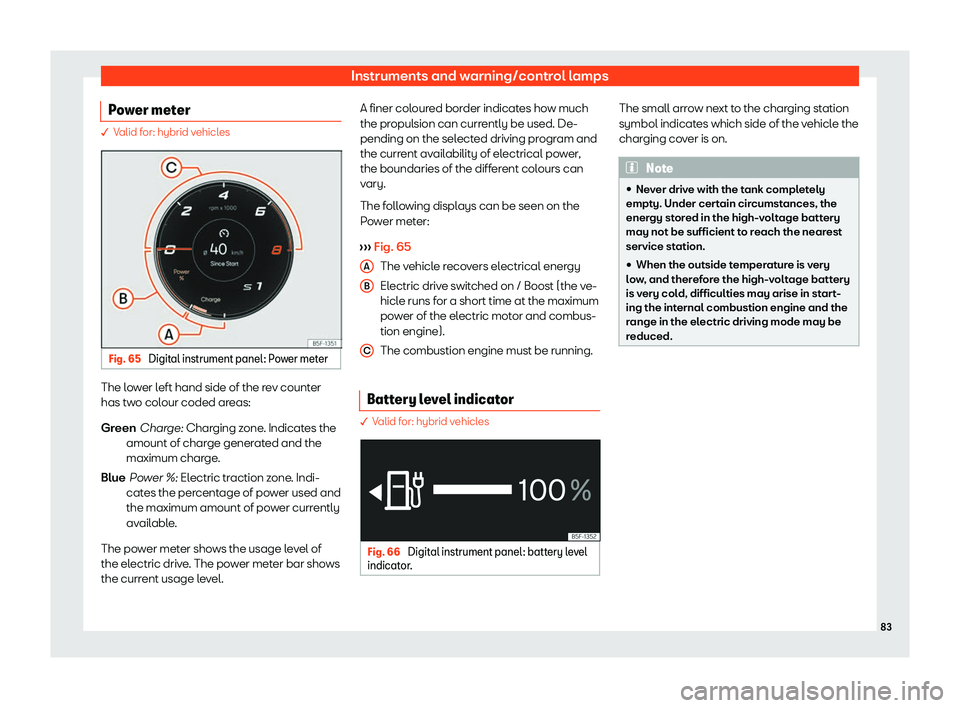

Power meter  V
alid for: hybrid vehicles Fig. 65
Digital instrument panel: Power meter The lower left hand side of the rev counter
has tw
o col
our coded areas:
Charge: Charging zone. Indicates the
amount of charge generated and the
maximum charge.
Power %: Electric traction zone. Indi-
cates the percentage of power used and
the maximum amount of power currently
available.
The power meter shows the usage level of
the electric drive. The power meter bar shows
the current usage level. Green
Blue A finer coloured border indicates how much
the propul

sion can currently be used. De-
pending on the selected driving program and
the current availability of electrical power,
the boundaries of the different colours can
vary.
The following displays can be seen on the
Power meter:
››› Fig. 65
The vehicle recovers electrical energy
Electric drive switched on / Boost (the ve-
hicle runs for a short time at the maximum
power of the electric motor and combus-
tion engine).
The combustion engine must be running.
Battery level indicator  V
alid f
or: hybrid vehicles Fig. 66
Digital instrument panel: battery level
indicat or

. A
B
C The small arrow next to the charging station
symbol indicat
es which side of the v

ehicle the
charging cover is on. Note

Operation

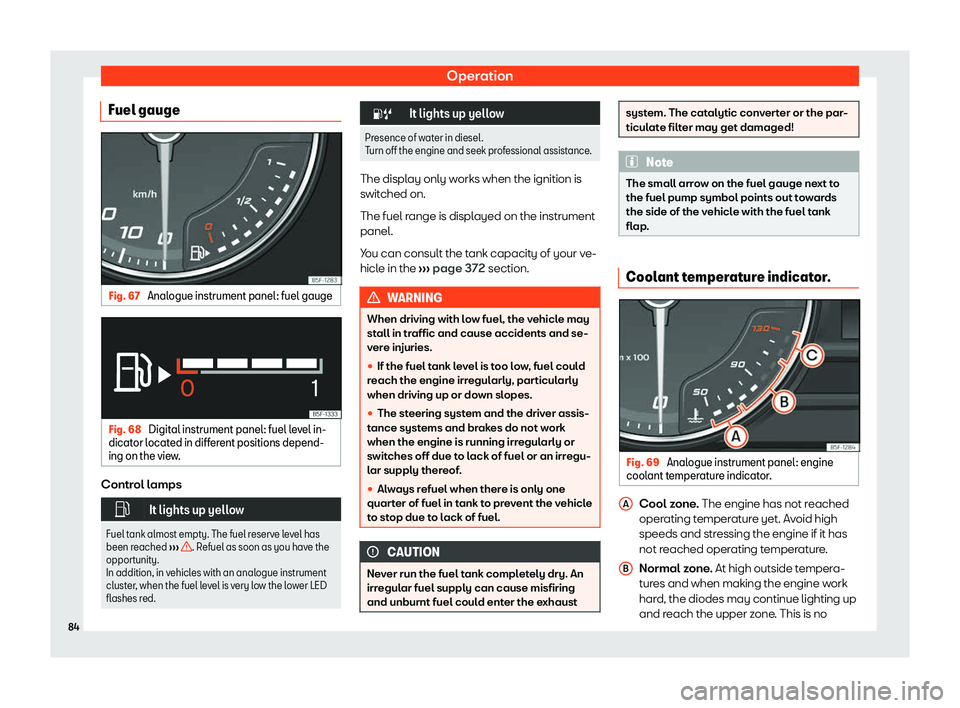

Fuel gauge Fig. 67
Analogue instrument panel: fuel gauge Fig. 68
Digital instrument panel: fuel level in-
dicat or l
ocated in different positions depend-
ing on the view. Control lamps

It lights up yellow
Fuel tank almost empty. The fuel reserve level has
been r eached

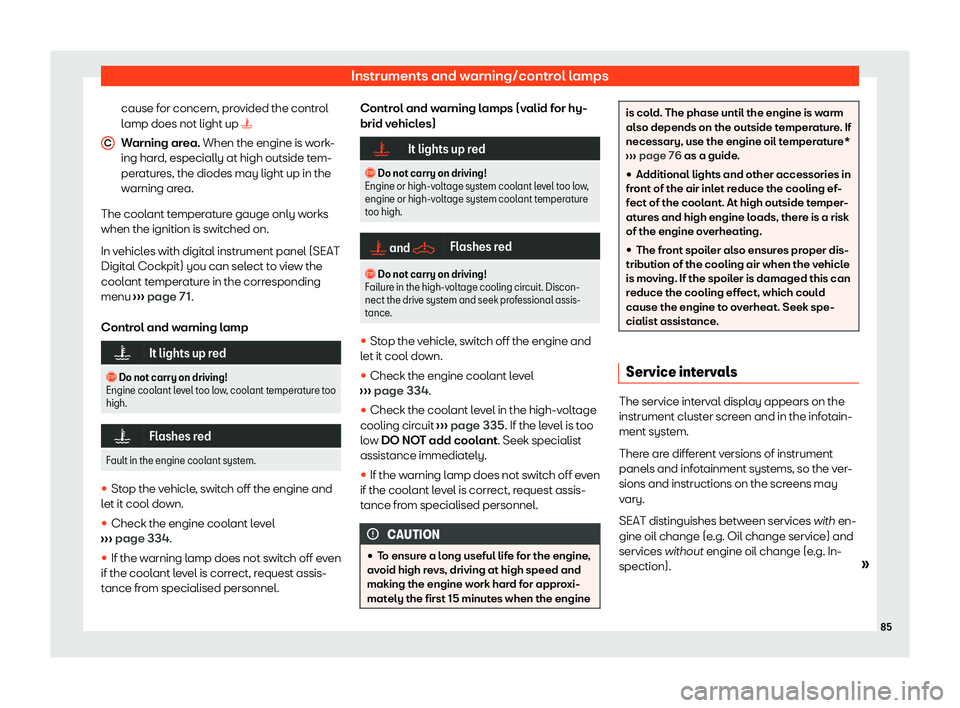

Instruments and warning/control lamps
cause for concern, provided the control
l amp does not light up

Warning area. When the engine is work-
ing hard, especially at high outside tem-
peratures, the diodes may light up in the
warning area.
The coolant temperature gauge only works
when the ignition is switched on.
In vehicles with digital instrument panel (SEAT
Digital Cockpit) you can select to view the
coolant temperature in the corresponding
menu ››› page 71
.
Control and warning lamp
It lights up red

Operation

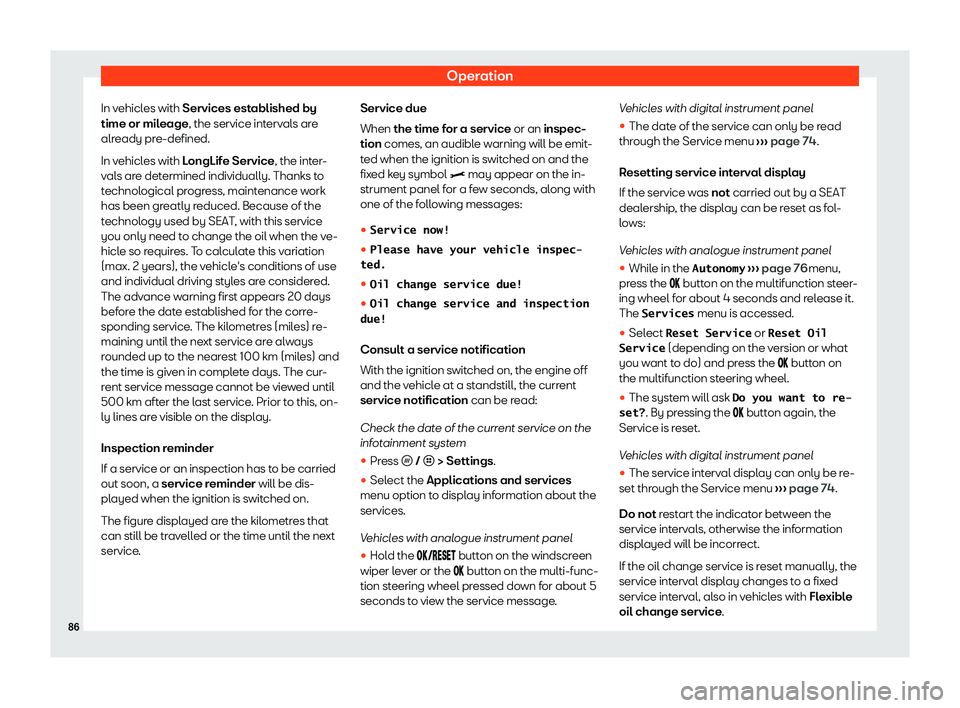

In vehicles with Services est ablished by
time or mil eage, the service intervals are
already pre-defined.
In vehicles with LongLife Service, the inter-
vals are determined individually. Thanks to
technological progress, maintenance work
has been greatly reduced. Because of the
technology used by SEAT, with this service
you only need to change the oil when the ve-
hicle so requires. To calculate this variation
(max. 2 years), the vehicle's conditions of use
and individual driving styles are considered.
The advance warning first appears 20 days
before the date established for the corre-
sponding service. The kilometres (miles) re-
maining until the next service are always
rounded up to the nearest 100 km (miles) and
the time is given in complete days. The cur-
rent service message cannot be viewed until
500 km after the last service. Prior to this, on-
ly lines are visible on the display.
Inspection reminder
If a service or an inspection has to be carried
out soon, a service reminder will be dis-
played when the ignition is switched on.
The figure displayed are the kilometres that
can still be travelled or the time until the next
service. Service due
When the time for a service
or an inspec-
tion comes, an audible warning will be emit-
ted when the ignition is switched on and the
fixed key symbol > may appear on the in-
strument panel for a few seconds, along with
one of the following messages:

Instruments and warning/control lamps
Note

Operation

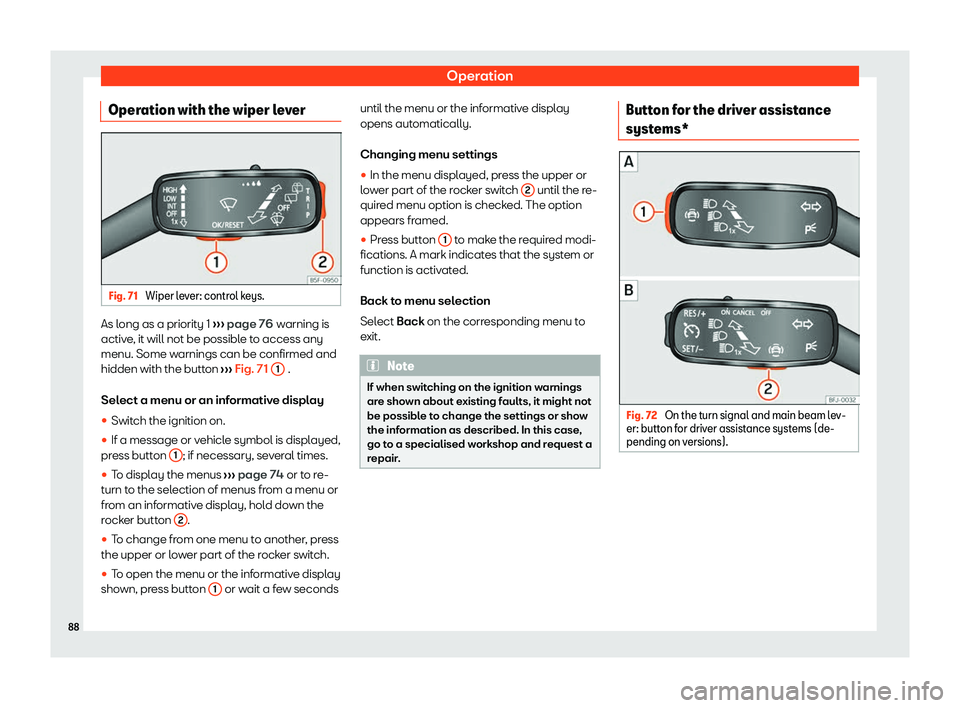

Operation with the wiper lever Fig. 71
Wiper lever: control keys. As long as a priority 1
››
› page 76
warning is
active, it will not be possible to access any
menu. Some warnings can be confirmed and
hidden with the button ››› Fig. 71
1 .
Sel ect a menu or an inf

ormative display
