19
Instrument panel
Rev counter (with the engine running, in thousands of revo-
lutions per minute).
The beginning of the red zone of the rev counter indicates
the maximum speed in any gear after running-in and with
the engine hot. However, it is advisable to change up a gear
or move the selector lever to D (or lift your foot off the accel-
erator) before the needle reaches the red zone ⇒ 
.
Clock set button .
– If necessary, change the time display by pressing the top
and bottom buttons of the rocker switch ⇒ Fig. 11 B
.
– Press the button  to change the hour, so that it is flash-
ing.
– To continue setting the time, press button 0.0/SET
. Hold
button down to scroll through the numbers quickly.
– Press the button 
again to change the minutes, so that
it is flashing.
– To continue setting the time, press button 0.0/SET
. Hold
button down to scroll through the numbers quickly.
– Press button 
again to end the clock setting.
CAUTION
● When the engine is cold, avoid high revs and heavy acceleration and do
not make the engine work hard.
● To prevent damage to the engine, the rev counter needle should only re-
main in the red zone for a short period of time.
For the sake of the environment
Changing up a gear in time reduces fuel consumption and noise. 5
6
Note
On the screen of the SEAT Portable System (supplied by SEAT) ⇒ page 222
the other instruments can be seen, such as an outside temperature indica-
tor. 
Display messages
A variety of information can be viewed on the instrument panel display
⇒  Fig. 9 and ⇒  Fig. 10 2, depending on the vehicle equipment:
● Warning and information messages
● Odometer
● Time
● Outside temperature
● Selector lever positions ⇒ page 124
● Recommended gear (manual gearbox) ⇒ page 124
● Multifunction display (MFI) ⇒ page 22
● Service interval display ⇒ page 21
● Start-Stop system status display ⇒ page 160
● Fuel gauge ⇒ page 171
● Seat belt status display for rear seats ⇒ page 56
Warning and information messages
The system runs a check on certain components and functions when the ig-
nition is switched on and while the vehicle is moving. Faults in the opera-
tion are displayed on the screen using red and yellow symbols on the in-
strument panel display ( ⇒ page 15) and, in some cases, with audible warn-
ings. The display may vary according to the type of instrument panel fitted. 
Vehicle diagramPrior to a journey...While drivingCare, cleaning and mainte-
nanceIf and whenTechnical specifications

20Instrument panel
Type of mes-
sageSymbol
colourDescription
Priority 1
warning.Red
Symbol flashing or lit; partly combined with
audible warnings.
 Stop the vehicle! It is dangerous ⇒ 
!
Check the function that is faulty and repair it. If
necessary, request assistance from specialised
personnel.
Priority 2
warning.Yellow
Symbol flashing or lit; partly combined with
audible warnings.
A faulty function, or fluids which are below the
correct levels may cause damage to the vehi-
cle! ⇒ 
Check the faulty function as soon as possible.
If necessary, request assistance from special-
ised personnel.
Odometer
The odometer registers the total distance travelled by the car.
The odometer (trip) shows the distance travelled since the last odometer re- set. The last figure indicates 100 m.
Outside temperature indicator
When the outside temperature is below +4 °C (+39 °F), the symbol “ice crys-
tal” (warning of risk of freezing) is also displayed next to the temperature.
At first this symbol flashes and then it remains lit until the outside tempera-
ture rises above +6 °C (+43 °F) ⇒ 
.
When the vehicle is stationary or travelling at very low speeds, the tempera-
ture displayed may be slightly higher than the actual outside temperature
as a result of heat coming from the engine.
The temperatures measured range from -40 °C to +50 °C (-40 °F to +122 °F). Selector lever positions
The range of engaged gears of the selector lever is shown on the side of the
lever, and on the instrument panel display. In positions
D and M, and with
the Tiptronic, the corresponding gear is also indicated on the display.
Recommended gear* (manual gearbox)
The recommended gear to save fuel can be displayed on the instrument
panel display while you are driving ⇒ page 124.
Seat belt status display for rear seats *
The seat belt status display on the instrument panel display informs the
driver, when the ignition is switched on, whether any passengers in the rear
seats have fastened their seat belts ⇒ page 56.
Start-Stop system status display
The instrument panel display shows information on the current status
⇒ page 160.
WARNING
If the warning lamps are ignored, the vehicle may stall in traffic, or may
cause accidents and severe injuries.
● Never ignore the warning lamps.
● Stop the vehicle safely as soon as possible.
● A faulty vehicle represents a risk of accident for the driver and for oth-
er road users. If necessary, switch on the hazard warning lamps and put
out the warning triangle to advise other drivers.
● Park the vehicle away from the traffic, ensuring that there are no easi-
ly inflammable materials under the vehicle which could come into contact
with the exhaust system (e.g. dry grass, fuel). 

21
Instrument panel
WARNING
Although the outside temperature is above freezing, some roads and
bridges may be frozen.
● At an outside temperature of above +4 °C (+39 °F), even when the
“ice crystal” is not visible, there may still be ice on the road.
● Never rely on the outside temperature indicator!
CAUTION
Failure to heed the warning lamps when they appear may result in faults in
the vehicle.
Note
Different versions of the instrument panel are available and therefore the
versions and instructions on the display may vary.
Note
When several warnings are active at the same time, the symbols are shown
successively for a few seconds. The symbols will stay on until the fault is
rectified. 
Service interval display
The inspection display appears on the instrument panel display ⇒ Fig. 9
or ⇒ Fig. 10 2.
SEAT makes a difference between services with engine oil change (Interval
Service) and services without engine oil change (Inspection Service). The
service interval display only gives information for service dates which in-
volve an engine oil change. The dates of the remaining services (for exam-
ple, the next Inspection Service or change of brake fluid) are listed on the
label attached to the door strut, or even in the Maintenance Programme. The set service intervals have been specified with
the service dependent on
time/distance travelled.
Inspection reminder
If the inspection period is due to expire shortly, Inspection reminder ap-
pears when starting the ignition abbreviated to  and a warning in km. The
number of kilometres shown is the maximum number that may be driven
until the next service.
Service due
After the service date, an audible warning is given when the ignition is
switched on and the abbreviation  displayed on the screen flashes for a
few seconds.
Note
The service message disappears after a few seconds, when the engine is
started or when OK
is pressed on the windscreen wiper lever.
Note
In vehicles in which the battery has been disconnected for a long period of
time, it is not possible to calculate the date of the next service. Therefore
the service interval display may not be correct. In this case, please check
the maximum permitted service intervals ⇒ Booklet Maintenance Pro-
gramme. 
Vehicle diagramPrior to a journey...While drivingCare, cleaning and mainte-
nanceIf and whenTechnical specifications

22Instrument panel
SEAT information system
Introduction
With the ignition switched on it is possible to access different messages via
the display on the instrument panel display.
The number of messages displayed on the instrument panel display will
vary according to the vehicle electronics and equipment.
A specialised dealer will be able to programme or modify additional func-
tions, according to the vehicle equipment. SEAT recommends visiting a
Technical Service.
Additional information and warnings:
● Instrument panel ⇒ page 18
● Exterior mirrors ⇒ page 93
● Driver assistance systems ⇒ page 149
● Radio ⇒ Booklet Radio
WARNING
Any distraction may lead to an accident, with the risk of injury.
● Do not consult the messages on the instrument panel screen when
driving.
Note

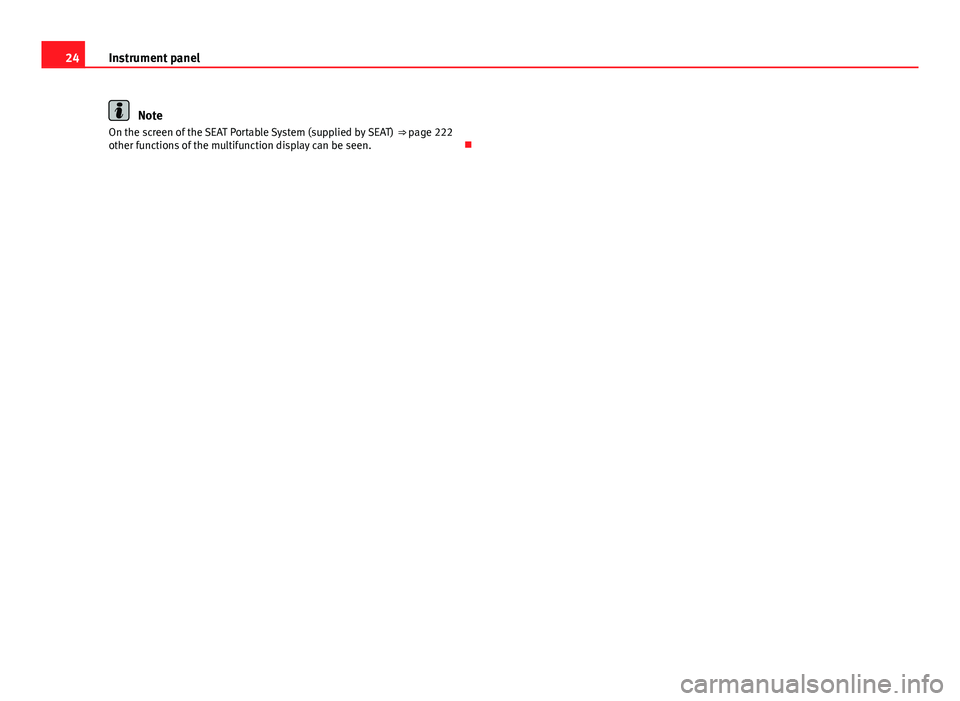

On the screen of the SEAT Portable System (supplied by SEAT) ⇒ page 222
other functions of the vehicle can be seen. Control functions of the instrument panel display
Fig. 11 Windscreen wip-
er lever: button
A to
confirm the options and
rocker switch B
to
change the options
Calling up options
● Switch the ignition on.
● If a message or vehicle symbol is displayed, press OK/RESET
(⇒ Fig. 11
A).
● Press the top or bottom part of the rocker switch B until the desired op-
tion appears. 
Multifunction display (MFI)
The multifunction display (MFI) has two automatic memories: 1 - Partial
memory and 2 - Total memory . The selected memory will be shown in the
lower right-hand corner of the display. 

23
Instrument panel
With the ignition switched on, and memory 1 or 2 displayed, briefly press
OK to change from one memory to another.
1
Trip memo-
ry (for a
single jour-
ney).
The memory stores the values for the journey and the con-
sumption from the moment the ignition is switched on un-
til it is switched off again.
If the journey is broken for more than 2 hours, the memory
is automatically erased. If the journey is continued in less
than 2 hours after the ignition is switched off, the new da-
ta is added to the data already stored in the memory.
2Total mem-
ory (for all
journeys).
The memory stores the values of any number of journeys,
until it counts a total of 19 hours and 59 minutes of driv-
ing, or 1999.9 km or miles of driving, depending on the
type of instrument panel fitted. On reaching either of these
limits, the memory is automatically erased and starts to
count from 0 again.
Possible displays
MenueffectTimeCurrent time in hours (h) and minutes (min).Journey durationThis indicates the hours (h) and minutes (min)
since the ignition was switched on.
Current fuel consump-
tionThe current fuel consumption display operates
throughout the journey, in litres/100 km; and with
the engine running and the vehicle stopped, in li-
tres/hour.
Average fuel consump-
tionAfter turning on the ignition, average fuel con-
sumption in litres/100 km will be shown after trav-
elling approximately 100 metres. Otherwise hori-
zontal lines are displayed. The value shown is up-
dated approximately every 5 seconds.
Operating rangeApproximate distance in km that can still be travel-
led with the fuel remaining in the tank, assuming
the same style of driving is maintained. This is cal-
culated using the current fuel consumption.
MenueffectDistance coveredDistance travelled, after ignition is switched on, in
km.
Average speedAfter starting the ignition, the average speed will
be shown after a distance of approximately 100
metres has been travelled. Otherwise horizontal
lines are displayed. The value shown is updated
approximately every 5 seconds.
Digital display of
speedCurrent speed displayed digitally.
Liquid coolant temper-
ature digital displayDigital display of the current temperature of the en-
gine liquid coolant.
Warning at --- km/hIf the stored speed is exceeded (between 30 -
250 km/h, or 18 - 155 mph), an audible warning is
given together with a visual warning.
Changing between display modes
● Press the rocker switch in the windscreen wiper lever.
Storing a speed for the speed warning
● Select the display Speed warning at --- km/h.
● Press OK
on the windscreen wiper lever to store the current speed and
switch off the warning.
● In addition, set the required speed by pressing the rocker switch on the
windscreen wiper lever or buttons 
or  on the multifunction steering
wheel for 5 seconds. Next, press OK again or wait a few seconds. The
speed is stored and the warning activated.
● To switch off , press OK
. The stored speed is deleted.
Manually erasing memory 1 or 2
● Select the memory to be erased.
● Press and hold the eject button OK
for approximately 2 seconds.

Vehicle diagramPrior to a journey...While drivingCare, cleaning and mainte-
nanceIf and whenTechnical specifications

24Instrument panel
Note
On the screen of the SEAT Portable System (supplied by SEAT) ⇒ page 222
other functions of the multifunction display can be seen. 

25
Before starting the engine
Prior to a journey... Before starting the engine
Tips for driving
Introduction
Depending upon how you expect to use your vehicle, it may a good idea to
protect the engine from below. A guard underneath the engine may help to
reduce the risk of damage to the lower part of the vehicle and the oil sump
when driving over kerbs, or along dirt tracks or rough roads... Before instal-
lation, SEAT recommends going to a SEAT dealership.
Additional information and warnings:
● Ensure you are correctly seated ⇒ page 47
● Transporting ⇒ page 95
● Starting, changing gears, parking ⇒ page 119
● Ecological driving ⇒ page 144
● Notes for the user ⇒ page 233
WARNING
Driving under the influence of alcohol, drugs, medication or narcotics
may result in severe accidents and even loss of life.
● Alcohol, drugs, medication and narcotics may significantly alter per-
ception, affect reaction times and safety while driving, which could result
in the loss of control of the vehicle.
 Journey preparations and safe driving
Check list
For your own safety, for the safety of passengers in the car, and for that of
other road users, the following should be checked before and during each
journey
⇒ 
:
 Check that the lights and turn signals operate correctly.
 Check the tyre pressures (
⇒ page 210) and level of fuel
(⇒  page 171).
 Ensure there is good visibility through all the windows.
 Make sure that all objects and bags in the storage compartments, in
the luggage compartment and, where applicable, on the roof, are se-
curely fastened
⇒ page 95.
 Ensure there is nothing obstructing the free passage of the foot ped-
als.
 Use child retention systems appropriate for the child's body weight
and height
⇒ page 74.
 Correctly adjust front seat, head rests and rear-view mirrors to suit
your height
⇒ page 47, ⇒  page 93.
 Wear close-fitting shoes which do not prevent you from using the
pedals correctly.
 The driver's floor mat should be fixed to the floor, leaving the pedal
area unobstructed.
 Before starting out, ensure you are correctly seated and remain in
this position throughout the journey. This applies to all passengers
in the vehicle
⇒ page 47. 
Vehicle diagramPrior to a journey...While drivingCare, cleaning and mainte-
nanceIf and whenTechnical specifications

26Before starting the engine
Check list (Continued)
 Correctly fasten your seat belt before starting to drive and keep it se-
curely fastened throughout the journey. This applies to all
passengers in the vehicle
⇒ page 56.
 Never carry more passengers than the number of available seats and
seat belts in your vehicle.
 Never drive with impaired faculties (for example, due to medication,
alcohol or drugs).
 Do not allow yourself to be distracted from the traffic, for example, to
reset or switch on a menu, by other passengers or to answer a phone
call.
 Always try to adapt the speed of the vehicle and your style of driving
to the condition of the ground or the road and to weather and traffic
conditions.
 Observe the highway code and speed limits.
 On long journeys, rest at regular intervals (at least every 2 hours).
 If carrying animals, make sure they are correctly restrained in accord-
ance with their weight and size.
WARNING
Always observe traffic regulations and speed limits and try to anticipate
traffic movements. Correctly anticipating traffic situations may mean the
difference between arriving safe and sound at your destination or having
a serious accident.
Note
Regular servicing of your vehicle not only helps to keep it in good working
order but also helps to ensure road safety. Therefore, please ensure the ve-
hicle is taken for service as indicated in the Maintenance Programme. If the
vehicle is subjected to hard use, it may require certain maintenance work
before the next service date. Hard use may involve frequent driving in traffic
jams or driving in dusty areas. For further information, please refer to a SEAT
dealership or a specialised workshop. 
Driving abroad
Check list
In some countries, certain safety regulations and requirements are in force
relating to exhaust gas emissions, which differ from the technical character-
istics of the vehicle. Before travelling abroad, SEAT recommends you con-
sult a SEAT dealership about the legal requirements and the following
points:
 Does the vehicle need technical modifications for driving abroad, for
example, adjustment of the headlamps?
 Does the vehicle have all the tools, diagnostics equipment and
spare parts required for inspections and repairs?
 Are there any SEAT dealers in the destination country?
 For petrol vehicles: Is unleaded petrol available at the right octane
rating?
 Are a suitable engine oil (
⇒ page 185) and other engine fluids com-
plying with SEAT specifications available in the destination country?
 Does the Portable Navigation System (supplied by SEAT) function
⇒ 
page 222 in the destination country with the available navigation
information?
 Are special tyres required in the destination country?


27
Before starting the engine
CAUTION
SEAT does not accept liability for any damage to the vehicle due to the use
of a lower quality fuel, an inadequate service or the non-availability of genu-
ine spare parts. 
Driving along flooded roadways
To prevent damage to the vehicle when driving through water, for example,
along a flooded road, please observe the following:
● Check the depth of the water before entering the flooded zone. The wa-
ter should never come above the lower edge of the bodywork ⇒ 
.
● Do not drive faster than a pedestrian.
● Do not stop in the water, use reverse gear or switch off the engine.
● Oncoming traffic will cause waves which raise the level of the water,
making it difficult to cross the water.
● Disconnect the Start-Stop system whenever crossing water.
WARNING
When driving through water, mud, melted snow, etc., please remember
that due to damp or frozen brake discs and shoes in winter, the braking
effect may be delayed, therefore the required braking distance is greater.
● Dry the brakes and remove ice by braking carefully. Ensure that you
are not endangering other road-users or breaking traffic regulations in
the process.
● After driving through water, avoid sudden sharp manoeuvres.
CAUTION
● Driving through flooded areas may severely damage vehicle compo-
nents such as the engine, transmission, running gear or electrical system.
● Never drive through salt water as salt causes corrosion. Always rinse any
parts of the vehicle which have been in contact with salt water. 
Vehicle diagramPrior to a journey...While drivingCare, cleaning and mainte-
nanceIf and whenTechnical specifications

28Opening and closing
Opening and closing
Vehicle key set
Introduction
Additional information and warnings:
● Adjustments to the SEAT information system ⇒ page 22
● Central locking and locking system ⇒ page 32
● Start and stop the engine ⇒ page 119
● Notes for the user ⇒ page 233
● Emergency locking and unlocking ⇒ page 244
WARNING
Swallowing batteries with a diameter of 20 mm or other types of lithium
battery may quickly result in serious injuries or even death.
● Always keep the vehicle keys and the key tab with the batteries,
spare batteries, flat batteries and other types of batteries larger than
20 mm out of the reach of children.
● Immediately seek medical assistance if you suspect the swallowing of
a battery.
WARNING
Careless or incorrect use of vehicle keys may result in severe injury and
accident.
● Always take all the keys with you whenever you leave the vehicle.
Children and unauthorised individuals could lock the doors or the rear
lid, start the engine or turn the ignition on activating electrical systems,
for example: the electric windows.
● Never leave children or disabled people alone in the car. They could
be trapped in the car in an emergency and will not be able to get them-
selves to safety. For example, depending on the time of the year, temper-
atures inside a locked and closed vehicle can be extremely high or ex-
tremely low resulting in serious injuries and illness or even death, partic-
ularly for young children.
● Never remove the key from the ignition if the vehicle is in motion. The
steering may lock and it will not be possible to turn the steering wheel.

