12Vehicle interior
Overview of centre console
Top part of the centre console
Fig. 6 Detail of the top part of the centre console
Legend for the Fig. 6:
SEAT Portable System (supplied by SEAT) . . . . . . . . . . . . . . . . . . .222
Hazard warning lights switch  . . . . . . . . . . . . . . . . . . . . . . . . . . . . 241
Passenger front airbag off warning lamp PASSENGER AIR-
BAG   . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Right seat heating controls  or rear window heating but-
ton  (alternative position) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54, 164
1
23
4
Radio (factory-fitted) ⇒ Booklet Radio system, cover or stor-
age compartment
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Left seat heating controls  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Rear window heating button  . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Start-Stop system button  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Switches for:
– Heating and ventilation system . . . . . . . . . . . . . . . . . . . . . . . . . . 164
– Air conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1645
6789

19
Instrument panel
Rev counter (with the engine running, in thousands of revo-
lutions per minute).
The beginning of the red zone of the rev counter indicates
the maximum speed in any gear after running-in and with
the engine hot. However, it is advisable to change up a gear
or move the selector lever to D (or lift your foot off the accel-
erator) before the needle reaches the red zone ⇒ 
.
Clock set button .
– If necessary, change the time display by pressing the top
and bottom buttons of the rocker switch ⇒ Fig. 11 B
.
– Press the button  to change the hour, so that it is flash-
ing.
– To continue setting the time, press button 0.0/SET
. Hold
button down to scroll through the numbers quickly.
– Press the button 
again to change the minutes, so that
it is flashing.
– To continue setting the time, press button 0.0/SET
. Hold
button down to scroll through the numbers quickly.
– Press button 
again to end the clock setting.
CAUTION
● When the engine is cold, avoid high revs and heavy acceleration and do
not make the engine work hard.
● To prevent damage to the engine, the rev counter needle should only re-
main in the red zone for a short period of time.
For the sake of the environment
Changing up a gear in time reduces fuel consumption and noise. 5
6
Note
On the screen of the SEAT Portable System (supplied by SEAT) ⇒ page 222
the other instruments can be seen, such as an outside temperature indica-
tor. 
Display messages
A variety of information can be viewed on the instrument panel display
⇒  Fig. 9 and ⇒  Fig. 10 2, depending on the vehicle equipment:
● Warning and information messages
● Odometer
● Time
● Outside temperature
● Selector lever positions ⇒ page 124
● Recommended gear (manual gearbox) ⇒ page 124
● Multifunction display (MFI) ⇒ page 22
● Service interval display ⇒ page 21
● Start-Stop system status display ⇒ page 160
● Fuel gauge ⇒ page 171
● Seat belt status display for rear seats ⇒ page 56
Warning and information messages
The system runs a check on certain components and functions when the ig-
nition is switched on and while the vehicle is moving. Faults in the opera-
tion are displayed on the screen using red and yellow symbols on the in-
strument panel display ( ⇒ page 15) and, in some cases, with audible warn-
ings. The display may vary according to the type of instrument panel fitted. 
Vehicle diagramPrior to a journey...While drivingCare, cleaning and mainte-
nanceIf and whenTechnical specifications

23

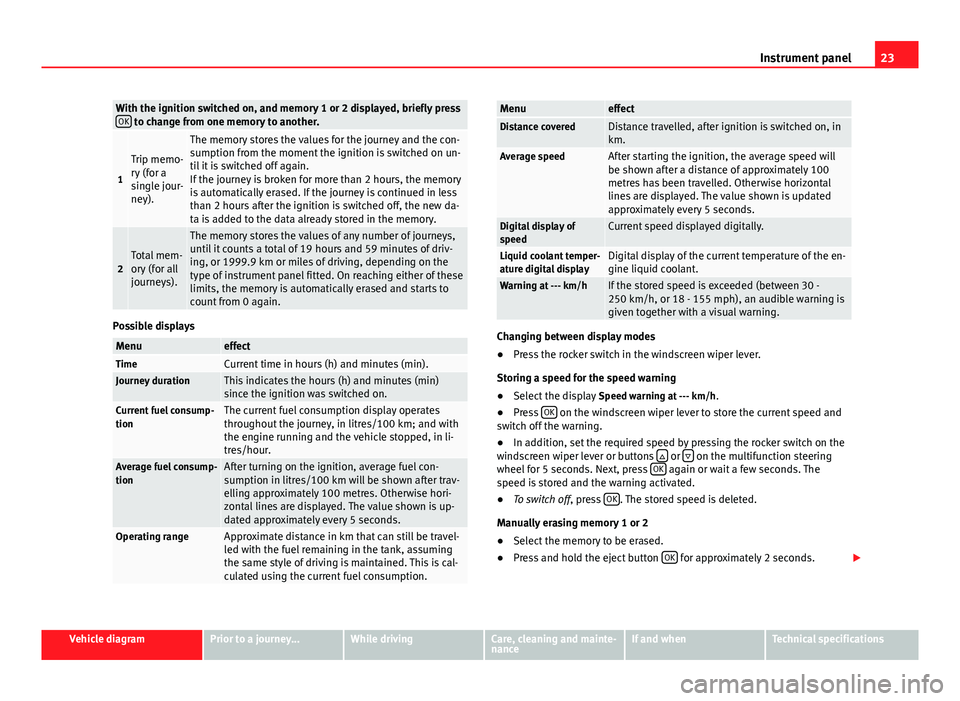

Instrument panel
With the ignition switched on, and memory 1 or 2 displayed, briefly press
OK to change from one memory to another.
1
Trip memo-
ry (for a
single jour-
ney).
The memory stores the values for the journey and the con-
sumption from the moment the ignition is switched on un-
til it is switched off again.
If the journey is broken for more than 2 hours, the memory
is automatically erased. If the journey is continued in less
than 2 hours after the ignition is switched off, the new da-
ta is added to the data already stored in the memory.
2Total mem-
ory (for all
journeys).
The memory stores the values of any number of journeys,
until it counts a total of 19 hours and 59 minutes of driv-
ing, or 1999.9 km or miles of driving, depending on the
type of instrument panel fitted. On reaching either of these
limits, the memory is automatically erased and starts to
count from 0 again.
Possible displays
MenueffectTimeCurrent time in hours (h) and minutes (min).Journey durationThis indicates the hours (h) and minutes (min)
since the ignition was switched on.
Current fuel consump-
tionThe current fuel consumption display operates
throughout the journey, in litres/100 km; and with
the engine running and the vehicle stopped, in li-
tres/hour.
Average fuel consump-
tionAfter turning on the ignition, average fuel con-
sumption in litres/100 km will be shown after trav-
elling approximately 100 metres. Otherwise hori-
zontal lines are displayed. The value shown is up-
dated approximately every 5 seconds.
Operating rangeApproximate distance in km that can still be travel-
led with the fuel remaining in the tank, assuming
the same style of driving is maintained. This is cal-
culated using the current fuel consumption.
MenueffectDistance coveredDistance travelled, after ignition is switched on, in
km.
Average speedAfter starting the ignition, the average speed will
be shown after a distance of approximately 100
metres has been travelled. Otherwise horizontal
lines are displayed. The value shown is updated
approximately every 5 seconds.
Digital display of
speedCurrent speed displayed digitally.
Liquid coolant temper-
ature digital displayDigital display of the current temperature of the en-
gine liquid coolant.
Warning at --- km/hIf the stored speed is exceeded (between 30 -
250 km/h, or 18 - 155 mph), an audible warning is
given together with a visual warning.
Changing between display modes
● Press the rocker switch in the windscreen wiper lever.
Storing a speed for the speed warning
● Select the display Speed warning at --- km/h.
● Press OK
on the windscreen wiper lever to store the current speed and
switch off the warning.
● In addition, set the required speed by pressing the rocker switch on the
windscreen wiper lever or buttons 
or  on the multifunction steering
wheel for 5 seconds. Next, press OK again or wait a few seconds. The
speed is stored and the warning activated.
● To switch off , press OK
. The stored speed is deleted.
Manually erasing memory 1 or 2
● Select the memory to be erased.
● Press and hold the eject button OK
for approximately 2 seconds.

Vehicle diagramPrior to a journey...While drivingCare, cleaning and mainte-
nanceIf and whenTechnical specifications

58Ensuring you are correctly and safely seated
The seat belt status is displayed for around 30 seconds when a seat belt in
the rear seats is fastened or unfastened. You can switch off this display by
pressing the 0.0 / SET
button.
The seat belt status flashes for a maximum of 30 seconds when a seat belt
in the rear seats is unfastened while the vehicle is in motion. An audible
warning will also be heard if the vehicle is travelling at over 25 km/h
(15 mph).
WARNING
Unbuckled or badly buckled seat belts increase the risk of severe or even
fatal injuries. The optimal protection from seat belts can be achieved only
if you use them properly.

Frontal collisions and the laws of physics
Fig. 37 Vehicle about to
hit a wall: the vehicle oc-
cupants are not wearing
seat belts
Fig. 38 The vehicle hits
the wall: the vehicle oc-
cupants are not wearing
seat belts
It is easy to explain how the laws of physics work in the case of a head-on
collision: when a vehicle starts moving ⇒ Fig. 37 it generates a certain
amount of energy known as “kinetic energy” both in the vehicle and in the
vehicle occupants.
The higher the speed and the greater the weight of the vehicle, the more
energy there is to be absorbed in an accident.
The most significant factor, however, is the speed of the vehicle. If the
speed doubles from 25 km/h (15 mph) to 50 km/h (30 mph), for example,
the kinetic energy is multiplied by four.
The amount of kinetic energy depends on the speed of the vehicle and the
weight of the vehicle and its passengers. The higher the speed and the
greater the weight of the vehicle and the vehicle occupants, the more ener-
gy there is to be absorbed in an accident.
Vehicle occupants not wearing seat belts are not “attached” to the vehicle.
As a result, in a frontal collision they will continue to move forward at the
speed their vehicle was travelling just before the impact until something
stops them! Because the vehicle occupants in our example are not restrain-
ed by seat belts, all of the occupants' kinetic energy has to be absorbed at
the point of impact ⇒ Fig. 38.


121
Starting, changing gears, parking
WARNING
Unsuitable or careless use of the vehicle key could result in serious in-
jury.
● Always take all the keys with you whenever you leave the vehicle. The
engine could accidentally be started and electrical equipment such as
the windows could accidentally be operated resulting in serious injury.
● Never leave children or disabled people alone in the car. They could
be trapped in the car in an emergency and will not be able to get them-
selves to safety. For example, depending on the time of the year, temper-
atures inside a locked and closed vehicle can be extremely high or ex-
tremely low resulting in serious injuries and illness or even death, partic-
ularly for young children.
● Never remove the key from the ignition if the vehicle is in motion. The
steering may lock and it will not be possible to turn the steering wheel.
Note
● If the key is left in the ignition lock with the engine off for long periods,
the vehicle battery will run flat.
● In vehicles with automatic gearbox the ignition key can only be with-
drawn with the selector lever in position P. In this case, press and release
the selector lever locking button. 
Starting the engine
Complete operations only in the sequence given.
1.Press the brake pedal and keep pressed until step 5 has been completed.
1 a.In vehicles with a manual gearbox: Press the clutch pedal all
the way and keep pressed until the engine starts.
Complete operations only in the sequence given.
2.Put the gearbox lever in neutral or the selector lever in posi- tion P or N.
3.Turn the key in the ignition lock to position ⇒ Fig. 86 2; do
not press the accelerator.
4.When the engine has started, release the key in the ignition lock.
5.If the engine does not start, stop the process and try again af-ter one minute.
6.Release the handbrake when you want to begin driving⇒ page 134.
WARNING
Never leave the vehicle unattended if the engine is running. The vehicle
could move off suddenly, especially if it is in gear, resulting in an acci-
dent and serious injury.
WARNING
Cold start sprays could explode or cause a sudden increase in the engine
speed.
● Never use start boosters.
CAUTION
● An attempt to start the engine while driving or starting the engine imme-
diately after turning it off can cause damage to the engine or starter motor.
● When the engine is cold, avoid high revs and heavy acceleration and do
not make the engine work hard.
● Do not push or tow start the engine. Unburnt fuel could damage the cat-
alytic converter. 
Vehicle diagramPrior to a journey...While drivingCare, cleaning and mainte-
nanceIf and whenTechnical specifications

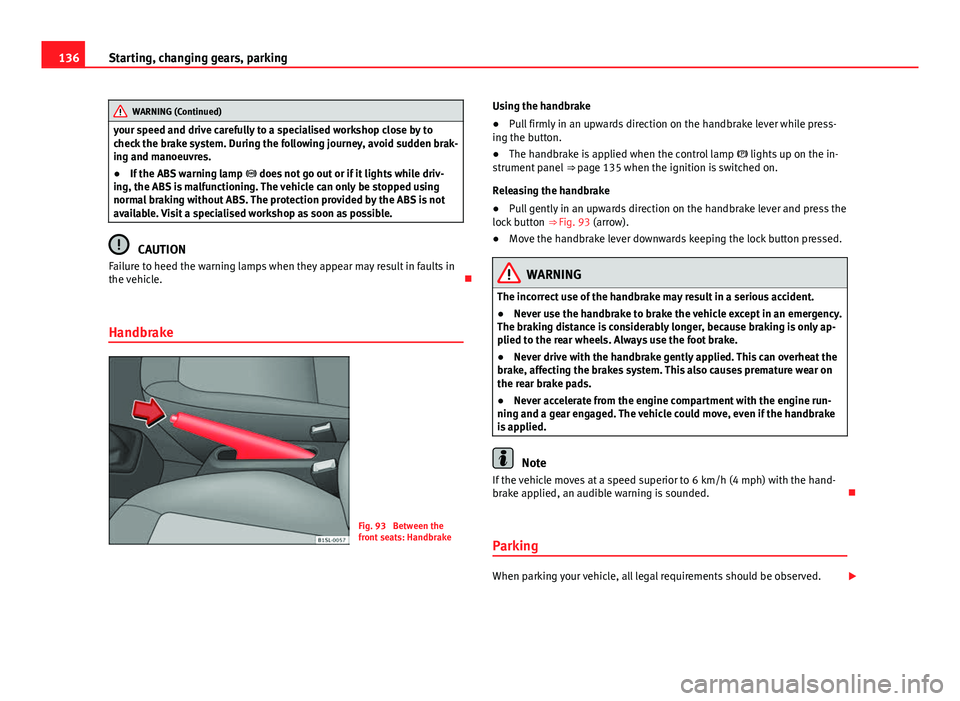

136Starting, changing gears, parking
WARNING (Continued)
your speed and drive carefully to a specialised workshop close by to
check the brake system. During the following journey, avoid sudden brak-
ing and manoeuvres.
● If the ABS warning lamp  does not go out or if it lights while driv-
ing, the ABS is malfunctioning. The vehicle can only be stopped using
normal braking without ABS. The protection provided by the ABS is not
available. Visit a specialised workshop as soon as possible.
CAUTION
Failure to heed the warning lamps when they appear may result in faults in
the vehicle. 
Handbrake
Fig. 93 Between the
front seats: Handbrake Using the handbrake
●
Pull firmly in an upwards direction on the handbrake lever while press-
ing the button.
● The handbrake is applied when the control lamp  lights up on the in-
strument panel ⇒ page 135 when the ignition is switched on.
Releasing the handbrake
● Pull gently in an upwards direction on the handbrake lever and press the
lock button ⇒ Fig. 93 (arrow).
● Move the handbrake lever downwards keeping the lock button pressed.
WARNING
The incorrect use of the handbrake may result in a serious accident.
● Never use the handbrake to brake the vehicle except in an emergency.
The braking distance is considerably longer, because braking is only ap-
plied to the rear wheels. Always use the foot brake.
● Never drive with the handbrake gently applied. This can overheat the
brake, affecting the brakes system. This also causes premature wear on
the rear brake pads.
● Never accelerate from the engine compartment with the engine run-
ning and a gear engaged. The vehicle could move, even if the handbrake
is applied.
Note
If the vehicle moves at a speed superior to 6 km/h (4 mph) with the hand-
brake applied, an audible warning is sounded. 
Parking
When parking your vehicle, all legal requirements should be observed. 

161
Driver assistance systems
flashesPossible causeSolution
The Start-Stop system is not
available.Contact a specialised
workshop.
Some warning and control lamps will light up briefly when the ignition is
switched on to check certain functions. They will switch off after a few sec-
onds.
WARNING
If the warning lamps are ignored when they light up, the vehicle may
stall in traffic and cause accidents and severe injuries.
● Never ignore the warning lamps.
● Stop the vehicle at the next opportunity.
CAUTION
Failure to heed the control lamps when they light up may result in damage
to the vehicle. Start-Stop system
Fig. 104 At the top of
the centre console: Start-
Stop system button
With the Start-Stop system enabled, the engine is automatically stopped
when the vehicle is at a standstill. It will start again automatically as re-
quired.
This function remains enabled while the ignition is switched on. The instru-
ment panel display shows information on the current status ⇒ page 160.
Disconnect the Start-Stop system by hand whenever crossing water.
Vehicles with a manual gearbox
● When the vehicle is stopped, put it into neutral and release the clutch
pedal. The engine will stop.
● To restart, simply engage the clutch. 
Vehicle diagramPrior to a journey...While drivingCare, cleaning and mainte-
nanceIf and whenTechnical specifications

162Driver assistance systems
Vehicles with an automatic gearbox
● When the vehicle is at a standstill, depress the brake or keep it pressed
down. The engine switches off.
● The engine will start again as soon as you release the brake pedal.
● With the selector lever set to position P, the engine will not start until a
range of gears is selected or the accelerator pedal is depressed.
Important conditions for the engine to stop automatically
● The driver's seat belt must be fastened.
● The driver door must be closed.
● The bonnet must be closed.
● The engine must have reached a minimum temperature.
● The vehicle must have moved since the last time the engine was stop-
ped.
● The vehicle's battery must be sufficiently charged.
● The battery temperature must not be too low or too high.
● The vehicle must not be on a very steep slope.
Conditions for the engine to restart automatically
The engine can be automatically restarted in the following cases:
● If the vehicle starts to moves.
● If the battery voltage drops.
Conditions requiring engine start-up using the key
The engine must be started by hand using the vehicle's key in the following
cases:
● If the driver unbuckles his/her seat belt.
● If the driver door is opened.
● If the bonnet is opened. Switching the Start-Stop system on and off
●
Press the button  situated in the centre console ⇒ Fig. 104.
● The button will light up when the Start-Stop system is switched off.
The engine will start immediately if the vehicle is in Stop mode when the
system is switched off by hand.
WARNING
The brake servo and the electromechanical steering do not work when
the engine is switched off.
● The vehicle must never be allowed to move with the engine switched
off.
● Disconnect the Start-Stop system before working in the engine com-
partment.
CAUTION
The vehicle's battery could be damaged if the vehicle is used for long peri-
ods at very high outside temperatures.
Note
In some cases, it may be necessary to start the engine by hand using the
key. Refer to the corresponding control lamp on the instrument panel. 
Hill driving assistant*
This function is only included in vehicles with ESC. The hill driving assistant helps the driver to move off and upwards on a hill
when the vehicle is stationary. 

Safety interlock for ignition key . . . . . . . . . 121
starting on a slope . . . . . . . . . . . . . . . . . . . 131
stopping on a slope . . . . . . . . . . . . . . . . . . 131
Axle loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 283
B
BAS see Brake assist systems . . . . . . . . . . . . . . 140
Battery Change in the vehicle key . . . . . . . . . . . . . . 31
discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Discharging . . . . . . . . . . . . . . . . . . . . . . . . 242
See Vehicle battery . . . . . . . . . . . . . . . . . . 193
Battery acid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Before consulting a specialised workshop . . . 239
Belt tensioner . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Service and disposal . . . . . . . . . . . . . . . . . . 64
Belt tension limiter . . . . . . . . . . . . . . . . . . . . . . . 64
Bench . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Bonnet Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134 Brake servo . . . . . . . . . . . . . . . . . . . . . . . . . 138
Brake assist systems . . . . . . . . . . . . . . . . . . . . 139
Brake assist system (BAS) . . . . . . . . . . . . . . . . 140
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141 Specification . . . . . . . . . . . . . . . . . . . . . . . . 141 Brakes
Brake assist systems . . . . . . . . . . . . . . . . . 139
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . 141
Brake fluid level . . . . . . . . . . . . . . . . . . . . . 142
Brake pads . . . . . . . . . . . . . . . . . . . . . . . . . 137
Changing the brake fluid . . . . . . . . . . . . . . 142
Control lamp . . . . . . . . . . . . . . . . . . . . . . . . 135
Emergency brake indicator in case of sud-den braking . . . . . . . . . . . . . . . . . . . . . . . 242
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . 136
Running-in brake pads . . . . . . . . . . . . . . . . 137
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 135
Brake servo . . . . . . . . . . . . . . . . . . . . . . . . 138, 139
Brake system Malfunction . . . . . . . . . . . . . . . . . . . . . . . . 138
Brake systems . . . . . . . . . . . . . . . . . . . . . . . . . 139
Breakdown Securing the vehicle . . . . . . . . . . . . . . . . . 241
Bulb fault See changing bulbs . . . . . . . . . . . . . . . . . . 266
C
Capacities Fuel tank . . . . . . . . . . . . . . . . . . . . . . . . . . . 288
Care See "Care of your vehicle" . . . . . . . . . . . . . 197
Vehicle interior . . . . . . . . . . . . . . . . . . . . . . 205
Care of your vehicle Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Caring for paintwork . . . . . . . . . . . . . . . . . . . . . 202
Carrier system . . . . . . . . . . . . . . . . . . . . . . . . . . 104 Catalytic converter . . . . . . . . . . . . . . . . . . . . . . 238
Control lamp . . . . . . . . . . . . . . . . . . . . . . . . 237
Malfunctions . . . . . . . . . . . . . . . . . . . . . . . . 237
CCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Central locking . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Central locking button . . . . . . . . . . . . . . . . . 34
locking and unlocking from the exterior . . . 33
locking and unlocking from the inside . . . . 34
"Safe" Deadlock system . . . . . . . . . . . . . . . . 35
Central locking system After airbag deployment . . . . . . . . . . . . . . . 32
Description . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Opening doors individually . . . . . . . . . . . . . 32
Centre console . . . . . . . . . . . . . . . . . . . . . . . 12, 13 Bottom part . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Top part . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Changing Windscreen wiper blades . . . . . . . . . . . . . 201
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . 252 Changing a wheel . . . . . . . . . . . . . . . . . . . 257
Preparations . . . . . . . . . . . . . . . . . . . . . . . . 253
Raising the vehicle . . . . . . . . . . . . . . . . . . . 255
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . 253
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . 266 Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
Front bumper . . . . . . . . . . . . . . . . . . . . . . . 269
Initial operations . . . . . . . . . . . . . . . . . . . . 267
in the headlights . . . . . . . . . . . . . . . . . . . . 268
Number plate light . . . . . . . . . . . . . . . . . . . 272
Rear lights . . . . . . . . . . . . . . . . . . . . . . . . . . 271
Sea changing bulbs . . . . . . . . . . . . . . . . . . 266
290 Index

stopping on a slope . . . . . . . . . . . . . . . . . . 131
Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 280
Driving abroad Check list . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Driving advice Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . 217
Temporary spare wheel . . . . . . . . . . . . . . . 217
Driving in winter Fuel consumption . . . . . . . . . . . . . . . . . . . . 146
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . 220
Tread depth . . . . . . . . . . . . . . . . . . . . . . . . . 216
Tyre pressures . . . . . . . . . . . . . . . . . . . . . . . 214
Windscreen washer reservoir . . . . . . . . . . 200
Driving through water . . . . . . . . . . . . . . . . . . . . 27
Driving tips Driving a loaded vehicle . . . . . . . . . . . . . . . 95
Dust filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
E
Ecological driving . . . . . . . . . . . . . . . . . . . . . . . 144
Economic driving . . . . . . . . . . . . . . . . . . . . . . . 144
EDL See "Brake assist systems" . . . . . . . . . . . . 140
Electrical components . . . . . . . . . . . . . . . 117, 242
Electrical consumers . . . . . . . . . . . . . . . . . . . . 118
Electrical power socket . . . . . . . . . . . . . . . . . . 117
electric windows Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Electric windows
see Windows . . . . . . . . . . . . . . . . . . . . . . . . 42
Electric Windows Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Electronic differential lock system (EDL) . . . . 140
Electronic immobiliser . . . . . . . . . . . . . . . . . . . 122
Electronic Stability Programme (ESP) . . . . . . . 139
Emergency brake indicator . . . . . . . . . . . . . . . 242
Emergency locking and unlocking . . . . . . . . . 244 Driver door . . . . . . . . . . . . . . . . . . . . . . . . . 244
Passenger door . . . . . . . . . . . . . . . . . . . . . 245
Rear lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245
Emission control system Control lamp . . . . . . . . . . . . . . . . . . . . . . . . 237
Engaging gears Automatic gearbox . . . . . . . . . . . . . . . . . . . 129
Manual gearbox . . . . . . . . . . . . . . . . . . . . . 128
Engine Noises . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Running-in . . . . . . . . . . . . . . . . . . . . . . . . . 223
Engine and ignition . . . . . . . . . . . . . . . . . . . . . 119 12 Volt sockets . . . . . . . . . . . . . . . . . . . . . . 117
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . 120
Immobiliser . . . . . . . . . . . . . . . . . . . . . . . . . 122
Starting the engine . . . . . . . . . . . . . . . . . . 121
Stopping the engine . . . . . . . . . . . . . . . . . 122
Unauthorised vehicle key . . . . . . . . . . . . . 120
Engine compartment . . . . . . . . . . . . . . . . . . . . 180 Engine coolant . . . . . . . . . . . . . . . . . . . . . . 189
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . 182 Vehicle battery . . . . . . . . . . . . . . . . . . . . . . 193
Water box . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . 189 Checking the level . . . . . . . . . . . . . . . . . . . 191
Filler neck . . . . . . . . . . . . . . . . . . . . . . . . . . 191
G 12 plus-plus . . . . . . . . . . . . . . . . . . . . . . 190
G 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Refilling . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Specifications . . . . . . . . . . . . . . . . . . . . . . . 190
Temperature gauge . . . . . . . . . . . . . . . . . . 189
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 189
Engine management . . . . . . . . . . . . . . . . . . . . 237 Control lamp . . . . . . . . . . . . . . . . . . . . . . . . 237
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185 changing . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Checking the oil level . . . . . . . . . . . . . . . . . 186
Consumption . . . . . . . . . . . . . . . . . . . . . . . 187
Control lamp . . . . . . . . . . . . . . . . . . . . . . . . 185
Dipstick . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Filler neck . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Specifications . . . . . . . . . . . . . . . . . . . . . . . 185
Topping up . . . . . . . . . . . . . . . . . . . . . . . . . 186
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 185
Environment Environmental friendliness . . . . . . . . . . . . 235
Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Event Data Recorder . . . . . . . . . . . . . . . . . . . . . 227
Exhaust gas purification system . . . . . . . . . . . 237
Exterior aerial . . . . . . . . . . . . . . . . . . . . . . . . . . 226
293
Index
