ESP Seat Mii 2014 SOUND SYSTEM 1.X

27
Audio mode
Connecting a portable navigator* Introduction
The radio system will only operate with a special portable navigator, the
SEAT Portable System, bought through SEAT.
Different media sources can be played through the portable navigator.
The portable navigator allows an additional display and controls of CD and
MP3 played through the radio system (track display, track selected from the
track list).
Additional information and warnings:
● Safety notes  ⇒ page 4
● Unit overview ⇒ page 6
● Basic information on use ⇒ page 8
● Media mode ⇒ page 19
Note
Please read and observe the manufacturer operating manual for the Media
and Telephone modes for navigating with the portable navigator. 
Connection and use
Mount and connect the portable navigator in the holder as described in the
manufacturer operating manual. Starting playback over the vehicle loudspeakers
● With the radio system in media mode, press the MEDIA
⇒ Fig. 1 unit but-
ton to display the selection menu for available media sources, and follow-
ing this, press the NAV
function button.
● OR: Repeatedly press the MEDIA unit button until NAV is selected.
PORTABLE will be shown on the screen of the radio system. Playback will continue from the last track played when the corresponding
media source is still available through the portable navigator.
When, at this moment, there is no media source available through the port-
able navigator, NO MEDIA will be briefly displayed on the screen of the radio
system and playback will resume from the last audio source activated on
the radio system.
Portable navigator media mode
Different media sources can be played through the portable navigator using
the vehicle speakers. Practically all playback control is carried out through
the portable navigator.
It is also possible to change tracks with the arrow button ⇒ Fig. 1 10
of the
radio system ⇒ page 19.
Displaying the track on the radio system is not possible.
The change to another audio source played through the portable navigation
system is carried out through the portable navigation system.
Only audio sources available on the system (Radio, CD, AUX) can be
changed through the radio system.
Navigation instructions
Navigation announcements are made through the vehicle speakers.
Operations are controlled through the portable navigator. 

29
Settings menu
Settings menu Sound settings (SOUND)
Introduction
Additional information and warnings:
● Safety notes  ⇒ page 4
● Unit overview ⇒ page 6
● Basic information on use ⇒ page 8 
Configuring the sound and volume settings
Fig. 26 Sound set-
tings.
Changing sound settings
● From any menu, press the unit button SOUND

⇒  Fig. 1 3 or .
● Press one of the function buttons at the bottom to open the correspond-
ing settings menu ⇒ Fig. 26.
● Turn the setting knob
⇒ Fig. 1 8
or press one of the arrow buttons 10 to
alter the current setting. Overview of sound settings
Function button: SettingTRE: TrebleBASS: BassBAL: volume distribution between right and left (Balance).FAD: volume distribution between front and rear (Fader).
The Fader setting may not be available depending on the model or the con-
figuration of your vehicle. 

30Settings menu

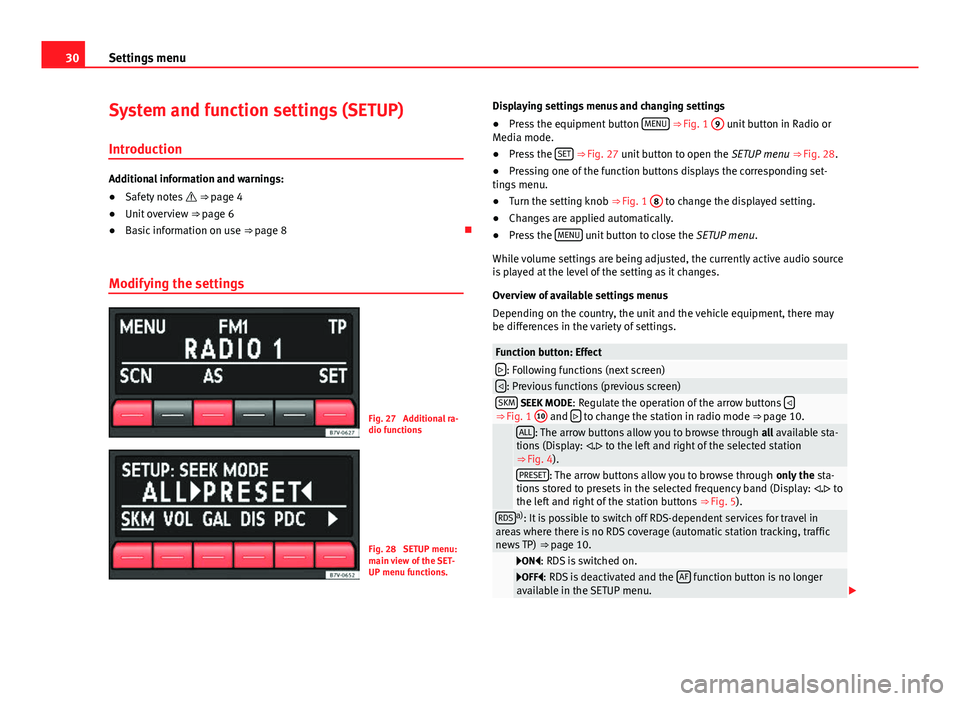

System and function settings (SETUP)
Introduction
Additional information and warnings:
● Safety notes  ⇒ page 4
● Unit overview ⇒ page 6
● Basic information on use ⇒ page 8 
Modifying the settings
Fig. 27 Additional ra-
dio functions
Fig. 28 SETUP menu:
main view of the SET-
UP menu functions. Displaying settings menus and changing settings
●
Press the equipment button MENU
⇒ Fig. 1
9 unit button in Radio or
Media mode.
● Press the SET
⇒ 
Fig. 27 unit button to open the SETUP menu ⇒ Fig. 28.
● Pressing one of the function buttons displays the corresponding set-
tings menu.
● Turn the setting knob ⇒ Fig. 1 8
to change the displayed setting.
● Changes are applied automatically.
● Press the MENU
unit button to close the
SETUP menu.
While volume settings are being adjusted, the currently active audio source
is played at the level of the setting as it changes.
Overview of available settings menus
Depending on the country, the unit and the vehicle equipment, there may
be differences in the variety of settings.
Function button: Effect: Following functions (next screen): Previous functions (previous screen)SKM SEEK MODE : Regulate the operation of the arrow buttons ⇒ 
Fig. 1 10 and
 to change the station in radio mode ⇒ page 10.

ALL: The arrow buttons allow you to browse through
all available sta-
tions (Display:  . to the left and right of the selected station
⇒ Fig. 4).
PRESET: The arrow buttons allow you to browse through only the sta-
tions stored to presets in the selected frequency band (Display:  . to
the left and right of the station buttons ⇒ Fig. 5).
RDSa)
: It is possible to switch off RDS-dependent services for travel in
areas where there is no RDS coverage (automatic station tracking, traffic
news TP) ⇒ page 10.
ON: RDS is switched on.OFF: RDS is deactivated and the AF function button is no longer
available in the SETUP menu. 
