Seat Mii 2016 Owner's manual

Wheels and tyres
If the tyre is mounted in the opposite direc-
tion of r
ot
ation, drive with extreme caution,
as the tyre is no longer being used correctly.
This is of particular importance when the
road surface is wet. Change the tyre as soon
as possible or remount it with the correct di-
rection of rotation.
Tyre load rating
The load rating code indicates the maximum
load in kilogrammes each wheel can carry
(load capacity).
425 kg
462 kg
487 kg
515 kg
545 kg
615 kg
Speed rating
The speed rating indicates the maximum
speed permitted for the tyres. max. 150 km/h (93 mph)
max. 160 km/h (99 mph)
max. 170 km/h (106 mph)
max. 180 km/h (112 mph)
max. 190 km/h (118 mph)
max. 200 km/h (124 mph)
max. 210 km/h (130 mph)
78
81
83
85
87
91
P
Q
R
S
T
U
H max. 240 km/h (149 mph)
max. 240 km/h (149 mph)
max. 270 km/h (168 mph)
m
ax. 300 km/h (186 mph)
Some manufacturers use the letters “ZR” for
tyres with a maximum authorised speed
above 240 km/h. V
Z
W
Y
209
Technical data
Advice
Operation
Emergencies
Safety

Technical data
Technical data
T ec
hnic
al features
Important information Introduction The information in the vehicle documentation
alwa
y

s takes precedence over the informa-
tion in this Instruction Manual.
All technical specifications provided in this
documentation are valid for the standard
model in Spain. The vehicle data card inclu-
ded in the Maintenance Programme or the
vehicle registration documents shows which
engine is installed in the vehicle.
The figures may be different depending
whether additional equipment is fitted, for
different models, for special vehicles and for
other countries. Abbreviations used in the Technical Specifi-
cation
s

section
kWKilowatt, engine power measurement.
PSPferdestärke (horsepower), formerly
used to denote engine power.
rpmRevolutions per minute - engine speed.
NmNewton metres, unit of engine torque.
CZCetane number, indication of the diesel
combustion power.
RONResearch octane number, indication of
the knock resistance of petrol. Vehicle identification data
Fig. 179
Vehicle data label. Fig. 180
Vehicle identification number. Vehicle identification number
The
v
ehic
le identification number (chassis
number) can be read from outside the vehicle
through a viewer in the windscreen
››› Fig. 180. This viewer is located in the lower
part of the windscreen. The vehicle identifica-
tion number (chassis number) is also stam-
ped on the right water drain channel. The wa-
ter drain channel is located between the sus-
pension tower and the wing. Open the bon-
net to read the vehicle identification number
 .
Vehicle data plate
The vehicle data label ››› Fig. 179 is at the
front of the spare wheel well. It contains the
following data:
Vehicle identification number (chassis
number).
Vehicle type, engine power, gearbox type.
1 2
210

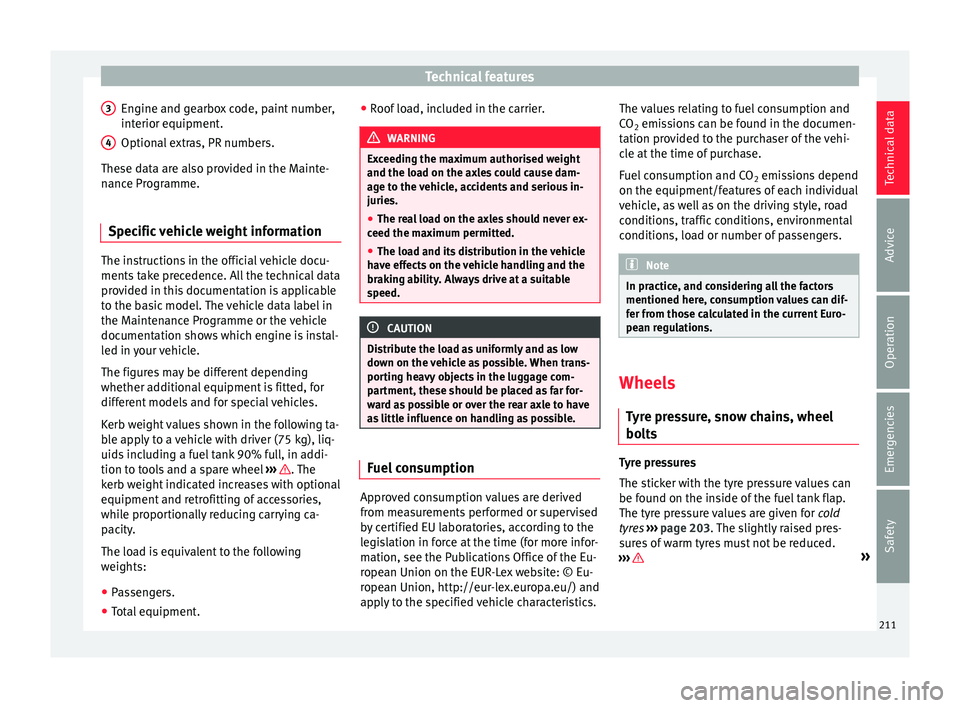

Technical features
Engine and gearbox code, paint number,
int erior equipment
.
Option
al extras, PR numbers.
These data are also provided in the Mainte-
nance Programme.
Specific vehicle weight information The instructions in the official vehicle docu-
ments t
ak

e precedence. All the technical data
provided in this documentation is applicable
to the basic model. The vehicle data label in
the Maintenance Programme or the vehicle
documentation shows which engine is instal-
led in your vehicle.
The figures may be different depending
whether additional equipment is fitted, for
different models and for special vehicles.
Kerb weight values shown in the following ta-
ble apply to a vehicle with driver (75 kg), liq-
uids including a fuel tank 90% full, in addi-
tion to tools and a spare wheel ››› . The
k erb w
eight

indicated increases with optional
equipment and retrofitting of accessories,
while proportionally reducing carrying ca-
pacity.
The load is equivalent to the following
weights:
● Passengers.
● Total equipment.
3 4 ●
Roof
lo

ad, included in the carrier. WARNING
Exceeding the maximum authorised weight
and the loa d on the ax

les could cause dam-
age to the vehicle, accidents and serious in-
juries.
● The real load on the axles should never ex-
ceed the max
imum permitted.
● The load and its distribution in the vehicle
have eff
ects on the vehicle handling and the
braking ability. Always drive at a suitable
speed. CAUTION
Distribute the load as uniformly and as low
down on the v

ehicle as possible. When trans-
porting heavy objects in the luggage com-
partment, these should be placed as far for-
ward as possible or over the rear axle to have
as little influence on handling as possible. Fuel consumption
Approved consumption values are derived
fr
om me
a

surements performed or supervised
by certified EU laboratories, according to the
legislation in force at the time (for more infor-
mation, see the Publications Office of the Eu-
ropean Union on the EUR-Lex website: © Eu-
ropean Union, http://eur-lex.europa.eu/) and
apply to the specified vehicle characteristics. The values relating to fuel consumption and
CO
2 emis

sions can be found in the documen-
tation provided to the purchaser of the vehi-
cle at the time of purchase.
Fuel consumption and CO 2 emissions depend
on the equipment/features of each individual
vehicle, as well as on the driving style, road
conditions, traffic conditions, environmental
conditions, load or number of passengers. Note
In practice, and considering all the factors
mentioned here, c on

sumption values can dif-
fer from those calculated in the current Euro-
pean regulations. Wheels
Ty
r

e pressure, snow chains, wheel
bolts Tyre pressures
The s
tic
k

er with the tyre pressure values can
be found on the inside of the fuel tank flap.
The tyre pressure values are given for cold
tyres ›››
page 203. The slightly raised pres-
sures of warm tyres must not be reduced.
››› »
211
Technical data
Advice
Operation
Emergencies
Safety

Technical data

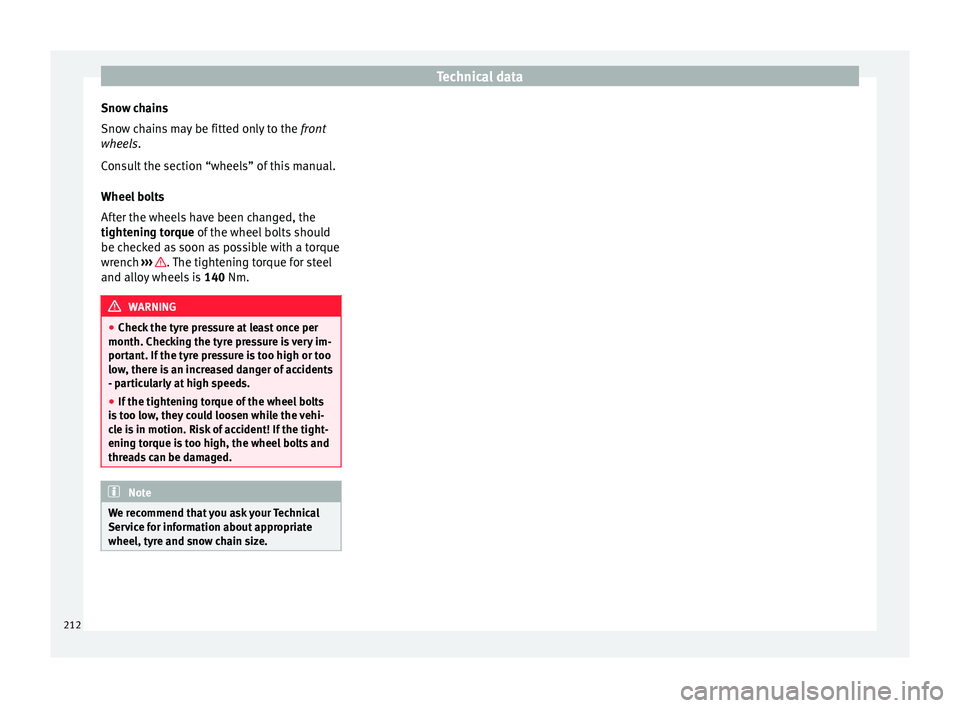

Snow chains
Sno w c
h
ains may be fitted only to the front
wheels.
Consult the section “wheels” of this manual.
Wheel bolts
After the wheels have been changed, the
tightening torque of the wheel bolts should
be checked as soon as possible with a torque
wrench ››› . The tightening torque for steel
and al lo
y

wheels is 140 Nm. WARNING
● Check the ty

re pressure at least once per
month. Checking the tyre pressure is very im-
portant. If the tyre pressure is too high or too
low, there is an increased danger of accidents
- particularly at high speeds.
● If the tightening torque of the wheel bolts
is t
oo low, they could loosen while the vehi-
cle is in motion. Risk of accident! If the tight-
ening torque is too high, the wheel bolts and
threads can be damaged. Note
We recommend that you ask your Technical
Serv ic

e for information about appropriate
wheel, tyre and snow chain size. 212

Technical features
Engine data P etr
o
l engine 1.0 44 kW (60 PS) Engine specifications
Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm
3
)Fuel
44 (60)/5,000-6,00095/3,000-4,3003/999Super 95 RON/Normal 91 a)
RON
a) Slight power loss.
PerformanceManualEcomotiveStart-Stop
EcomotiveAutomatic
Top speed (km/h)160 (4)161 (4)161 (4)160 (4)
Acceleration from 0-80 km/h (seconds)9.19.19.49.4
Acceleration from 0-100 km/h (seconds)14.414.415.315.3
Weights (in kg)
Gross vehicle weight1,2901,2901,3001,290
Weight in running order (with driver)929940931932
Gross front axle weight680680680680
Gross rear axle weight640640640640
Permitted roof load50505050 213
Technical data
Advice
Operation
Emergencies
Safety

Technical data
Petrol engine 1.0 55 kW (75 PS) Engine specificationsPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm
3
)Fuel
55 (75)/6,20095/3,000-4,3003/999Super 95 RON/Normal 91 a)
RON
a) Slight power loss.
PerformanceManualStart-StopStart-Stop
EcomotiveAutomatic
Top speed (km/h)171 (4)172 (4)172 (4)171 (4)
Acceleration from 0-80 km/h (seconds)8.38.39.29.2
Acceleration from 0-100 km/h (seconds)13.213.213.913.9
Weights (in kg)
Gross vehicle weight1,2901,2901,3001,290
Weight in running order (with driver)929940931932
Gross front axle weight680680680680
Gross rear axle weight640640640640
Permitted roof load50505050 214

Technical features
Petrol/CNG engine 1.0 50 kW (68 PS) Engine specificationsPower output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/capacity (cm
3
)Fuel
50 (68)/6,20090/3,0003/999Super 95 RON / Normal 91 a)
RON
a) Slight power loss.
Performance
Top speed (km/h)164 (4)
Acceleration from 0-80 km/h (seconds)10.3
Acceleration from 0-100 km/h (seconds)16.3
Weights (in kg)
Gross vehicle weight1,370
Weight in running order (with driver)1,031
Gross front axle weight680
Gross rear axle weight640
Permitted roof load50 215
Technical data
Advice
Operation
Emergencies
Safety

Technical data
Dimensions Fig. 181
Dimensions Mii 3-doorMii 5-door
A/BFront and rear projection (mm)595/542
CWheelbase (mm)2,420
DLength (mm)3,557
E/FFront/rear a)
track width (mm)1,428/1,424
GWidth (mm)1,6411,645
HHeight at kerb weight (mm)1,478
Turning radius (m)approx. 9.8
a) This data will change depending on the type of wheel rim.
216

Index
Index
A
Abr o
a
d
extended stay abroad with your vehicle . . . . . 179
sale of vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . 179
ABS see Anti-lock brake system . . . . . . . . . . . . . . . 139
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Acoustic alarm seatbelt unfastened . . . . . . . . . . . . . . . . . . . . . . 54
Adjust front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Adjusting lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
rear head restraints . . . . . . . . . . . . . . . . . 51, 112
seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Adjusting the head restraints rear head restraints . . . . . . . . . . . . . . . . . . . . . 112
Advice for driving spare wheel or temporary spare wheel . . . . . . 206
Airbag covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . 14, 59 activation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
cleaning dash panel . . . . . . . . . . . . . . . . . . . . . 178
control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
front airbags . . . . . . . . . . . . . . . . . . . . . . . . . 14, 62
functioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
locking the vehicle after deployment . . . . . . . . 95
repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
use of child seats . . . . . . . . . . . . . . . . . . . . . . . . 15
vehicle care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178 Air conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
air recir culation . . . . . . . . . . . . . . . . . . . . . . . . . 130
air vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
application tips . . . . . . . . . . . . . . . . . . . . . . . . . 132
instructions for use . . . . . . . . . . . . . . . . . . . . . 132
water under the vehicle . . . . . . . . . . . . . . . . . . 133
Air conditioning climatronic . . . . . . . . . . . . . . . . . . . . . . . . 27, 130
malfunction in the operation . . . . . . . . . . . . . . 132
Air recirculation . . . . . . . . . . . . . . . . . . . . . . . . . . 130 climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
connect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
disconnecting . . . . . . . . . . . . . . . . . . . . . . . . . . 130
functioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Air vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . 166, 180
Anti-freeze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Anti-lock brake system . . . . . . . . . . . . . . . . . . . . . 139
Anti-lock system . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Anti-puncture . . . . . . . . . . . . . . . . . . . . . . . . . . 35, 72
Anti-puncture kit . . . . . . . . . . . . . . . . . . . . . . . . 35, 72 check after 10 minutes . . . . . . . . . . . . . . . . . . . . 74
Anti-puncture set . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Anti-theft security system . . . . . . . . . . . . . . . . . . . 97
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Aspects to take into account before starting the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
ASR see Traction control system . . . . . . . . . . . . . . . 139
Assistance systems brake assist system (BAS) . . . . . . . . . . . . . . . . 140
cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . 155
electronic differential lock (EDS) . . . . . . . . . . . 140
optical parking system (OPS) . . . . . . . . . . . . . 155
parking aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
parking distance warning system . . . . . . . . . . 154
safety Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Assisted starting . . . . . . . . . . . . . . . . . . . . . . . . . . 43 Assist systems
traction contr ol (ASR) . . . . . . . . . . . . . . . . . . . . 140
traction control (TC) . . . . . . . . . . . . . . . . . . . . . 140
Audible warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Audible warnings control and warning lamps . . . . . . . . . . . . . . . . 24
speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Automatic belt retractor . . . . . . . . . . . . . . . . . . . . . 58
Automatic device disconnection battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Automatic dipped beam control . . . . . . . . . . . . . 104
Automatic gearbox driving tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
ignition key removal lock . . . . . . . . . . . . . . . . . 136
kick-down . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
starting on a slope . . . . . . . . . . . . . . . . . . . . . . 147
stopping on a slope . . . . . . . . . . . . . . . . . . . . . 147
Automatic gear change . . . . . . . . . . . . . . . . . . . . 145
Axle loads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
B Bag support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
BAS see Brake assist systems . . . . . . . . . . . . . . . . . 140
Battery changing in the vehicle key . . . . . . . . . . . . . . . . 93
Battery acid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Before starting the vehicle . . . . . . . . . . . . . . . . . . 47
Belt tension device service and disposal . . . . . . . . . . . . . . . . . . . . . 58
Belt tensioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Belt tension limiter . . . . . . . . . . . . . . . . . . . . . . . . . 58
Belt tightening . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10, 186
217

Index
Boot hatch emer g
ency
locking and unlocking . . . . . . . . . . . 10
Brake assist system . . . . . . . . . . . . . . . . . . . . . . . 139
Brake assist systems . . . . . . . . . . . . . . . . . . . . . . 139
brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Brake fluid specification . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137 brake assist systems . . . . . . . . . . . . . . . . . . . . 139
brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
brake fluid level . . . . . . . . . . . . . . . . . . . . . . . . 194
brake pads . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
brake servo . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
changing the brake fluid . . . . . . . . . . . . . . . . . 194
control and warning lamps . . . . . . . . . . . . . . . 138
running in new brake pads . . . . . . . . . . . . . . . 142
Brake servo . . . . . . . . . . . . . . . . . . . . . . . . . 139, 142
Brake system fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Brake systems . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Braking brake assist system . . . . . . . . . . . . . . . . . . . . . 139
Bulb fault see "Changing bulbs" . . . . . . . . . . . . . . . . . . . . 79
C Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 windscreen washer liquid . . . . . . . . . . . . . . . . 195
Capacity natural gas tank . . . . . . . . . . . . . . . . . . . . . . . . 185
Caring for paintwork . . . . . . . . . . . . . . . . . . . . . . . 173
Caring for the vehicle exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . 152 control and warning lamps . . . . . . . . . . . . . . . 151
malfunction in the operation . . . . . . . . . . . . . . 152 CCS
see cruise c ontrol . . . . . . . . . . . . . . . . . . . . . . . . 24
Central locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94 emergency locking . . . . . . . . . . . . . . . . . . . . . . . . 9
opening doors individually . . . . . . . . . . . . . . . . 95
Central locking system after airbag deployment . . . . . . . . . . . . . . . . . . 95
description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
remote control key . . . . . . . . . . . . . . . . . . . . . . . 95
Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . 36, 72 subsequent tasks . . . . . . . . . . . . . . . . . . . . . . . . 41
wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Changing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . 79 front bumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
number plate light . . . . . . . . . . . . . . . . . . . . . . . 83
rear lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
side turn signal . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Changing gear . . . . . . . . . . . . . . . . . . . . . . . . . . . 143 automatic gear change . . . . . . . . . . . . . . . . . . 145
control and warning lamps . . . . . . . . . . . . . . . 144
engaging the gears (automatic gearbox) . . . . 145
tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Changing the blades . . . . . . . . . . . . . . . . . . . . . . . 75
Changing the wiper blades . . . . . . . . . . . . . . . . . . 45
Charging the battery . . . . . . . . . . . . . . . . . . . . . . . 43
Child safety seat securing with the seat belt . . . . . . . . . . . . . . . . 18
Child seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16, 66 disabling the front passenger front airbag . . . . 15
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . 18, 69
mounting child seats . . . . . . . . . . . . . . . . . . . . . 17
mounting systems . . . . . . . . . . . . . . . . . . . . . . . 17
on the front passenger seat . . . . . . . . . . . . . . . . 68
on the rear seats . . . . . . . . . . . . . . . . . . . . . . . . . 69 regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
safety
instructions . . . . . . . . . . . . . . . . . . . . 16, 65
top Tether system . . . . . . . . . . . . . . . . . . . . . . . . 19
transporting children in the vehicle . . . . . . . . . 67
weight categories . . . . . . . . . . . . . . . . . . . . . . . . 67
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . 120
City Safety Assist function . . . . . . . . . . . . . . . . . . 156 control and warning lamps . . . . . . . . . . . . . . . 157
function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
special driving situations . . . . . . . . . . . . . . . . . 159
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170 compartments . . . . . . . . . . . . . . . . . . . . . . . . . 177
dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
engine compartment . . . . . . . . . . . . . . . . . . . . 175
fabrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
padding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
seatbelts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
textile covers . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
washing the vehicle . . . . . . . . . . . . . . . . . . . . . 171
washing the vehicle with high pressure clean-ers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Cleaning the vehicle high pressure cleaners . . . . . . . . . . . . . . . . . . . 172
climatronic air recirculation . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Climatronic air distribution . . . . . . . . . . . . . . . . . . . . . . . . . . 28
AUTO (automatic mode) . . . . . . . . . . . . . . . . . . . 27blower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
cooling mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
disconnecting . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
regulating the temperature . . . . . . . . . . . . . . . . 27
removing ice from the windows . . . . . . . . . . . . . 28
218
