ESP Seat Tarraco 2020 Owner's Guide

Driving
Whenever the obstacle is located in the vehi-
cl e
’s direction of travel, the corresponding
audible warning will sound.
As the vehicle approaches an obstacle, the
segments are displayed closer to the vehicle.
When the penultimate segment is displayed,
this means that the vehicle has reached the
collision zone. In the collision zone, the obsta-
cles are represented in red (including those
out of the path). Do not continue to reverse
››› in Introduction on page 289,
››

› in
Intr oduction on page 290
!
If you are equipped with the Top View
Camera*
Segments are not displayed when the vehicle
is equipped with Top View Camera*.
The Parking Aid system will issue an audible
warning for objects that are near the rear of
the vehicle, and the Top View Camera* im-
age will be available on the screen, giving a
real image of the objects around the car.
Trailer Assist
Introduction Trailer assist helps the driver to reverse and
manoeuvr
e with a tr

ailer. By moving the rotary knob of the exterior mir-
rors, the tr

ailer assist directs the trailer that is
hitched. The driver has to accelerate, change
gears and brake!
System limitations
Under certain circumstances, the camera
does not detect objects such as trailer draw
bars, bars, fences, posts or thin trees, or an
open (or opening) rear lid, which could dam-
age the vehicle.
In order to guarantee good system operation,
keep the camera clean, free of snow or ice,
and do not cover it with adhesives or other
objects. Do not allow the draw bar to be cov-
ered by external influences.
Use the trailer manoeuvre assistant only
when the rear lid is closed correctly. CAUTION
The trailer maneuver assistant does not
t ak

e the vehicle’s surrounding as a refer-
ence. No obstacle detection takes place.
The driver alone has to assess whether it is
possible to manoeuvre safely with the tow
vehicle and trailer set.

Practical tips
Incorrect handling of the high-voltage
batt ery can cause serious injuries or
death. Maint
enance work on the high-
voltage battery must only be performed
by specialized personnel with the corre-
sponding qualifications and training. Nev-
er modify the high-voltage battery. When
the high-voltage battery is open, ensure it
does not come into contact with water or
other liquids. Liquids may cause short cir-
cuits, electrical shocks and burns.

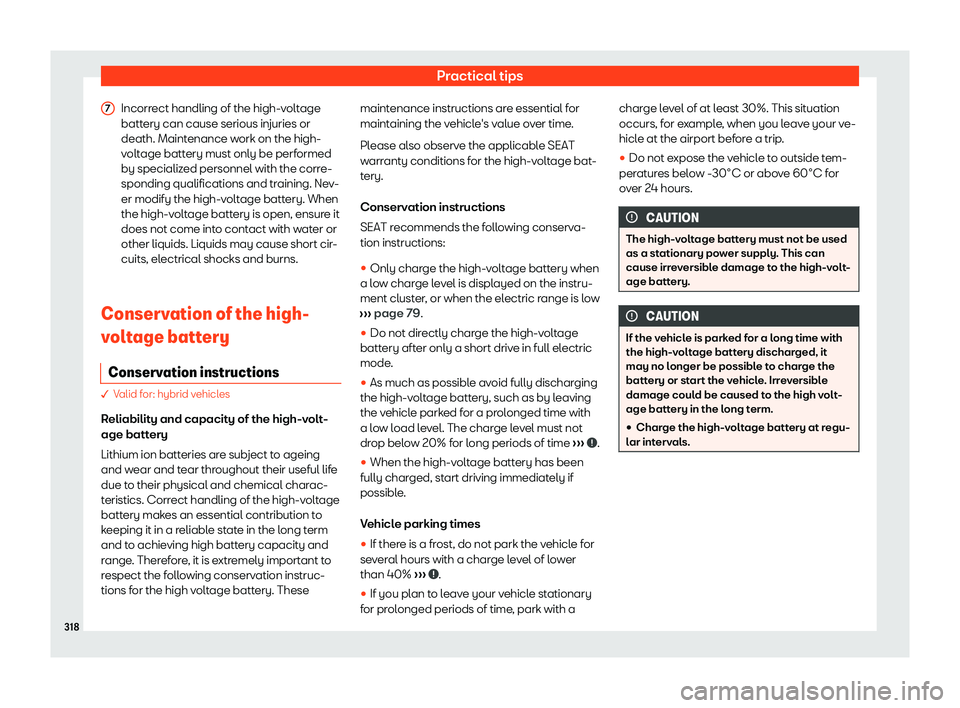

Conservation of the high-
volt
age battery
Conservation instructions  V
alid f
or: hybrid vehicles
Reliability and capacity of the high-volt-
age battery
Lithium ion batteries are subject to ageing
and wear and tear throughout their useful life
due to their physical and chemical charac-
teristics. Correct handling of the high-voltage
battery makes an essential contribution to
keeping it in a reliable state in the long term
and to achieving high battery capacity and
range. Therefore, it is extremely important to
respect the following conservation instruc-
tions for the high voltage battery. These 7 maintenance instructions are essential for
maint
aining the v

ehicle's value over time.
Please also observe the applicable SEAT
warranty conditions for the high-voltage bat-
tery.
Conservation instructions
SEAT recommends the following conserva-
tion instructions:

Checking and refilling levels
The position of the oil filler opening is shown
in the corr esponding engine compartment il
-
lustration ››› page 340
.
Engine oil specification ››› page 340
. WARNING
Oil is highly inflammable! Ensure that no oil
comes int o cont

act with hot engine compo-
nents when topping up. CAUTION
If the oil level is above area ››

› Fig. 241
A ,
do not st ar
t the engine. This could result in
damage to the engine and catalytic con-
verter. Contact a specialised workshop. For the sake of the environment
The oil level must never be above zone
› ›

› Fig. 241
A . Otherwise oil can be drawn in
thr ough the cr
ankcase breather and leak
into the atmosphere via the exhaust sys-
tem. Note
Before a long trip, we recommend finding
an engine oil that conf orms t

o the corre-
sponding VW specifications and recom-
mend keeping it in the vehicle. This way, the
correct engine oil will always be available
for a top-up if needed. Engine oil change
We recommend that you have the engine oil
changed by a T
echnical Service

. WARNING
Only change the engine oil yourself if you
hav e the specialist kno

wledge required!

Maintenance
Washing the vehicle The longer you take to clean the tanks, e.g.
r
emains of insects, bir
d excrements, tree resin
or anti frost salt adhered to your vehicle, the
more damage it can cause to the surface.
High temperatures, for instance strong sun-
light, further intensify the damage.
Before washing the car, soften the dirt using
plenty of water.
To remove encrusted dirt such as insects, bird
droppings or tree resin, use a lot of water and
a microfibre cloth.
Have the underside of the vehicle washed af-
ter the end of the anti frost salts in winter.
High pressure cleaning equipment
When washing the vehicle with a high-pres-
sure cleaner, always follow the operating in-
structions for the equipment. This applies
particularly to the operating pressure and the
distance between the spraying water. Do not
aim the jet directly to the side window gas-
kets, doors, covers or the panoramic sun-
roof*; the same applies to tyres, rubber ho-
ses, soundproofing material, sensors* or
camera lenses*. Keep a distance of at least
40 cm.
Do not remove snow and ice with a high-
pressure cleaner. Do not use a nozzle that sprays the water out
in a dir
ect str

eam or one that has a rotating
jet for forcing off dirt.
The water temperature must not exceed
60°C.
Automatic car washes
Spray the vehicle before starting the car
wash.
Make sure that the windows and the panor-
amic sunroof* are closed and the windscreen
wipers are deactivated. Bear in mind the in-
structions of the car wash tunnel operator,
especially if your vehicle has detachable
parts.
Use of car washes without brushes if possible.
Washing by hand
Clean your vehicle from top to bottom with a
soft sponge or with a brush. Only use clean-
ing products that do not contain solvents.
Washing vehicles with a matte paint by
hand
To prevent damage to the vehicle when
washing it, first remove the thicker dust and
dirt. To remove traces of insects, grease and
fingerprints, it is best to use a special cleaner
for matte paint. Apply the product with a microfibre cloth. To
avoid damaging the surf
ace of the paint, do
not apply too much pressure.
Rinse with plenty of water. Then clean it with
a neutral cleaning product and a soft microfi-
bre cloth.
Rinse the vehicle again with plenty of water
and then leave it to dry. Remove traces of
water with a leather cloth. WARNING

Maintenance
Problem Solution
Corrosion Have your specialised work-
shop t
ak
e care of this
The water does
not cr eat

e drop-
lets on the clean
paint Maintain with hard wax (at
l
east 2 times a year)
No shine de-
spit e sober main-
t

enance/paint Treat with suitable wax and ap-
ply paint pr
eserv
ative after-
wards if the wax used does not
contain preservative ingredi-
ents
Tanks, e.g. insect
r emains, bir

d
droppings, tree
sap, road salt Immediately soften with water
and remo
ve with a microfibre
cloth
Fat-based dirt,
e.g. cosmetic pr

oducts or
sunscreen Delete immediately with a neu-
tral soap solution
a)
and a soft
cl
oth a)
Neutral soap solution: two tablespoons maximum in
1 litr e of w

ater
Carbon fibre parts Problem Solution
Dirt Clean the same way as pain-
ted parts

Vehicle maintenance
Problem Solution
Grease-based
dirt, e .g. oil
, make-
up, etc. Apply a neutral soap solution
a)
.
Absorb the dissolv ed grease
and paint particles drying with
an absorbent cloth, in case you
must treat it with water after-
wards
Special dirt, e.g.
pens, nail polish,
dispersion paint,
shoe cr eam et

c.Special stain remove: dry with
an absorbent cloth, if applica-
bl
e, apply neutral soap solution
afterwards a) a)
Neutral soap solution: two tablespoons maximum in
1 litr e of w

ater
Natural leather Problem Solution
Recent dirt Cotton cloth with neutral soap solutiona)
Water-based dirt,
e.g. coff
ee, tea,
blood etc. Recent stains: absorbent cloth
Dry stains: st
ain remover suita-
ble for leather
Grease-based
dirt, e .g. oil

, make-
up, etc. Recent stains: absorbent cloth
and suitabl
e stain remover for
leather
Dry stains: grease solvent
spray
Special dirt, e.g.
pens, nail polish,
dispersion paint,
shoe cr eam et

c.Stain remover suitable for
leather Problem Solution
Care Apply preservative cream regu-
larly t

o protect from sunlight.
Use a colour preservative if re-
quired a)
Neutral soap solution: two tablespoons maximum in
1 litr e of w

ater
Carbon fibre parts Problem Solution
Dirt Clean like plastic parts Take special care with...
Headlights/tail lights
