Seats and headrests
The position will be saved automatically in
the SEAT Connect Activ e user when the igni-
tion is s
witched off 1)
. WARNING

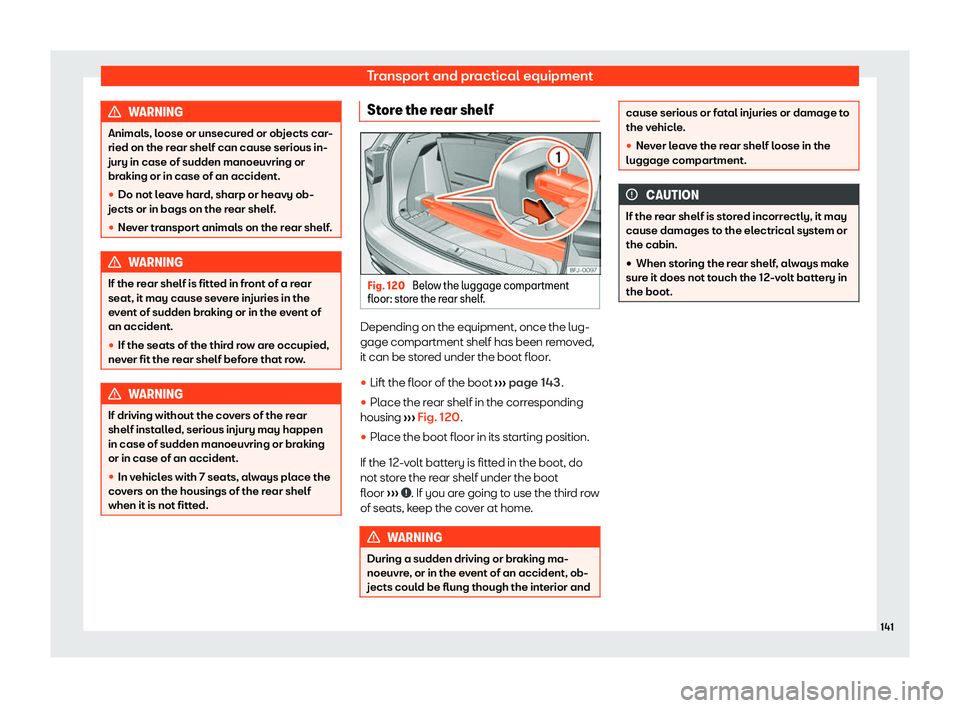

Transport and practical equipment
WARNING
Animals, loose or unsecured or objects car-
ried on the r ear shelf can cause serious in-
jury in case of sudden manoeuvring or
br
aking or in case of an accident.

Operation
Bag hooks Fig. 128
In the luggage compartment: bag
hooks. There may be hooks for hanging bags on
both sides of the luggage compartment
› ›
› Fig. 128.
The retaining hooks have been designed to
secure light shopping bags. WARNING
Never use the hooks to hang luggage or
other ob jects. In case of sudden br

aking or
an accident, the hooks could break. CAUTION
Each hook is designed for a maximum load
of 2.5 k g. Trapdoor for long loads
Fig. 129
Backrest of the rear seat: opening the
tr apdoor f

or long loads Depending on the features, on the rear seat,
behind the centr
al armr

est, there is a tail-
board for transporting long items in the interi-
or, such as skis.
Opening the tailboard for long items

Operation

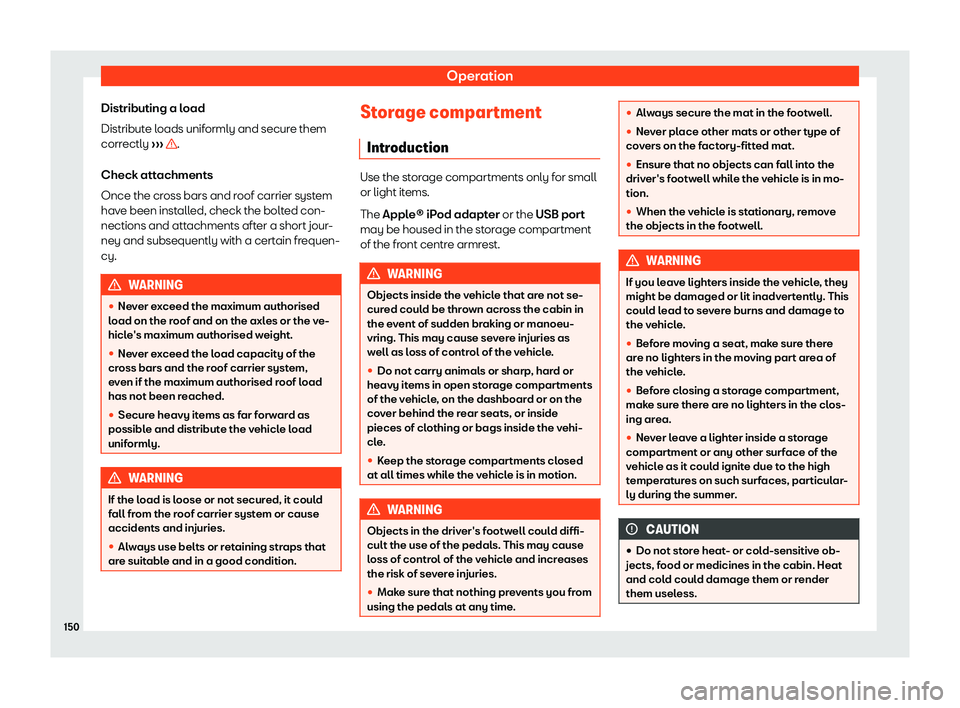

Distributing a load
Distribut e l
oads uniformly and secure them
correctly ››› .
Check att achments
Once the cr

oss bars and roof carrier system
have been installed, check the bolted con-
nections and attachments after a short jour-
ney and subsequently with a certain frequen-
cy. WARNING

Operation
lead to strange noises and damage to the
v
ehicl
e. You should therefore not keep very

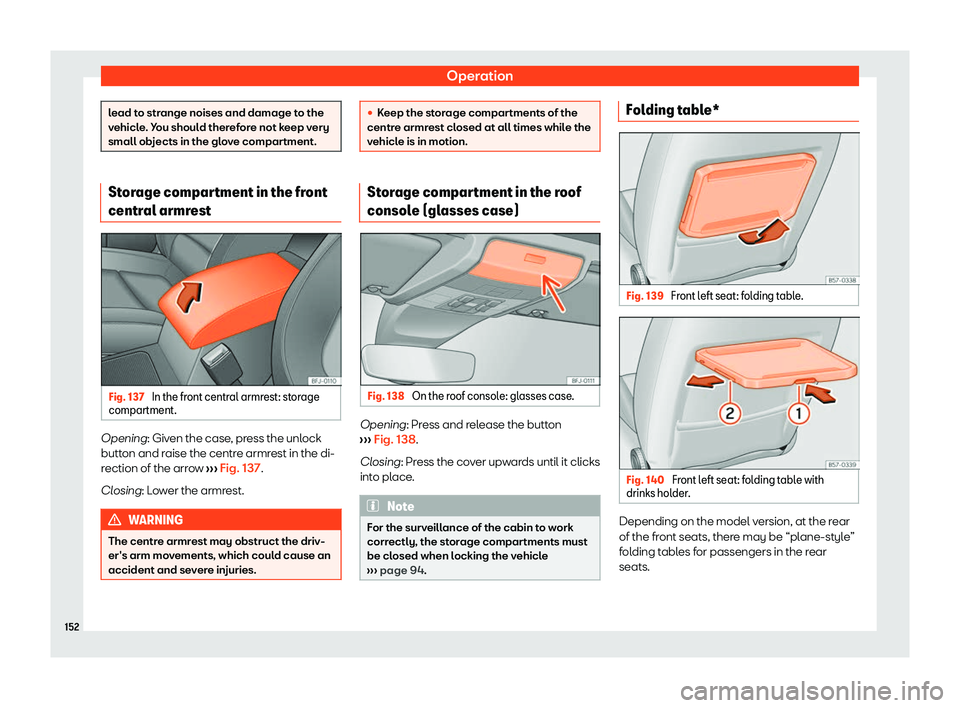

small objects in the glove compartment. Storage compartment in the front
centr
al armr

estFig. 137
In the front central armrest: storage
compartment. Opening: Giv
en the case

, press the unlock
button and raise the centre armrest in the di-
rection of the arrow ››› Fig. 137
.
Closing: Lower the armrest. WARNING
The centre armrest may obstruct the driv-
er 's arm mo

vements, which could cause an
accident and severe injuries.

Operation
Fig. 143
In the rear central armrest: drinks
hol der
. The storage compartments of the driver and
passenger doors cont
ain a bottl

e holder.
The folding tables of the front seats contain
more bottle holders ››› page 152
.
Depending on the features, there are two
drink holders in the front part of the centre
console ››› Fig. 142
.
Open and close the drink holder (variant 1)
Opening: Move the lid backwards.
Closing: Move the lid forwards.
Adjust the drink holder (variant 1)
To adapt the drink holder to the size of the
container, press the corresponding button
››› Fig. 142
1 . The fastening ring
2 opens.When you are not using the drink holder any
mor
e

, press the corresponding ring 2 in the
opposit e dir
ection to the arrow until it locks.
Drinks holder in the rear central armrest
Use: Lower the centre armrest.
When the drink holder is no longer in use, lift
the armrest again. WARNING
Incorrect use of the bottle holders may
cause injuries.

Operation
LED on the power socket
Flashing red
light: There is an anomaly, e.g. dis-
connection due t
o a curr
ent
surge or overheating. Disconnection due to overheating
When the t
emper

ature exceeds a certain val-
ue, the 230 volt socket inverter is automati-
cally disconnected. The disconnection pre-
vents overheating when the power consump-
tion of the connected devices is excessive or
the ambient temperature is very high. The
230-volt power supply can be used once
again after a cooling time. First unplug the
connector of the connected device and then
plug it back in again. This prevents the elec-
trical device from being switched on again if
this is not wanted. WARNING
The electrical system is under high voltage!

Air conditioning
must not be blocked by snow, mud or any-
thing el se
. WARNING
The auxiliary heater exhaust fumes contain
carbon mono xide

, an odourless and colour-
less toxic gas. Carbon monoxide can cause
people to lose consciousness. It can also
cause death.

Infotainment system
Wi-Fi or Bluetooth®. Wireless Full Link is now
configur ed.
The pairing has concluded. The connect
ed
mobile phone device can also use Wireless
Full Link from now on without the USB con-
nection.
If pop-up menus are rejected during the con-
nection process, Wireless Full Link will not be
available. In this case, SEAT recommends re-
moving the devices in both the iPhone set-
tings and the infotainment system, and re-
starting the connection process. WARNING
The use of applications while driving can
distr act your att

ention from the traffic. Any
distraction affecting the driver in any way
can lead to an accident and cause injuries.

Driving
Hybrid B (use the batt ery's char
ge)1)
This is the operating mode that allows you to
save most fuel.
The operating mode control unit tries to make
the most of the battery charge. For this pur-
pose, with active directions the navigation
data are also accessed.
In this operating mode, the electric motor and
the combustion engine share the work of
driving the vehicle.
In hybrid operating mode, the power from the
battery charge is used optimally. If route
guidance is activated, the vehicle may auton-
omously recharge the high-voltage battery
using the combustion engine.
Manual control of the battery charge
Manual control of the battery charge is only
possible in Hybrid operating mode. The op-
tion selected by the user is only valid until the
ignition is switched off or the vehicle is switch-
ed to Hybrid mode or E-MODE.
Press the function button  and use the sym-
bols , = and  to control the battery charge:
Pressing this symbol selects a higher
theoretical charge level. The vehicle
 tries to reach that new theoretical high-
volt
age battery charge level while driv-
ing. The vehicle is powered by the com-
bustion engine. If the combustion engine
has “excess” power, it is used to charge
the high-voltage battery. This option in-
creases fuel consumption. SEAT there-
fore recommends using the charging
socket to charge the high-voltage bat-
tery, whenever possible ››› page 320
.
The high-voltage battery charge level is
kept at around the current level while
driving. If you accelerate harder or in-
crease the vehicle speed, the combus-
tion engine starts up. When permitted by
the driver’s demand for acceleration and
the vehicle speed, the vehicle switches
back to electric mode.
Pressing this symbol selects a lower the-
oretical charge level. The vehicle only
uses the battery's charge when it is
above the selected theoretical charge
level. The rest is kept until the end of the
journey.
=
 Show the active operating mode
The operating mode activ
e at any given time
is displayed on the instrument cluster display,
e.g. B. WARNING
Switching to a different operating mode
whil e driving can distr

act you from traffic
conditions and cause accidents. Note
Information about the operating mode that
is curr ently activ

e is displayed on the in-
strument cluster display, along with the
charge level of the high-voltage battery. Troubleshooting
@
The E-MODE oper
ating mode is not
av
ailable
The indicator lamp lights up in white.
The E-MODE operating mode N
(driving in
electric mode) cannot be used temporarily
because one or more conditions are not met.
