Driving
Avoid undertaking on the right 1)
If a v ehicl
e is detected in the left lane that is
travelling at a speed slower than that set by
the driver, it will brake the vehicle within the
comfort limits of the system to avoid passing
it on the right ››› Fig. 187
.
You can cancel this regulation by changing
the set speed or by pressing the accelerator
pedal.
The function works at speeds over 80 km/h
(50 mph). It may not be available in certain
countries.
Overtaking
When the turn signal is switched on for over-
taking, the ACC reduces the distance from
the vehicle in front to help with the overtaking
manoeuvre. The set cruising speed will not be
exceeded.
The function works at speeds over 80 km/h
(50 mph). It may not be available in certain
countries.
Stop&Go function
 Valid for: vehicles with an automatic gearbox
The ACC can bring the vehicle to a standstill
(0 km/h) if the vehicle in front stops. The ACC remains active and the message
ACC ready to start is displayed on the in-
strument clust
er for a few seconds. You can
extend or reactivate this warning by pressing
the button  or, depending on your vehicle’s equipment, by grabbing the steering wheel.
During this time, the vehicle will move off
again if the vehicle in front moves forwards.
To move off when the message ACC ready
to start is not longer displayed, once the
vehicle in front has moved off:

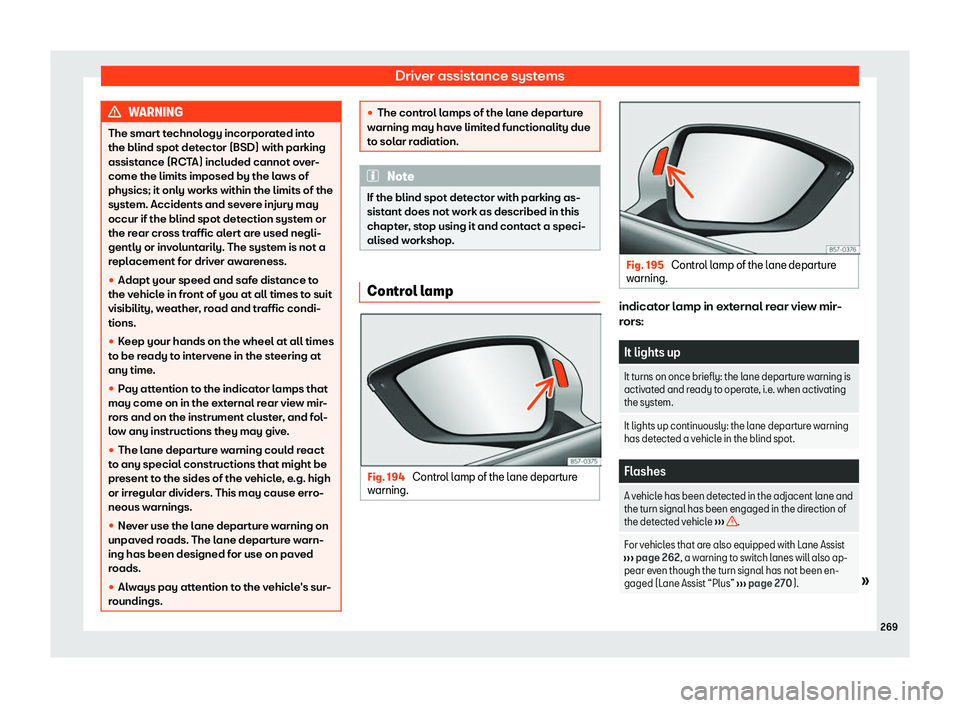

Driver assistance systems
WARNING
The smart technology incorporated into
the blind spot det ect
or (BSD) with parking
assistance (RCTA) included cannot over-
come the limits imposed by the laws of
physics; it only works within the limits of the
system. Accidents and severe injury may
occur if the blind spot detection system or
the rear cross traffic alert are used negli-
gently or involuntarily. The system is not a
replacement for driver awareness.

Driving
The control lamps light up when the ignition is
s wit
ched on and should turn off after approxi-
mately 2 seconds. This is the time taken for
the function check.
If there are no indications from the control
lamp of the lane departure warning, this
means that the lane departure warning has
not detected any other vehicles at the rear
area ››› .
When the e xt

erior lighting is low, the intensity
with which the control lamps come on is dim-
med. The user can modify the intensity of the
control lamps with up to 5 levels in the info-
tainment system menu. WARNING
If the warning lamps and the corresponding
messages ar e ignor

ed when they light up,
the vehicle may stall in traffic and cause
accidents and severe injuries.

Driving
Rear cross traffic alert (RCTA) Fig. 198
Schematic representation of the rear
cr oss tr
affic alert assistant: zone monitored
around the vehicle while leaving a parking
space. Park Assist uses the radar sensors on the rear
bumper
››

› page 244
to monitor the traffic
crossing behind the vehicle as it backs out of
a parallel parking space or as it is being man-
oeuvred, for example in very low visibility con-
ditions.
When the system detects a relevant vehicle
on the road that is approaching the rear of
the vehicle ››› Fig. 198
, an acoustic alarm
may sound if the relevance so requires it.
In addition to the acoustic alarm, the driver is
also informed by means of a visual signal on
infotainment system display. This signal is dis- played in the form of a red or yellow strip at
the back of the image of the vehicl

e on the in-
fotainment system screen. This strip displays
the side of the vehicle towards which traffic is
approaching in transverse direction 1)
.
Automatic braking to reduce damages
If the rear cross traffic alert detects that
someone else on the road is approaching the
rear of the vehicle and the driver does not
step on the brake, the system will engage the
brakes automatically.
The parking system helps the driver by auto-
matically engaging the brakes to reduce any
damage. The automatic intervention on the
brakes takes place when driving in reverse at
approx. 1-12 km/h (1-7 mph). After detecting
that the vehicle is stationary, the system
keeps it that way for around 2 seconds.
After automatically braking to reduce dam-
age, the system will not be able to automati-
cally brake again for approximately 10 sec-
onds.
You can interrupt the automatic braking by
stepping hard on the accelerator pedal or
the brake pedal in order to regain control of
the vehicle. WARNING
The smart technology incorporated into
the r ear cr

oss traffic alert cannot over-
come the limits imposed by the laws of
physics; it only works within the limits of the
system. The parking assistant function
should not tempt you into taking any risks.
The system is not a replacement for driver
awareness.

Driving
If the engine is running irregularly or an
anomaly is det ect
ed.
If the engine is turned off or stalls.
Manual gearbox: The clutch and the ac-
celerator are pressed at the same time.
Automatic gearbox: If the accelerator is
pressed
Automatic gearbox: If any of the tyres
has only minimal contact with the
ground, e.g. in the case of axle articula-
tion. WARNING
The smart technology incorporated into
the Aut o Hol

d function cannot defy the
laws of physics; it only works within the lim-
its of the system. The greater convenience
provided by the Auto Hold function should
never tempt you to take any risk that may
compromise safety.

Driving
Brake blending 1)
The br ak
e energy recuperation can generate
a braking effect. This braking effect depends
on the selected driving programme and the
level of charge of the high-voltage battery.
If the braking effect caused by the recupera-
tion is very intense, the vehicle’s brake lights
with turn on. The electric engine, when oper-
ating as an alternator, can generate braking
torque on the front wheels based on the RPM
and the temperature and charge level of the
high-voltage battery.
These variable parameters cause fluctuating
electric decelerations which are hydraulical-
ly compensated according to the driver’s de-
sires. This function is called “brake blending”
and it combines mechanical braking with the
engine brake effect. WARNING
Driving at high speed on icy, slippery wet
gr ound can r

esult in loss of vehicle control
and serious injury to the driver and passen-
gers.

Help with parking and manoeuvring
Parking System Plus* Description Fig. 207
Parking aid view on the Infotainment
syst em displ
ay. Parking aid plus assists the driv
er by giving
visual and audio w
arnings about obstacles
detected in front of and behind the vehicle.
The bumpers are fitted with sensors. When an
obstacle is detected, it is indicated by audible
signals and in the Infotainment system
››› Fig. 207.
When moving close to an obstacle, it is possi-
ble to know if the obstacle is in front of the ve-
hicle or behind it by choosing different
sounds.
The approximate measurement range of the
sensors is:
1.20 m
A 1.60 m
0.90 m
As you appr oach the obst

acle, the frequency
of the audible signals will increase. The signal
will sound continuously at around 0.30 m:
Stop!
If the separation is maintained, the warning
volume is reduced after about 4 seconds.
In order to view the entire periphery of the ve-
hicle, the vehicle must be moved a few me-
tres forwards or backwards. Thus, the missing
areas are screened and obstacles at the
sides of the vehicle are displayed C .
Special f eat

ures of ParkPilot with Area
View
In the following situations the screened area
on the side of the vehicle is automatically hid-
den:

Help with parking and manoeuvring
A wake will indicate the anticipated forward
or backw ar
d trajectory, depending on the en-
gaged gear.
If an obstacle is located in the vehicle’s way,
the corresponding audible warning will
sound.
When the penultimate segment is displayed,
the vehicle has reached the collision zone. In
the collision zone, the obstacles are repre-
sented in red (including those out of the
path). Stop the vehicle! ››› in Introduction
on page 289, ››

› in Introduction on
page 290 !
In the e v
ent the car is equipped with the Top
View Camera system, Park Assist visual guid-
ance will appear in accordance with the view
selected in the Top View Camera system.
Setting the indications and audio
signals The audio indications and signals are set in
the inf
ot

ainment system ››› page 86
: Setup
Automatic activa-
tion On/off
Front volume* Volume in the front and rear
area.
R

ear volume* Volume in the rear area. Setup
Adjust volume When the parking aid is
s
wit

ched on, the volume of
the audio source will be re-
duced, depending on the se-
lected option.
Front sound set-
tings/sharpness* Sound tone in the front area.
Rear sound set-
tings/sharpness* Sound tone in the rear area. Error messages
If a an error or fault message appears on the
instrument clust
er in P

ark Assist, there is a
fault.
If the fault doesn't disappear before discon-
necting the ignition, it will not be indicated
next time the parking aid is connected.
If a rear sensor is faulty, only the obstacles in
area A are displayed
››

› Fig. 207
. If a front
sensor is faulty, only the obstacles in area B are displayed. Symbol

Driving
Whenever the obstacle is located in the vehi-
cl e
’s direction of travel, the corresponding
audible warning will sound.
As the vehicle approaches an obstacle, the
segments are displayed closer to the vehicle.
When the penultimate segment is displayed,
this means that the vehicle has reached the
collision zone. In the collision zone, the obsta-
cles are represented in red (including those
out of the path). Do not continue to reverse
››› in Introduction on page 289,
››

› in
Intr oduction on page 290
!
If you are equipped with the Top View
Camera*
Segments are not displayed when the vehicle
is equipped with Top View Camera*.
The Parking Aid system will issue an audible
warning for objects that are near the rear of
the vehicle, and the Top View Camera* im-
age will be available on the screen, giving a
real image of the objects around the car.
Trailer Assist
Introduction Trailer assist helps the driver to reverse and
manoeuvr
e with a tr

ailer. By moving the rotary knob of the exterior mir-
rors, the tr

ailer assist directs the trailer that is
hitched. The driver has to accelerate, change
gears and brake!
System limitations
Under certain circumstances, the camera
does not detect objects such as trailer draw
bars, bars, fences, posts or thin trees, or an
open (or opening) rear lid, which could dam-
age the vehicle.
In order to guarantee good system operation,
keep the camera clean, free of snow or ice,
and do not cover it with adhesives or other
objects. Do not allow the draw bar to be cov-
ered by external influences.
Use the trailer manoeuvre assistant only
when the rear lid is closed correctly. CAUTION
The trailer maneuver assistant does not
t ak

e the vehicle’s surrounding as a refer-
ence. No obstacle detection takes place.
The driver alone has to assess whether it is
possible to manoeuvre safely with the tow
vehicle and trailer set.

Driving
Green and red semicircular auxiliary
lines ar e displ
ayed in vehicles with a fac-
tory-fitted towing bracket. The auxiliary
lines indicate the distance from the tow-
ing bracket. The distance between the
auxiliary lines (green and red) is approx.
30 cm The orange auxiliary line indi-
cates, according to how the steering
wheel is turned, the precalculated direc-
tion of the towed device.
Cross traffic. This visualization helps to
monitor traffic to the left, front and right
of the vehicle and can be used, for ex-
ample, when exiting garages or narrow
exits.
Reverse Assist (Rear View
Camera)* Oper

ating and safety warnings WARNING
