Technical data

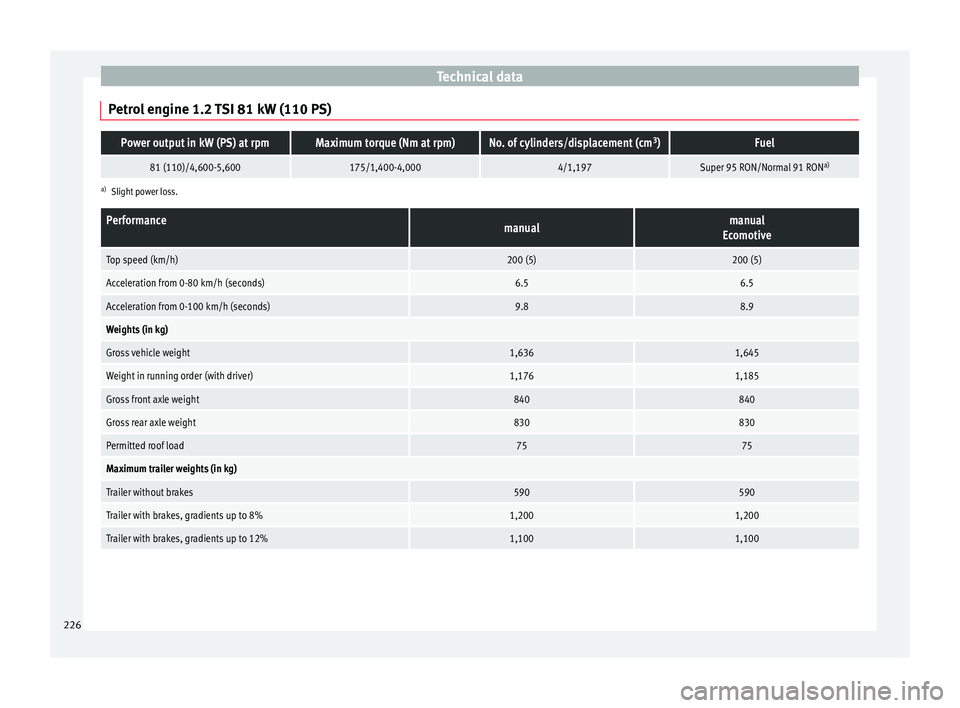

Petrol engine 1.2 TSI 81 kW (110 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
81 (110)/4,600-5,600175/1,400-4,0004/1,197Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
Performancemanualmanual
Ecomotive
Top speed (km/h)200 (5)200 (5)
Acceleration from 0-80 km/h (seconds)6.56.5
Acceleration from 0-100 km/h (seconds)9.88.9
Weights (in kg)
Gross vehicle weight1,6361,645
Weight in running order (with driver)1,1761,185
Gross front axle weight840840
Gross rear axle weight830830
Permitted roof load7575
Maximum trailer weights (in kg)
Trailer without brakes590590
Trailer with brakes, gradients up to 8%1,2001,200
Trailer with brakes, gradients up to 12%1,1001,100 226

Technical specifications

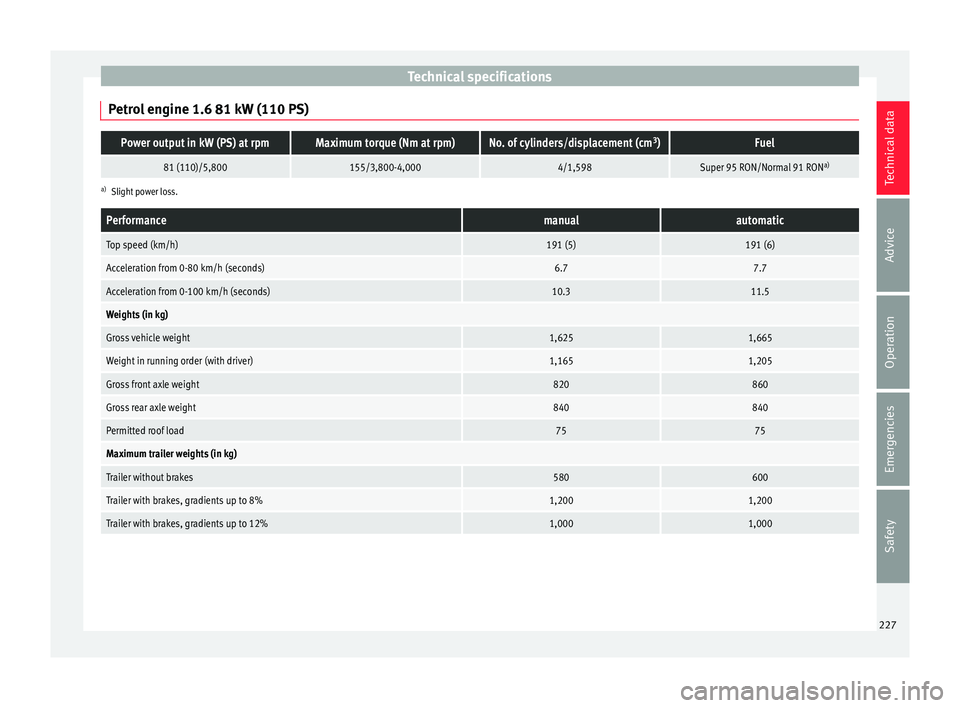

Petrol engine 1.6 81 kW (110 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
81 (110)/5,800155/3,800-4,0004/1,598Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
Performancemanualautomatic
Top speed (km/h)191 (5)191 (6)
Acceleration from 0-80 km/h (seconds)6.77.7
Acceleration from 0-100 km/h (seconds)10.311.5
Weights (in kg)
Gross vehicle weight1,6251,665
Weight in running order (with driver)1,1651,205
Gross front axle weight820860
Gross rear axle weight840840
Permitted roof load7575
Maximum trailer weights (in kg)
Trailer without brakes580600
Trailer with brakes, gradients up to 8%1,2001,200
Trailer with brakes, gradients up to 12%1,0001,000 227
Technical data
Advice
Operation
Emergencies
Safety

Technical data

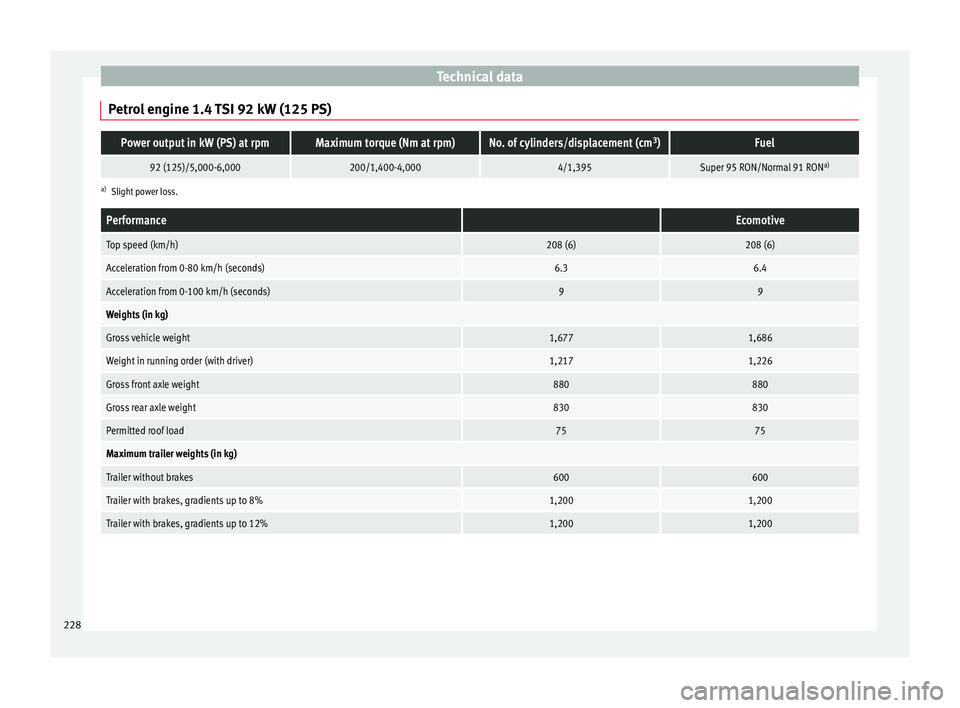

Petrol engine 1.4 TSI 92 kW (125 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
92 (125)/5,000-6,000200/1,400-4,0004/1,395Super 95 RON/Normal 91 RON a)
a)
Slight power loss.
Performance Ecomotive
Top speed (km/h)208 (6)208 (6)
Acceleration from 0-80 km/h (seconds)6.36.4
Acceleration from 0-100 km/h (seconds)99
Weights (in kg)
Gross vehicle weight1,6771,686
Weight in running order (with driver)1,2171,226
Gross front axle weight880880
Gross rear axle weight830830
Permitted roof load7575
Maximum trailer weights (in kg)
Trailer without brakes600600
Trailer with brakes, gradients up to 8%1,2001,200
Trailer with brakes, gradients up to 12%1,2001,200 228

Technical specifications

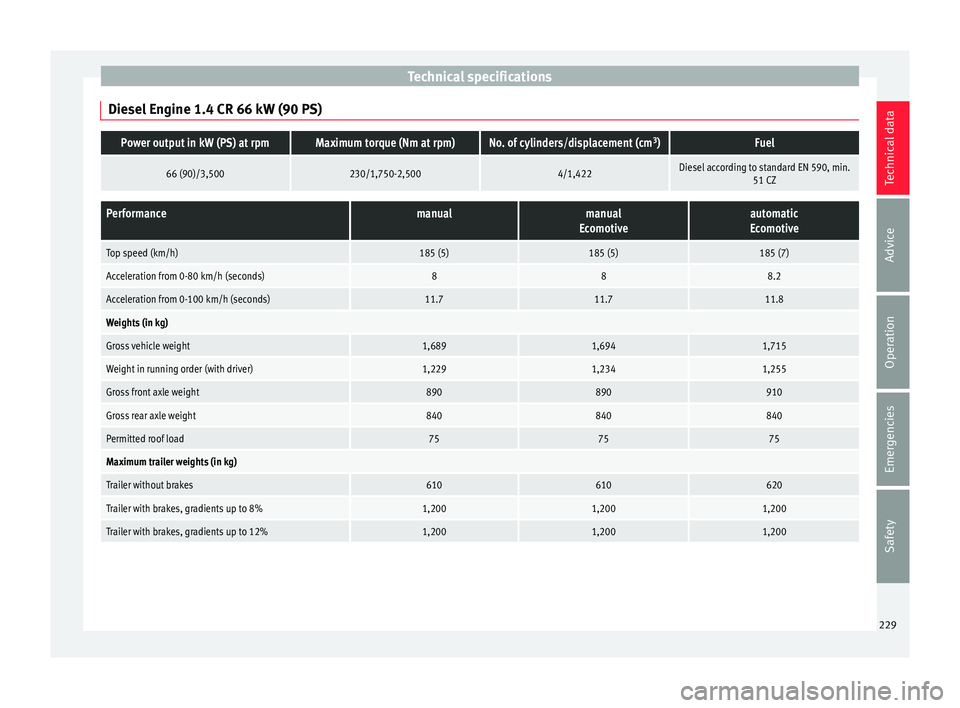

Diesel Engine 1.4 CR 66 kW (90 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
66 (90)/3,500230/1,750-2,5004/1,422Diesel according to standard EN 590, min.
51 CZ
Performancemanualmanual
Ecomotiveautomatic
Ecomotive
Top speed (km/h)185 (5)185 (5)185 (7)
Acceleration from 0-80 km/h (seconds)888.2
Acceleration from 0-100 km/h (seconds)11.711.711.8
Weights (in kg)
Gross vehicle weight1,6891,6941,715
Weight in running order (with driver)1,2291,2341,255
Gross front axle weight890890910
Gross rear axle weight840840840
Permitted roof load757575
Maximum trailer weights (in kg)
Trailer without brakes610610620
Trailer with brakes, gradients up to 8%1,2001,2001,200
Trailer with brakes, gradients up to 12%1,2001,2001,200 229
Technical data
Advice
Operation
Emergencies
Safety

Technical data

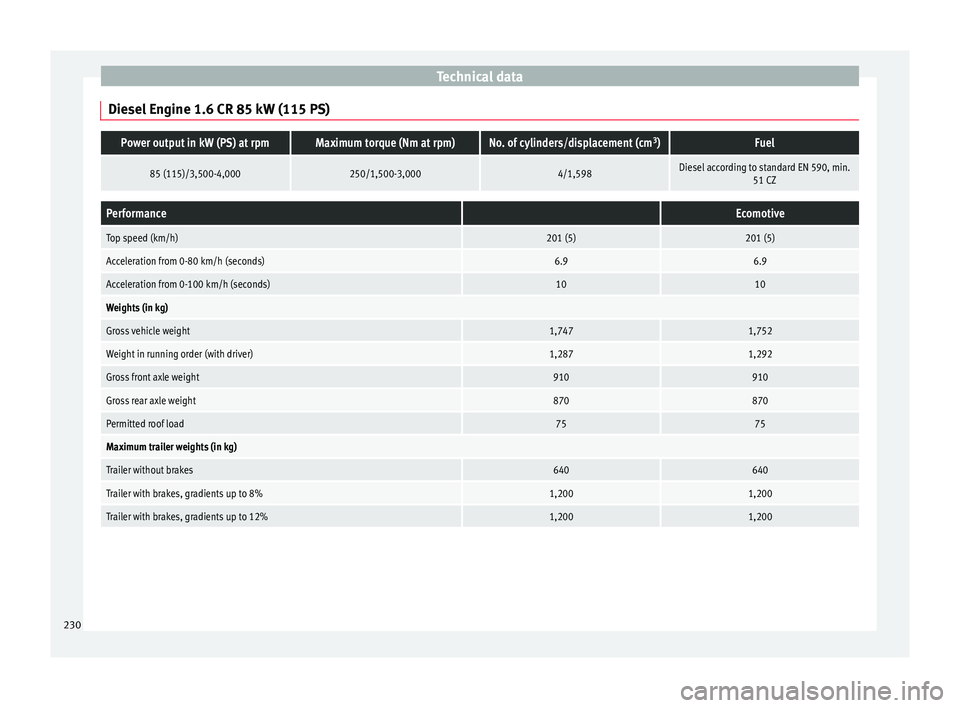

Diesel Engine 1.6 CR 85 kW (115 PS)Power output in kW (PS) at rpmMaximum torque (Nm at rpm)No. of cylinders/displacement (cm 3
)Fuel
85 (115)/3,500-4,000250/1,500-3,0004/1,598Diesel according to standard EN 590, min.
51 CZ
Performance Ecomotive
Top speed (km/h)201 (5)201 (5)
Acceleration from 0-80 km/h (seconds)6.96.9
Acceleration from 0-100 km/h (seconds)1010
Weights (in kg)
Gross vehicle weight1,7471,752
Weight in running order (with driver)1,2871,292
Gross front axle weight910910
Gross rear axle weight870870
Permitted roof load7575
Maximum trailer weights (in kg)
Trailer without brakes640640
Trailer with brakes, gradients up to 8%1,2001,200
Trailer with brakes, gradients up to 12%1,2001,200230

Technical specifications

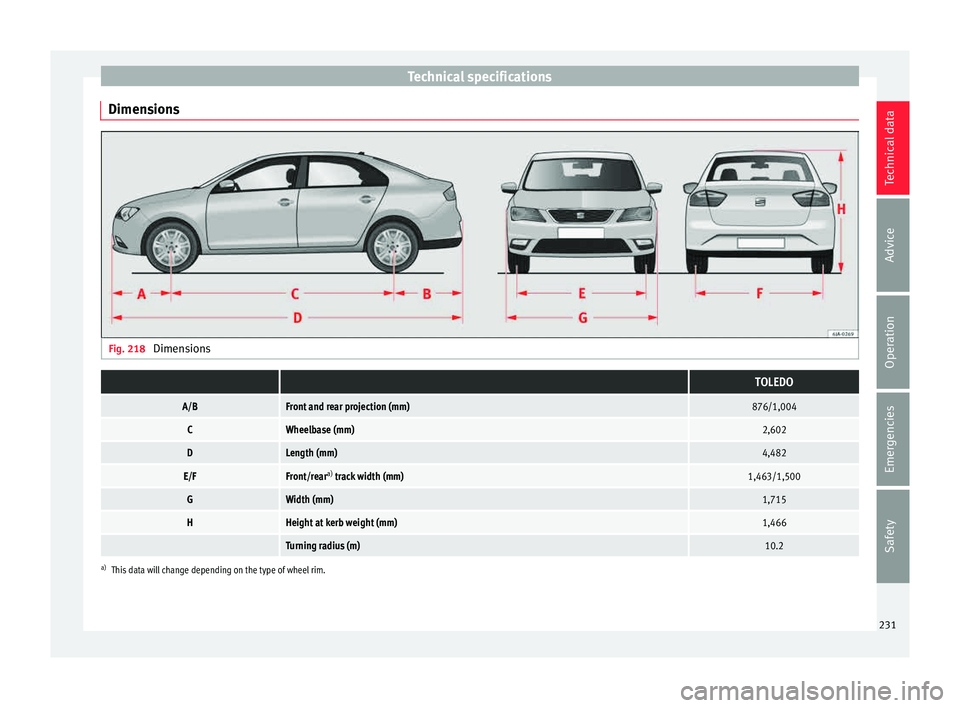

Dimensions Fig. 218
Dimensions TOLEDO
A/BFront and rear projection (mm)876/1,004
CWheelbase (mm)2,602
DLength (mm)4,482
E/FFront/rear a)
track width (mm)1,463/1,500
GWidth (mm)1,715
HHeight at kerb weight (mm)1,466
Turning radius (m)10.2
a) This data will change depending on the type of wheel rim.
231
Technical data
Advice
Operation
Emergencies
Safety

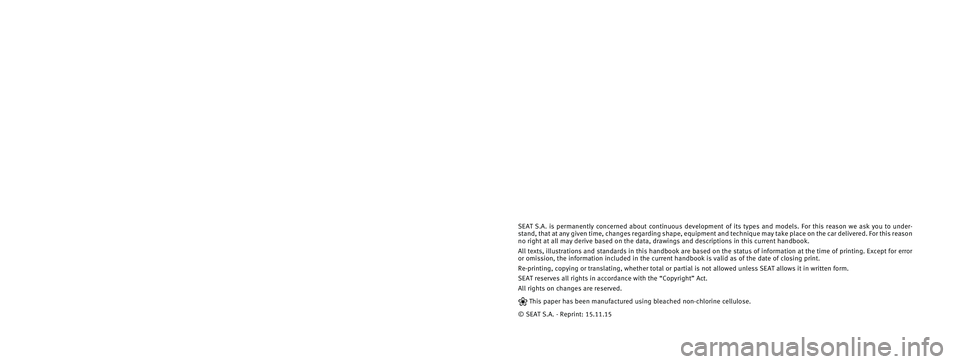

SEAT S.A. is permanently concerned about continuous development of its t\
ypes and models. For this reason we ask you to under-
stand, that at any given time, changes regarding shape, equipment and te\
chnique may take place on the car delivered. For this reason
no right at all may derive based on the data, drawings and descriptions \
in this current handbook.
All texts, illustrations and standards in this handbook are based on the\
status of information at the time of printing. Except for error
or omission, the information included in the current handbook is valid a\
s of the date of closing print.
Re-printing, copying or translating, whether total or partial is not all\
owed unless SEAT allows it in written form.
SEAT reserves all rights in accordance with the “Copyright” Act.
All rights on changes are reserved.
❀This paper has been manufactured using bleached non-chlorine cellulose.
© SEAT S.A. - Reprint: 15.11.15
About this manual
This manual contains a description of the
equipment supplied with the vehicle at the
time this manual was published. Some of the
units described herein will not be available
until a later date or are only available in cer -
tain markets.
Because this is a general manual for the
TOLEDO , some of the equipment and func -
tions that are described in this manual are not
included in all types or variants of the model;
they may vary or be modied depending on
the technical requirements and on the mar -
ket; this is in no way deceptive advertising.
The illustrations are intended as a general
guide and may vary from the equipment tted
in your vehicle in some details.
The steering indications (left, right, forward,
reverse) appearing in this manual refer to the
normal driving movements of the vehicle ex -
cept when otherwise indicated.
The equipment marked with an aster -
isk* is tted as standard only in certain
versions, and is only supplied as op -
tional extras for some versions, or are
only offered in certain countries.
® All registered marks are indicated with
®. Although the copyright symbol does
not appear, it is a copyrighted mark.
>> The section is continued on the follow -
ing page.
Important warnings on a given page
Detailed contents on a given page
General information on a given page

Emergency information on a given page

WARNING
Texts preceded by this symbol contain infor -
mation on safety. They warn you about possi -
ble dangers of accident or injury.
CAUTION
Texts with this symbol draw your attention to
potential sources of damage to your vehicle.
For the sake of the environment
Texts preceded by this symbol contain rele-
vant information concerning environmental
protection.
Note
Texts preceded by this symbol contain additio -
nal information.
This manual is divided into six large parts,
which are:
1. The essentials
2. Safety
3. Emergencies
4. Operation
5. Tips
6. Technical data
At the end of this manual, there is a detailed
alphabetical index that will help you quickly
nd the information you require.
