navigation system Seat Toledo 2017 MEDIA SYSTEM PLUS - NAVI SYSTEM - NAVI SYSTEM PLUS

Navigation
● St ar
tin
g off in a stored route is not detected
by the system automatically.
Setup
Function button: function
Invert: Reverses the direction of the stored Offroad tour.
Next point: Starts the Offroad tour from the nearest point.
Start: Starts the complete Offroad tour. When route guidance starts, the system
swit
c

hes to the map view.
Stopping route guidance ● Press the Options button on the screen and
then pr e
s

s Stop .
End w a
y
point navigation
● Press the EXIT function button in the Off-
r o
a

d Navigation menu. WARNING
Terrain features are disregarded during route
guidanc e Driv

e slowly and following the in-
structions in order to perform the manoeuvre
as far as possible!
● The general direction of travel is indicated
straight
ahead by direction arrows in the In-
fotainment System pop-up window ››› Fig. 61
A . Note
If an Offroad tour is being recorded, this is
autom atic

ally stored if Offroad navigation is
discontinued. 73

Telephone management system (PHONE)Possible functions
Send an SMS
to a contactPress the  function button in the
detailed list.
Starting route
guidance to
the address of
a contact a)If the address details of a contact
have been stored, route guidance can
be started for the address of the con-
tact. Press the address data on the
detailed view to start route guidance.
a)
A system with a navigation function is required. Note
If you edit the number before calling, this will
only be u

sed for the call and will not be stor-
ed in the phonebook. Short messages menu (SMS)
Fig. 79
Short messages menu (Text messag-
e s). If the mobile phone connected to the HFP
pr
ofi
l

e also supports the SMS profile, a new
function button will appear in the top left-
hand corner of the PHONE menu, which will
allow SMS messages to be received, viewed
and sent by the Infotainment system.
The proper operation of the functions men-
tioned above will depend on the compatibili-
ty of the connected mobile telephone.
Buttons on the Short messages (SMS) menu
● From the PHONE main menu, pre
ss the
SMS function button.
Function button: function
New text mes-
sageTo write and send a text message (in-
cludes the possibility of accessing
templates with predefined messag-
es).
InboxTo open the received text messages
folder.
OutboxTo open the outbox folder. This is
where any unsent text messages are
stored.
SentTo open the sent text messages fold-
er.
DraftsTo select a stored unsent message.
Send contact
detailsTo send the details of a contact from
the phonebook. Possible function buttons for the submenus
Function button: function
ReadIn order for the speech control
system to play the text message.
OptionsOpen the Options
menu.
Reply with tem-
plateTo select a text template from a
list.
Delete current
text messageDeletes the text message from
the Inbox.
Display tele-
phone numberDisplays the sender's telephone
number.
ForwardTo forward a text message.
ReplyTo reply to an incoming text mes-
sage.
Enter number
To enter a telephone number or to
select a recipient from the phone-
book.
Press the Recipients function but-
ton to select multiple recipients.
RecipientsTo select multiple recipients from
the phonebook.
DeleteTo delete a text message. 87

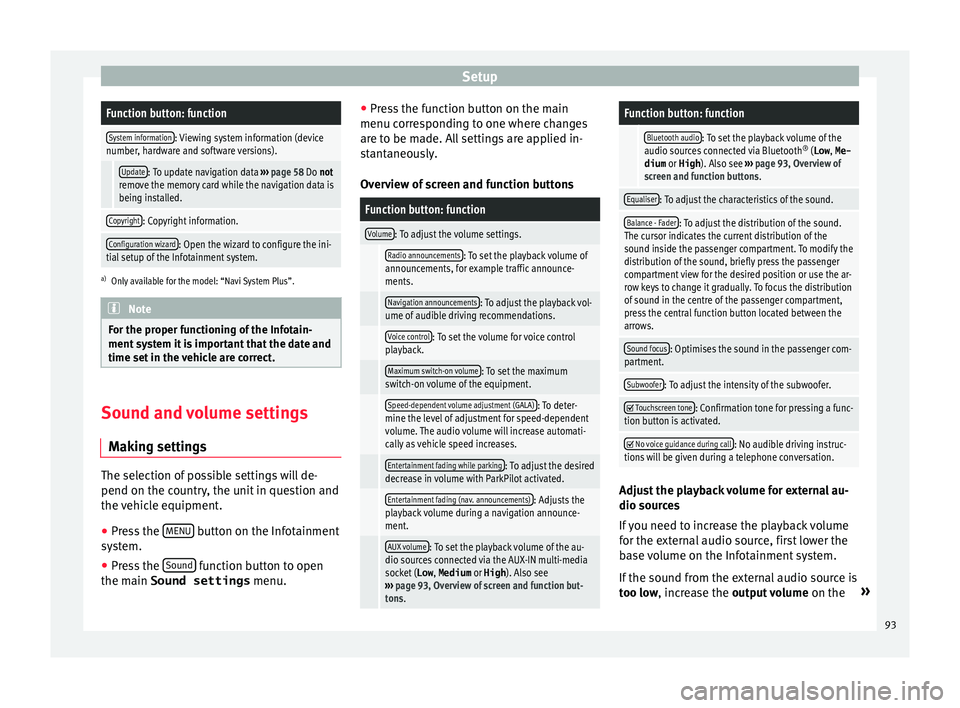

SetupFunction button: function
System information: Viewing system information (device
number, hardware and software versions).
Update: To update navigation data ››› page 58 Do not
remove the memory card while the navigation data is
being installed.
Copyright: Copyright information.
Configuration wizard: Open the wizard to configure the ini-
tial setup of the Infotainment system.
a) Only available for the model: “Navi System Plus”. Note
For the proper functioning of the Infotain-
ment sy s

tem it is important that the date and
time set in the vehicle are correct. Sound and volume settings
M ak
in

g settings The selection of possible settings will de-
pend on the c
ou
ntr

y, the unit in question and
the vehicle equipment.
● Press the MENU button on the Infotainment
sy s
t

em.
● Press the Sound function button to open
the m ain Sound settings
menu.●
Pre s

s the function button on the main
menu corresponding to one where changes
are to be made. All settings are applied in-
stantaneously.
Overview of screen and function buttons
Function button: function
Volume: To adjust the volume settings.
Radio announcements: To set the playback volume of
announcements, for example traffic announce-
ments.
Navigation announcements: To adjust the playback vol-
ume of audible driving recommendations.
Voice control: To set the volume for voice control
playback.
Maximum switch-on volume: To set the maximum
switch-on volume of the equipment.
Speed-dependent volume adjustment (GALA): To deter-
mine the level of adjustment for speed-dependent
volume. The audio volume will increase automati-
cally as vehicle speed increases.
Entertainment fading while parking: To adjust the desired
decrease in volume with ParkPilot activated.
Entertainment fading (nav. announcements): Adjusts the
playback volume during a navigation announce-
ment.
AUX volume: To set the playback volume of the au-
dio sources connected via the AUX-IN multi-media
socket ( Low, Medium or High). Also see
››› page 93, Overview of screen and function but-
tons.
Function button: function
Bluetooth audio: To set the playback volume of the
audio sources connected via Bluetooth ®
(Low , Me-
dium or High ). Also see ››› page 93, Overview of
screen and function buttons.
Equaliser: To adjust the characteristics of the sound.
Balance - Fader: To adjust the distribution of the sound.
The cursor indicates the current distribution of the
sound inside the passenger compartment. To modify the
distribution of the sound, briefly press the passenger
compartment view for the desired position or use the ar-
row keys to change it gradually. To focus the distribution
of sound in the centre of the passenger compartment,
press the central function button located between the
arrows.
Sound focus: Optimises the sound in the passenger com-
partment.
Subwoofer: To adjust the intensity of the subwoofer. 
Touchscreen tone: Confirmation tone for pressing a func-
tion button is activated. 
No voice guidance during call: No audible driving instruc-
tions will be given during a telephone conversation. Adjust the playback volume for external au-
dio sour
c
e

s
If you need to increase the playback volume
for the external audio source, first lower the
base volume on the Infotainment system.
If the sound from the external audio source is
too low, increase the output volume on the»
93

Other important information
Other important information Le
g
al information ECE
SEA
T her

eby declares that the unit is in com-
pliance with the essential requirements and
other relevant provisions of Directive
1999/5/EC (CE 0700).
Abbreviations
A2DPTechnology included by many manufactur-
ers to transmit audio signals via Bluetooth
(Advanced Audio Distribution Profile).
AMModulation of the wave amplitude (medium
wave, MW)
AUX-INAdditional audio input (Auxiliary Input)
AVRCPTechnology included by many manufactur-
ers for the remote management of audio
sources via Bluetooth (Audio Video Remote
Control Profile).
DABDigital transmission standard for digital ra-
dio (Digital Audio Broadcasting)
DINDeutsches Institut fur Normung (German in-
dustry standard).
DRMDigital Rights Management
DTMFDial tone with dual tone multiple frequency
EONAssistance for other radio transmission net-
works (Enhanced Other Network)
FMFrequency modulation (ultra-short wave,
UKW)
GPSGlobal Positioning System.
GSMGlobal System for Mobile Communications
HFPHands-Free Profile.
IMEISerial number for univocally identifying GSM
devices (International Mobile Station Equip-
ment Identity).
LEDLight Emitting Diode
MP3Audio file compression format.
PINPersonal identification number.
RDSRadio data system.
SMSShort Message Service.
SSDJukebox (SSD Solid-State-Drive).
TMCTraffic reports for dynamic navigation (Traffic
Message Channel)
TPTraffic reports function in Radio mode (Traf-
fic programme).
USBUniversal Serial Bus
VBRVariable bit rate.
WLANWireless Local Area Network
WMAAudio file compression format. 95

Index
Function buttons . . . . . . . . . . . . . . . . . . . . . . . . . . 11 main menu Im
ag
es . . . . . . . . . . . . . . . . . . . . . . . 56
MEDIA main menu . . . . . . . . . . . . . . . . . . . . . . . 43
RADIO main menu . . . . . . . . . . . . . . . . . . . . . . . 30
G GALA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
H
Hard drive (Infotainment system) see Jukebox (SSD) . . . . . . . . . . . . . . . . . . . . . . . 51
Hotspot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
I
Ignition switched off delayed switch off (waiting time) . . . . . . . . . . . 10
Images display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Infotainment system buttons . . . . . . . . . . . . . . . . 10
Input mask . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Interference from a mobile telephone . . . . . . . . . . 9
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
iPad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
iPhone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
K
Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 L
Lowering the volume . . . . . . . . . . . . . . . . . . . . . . . 10 M
Main menu imag
es . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
MEDIA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
PHONE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
RADIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Map display change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
function buttons . . . . . . . . . . . . . . . . . . . . . . . . . 66
MEDIA AUX-IN multimedia socket . . . . . . . . . . . . . . . . . 50
bit rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Bluetooth audio . . . . . . . . . . . . . . . . . . . . . . . . . 50
CD mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
CD with audio data . . . . . . . . . . . . . . . . . . . . . . . 39
change media source . . . . . . . . . . . . . . . . . . . . . 44
changing track . . . . . . . . . . . . . . . . . . . . . . . . . . 45
copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
DVD mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
external data storage device connected toUSB port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
fast forward . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
faulty CD or DVD . . . . . . . . . . . . . . . . . . . . . . . . . 48
function buttons . . . . . . . . . . . . . . . . . . . . . . . . . 43
hard drive memory (jukebox SSD) . . . . . . . . . . . 51
insert a memory card . . . . . . . . . . . . . . . . . . . . . 48
insert and eject a CD or DVD . . . . . . . . . . . . . . . 48
iPod, iPad and iPhone . . . . . . . . . . . . . . . . . . . . 49
main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
MEDIA-IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
media mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
media source selection menu . . . . . . . . . . . . . . 44
memory card unreadable . . . . . . . . . . . . . . . . . . 48
messages and symbols . . . . . . . . . . . . . . . . . . . 44
MP3 files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
pla
ying order . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
playlists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
play modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
prepare a memory card for removal . . . . . . . . . 48
random play (Mix) . . . . . . . . . . . . . . . . . . . . . . . 43
remove a memory card . . . . . . . . . . . . . . . . . . . . 48
repeat function (Repeat) . . . . . . . . . . . . . . . . . . 43
requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
rewind . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
scan (SCAN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
select data storage device . . . . . . . . . . . . . . . . . 44
select track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
store audio files (jukebox SSD) . . . . . . . . . . . . . 51
track information . . . . . . . . . . . . . . . . . . . . . . . . 44
track list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
unreadable CD or DVD . . . . . . . . . . . . . . . . . . . . 48
WLAN audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
WMA files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Media playback sources . . . . . . . . . . . . . . . . . . . . 44 CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
SD card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
select . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Media sources Bluetooth audio . . . . . . . . . . . . . . . . . . . . . . . . . 45
Memory buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Memory card insert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
prepare a memory card for removal . . . . . . . . . 48
remove . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
select . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
unreadable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Messages navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
98

Index
MirrorLink . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Mo b
i
le Signal Amplifier . . . . . . . . . . . . . . . . . . . . . 90
Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
My destinations . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
N Navigation announcements . . . . . . . . . . . . . . . . . 62
Navigation data . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 data update . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
NAV (navigation) . . . . . . . . . . . . . . . . . . . . . . . . . . 58 after starting route guidance . . . . . . . . . . . . . . . 61
areas not fully digitalised . . . . . . . . . . . . . . . . . 58
avoid congestion . . . . . . . . . . . . . . . . . . . . . . . . 67
change destination . . . . . . . . . . . . . . . . . . . . . . 62
change view . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
compass display . . . . . . . . . . . . . . . . . . . . . . . . . 65
congestion ahead . . . . . . . . . . . . . . . . . . . . . . . . 62
contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
data update . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
demo mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
destination memory . . . . . . . . . . . . . . . . . . . . . . 63
display traffic disruptions . . . . . . . . . . . . . . . . . 67
dynamic route guidance . . . . . . . . . . . . . . . 62, 67
entering destination . . . . . . . . . . . . . . . . . . . . . . 60
entering the home address . . . . . . . . . . . . . . . . 64
enter new destination . . . . . . . . . . . . . . . . . . . . 61
enter stopover . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
exclude section . . . . . . . . . . . . . . . . . . . . . . . . . . 62
fast search for a POI . . . . . . . . . . . . . . . . . . . . . . 65
function buttons . . . . . . . . . . . . . . . . . . . . . . . . . 60
importing Personal POI . . . . . . . . . . . . . . . . . . . 68
importing vCards . . . . . . . . . . . . . . . . . . . . . . . . 68
installing navigation data . . . . . . . . . . . . . . . . . 59
list of driving manoeuvres . . . . . . . . . . . . . . . . . 65
map display . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
map, select the destination on the map . . . . . . 61 messages and symbols . . . . . . . . . . . . . . . . . . . 60
my de
stinations . . . . . . . . . . . . . . . . . . . . . . 63, 64
navigation announcements . . . . . . . . . . . . . . . . 62
navigation area . . . . . . . . . . . . . . . . . . . . . . . . . . 58
navigation main menu . . . . . . . . . . . . . . . . . . . . 60
navigation messages . . . . . . . . . . . . . . . . . . . . . 58
opening the main menu . . . . . . . . . . . . . . . . . . . 60
points of interest . . . . . . . . . . . . . . . . . . . . . . . . 64
possible limitations . . . . . . . . . . . . . . . . . . . . . . 58
road sign indicators . . . . . . . . . . . . . . . . . . . . . . 69
route information . . . . . . . . . . . . . . . . . . . . . . . . 62
route list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
split screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
stop route guidance . . . . . . . . . . . . . . . . . . . . . . 62
store position . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
TRAFFIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
traffic reports . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
updating navigation data . . . . . . . . . . . . . . . . . 59
O
On-screen keypad . . . . . . . . . . . . . . . . . . . . . . . . . 13
Online traffic information . . . . . . . . . . . . . . . . . . . 67
Operation additional displays . . . . . . . . . . . . . . . . . . . . . . . 14
changing the volume . . . . . . . . . . . . . . . . . . . . . 10
function buttons . . . . . . . . . . . . . . . . . . . . . . . . . 11
general instructions for use . . . . . . . . . . . . . . . . . 9
Infotainment system buttons . . . . . . . . . . . . . . . 10
input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
input mask . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
on-screen keypad . . . . . . . . . . . . . . . . . . . . . . . . 13
PHONE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79, 82
RADIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
rotary knobs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
search lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 slider . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
slide (sc
reen) . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
sound suppression (mute) . . . . . . . . . . . . . . . . . 10
switch on and switch off . . . . . . . . . . . . . . . . . . 10
touchscreen . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
voice control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Overview of the unit . . . . . . . . . . . . . . . . . . . . . . . 4, 5
P Personal POI importing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
PHONE A2DP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
areas where special regulations apply . . . . . . . 80
bluetooth profiles . . . . . . . . . . . . . . . . . . . . . . . . 80
bluetooth settings . . . . . . . . . . . . . . . . . . . . . . . 89
call lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
call mailbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
connect and disconnect the telephone man-agement system . . . . . . . . . . . . . . . . . . . . . . . 89
connection via the Infotainment system . . . . . . 81
contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
description of the function . . . . . . . . . . . . . . . . 80
dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85, 86
display and symbols . . . . . . . . . . . . . . . . . . . . . 84
enter telephone number . . . . . . . . . . . . . . . . . . 85
explosion risk areas . . . . . . . . . . . . . . . . . . . . . . 80
favourites (speed dial buttons) . . . . . . . . . . . . . 88
general information . . . . . . . . . . . . . . . . . . . . . . 79
GSM network . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
HFP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
mobile telephone pairing . . . . . . . . . . . . . . . . . 81
pairing of mobile telephone . . . . . . . . . . . . . . . 81
pairing via the Infotainment system . . . . . . . . . 81
phonebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
99

Index
short messages (SMS) . . . . . . . . . . . . . . . . . . . . 87
t el
ephone m
anagement system . . . . . . . . . 79, 82
user profile settings . . . . . . . . . . . . . . . . . . . . . . 89
voice control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Physical buttons see: Infotainment system buttons . . . . . . . . . . . 10
Play CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
external data storage device (USB) . . . . . . . . . . 49
MEDIA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
RADIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
SD card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Playback AUX-IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Playing track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
POI importing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Points of interest . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Pop-up windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Predictive navigation . . . . . . . . . . . . . . . . . . . . . . . 68
Q Quick reference guide . . . . . . . . . . . . . . . . . . . . . . . 8
R
RADIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 additional DAB services . . . . . . . . . . . . . . . . . . . 32
additional DAB stations . . . . . . . . . . . . . . . . . . . 32
AM setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
change frequency . . . . . . . . . . . . . . . . . . . . . . . . 30
DAB display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
DAB operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
DAB preset list . . . . . . . . . . . . . . . . . . . . . . . . . . 32
DAB Radio Text . . . . . . . . . . . . . . . . . . . . . . . . . . 32
DAB settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 DAB station information . . . . . . . . . . . . . . . . . . . 32
DAB st
ation tracking in FM . . . . . . . . . . . . . . . . . 32
DAB transmission standards . . . . . . . . . . . . . . . 32
EON . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
FM setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
information and icons . . . . . . . . . . . . . . . . . . . . 31
main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
memory buttons . . . . . . . . . . . . . . . . . . . . . . . . . 33
radio mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
radio text (RDS) . . . . . . . . . . . . . . . . . . . . . . . . . . 31
RDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
SCAN function . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
select stations . . . . . . . . . . . . . . . . . . . . . . . . . . 34
setting a station name . . . . . . . . . . . . . . . . . . . . 31
settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
station list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
station names display . . . . . . . . . . . . . . . . . . . . 31
station tracking by RDS . . . . . . . . . . . . . . . . . . . 31
store station logos . . . . . . . . . . . . . . . . . . . . . . . 33
store stations . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
TP (traffic news) . . . . . . . . . . . . . . . . . . . . . . . . . 35
traffic announcement (INFO) . . . . . . . . . . . . . . . 36
traffic news (TP) . . . . . . . . . . . . . . . . . . . . . . . . . 35
tune stations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
tune the frequency of the stations . . . . . . . . . . 34
Radio text (RDS) . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Random play (Mix) . . . . . . . . . . . . . . . . . . . . . . . . . 43
RDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 automatic station tracking . . . . . . . . . . . . . . . . . 31
regional RDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
TP (traffic news) . . . . . . . . . . . . . . . . . . . . . . . . . 35
Repeat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Repeat function (Repeat) . . . . . . . . . . . . . . . . . . . . 43
Requirements for data storage devices and files . . . . . . . . . . . . . . 39
Reset factory settings . . . . . . . . . . . . . . . . . . . . . . 92
Road sign indicators . . . . . . . . . . . . . . . . . . . . . . . 69 Rotary knobs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Route guid
ance
demo mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
dynamic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
S Safety Instructions Infotainment system . . . . . . . . . . . . . . . . . . . . . . 8
SCAN MEDIA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
SCAN function RADIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Scan (SCAN) MEDIA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
SD Card see: memory card . . . . . . . . . . . . . . . . . . . . . . . . 48
Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Search lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
SEAT Media Control . . . . . . . . . . . . . . . . . . . . . . . . 27 data transmission and control functions . . . . . 27
Settings bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
DAB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
default setting . . . . . . . . . . . . . . . . . . . . . . . . . . 92
factory settings . . . . . . . . . . . . . . . . . . . . . . . . . . 92
images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
menu and system settings . . . . . . . . . . . . . . . . . 92
navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
PHONE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
user profile settings . . . . . . . . . . . . . . . . . . . . . . 89
video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
100
