Seat Toledo 2017 User Guide

The essentials
How it works
Un loc
k
ing and locking
Doors Fig. 1
Remote control key: buttons. Fig. 2
Centre console: central locking switch. Locking and unlocking the vehicle using the
k
ey
● Loc
king: press the  ›››
Fig. 1 button.
● Unlocking: press the  ›››
Fig. 1 button.
● Unlocking the rear lid: press the 
›››
Fig. 1 button until all the turn signals on
the vehicle briefly light up.
Locking and unlocking with the central lock-
ing switch
● Locking: press the  ›››
Fig. 2 button. The
warning lamp on the button will light up.
None of the doors can be opened from the
outside. The doors can be opened from the
inside by pulling the inside door handle.
● Unlocking: press the  ›››
Fig. 2 button. The
warning lamp on the button will switch off.

››› in Unlocking and locking the vehicle
on page 109
››› page 108
››› page 9, ››› page 10 Unlocking or locking of driver door
Fig. 3
Driver door lever: hidden lock cylinder. If the central locking system should fail to op-
er
at
e, the driv

er door can still be locked and
unlocked by turning the key in the lock.
● Unfold the vehicle key shaft.
● Insert the key shaft into the lower opening
in the cov
er on the driver door handle
››› Fig. 3 (arrow) then remove the cover up-
wards.
● Insert the key blade into the lock cylinder
to un
lock or lock the vehicle.
Special Characteristics
● The anti-theft alarm will remain active when
vehicl
es are unlocked. However, it is not trig-
gered ›››
 page 111.
● After the driver door is opened, you have
15 seconds
to switch on the ignition. Once
this time has elapsed, the alarm is triggered. » 9

The essentials
● Sw it
c
h the ignition on. The electronic im-
mobilizer recognises a valid vehicle key and
deactivates the anti-theft alarm system. Note
The anti-theft alarm is not activated when the
vehic l

e is locked manually using the key
shaft ›››

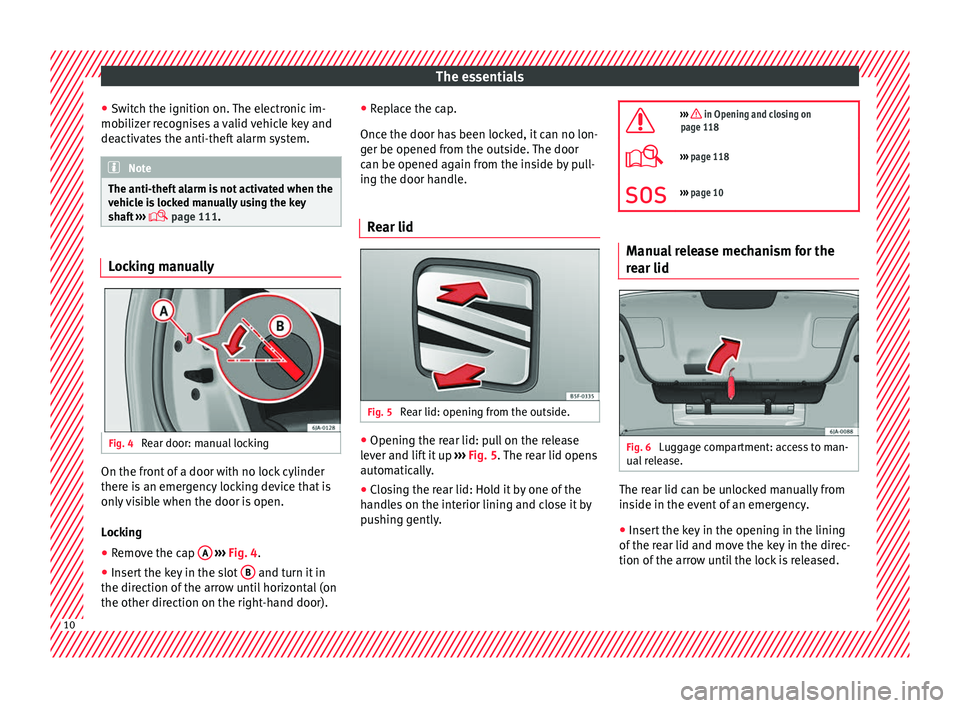

 page 111. Locking manually
Fig. 4
Rear door: manual locking On the front of a door with no lock cylinder
ther
e i
s

an emergency locking device that is
only visible when the door is open.
Locking
● Remove the cap A
› ›
› Fig. 4
.
● Insert the key in the slot B and turn it in
the dir ection of
the arr

ow until horizontal (on
the other direction on the right-hand door). ●
Repl
ace the cap.
Once the door has been locked, it can no lon-
ger be opened from the outside. The door
can be opened again from the inside by pull-
ing the door handle.
Rear lid Fig. 5
Rear lid: opening from the outside. ●
Opening the rear lid: pull on the release
l ev
er and lif

t it up ››› Fig. 5. The rear lid opens
automatically.
● Closing the rear lid: Hold it by one of the
handle
s on the interior lining and close it by
pushing gently. 
››› in Opening and closing on
page 118
››› page 118
››› page 10 Manual release mechanism for the
rear lid
Fig. 6
Luggage compartment: access to man-
ual r
el

ease. The rear lid can be unlocked manually from
in
s
ide in the ev

ent of an emergency.
● Insert the key in the opening in the lining
of the re
ar lid and move the key in the direc-
tion of the arrow until the lock is released. 10

The essentials
Bonnet Fig. 7
Unlocking the bonnet. ●
Opening the bonnet: Pull the lever under
the d a
shbo
ard ››› Fig. 7 1 .
● Lifting up the bonnet: press the release
c at
c

h under the bonnet upwards ››› Fig. 7 2 .
The arr e
s
ter hook under the bonnet is re-
leased.
● The bonnet can be opened. Release the
bonnet st
ay and secure it in the fixture de-
signed for this in the bonnet. 
››› in Introduction on page 204
›››
page 204 Controls for the windows*
Fig. 8
Detail of the driver door: controls for
the w indo
w

s. ●
Opening the window: Press the  butt
on.
● C

losing the window: Pull the  button.
B

uttons on the driver door Window on the front left door
Window on the front right door
Window on the rear left door
Window on the rear right door
Safety switch for deactivating the electric
window buttons in the rear doors.
1 2
3
4
5 
››› in Operation of the electric windows
on page 119
››› page 119 Before driving
M anua
l

ly adjusting the front seats Fig. 9
Front seats: manual seat adjustment. Forward/back: pull the lever and move
the se
at
f

orwards or backwards.
Raising/lowering: pull/push the lever.
Tilting the backrest: pull the lever back.

››› in Introduction on page 131 1
2
3
11

The essentials

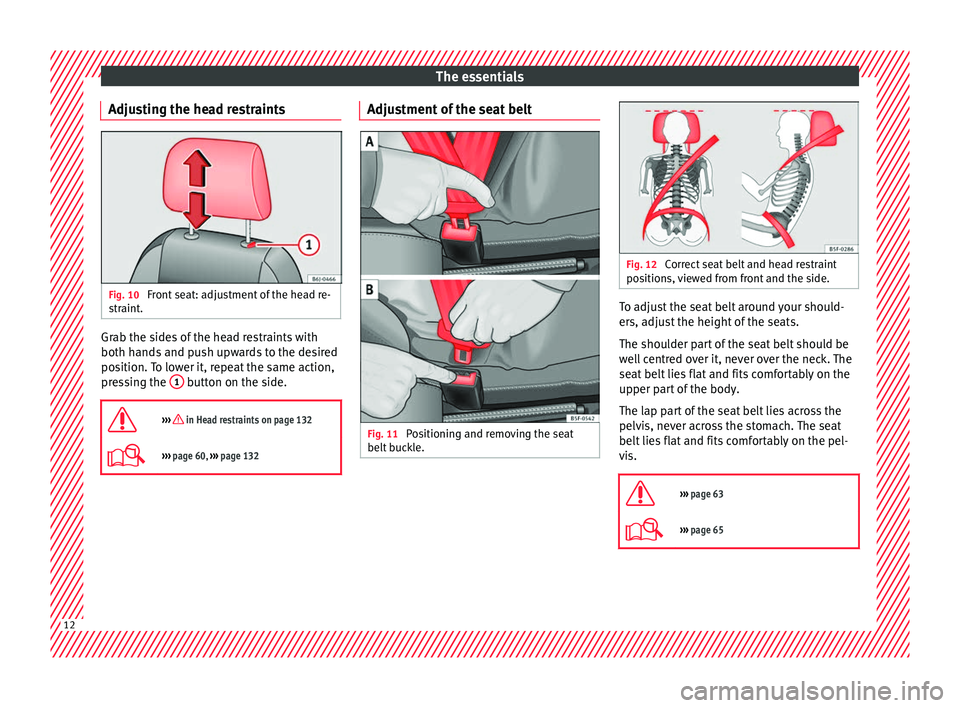

Adjusting the head restraints Fig. 10
Front seat: adjustment of the head re-
s tr
aint
. Grab the sides of the head restraints with
both h
and
s

and push upwards to the desired
position. To lower it, repeat the same action,
pressing the 1 button on the side.

››› in Head restraints on page 132
››› page 60, ››› page 132 Adjustment of the seat belt
Fig. 11
Positioning and removing the seat
belt b
uc

kle. Fig. 12
Correct seat belt and head restraint
pos ition

s, viewed from front and the side. To adjust the seat belt around your should-
er
s, a
dju

st the height of the seats.
The shoulder part of the seat belt should be
well centred over it, never over the neck. The
seat belt lies flat and fits comfortably on the
upper part of the body.
The lap part of the seat belt lies across the
pelvis, never across the stomach. The seat
belt lies flat and fits comfortably on the pel-
vis.

››› page 63
››› page 65 12

The essentials

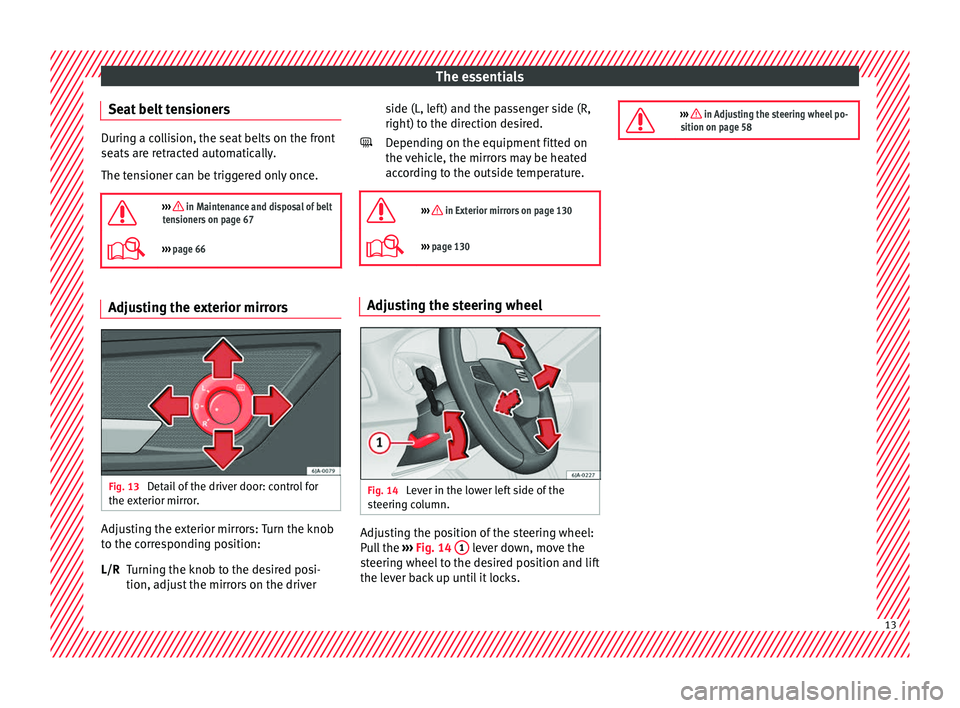

Seat belt tensioners During a collision, the seat belts on the front
seats
ar
e retracted automatically.
The tensioner can be triggered only once.

››› in Maintenance and disposal of belt
tensioners on page 67
››› page 66 Adjusting the exterior mirrors
Fig. 13
Detail of the driver door: control for
the e xt
erior mirr

or. Adjusting the exterior mirrors: Turn the knob
t
o the c
orr

esponding position:
Turning the knob to the desired posi-
tion, adjust the mirrors on the driver
L/R side (L, left) and the passenger side (R,
right) to the direction de

sired.
Depending on the equipment fitted on
the vehicle, the mirrors may be heated
according to the outside temperature.

››› in Exterior mirrors on page 130
››› page 130 Adjusting the steering wheel
Fig. 14
Lever in the lower left side of the
s t
eerin

g column. Adjusting the position of the steering wheel:
P
u
l

l the ››› Fig. 14 1 lever down, move the
s t
eerin
g wheel to the desired position and lift
the lever back up until it locks.  
››› in Adjusting the steering wheel po-
sition on page 58 13

The essentials

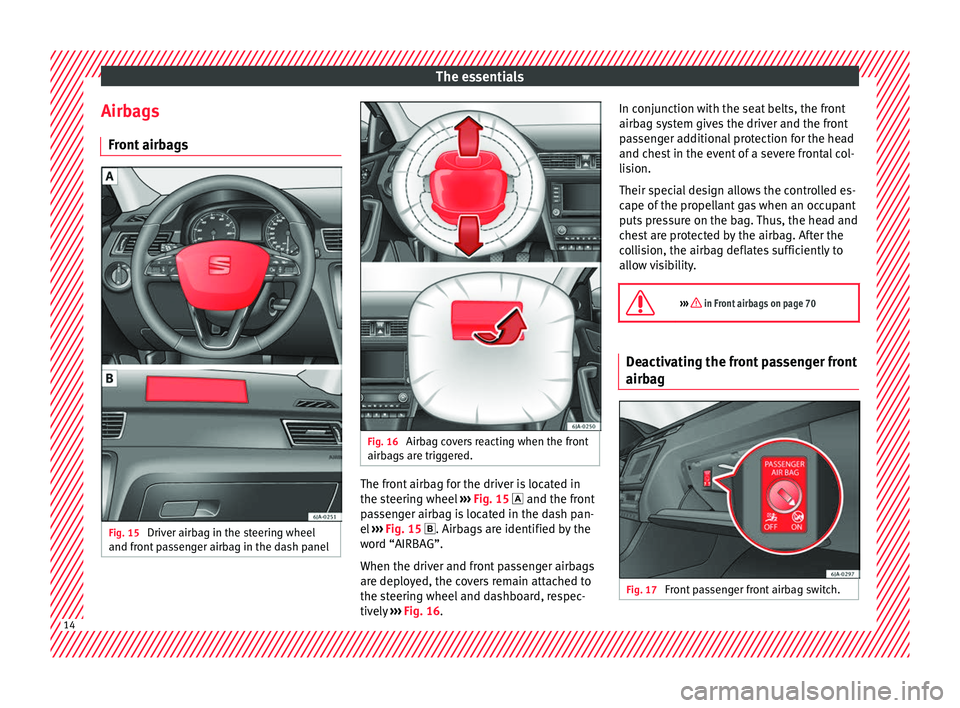

Airbags Fr ont
airb
agsFig. 15
Driver airbag in the steering wheel
and fr ont
p

assenger airbag in the dash panel Fig. 16
Airbag covers reacting when the front
airb ag
s

are triggered. The front airbag for the driver is located in
the s
t
eerin

g wheel ›››
Fig. 15  and the front
passenger airbag is located in the dash pan-
el ›››
Fig. 15 . Airbags are identified by the
word “AIRBAG”.
When the driver and front passenger airbags
are deployed, the covers remain attached to
the steering wheel and dashboard, respec-
tively ›››
Fig. 16. In conjunction with the seat belts, the front
airbag sys

tem gives the driver and the front
passenger additional protection for the head
and chest in the event of a severe frontal col-
lision.
Their special design allows the controlled es-
cape of the propellant gas when an occupant
puts pressure on the bag. Thus, the head and
chest are protected by the airbag. After the
collision, the airbag deflates sufficiently to
allow visibility.

››› in Front airbags on page 70 Deactivating the front passenger front
airb
ag Fig. 17
Front passenger front airbag switch.14

The essentials

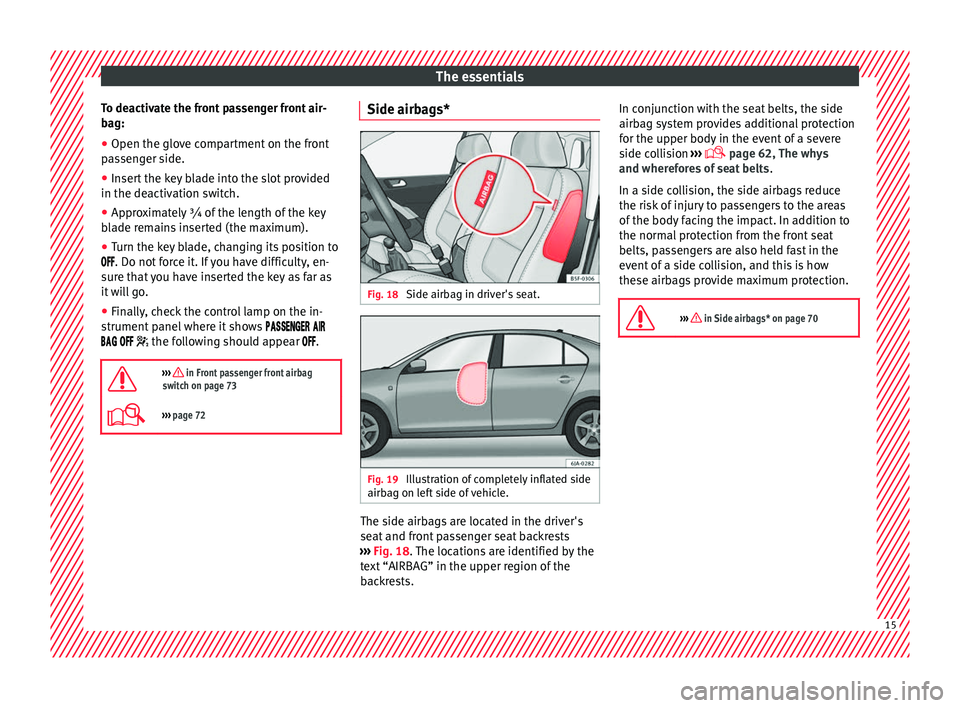

To deactivate the front passenger front air-
b ag:
● Open the glo v
e compartment on the front
pas
senger side.
● Insert the key blade into the slot provided
in the deactivation sw
itch.
● Approximately ¾ of the length of the key
bla
de remains inserted (the maximum).
● Turn the key blade, changing its position to
. Do not for
ce it. If you have difficulty, en-
sure that you have inserted the key as far as
it will go.
● Finally, check the control lamp on the in-
strument p
anel where it shows  
   the following should appear .

››› in Front passenger front airbag
switch on page 73
››› page 72 Side airbags*
Fig. 18
Side airbag in driver's seat. Fig. 19
Illustration of completely inflated side
airb ag on l
ef

t side of vehicle. The side airbags are located in the driver's
se
at
and fr

ont passenger seat backrests
››› Fig. 18. The locations are identified by the
text “AIRBAG” in the upper region of the
backrests. In conjunction with the seat belts, the side
airbag sys

tem provides additional protection
for the upper body in the event of a severe
side collision ›››
 page 62, The whys
and wherefores of seat belts .
In a side collision, the side airbags reduce
the risk of injury to passengers to the areas
of the body facing the impact. In addition to
the normal protection from the front seat
belts, passengers are also held fast in the
event of a side collision, and this is how
these airbags provide maximum protection.

››› in Side airbags* on page 70 15

The essentials
Head-protection airbags* Fig. 20
Location of head-protection airbags. Fig. 21
Deployed head-protection airbags. The head-protection airbags are located on
both s
ide
s
in the interior above the doors
››› Fig. 20 and are identified with the text
“AIRBAG”.
In conjunction with the seat belts, the head-
protection airbag system gives the vehicle
occupants additional protection for the head and upper body in the event of a severe side
col

lision ››› page 15.

››› in Head-protection airbags* on
page 71 Child seats
Important
information regarding the
front passenger's airbag Fig. 22
Passenger's side sun visor: airbag
s tic
k

er. Fig. 23
On the rear frame of the passenger
side door: airb ag s

ticker. A sticker with important information about
the p
a
s

senger airbag is located on the pas-
senger's sun visor and/or on the passenger
side door frame.

››› in Important information regarding
the front passenger's airbag on page 74
››› page 74 Possible ways to secure child seats
You can secure a child seat to the rear seat or
fr
ont
p

assenger seat in the following ways:
● Child seats in groups 0 to 3 c
an be secured
with a seat belt. 16

The essentials
● Chi l
d se
ats for groups 0, 0+ and 1 can be
fastened without seatbelts, using the “ISO-
FIX” and Top Tether* system, using the “ISO-
FIX” and Top Tether* securing rings
››› page 17.
Weight
groupSeat locations
Front pas- senger a)Rear
outerRear
centre
Group 0
<10 kgU b)U/LU
Group 0+
<13 kgUb)U/LU
Group I
9-18 kgUb)U/LU
Group II/III
15-36 kgUb)UU
U: Suitable for universal approved restraining systems
for use in this age category (universal retention systems
are those fitted using the adult seat belt).
L: Suitable for retention systems using the “ISOFIX” and
Top Tether* anchors.
a)
Compliance with current national legislation and the manu-
facturer's instructions is required when using or installing child
seats.
b) Move the front passenger seat as far back as possible, as
high as possible and always disable the airbag.
The systems include the child restraint sys-
tem mounting with an upper retaining strap
(Top Tether) and lower anchoring points on
the seat. 
››› in Safety instructions on page 75 Securing child seats with “ISOFIX”
and Top T

ether* Fig. 24
ISOFIX securing rings. Fig. 25
Top Tether* securing ring. Child seats with the “ISOFIX” or Top Tether*
sy
s
t

em can be secured quickly, easily and
safely on the rear outer seats. When removing or fitting the child seat,
ple

ase be sure to follow the manufacturer's
instructions.
● Move the rear seat as far to the rear as it
wil
l go.
● Press the child seat onto the “ISOFIX” re-
taining rin
gs until the child seat can be heard
to engage. If the child seat is equipped with
Top Tether* anchor points, secure it to the
correspondent ring. Observe the manufactur-
er's instructions.
● Pull on both sides of the child seat to en-
sure th
at it is secure.
Two “ISOFIX” retaining rings are fitted on
each rear seat. In some vehicles, the rings
are secured to the seat frame and, in others,
they are secured to the rear floor. Access to
the “ISOFIX” rings is between the rear seat
backrest and the seat cushioning. The Top
Tether* rings are located at the rear of the
backrests of the rear seats (behind the seat
backrest or in the boot).
Child seats with the “ISOFIX” and Top Tether*
attachment system are available from Techni-
cal Services.

››› in Safety instructions on page 75 17

The essentials
Starting the vehicle Ignition loc kFig. 26
Ignition key positions. Switch ignition on: Place the key in the igni-
tion and s
t
ar
t the engine.
Locking and unlocking the steering wheel
● Engaging the steering wheel lock: Remove
the key fr
om the ignition and turn the wheel
until it locks. In vehicles with an automatic
gearbox, the gear lever must be in the P posi-
tion in order to remove the key. If necessary,
press the locking key on the selector lever
and release it again.
● Unlocking the steering wheel: Put the key
into the ignition and turn it
at the same time
as the steering wheel in the direction indica-
ted by the arrow. If it is not possible to turn
the steering wheel, it may be because it is
locked. Turning on/switching off the ignition, glow
plugs

reheating
● Switch ignition on: Turn the key to the 2 position.
●
Switch ignition off. Turn the key to the 1 position.
●
Diesel vehicles : The glo
w p
lugs reheat
when the ignition is switched on.
Starting the engine
● Manual gearbox: press the clutch pedal all
the way
down and move the gearbox lever in-
to neutral.
● Automatic gearbox: Press the brake pedal
and move the sel
ector lever to the P position
or into N.
● Turn the key to the 3 position. The key au-
t om
atic

ally returns to the 2 position. Do not
pr e
s
s the accelerator.
Start-Stop System*
When you stop and release the clutch pedal,
the Start-Stop system* turns off the engine.
The ignition remains switched on.

››› in Introduction on page 152
››› page 152 Lights and visibility
Light sw
it

ch Fig. 27
Dash panel: light control. Turn the switch to the required position
› ›
›

Fig. 27.
Sym-
bolIgnition switch-
ed offIgnition is switch-
ed on 
Fog lights, dipped
beam and side
lights off.Light off or daytime
driving light on.

The “Coming home”
and “Leaving
home” guide lights
may be switched
on.Automatic control of
dipped beam and day-
time running light.

Side light on.

Dipped beam head-
light offDipped beam switch-
ed on.
18
