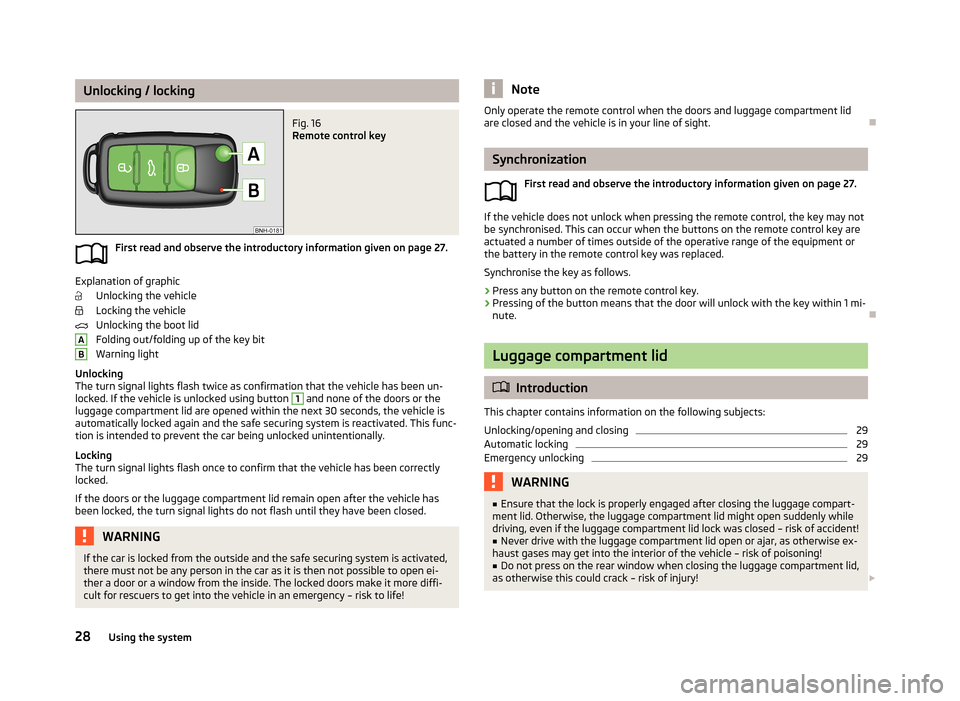

Unlocking / lockingFig. 16
Remote control key
First read and observe the introductory information given on page 27.
Explanation of graphicUnlocking the vehicle
Locking the vehicle
Unlocking the boot lid
Folding out/folding up of the key bit
Warning light
Unlocking
The turn signal lights flash twice as confirmation that the vehicle has been un-
locked. If the vehicle is unlocked using button
1
and none of the doors or the
luggage compartment lid are opened within the next 30 seconds, the vehicle is
automatically locked again and the safe securing system is reactivated. This func-
tion is intended to prevent the car being unlocked unintentionally.
Locking
The turn signal lights flash once to confirm that the vehicle has been correctly
locked.
If the doors or the luggage compartment lid remain open after the vehicle has
been locked, the turn signal lights do not flash until they have been closed.
WARNINGIf the car is locked from the outside and the safe securing system is activated,
there must not be any person in the car as it is then not possible to open ei-
ther a door or a window from the inside. The locked doors make it more diffi-
cult for rescuers to get into the vehicle in an emergency – risk to life!ABNoteOnly operate the remote control when the doors and luggage compartment lid
are closed and the vehicle is in your line of sight.
Synchronization
First read and observe the introductory information given on page 27.
If the vehicle does not unlock when pressing the remote control, the key may notbe synchronised. This can occur when the buttons on the remote control key are
actuated a number of times outside of the operative range of the equipment or
the battery in the remote control key was replaced.
Synchronise the key as follows.
›
Press any button on the remote control key.
›
Pressing of the button means that the door will unlock with the key within 1 mi-
nute.
Luggage compartment lid
Introduction
This chapter contains information on the following subjects:
Unlocking/opening and closing
29
Automatic locking
29
Emergency unlocking
29WARNING■ Ensure that the lock is properly engaged after closing the luggage compart-
ment lid. Otherwise, the luggage compartment lid might open suddenly while
driving, even if the luggage compartment lid lock was closed – risk of accident!■
Never drive with the luggage compartment lid open or ajar, as otherwise ex-
haust gases may get into the interior of the vehicle – risk of poisoning!
■
Do not press on the rear window when closing the luggage compartment lid,
as otherwise this could crack – risk of injury!
28Using the system
Page 32 of 176
NoteA closed, but not locked luggage compartment lid is locked automatically when
driving off, or when travelling at speeds greater than about 9 km/h. It is unlocked
again after the vehicle stops and the door is opened.
Unlocking/opening and closing

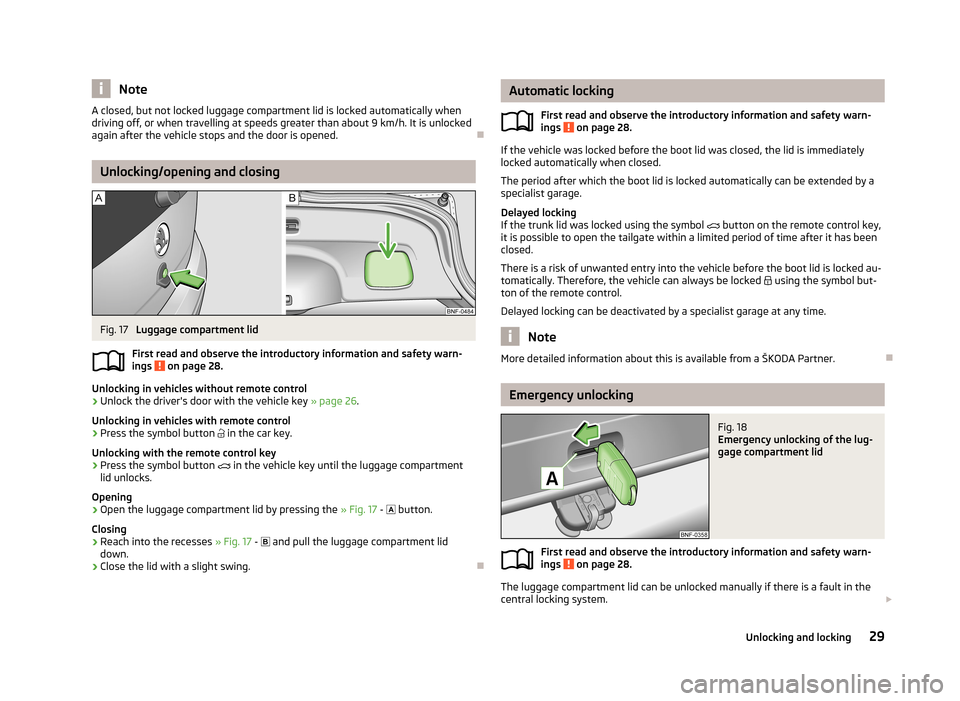

Fig. 17
Luggage compartment lid
First read and observe the introductory information and safety warn-
ings
on page 28.
Unlocking in vehicles without remote control
›
Unlock the driver's door with the vehicle key » page 26.
Unlocking in vehicles with remote control
›
Press the symbol button
in the car key.
Unlocking with the remote control key
›
Press the symbol button
in the vehicle key until the luggage compartment
lid unlocks.
Opening
›
Open the luggage compartment lid by pressing the » Fig. 17 -
button.
Closing
›
Reach into the recesses » Fig. 17 -
and pull the luggage compartment lid
down.
›
Close the lid with a slight swing.
Automatic locking
First read and observe the introductory information and safety warn-
ings
on page 28.
If the vehicle was locked before the boot lid was closed, the lid is immediately
locked automatically when closed.
The period after which the boot lid is locked automatically can be extended by a specialist garage.
Delayed locking
If the trunk lid was locked using the symbol button on the remote control key,
it is possible to open the tailgate within a limited period of time after it has been
closed.
There is a risk of unwanted entry into the vehicle before the boot lid is locked au- tomatically. Therefore, the vehicle can always be locked
using the symbol but-
ton of the remote control.
Delayed locking can be deactivated by a specialist garage at any time.
Note
More detailed information about this is available from a ŠKODA Partner.
Emergency unlocking
Fig. 18
Emergency unlocking of the lug-
gage compartment lid
First read and observe the introductory information and safety warn-
ings on page 28.
The luggage compartment lid can be unlocked manually if there is a fault in the
central locking system.
29Unlocking and locking
Page 33 of 176
Unlocking›Fold the rear seat backrest forward » page 45, Folding the rear seats forward .›
Insert the vehicle key or a similar tool into the opening
A
» Fig. 18 in the lid trim
up to the stop.
›
Unlock the lock in the direction of arrow.
›
Open the boot lid.

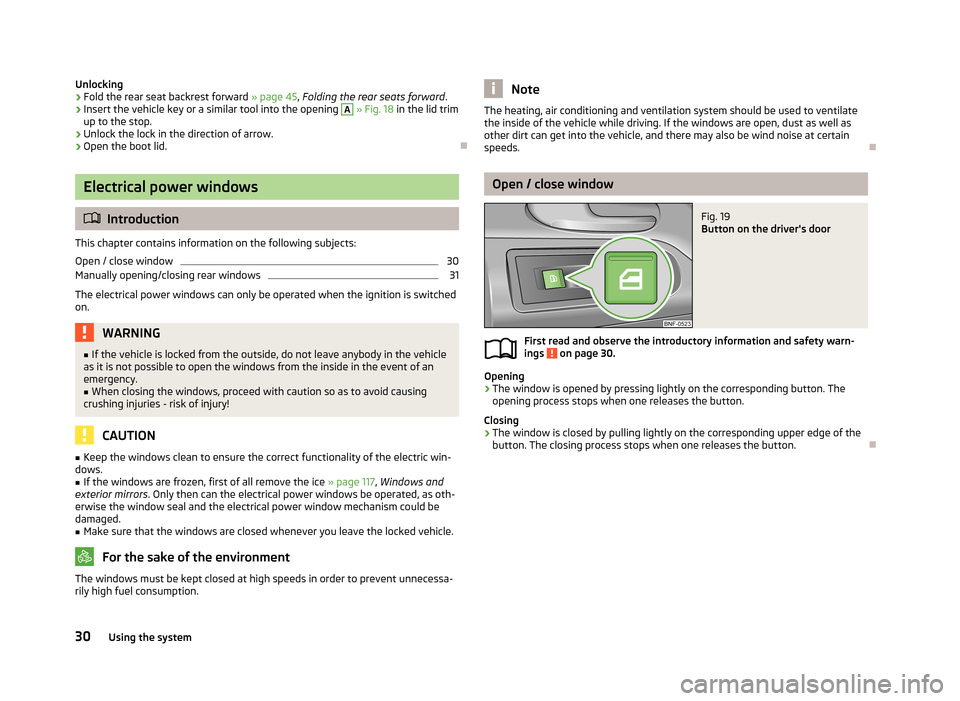

Electrical power windows
Introduction
This chapter contains information on the following subjects:
Open / close window
30
Manually opening/closing rear windows
31
The electrical power windows can only be operated when the ignition is switched
on.
WARNING■ If the vehicle is locked from the outside, do not leave anybody in the vehicle
as it is not possible to open the windows from the inside in the event of an
emergency.■
When closing the windows, proceed with caution so as to avoid causing
crushing injuries - risk of injury!
CAUTION
■ Keep the windows clean to ensure the correct functionality of the electric win-
dows.■
If the windows are frozen, first of all remove the ice » page 117, Windows and
exterior mirrors . Only then can the electrical power windows be operated, as oth-
erwise the window seal and the electrical power window mechanism could be
damaged.
■
Make sure that the windows are closed whenever you leave the locked vehicle.
For the sake of the environment
The windows must be kept closed at high speeds in order to prevent unnecessa-
rily high fuel consumption.NoteThe heating, air conditioning and ventilation system should be used to ventilate
the inside of the vehicle while driving. If the windows are open, dust as well as
other dirt can get into the vehicle, and there may also be wind noise at certain
speeds.
Open / close window
Fig. 19
Button on the driver's door
First read and observe the introductory information and safety warn- ings on page 30.
Opening
›
The window is opened by pressing lightly on the corresponding button. The opening process stops when one releases the button.
Closing
›
The window is closed by pulling lightly on the corresponding upper edge of the
button. The closing process stops when one releases the button.
30Using the system
Page 34 of 176

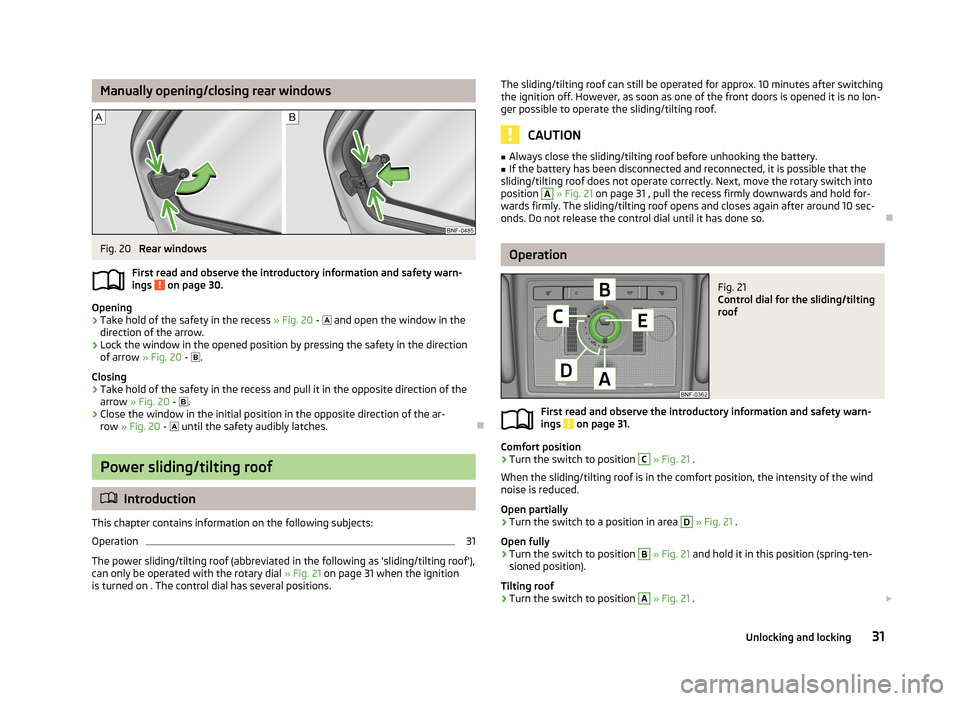

Manually opening/closing rear windowsFig. 20
Rear windows
First read and observe the introductory information and safety warn-
ings
on page 30.
Opening
›
Take hold of the safety in the recess » Fig. 20 -
and open the window in the
direction of the arrow.
›
Lock the window in the opened position by pressing the safety in the direction of arrow » Fig. 20 -
.
Closing
›
Take hold of the safety in the recess and pull it in the opposite direction of the
arrow » Fig. 20 -
.
›
Close the window in the initial position in the opposite direction of the ar-
row » Fig. 20 -
until the safety audibly latches.
Power sliding/tilting roof
Introduction
This chapter contains information on the following subjects:
Operation
31
The power sliding/tilting roof (abbreviated in the following as 'sliding/tilting roof'), can only be operated with the rotary dial » Fig. 21 on page 31 when the ignition
is turned on . The control dial has several positions.
The sliding/tilting roof can still be operated for approx. 10 minutes after switching
the ignition off. However, as soon as one of the front doors is opened it is no lon-
ger possible to operate the sliding/tilting roof.
CAUTION
■ Always close the sliding/tilting roof before unhooking the battery.■If the battery has been disconnected and reconnected, it is possible that the
sliding/tilting roof does not operate correctly. Next, move the rotary switch into
position A
» Fig. 21 on page 31 , pull the recess firmly downwards and hold for-
wards firmly. The sliding/tilting roof opens and closes again after around 10 sec-
onds. Do not release the control dial until it has done so.
Operation
Fig. 21
Control dial for the sliding/tilting
roof
First read and observe the introductory information and safety warn-
ings on page 31.
Comfort position
›
Turn the switch to position
C
» Fig. 21 .
When the sliding/tilting roof is in the comfort position, the intensity of the wind noise is reduced.
Open partially
›
Turn the switch to a position in area
D
» Fig. 21 .
Open fully
›
Turn the switch to position
B
» Fig. 21 and hold it in this position (spring-ten-
sioned position).
Tilting roof
›
Turn the switch to position
A
» Fig. 21 .
31Unlocking and locking
Page 35 of 176

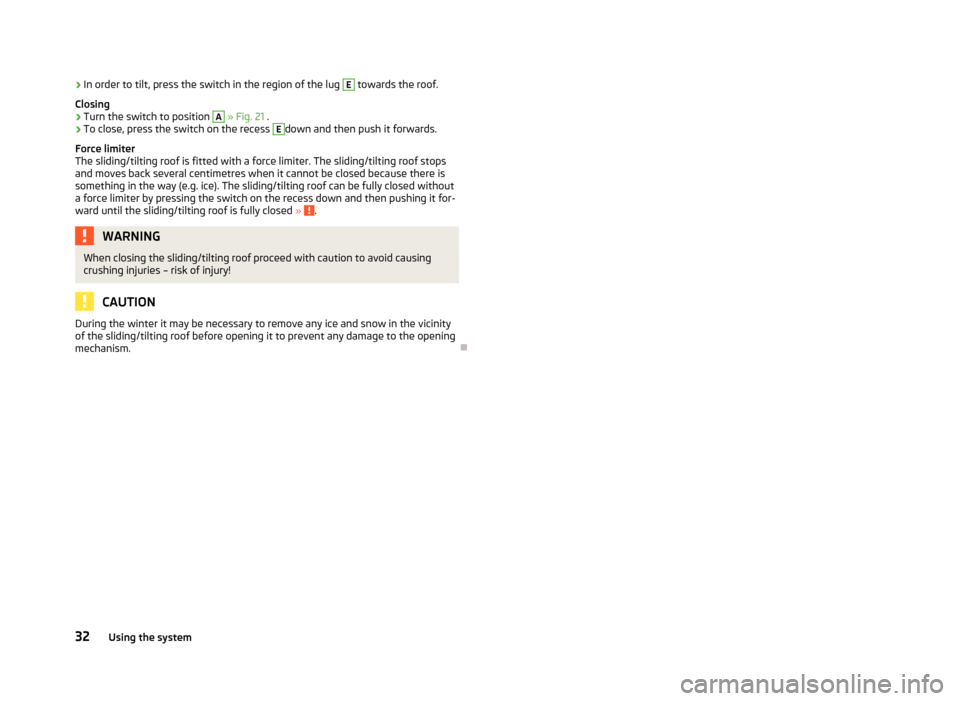

›In order to tilt, press the switch in the region of the lug E towards the roof.
Closing›
Turn the switch to position
A
» Fig. 21 .
›
To close, press the switch on the recess
E
down and then push it forwards.
Force limiter
The sliding/tilting roof is fitted with a force limiter. The sliding/tilting roof stops and moves back several centimetres when it cannot be closed because there is
something in the way (e.g. ice). The sliding/tilting roof can be fully closed without
a force limiter by pressing the switch on the recess down and then pushing it for- ward until the sliding/tilting roof is fully closed »
.
WARNINGWhen closing the sliding/tilting roof proceed with caution to avoid causing
crushing injuries – risk of injury!
CAUTION
During the winter it may be necessary to remove any ice and snow in the vicinity
of the sliding/tilting roof before opening it to prevent any damage to the opening
mechanism.
32Using the system
Page 36 of 176

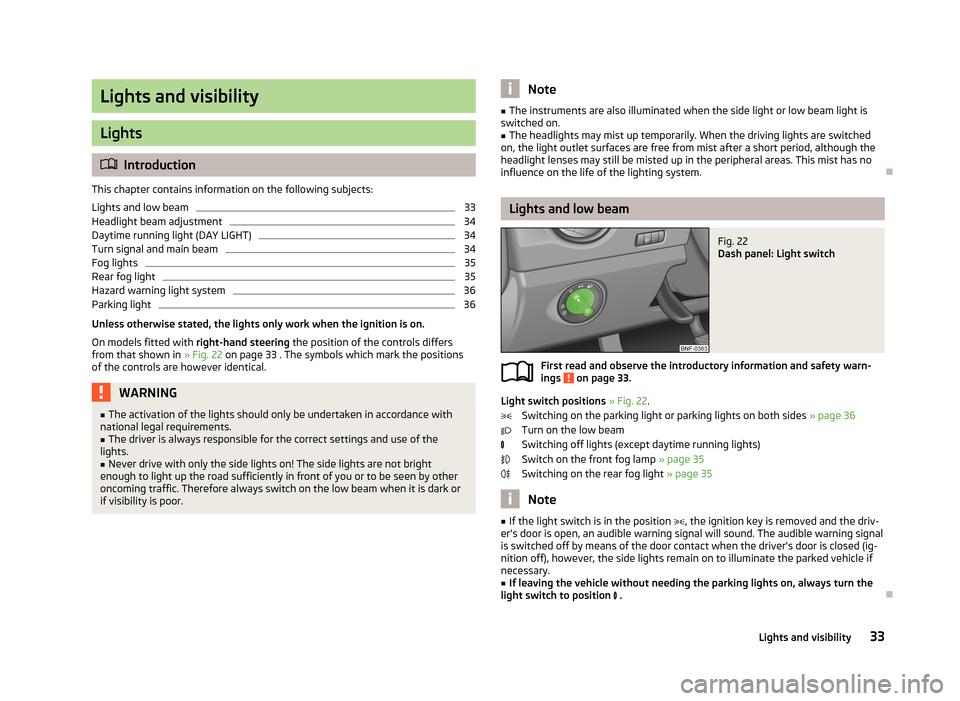

Lights and visibility
Lights
Introduction
This chapter contains information on the following subjects:
Lights and low beam
33
Headlight beam adjustment
34
Daytime running light (DAY LIGHT)
34
Turn signal and main beam
34
Fog lights
35
Rear fog light
35
Hazard warning light system
36
Parking light
36
Unless otherwise stated, the lights only work when the ignition is on.
On models fitted with right-hand steering the position of the controls differs
from that shown in » Fig. 22 on page 33 . The symbols which mark the positions
of the controls are however identical.
WARNING■ The activation of the lights should only be undertaken in accordance with
national legal requirements.■
The driver is always responsible for the correct settings and use of the
lights.
■
Never drive with only the side lights on! The side lights are not bright
enough to light up the road sufficiently in front of you or to be seen by other oncoming traffic. Therefore always switch on the low beam when it is dark or
if visibility is poor.
Note■ The instruments are also illuminated when the side light or low beam light is
switched on.■
The headlights may mist up temporarily. When the driving lights are switched
on, the light outlet surfaces are free from mist after a short period, although the
headlight lenses may still be misted up in the peripheral areas. This mist has no
influence on the life of the lighting system.
Lights and low beam
Fig. 22
Dash panel: Light switch
First read and observe the introductory information and safety warn-
ings on page 33.
Light switch positions » Fig. 22 .
Switching on the parking light or parking lights on both sides » page 36
Turn on the low beam
Switching off lights (except daytime running lights)
Switch on the front fog lamp » page 35
Switching on the rear fog light » page 35
Note
■
If the light switch is in the position , the ignition key is removed and the driv-
er's door is open, an audible warning signal will sound. The audible warning signal
is switched off by means of the door contact when the driver's door is closed (ig- nition off), however, the side lights remain on to illuminate the parked vehicle ifnecessary.■
If leaving the vehicle without needing the parking lights on, always turn the
light switch to position .
33Lights and visibility
Page 37 of 176

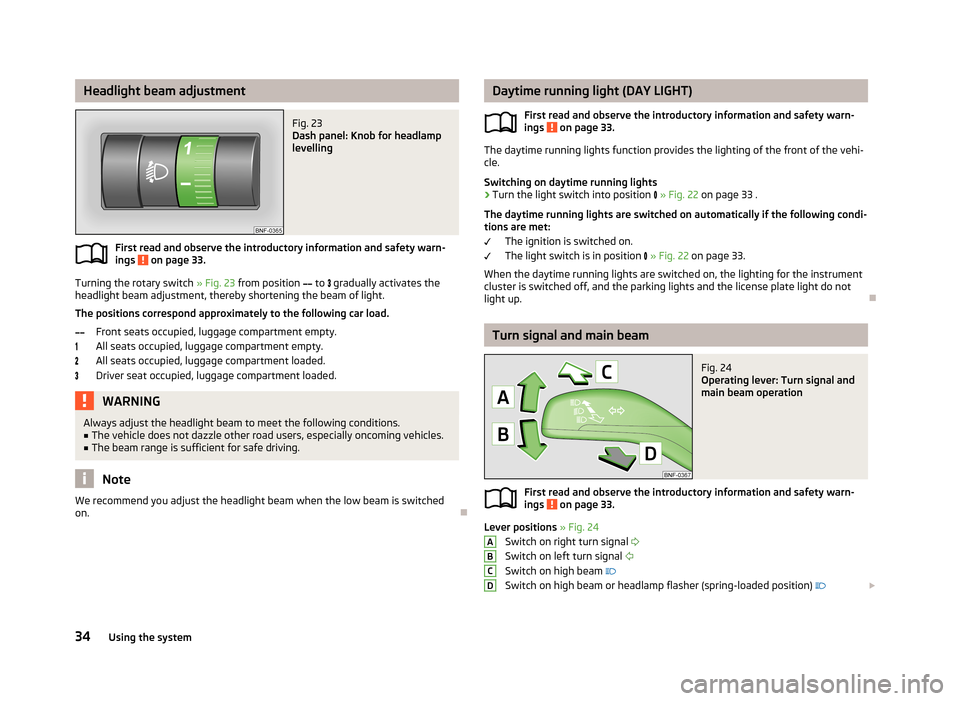

Headlight beam adjustmentFig. 23
Dash panel: Knob for headlamp
levelling
First read and observe the introductory information and safety warn-
ings on page 33.
Turning the rotary switch » Fig. 23 from position
to
gradually activates the
headlight beam adjustment, thereby shortening the beam of light.
The positions correspond approximately to the following car load. Front seats occupied, luggage compartment empty.All seats occupied, luggage compartment empty.All seats occupied, luggage compartment loaded.
Driver seat occupied, luggage compartment loaded.
WARNINGAlways adjust the headlight beam to meet the following conditions.■The vehicle does not dazzle other road users, especially oncoming vehicles.■
The beam range is sufficient for safe driving.
Note
We recommend you adjust the headlight beam when the low beam is switched
on.
Daytime running light (DAY LIGHT)
First read and observe the introductory information and safety warn-ings
on page 33.
The daytime running lights function provides the lighting of the front of the vehi-
cle.
Switching on daytime running lights
›
Turn the light switch into position » Fig. 22 on page 33 .
The daytime running lights are switched on automatically if the following condi- tions are met:
The ignition is switched on.
The light switch is in position
» Fig. 22 on page 33.
When the daytime running lights are switched on, the lighting for the instrument
cluster is switched off, and the parking lights and the license plate light do not light up.
Turn signal and main beam
Fig. 24
Operating lever: Turn signal and
main beam operation
First read and observe the introductory information and safety warn-
ings on page 33.
Lever positions » Fig. 24
Switch on right turn signal
Switch on left turn signal
Switch on high beam
Switch on high beam or headlamp flasher (spring-loaded position)
ABCD34Using the system
Page 38 of 176
When the left or right turn signal is on, the warning light or flashes in the
instrument cluster.
When the high beam or headlight flasher is on, the warning light lights up in
the instrument cluster.
Turn signal for changing lanes - to only flash briefly, only move the lever up or
down to the pressure point and hold it in this position.
Convenience turn signal
If you only wish to flash three times, briefly push the lever to the upper or lower
pressure point and release again.WARNINGOnly turn on the main beam or the headlight flasher if other road users will
not be dazzled.
Note
■ The main beam can only be switched on when the low beam lights are on.■The turn signal only operates if the ignition is switched on.■
The turn signal is automatically cancelled after negotiating a curve.
■
An acoustic warning signal will sound when the driver's door is opened if the
lever is not in the middle position after removing the ignition key from the igni-
tion lock. The acoustic warning signal will stop just as soon as the driver's door is closed.
Fog lights

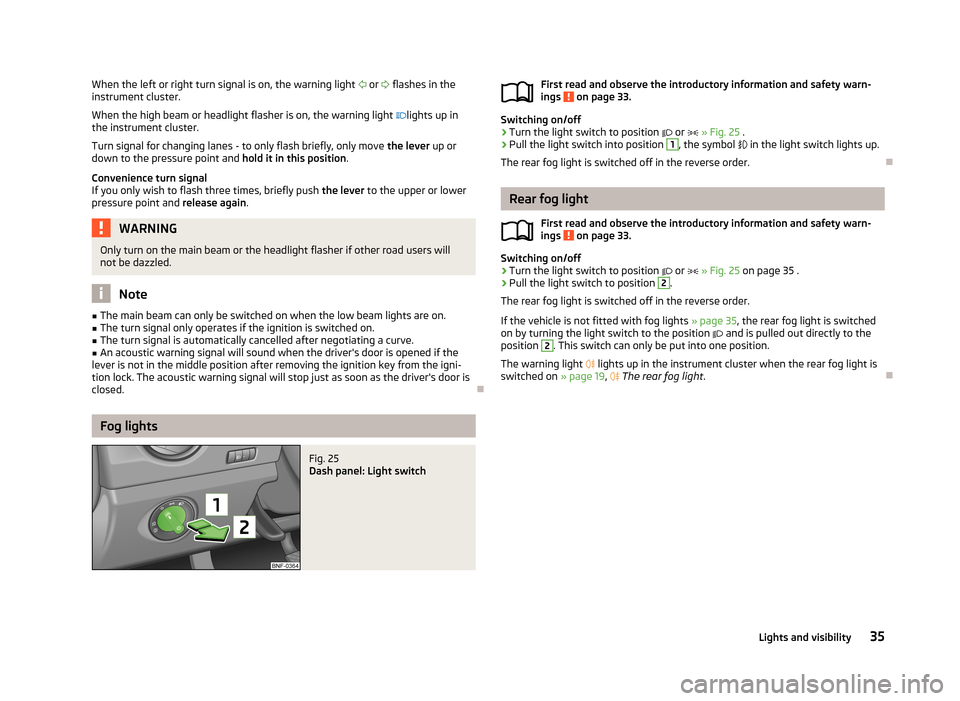

Fig. 25
Dash panel: Light switch
First read and observe the introductory information and safety warn-ings on page 33.
Switching on/off
›
Turn the light switch to position or » Fig. 25 .
›
Pull the light switch into position
1
, the symbol in the light switch lights up.
The rear fog light is switched off in the reverse order.
Rear fog light
First read and observe the introductory information and safety warn-
ings
on page 33.
Switching on/off
›
Turn the light switch to position
or
» Fig. 25 on page 35 .
›
Pull the light switch to position
2
.
The rear fog light is switched off in the reverse order.
If the vehicle is not fitted with fog lights » page 35, the rear fog light is switched
on by turning the light switch to the position
and is pulled out directly to the
position
2
. This switch can only be put into one position.
The warning light
lights up in the instrument cluster when the rear fog light is
switched on » page 19,
The rear fog light .
35Lights and visibility
Page 39 of 176

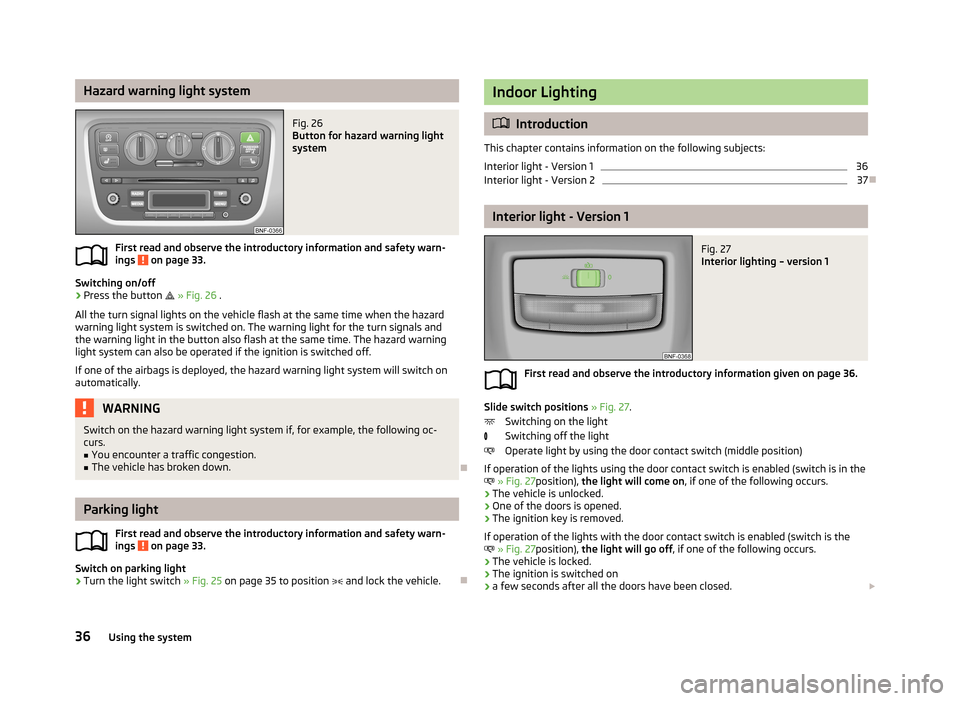

Hazard warning light systemFig. 26
Button for hazard warning light
system
First read and observe the introductory information and safety warn-
ings on page 33.
Switching on/off
›
Press the button
» Fig. 26 .
All the turn signal lights on the vehicle flash at the same time when the hazard
warning light system is switched on. The warning light for the turn signals and
the warning light in the button also flash at the same time. The hazard warning
light system can also be operated if the ignition is switched off.
If one of the airbags is deployed, the hazard warning light system will switch on
automatically.
WARNINGSwitch on the hazard warning light system if, for example, the following oc-
curs.■
You encounter a traffic congestion.
■
The vehicle has broken down.
Parking light
First read and observe the introductory information and safety warn-
ings
on page 33.
Switch on parking light
›
Turn the light switch » Fig. 25 on page 35 to position
and lock the vehicle.
Indoor Lighting
Introduction
This chapter contains information on the following subjects:
Interior light - Version 1
36
Interior light - Version 2
37
Interior light - Version 1
Fig. 27
Interior lighting – version 1
First read and observe the introductory information given on page 36.
Slide switch positions » Fig. 27 .
Switching on the light
Switching off the light
Operate light by using the door contact switch (middle position)
If operation of the lights using the door contact switch is enabled (switch is in the
» Fig. 27 position), the light will come on , if one of the following occurs.
› The vehicle is unlocked.
› One of the doors is opened.
› The ignition key is removed.
If operation of the lights with the door contact switch is enabled (switch is the
» Fig. 27 position), the light will go off , if one of the following occurs.
› The vehicle is locked.
› The ignition is switched on
› a few seconds after all the doors have been closed.
36Using the system
Page 40 of 176
NoteIf the interior light remains switched on when the ignition is switched off or if one
of the doors is open, the light will automatically go out after around 10 minutes.
Interior light - Version 2

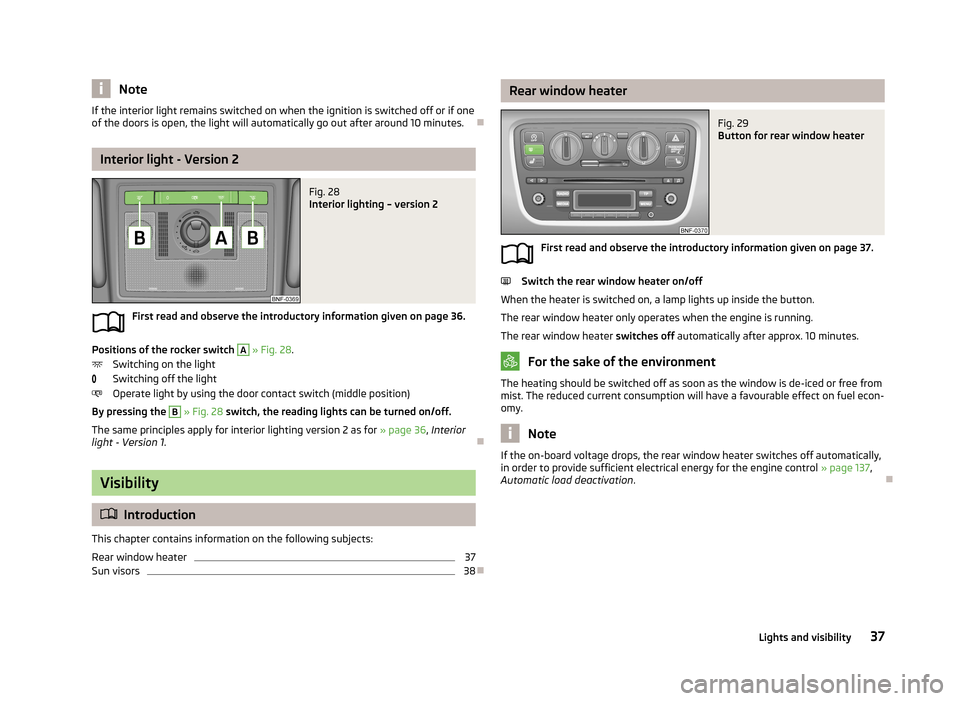

Fig. 28
Interior lighting – version 2
First read and observe the introductory information given on page 36.
Positions of the rocker switch
A
» Fig. 28 .
Switching on the light
Switching off the light
Operate light by using the door contact switch (middle position)
By pressing the
B
» Fig. 28 switch, the reading lights can be turned on/off.
The same principles apply for interior lighting version 2 as for » page 36, Interior
light - Version 1 .
Visibility
Introduction
This chapter contains information on the following subjects:
Rear window heater
37
Sun visors
38
Rear window heaterFig. 29
Button for rear window heater
First read and observe the introductory information given on page 37.
Switch the rear window heater on/off
When the heater is switched on, a lamp lights up inside the button. The rear window heater only operates when the engine is running.
The rear window heater switches off automatically after approx. 10 minutes.
For the sake of the environment
The heating should be switched off as soon as the window is de-iced or free from
mist. The reduced current consumption will have a favourable effect on fuel econ-
omy.
Note
If the on-board voltage drops, the rear window heater switches off automatically,
in order to provide sufficient electrical energy for the engine control » page 137,
Automatic load deactivation .
37Lights and visibility
