Page 51 of 176

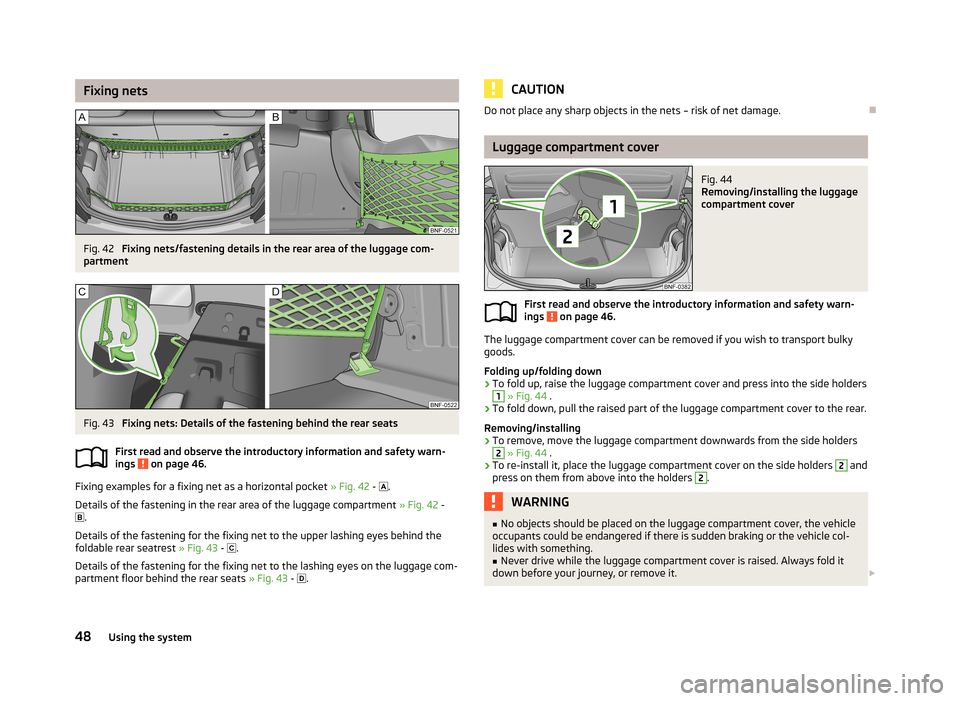

Fixing netsFig. 42
Fixing nets/fastening details in the rear area of the luggage com-
partment
Fig. 43
Fixing nets: Details of the fastening behind the rear seats
First read and observe the introductory information and safety warn-
ings
on page 46.
Fixing examples for a fixing net as a horizontal pocket » Fig. 42 -
.
Details of the fastening in the rear area of the luggage compartment » Fig. 42 -
.
Details of the fastening for the fixing net to the upper lashing eyes behind the
foldable rear seatrest » Fig. 43 -
.
Details of the fastening for the fixing net to the lashing eyes on the luggage com-
partment floor behind the rear seats » Fig. 43 -
.
CAUTIONDo not place any sharp objects in the nets – risk of net damage.
Luggage compartment cover
Fig. 44
Removing/installing the luggage
compartment cover
First read and observe the introductory information and safety warn-
ings on page 46.
The luggage compartment cover can be removed if you wish to transport bulky
goods.
Folding up/folding down
›
To fold up, raise the luggage compartment cover and press into the side holders
1
» Fig. 44 .
›
To fold down, pull the raised part of the luggage compartment cover to the rear.
Removing/installing
›
To remove, move the luggage compartment downwards from the side holders
2
» Fig. 44 .
›
To re-install it, place the luggage compartment cover on the side holders
2
and
press on them from above into the holders
2
.
WARNING■ No objects should be placed on the luggage compartment cover, the vehicle
occupants could be endangered if there is sudden braking or the vehicle col-
lides with something.■
Never drive while the luggage compartment cover is raised. Always fold it
down before your journey, or remove it.
48Using the system
Page 52 of 176
CAUTIONMake sure that the luggage compartment cover is correctly engaged in the sideholders 2 » Fig. 44 - risk of damage to luggage compartment cover/luggage
compartment.

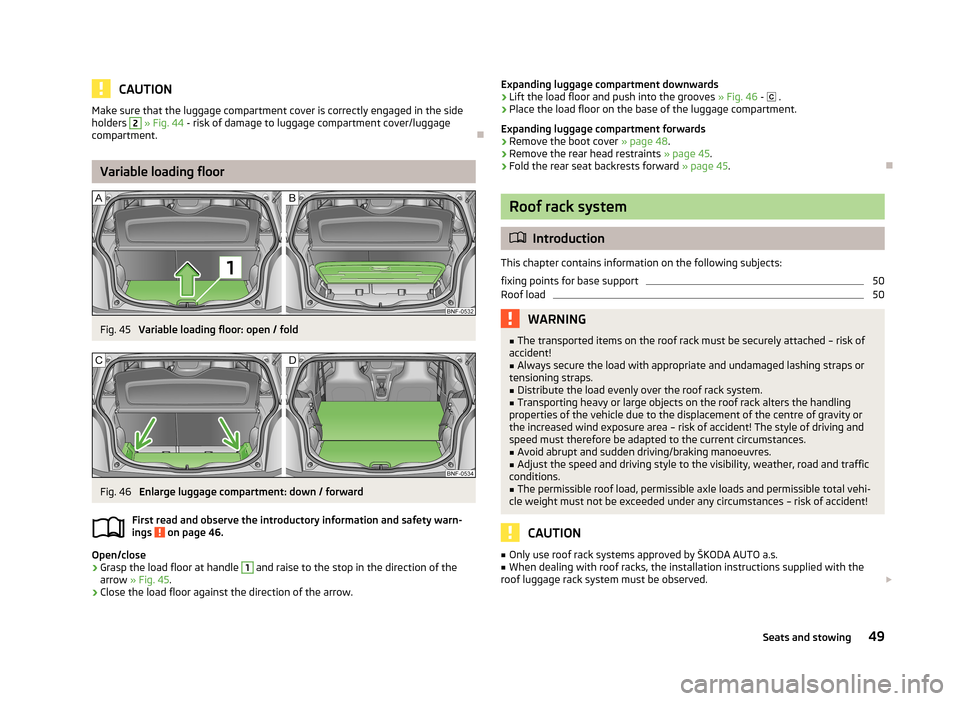

Variable loading floor
Fig. 45
Variable loading floor: open / fold
Fig. 46
Enlarge luggage compartment: down / forward
First read and observe the introductory information and safety warn-
ings
on page 46.
Open/close
›
Grasp the load floor at handle
1
and raise to the stop in the direction of the
arrow » Fig. 45 .
›
Close the load floor against the direction of the arrow.
Expanding luggage compartment downwards›Lift the load floor and push into the grooves » Fig. 46 - .›
Place the load floor on the base of the luggage compartment.
Expanding luggage compartment forwards
›
Remove the boot cover » page 48.
›
Remove the rear head restraints » page 45.
›
Fold the rear seat backrests forward » page 45.
Roof rack system
Introduction
This chapter contains information on the following subjects:
fixing points for base support
50
Roof load
50WARNING■ The transported items on the roof rack must be securely attached – risk of
accident!■
Always secure the load with appropriate and undamaged lashing straps or
tensioning straps.
■
Distribute the load evenly over the roof rack system.
■
Transporting heavy or large objects on the roof rack alters the handling
properties of the vehicle due to the displacement of the centre of gravity or
the increased wind exposure area – risk of accident! The style of driving and
speed must therefore be adapted to the current circumstances.
■
Avoid abrupt and sudden driving/braking manoeuvres.
■
Adjust the speed and driving style to the visibility, weather, road and traffic
conditions.
■
The permissible roof load, permissible axle loads and permissible total vehi-
cle weight must not be exceeded under any circumstances – risk of accident!
CAUTION
■ Only use roof rack systems approved by ŠKODA AUTO a.s.■When dealing with roof racks, the installation instructions supplied with the
roof luggage rack system must be observed. 49Seats and stowing
Page 53 of 176
■On vehicles with a panoramic sliding roof, make sure that the tilted panoramic
sliding roof not strike any items which are transported.■
Ensure that the luggage compartment lid does not hit the roof load when
opened.
■
The height of the vehicle changes after mounting a roof luggage rack system
and the load that is secured to it. Compare the vehicle height with available clear-
ances, such as underpasses and garage doors.
■
Always remove the roof luggage rack system before entering an automated car
wash.
■
Ensure the roof aerial is not impaired by the secured load.
For the sake of the environment
The increased aerodynamic drag results in a higher fuel consumption.

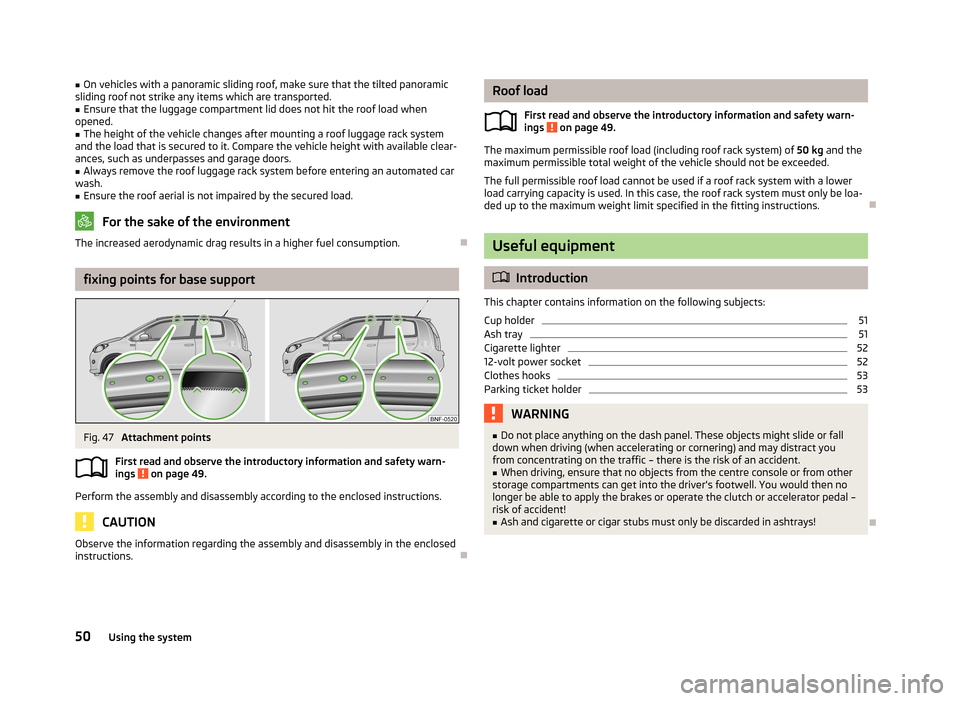

fixing points for base support
Fig. 47
Attachment points
First read and observe the introductory information and safety warn- ings
on page 49.
Perform the assembly and disassembly according to the enclosed instructions.
CAUTION
Observe the information regarding the assembly and disassembly in the enclosed
instructions.
Roof load
First read and observe the introductory information and safety warn-
ings
on page 49.
The maximum permissible roof load (including roof rack system) of 50 kg and the
maximum permissible total weight of the vehicle should not be exceeded.
The full permissible roof load cannot be used if a roof rack system with a lower
load carrying capacity is used. In this case, the roof rack system must only be loa-
ded up to the maximum weight limit specified in the fitting instructions.
Useful equipment
Introduction
This chapter contains information on the following subjects:
Cup holder
51
Ash tray
51
Cigarette lighter
52
12-volt power socket
52
Clothes hooks
53
Parking ticket holder
53WARNING■ Do not place anything on the dash panel. These objects might slide or fall
down when driving (when accelerating or cornering) and may distract you
from concentrating on the traffic – there is the risk of an accident.■
When driving, ensure that no objects from the centre console or from other
storage compartments can get into the driver's footwell. You would then no
longer be able to apply the brakes or operate the clutch or accelerator pedal –
risk of accident!
■
Ash and cigarette or cigar stubs must only be discarded in ashtrays!
50Using the system
Page 54 of 176
Cup holderFig. 48
Centre console: Cup holder at the front/rear
First read and observe the introductory information and safety warn- ings
on page 50.
The cup holder is located in the front » Fig. 48 -
and rear » Fig. 48 -
of the
centre console.
Fixing cups in the front cup holder
Fold the cup holder clip » Fig. 48 -
towards the front.
Place the cup into the cup holder so that the cup holder clip surrounds the cup securely.
WARNING■ Never put hot beverage containers in the cup holder. If the vehicle moves,
they may spill – risk of scalding!■
No objects should be placed in the drinks holders, as the vehicle occupants
could be endangered if sudden braking occurs or the vehicle collides with
something.
■
Do not use any cups or beakers which are made of brittle material (e.g. glass,
porcelain). This could lead to injuries in the event of an accident.
CAUTION
Do not leave open beverage containers in the cup holder during the journey.
There is a risk of spilling e.g. when braking which may cause damage to the elec-
trical components or seat upholstery.
Ash trayFig. 49
Front centre console: Ashtrays
First read and observe the introductory information and safety warn-
ings on page 50.
The ashtray can be used for discarding ash, cigarettes, cigars and the like » .
Open/close
›
To open, raise the cover of the ash tray in the direction of the arrow » Fig. 49.
›
To close, press the cover of the ash tray fully downwards.
Removing
›
Pull out the ashtray upwards » .
Installing
›
Insert the ashtray vertically.
WARNINGNever place flammable objects in the ashtray – risk of fire!
CAUTION
When removing, do not hold the ashtray at the cover – risk of breakage.
51Seats and stowing
Page 55 of 176

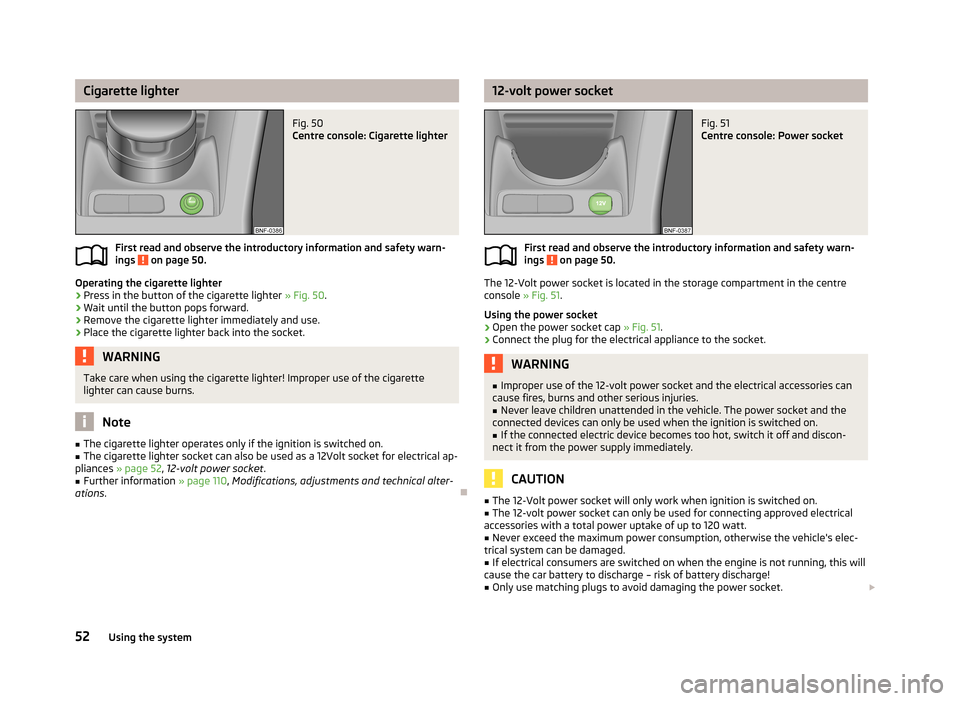

Cigarette lighterFig. 50
Centre console: Cigarette lighter
First read and observe the introductory information and safety warn-
ings on page 50.
Operating the cigarette lighter
›
Press in the button of the cigarette lighter » Fig. 50.
›
Wait until the button pops forward.
›
Remove the cigarette lighter immediately and use.
›
Place the cigarette lighter back into the socket.
WARNINGTake care when using the cigarette lighter! Improper use of the cigarette
lighter can cause burns.
Note
■ The cigarette lighter operates only if the ignition is switched on.■The cigarette lighter socket can also be used as a 12Volt socket for electrical ap-
pliances » page 52 , 12-volt power socket .■
Further information » page 110, Modifications, adjustments and technical alter-
ations .
12-volt power socketFig. 51
Centre console: Power socket
First read and observe the introductory information and safety warn-
ings on page 50.
The 12-Volt power socket is located in the storage compartment in the centre
console » Fig. 51.
Using the power socket
›
Open the power socket cap » Fig. 51.
›
Connect the plug for the electrical appliance to the socket.
WARNING■
Improper use of the 12-volt power socket and the electrical accessories can
cause fires, burns and other serious injuries.■
Never leave children unattended in the vehicle. The power socket and the
connected devices can only be used when the ignition is switched on.
■
If the connected electric device becomes too hot, switch it off and discon-
nect it from the power supply immediately.
CAUTION
■ The 12-Volt power socket will only work when ignition is switched on.■The 12-volt power socket can only be used for connecting approved electrical
accessories with a total power uptake of up to 120 watt.■
Never exceed the maximum power consumption, otherwise the vehicle's elec-
trical system can be damaged.
■
If electrical consumers are switched on when the engine is not running, this will
cause the car battery to discharge – risk of battery discharge!
■
Only use matching plugs to avoid damaging the power socket.
52Using the system
Page 56 of 176
■Only use accessories that have been tested for electromagnetic compatibility in
accordance with the applicable directives.■
Before turning the ignition on or off, and before starting the car, switch off the
device connected to the 12-volt power socket to prevent any damage caused by
voltage fluctuations.
■
Observe the operating instructions for the connected devices!

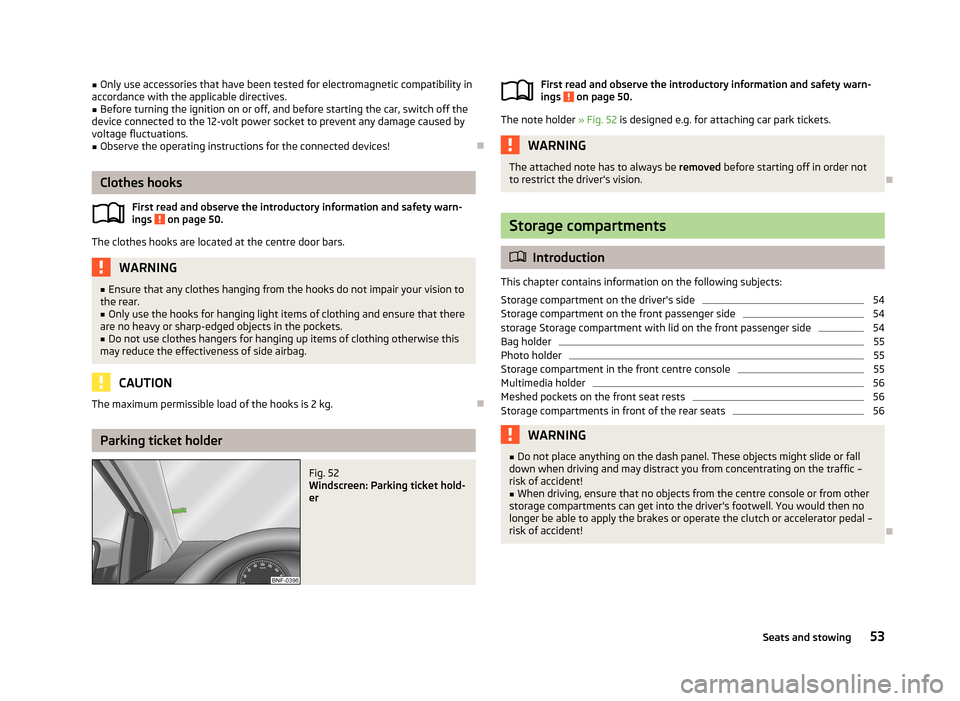

Clothes hooks
First read and observe the introductory information and safety warn-ings
on page 50.
The clothes hooks are located at the centre door bars.
WARNING■ Ensure that any clothes hanging from the hooks do not impair your vision to
the rear.■
Only use the hooks for hanging light items of clothing and ensure that there
are no heavy or sharp-edged objects in the pockets.
■
Do not use clothes hangers for hanging up items of clothing otherwise this
may reduce the effectiveness of side airbag.
CAUTION
The maximum permissible load of the hooks is 2 kg.
Parking ticket holder
Fig. 52
Windscreen: Parking ticket hold-
erFirst read and observe the introductory information and safety warn-
ings on page 50.
The note holder » Fig. 52 is designed e.g. for attaching car park tickets.
WARNINGThe attached note has to always be removed before starting off in order not
to restrict the driver's vision.

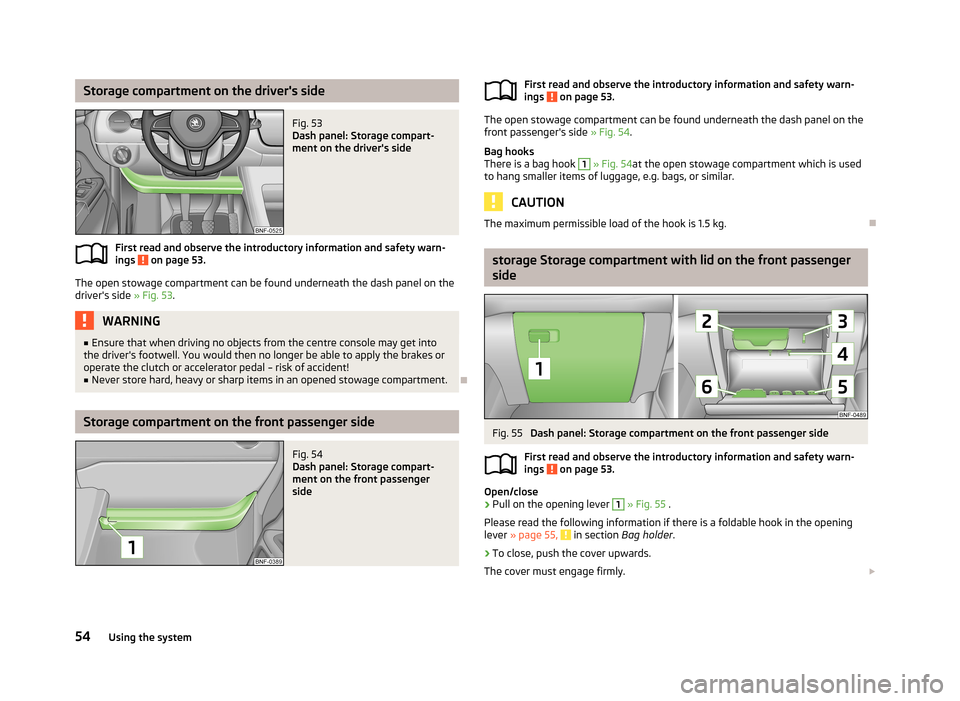

Storage compartments
Introduction
This chapter contains information on the following subjects:
Storage compartment on the driver's side
54
Storage compartment on the front passenger side
54
storage Storage compartment with lid on the front passenger side
54

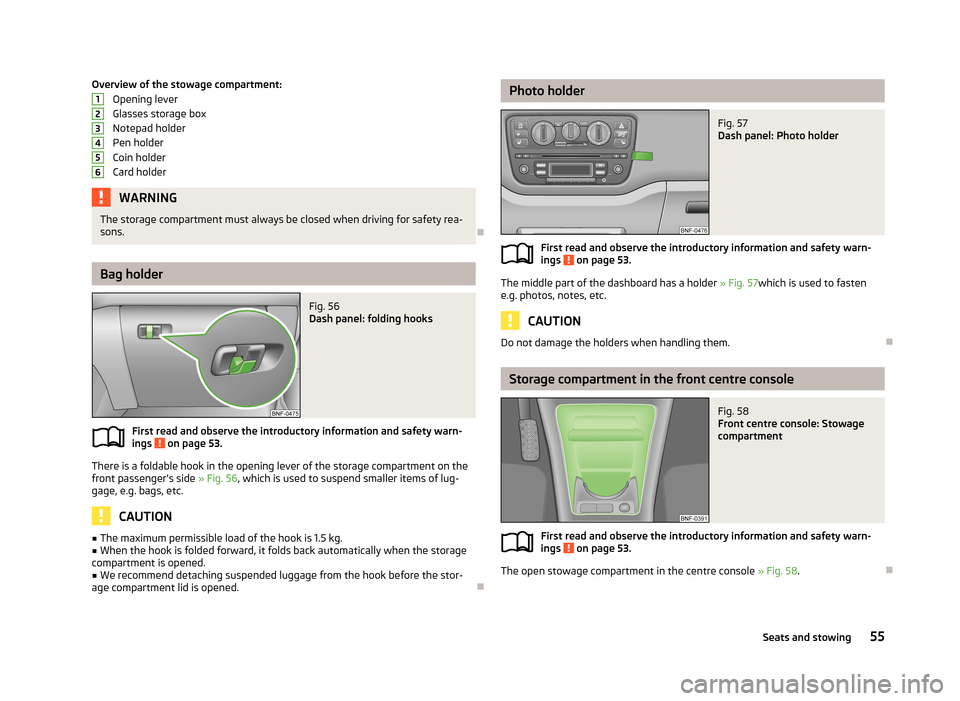

Bag holder
55
Photo holder
55
Storage compartment in the front centre console
55

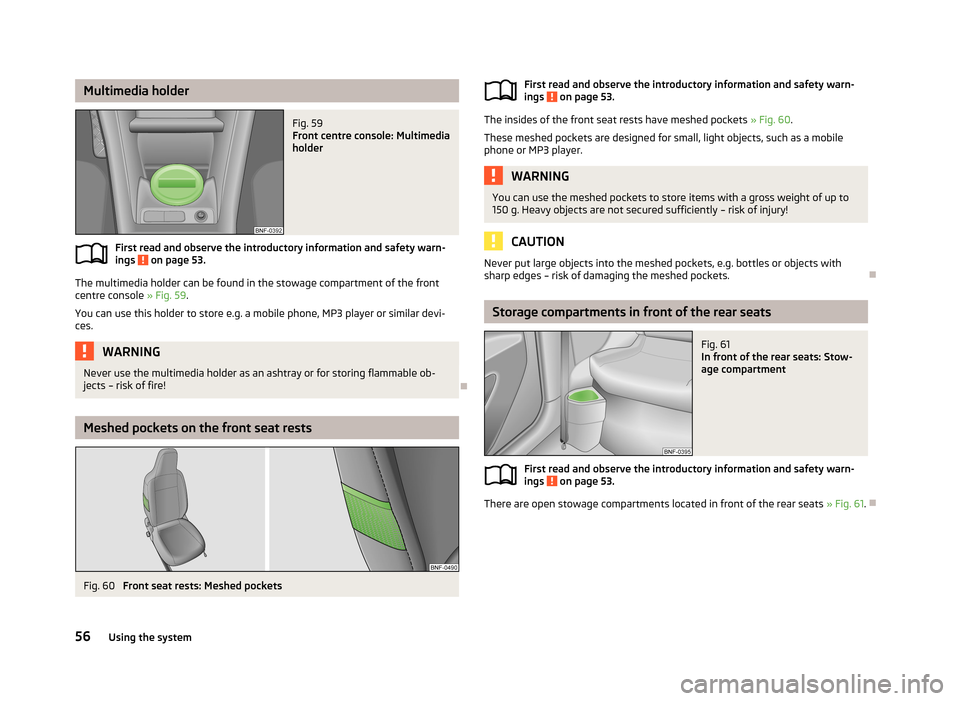

Multimedia holder
56
Meshed pockets on the front seat rests
56
Storage compartments in front of the rear seats
56WARNING■ Do not place anything on the dash panel. These objects might slide or fall
down when driving and may distract you from concentrating on the traffic –
risk of accident!■
When driving, ensure that no objects from the centre console or from other
storage compartments can get into the driver's footwell. You would then no
longer be able to apply the brakes or operate the clutch or accelerator pedal –
risk of accident!
53Seats and stowing
Page 57 of 176
Storage compartment on the driver's sideFig. 53
Dash panel: Storage compart-
ment on the driver's side
First read and observe the introductory information and safety warn-
ings on page 53.
The open stowage compartment can be found underneath the dash panel on the
driver's side » Fig. 53.
WARNING■
Ensure that when driving no objects from the centre console may get into
the driver's footwell. You would then no longer be able to apply the brakes or
operate the clutch or accelerator pedal – risk of accident!■
Never store hard, heavy or sharp items in an opened stowage compartment.
Storage compartment on the front passenger side
Fig. 54
Dash panel: Storage compart-
ment on the front passenger
sideFirst read and observe the introductory information and safety warn-
ings on page 53.
The open stowage compartment can be found underneath the dash panel on the
front passenger's side » Fig. 54.
Bag hooks
There is a bag hook
1
» Fig. 54 at the open stowage compartment which is used
to hang smaller items of luggage, e.g. bags, or similar.
CAUTION
The maximum permissible load of the hook is 1.5 kg.
storage Storage compartment with lid on the front passenger
side
Fig. 55
Dash panel: Storage compartment on the front passenger side
First read and observe the introductory information and safety warn-
ings
on page 53.
Open/close
›
Pull on the opening lever
1
» Fig. 55 .
Please read the following information if there is a foldable hook in the opening
lever » page 55,
in section Bag holder .
›
To close, push the cover upwards.
The cover must engage firmly.
54Using the system
Page 58 of 176
Overview of the stowage compartment:Opening lever
Glasses storage box
Notepad holder
Pen holder
Coin holder
Card holderWARNINGThe storage compartment must always be closed when driving for safety rea-
sons.
Bag holder
Fig. 56
Dash panel: folding hooks
First read and observe the introductory information and safety warn-
ings on page 53.
There is a foldable hook in the opening lever of the storage compartment on the
front passenger's side » Fig. 56, which is used to suspend smaller items of lug-
gage, e.g. bags, etc.
CAUTION
■ The maximum permissible load of the hook is 1.5 kg.■When the hook is folded forward, it folds back automatically when the storage
compartment is opened.■
We recommend detaching suspended luggage from the hook before the stor-
age compartment lid is opened.
123456Photo holderFig. 57
Dash panel: Photo holder
First read and observe the introductory information and safety warn- ings on page 53.
The middle part of the dashboard has a holder » Fig. 57which is used to fasten
e.g. photos, notes, etc.
CAUTION
Do not damage the holders when handling them.
Storage compartment in the front centre console
Fig. 58
Front centre console: Stowage
compartment
First read and observe the introductory information and safety warn-
ings on page 53.
The open stowage compartment in the centre console » Fig. 58.
55Seats and stowing
Page 59 of 176
Multimedia holderFig. 59
Front centre console: Multimedia
holder
First read and observe the introductory information and safety warn-
ings on page 53.
The multimedia holder can be found in the stowage compartment of the front
centre console » Fig. 59.
You can use this holder to store e.g. a mobile phone, MP3 player or similar devi-
ces.
WARNINGNever use the multimedia holder as an ashtray or for storing flammable ob-
jects – risk of fire!
Meshed pockets on the front seat rests
Fig. 60
Front seat rests: Meshed pockets
First read and observe the introductory information and safety warn- ings on page 53.
The insides of the front seat rests have meshed pockets » Fig. 60.
These meshed pockets are designed for small, light objects, such as a mobile phone or MP3 player.
WARNINGYou can use the meshed pockets to store items with a gross weight of up to
150 g. Heavy objects are not secured sufficiently – risk of injury!
CAUTION
Never put large objects into the meshed pockets, e.g. bottles or objects with
sharp edges – risk of damaging the meshed pockets.
Storage compartments in front of the rear seats
Fig. 61
In front of the rear seats: Stow-
age compartment
First read and observe the introductory information and safety warn-
ings on page 53.
There are open stowage compartments located in front of the rear seats » Fig. 61.
56Using the system
Page 60 of 176

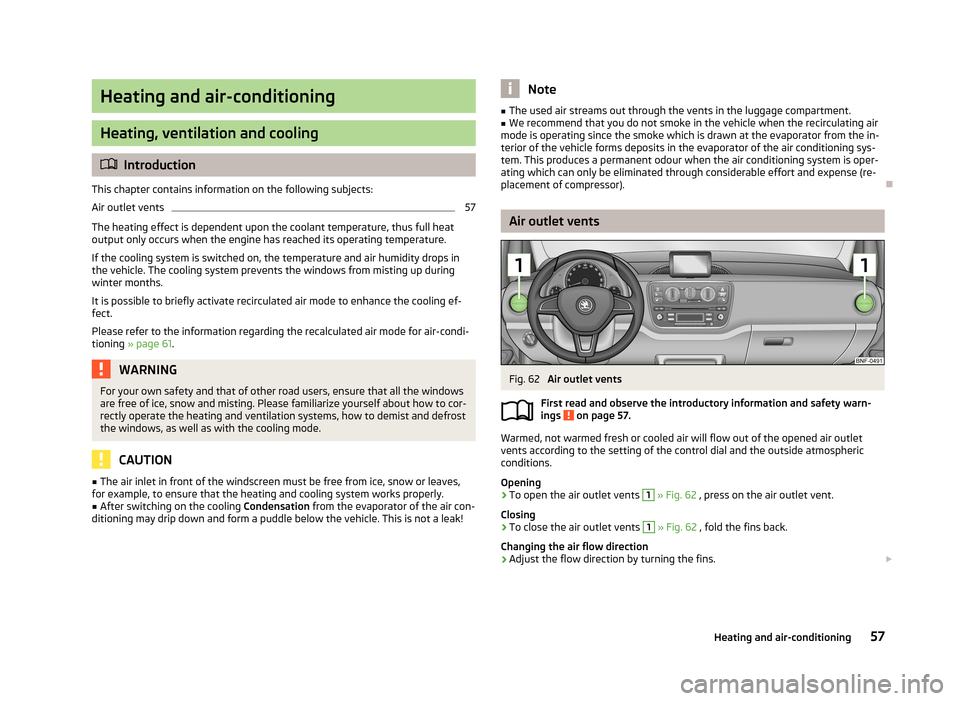

Heating and air-conditioning
Heating, ventilation and cooling
Introduction
This chapter contains information on the following subjects:
Air outlet vents
57
The heating effect is dependent upon the coolant temperature, thus full heat output only occurs when the engine has reached its operating temperature.
If the cooling system is switched on, the temperature and air humidity drops in
the vehicle. The cooling system prevents the windows from misting up during
winter months.
It is possible to briefly activate recirculated air mode to enhance the cooling ef-
fect.
Please refer to the information regarding the recalculated air mode for air-condi-
tioning » page 61 .
WARNINGFor your own safety and that of other road users, ensure that all the windows
are free of ice, snow and misting. Please familiarize yourself about how to cor- rectly operate the heating and ventilation systems, how to demist and defrost
the windows, as well as with the cooling mode.
CAUTION
■ The air inlet in front of the windscreen must be free from ice, snow or leaves,
for example, to ensure that the heating and cooling system works properly.■
After switching on the cooling Condensation from the evaporator of the air con-
ditioning may drip down and form a puddle below the vehicle. This is not a leak!
Note■ The used air streams out through the vents in the luggage compartment.■We recommend that you do not smoke in the vehicle when the recirculating air
mode is operating since the smoke which is drawn at the evaporator from the in-
terior of the vehicle forms deposits in the evaporator of the air conditioning sys- tem. This produces a permanent odour when the air conditioning system is oper-ating which can only be eliminated through considerable effort and expense (re-
placement of compressor).
Air outlet vents
Fig. 62
Air outlet vents
First read and observe the introductory information and safety warn-
ings
on page 57.
Warmed, not warmed fresh or cooled air will flow out of the opened air outlet
vents according to the setting of the control dial and the outside atmospheric
conditions.
Opening
›
To open the air outlet vents
1
» Fig. 62 , press on the air outlet vent.
Closing
›
To close the air outlet vents
1
» Fig. 62 , fold the fins back.
Changing the air flow direction
›
Adjust the flow direction by turning the fins.
57Heating and air-conditioning
