SKODA FABIA 2005 1.G / 6Y MS402 Car Radio Manual

www.skoda-auto.cz
www.skoda-auto.comAutorádio MS 402
Škoda Auto 08.03ŠkodaAutorádio MS 402
Å kodaAutoradio
Å kodaCar radio
SIMPLY CLEVER
Fabia_MS402.indd 12.1.2004, 13:08
1

1
GENERAL VIEW2
BRIEF OPERATING INSTRUCTIONS3
IMPORTANT INFORMATION 4
RADIO MODE5
CASSETTE MODE13
SETTINGS15
THEFT PROTECTION
CODING18
HINTS20
BRIEF TECHNICAL
DESCRIPTION21
CE
This unit corresponds to the EMV protec-
tive requirements (EC directives 89/336
EWG and 93/68/EWG) according to the
EN 55013 and EN 55020 norms.
CONTENTS

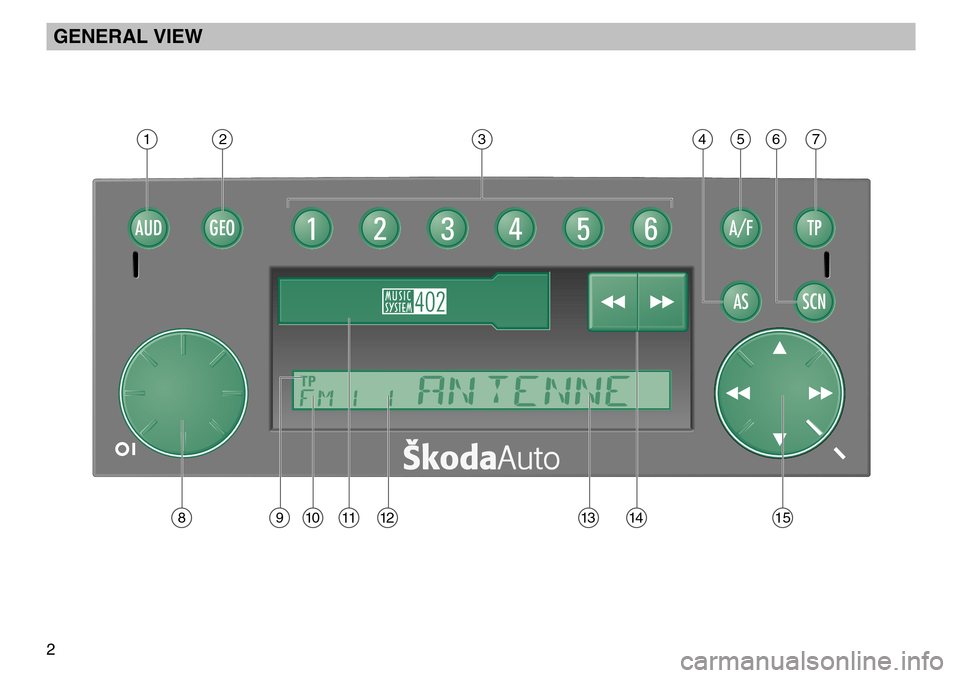

GENERAL VIEW
2
AUDGEO1
AS
TP
SCN
123456A/FAUDGEO
AS
TP
SCN
123456A/F
›1›2›3›4›5›6›7
›8›9›10›11›12›13›14›15

BRIEF OPERATING INSTRUCTIONS
3
Pos. ................................................... Page
1– Tone control .................................... 8Press the tone control buttons and
turn the control knob/push button
8
to change the setting.
– 1 pressure: bass control (BASS)
– 2 pressures: treble control (TRE)
2– Tone balance button ........................ 9 Press the tone balance button and
turn the control knob/push button
8to
change the setting
– 1 pressure: fader (FAD)
– 2 pressures: balance (BAL)
3– Station buttons ............................... 11 for 12 FM and 12 AM stations.
4– AS button.......................................... 6 This button serves for the automatic
storage of 6 stations in every range.
5– A/F button ......................................... 6 This button serves for switching over
between FM 1/2 and AM 1/2 mode.
Pos. ................................................... Page
6– SCN button ....................................... 6Pressing this button briefly plays sta-
tions in radio mode.
7– TP/Set button ................................. 11Briefly pressing this button switches
on the traffic programme functions.
Pressing this button a longer time dis-
plays the Setup menu.
8– Control knob/push button ................. 5
– Switch on/off: press the button.
– Volume control: turn the knob.
– Tone control: press the tone control button
1then turn the control knob.
– Tone balance: press the tone balance button
2then turn the control knob.
ß?– Cassette compartment ................... 13
ßW– Autoreverse/Cassette ejection ............................ 13
Brief pressure: autoreverse.
Long pressure: cassette ejection.
Pos. ................................................... Page
ßE– Station search rocker ..................... 12Briefly press the rocker to start a sta-
tion search cycle in the AM range.
When in the FM range, you can scroll
through the memory list.
Display
9– TP indication .................................... 2
ßI– Wavebands ...................................... 2
ß`– Station buttons indication ................. 2
ßQ– Station name .................................... 2

Operation while driving
4
IMPORTANT INFORMATION
The requirements in today’s road traffic
call for the full attention of the road users
at any time.
The comprehensive and pretentious fea-
tures of modern car radios offer a lot of
information about traffic and road condi-
tions besides an abundance of entertain-
ment.
However, the radio system with its many
functions should only be operated if the
traffic situation allows for this.
For example, changing cassettes or read-
ing a cassette lable while driving has
already often led to dangerous situations.
In addition, the volume of the radio system
should always be adjusted so that you can
still safely hear outside acoustic signals.
Caution
Keep complete control of your
vehicle at all times!

GB
Control knob/push button
5
8– Control knob/push button
This knob/button permits:
• Switching on/off the radio
• Volume control
• Tone control
• Tone balance control
AUDGEO11Switching on/off,
volume control
Pressing the push button 8switches
the radio on and off.
The frequency and volume adjusted befo-
re switching off are recovered.
If the ignition key is removed from the igni-
tion lock with the radio switched on, the
radio is automatically switched off.
If the ignition key is refit into the ignition
lock and turned, the radio is automatically
switched on.
If the ignition key is pulled out, you may
switch on the radio by pressing the control
knob/push button
8twice.
After about 1 hour the radio is automati-
cally switched off to avoid discharging of
the car battery.
You may repeat this operation as often as
desired.
If the car radio remains mute after switch-
ing on and "SAFE" appears in the display,
observe the notes from page 18.
Turning the control knob
8allows you
to change the volume, the tone or the tone
balance settings.
AUDGEO11
RADIO MODE
88

You may call up the stored stations by
pressing the corresponding station button 3.
6– SCN button
If you press the SCN button 6, all stations
in the selected waveband are heard sever-
al seconds.
• Press the SCN button
6.
• «SCAN» appears in the display. You hear one station after the other for
several seconds.
If you wish to hear the current station per-
manently, press the SCAN button
6
again..
4– AS button
The AS button 4allows you to automati-
cally store the strongest stations in a con-
venient way.
Using the AS function, you may store 6
stations in each of the FM and AM wave-
bands.
Automatic storing
• Select the "FM1" or "AM1" waveband. If you then press the "TP" button, only traf-
fic radio stations are searched. If AM has
been selected, the radio switches auto-
matically to FM.
The "FM2" and "AM2" wavebands should
be used for the "AS" function only if you
are frequently changing your location or
during the holidays.
• Press the AS button
4for about 2
seconds. "STORE" appears in the dis-
play and the 6 strongest stations are sto-
red on the station buttons
1… 6. This
operation takes several seconds.
• When storing is completed, the radio se- lects automatically the strongest station.

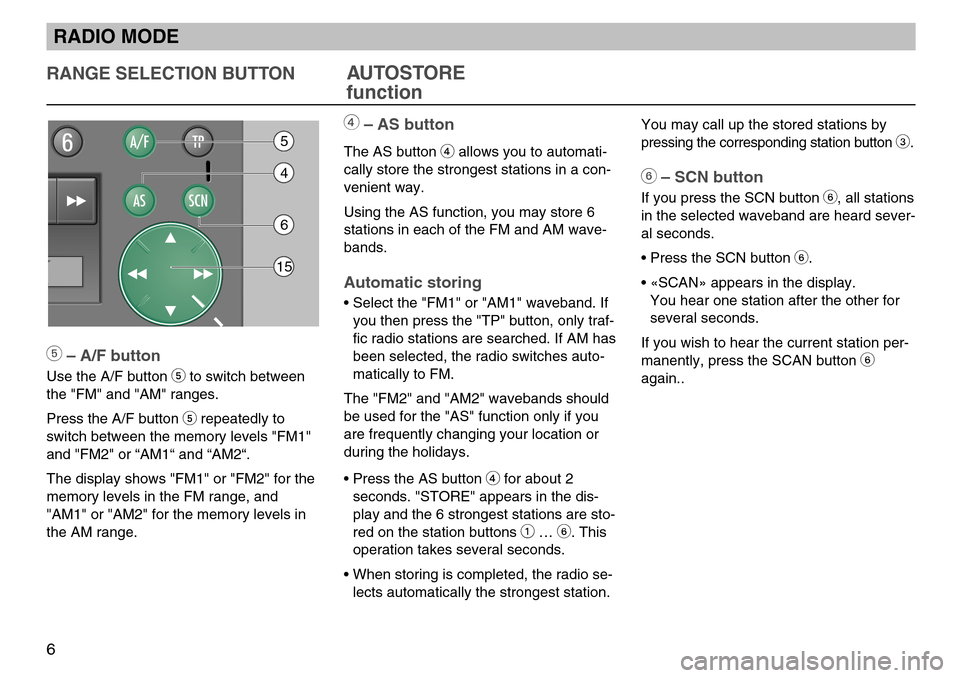

RANGE SELECTION BUTTONAUTOSTORE
function
6
RADIO MODE
5– A/F button
Use the A/F button 5to switch between
the "FM" and "AM" ranges.
Press the A/F button
5repeatedly to
switch between the memory levels "FM1"
and "FM2" or “AM1“ and “AM2“.
The display shows "FM1" or "FM2" for the
memory levels in the FM range, and
"AM1" or "AM2" for the memory levels in
the AM range.
AS
TP
SCN
6A/F
ASSCN
A/F5
15
4
6

Programming RDS stations
(IS function)
RADIO MODE
7
With the push of a button you may store
up to 30 stations in the IS memory. The
stored stations then can be called one
after the other.
The IS memory is useful if you wish to re-
assign the station buttons, or when you
are in an unknown reception area and do
not wish to delete already stored stations.
AS
TP
SCN
6A/F
AS
Starting the IS search
• Press on

or of the rocker ßE
repeatedly for more than 2 seconds until
"IS ON" appears in the display.
• Press the AS button
4for about 2
seconds. "STORE" appears in the dis-
play.
This operation takes several seconds.
• If no reception is possible, for example in an underground car park or if the aerial
is defective, the search function may be
endless. In this case you may switch off
the search function by pressing one of
the station buttons
1… 6.
As soon as the IS search is completed, up
to 30 stations are stored. You then will
hear the station giving best reception.
The intelligent search function first stores
the RDS stations (sorted by station name)
and then the remaining stations in the
order of their volume level.
Calling up the IS memory contents
Selecting the IS mode
• Press on


or of the rocker ßE
repeatedly for more than 2 seconds until
"IS ON" appears in the display.
• Briefly press on


or of the rocker
ßE.
Switching the IS mode off
• Press on

or of the rocker ßE
repeatedly for more than 2 seconds until
"IS OFF" appears in the display.
4
15

8
Tone control
Treble control (TRE)
• "TRE" and the current setting + 6 to – 6appear in the display
• Turn the control knob/push button
8to
the left or the right to adjust the desired
setting.
• If you wish to adjust the treble control immediately to its centre setting, press
the AUD button
1until "TRE 00"
appears in the display.
• When this is done, press the AUD button
1again to store the setting.
• To go directly to the treble control mode, press the AUD button
1briefly twice.
RADIO MODE
1– Tone control button
After pressing the AUD button 1, the fol-
lowing indications appear in the display:
• 1 pressure: bass control "BASS",
• 2 pressures: treble control "TRE".
You may change the tone control setting
by turning the control knob/push button
8.
AUDGEO11AUD
Bass control (BASS)
• Press the AUD button
1. "BASS" and
the current setting + 6 to – 6 appear in the
display.
• Turn the control knob/push button
8to
the left or the right to adjust the desired
setting.
• If you wish to adjust the bass control immediately to its centre setting, press
the AUD button
1until "BASS 00"
appears in the display.
• When this is done, press the AUD button
1again to store the setting. This will sel-
ect at the same time the treble control
mode.
1
8

9
Balance (BAL)
With this function you may adjust the volu-
me balance of the left/right loudspeakers.
• "BAL" and the current setting (from LEFT15 via CENTER to RIGHT 15) appear in
the display.
•Turn the control knob/push button
8to
the left or the right to adjust the desired
setting.
• If you wish to adjust the Balance control immediately to its centre setting, press
the GEO button
2until "CENTER"
appears in the display.
• When this is done, press the GEO button
2again to store the setting.
• To go directly to the balance control mode, press the GEO button
2briefly
twice.
2– Tone balance button
After pressing the tone balance button
GEO
2, the following indications appear
in the display:
• Fader (FAD)
• Balance (BAL)
Turn the control knob/push button
8to
the left or the right to adjust the desired
setting.
AUDGEO11GEO
Fader (FAD)
With this function you may adjust the volu-
me balance of the front/rear loudspeakers.
• Press the GEO button
2.
"FAD" and the current setting (from
FRONT 15 via CENTER to REAR 15)
appear in the display.
• Turn the control knob/push button
8to
the left or the right to adjust the desired
setting.
• If you wish to adjust the Fader control immediately to its centre setting, press
the GEO button
2until "CENTER"
appears in the display.
• When this is done, press the GEO button
2again to store the setting. This will sel-
ect at the same time the Balance control
mode.
Tone balance control
RADIO MODE
8
2
