Fuses and light bulbs239
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assist-
anceTechnical DataFabia Praktik
WARNING
•Bulbs H7 and H3 are pressurised and may burst when changing
the bulb - risk of injury!
•It is recommended to wear gloves and eye protection when
changing a light bulb.
•Gas discharge bulbs* (xenon bulbs) operate with a high voltage,
professional knowledge is required - danger to life!
Note
This Owner's Manual only describes the replacement of bulbs where it is
assumed that no major complications will arise. Other light bulbs should
be changed by your specialist garage.
Front headlight
It is necessary to remove the protective cover at the rear of the
headlight before replacing a light bulb on a main beam light, low
beam light and parking light.
– Open the bonnet.
– Press the securing spring downwards and remove the protec- tive cover ⇒fig. 173 .
Assignment of the light bulbs in the headlight (on the right-hand side)
⇒fig. 174 .
- main beam light
- low beam light
- parking lights
Fig. 173 Protective
cover for the headlight
at the front
Fig. 174 Front head-
light: Installing the light
bulbs
A1
A2
A3
sqc.1.book Seite 239 Mittwoch, 13. April 2005 1:09 13

Fuses and light bulbs241
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assist-
anceTechnical DataFabia Praktik
– Pull the lamp holder with light bulb for the parking light out of
the headlight ⇒page 240, fig. 176.
– Pull the defect light bulb out of the lamp holder.
– Insert the new light bulb.
– Insert the lamp holder with new light bulb into of the headlight.
Low beam
– Open the bonnet.
– Remove the protective cover at the rear of the headlight ⇒page 239, fig. 173 .
– Unplug plug . – Unlock the sprung wire clamp downwards by pressing in
direction of the light bulb and swing.
– Remove the light bulb and insert the new light bulb in such a way that the fixing lug on the reflector lies in the corre-
sponding recess in the lamp plate.
– Close the sprung wire clamp over the plate and engage it again.
– Plug in plug ⇒fig. 177.
– We recommend that you have the headlight setting checked by a Skoda dealer after replacing the light bulb.
Turn signal light (at the front)
– Open the bonnet.
Fig. 177 Removing the
light bulb for the low
beam light
AA
AB
A1
AA
Fig. 178 Removing the
light bulb for the turn
signal light
sqc.1.book Seite 241 Mittwoch, 13. April 2005 1:09 13

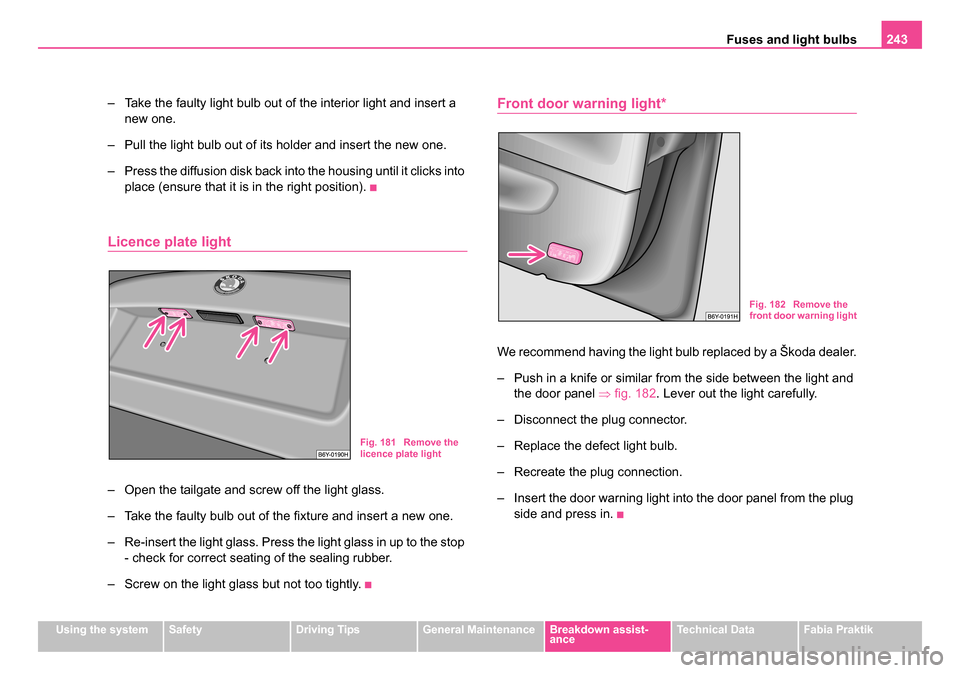

Fuses and light bulbs243
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assist-
anceTechnical DataFabia Praktik
– Take the faulty light bulb out of the interior light and insert a
new one.
– Pull the light bulb out of its holder and insert the new one.
– Press the diffusion disk back into the housing until it clicks into place (ensure that it is in the right position).
Licence plate light
– Open the tailgate and screw off the light glass.
– Take the faulty bulb out of the fixture and insert a new one.
– Re-insert the light glass. Press the light glass in up to the stop - check for correct seating of the sealing rubber.
– Screw on the light glass but not too tightly.
Front door warning light*
We recommend having the light bulb replaced by a Škoda dealer.
– Push in a knife or similar from the side between the light and the door panel ⇒fig. 182. Lever out the light carefully.
– Disconnect the plug connector.
– Replace the defect light bulb.
– Recreate the plug connection.
– Insert the door warning light into the door panel from the plug side and press in.
Fig. 181 Remove the
licence plate light
Fig. 182 Remove the
front door warning light
sqc.1.book Seite 243 Mittwoch, 13. April 2005 1:09 13

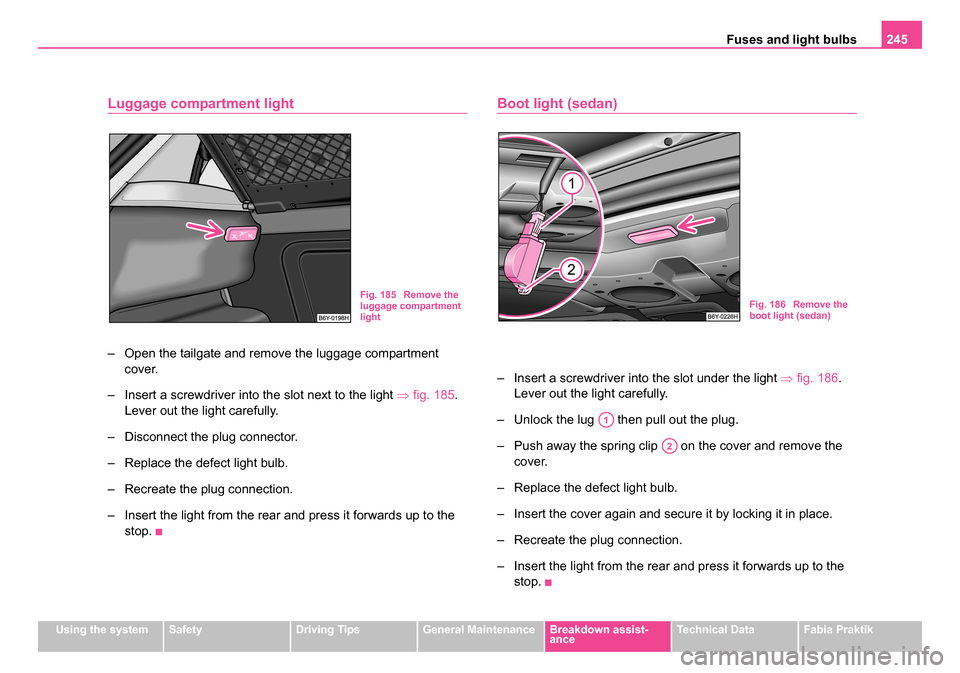

Fuses and light bulbs245
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assist-
anceTechnical DataFabia Praktik
Luggage compartment light
– Open the tailgate and remove the luggage compartment
cover.
– Insert a screwdriver into the slot next to the light ⇒fig. 185 .
Lever out the light carefully.
– Disconnect the plug connector.
– Replace the defect light bulb.
– Recreate the plug connection.
– Insert the light from the rear and press it forwards up to the stop.
Boot light (sedan)
– Insert a screwdriver into the slot under the light ⇒fig. 186.
Lever out the light carefully.
– Unlock the lug then pull out the plug.
– Push away the spring clip on the cover and remove the cover.
– Replace the defect light bulb.
– Insert the cover again and secure it by locking it in place.
– Recreate the plug connection.
– Insert the light from the rear and press it forwards up to the stop.
Fig. 185 Remove the
luggage compartment
lightFig. 186 Remove the
boot light (sedan)
A1
A2
sqc.1.book Seite 245 Mittwoch, 13. April 2005 1:09 13

General247
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assist-
anceTechnical DataFabia Praktik
Technical Data
General
Identification data
Vehicle data sticker
The vehicle data sticker ⇒fig. 187 is located on the floor of the luggage
compartment and is also stated in the Service schedule.
The vehicle data sticker contains the following data:
Vehicle identification number (VIN)
Vehicle type
Gearbox code, paint number, interior equipment number, engine
output, engine code
partial description of the vehicle Vehicle identification number (VIN)
The vehicle identification number - VIN (vehicle body number) is stamped
into the engine compartment on the right hand shock absorber dome. This
number is also located on a sign on the lower left hand edge below the
windscreen (together with a VIN bar code).
Engine number
The engine number is stamped into the engine block.
Type plate (production plate)
The type plate is located in the engine compartment at the front on the left
hand shock absorber dome.
Homologation sign
The homologation sign is located on the lock carrier. Vehicles for certain
countries do not have an homologation sign.
Sticker on inside of fuel filler flap
The sticker is affixed to the inside of the fuel filler flap. The sticker contains
the following data:
•The prescribed types of fuel,
•Tyre size,
•Tyre pressure.
Note
•You will find the technical data of your vehicle in the separate brochure
"Technical Data".
Fig. 187 Vehicle data
sticker
A1
A2
A3
A4
sqc.1.book Seite 247 Mittwoch, 13. April 2005 1:09 13

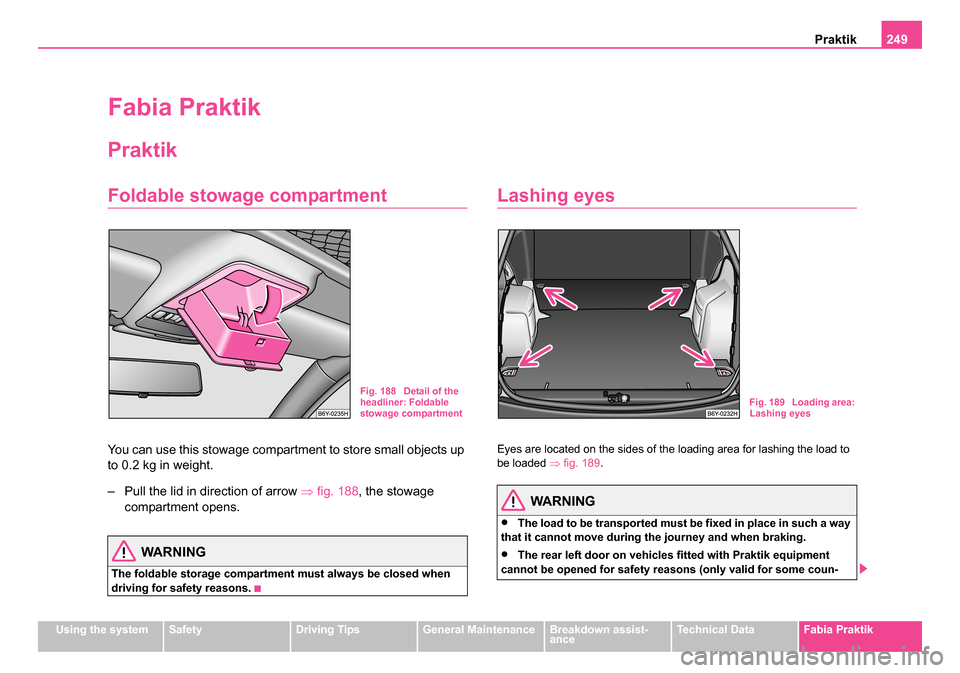

Praktik249
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assist-
anceTechnical DataFabia Praktik
Fabia Praktik
Praktik
Foldable stowage compartment
You can use this stowage compartment to store small objects up
to 0.2 kg in weight.
– Pull the lid in direction of arrow ⇒fig. 188 , the stowage
compartment opens.
WARNING
The foldable storage compartment must always be closed when
driving for safety reasons.
Lashing eyes
Eyes are located on the sides of the loading area for lashing the load to
be loaded ⇒ fig. 189.
WARNING
•The load to be transported must be fixed in place in such a way
that it cannot move during the journey and when braking.
•The rear left door on vehicles fitted with Praktik equipment
cannot be opened for safety reasons (only valid for some coun-
Fig. 188 Detail of the
headliner: Foldable
stowage compartmentFig. 189 Loading area:
Lashing eyes
