SKODA FABIA 2006 2.G / 5J Owner's Manual

Seat belts140

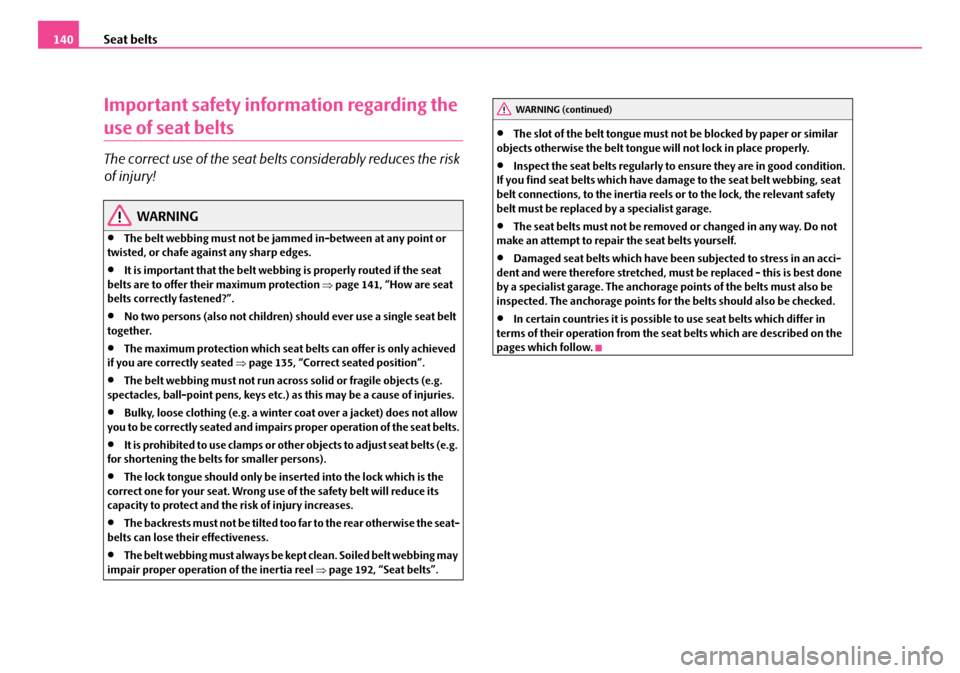

Important safety information regarding the
use of seat belts
The correct use of the seat belts considerably reduces the risk
of injury!
WARNING
•The belt webbing must not be ja mmed in-between at any point or twisted, or chafe against any sharp edges.
•It is important that the belt webbing is properly routed if the seat belts are to offer their maximum protection ⇒page 141, “How are seat belts correctly fastened?”.
•No two persons (also not children) should ever use a single seat belt together.
•The maximum protection which seat belts can offer is only achieved if you are correctly seated ⇒page 135, “Correct seated position”.
•The belt webbing must not run across solid or fragile objects (e.g. spectacles, ball-point pens , keys etc.) as this may be a cause of injuries.
•Bulky, loose clothing (e.g. a winter coat over a jacket) does not allow you to be correctly seated and impairs proper operation of the seat belts.
•It is prohibited to use clamps or other objects to adjust seat belts (e.g. for shortening the belts for smaller persons).
•The lock tongue should only be inserted into the lock which is the correct one for your seat. Wrong use of the safety belt will reduce its capacity to protect and the risk of injury increases.
•The backrests must not be tilted too far to the rear otherwise the seat- belts can lose their effectiveness.
•The belt webbing must always be ke pt clean. Soiled belt webbing may impair proper operation of the inertia reel ⇒page 192, “Seat belts”.
•The slot of the belt tongue must not be blocked by paper or similar objects otherwise the belt tongue will not lock in place properly.
•Inspect the seat belts r egularly to ensure they are in good condition. If you find seat belts which have damage to the seat belt webbing, seat belt connections, to the inertia reels or to the lock, the relevant safety belt must be replaced by a specialist garage.
•The seat belts must not be removed or changed in any way. Do not make an attempt to repair the seat belts yourself.
•Damaged seat belts which have been subjected to stress in an acci- dent and were therefore stretched, must be replaced - this is best done by a specialist garage. The anchorage points of the belts must also be inspected. The anchorage points for the belts should also be checked.
•In certain countries it is possible to use seat belts which differ in terms of their operation from the seat belts which are described on the pages which follow.
WARNING (continued)
NKO A05Fabia 20.book Page 140 Tuesday, September 26, 2006 8:38 AM

Seat belts141
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
How are seat belts correctly fastened?
Fastening three-point seat belts
Fasten your seat belt before starting!
– Correctly adjust the seat and the head restraint before fastening
your seat belt ⇒page 135, “Correct seated position”.
– Slowly pull the belt webbing at th e tongue of the lock over your
chest and pelvis ⇒.
– Insert the tongue of the lock into the seat belt buckle belonging to
the seat until it is heard to lock in place.
– Pull on the belt to check that it has also reliably engaged in the lock.
Each three-point seat belt is equipped with an inertia reel. This inertia reel offers you complete freedom of movement if the belt is unreeled slowly. If the brakes are applied suddenly, the inertia reel will block. It also blocks the belts when the car accelerates, when driving downhill and when cornering.
Expectant mothers must also wear the seat belt ⇒.
WARNING
•The shoulder part of the seat belt must never run across your neck but must run approximately over th e middle of the shoulder and fit snugly against the chest. The lap part of the belt must run across the hip and must never be routed across the stomach. It must always fit snugly ⇒ fig. 109. Adjust the belt webbing as required.
•The lap part of the belt should be positioned as low as possible at the pelvis of an expectant mother in or der to avoid exerting any pressure on the lower abdomen.
•Always ensure that the webbing of the seat belts is properly routed. Seat belts which are not correctly adjusted can themselves cause injuries even in minor accidents.
•A seat belt which is hanging too loose can result in injuries as your body is moved forward by the kineti c energy produced in an accident and is then suddenly held firm by the belt.
Fig. 109 Routing of webbing over the shoul-ders and the lap belt
Fig. 110 Routing of belt webbing for an expectant mother
NKO A05Fabia 20.book Page 141 Tuesday, September 26, 2006 8:38 AM

Seat belts142
•Only insert the lock tongue into the lock which is the correct one for your seat. This will affect the protection which the belt offers and increase the risk of an injury.

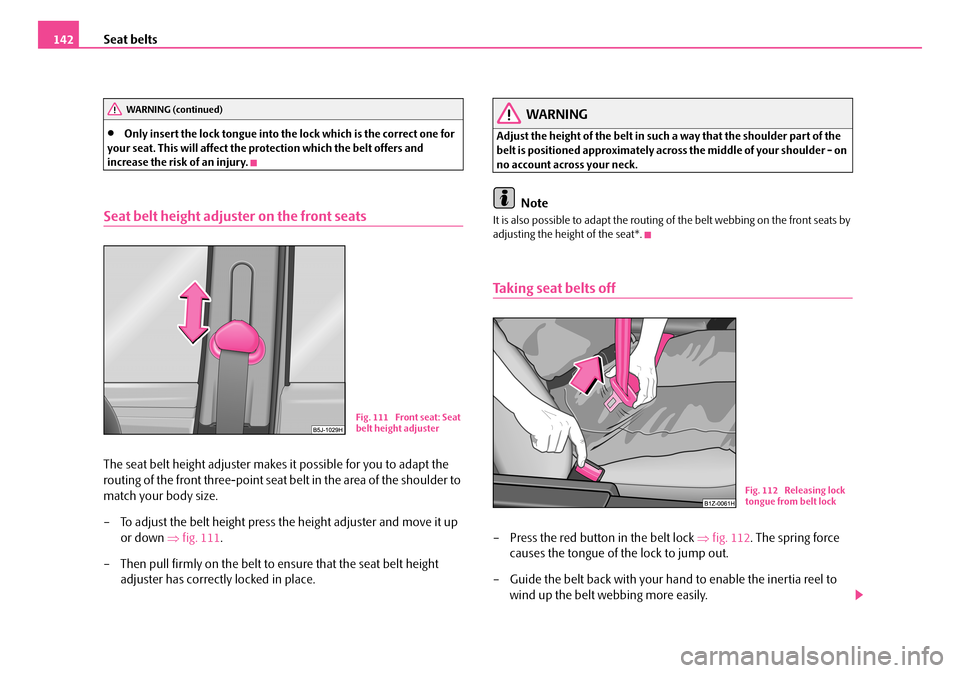

Seat belt height adjuster on the front seats
The seat belt height adjuster make s it possible for you to adapt the
routing of the front three-point seat belt in the area of the shoulder to
match your body size.
– To adjust the belt height press the height adjuster and move it up
or down ⇒fig. 111.
– Then pull firmly on the belt to en sure that the seat belt height
adjuster has correctly locked in place.
WARNING
Adjust the height of the belt in such a way that the shoulder part of the belt is positioned approximately acro ss the middle of your shoulder - on no account across your neck.
Note
It is also possible to adapt the routing of the belt webbing on the front seats by adjusting the height of the seat*.
Taking seat belts off
– Press the red button in the belt lock ⇒fig. 112. The spring force
causes the tongue of the lock to jump out.
– Guide the belt back with your ha nd to enable the inertia reel to
wind up the belt webbing more easily.
WARNING (continued)
Fig. 111 Front seat: Seat belt height adjuster
Fig. 112 Releasing lock tongue from belt lock
NKO A05Fabia 20.book Page 142 Tuesday, September 26, 2006 8:38 AM

Seat belts143
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
A plastic knob in the belt webbing holds the belt tongue in a position which is easy to get hold of.
Three-point safety belt for the middle rear seat
It is used in the same way as the normal three-point seat belts on the left and right (at front and rear).
WARNING
•The three-point safety belt for the rear middle seat can only fulfil its function reliably when the backrests are correctly locked into position ⇒ page 73.
Belt tensioner
Safety for the driver and front passenger wearing their seat belts is enhanced by the belt tensioners fitted to the inertia reels of the front three-point seat belts.
The fastened three-point seat belts are automatically tensioned in the event of a frontal collision of a certain severity. The belts tensioners are also deployed if the seat belts are not fastened.
Belt tensioners are not activated in the event of minor frontal collisions, side and rear-end collisions, in the case of a rollover and also not in accidents in which no major forces are produced from the front.
WARNING
•Any work on the belt tightener sy stem, including removal and instal- lation of system components because of other repair work, must only be carried out by a specialist garage.
•The protective function of the system is only adequate for a single accident. If the belt tensioners have been deployed, it is then necessary to replace the entire system.
•The Owner's Manual must also be handed over to the new owner if the vehicle is sold.
Note
•Smoke is generated when the belt tensioners are deployed. This is not an indication of a fire in the vehicle.
•It is essential to pay attention to releva nt safety regulations if the vehicle or individual parts of the system are scrapped. Škoda Service Partners are familiar with these regulations and will be able to provide you with detailed information in this respect.
•When disposing of vehicle or parts of the system, it is important to comply with the national legal requirements.
NKO A05Fabia 20.book Page 143 Tuesday, September 26, 2006 8:38 AM

Airbag system144

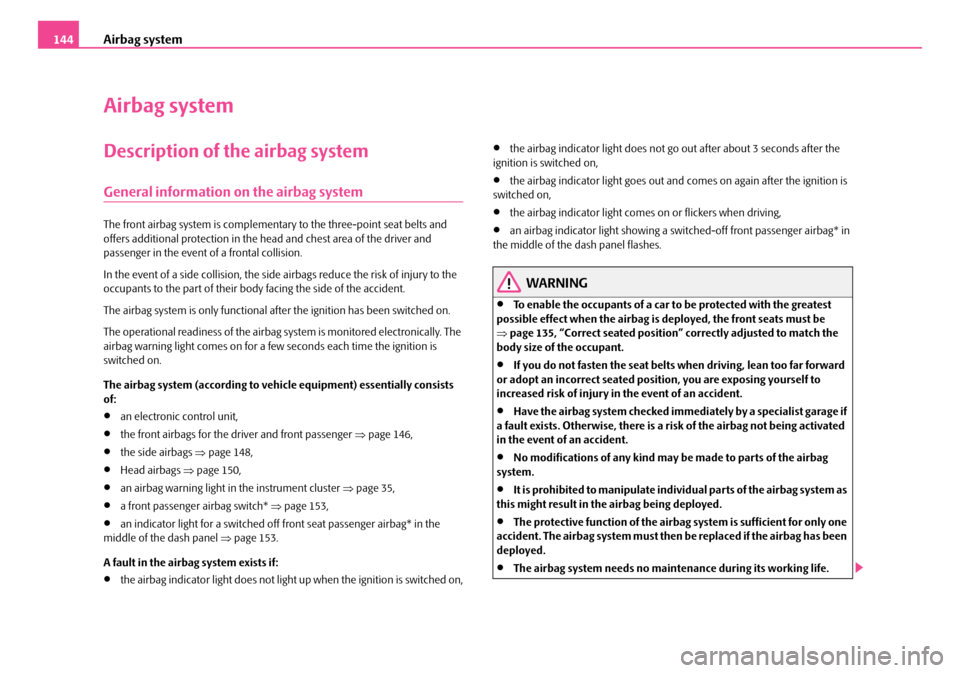

Airbag system
Description of the airbag system
General information on the airbag system
The front airbag system is complementary to the three-point seat belts and offers additional protection in the head and chest area of the driver and passenger in the event of a frontal collision.
In the event of a side collision, the side ai rbags reduce the risk of injury to the occupants to the part of their body facing the side of the accident.
The airbag system is only functional after the ignition has been switched on.
The operational readiness of the airbag system is monitored electronically. The airbag warning light comes on for a fe w seconds each time the ignition is switched on.
The airbag system (according to vehi cle equipment) essentially consists of:
•an electronic control unit,
•the front airbags for the driver and front passenger ⇒page 146,
•the side airbags ⇒page 148,
•Head airbags ⇒page 150,
•an airbag warning light in the instrument cluster ⇒page 35,
•a front passenger airbag switch* ⇒page 153,
•an indicator light for a switched off front seat passenger airbag* in the middle of the dash panel ⇒page 153.
A fault in the airbag system exists if:
•the airbag indicator light does not ligh t up when the ignition is switched on,
•the airbag indicator light does not go out after about 3 seconds after the ignition is switched on,
•the airbag indicator light goes out and comes on again after the ignition is switched on,
•the airbag indicator light comes on or flickers when driving,
•an airbag indicator light showing a sw itched-off front passenger airbag* in the middle of the dash panel flashes.
WARNING
•To enable the occupants of a car to be protected with the greatest possible effect when the airbag is deployed, the front seats must be ⇒ page 135, “Correct seated position” correctly adjusted to match the body size of the occupant.
•If you do not fasten the seat belts when driving, lean too far forward or adopt an incorrect seated position, you are exposing yourself to increased risk of injury in the event of an accident.
•Have the airbag system checked imme diately by a specialist garage if a fault exists. Otherwise, there is a risk of the airbag not being activated in the event of an accident.
•No modifications of any kind may be made to parts of the airbag system.
•It is prohibited to manipulate individual parts of the airbag system as this might result in the airbag being deployed.
•The protective function of the airbag system is sufficient for only one accident. The airbag system must then be replaced if the airbag has been deployed.
•The airbag system needs no main tenance during its working life.
NKO A05Fabia 20.book Page 144 Tuesday, September 26, 2006 8:38 AM

Airbag system145
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
•If you sell your car, please hand over the complete vehicle documen- tation to the new owener. Please note that the documents relating to the possibility of deactivating the front pa ssenger airbag are also part of the vehicle documents!
•If the vehicle or individual parts of the airbag system are scrapped, it is essential to observe the relevant safety precautions. Škoda Service Partners are familiar with these regulations.
•When disposing of vehicle or parts of the airbag system, it is impor- tant to comply with the national legal requirements.

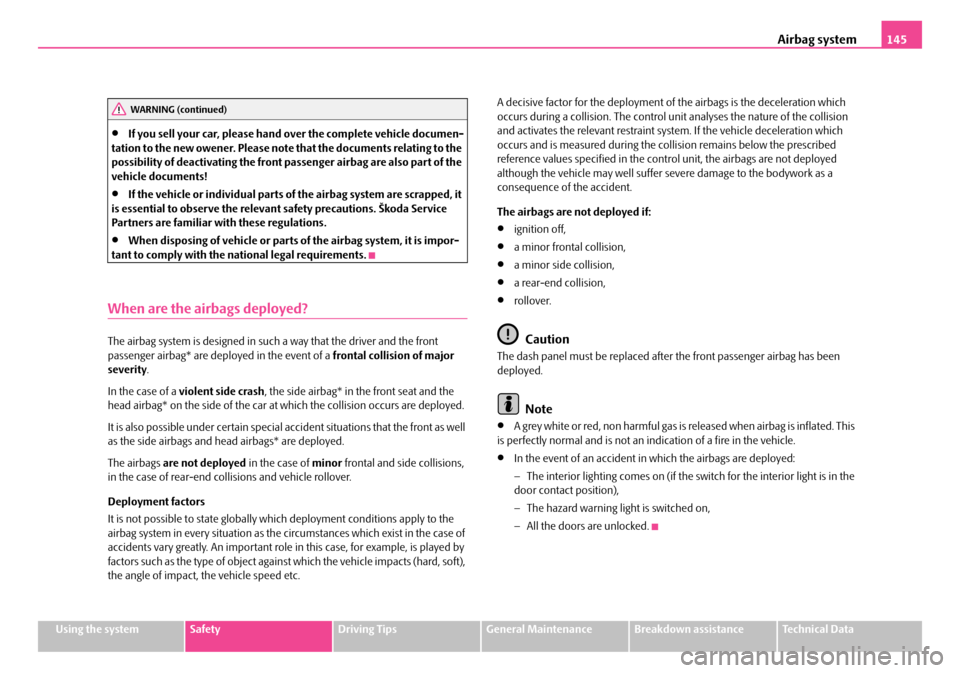

When are the airbags deployed?
The airbag system is designed in such a way that the driver and the front passenger airbag* are deployed in the event of a frontal collision of major severity .
In the case of a violent side crash, the side airbag* in the front seat and the head airbag* on the side of the car at which the collision occurs are deployed.
It is also possible under certain special accident situations that the front as well as the side airbags and head airbags* are deployed.
The airbags are not deployed in the case of minor frontal and side collisions, in the case of rear-end collisions and vehicle rollover.
Deployment factors
It is not possible to state globally wh ich deployment conditions apply to the airbag system in every situation as the circumstances which exist in the case of accidents vary greatly. An important role in this case, for example, is played by factors such as the type of object agains t which the vehicle impacts (hard, soft), the angle of impact, the vehicle speed etc.
A decisive factor for the deployment of the airbags is the deceleration which occurs during a collision. The control uni t analyses the nature of the collision and activates the relevant restraint system. If the vehicle deceleration which occurs and is measured during the collision remains below the prescribed reference values specified in the cont rol unit, the airbags are not deployed although the vehicle may well suffer severe damage to the bodywork as a consequence of the accident.
The airbags are not deployed if:
•ignition off,
•a minor frontal collision,
•a minor side collision,
•a rear-end collision,
•rollover.
Caution
The dash panel must be replaced afte r the front passenger airbag has been deployed.
Note
•A grey white or red, non harmful gas is released when airbag is inflated. This is perfectly normal and is not an in dication of a fire in the vehicle.
•In the event of an accident in which the airbags are deployed:
− The interior lighting comes on (if the switch for the interior light is in the door contact position),
− The hazard warning light is switched on,
− All the doors are unlocked.
WARNING (continued)
NKO A05Fabia 20.book Page 145 Tuesday, September 26, 2006 8:38 AM

Airbag system146

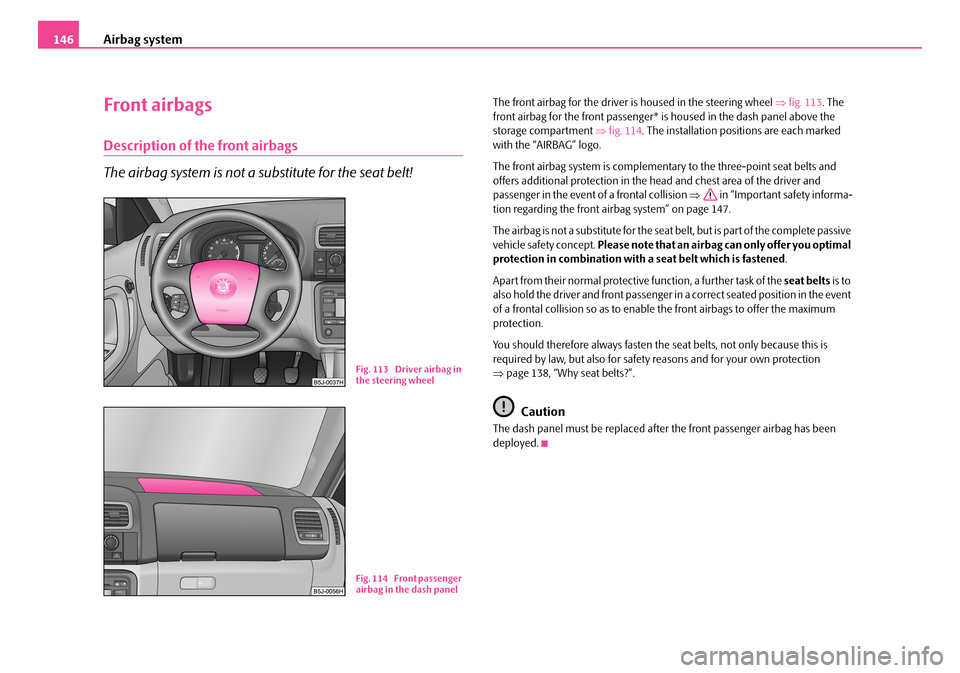

Front airbags
Description of the front airbags
The airbag system is not a substitute for the seat belt!
The front airbag for the driver is housed in the steering wheel ⇒fig. 113. The front airbag for the front passenger* is housed in the dash panel above the storage compartment ⇒fig. 114. The installation positions are each marked with the “AIRBAG” logo.
The front airbag system is complement ary to the three-point seat belts and offers additional protection in the he ad and chest area of the driver and passenger in the event of a frontal collision ⇒ in “Important safety informa- tion regarding the front airbag system” on page 147.
The airbag is not a substitute for the seat belt, but is part of the complete passive vehicle safety concept. Please note that an airbag can only offer you optimal protection in combination with a seat belt which is fastened .
Apart from their normal protective function, a further task of the seat belts is to also hold the driver and front passenger in a correct seated position in the event of a frontal collision so as to enable the front airbags to offer the maximum protection.
You should therefore always fasten the seat belts, not only because this is required by law, but also for safety reasons and for your own protection ⇒ page 138, “Why seat belts?”.
Caution
The dash panel must be replaced after the front passenger airbag has been deployed.
Fig. 113 Driver airbag in the steering wheel
Fig. 114 Front passenger airbag in the dash panel
NKO A05Fabia 20.book Page 146 Tuesday, September 26, 2006 8:38 AM

Airbag system147
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data

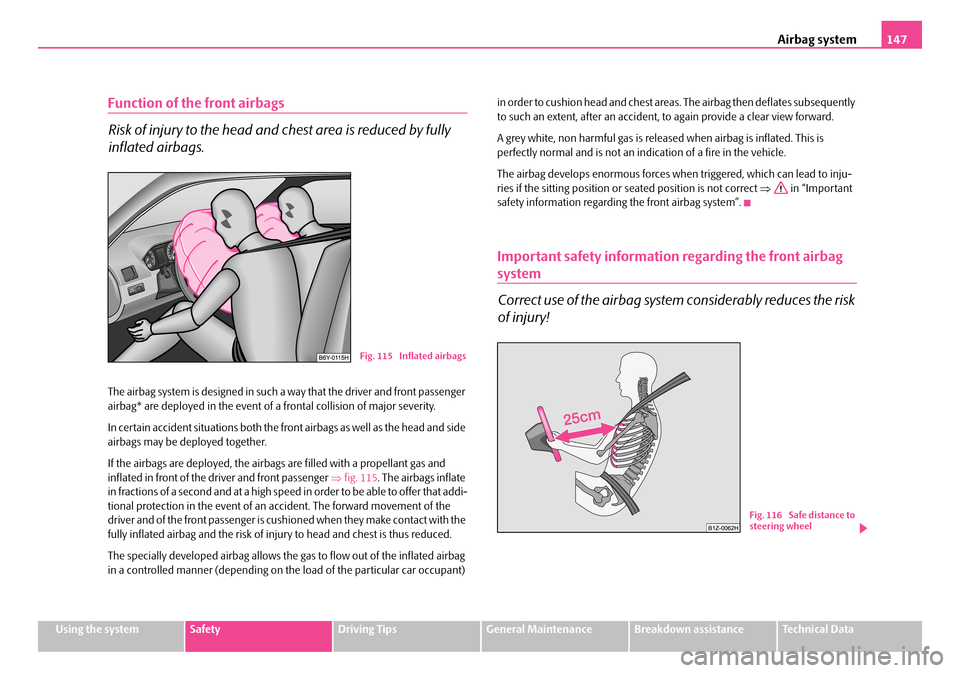

Function of the front airbags
Risk of injury to the head and chest area is reduced by fully
inflated airbags.
The airbag system is designed in such a way that the driver and front passenger airbag* are deployed in the event of a frontal collision of major severity.
In certain accident situations both the front airbags as well as the head and side airbags may be deployed together.
If the airbags are deployed, the airbags are filled with a propellant gas and inflated in front of the driver and front passenger ⇒fig. 115. The airbags inflate in fractions of a second and at a high speed in order to be able to of fer that a ddi - tional protection in the event of an accident. The forward movement of the driver and of the front passenger is cush ioned when they make contact with the fully inflated airbag and the risk of injury to head and chest is thus reduced.
The specially developed airbag allows the gas to flow out of the inflated airbag in a controlled manner (depending on th e load of the particular car occupant)
in order to cushion head and chest areas. The airbag then deflates subsequently to such an extent, after an accident, to again provide a clear view forward.
A grey white, non harmful gas is released when airbag is inflated. This is perfectly normal and is not an indication of a fire in the vehicle.
The airbag develops enormous forces wh en triggered, which can lead to inju- ries if the sitting position or seated position is not correct ⇒ in “Important safety information regarding the front airbag system”.
Important safety information regarding the front airbag
system
Correct use of the airbag system considerably reduces the risk
of injury!
Fig. 115 Inflated airbags
Fig. 116 Safe distance to steering wheel
NKO A05Fabia 20.book Page 147 Tuesday, September 26, 2006 8:38 AM

Airbag system148

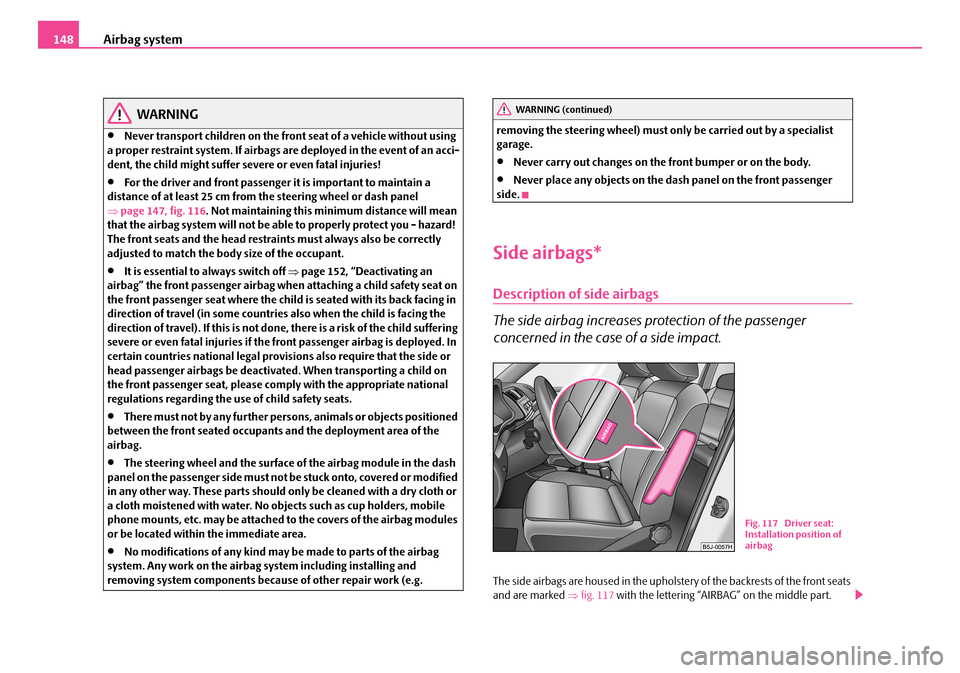

WARNING
•Never transport children on the front seat of a vehicle without using a proper restraint system. If airbags ar e deployed in the event of an acci- dent, the child might suffer severe or even fatal injuries!
•For the driver and front passenger it is important to maintain a distance of at least 25 cm from the steering wheel or dash panel ⇒ page 147, fig. 116. Not maintaining this minimum distance will mean that the airbag system will not be able to properly protect you - hazard! The front seats and the head restraints must always also be correctly adjusted to match the body size of the occupant.
•It is essential to always switch off ⇒page 152, “Deactivating an airbag” the front passenger airbag when attaching a child safety seat on the front passenger seat where the child is seated with its back facing in direction of travel (in some countries also when the child is facing the direction of travel). If this is not done, there is a risk of the child suffering severe or even fatal injuries if the front passenger airbag is deployed. In certain countries national legal provisions also require that the side or head passenger airbags be deactivated. When transporting a child on the front passenger seat, please comply with the appropriate national regulations regarding the use of child safety seats.
•There must not by any further person s, animals or objects positioned between the front seated occupants and the deployment area of the airbag.
•The steering wheel and the surface of the airbag module in the dash panel on the passenger side must not be stuck onto, covered or modified in any other way. These parts should only be cleaned with a dry cloth or a cloth moistened with water. No objects such as cup holders, mobile phone mounts, etc. may be attached to the covers of the airbag modules or be located within the immediate area.
•No modifications of any kind may be made to parts of the airbag system. Any work on the airbag system including installing and removing system components because of other repair work (e.g.
removing the steering wheel ) must only be carried out by a specialist garage.
•Never carry out changes on the front bumper or on the body.
•Never place any objects on the da sh panel on the front passenger side.
Side airbags*
Description of side airbags
The side airbag increases protection of the passenger
concerned in the case of a side impact.
The side airbags are housed in the upholstery of the backrests of the front seats and are marked ⇒fig. 117 with the lettering “AIRBAG” on the middle part.
WARNING (continued)
Fig. 117 Driver seat: Installation position of airbag
NKO A05Fabia 20.book Page 148 Tuesday, September 26, 2006 8:38 AM

Airbag system149
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data

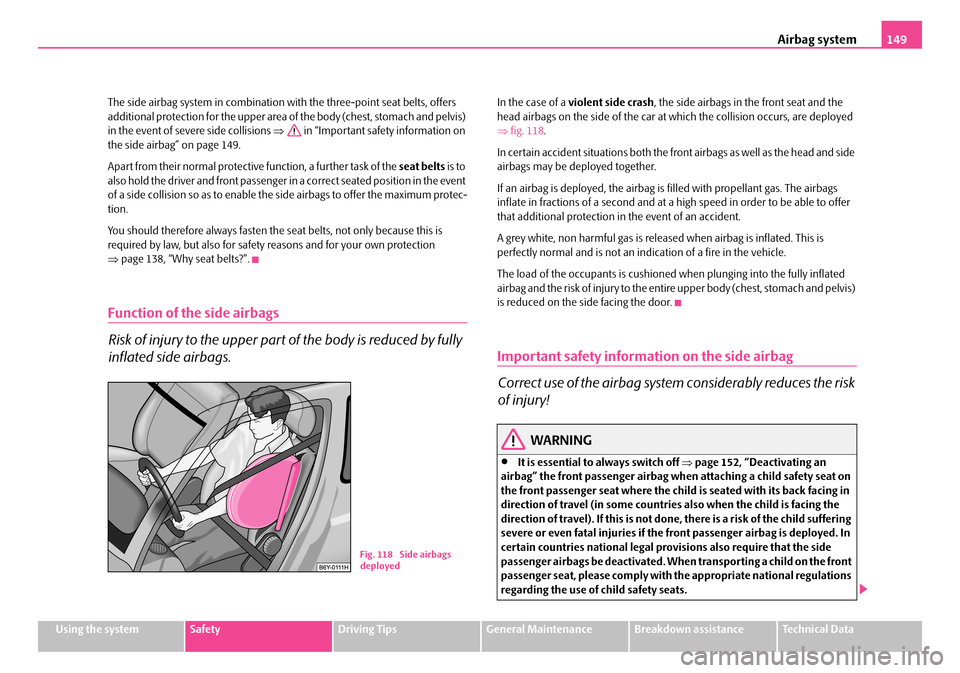

The side airbag system in combination wi th the three-point seat belts, offers additional protection for the upper area of the body (chest, stomach and pelvis) in the event of severe side collisions ⇒ in “Important safety information on the side airbag” on page 149.
Apart from their normal protective function, a further task of the seat belts is to also hold the driver and front passenger in a correct seated position in the event of a side collision so as to enable the side airbags to offer the maximum protec- tion.
You should therefore always fasten the seat belts, not only because this is required by law, but also for safety reasons and for your own protection ⇒ page 138, “Why seat belts?”.
Function of the side airbags
Risk of injury to the upper part of the body is reduced by fully
inflated side airbags.
In the case of a violent side crash, the side airbags in the front seat and the head airbags on the side of the car at which the collision occurs, are deployed ⇒ fig. 118.
In certain accident situations both the front airbags as well as the head and side airbags may be deployed together.
If an airbag is deployed, the airbag is filled with propellant gas. The airbags inflate in fractions of a second and at a high speed in order to be able to offer that additional protection in the event of an accident.
A grey white, non harmful gas is released when airbag is inflated. This is perfectly normal and is not an indication of a fire in the vehicle.
The load of the occupants is cushioned when plunging into the fully inflated airbag and the risk of injury to the enti re upper body (chest, stomach and pelvis) is reduced on the side facing the door.
Important safety information on the side airbag
Correct use of the airbag system considerably reduces the risk
of injury!
WARNING
•It is essential to always switch off ⇒page 152, “Deactivating an airbag” the front passenger airbag when attaching a child safety seat on the front passenger seat where the child is seated with its back facing in direction of travel (in some countries also when the child is facing the direction of travel). If this is not done , there is a risk of the child suffering severe or even fatal injuries if the front passenger airbag is deployed. In certain countries national legal provisions also require that the side passenger airbags be deactivated. When transporting a child on the front passenger seat, please comply with the appropriate national regulations regarding the use of child safety seats.
Fig. 118 Side airbags deployed
NKO A05Fabia 20.book Page 149 Tuesday, September 26, 2006 8:38 AM
