SKODA FABIA 2006 2.G / 5J Owner's Manual

Fuses and light bulbs240

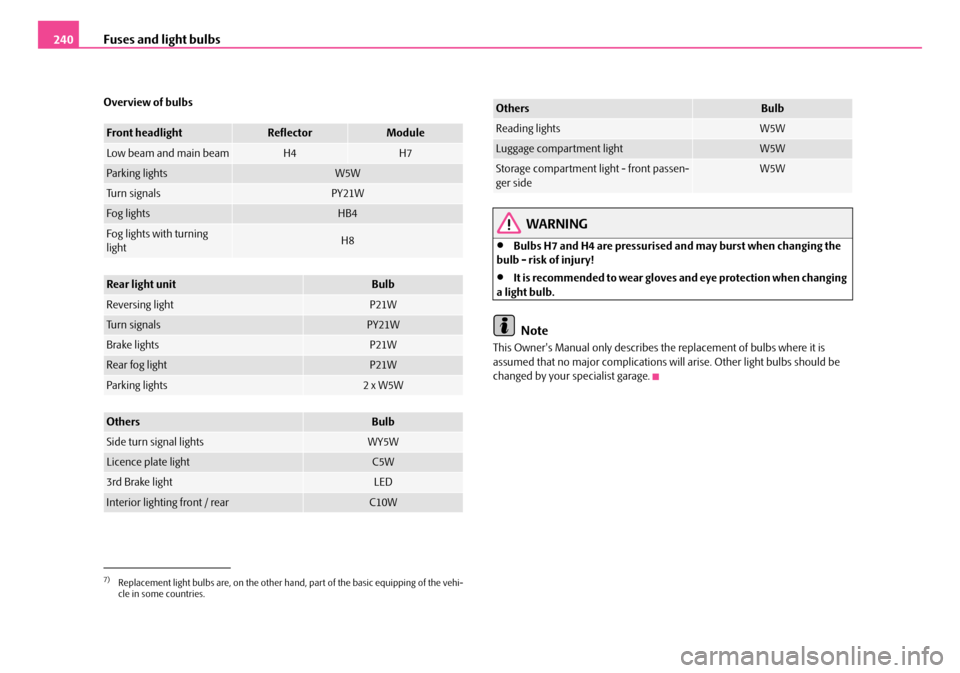

Overview of bulbs
WARNING
•Bulbs H7 and H4 are pressurised and may burst when changing the bulb - risk of injury!
•It is recommended to wear gloves and eye protection when changing a light bulb.
Note
This Owner's Manual only describes the replacement of bulbs where it is assumed that no major comp lications will arise. Other light bulbs should be changed by your specialist garage.
7)Replacement light bulbs are, on the other hand, part of the basic equipping of the vehi- cle in some countries.
Front headlightReflectorModule
Low beam and main beamH4H7
Parking lightsW5W
Tu r n s i g n a l sPY21W
Fog lightsHB4
Fog lights with turning lightH8
Rear light unitBulb
Reversing lightP21W
Tu r n s i g n a l sPY21W
Brake lightsP21W
Rear fog lightP21W
Parking lights2 x W5W
OthersBulb
Side turn signal lightsWY5W
Licence plate lightC5W
3rd Brake lightLED
Interior lighting front / rearC10W
Reading lightsW5W
Luggage compartment lightW5W
Storage compartment light - front passen-ger sideW5W
OthersBulb
NKO A05Fabia 20.book Page 240 Tuesday, September 26, 2006 8:38 AM

Fuses and light bulbs241
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Front headlight
– Open the bonnet.
– For a vehicle with petrol engine remove the activated charcoal
filter system before replacing the bulb in the right front headlight
⇒ fig. 172.

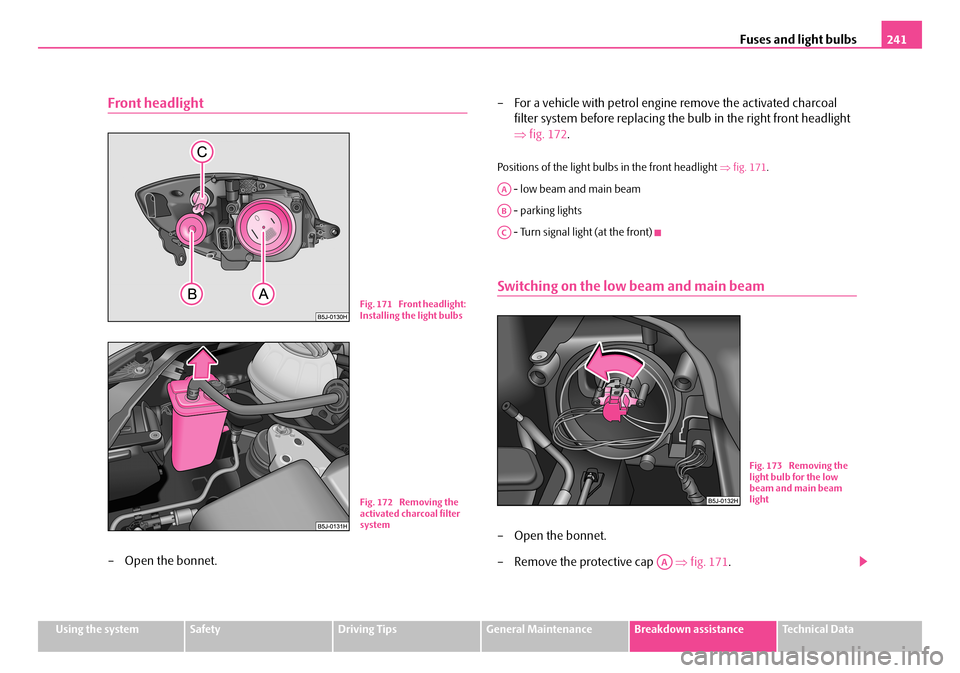

Positions of the light bulbs in the front headlight ⇒fig. 171.
- low beam and main beam
- parking lights
- Turn signal light (at the front)
Switching on the low beam and main beam
– Open the bonnet.
– Remove the protective cap ⇒fig. 171.
Fig. 171 Front headlight: Installing the light bulbs
Fig. 172 Removing the activated charcoal filter system
AA
AB
AC
Fig. 173 Removing the light bulb for the low beam and main beam light
AA
NKO A05Fabia 20.book Page 241 Tuesday, September 26, 2006 8:38 AM

Fuses and light bulbs242

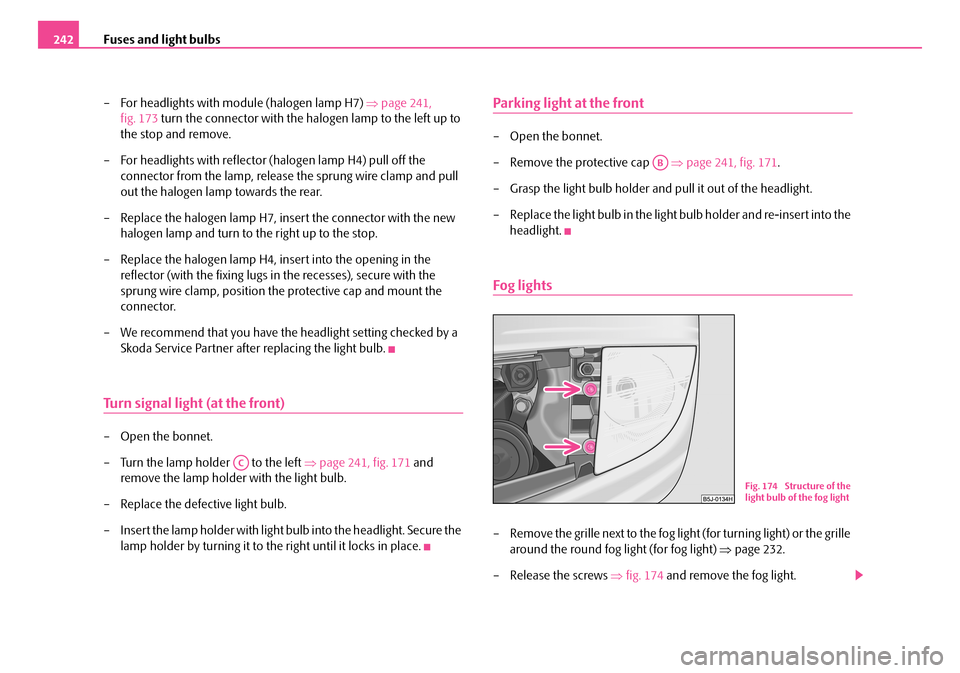

– For headlights with module (halogen lamp H7) ⇒page 241,
fig. 173 turn the connector with the halogen lamp to the left up to
the stop and remove.
– For headlights with reflector (halogen lamp H4) pull off the
connector from the lamp, release the sprung wire clamp and pull
out the halogen lamp towards the rear.
– Replace the halogen lamp H7, insert the connector with the new
halogen lamp and turn to the right up to the stop.
– Replace the halogen lamp H4, insert into the opening in the
reflector (with the fixing lugs in the recesses), secure with the
sprung wire clamp, position the protective cap and mount the
connector.
– We recommend that you have the headlight setting checked by a
Skoda Service Partner after replacing the light bulb.
Turn signal light (at the front)
– Open the bonnet.
– Turn the lamp holder to the left ⇒page 241, fig. 171 and
remove the lamp holder with the light bulb.
– Replace the defective light bulb.
– Insert the lamp holder with light bulb into the headlight. Secure the
lamp holder by turning it to th e right until it locks in place.
Parking light at the front
– Open the bonnet.
– Remove the protective cap ⇒page 241, fig. 171.
– Grasp the light bulb holder an d pull it out of the headlight.
– Replace the light bulb in the light bulb holder and re-insert into the
headlight.
Fog lights
– Remove the grille next to the fog light (for turning light) or the grille
around the round fog light (for fog light) ⇒page 232.
– Release the screws ⇒fig. 174 and remove the fog light.
AC
AB
Fig. 174 Structure of the light bulb of the fog light
NKO A05Fabia 20.book Page 242 Tuesday, September 26, 2006 8:38 AM

Fuses and light bulbs243
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
– Turn the connector with the light bulb up to the stop towards the
left and remove.
– Change the light bulb, put the co nnector back into the headlight
and secure by turning to the right.
– Put the fog light in place with the catch on the side opposite the
grille and then press in the opposite part. Applies to turning light,
for round fog light screw in the 3 screws.
– Screw in the screws ⇒page 242, fig. 174 and re-insert the grille
⇒ page 232.
Storage compartment lighting*
We recommend having the light bulb replaced by a Škoda Service
Par tner.
– Push in a knife or similar from the side between the light and the
glove compartment ⇒fig. 175. Lever out the light carefully.
– Disconnect the plug connector.
– Replace the defective light bulb.
– Recreate the plug connection.
– Press the light into the glove compartment from below.
Interior light and reading light*

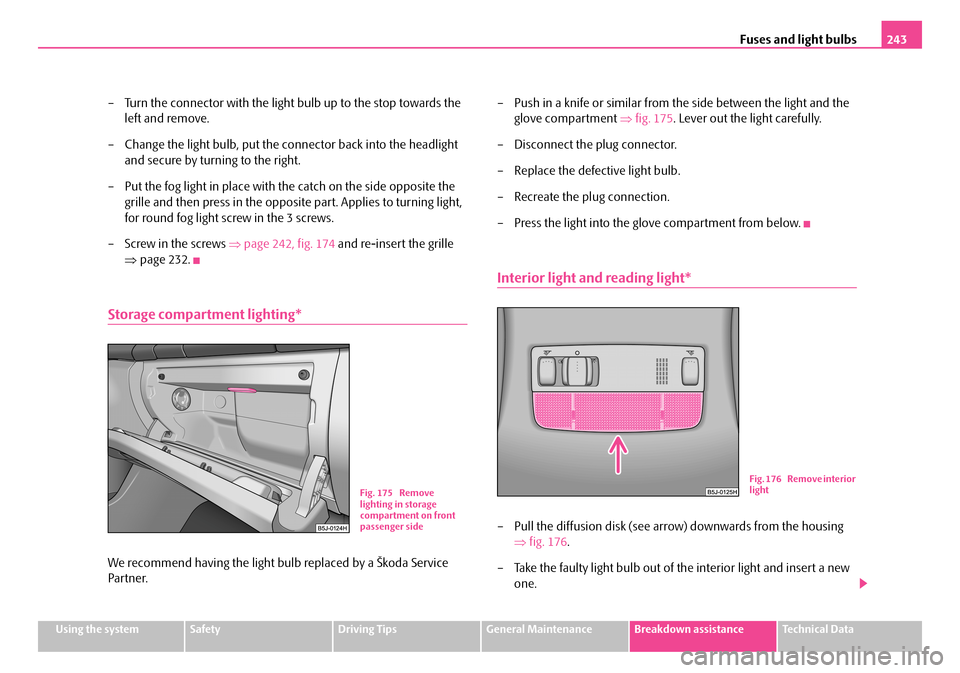

– Pull the diffusion disk (see arrow) downwards from the housing
⇒ fig. 176.
– Take the faulty light bulb out of the interior light and insert a new
one.
Fig. 175 Remove lighting in storage compartment on front passenger side
Fig. 176 Remove interior light
NKO A05Fabia 20.book Page 243 Tuesday, September 26, 2006 8:38 AM

Fuses and light bulbs244
– Pull the light bulb out of its holder and insert the new one.
– Press the diffusion disk back into the housing until it clicks into
place (ensure that it is in the right position).

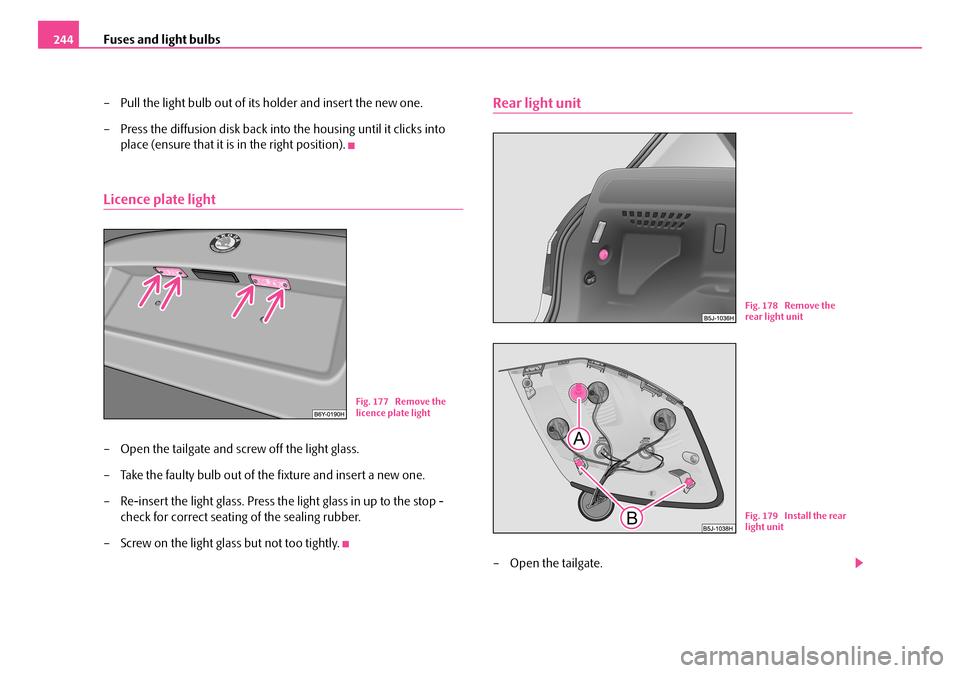

Licence plate light
– Open the tailgate and screw off the light glass.
– Take the faulty bulb out of the fixture and insert a new one.
– Re-insert the light glass. Press the light glass in up to the stop -
check for correct seating of the sealing rubber.
– Screw on the light glass but not too tightly.
Rear light unit
– Open the tailgate.
Fig. 177 Remove the licence plate light
Fig. 178 Remove the rear light unit
Fig. 179 Install the rear light unit
NKO A05Fabia 20.book Page 244 Tuesday, September 26, 2006 8:38 AM

Fuses and light bulbs245
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
– Hold tight the rear light unit with one hand and unscrew the plastic
nut with the other hand ⇒page 244, fig. 178.
– Grip the rear light unit and remove it carefully with loosening
movements at an angle to the rear. Do not pull the grommet with
the cables out of the body.
– Replace the defective light bulb ⇒page 245.
– When re-installing, first insert the rear light unit with the screw
into the opening of the body ⇒page 244, fig. 179.
– Carefully press the rear light unit into the body in such a way that
the pins engage into the supports of the body.
– Hold the rear light unit tight with one hand, screw on the plastic nut
with the other hand and tighten it ⇒page 244, fig. 178.
Caution
When removing and installing the rear light unit make sure not to damage the paintwork of the vehicle and the rear light unit.
Note
For slackening and tightening the plastic nut use a coin.
Changing light bulbs in the rear light unit
– To replace a light bulb, turn the bulb connector of the light bulb to
the left (in the direction of the arrows on the housing) and take it
out of the housing.
– Replace the light bulb, put the bulb connector back into the
housing and turn it to the right up to the stop (in the opposite
direction of the arrows on the housing).

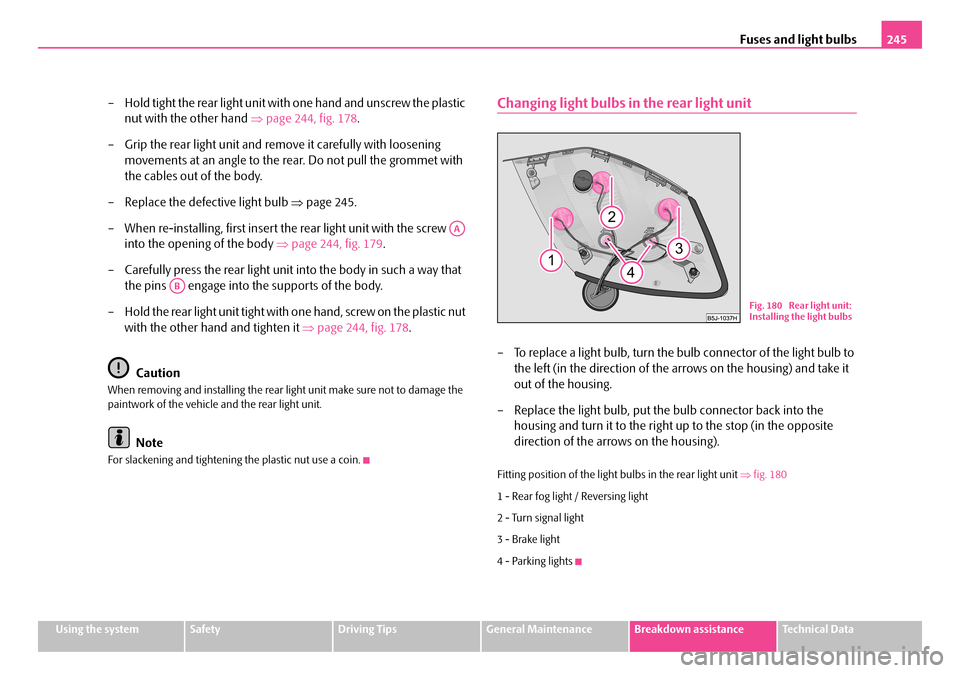

Fitting position of the light bulbs in the rear light unit ⇒fig. 180
1 - Rear fog light / Reversing light
2 - Turn signal light
3 - Brake light
4 - Parking lights
AA
AB
Fig. 180 Rear light unit: Installing the light bulbs
NKO A05Fabia 20.book Page 245 Tuesday, September 26, 2006 8:38 AM

Fuses and light bulbs246
Luggage compartment light
– Open the tailgate.

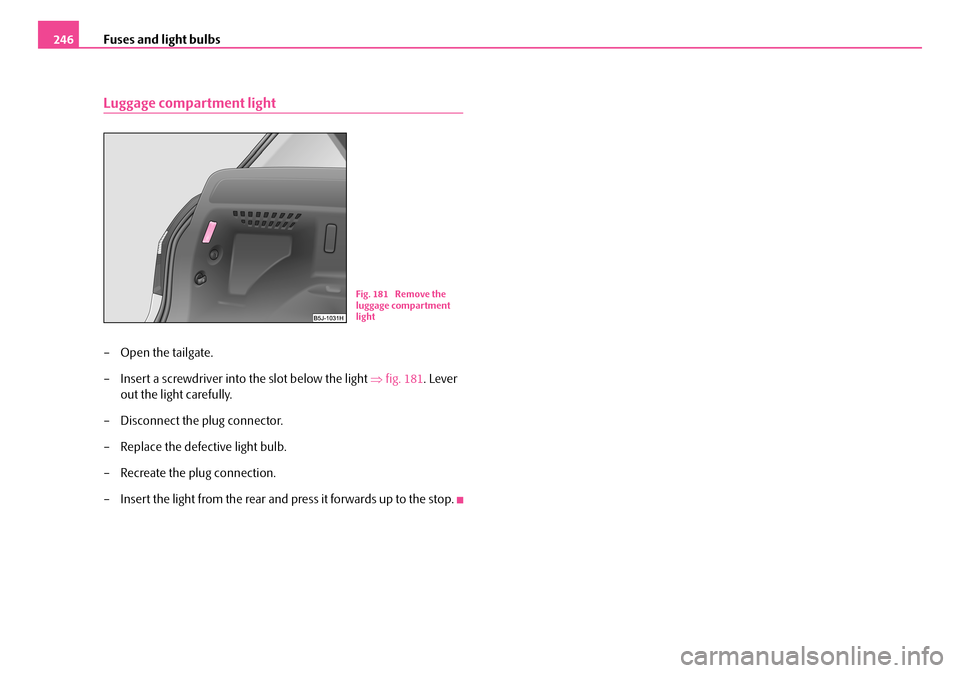

– Insert a screwdriver into the slot below the light ⇒fig. 181. Lever
out the light carefully.
– Disconnect the plug connector.
– Replace the defective light bulb.
– Recreate the plug connection.
– Insert the light from the rear and press it forwards up to the stop.
Fig. 181 Remove the luggage compartment light
NKO A05Fabia 20.book Page 246 Tuesday, September 26, 2006 8:38 AM

General247
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Technical Data
General
Identification data
Vehicle data sticker

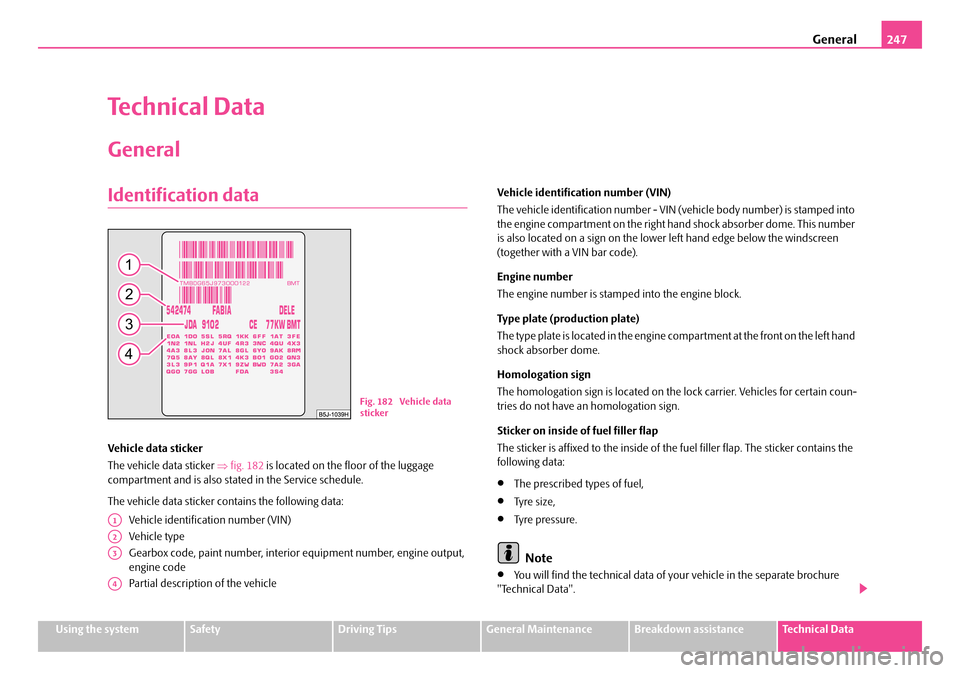

The vehicle data sticker ⇒fig. 182 is located on the floor of the luggage compartment and is also stated in the Service schedule.
The vehicle data sticker co ntains the following data:
Vehicle identification number (VIN)
Vehicle type
Gearbox code, paint number, interior equipment number, engine output, engine code
Partial description of the vehicle
Vehicle identification number (VIN)
The vehicle identification number - VIN (v ehicle body number) is stamped into the engine compartment on the right ha nd shock absorber dome. This number is also located on a sign on the lower left hand edge below the windscreen (together with a VIN bar code).
Engine number
The engine number is stampe d into the engine block.
Type plate (production plate)
The type plate is located in the engine co mpartment at the front on the left hand shock absorber dome.
Homologation sign
The homologation sign is located on the lock carrier. Vehicles for certain coun- tries do not have an homologation sign.
Sticker on inside of fuel filler flap
The sticker is affixed to the inside of the fuel filler flap. The sticker contains the following data:
•The prescribed types of fuel,
•Ty re s i z e ,
•Tyre pressure.
Note
•You will find the technical data of yo ur vehicle in the separate brochure "Technical Data".
Fig. 182 Vehicle data sticker
A1
A2
A3
A4
NKO A05Fabia 20.book Page 247 Tuesday, September 26, 2006 8:38 AM

General248

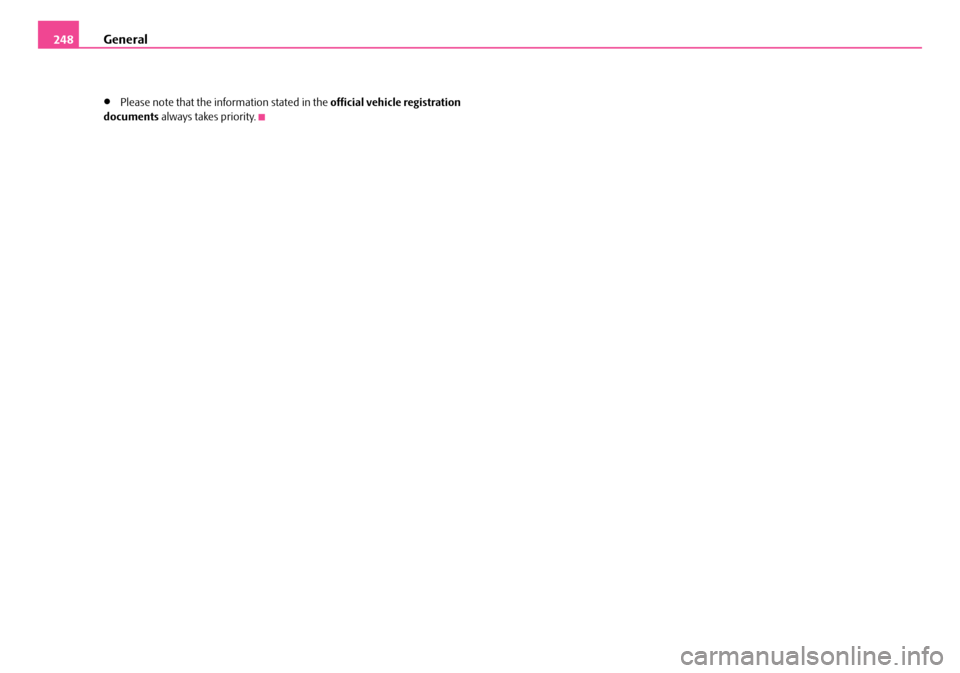

•Please note that the information stated in the official vehicle registration documents always takes priority.
NKO A05Fabia 20.book Page 248 Tuesday, September 26, 2006 8:38 AM

Index249
Index
A
Abroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
ABS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Adjusting seats . . . . . . . . . . . . . . . . . . . . . . . . . . . 70, 135
Adjusting the steering wheel . . . . . . . . . . . . . . . . . . 103
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . 94
Air outlet vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Deployment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Front airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Head airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Alternator
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Antilock brake system . . . . . . . . . . . . . . . . . . . . . . . . 169
Antilock brake system - ABS
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Anti-theft alarm system . . . . . . . . . . . . . . . . . . . . . . . 48
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Auto Check Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Auto Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Emergency programme . . . . . . . . . . . . . . . . . . 116
Kickdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Automatic vehicle wash systems . . . . . . . . . . . . . . 186
Automatic wiper/washer system . . . . . . . . . . . . . . . 64
Avoiding damage to your vehicle . . . . . . . . . . . . . 180
B
B rake booster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28, 207
change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Charge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Inspecting the electrolyte level . . . . . . . . . . . . 209
Operation in winter . . . . . . . . . . . . . . . . . . . . . . 209
Before setting off . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Belt tensioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Biodiesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Bluetooth™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Brake
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Brake booster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Brake pads
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Brake system
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Button on the driver's door
Central locking system . . . . . . . . . . . . . . . . . . . . 44
C
Car jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Car state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . . . 174
CD changer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Central locking system . . . . . . . . . . . . . . . . . . . . . . . . 41
lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
unlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Changing the engine oil . . . . . . . . . . . . . . . . . . . . . . 202
Changing wheels around . . . . . . . . . . . . . . . . . . . . . 215
Charging the battery . . . . . . . . . . . . . . . . . . . . . . . . . 210
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Check engine oil level . . . . . . . . . . . . . . . . . . . . . . . . 201
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
NKO A05Fabia 20.book Page 249 Tuesday, September 26, 2006 8:38 AM
