CD operation
Playback ScanRadio CD operation
T itle selection Shuffle (Random generator) CD Ejection
Playback
Push a CD (label upwards) carefully in the
CD tray until it is automatically drawn in
further. Playback begins automatically.
PLAY
CD TR y (y=track number) appears in the
display.
T itle selection
Pressing the control button or moves
forwards or backwards to the next track.
Fast forwards and reverse
This function makes it possible for you, by
listening in to the fast forwards and reverse,
to search for a particular point within a song.
Keep the control button or
depressed until the respective point is found.
Scan
When the SCN button \b is pressed, all titles
in the CD are played for ca. 10 sec. one after
another. The function is indicated in the
display by
SCANCD TR y. Press the SCN
button
\b again and the compact disc player
returns to normal operation.
Shuffle (random generator)
Press the button AS and the CD titles are
sequenced at random. The function is indica-
ted in the display by
SHFFLCD TR y. Press
the ASbutton
again and the CD player
returns to normal operation.
Switching over to radio operation
Press the A/F
or TP button to switch to
radio operation. The CD is not ejected then.
CD Playback is restarted by briefly pressing
the CD button again.
CD Ejection
By depressing the CD button for a few
moments, the CD is ejected and, depending
on the setting, switched to radio operation.
If the CD is not taken out, this will be drawn
back into the CD shaft after a few seconds.
CD operation and Radio traffic service
If the radio was operated in TP mode before
switching to CD operation, the traffic
announcements will interrupt the CD playback
and switch over to radio operation for the
duration of the report. Once the traffic
announcements are over, the car radio will
switch automatically to CD operation again.
T emperature-related disconnection
If the temperature in the car radio exceeds
85 °C, a safety disconnection mechanism
switches off the CD player. As soon as the
temperature drops below 85 °C, the compact
disc player is activated again.
Tips on handling CDs
• CDs are very sensitive to scratching. For
that reason do not leave CDs lying around
in your vehicle without protection. Keep the
CDs exclusively in special boxes.
10
12
11
9
8
4
5
6
3. Bed. Anl. Skoda Radio Engl. 13.12.2004 14:20 Uhr Seite 10
Page 12 of 22
CD operation
CD Changer operation Title selection
• CDs should not be exposed to tempera-tures over 50 °C for lengthy times.
Remember that temperatures inside the
vehicle in sunshine can be much higher
than outside the vehicle. For this reason
avoid exposing CDs to direct solar radia-
tion.
CD Changer operation (optional)
In addition to the integrated CD drive there is
also the possibility of operating an external
SKODA CD changer with your CD radio.
Prerequisite for the CD changer operation is
that there is a magazine filled with CDs in the
CD changer. See the enclosed CD changer
manual for the necessary operating steps.
The following functions are available for your
CD changer:
Playback
Press the CD button . The appliance now
plays the CD last heard. Playback is indica-
ted in the display by
PLAYCD x TR y (x =CD
number in the CD changer, y =track number).
CD Selection
By pressing a station button, one to six \f,
the corresponding CD will be played back
again. The CD in the integrated CD drive is
selected by pressing the CD button .
Title selection
Pressing the control button or moves
forwards or backwards to the next title.
Fast forward and reverse
This function makes it possible for you, by
listening in to the fast forwards and reverse,
to search for a particular point in a song.
Keep the control button or
depressed until the respective point is found.
Scan
By pressing the SCN button \b, all titles in
the CD are played for ca. 10 sec. one after
another. The function is indicated in the dis-
play by
SCANCD TR y. By pressing the SCN
button
\bagain, the CD changer returns to
normal operation
Shuffle (random generator)
By pressing the button AS , the titles of the
CD are played in random sequence. The
function is indicated in the display by SHFFL
CDxTR y. Depending on the setting in the
set-up menu, the shuffle function refers to the
current CD only or to all CDs in the maga-
zine. When the AS button
is pressed
again, the CD player returns to normal
operation. Switching over to radio operation
By pressing the A/F
or TP button, you
switch to radio operation.
Other display reports in CD Operation:
NODISC:
No CD magazine or empty CD magazine
in the CD changer.
CDX NO DISC:
No CD in the selected CD compartment x.
CHKMAGAZINE:
CD changer is checking the CD magazine
and is not ready for operation yet. Playback
is automatic when the checking procedure is
over.
NOCD MAGAZINE:
There is no CD magazine in the CD changer.
11
GB
3. Bed. Anl. Skoda Radio Engl. 13.12.2004 14:20 Uhr Seite 11
Page 13 of 22
Set-up menu
By depressing the TPbutton for a few
moments, you can enter the set-up
menu. This is for special settings, as for
example operating the car radio in
connection with a telephone.
The individual menu points are selected
by pressing the TP button or the con-
trol button , . Changes in the
menu points are registered
acoustically by a signal tone unless you
have turned this function off in the set-up
menu.
Alterations in the menu point are made
with the aid of the turning knob and
stored when changing to the next menu
point. By depressing the TP
button for a few
moments, you can leave the set-up menu
without saving the alteration in the last
menu point.
Caution:
Changes in the set-up menu affect
the general mode of operation of
your car radio and for safety rea-
sons should only be made when
the vehicle is stationary!!!
The following functions can be set in the
set-up menu:
• GALA speed-dependent volume adjustment
• ON VOL maximum volume when on
• LED Warning LED on / off
• BEEP Beep tone on / off
• AUTO REG Regional stations on / off
• M/S Music / Speech
changeover • PHONE IN utilisation of the tele-
phone entry
• PH VOL volume of telephone call
• TA VOL minimum volume of traffic announce-
ments
• CD SFL random playback for CD changer
• KEY ignition key logic
• LOUD loudness off / on
• MONO compulsory mono
• LOCAL local / remote recep- tion for search
12
5
6
FM1 4
TP
1
3. Bed. Anl. Skoda Radio Engl. 13.12.2004 14:20 Uhr Seite 12
Page 14 of 22
Set-up menu
GALA
As the driving speed increases, the sound
level rises in the vehicle. With the aid of
the GALA function (speed-dependant
volume adjustment) the volume of the car
radio becomes louder as the speed
increases. The extent of the rise in vol-
ume can be selected by setting from 1to
9. If set to NO, the GALA function is
turned OFF.
• Select GALAin the menu. "GALA" is
shown in the display with the current
value.
• Use the turning knob to set the de-
sired value from NO to 9.
• By briefly pressing the TPbutton or
the control button , you can store
the indicated value and go to the next
menu point
or
• by depressing the TPbutton for a few
moments, you can leave the set-up
menu without storing the change.
ON VOL
Set the maximum ON volume in this menu
point. Normally, the last heard volume is
set when the radio is switched on. However if it exceeds the volume set in
the menu, it is reduced to the set value.
• Select
ON VOL in the menu. "ON VOL”
appears in the display with the current
value.
• Use the turning knob to set the de-
sired value from 1 to 45.
• By briefly pressing the TPbutton or
the control button , you can store
the indicated value and go to the next
menu point
or
• by depressing the TPbutton for a few
moments, you can leave the set-up
menu without storing this change.
LED
This point is for setting whether the warn-
ing LED should blink when turned off in
conjunction with the absence of the
ignition key (indicated by " ON” ) or should
be turned off (indicated by "OFF”).
• Select LEDin the menu. "LED” is shown
in the display with the current value.
• Use the turning knob to set ON or
OFF.
• By briefly pressing the TPbutton or
the control button , you can store the indicated value and go to the next
menu point
or
• by depressing the
TPbutton for a few
moments, you can leave the set-up
menu without storing this change.
BEEP
In this menu point, you can decide if you
wish to continue to have an audible signal
in the set-up menu and e.g. when storing
programs.
• Select BEEPin the menu. "BEEP” is
shown in the display with the current
value.
• Use the turning knob to set ON or
OFF.
• By briefly pressing the TPbutton or
the control button , you can store
the indicated value and go to the next
menu point
or
• by depressing the TPbutton for a few
moments, you can leave the set-up
menu without storing this change.
13
GB
3. Bed. Anl. Skoda Radio Engl. 13.12.2004 14:20 Uhr Seite 13
Page 15 of 22
Set-up menu
AUTO-REG / REG OFF
In this menu point you can set the switch-
over to alternative frequencies of regional
stations. The setting causes the following
function:
If during the drive the quality of the recep-
tion of the set program gets worse, your
radio first sets alternative frequencies only
of the program you are currently listening
to.
If there is a risk of "station loss”, your
appliance will resort to frequencies of a
related program.
For example the 1st station of NDR
Schleswig Holstein (NDR 1 SH), Hamburg
(NDR 1 HH) and Lower Saxony (NDR 1,
NDS) with regional programmes of differ-
ent content.
As these programs sometimes transmit
different regional programs, a change of
frequency may change the radio program.
With the "AUTO-REG” function, (autono-
mous regional programs) there is only a
switchover to regional programs in an
emergency.
The "REG OFF" setting allows unlimited
switching between "related” regional pro-
grams. • Select
AUTO-REG / REG OFF in the
menu. The current value "AUTO-REG /
REG OFF" is shown in the display.
• Use the turning knob to set AUTO-
REG or REG OFF.
• By briefly pressing the TPbutton or
the control button , you can store
the indicated value and go to the next
menu point
or
• by depressing the TPbutton for a few
moments, you can leave the set-up
menu without storing this change.
M/S
With the aid of this function, you can set
whether or not there should be an auto-
matic switchover between optimum repro-
duction for music and speech with the aid
of the RDS Signal.
• Select M/Sin the menu. The display
shows "M/S” with the current value.
• Set ONor OFF with the aid of the turn-
ing knob¨.
• By briefly pressing the TPbutton or
the control button , you can store
the indicated value and go to the next
menu point
or • by depressing the
TPbutton for a few
moments, you can leave the set-up
menu without storing this change.
PHONE
Enter this menu point if your vehicle is
equipped with a telephone and modify the
radio functions under this menu point to
suit your telephone as in the following.
no: No telephone fitted into the vehicle.
ON: There is a telephone fitted into the
vehicle. With this setting, the radio is
muted when the telephone is activa-
ted by a telephone call or when dial-
led.
in: The built-in telephone is connected to
the radio by means of a corresponding
hands-free speaking unit, so that the
person calling/called can be heard
through the car speakers.
• Select PHONE in the menu. The display
shows "PHONE” with the current value.
• Use the turning knob to set the
appropriate function.
• By briefly pressing the TPbutton or
the control button , you can store
the indicated value and go to the next
menu point.
14
3. Bed. Anl. Skoda Radio Engl. 13.12.2004 14:20 Uhr Seite 14
Page 16 of 22
Set-up menu
or
• by depressing the TPbutton for a few
moments, you can leave the set-up
menu without storing this change.
PH VOL
If the telephone call is transmitted through
the speakers in your vehicles, you can set
the playback volume under this menu
point.
• Select PH VOL in the menu. The display
shows "PH VOL” with the current value.
• Use the turning knob to set the de-
sired value from 1 to 45.
• By briefly pressing the TPbutton or
the control button , you can store
the indicated value and go to the next
menu point
or
• by depressing the TPbutton for a few
moments, you can leave the set-up
menu without storing this change. TA
VOL
This menu point is for setting the minimum
volume for radio traffic service announce-
ments. In TP operation, the volume can be
raised to the set value if necessary. This
means you can drive with the radio set
low and still be informed about the current
traffic situation.
• Select TAVOL in the menu. The display
shows "TA VOL” with the current value.
• Use the turning knob to set the de-
sired value from 1 to 9.
• By briefly pressing the TPbutton or
the control button , you can store
the indicated value and go to the next
menu point
or
• by depressing the TPbutton for a few
moments, you can leave the set-up
menu without storing this change.
CD SFL
Decide in this menu point whether the ti-
tles should be selected with random play-
back (shuffle) from a connected CD
changer only within one CD (CD SFL D )
or the whole magazine ( CD SFL M).
• Select CD SFL in the menu. The display
shows "CD SFL” with the current value. • Use the turning knob
to set the de-
sired value of D or M.
• By briefly pressing the TPbutton or
the control button , you can store
the indicated value and go to the next
menu point
or
• by depressing the TPbutton for a few
moments, you can leave the set-up
menu without storing this change.
KEY
This menu point is for setting whether the
radio should be turned off too when the
ignition key is taken out (KEY ON) or
whether the radio should be turned on and
off exclusively with the pushbutton
(KEY OFF).
• Select KEYin the menu. The display
shows "KEY” with the current value.
• Use the turning knob to set ON or
OFF.
• By briefly pressing the TPbutton or
the control button , you can store
the indicated value and go to the next
menu point
or
15
GB
3. Bed. Anl. Skoda Radio Engl. 13.12.2004 14:20 Uhr Seite 15
Page 17 of 22
Set-up menu
• by depressing the TPbutton for a few
moments, you can leave the set-up
menu without storing this change.
LOUD
The human ear cannot hear extremely
high or low frequencies as well as the fre-
quencies in the middle of the hearing
range.
The loudness function raises the volume
of the lower and higher frequencies some-
what to balance out this weakness, espe-
cially when listening to quieter music.
• Select LOUDin the menu. The display
shows "LOUD” with the current value.
• Use the turning knob to set the
loudness function (ON) or (OFF).
• By briefly pressing the TPbutton or
the control button , you can store
the indicated value and go to the next
menu point
or
• by depressing the TPbutton for a few
moments, you can leave the set-up
menu without storing this change. MONO
This menu point is for changing your
appliance to mono operation. The change-
over to mono operation can improve the
reception quality, especially in bad
weather.
• Select
MONOin the menu. The display
shows "MONO ”with the current value.
• Use the turning knob to set the com-
pulsory mono operation (ON) or (OFF).
• By briefly pressing the TPbutton or
the control button , you can store
the indicated value and go to the next
menu point
or
• by depressing theTP button for a few
moments, you can leave the set-up
menu without storing this change.
LOC
This menu point is for deciding whether
the search function should only seek
strong reception stations (LOC ON ) or if
weak reception stations (LOC OFF)
should be taken into account too.
• Select LOCin the menu. The display
shows "LOC” with the current value. • Use the turning knob
to set ON or
OFF.
• By briefly pressing the TPbutton or
the control button , you can store
the indicated value and go to the next
menu point
or
• by depressing the TPbutton for a few
moments, you can leave the set-up
menu without storing this change.
The radio appliance leaves the set-up
menu after 30 sec. if no changes have
been made over this time.
16
3. Bed. Anl. Skoda Radio Engl. 13.12.2004 14:20 Uhr Seite 16
Page 18 of 22
Security code
Security code
When the appliance is turned OFF and
the ignition key taken out, a blinking LED
, if this has not been turned OFF in the
set-up menu, draws attention to this theft
protection. This electronically prevents
the appliance being started by unauthor-
ised persons in another vehicle.
If you did not receive any appliance-
specific security code, your vehicle is
equipped with a comfort coding system
for which you do not require any code. If
disconnecting and reconnecting the bat-
tery, first switch on the ignition with the
key in the ignition switch and only then
turn on the radio. If you nevertheless still
wish to have the code, please ask your
Skoda dealer.
Comfort radio coding
When used first, the comfort coding
stores the code number not only in the
radio, but also in the vehicle. If the
vehicle’s voltage is now interrupted, the
radio, when next put into operation, will
compare the internal number with the
number in the vehicle. If these two
numbers agree, the radio is directly
ready for operation without restriction.
The code number is only queried if thetwo numbers do not agree.
The code number should not be kept
in the vehicle but should be left in a
SAFE place at home. Only then is the
appliance useless for a thief.
Lifting the electronic barrier
Remember in the following steps to
observe the right sequence and to enter
the correct code as directly as possible.
Read and observe page 4 of "comfort
radio coding" also.
• Turn on the radio. The display shows
"SAFE”.
• After about 3 seconds "1000” appears in the display.
• Use the station button \f number 1 to
enter the first digit of this code number.
• Repeat these steps with the station but- tons \f2 to 4 until you have entered
the code number completely.
• Confirm the entry by depressing the control button (for about 2
seconds) or by pressing the control but-
ton .
The radio is now ready for operation. Incorrect code number
If you enter the wrong code number inad-
vertently, the message "SAFE” flashes in
the display. After a few seconds the mes-
sage "1000” will appear. Enter the securi-
ty code number again as described. If an
incorrect code is confirmed again, the
appliance will be barred for about an
hour.
After approximately one hour, whereby
the appliance must have been left on for
this time, the code number can be en-
tered again as described in the above.
This cycle continues until the right code
number is entered.
If you no longer know the code
number, please ask your Skoda
dealer.
17
GB
3. Bed. Anl. Skoda Radio Engl. 13.12.2004 14:20 Uhr Seite 17
Page 19 of 22

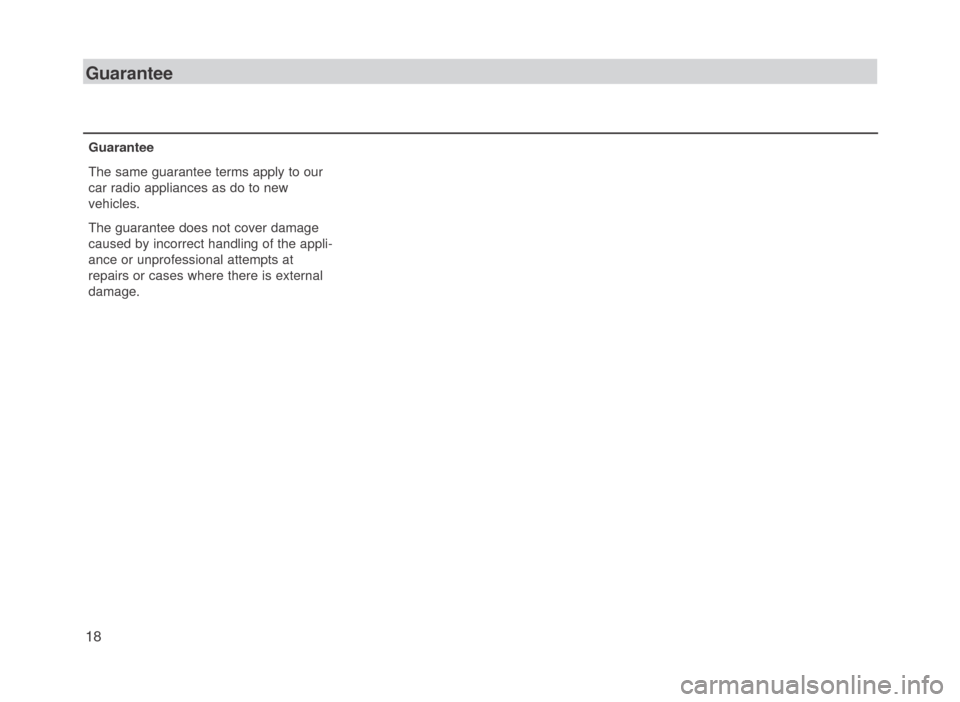

Guarantee
Guarantee
The same guarantee terms apply to our
car radio appliances as do to new
vehicles.
The guarantee does not cover damage
caused by incorrect handling of the appli-
ance or unprofessional attempts at
repairs or cases where there is external
damage.
18
3. Bed. Anl. Skoda Radio Engl. 13.12.2004 14:20 Uhr Seite 18
Page 20 of 22
Brief technical description
Brief technical description
General
Connections
Active antenna, mobile telephone, CD
changer, external final stage
Displays
Wavelength range, station name, fre-
quency, station button, Traffic Program
(TP), CD title number display
Illumination
Operating elements and display are illu-
minated without glare when the vehicle
illumination is switched on (night design).
The degree of brightness is adjustable
with the instrument illumination.
Theft protection
Electronic barrier in the appliance. If the
appliance is fitted into another vehicle, it
can only operate if the right code number
is entered.
Interference suppression
Specifically co-ordinated interference
suppression removes to a large extent all
interfering pulses from the engine and
from other parts in the electrical system,
e.g. heating fans, windscreen wipers,
cooling ventilators etc
Radio
Reception ranges
FM (UKW/VHF), AM, (MW and LW)
Program selection
Automatic broadcast of the program set
before turning off (Last Station Memory)
in radio operation.
Six station buttons in each case for
AM 1, AM 2, FM 1, FM 2 and TP. Manual
adjustment up and down, PLL Tuning
(PLL = Phase-Locked Loop).
After switching on the radio, the last
received program is set again (Last
Station Memory).
Radio traffic service unit
Automatic station scan
Automatic announcements
TIM (recording of traffic announcements),
TIM standby mode for 2 or 24 hours.
CD drive and CD changer control
T itle selection, random playback, auto-
matic stop and radio switchover with traf-
fic announcements, CD selection in the
changer operation.
Audio
maximum output power
4 x 20 Watts
Playback
Stereo (radio and CD), active sound
regulation, loudness, fader integrated in
the radio.
Alterations and misprints excepted.
May not be reprinted, copied or transla-
ted without ·koda Auto a.s. prior authori-
sation.
19
GB
3. Bed. Anl. Skoda Radio Engl. 13.12.2004 14:20 Uhr Seite 19
