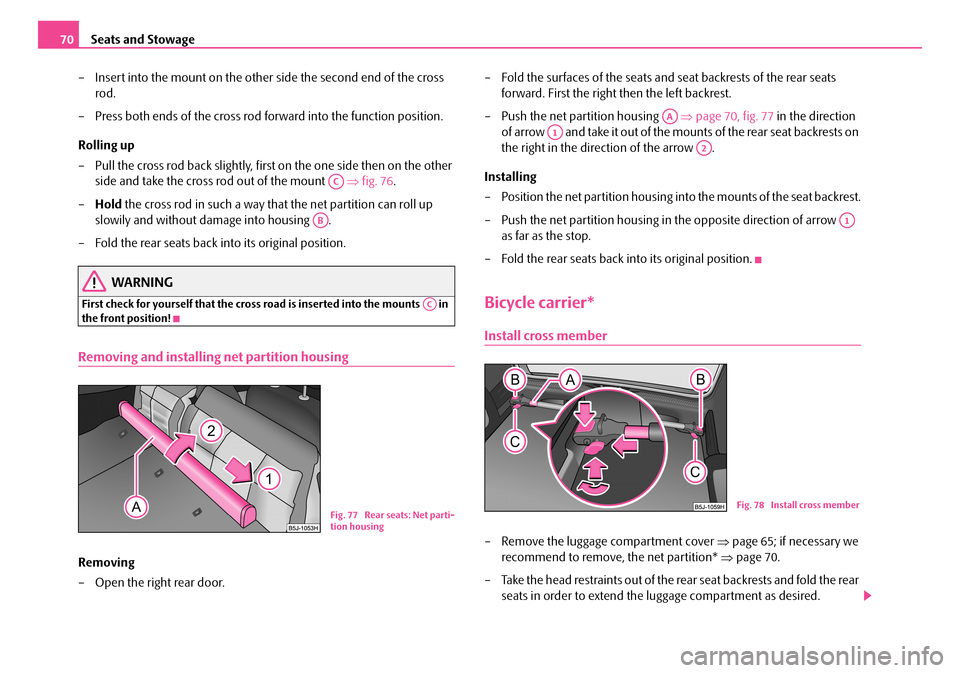

Seats and Stowage70
– Insert into the mount on the other side the second end of the cross
rod.
– Press both ends of the cross rod forward into the function position.
Rolling up
– Pull the cross rod back slightly, first on the one side then on the other
side and take the cross rod out of the mount ⇒fig. 76.
–Hold the cross rod in such a way that the net partition can roll up
slowily and without damage into housing .
– Fold the rear seats back into its original position.
WARNING
First check for yourself that the cross road is inserted into the mounts in the front position!
Removing and installing net partition housing
Removing
– Open the right rear door.
– Fold the surfaces of the seats and seat backrests of the rear seats
forward. First the right then the left backrest.
– Push the net partition housing ⇒page 70, fig. 77 in the direction
of arrow and take it out of the mounts of the rear seat backrests on
the right in the direction of the arrow .
Installing
– Position the net partition housing into the mounts of the seat backrest.
– Push the net partition housing in the opposite direction of arrow
as far as the stop.
– Fold the rear seats back into its original position.
Bicycle carrier*
Install cross member
– Remove the luggage compartment cover ⇒page 65; if necessary we
recommend to remove, the net partition* ⇒page 70.
– Take the head restraints out of the rear seat backrests and fold the rear
seats in order to extend the luggage compartment as desired.
AC
AB
AC
Fig. 77 Rear seats: Net parti-tion housing
AA
A1
A2
A1
Fig. 78 Install cross member
NKO A05F 20.book Page 70 Wednesday, April 2, 2008 1:02 PM

Seats and Stowage71
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
– Release the fixtures at the ends of the cross member by slightly
pulling up the securing screws . The fixtures open when they are
not already opened.
– Position the cross member with the fixed (not pulled out) part onto
the right (in direction of travel) lashing eye and then the pull out part
onto the left lashing eye.
– Press the fixtures on both sides of the cross member until they lock
in place and tighten the securing screws .
– Check the attachment of the cross member by pulling it.
WARNING
When transporting the bicycles in the luggage compartment, ensure the safety of the passengers transported.
Install bicycle carrier
– Position the approved bicycle carrier on the middle of the cross
member, after pulling up the screw push the frame side rail (alu-
part) towards the cross member and screw the screw into the nut
⇒fig. 79.
– Slacken the screw and take it out of the moveable part of the
fixture; position the moveable part of the carrier, depending on
bicycle size, into one of the possible positions, so that it does not
come in contact with the boot lid. We recommend to place the move-
able part of the fixture in such a position that the holes are visible
between the screw and the moveable part.
– Insert the screw into the desired position and tighten.
Put bicycle into the bicycle carrier
– Remove the front wheel before putting the bicycle into the vehicle.
AB
AC
AA
AB
AC
Fig. 79 Install bicycle carrier
AA
AA
AB
AA
AB
Fig. 80 Put in the bicycle
Fig. 81 Fastening the front wheel
NKO A05F 20.book Page 71 Wednesday, April 2, 2008 1:02 PM

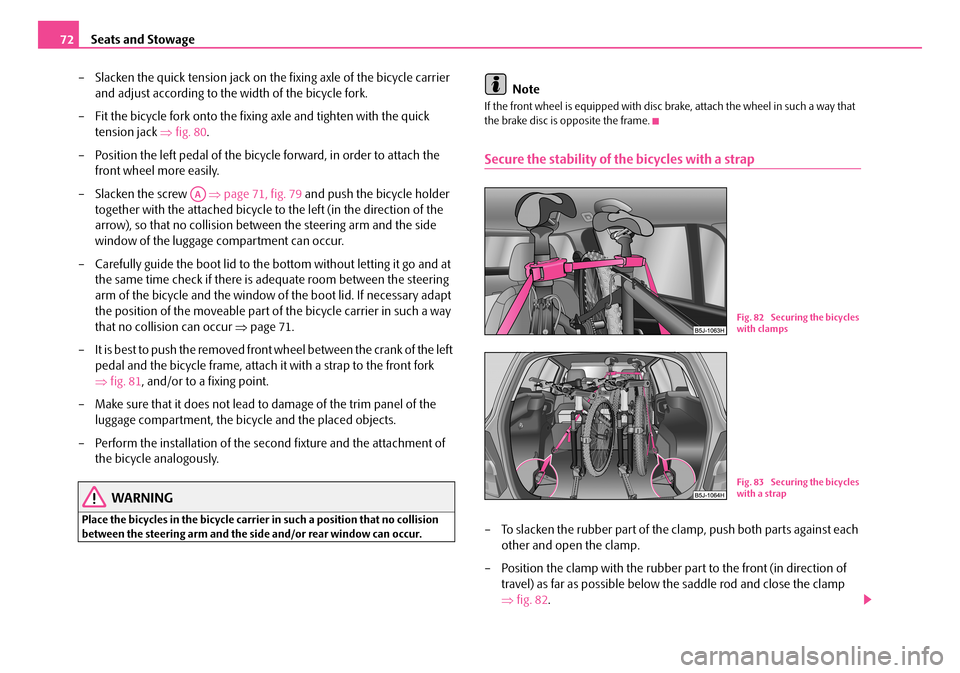

Seats and Stowage72
– Slacken the quick tension jack on the fixing axle of the bicycle carrier
and adjust according to the width of the bicycle fork.
– Fit the bicycle fork onto the fixing axle and tighten with the quick
tension jack ⇒fig. 80.
– Position the left pedal of the bicycle forward, in order to attach the
front wheel more easily.
– Slacken the screw ⇒page 71, fig. 79 and push the bicycle holder
together with the attached bicycle to the left (in the direction of the
arrow), so that no collision between the steering arm and the side
window of the luggage compartment can occur.
– Carefully guide the boot lid to the bottom without letting it go and at
the same time check if there is adequate room between the steering
arm of the bicycle and the window of the boot lid. If necessary adapt
the position of the moveable part of the bicycle carrier in such a way
that no collision can occur ⇒page 71.
– It is best to push the removed front wheel between the crank of the left
pedal and the bicycle frame, attach it with a strap to the front fork
⇒fig. 81, and/or to a fixing point.
– Make sure that it does not lead to damage of the trim panel of the
luggage compartment, the bicycle and the placed objects.
– Perform the installation of the second fixture and the attachment of
the bicycle analogously.
WARNING
Place the bicycles in the bicycle carrier in such a position that no collision between the steering arm and the side and/or rear window can occur.
Note
If the front wheel is equipped with disc brake, attach the wheel in such a way that the brake disc is opposite the frame.
Secure the stability of the bicycles with a strap
– To slacken the rubber part of the clamp, push both parts against each
other and open the clamp.
– Position the clamp with the rubber part to the front (in direction of
travel) as far as possible below the saddle rod and close the clamp
⇒fig. 82.
AA
Fig. 82 Securing the bicycles with clamps
Fig. 83 Securing the bicycles with a strap
NKO A05F 20.book Page 72 Wednesday, April 2, 2008 1:02 PM

Seats and Stowage73
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
– When transporting two bicycles tension the strap ⇒fig. 82 between
the saddle rods, by pushing the bicycles apart.
– Hang the carabines at the ends of the strap into the lashing eyes
behind the rear seats.
– Pull the strap through the tensioning clasp, first of all on the one side
and then on the other side.
– If it is necessary, the position of the bicycles in the vehicle can be addi-
tionally rectified.
WARNING
•When transporting passengers and objects, which require the seats to be folded forwards, ensure the safety of the passengers being transported.
•Place the bicycles in the bicycle carrier in such a position that no collision between the steering arm and the rear window can occur.
The roof rack*
Roof rail*
Pay attention to the following points if you wish to transport luggage or other items on the roof of your vehicle:
•A special roof luggage rack system was developed for the vehicle, that is why you should only use a roof luggage rack which has been released for use by Škoda Auto a.s.
•The roof rail is the basis for a complete roof luggage rack system. Separate addi-tional holders are required for safety reasons for transporting luggage, bikes, surf-boards, skis and boats.
•The basic version of the roof luggage rack system and further components are obtainable as accessories from Škoda Service Partners.
Caution
•Ensure that the opened boot lid does not collide with the roof load.
For the sake of the environment
The increased aerodynamic drag results in a higher fuel consumption.
Note
A roof rail is obtainable from a Skoda Service Partner if hasn't been fitted onto a vehicle at the works.
Fig. 84 Roof rail
NKO A05F 20.book Page 73 Wednesday, April 2, 2008 1:02 PM

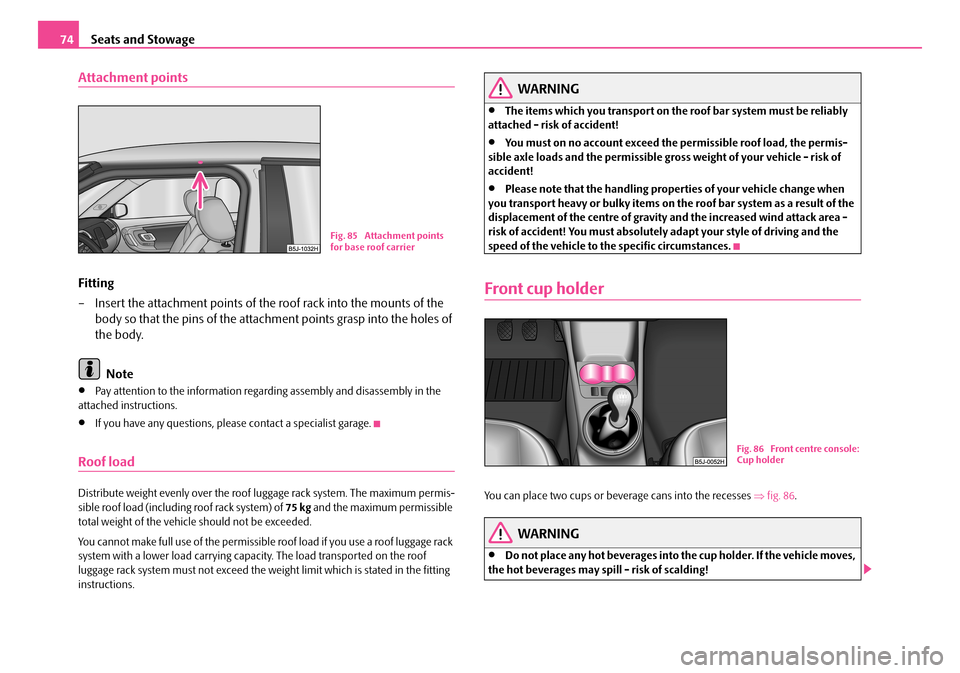

Seats and Stowage74
Attachment points
Fitting
– Insert the attachment points of the roof rack into the mounts of the
body so that the pins of the attachment points grasp into the holes of
the body.
Note
•Pay attention to the information regarding assembly and disassembly in the attached instructions.
•If you have any questions, please contact a specialist garage.
Roof load
Distribute weight evenly over the roof luggage rack system. The maximum permis-sible roof load (including roof rack system) of 75 kg and the maximum permissible total weight of the vehicle should not be exceeded.
You cannot make full use of the permissible roof load if you use a roof luggage rack system with a lower load carrying capacity. The load transported on the roof luggage rack system must not exceed the weight limit which is stated in the fitting instructions.
WARNING
•The items which you transport on the roof bar system must be reliably attached - risk of accident!
•You must on no account exceed the permissible roof load, the permis-sible axle loads and the permissible gross weight of your vehicle - risk of accident!
•Please note that the handling properties of your vehicle change when you transport heavy or bulky items on the roof bar system as a result of the displacement of the centre of gravity and the increased wind attack area - risk of accident! You must absolutely adapt your style of driving and the speed of the vehicle to the specific circumstances.
Front cup holder
You can place two cups or beverage cans into the recesses ⇒fig. 86.
WARNING
•Do not place any hot beverages into the cup holder. If the vehicle moves, the hot beverages may spill - risk of scalding!
Fig. 85 Attachment points for base roof carrier
Fig. 86 Front centre console: Cup holder
NKO A05F 20.book Page 74 Wednesday, April 2, 2008 1:02 PM

Seats and Stowage75
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
•Do not use any cups or beakers which are made of brittle material (e.g. glass, porcelain). You might be injured by them in the event of an accident.
Caution
Do not open the beverages in the cup holder while driving. There is a risk of spilling e.g. when braking and therefore the electrical components or the seat upholstery can be damaged.
Rear cup holder*
You can place one cup or beverage can into the recess ⇒fig. 87.
WARNING
•Do not place any hot beverages into the cup holder. If the vehicle moves, the hot beverages may spill - risk of scalding!
•Do not use any cups or beakers which are made of brittle material (e.g. glass, porcelain). You might be injured by them in the event of an accident.
Caution
Do not open the beverages in the cup holder while driving. There is a risk of spilling e.g. when braking and therefore the electrical components or the seat upholstery can be damaged.
Note holder
The note holder is designed e.g. for attaching a car park ticket in parking areas.
The attached note has to always be removed before starting off in order not to restrict the driver's vision.
WARNING (continued)
Fig. 87 Centre console: Cup holder
Fig. 88 Windscreen: Note holder
NKO A05F 20.book Page 75 Wednesday, April 2, 2008 1:02 PM

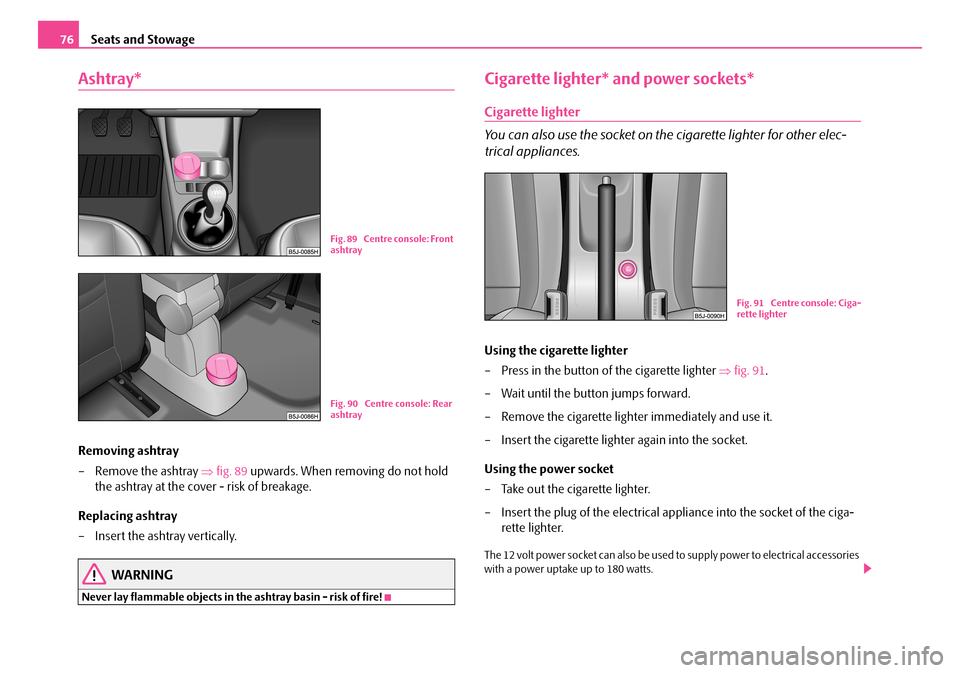

Seats and Stowage76
Ashtray*
Removing ashtray
– Remove the ashtray ⇒fig. 89 upwards. When removing do not hold
the ashtray at the cover - risk of breakage.
Replacing ashtray
– Insert the ashtray vertically.
WARNING
Never lay flammable objects in the ashtray basin - risk of fire!
Cigarette lighter* and power sockets*
Cigarette lighter
You can also use the socket on the cigarette lighter for other elec-
trical appliances.
Using the cigarette lighter
– Press in the button of the cigarette lighter ⇒fig. 91.
– Wait until the button jumps forward.
– Remove the cigarette lighter immediately and use it.
– Insert the cigarette lighter again into the socket.
Using the power socket
– Take out the cigarette lighter.
– Insert the plug of the electrical appliance into the socket of the ciga-
rette lighter.
The 12 volt power socket can also be used to supply power to electrical accessories with a power uptake up to 180 watts.
Fig. 89 Centre console: Front ashtray
Fig. 90 Centre console: Rear ashtray
Fig. 91 Centre console: Ciga-rette lighter
NKO A05F 20.book Page 76 Wednesday, April 2, 2008 1:02 PM

Seats and Stowage77
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
WARNING
•Take care when using the cigarette lighter! Not paying proper attention or incorrect use the cigarette lighter in an uncontrolled manner may result in burns.
•The cigarette lighter and the power socket also operates when the igni-tion is switched off or the ignition key withdrawn. This is why you should never leave children unattended in the vehicle!
Caution
Always use matching plugs to avoid damaging the power socket.
Note
Connecting electrical components when the engine is not running will drain the battery of the vehicle - risk of battery draining!
Power socket in the luggage compartment
– Open the cover of the power socket ⇒fig. 92.
– Connect the plug of the electrical appliance to the socket.
You can only use the power socket for the connection of approved electrical acces-sories with a power uptake up to 180 watts. The vehicle battery will be discharged in the process if the engine is stationary.
The same remarks apply here as for ⇒page 76.
Further information ⇒page 200, “Accessories, changes and replacement of parts”.
Storage compartments
Overview
You will find the following storage facilities in your vehicle:
WARNING
•Please do not place anything on top of the dash panel. Such objects might slide or fall down when driving (when accelerating or cornering) and may distract you from concentrating on the traffic situation - risk of acci-dent!
Fig. 92 Luggage compart-ment: Power socket
Storage compartments on the front passenger side*⇒page 78
Storage compartment on the driver's side⇒page 79
Stowage compartment for spectacles*⇒page 79
Stowage compartment in centre console⇒page 79
Storage compartment in the front seat*⇒page 79
Front seat armrest with stowage compartment*⇒page 80
Storage compartment in the front doors⇒page 80
Storage compartments in the luggage compartment⇒page 81
Flexible storage compartment*⇒page 81
Clothes hooks*⇒page 82
NKO A05F 20.book Page 77 Wednesday, April 2, 2008 1:02 PM

Seats and Stowage78
•Ensure that when driving no objects from the centre console of from other storage possibilities may get into the footwell of the driver. You would then no longer be able to apply the brakes, operate the clutch or accelerator - risk of accident!
Storage compartments on the front passenger side
Certain model versions are equipped without lid for the storage compart-
ments.
Opening and closing the storage compartments on the front
passenger side
– Pull the handle in the lid in direction of arrow ⇒fig. 93 and fold it
open.
– Raise the lid until it is heard to engage.
A pin holder is located inside the lid.
WARNING
The storage compartments must always be closed when driving for safety reasons.
Cooling of storage compartment on front passenger side*
The storage compartment can be fitted for vehicles with an air-
conditioning system with a closable inlet for cooled air.
– You can switch the cooling system on or off using the control dial
⇒fig. 94.
Opening the air inlet when the air conditioning system is on causes fresh or interior air to flow into the storage compartment.
The storage compartment is only cooled in the cooling mode. We recommend that you switch off the cooling (opening concealed) if it is operating in the heating mode or if you are not using the cooling system for the storage compartment.
WARNING (continued)
Fig. 93 Dash panel: Storage compartments on the front passenger sideFig. 94 Storage compart-ment: Using cooling system
NKO A05F 20.book Page 78 Wednesday, April 2, 2008 1:02 PM

Seats and Stowage79
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Storage compartment on the driver's side
Unlockable compartment below the steering wheel on the left.
Stowage compartment for spectacles*
– Press on the lid of the stowage compartment, the stowage compart-
ment opens downwards ⇒fig. 96.
WARNING
The storage compartment must always be closed when driving for safety reasons - risk of head injury.
Stowage compartment in centre console
Unlocable compartment in the centre console.
Storage compartment in the front seat*
Fig. 95 Dash panel: Storage compartment on the driver's side
Fig. 96 Detail of the head-liner: Stowage compartment for spectacles
Fig. 97 Centre console: Storage compartment
Fig. 98 Front seat: Storage compartment
NKO A05F 20.book Page 79 Wednesday, April 2, 2008 1:02 PM
