Contents 4
Transporting children safely
. . . . . . . . . . . . . . . . . .
What you should know about transporting children!
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Attaching a child seat using the “ISOFIX” system*
Attaching child seat using the “Top Tether” system
Driving Tips
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Intelligent Technology
. . . . . . . . . . . . . . . . . . . . . . . .
Electronic stability programme (ESP)* . . . . . . . . . .
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake booster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antilock brake system (ABS) . . . . . . . . . . . . . . . . . . .
Brake Assist* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Uphill Start Assist* . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrohydraulic power steering . . . . . . . . . . . . . . .
Tyre pressure monitoring system* . . . . . . . . . . . . . .
Diesel particle filter* (diesel engine) . . . . . . . . . . . .
Driving and the Environment
. . . . . . . . . . . . . . . . .
The first 1 500 kilometres and then afterwards . .
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Driving in an economical and environmentally
conscious manner . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Environmental compatibility . . . . . . . . . . . . . . . . . . .
Motoring abroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Avoiding damage to your vehicle . . . . . . . . . . . . . .
Driving through bodies of water on roads . . . . . . .
Towing a trailer
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Towing a trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Maintenance
. . . . . . . . . . . . . . .
Taking care of your vehicle and cleaning the
vehicle
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Care of the exterior of vehicle . . . . . . . . . . . . . . . . . .
Care of the interior of vehicle . . . . . . . . . . . . . . . . . .
Fuel
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inspecting and replenishing
. . . . . . . . . . . . . . . . . . .
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cooling system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield washer system . . . . . . . . . . . . . . . . . . . . .
Wheels and Tyres
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Accessories, changes and replacement of partsAccessories and replacement parts . . . . . . . . . . . . .
Technical changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicles of category N1 . . . . . . . . . . . . . . . . . . . . . . . .Breakdown assistance
. . . . . . . . . . . . . .
Breakdown assistance
. . . . . . . . . . . . . . . . . . . . . . . . .
First-aid box* and Warning triangle* . . . . . . . . . . . .
Fire extinguisher* . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle tool kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tyre repair kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Spare wheel* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tow-starting and towing vehicle . . . . . . . . . . . . . . . .
Fuses and light bulbs
. . . . . . . . . . . . . . . . . . . . . . . . . .
Electric fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data
. . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Data
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General information . . . . . . . . . . . . . . . . . . . . . . . . . .
Used abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . .
Performances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Identification details . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel consumption according to the ECE standards and
EU guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine oil specifications . . . . . . . . . . . . . . . . . . . . . . .
1.2 ltr./44 kW - EU 5 . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.2 ltr./51 kW - EU 5/EU 2 DDK . . . . . . . . . . . . . . . . .
1.2 ltr./63 kW TSI - EU 5 . . . . . . . . . . . . . . . . . . . . . . .
1.2 ltr./77 kW TSI - EU 5 . . . . . . . . . . . . . . . . . . . . . . .
1.4 ltr./63 kW - EU 5 . . . . . . . . . . . . . . . . . . . . . . . . . . .
1,6 l/77 kW - EU 4, EU 2 DDK . . . . . . . . . . . . . . . . . .
1.4 ltr./132 kW TSI - EU 5 . . . . . . . . . . . . . . . . . . . . . .
1.2 ltr./55 kW TDI CR DPF - EU5 . . . . . . . . . . . . . . . .
1.6 ltr./55 kW TDI CR - EU°5 . . . . . . . . . . . . . . . . . . .
1.6 ltr./66 kW TDI CR - EU°5 . . . . . . . . . . . . . . . . . . .
1.6 ltr./77 kW TDI CR - EU°5 . . . . . . . . . . . . . . . . . . .

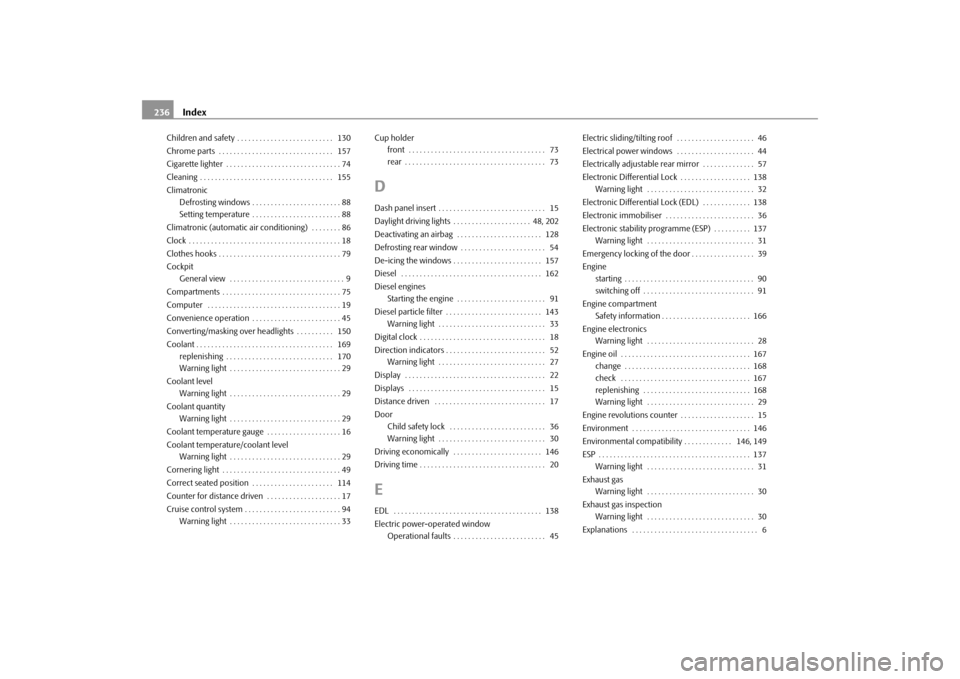

Index
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
130130132135136137137137139140140141141141142143145145146146149150150151152152155155155155159
162162162163165165167169171172176178178184184184184185185185185185186186187190192195195200
207207207207207207207208209210212214216218220222224226228230232235
s3j8.a.book Page 4 Tuesday, April 20, 2010 1:10 PM

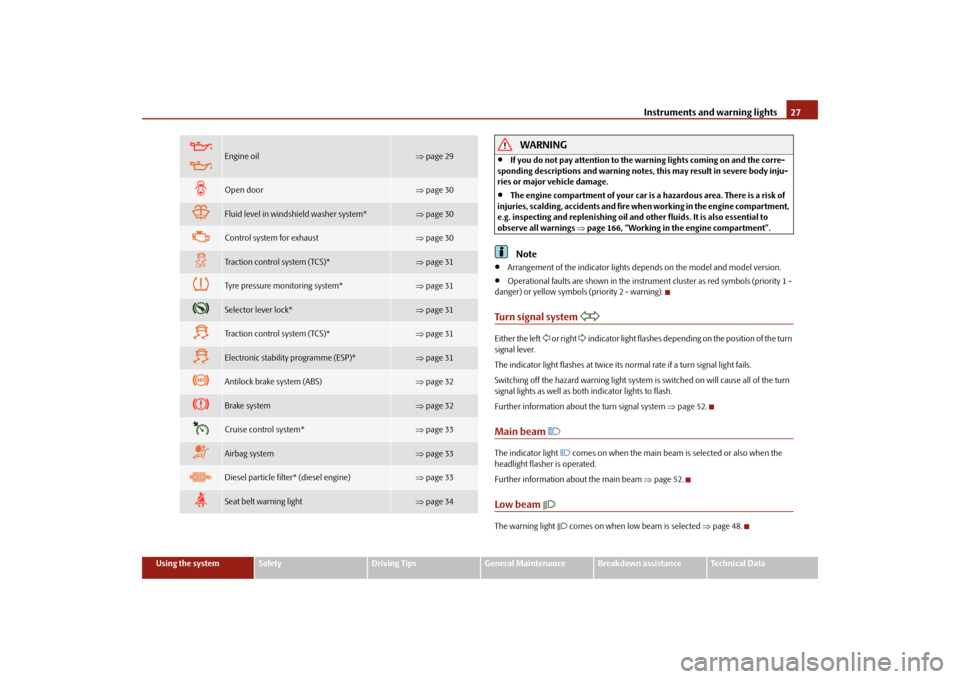

Instruments and warning lights
27
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
WARNING

If you do not pay attention to the warning lights coming on and the corre-
sponding descriptions and warning notes, this may result in severe body inju- ries or major vehicle damage.
The engine compartment of your car is
a hazardous area. There is a risk of
injuries, scalding, accidents and fire wh
en working in the engine compartment,
e.g. inspecting and replenishing oil and
other fluids. It is also essential to
observe all warnings
page 166, “Working in the engine compartment”.
Note

Arrangement of the indicator lights depends on the model and model version.

Operational faults are shown in the instrument cluster as red symbols (priority 1 -
danger) or yellow symbol
s (priority 2 - warning).
Turn signal system

Either the left
 or right
 indicator light flashes depending on the position of the turn
signal lever. The indicator light flashes at twice its normal rate if a turn signal light fails.Switching off the hazard warning light system is switched on will cause all of the turn signal lights as well as both indicator lights to flash. Further information about the turn signal system
page 52.
Main beam

The indicator light
 comes on when the main beam is selected or also when the
headlight flasher is operated. Further information about the main beam
page 52.
Low beam

The warning light
 comes on when low beam is selected
page 48.
 
Engine oil
 page 29

Open door
page 30

Fluid level in windshield washer system*
page 30

Control system for exhaust
page 30

Traction control system (TCS)*
page 31

Tyre pressure monitoring system*
page 31

Selector lever lock*
page 31

Traction control system (TCS)*
page 31

Electronic stability programme (ESP)*
page 31

Antilock brake system (ABS)
page 32

Brake system
page 32

Cruise control system*
page 33

Airbag system
page 33

Diesel particle filter* (diesel engine)
page 33

Seat belt warning light
page 34
s3j8.a.book Page 27 Tuesday, April 20, 2010 1:10 PM

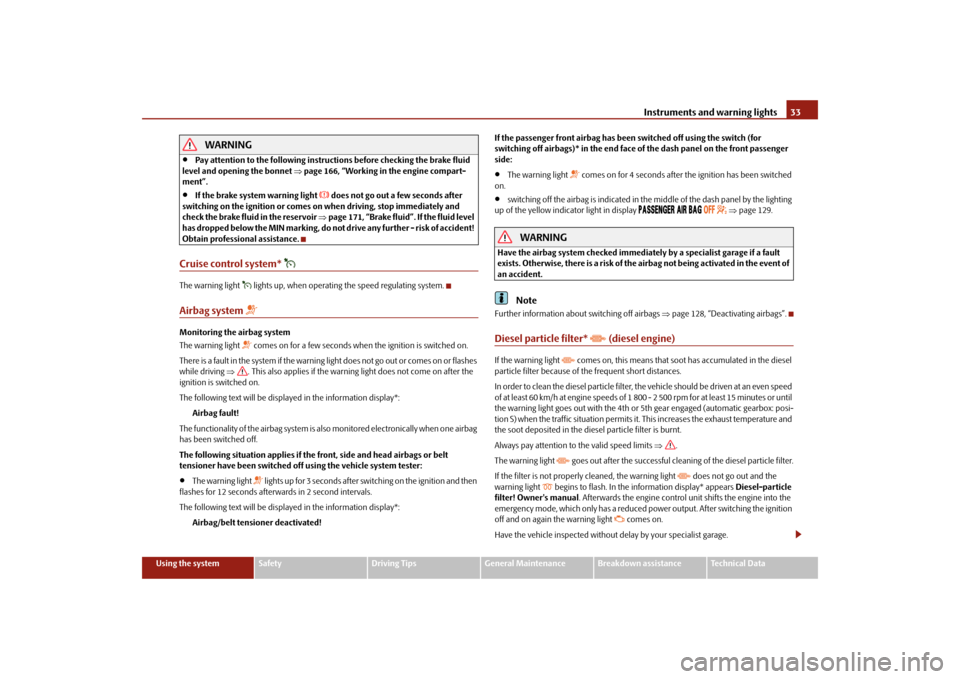

Instruments and warning lights
33
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
WARNING

Pay attention to the following instruct
ions before checking the brake fluid
level and opening the bonnet
page 166, “Working in the engine compart-
ment”.
If the brake system warning light
 does not go out a few seconds after
switching on the ignition or comes on when driving, stop immediately and check the brake fluid in the reservoir
page 171, “Brake fluid”. If the fluid level
has dropped below the MIN marking, do no
t drive any further - risk of accident!
Obtain professional assistance.Cruise control system*

The warning light
 lights up, when operating the speed regulating system.
Airbag system

Monitoring the airbag system The warning light
 comes on for a few seconds when the ignition is switched on.
There is a fault in the system if the warning
light does not go out or comes on or flashes
while driving

. This also applies if the warning
light does not come on after the
ignition is switched on. The following text will be displayed in the information display*:
Airbag fault!
The functionality of the airbag system is also monitored electronically when one airbag has been switched off. The following situation applies if the fr
ont, side and head airbags or belt
tensioner have been switched off
using the vehicle system tester:

The warning light
 lights up for 3 seconds after switching on the ignition and then
flashes for 12 seconds afterwards in 2 second intervals. The following text will be displayed in the information display*:
Airbag/belt tensioner deactivated!
If the passenger front airbag has been
switched off using the switch (for
switching off airbags)* in the end face of
the dash panel on the front passenger
side:
The warning light
 comes on for 4 seconds after the ignition has been switched
on.
switching off the airbag is indicated in the middle of the dash panel by the lighting
up of the yellow indicator light in display

 
  page 129.
WARNING
Have the airbag system checked immediat
ely by a specialist
garage if a fault
exists. Otherwise, there is a
risk of the airbag not bein
g activated in the event of
an accident.
Note
Further information about switching off airbags
page 128, “Deactivating airbags”.
Diesel particle filter*

(diesel engine)
If the warning light

comes on, this means that soot
has accumulated in the diesel
particle filter because of the frequent short distances. In order to clean the diesel particle filter, the vehicle should be driven at an even speed of at least 60 km/h at engine speeds of 1
800 - 2 500 rpm for at least 15 minutes or until
the warning light goes out with the 4th or
5th gear engaged (automatic gearbox: posi-
tion S) when the traffic situation permits it. This increases the exhaust temperature and the soot deposited in the diesel particle filter is burnt. Always pay attention to the valid speed limits

.
The warning light

goes out after the successful cleaning of the diesel particle filter.
If the filter is not properly
cleaned, the warning light

does not go out and the
warning light
 begins to flash. In the in
formation display* appears
Diesel-particle
filter! Owner's manual
. Afterwards the engine control unit shifts the engine into the
emergency mode, which only has a reduced po
wer output. After switching the ignition
off and on again the warning light
 comes on.
Have the vehicle inspected without
delay by your specialist garage.
s3j8.a.book Page 33 Tuesday, April 20, 2010 1:10 PM

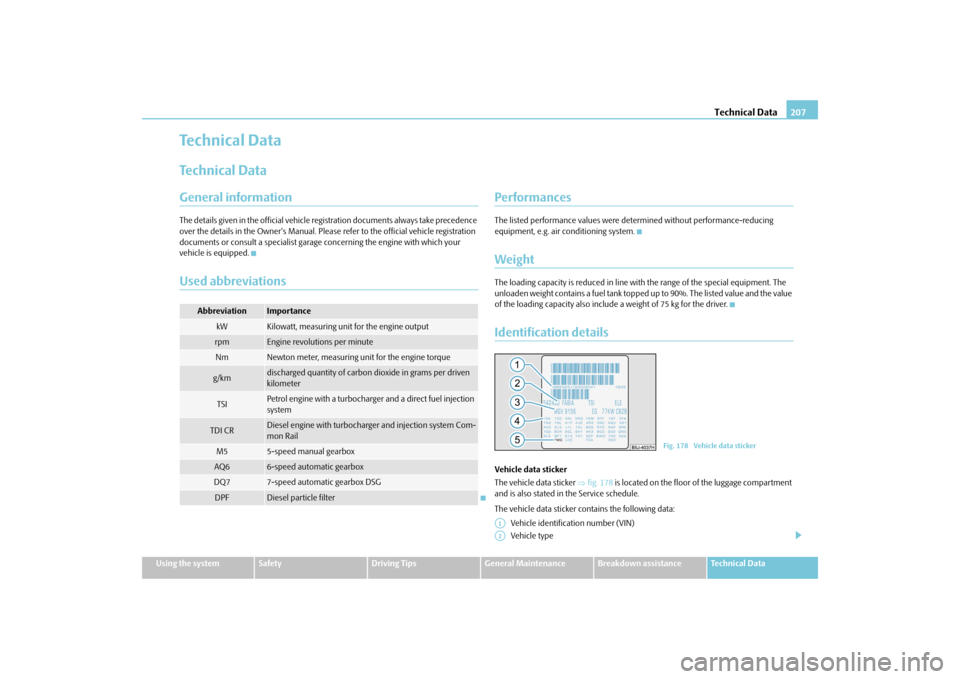

Technical Data
207
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Te c h n i c a l D a t aTechnical DataGeneral informationThe details given in the official vehicle regi
stration documents always take precedence
over the details in the Owner's Manual. Please refer to the official vehicle registration documents or consult a specialist garage
concerning the engine with which your
vehicle is equipped.Used abbreviations
PerformancesThe listed performance values were de
termined without performance-reducing
equipment, e.g. air
conditioning system.
WeightThe loading capacity is reduced in line with the range of the special equipment. The unloaden weight contains a fuel tank topped up to 90%. The listed value and the value of the loading capacity
also include a weight of 75 kg for the driver.
Identification detailsVehicle data sticker The vehicle data sticker
fig. 178
is located on the floor of the luggage compartment
and is also stated in the Service schedule. The vehicle data sticker co
ntains the following data:
Vehicle identification number (VIN) Vehicle type
Abbreviation
Importance
kW
Kilowatt, measuring unit for the engine output
rpm
Engine revolutions per minute
Nm
Newton meter, measuring
unit for the engine torque
g/km
discharged quantity of carbon dioxide in grams per driven kilometer
TSI
Petrol engine with a turbocharger and a direct fuel injection system
TDI CR
Diesel engine with turbocharger and injection system Com- mon Rail
M5
5-speed manual gearbox
AQ6
6-speed automatic gearbox
DQ7
7-speed automatic gearbox DSG
DPF
Diesel particle filter
Fig. 178 Vehicle data sticker
A1A2
s3j8.a.book Page 207 Tuesday, April 20, 2010 1:10 PM

Index 236
Children and safety . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Chrome parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Climatronic
Defrosting windows . . . . . . . . . . . . . . . . . . . . . . . . 88
Setting temperature . . . . . . . . . . . . . . . . . . . . . . . . 88
Climatronic (automatic air conditioning) . . . . . . . . 86
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Clothes hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Cockpit
General view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Compartments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Convenience operation . . . . . . . . . . . . . . . . . . . . . . . . 45
Converting/masking over headlights . . . . . . . . . . 150
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
replenishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Coolant level
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Coolant quantity
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Coolant temperature gauge . . . . . . . . . . . . . . . . . . . . 16
Coolant temperature/coolant level
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Cornering light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Correct seated position . . . . . . . . . . . . . . . . . . . . . . 114
Counter for distance driven . . . . . . . . . . . . . . . . . . . . 17
Cruise control system . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33Cup holder
front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
DDash panel insert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Daylight driving lights . . . . . . . . . . . . . . . . . . . . . 48, 202
Deactivating an airbag . . . . . . . . . . . . . . . . . . . . . . . 128
Defrosting rear window . . . . . . . . . . . . . . . . . . . . . . . 54
De-icing the windows . . . . . . . . . . . . . . . . . . . . . . . . 157
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Diesel engines
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . 91
Diesel particle filter . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Direction indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Distance driven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Door
Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Driving economically . . . . . . . . . . . . . . . . . . . . . . . . 146
Driving time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20EEDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Electric power-operated window
Operational faults . . . . . . . . . . . . . . . . . . . . . . . . . 45Electric sliding/tilting roof . . . . . . . . . . . . . . . . . . . . . 46
Electrical power windows . . . . . . . . . . . . . . . . . . . . . 44
Electrically adjustable rear mirror . . . . . . . . . . . . . . 57
Electronic Differential Lock . . . . . . . . . . . . . . . . . . . 138
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Electronic Differential Lock (EDL) . . . . . . . . . . . . . 138
Electronic immobiliser . . . . . . . . . . . . . . . . . . . . . . . . 36
Electronic stability programme (ESP) . . . . . . . . . . 137
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Emergency locking of the door . . . . . . . . . . . . . . . . . 39
Engine
starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
switching off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Engine compartment
Safety information . . . . . . . . . . . . . . . . . . . . . . . . 166
Engine electronics
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
replenishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Engine revolutions counter . . . . . . . . . . . . . . . . . . . . 15
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Environmental compatibility . . . . . . . . . . . . . 146, 149
ESP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Exhaust gas
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Exhaust gas inspection
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Explanations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
s3j8.a.book Page 236 Tuesday, April 20, 2010 1:10 PM
