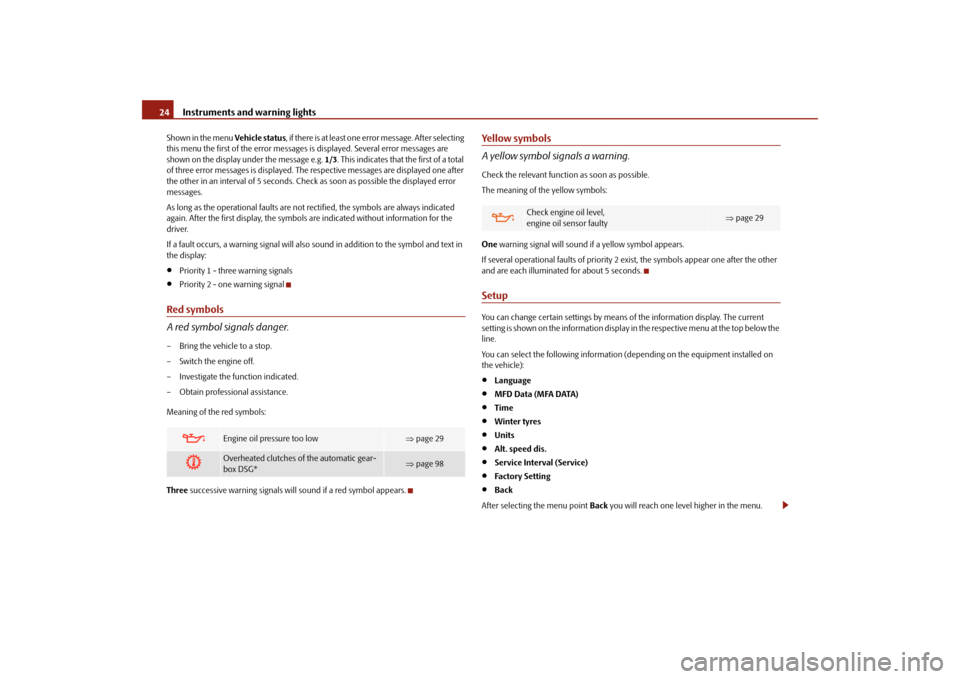

Page 25 of 244
Instruments and warning lights
24Shown in the menu
Vehicle status
, if there is at least one error message. After selecting
this menu the first of the error messages is displayed. Several error messages are shown on the display under the message e.g.
1/3
. This indicates that the first of a total
of three error messages is displayed. The respective messages are displayed one after the other in an interval of 5 seconds. Chec
k as soon as possible the displayed error
messages. As long as the operational faults are not
rectified, the symbols are always indicated
again. After the first display, the symbol
s are indicated without information for the
driver. If a fault occurs, a warning signal will also
sound in addition to the symbol and text in
the display:
Priority 1 - three warning signals
Priority 2 - one warning signal
Red symbols A red symbol signals danger.– Bring the vehicle to a stop. – Switch the engine off.– Investigate the function indicated.– Obtain professional assistance. Meaning of the red symbols: Three
successive warning signals will sound if a red symbol appears.
Yellow symbols A yellow symbol signals a warning.Check the relevant function as soon as possible. The meaning of the yellow symbols: One
warning signal will sound if a yellow symbol appears.
If several operational faults of priority 2
exist, the symbols appear one after the other
and are each illuminated for about 5 seconds.SetupYou can change certain settings by means
of the information display. The current
setting is shown on the information display
in the respective menu at the top below the
line. You can select the following information (d
epending on the equipment installed on
the vehicle):
Language
MFD Data (MFA DATA)
Time
Winter tyres
Units
Alt. speed dis.
Service Interval (Service)
Factory Setting
Back
After selecting the menu point
Back
you will reach one level higher in the menu.
Engine oil pressure too low
page 29
Overheated clutches of the automatic gear- box DSG*
page 98
Check engine oil level, engine oil sensor faulty
page 29
s3j8.a.book Page 24 Tuesday, April 20, 2010 1:10 PM
Page 31 of 244
Instruments and warning lights
303 peeps sound as an additional warning signal. Do not continue your journey
if for some reason it is
not possible under the condi-
tions prevailing to top up with oil.
Keep the engine switched off
and obtain profes-
sional assistance from a specialist garage, otherwise it could lead to severe engine damage. Do not drive any further
if the warning light flashes even if the oil is at the correct
level. Do not run the engine
not at idling speed either. Contact the nearest specialist
garage to obtain professional assistance. The following text will be displayed in the information display*:
Oil Pressure: Engine off! Owner's manual!
The warning light
lights up yellow* (oil quantity too low)
If the warning light lights up yellow, the quantity of oil in the engine is probably too low. Check as soon as possible the oil level or top up
page 167 with engine oil.
A peep sounds as an additional warning signal.The following text will be displayed in the information display*:
Check oil level!
The warning light will go out if the bonnet is le
ft open for more than 30 seconds. If no
engine oil has been replenished, the warning light will come on again after driving about 100 km. The warning light
flashes yellow* (engine oil level sensor faulty)
A fault on the engine oil level sensor is indicated additionally by an audible signal and the warning light coming on several times after the ignition has been switched on. In this case have the engine inspected without delay by a specialist garage.The following text will be displayed in the information display*:
Oil sensor. Workshop!
WARNING
If you must stop for technical reasons, then park the vehicle at a safe
distance from the traffic and switch off the engine and switch on the hazard warning light system
page 51.
The red oil pressure light
is not an oil level indicator! One should there-
fore check the oil level at regular interval
s, preferably after every refueling stop.
Pay attention to the following instructions
page 166, “Working in the
engine compartment” before checking
the coolant fluid level and opening the
bonnet.Open door
The warning light
comes on if one or several doors are opened or if the boot lid is
opened. If one of the doors opens whil
e driving, the warning light lights
up and an
audible signal sounds. The warning light comes on even when the ignition is switched off. The warning light lights up for a maximum of 5 minutes. On vehicles with information display* this wa
rning light is replaced by a vehicle symbol
page 23.Windshield washer fluid level*
The warning light
comes on when the ignition is swit
ched on if there is insufficient
fluid in the windshield washer system. Top up with liquid
page 176.
The following text will be displayed in the information display*:
To p u p w a s h f l u i d !
Control system for exhaust
The warning light
comes on after the ignition has been switched on.
If the warning light does not go out after starti
ng the engine or it li
ghts up when driving,
a fault exists in an exhaust relevant co
mponent. The engine management system
selects an emergency programme which enables you to drive to the nearest specialist garage by adopting a ge
ntle style of driving.
WARNING (continued)
s3j8.a.book Page 30 Tuesday, April 20, 2010 1:10 PM

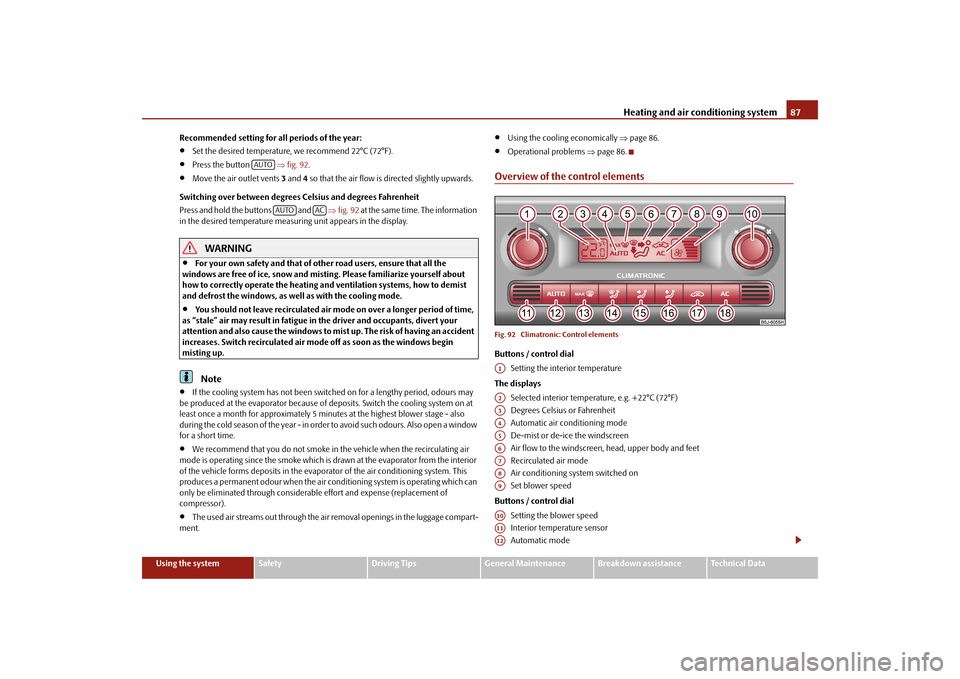

Page 88 of 244
Heating and air conditioning system
87
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Recommended setting for all periods of the year:
Set the desired temperature, we recommend 22°C (72°F).
Press the button
fig. 92
.
Move the air outlet vents
3 and
4 so that the air flow is
directed slightly upwards.
Switching over between degrees
Celsius and degrees Fahrenheit
Press and hold the buttons and
fig. 92
at the same time. The information
in the desired temperature measuring unit appears in the display.
WARNING
For your own safety and that of other road users, ensure that all the
windows are free of ice, snow and mistin
g. Please familiarize yourself about
how to correctly operate th
e heating and ventilation systems, how to demist
and defrost the windows, as well as with the cooling mode.
You should not leave recirculated air mode on over a longer period of time,
as “stale” air may result in fatigue in the driver and occupants, divert your attention and also cause the windows to mist up. The risk of having an accident increases. Switch recirculated air mode off as soon as the windows begin misting up.
Note
If the cooling system has not been switched on for a lengthy period, odours may
be produced at the evaporator because of
deposits. Switch the cooling system on at
least once a month for approximately 5 minut
es at the highest blower stage - also
during the cold se aso n of the y ear - i n o rde
r to avoid such odours. Also open a window
for a short time.
We recommend that you do not smoke in the vehicle when the recirculating air
mode is operating since the smoke which is drawn at the evaporator from the interior of the vehicle forms deposits in the evapor
ator of the air conditioning system. This
produces a permanent odour when the air co
nditioning system is operating which can
only be eliminated through considerable
effort and expense (replacement of
compressor).
The used air streams out through the air
removal openings in the luggage compart-
ment.
Using the cooling economically
page 86.
Operational problems
page 86.
Overview of the control elementsFig. 92 Climatronic: Control elementsButtons / control dial
Setting the interior temperature
The displays
Selected interior temperature, e.g. +22°C (72°F) Degrees Celsius or FahrenheitAutomatic air conditioning mode De-mist or de-ice the windscreen Air flow to the windscreen, head, upper body and feet Recirculated air mode Air conditioning sy
stem switched on
Set blower speed
Buttons / control dial
Setting the blower speed Interior temperature sensorAutomatic mode
AUTO
AUTO
AC
A1A2A3A4A5A6A7A8A9A10A11A12
s3j8.a.book Page 87 Tuesday, April 20, 2010 1:10 PM

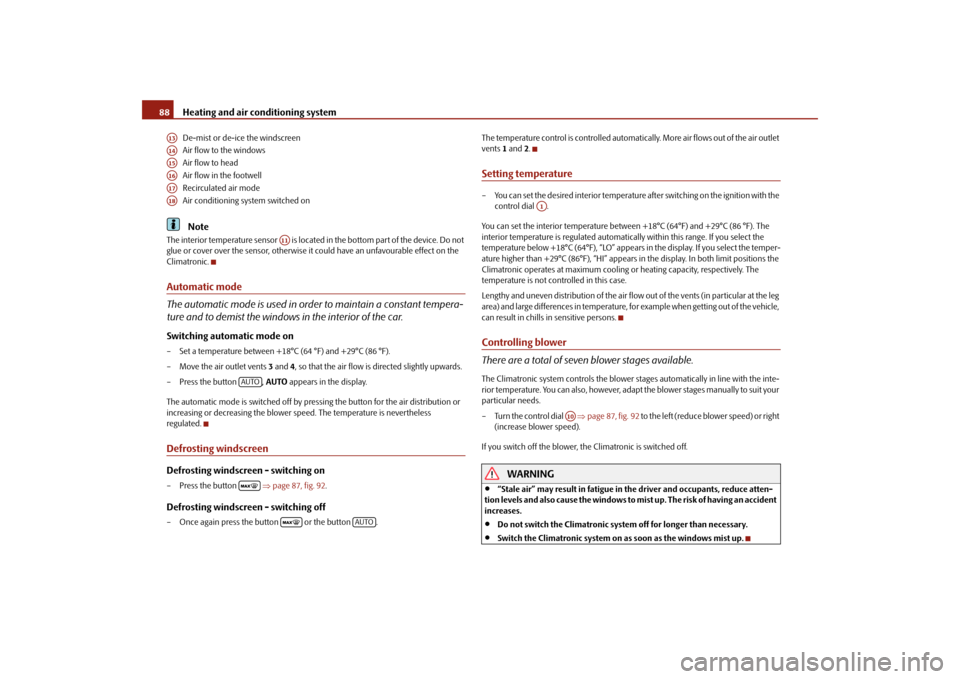

Page 89 of 244
Heating and air conditioning system
88
De-mist or de-ice the windscreen Air flow to the windows Air flow to head Air flow in the footwellRecirculated air mode Air conditioning system switched onNote
The interior temperature sensor is locate
d in the bottom part of the device. Do not
glue or cover over the sensor, otherwise it could have an unfavourable effect on the Climatronic.Automatic mode The automatic mode is used in order to maintain a constant tempera- ture and to demist the windows in the interior of the car.Switching automatic mode on– Set a temperature between +18°C (64 °F) and +29°C (86 °F). – Move the air outlet vents
3 and
4, so that the air flow is
directed slightly upwards.
– Press the button ,
AUTO
appears in the display.
The automatic mode is switched
off by pressing the button
for the air distribution or
increasing or decreasing
the blower speed. The temperature is nevertheless
regulated.Defrosting windscreenDefrosting windscreen - switching on– Press the button
page 87, fig. 92
.
Defrosting windscreen - switching off– Once again press the button or the button .
The temperature control is controlled automatically. More air flows out of the air outlet vents
1 and
2.
Setting temperature– You can set the desired interior temperature after switching on the ignition with the
control dial .
You can set the interior temperature betw
een +18°C (64°F) and +29°C (86 °F). The
interior temperature is regulated automatica
lly within this range. If you select the
temperature below +18°C (64°F), “LO” appears in the display. If you select the temper-ature higher than +29°C (86°F), “HI” appears
in the display. In both limit positions the
Climatronic operates at ma
ximum cooling or heating capacity, respectively. The
temperature is not controlled in this case. Lengthy and uneven distribution
of the air flow out of the vents (in particular at the leg
area) and large differences in temperature, for example when getting out of the vehicle, can result in chills in sensitive persons.Controlling blower There are a total of seven blower stages available.The Climatronic system controls the blower st
ages automatically in
line with the inte-
rior temperature. You can also, however, adap
t the blower stages manually to suit your
particular needs. – Turn the control dial
page 87, fig. 92
to the left (reduce blower speed) or right
(increase blower speed).
If you switch off the blower, th
e Climatronic is switched off.
WARNING
“Stale air” may result in fatigue in the driver and occupants, reduce atten-
tion levels and also cause the windows to mist up. The risk of having an accident increases.
Do not switch the Climatronic system off for longer than necessary.
Switch the Climatronic system on as soon as the windows mist up.
A13A14A15A16A17A18
A11
AUTO
AUTO
A1
A10
s3j8.a.book Page 88 Tuesday, April 20, 2010 1:10 PM
Page 94 of 244
Starting-off and Driving
93
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
The handbrake warning is acti
vated if you drive at a speed of more than 6 km/h for
more than 3 seconds.
WARNING
Please note that the handbrake must be fully released. A handbrake which
is only partially released can result in the rear brakes overheating which will have a negative effect on the operation of
the brake system - risk of accident! In
addition this can result in premature wear of the rear brake pads.
Never leave children unattended in the vehicle. The children might, for
example, release the handbrake or take
the vehicle out of gear. The vehicle
might then move off - risk of accident!
Caution
After the car has come to a stop, always firs
t of all apply the handbrake firmly before
then additionally engaging a gear (manual gearbox) or moving the selector lever into position
P (automatic gearbox).
Parking aid*The parking aid provides a warning of obstacles behind the vehicle.The audible parking aid determines the di
stance between the rear bumper and an
obstacle located behind the vehicle with the
aid of ultrasound sensors. The sensors are
integrated in the rear bumper.
Range of sensors The clearance warning begins at a distance
of about 160 cm from the obstacle (area
fig. 97
). The interval between the warning si
gnals becomes shorter as the clearance
is reduced. A continuous tone sounds from
a distance of approx. 30
cm (area ) - danger area.
You should not reverse any further after this signal sounds!
If the vehicle is
equipped with a factory-fitted
towing device*, the border of the danger area starts -
continuous tone - 5 cm further behind th
e vehicle. The vehicle can be extended
through an installed deta
chable towing device.
Activating The parking aid is activated automatically when
reverse gear
is engaged and the igni-
tion is turned on. This
is confirmed by a brief acknowledgement signal.
Deactivating The parking aid is deactivated by disengaging the reverse gear or by switching the igni- tion off.
WARNING
The parking aid is not a substitute for
the driver paying proper attention and
it is always the driver's responsibility
to take care when parking the vehicle or
carrying out similar manoeuvres.
You should therefore satisfy yourself, before reversing, that there is no small
obstacle, such as a rock, thin post, trai
ler drawbar etc., behind your vehicle.
Such an obstacle might not be within the range detected by the sensors.
Under certain circumstances, surfaces of certain objects and types of
clothing cannot reflect the signal of the parking aid. Thus, these objects or people who wear such clothing are not recognised by the sensors of the parking aid.
Note
The parking aid does not operate if you
are towing a trailer (applies to models
which feature a factory-fitted towing device*).
A system fault is indicated if a warning signal sounds for about 5 seconds after
switching the ignition on and engaging reverse gear and there is no obstacle close to

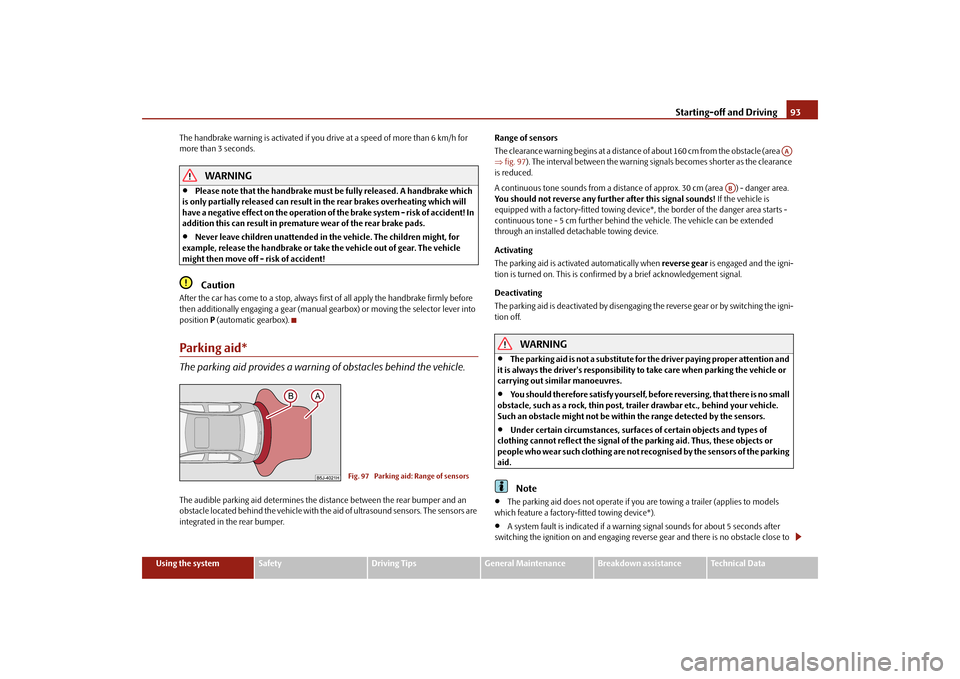

Fig. 97 Parking aid: Range of sensors
AA
AB
s3j8.a.book Page 93 Tuesday, April 20, 2010 1:10 PM
Page 95 of 244
Starting-off and Driving
94your vehicle. It is possible that the audi
ble warning does not function correctly (an
obstacle behind the vehicle ma
y not be detected - take extra care). Have the fault recti-
fied by a specialist workshop.
If the audible warning sounds for 3 seconds after switching the ignition on and
engaging the reverse gear, a fault has occured in the system. It is possible that the audible warning does not function correctl
y (an obstacle behind the vehicle may not
be detected - take extra care). Have the
fault rectified by a specialist workshop.
The sensors must be kept clean and free of ice to enable the parking aid to operate
properly.
If the parking aid is activated and the sele
ctor lever of the automatic gearbox is in
the position , warning signal indicates interruption (vehicle can no longer move).Cruise control system (CCS)*IntroductionThe cruise control system (CCS) maintains
a constant speed, more than 30 km/h (20
mph), once it has been set, without you havi
ng to depress the accelerator pedal. This
is only possible within the range which is permitted by the power output and braking power of the engine. The cruise control system
makes it possible - particularly on long
journeys - for you to rest your “accelerator foot”.
WARNING
For safety reasons, the cruise control system must not be used in dense
traffic or on unfavourable road surfaces
(such as icy roads, slippery roads, loose
gravel) - risk of accident!
In order to prevent unintentional use of the cruise control system, always
switch off the system after use.
Note
Models fitted with a manual gearbox: Always
depress the clutch pedal if you switch
on the cruise control system when the gearbo
x is in Neutral! Otherwise the engine can
rev up unintentionally.
The cruise control system is not able to maintain a constant speed when driving on
steep downhill sections. The weight of the vehicle increases the speed at which it travels. One should shift down in good time
to a lower gear or slow the vehicle down
by applying the foot brake.
It is not possible on vehicles fitted with
an automatic gearbox to switch on the
cruise control system if the sele
ctor lever is in the position
P, N or R.
Storing a speedThe cruise control system is operated by means of the switch and the rocker button in the left lever of the multi-functional switch. – Press the switch
fig. 98
into the position
ON
.
– After the desired speed has been reached, press the rocker button into the
SET-
position - the current speed is stored.
After you have released the rocker button out of the position
SET-
, the speed you
have just stored is maintained at a consta
nt speed without having to depress the accel-
erator. You can
increase
the speed by depressing the acce
lerator. Releasing the accelerator
will cause the speed to
drop
again to the set speed.
This does not apply, however, if you drive at
a speed which is more than 10 km/h higher
than the set speed for a period of longer
than 5 minutes. The stored speed will be
cancelled in the memory. You then have to re-store the desired speed. One can
reduce
the speed in the usual manner. The system is switched off temporarily
by actuating the brake or clutch pedal
page 95.
AP

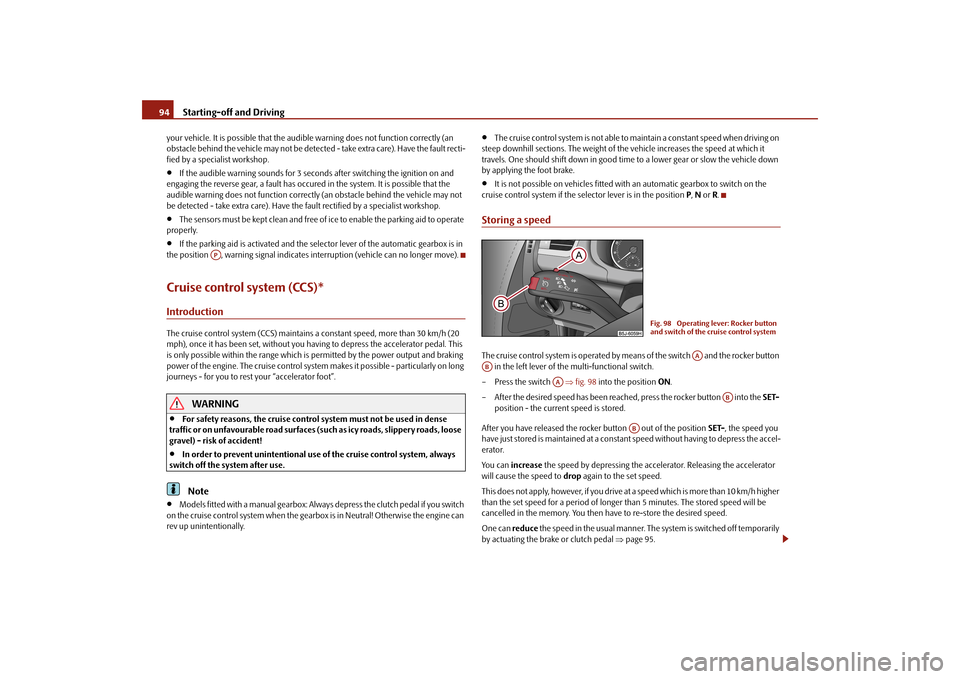

Fig. 98 Operating lever: Rocker button and switch of the cruise control system
AA
AB
AA
AB
AB
s3j8.a.book Page 94 Tuesday, April 20, 2010 1:10 PM

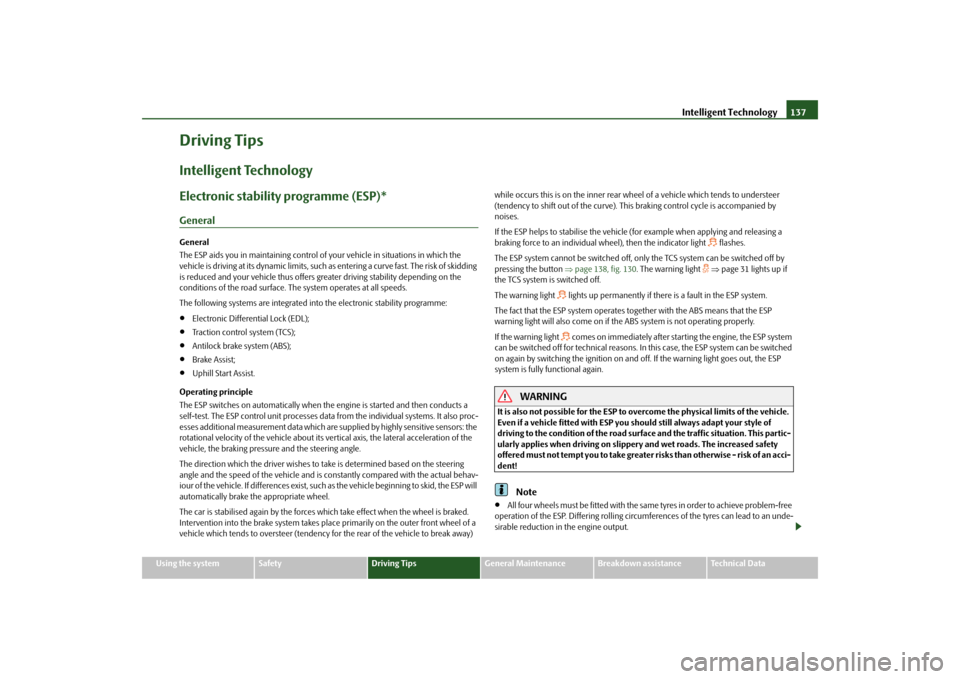

Page 138 of 244
Intelligent Technology
137
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
Driving TipsIntelligent TechnologyElectronic stability programme (ESP)*GeneralGeneral The ESP aids you in maintaining control of
your vehicle in situations in which the
vehicle is driving at its dynamic limits, such as
entering a curve fast. The risk of skidding
is reduced and your vehicle thus offers greater driving stability depending on the conditions of the road surface. The system operates at all speeds. The following systems are integrated into the electronic stability programme:
Electronic Differential Lock (EDL);
Traction control system (TCS);
Antilock brake system (ABS);
Brake Assist;
Uphill Start Assist.
Operating principle The ESP switches on automati
cally when the engine is started and then conducts a
self-test. The ESP control unit processes data from the individual systems. It also proc- esses additional measurement data which are supplied by highly sensitive sensors: the rotational velocity of the vehicle about its ve
rtical axis, the lateral acceleration of the
vehicle, the braking pressure and the steering angle. The direction which the driver wishes to take is determined based on the steering angle and the speed of the vehicle and is co
nstantly compared wi
th the actual behav-
iour of the vehicle. If differences exist, such
as the vehicle beginning to skid, the ESP will
automatically brake the appropriate wheel. The car is stabilised again by the forces wh
ich take effect when the wheel is braked.
Intervention into the brake system takes place primarily on the outer front wheel of a vehicle which tends to oversteer (tendency fo
r the rear of the vehicle to break away)
while occurs this is on the inner rear wh
eel of a vehicle whic
h tends to understeer
(tendency to shift out of the curve). This braking control cycle is accompanied by noises. If the ESP helps to stabilise the vehicle (f
or example when applying and releasing a
braking force to an individual wheel), then the indicator light
flashes.
The ESP system cannot be switched off, only
the TCS system can be switched off by
pressing the button
page 138, fig. 130
. The warning light
page 31 lights up if
the TCS system is switched off. The warning light
lights up permanently if there is a fault in the ESP system.
The fact that the ESP system operates together with the ABS means that the ESP warning light will also come on if the ABS system is not operating properly. If the warning light
comes on immediately after starting the engine, the ESP system
can be switched off for technical reasons. In
this case, the ESP system can be switched
on again by switching the igni
tion on and off. If the warning light goes out, the ESP
system is fully functional again.
WARNING
It is also not possible for the ESP to overcome the physical limits of the vehicle. Even if a vehicle fitted with ESP you should still always adapt your style of driving to the condition of the road surfac
e and the traffic situation. This partic-
ularly applies when driving on slippery
and wet roads. The increased safety
offered must not tempt you to take greater risks than otherwise - risk of an acci- dent!
Note
All four wheels must be fitted with the same tyres in order to achieve problem-free
operation of the ESP. Differing rolling circum
ferences of the tyres can lead to an unde-
sirable reduction in the engine output.
s3j8.a.book Page 137 Tuesday, April 20, 2010 1:10 PM
Page 139 of 244
Intelligent Technology
138
Changes to vehicle (e.g. on engine, on th
e brakes, on chassis or another combina-
tion of tyres and wheels) can influence the function of the ESP
page 184, “Accesso-
ries, changes and replacement of parts”.Traction control system (TCS)* The traction control system prevents the driven wheels from spinning when accelerating.General The TCS makes it much easier, and sometimes at all possible, to start off, accelerate and climb a steep hill when the conditions
of the road surface are unfavourable.
Operating principle The TCS switches on automatically when th
e engine is started and then conducts a
self-test. The system monitors the speeds of the driven wheels with the aid of the ABS sensors. If the wheels are spinning, the force transmitted to the road surface is auto- matically adapted by reducing the engine speed. The system operates at all speeds. The TCS operates in combination with the ABS
page 140, “Antilock brake system
(ABS)”. The TCS will not function if a fault exists in the ABS system. The TCS warning light lights up in the instru
ment cluster when there is a fault on the
TCS
page 31.
Switching off You can switch the TCS off and on agai
n as you wish by pressing the button
fig. 130
.
The TCS warning light lights up in the instrument cluster when the TCS is switched off page 31.
The TCS should normally always
be switched on. It may be good practice in certain
exceptional cases, such as when you wish to
have wheel slip, to switch off the system.
Examples:
when driving with snow chains;
when driving in deep snow or on a loose surface;
when it is necessary to rock a vehicle when it has become stuck.
then you should switch on the TCS again.
WARNING
You should always adjust your style of driving to the conditions of the road surface and the traffic situation. The increased safety offered must not tempt you to take greater risks than otherwise - risk of an accident!
Note
All four wheels must be fitted with the same tyres in order to achieve problem-free
operation of the TCS. Differing rolling circum
ferences of the tyres can lead to an unde-
sirable reduction in the engine output.
Changes to vehicle (e.g. on engine, on the brakes, on chassis or another combina-
tion of tyres and wheels) can influence the function of the TCS
page 184, “Accesso-
ries, changes and replacement of parts”.Electronic Differential Lock (EDL)* The electronic differential lock prev
ents an individual wheel from slip-
ping.Models fitted with ESP are equipped with
electronic differential lock (EDL).

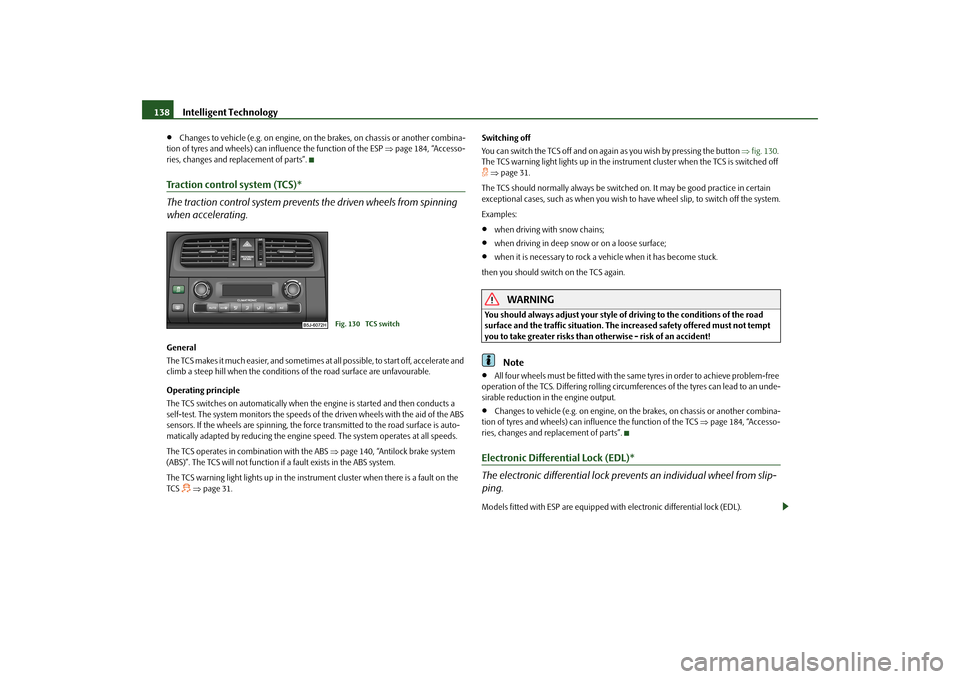

Fig. 130 TCS switch
s3j8.a.book Page 138 Tuesday, April 20, 2010 1:10 PM

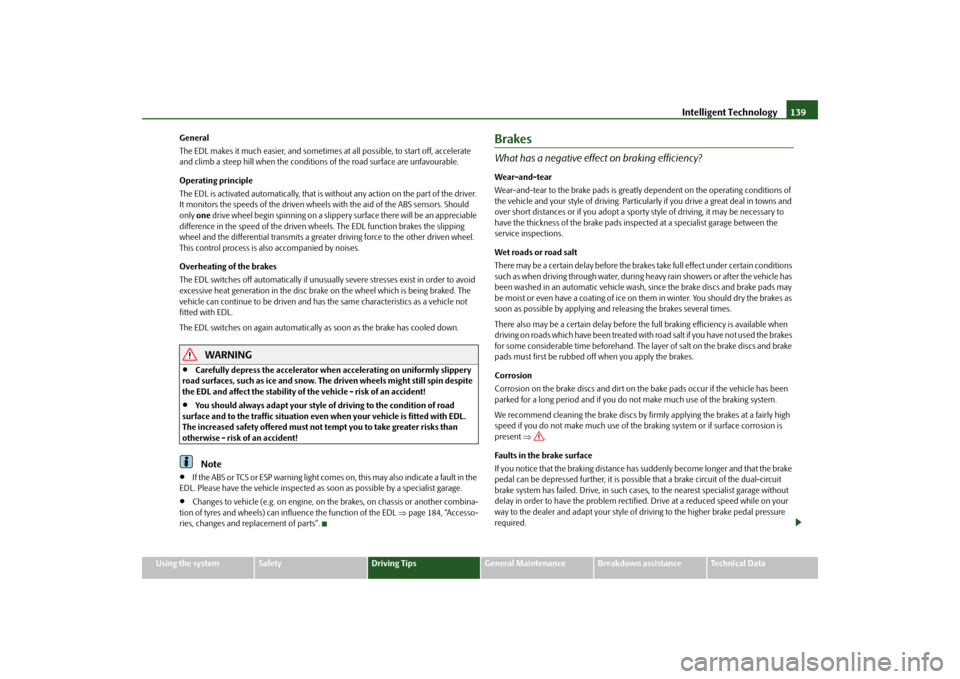

Page 140 of 244
Intelligent Technology
139
Using the system
Safety
Driving Tips
General Maintenance
Breakdown assistance
Technical Data
General The EDL makes it much easier, and sometimes
at all possible, to start off, accelerate
and climb a steep hill when the conditions of the road surface are unfavourable. Operating principle The EDL is activated automaticall
y, that is without any action on the part of the driver.
It monitors the speeds of the driven wheels with the aid of the ABS sensors. Should only
one
drive wheel begin spinning on a slippery surface there will be an appreciable
difference in the speed of the driven wheels. The EDL function brakes the slipping wheel and the differential transmits a greate
r driving force to the other driven wheel.
This control process is also accompanied by noises. Overheating of the brakes The EDL switches off automatically if unusually severe stresses exist in order to avoid excessive heat generation in the disc brake on the wheel which is being braked. The vehicle can continue to be driven and has
the same characteristics as a vehicle not
fitted with EDL. The EDL switches on again automatically as soon as the brake has cooled down.
WARNING
Carefully depress the accelerator when accelerating on uniformly slippery
road surfaces, such as ice and snow. The driven wheels might still spin despite the EDL and affect the stability of
the vehicle - risk of an accident!
You should always adapt your style of driving to the condition of road
surface and to the traffic situation even
when your vehicle is fitted with EDL.
The increased safety offered must not tempt you to take greater risks than otherwise - risk of an accident!
Note
If the ABS or TCS or ESP warning light comes on, this may also indicate a fault in the
EDL. Please have the vehicle inspected as
soon as possible by a specialist garage.
Changes to vehicle (e.g. on engine, on th
e brakes, on chassis or another combina-
tion of tyres and wheels) can in
fluence the function of the EDL
page 184, “Accesso-
ries, changes and replacement of parts”.
BrakesWhat has a negative effect on braking efficiency?Wear-and-tear Wear-and-tear to the brake pa
ds is greatly dependent on
the operating conditions of
the vehicle and your style of driving. Particularly if you drive a great deal in towns and over short distances or if you adopt a sporty
style of driving, it may be necessary to
have the thickness of the brake pads insp
ected at a specialist garage between the
service inspections. Wet roads or road salt There may be a certain delay before the brakes
take full effect un
der certain conditions
such as when driving through water, during
heavy rain showers or
after the vehicle has
been washed in an automatic vehicle wash
, since the brake discs and brake pads may
be moist or even have a coating of ice on them in winter. You should dry the brakes as soon as possible by applying and
releasing the brakes several times.
There also may be a certain delay before the
full braking efficiency is available when
driving on roads which have been treated with
road salt if you have not used the brakes
for some considerable time beforehand. The
layer of salt on the brake discs and brake
pads must first be rubbed off when you apply the brakes. Corrosion Corrosion on the brake discs and dirt on th
e bake pads occur if
the vehicle has been
parked for a long period and if you do
not make much use of the braking system.
We recommend cleaning the brake discs by firm
ly applying the brakes at a fairly high
speed if you do not make much use of the braking system or if surface corrosion is present
.
Faults in the brake surface If you notice that the braking distance has
suddenly become longer and that the brake
pedal can be depressed further, it is possib
le that a brake circuit of the dual-circuit
brake system has failed. Drive, in such cases, to the nearest specialist garage without delay in order to have the problem rectified. Drive at a reduced speed while on your way to the dealer and adapt your style of
driving to the higher brake pedal pressure
required.
s3j8.a.book Page 139 Tuesday, April 20, 2010 1:10 PM

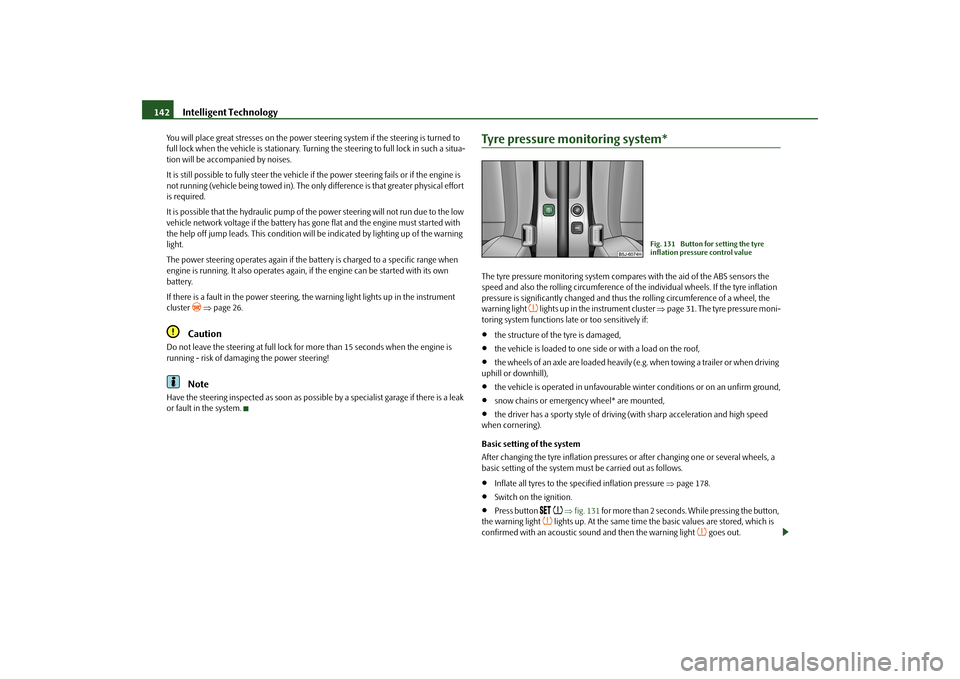

Page 143 of 244
Intelligent Technology
142
You will place great stresses on the power steering system if the steering is turned to full lock when the vehicle is stationary. Turn
ing the steering to full lock in such a situa-
tion will be accompanied by noises. It is still possible to fully steer the vehicle if the power steering fails or if the engine is not running (vehicle being towed in). The only
difference is that gr
eater physical effort
is required. It is possible that the hydraulic pump of
the power steering will not run due to the low
vehicle network voltage if the battery has gone flat and the engine must started with the help off jump leads. This condition will
be indicated by lighti
ng up of the warning
light. The power steering operates again if the ba
ttery is charged to a specific range when
engine is running. It also op
erates again, if the engine
can be started with its own
battery. If there is a fault in the power steering, the warning light lights up in the instrument cluster
page 26.
Caution
Do not leave the steering at full lock fo
r more than 15 seconds when the engine is
running - risk of damagi
ng the power steering!
Note
Have the steering inspected as soon as possible by a specialist garage if there is a leak or fault in the system.
Tyre pressure monitoring system*The tyre pressure monitoring system compares with the aid of the ABS sensors the speed and also the rolling circumference of the individual wheels. If the tyre inflation pressure is significantly changed and thus the rolling circumference of a wheel, the warning light
lights up in the instrument cluster
page 31. The tyre pressure moni-
toring system functions late or too sensitively if:
the structure of the tyre is damaged,
the vehicle is loaded to one side or with a load on the roof,
the wheels of an axle are loaded heavily (e.g. when towing a trailer or when driving
uphill or downhill),
the vehicle is operated in unfavourable wi
nter conditions or
on an unfirm ground,
snow chains or emergency wheel* are mounted,
the driver has a sporty style of driving (with sharp acceleration and high speed
when cornering). Basic setting of the system After changing the tyre inflation pressures
or after changing one or several wheels, a
basic setting of the system mu
st be carried
out as follows.
Inflate all tyres to the specified inflation pressure
page 178.
Switch on the ignition.
Press button
fig. 131
for more than 2 seconds. While pressing the button,
the warning light
lights up. At the same time the basic values are stored, which is
confirmed with an acoustic sound and then the warning light
goes out.
Fig. 131 Button for setting the tyre inflation pressure control value
s3j8.a.book Page 142 Tuesday, April 20, 2010 1:10 PM
