SKODA FABIA 2011 2.G / 5J Owner's Manual
Manufacturer: SKODA, Model Year: 2011, Model line: FABIA, Model: SKODA FABIA 2011 2.G / 5JPages: 220, PDF Size: 3.37 MB
Page 201 of 220

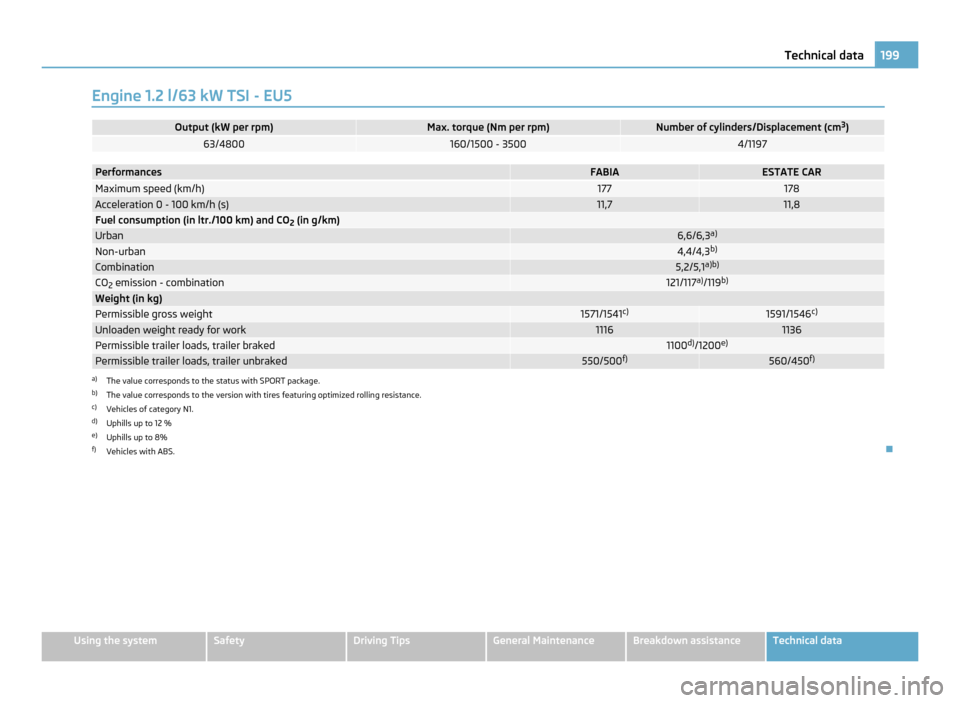

Engine 1.2 l/63 kW TSI - EU5
Output (kW per rpm) Max. torque (Nm per rpm) Number of cylinders/Displacement (cm
3
) 63/4800 160/1500 - 3500 4/1197
Performances FABIA ESTATE CAR
Maximum speed (km/h) 177 178
Acceleration 0 - 100 km/h (s) 11,7 11,8
Fuel consumption (in ltr./100 km) and CO
2 (in g/km) Urban 6,6/6,3
a) Non-urban 4,4/4,3
b) Combination 5,2/5,1
a)
b) CO
2 emission - combination 121/117
a)
/119 b) Weight (in kg)
Permissible gross weight 1571/1541
c) 1591/1546
c) Unloaden weight ready for work 1116 1136
Permissible trailer loads, trailer braked 1100
d)
/1200 e) Permissible trailer loads, trailer unbraked 550/500
f) 560/450
f) a)
The value corresponds to the status with SPORT package.
b) The value corresponds to the version with tires featuring optimized rolling resistance.
c) Vehicles of category N1.
d) Uphills up to 12 %
e) Uphills up to 8%
f) Vehicles with ABS. 199
Technical data Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data
Page 202 of 220

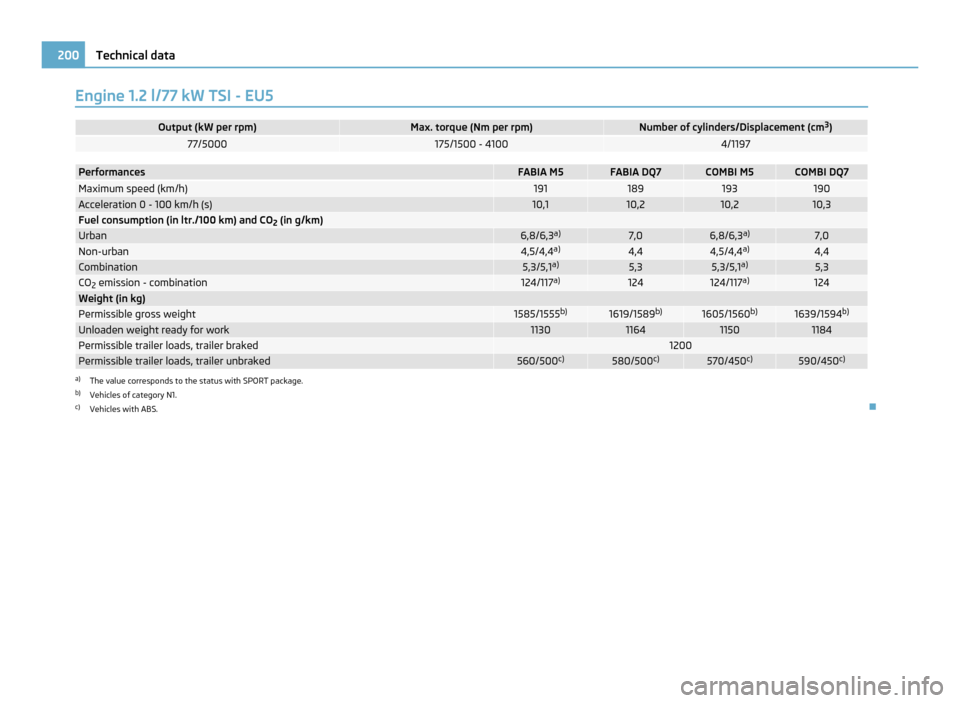

Engine 1.2 l/77 kW TSI - EU5
Output (kW per rpm) Max. torque (Nm per rpm) Number of cylinders/Displacement (cm
3
) 77/5000 175/1500 - 4100 4/1197
Performances FABIA M5 FABIA DQ7 COMBI M5 COMBI DQ7
Maximum speed (km/h) 191 189 193 190
Acceleration 0 - 100 km/h (s) 10,1 10,2 10,2 10,3
Fuel consumption (in ltr./100 km) and CO
2 (in g/km) Urban 6,8/6,3
a) 7,0 6,8/6,3
a) 7,0
Non-urban 4,5/4,4
a) 4,4 4,5/4,4
a) 4,4
Combination 5,3/5,1
a) 5,3 5,3/5,1
a) 5,3
CO
2 emission - combination 124/117
a) 124 124/117
a) 124
Weight (in kg)
Permissible gross weight 1585/1555
b) 1619/1589
b) 1605/1560
b) 1639/1594
b)Unloaden weight ready for work 1130 1164 1150 1184
Permissible trailer loads, trailer braked 1200
Permissible trailer loads, trailer unbraked 560/500
c) 580/500
c) 570/450
c) 590/450
c)a)
The value corresponds to the status with SPORT package.
b) Vehicles of category N1.
c) Vehicles with ABS. 200
Technical data
Page 203 of 220

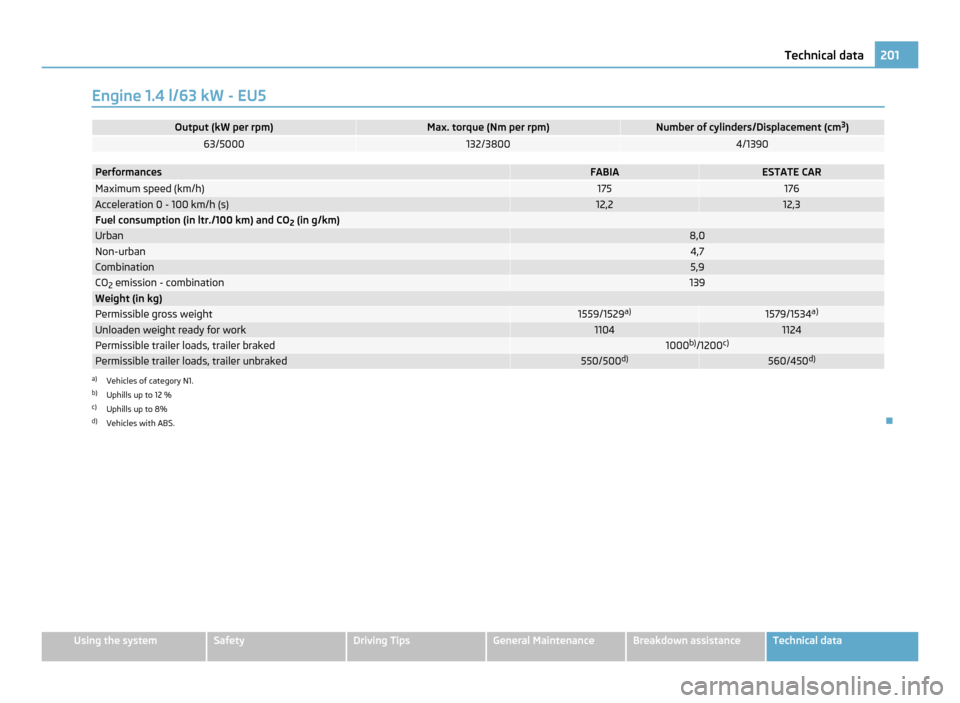

Engine 1.4 l/63 kW - EU5
Output (kW per rpm) Max. torque (Nm per rpm) Number of cylinders/Displacement (cm
3
) 63/5000 132/3800 4/1390
Performances FABIA ESTATE CAR
Maximum speed (km/h) 175 176
Acceleration 0 - 100 km/h (s) 12,2 12,3
Fuel consumption (in ltr./100 km) and CO
2 (in g/km) Urban 8,0
Non-urban 4,7
Combination 5,9
CO
2 emission - combination 139
Weight (in kg)
Permissible gross weight 1559/1529
a) 1579/1534
a) Unloaden weight ready for work 1104 1124
Permissible trailer loads, trailer braked 1000
b)
/1200 c) Permissible trailer loads, trailer unbraked 550/500
d) 560/450
d) a)
Vehicles of category N1.
b) Uphills up to 12 %
c) Uphills up to 8%
d) Vehicles with ABS. 201
Technical data Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data
Page 204 of 220

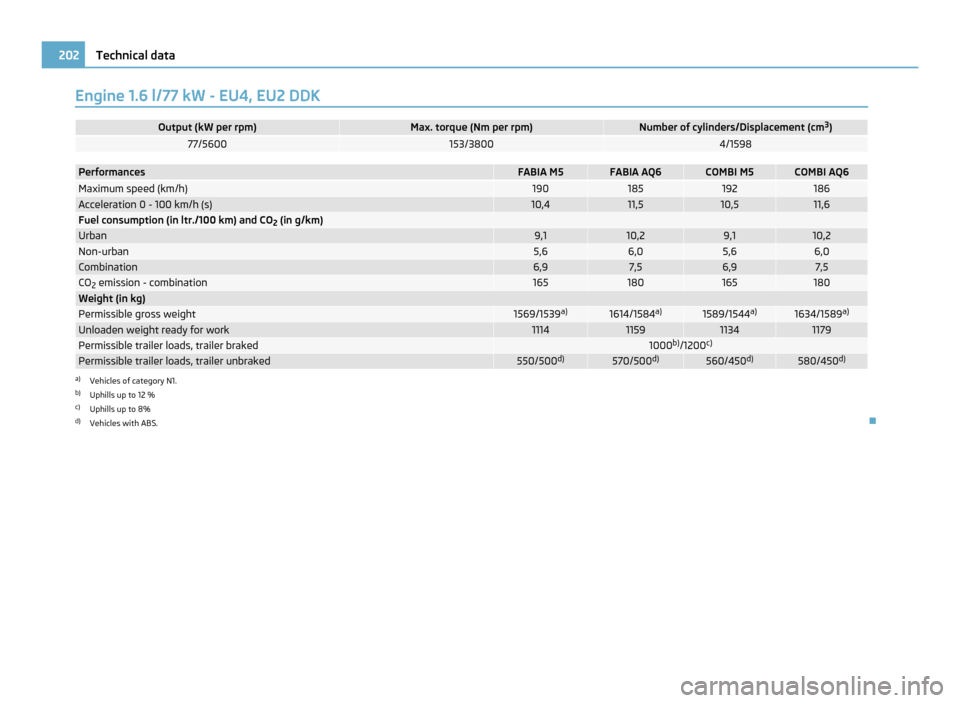

Engine 1.6 l/77 kW - EU4, EU2 DDK
Output (kW per rpm) Max. torque (Nm per rpm) Number of cylinders/Displacement (cm
3
) 77/5600 153/3800 4/1598
Performances FABIA M5 FABIA AQ6 COMBI M5 COMBI AQ6
Maximum speed (km/h) 190 185 192 186
Acceleration 0 - 100 km/h (s) 10,4 11,5 10,5 11,6
Fuel consumption (in ltr./100 km) and CO
2 (in g/km) Urban 9,1 10,2 9,1 10,2
Non-urban 5,6 6,0 5,6 6,0
Combination 6,9 7,5 6,9 7,5
CO
2 emission - combination 165 180 165 180
Weight (in kg)
Permissible gross weight 1569/1539
a) 1614/1584
a) 1589/1544
a) 1634/1589
a)Unloaden weight ready for work 1114 1159 1134 1179
Permissible trailer loads, trailer braked 1000
b)
/1200 c) Permissible trailer loads, trailer unbraked 550/500
d) 570/500
d) 560/450
d) 580/450
d)a)
Vehicles of category N1.
b) Uphills up to 12 %
c) Uphills up to 8%
d) Vehicles with ABS. 202
Technical data
Page 205 of 220
Engine 1.4 l/132 kW TSI - EU5
Output (kW per rpm) Max. torque (Nm per rpm) Number of cylinders/Displacement (cm
3
) 132/6200 250/2000 - 4500 4/1390
Performances FABIA RS COMBI RS
Maximum speed (km/h) 224 226
Acceleration 0 - 100 km/h (s) 7,3
Fuel consumption (in ltr./100 km) and CO
2 (in g/km) Urban 7,7
Non-urban 5,2
Combination 6,2
CO
2 emission - combination 148
Weight (in kg)
Permissible gross weight 1718 1713
Unloaden weight ready for work 1318 1313 203
Technical data Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data
Page 206 of 220
Engine 1.2 l/55 kW TDI CR DPF - EU5
Output (kW per rpm) Max. torque (Nm per rpm) Number of cylinders/Displacement (cm
3
) 55/4200 180/2000 3/1199
Performances FABIA FABIA
GreenLine ESTATE CAR COMBI
GreenLine Maximum speed (km/h) 166 172 167 172
Acceleration 0 - 100 km/h (s) 14,2 14,2 14,3 14,3
Fuel consumption (in ltr./100 km) and CO
2 (in g/km) Urban 4,8
a)
/4,9 b) 4,1 4,8
a)
/4,9 b) 4,1
Non-urban 3,3
a)
/3,4 b) 3,0 3,3
a)
/3,4 b) 3,0
Combination 3,8
a)
/3,9 b) 3,4 3,8
a)
/3,9 b) 3,4
CO
2 emission - combination 99
a)
/102 b) 89 99
a)
/102 b) 89
Weight (in kg)
Permissible gross weight 1644/1614
c) 1658/1628
c) 1664/1619
c) 1674/1629
c)Unloaden weight ready for work 1189 1203 1209 1219
Permissible trailer loads, trailer braked 1000
d)
/1200 e) Permissible trailer loads, trailer unbraked 590/500
f) 600/450
f)a)
Unloaded weight with special equipment up to 1,280 kg.
b) Unloaded weight with special equipment more than 1,280 kg.
c) Vehicles of category N1.
d) Uphills up to 12 %
e) Uphills up to 8%
f) Vehicles with ABS. 204
Technical data
Page 207 of 220
Engine 1.6 l/55 kW TDI CR - EU5
Output (kW per rpm) Max. torque (Nm per rpm) Number of cylinders/Displacement (cm
3
) 55/4000 195/1500 - 2000 4/1598
Performances FABIA ESTATE CAR
Maximum speed (km/h) 166 167
Acceleration 0 - 100 km/h (s) 14,1 14,2
Fuel consumption (in ltr./100 km) and CO
2 (in g/km) Urban 5,1
Non-urban 3,6
Combination 4,2
CO
2 emission - combination 109
Weight (in kg)
Permissible gross weight 1659/1629
a) 1679/1634
a) Unloaden weight ready for work 1204 1224
Permissible trailer loads, trailer braked 1000
b)
/1200 c) Permissible trailer loads, trailer unbraked 600/500
d) 610/450
d) a)
Vehicles of category N1.
b) Uphills up to 12 %
c) Uphills up to 8%
d) Vehicles with ABS. 205
Technical data Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data
Page 208 of 220
Engine 1.6 l/66 kW TDI CR - EU5
Output (kW per rpm) Max. torque (Nm per rpm) Number of cylinders/Displacement (cm
3
) 66/4200 230/1500 - 2500 4/1598
Performances FABIA ESTATE CAR
Maximum speed (km/h) 176 177
Acceleration 0 - 100 km/h (s) 12,6 12,7
Fuel consumption (in ltr./100 km) and CO
2 (in g/km) Urban 5,1/4,5
a) Non-urban 3,6/3,4
a) Combination 4,2/3,8
a) CO
2 emission - combination 109/99
a) Weight (in kg)
Permissible gross weight 1659/1629
b) 1679/1634
b)Unloaden weight ready for work 1204 1224
Permissible trailer loads, trailer braked 1200
Permissible trailer loads, trailer unbraked 600/500
c) 610/450
c)a)
The value corresponds to the status with SPORT package.
b) Vehicles of category N1.
c) Vehicles with ABS. 206
Technical data
Page 209 of 220
Engine 1.6 l/77 kW TDI CR - EU5
Output (kW per rpm) Max. torque (Nm per rpm) Number of cylinders/Displacement (cm
3
) 77/4400 250/1500-2500 4/1598
Performances FABIA ESTATE CAR
Maximum speed (km/h) 188 190
Acceleration 0 - 100 km/h (s) 10,9 11,0
Fuel consumption (in ltr./100 km) and CO
2 (in g/km) Urban 5,1
Non-urban 3,6
Combination 4,2
CO
2 emission - combination 109
Weight (in kg)
Permissible gross weight 1674/1644
a) 1694/1649
a) Unloaden weight ready for work 1219 1239
Permissible trailer loads, trailer braked 1200
Permissible trailer loads, trailer unbraked 600/500
b) 610/450
b) a)
Vehicles of category N1.
b) Vehicles with ABS. 207
Technical data Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data
Page 210 of 220

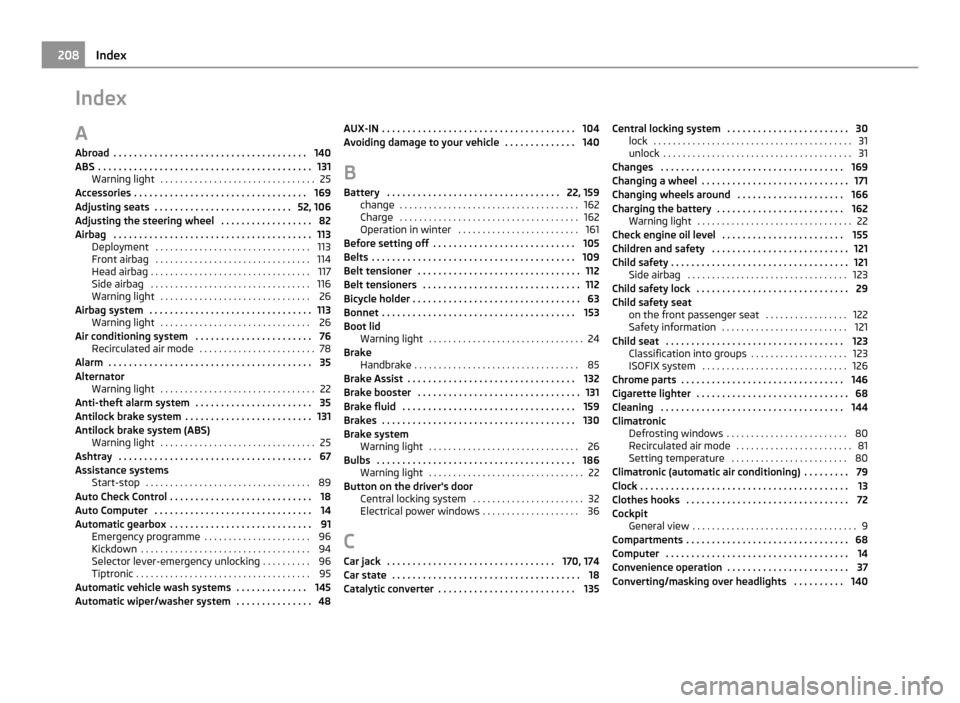

Index
A
Abroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
ABS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Adjusting seats . . . . . . . . . . . . . . . . . . . . . . . . . . . 52, 106
Adjusting the steering wheel . . . . . . . . . . . . . . . . . . 82
Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113 Deployment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Front airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Head airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . 76 Recirculated air mode . . . . . . . . . . . . . . . . . . . . . . . . 78
Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Alternator Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Anti-theft alarm system . . . . . . . . . . . . . . . . . . . . . . . 35
Antilock brake system . . . . . . . . . . . . . . . . . . . . . . . . . 131
Antilock brake system (ABS) Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Assistance systems Start-stop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Auto Check Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Auto Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91 Emergency programme . . . . . . . . . . . . . . . . . . . . . . 96
Kickdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Selector lever-emergency unlocking . . . . . . . . . . 96
Tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Automatic vehicle wash systems . . . . . . . . . . . . . . 145
Automatic wiper/washer system . . . . . . . . . . . . . . . 48 AUX-IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Avoiding damage to your vehicle
. . . . . . . . . . . . . .
140
B
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22, 159 change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Charge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Operation in winter . . . . . . . . . . . . . . . . . . . . . . . . . 161
Before setting off . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Belt tensioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Belt tensioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Bicycle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Boot lid Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Brake Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Brake Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Brake booster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Brake system Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Button on the driver's door Central locking system . . . . . . . . . . . . . . . . . . . . . . . 32
Electrical power windows . . . . . . . . . . . . . . . . . . . . 36
C Car jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170, 174
Car state . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . . . . 135 Central locking system . . . . . . . . . . . . . . . . . . . . . . . . 30
lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
unlock
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Changing wheels around . . . . . . . . . . . . . . . . . . . . . 166
Charging the battery . . . . . . . . . . . . . . . . . . . . . . . . . 162 Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Check engine oil level . . . . . . . . . . . . . . . . . . . . . . . . 155
Children and safety . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Child safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121 Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Child safety seat on the front passenger seat . . . . . . . . . . . . . . . . . 122
Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123 Classification into groups . . . . . . . . . . . . . . . . . . . . 123
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Chrome parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Climatronic Defrosting windows . . . . . . . . . . . . . . . . . . . . . . . . . 80
Recirculated air mode . . . . . . . . . . . . . . . . . . . . . . . . 81
Setting temperature . . . . . . . . . . . . . . . . . . . . . . . . 80
Climatronic (automatic air conditioning) . . . . . . . . . 79
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Clothes hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Cockpit General view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Compartments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Convenience operation . . . . . . . . . . . . . . . . . . . . . . . . 37
Converting/masking over headlights . . . . . . . . . . 140 208
Index
