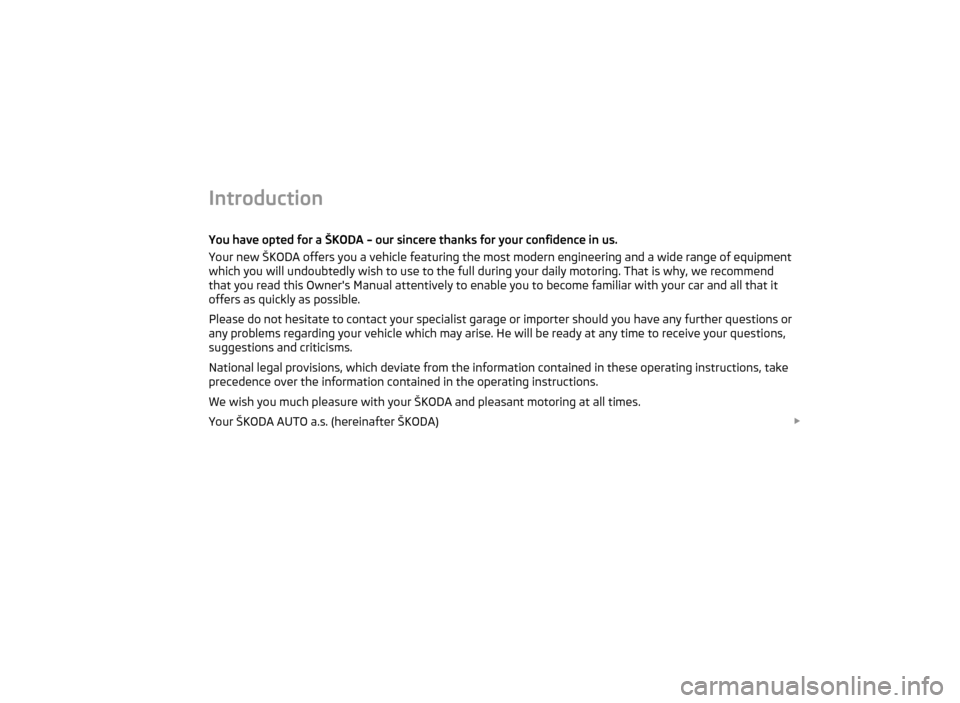

Introduction
You have opted for a ŠKODA – our sincere thanks for your confidence in us.
Your new
ŠKODA offers you a vehicle featuring the most modern engineering and a wide range of equipment
which you will undoubtedly wish to use to the full during your daily motoring. That is why, we recommend
that you read this Owner's Manual attentively to enable you to become familiar with your car and all that it
offers as quickly as possible.
Please do not hesitate to contact your specialist garage or importer should you have any further questions or
any problems regarding your vehicle which may arise. He will be ready at any time to receive your questions,
suggestions and criticisms.
National legal provisions, which deviate from the information contained in these operating instructions, take
precedence over the information contained in the operating instructions.
We wish you much pleasure with your ŠKODA and pleasant motoring at all times.
Your ŠKODA AUTO a.s. (hereinafter ŠKODA) £
Page 4 of 220
On-board literature
The on-board literature for your vehicle consists of this
“
Owner's Man-
ual ” as well as a “Service schedule” and a “ Help on the road”. There can
also be other additional operating manuals and instructions on-board
(e. g. an operating manual for the radio) depending on the vehicle model
and equipment.
If one of the publications listed above is missing, please contact a spe-
cialist garage immediately, where one will be glad to assist you in such
matters.
One should note that the details given in the vehicle's technical docu-
mentation always take precedence over those in the Owner's Manual.
Owner's Manual
This Owner's manual describes all possible equipment variants without
identifying them as special equipment, model variants or market-de-
pendent equipment.
Consequently, this vehicle does not need to contain all of the equip-
ment components described in this Owner's manual.
The scope of equipment for your vehicle is described in the sales docu-
mentation you were given when purchasing the car. For more informa-
tion, contact your local ŠKODA retailer.
The illustrations can differ in minor details from your vehicle; they are
only intended for general information.
In addition to information regarding all the controls and equipment, the
Owner's Manual also contains important information regarding care and
operation for your safety and also to retain the value of your vehicle. To
provide you with valuable tips and aids. You will learn how you can op-
erate your vehicle safely, economically and in an environmentally con-
scious way.
For safety reasons, please also pay attention to the information on ac-
cessories, modifications and replacement of parts ⇒ page 169. The other chapters of the Owner's Manual are also important, however,
for proper treatment of your car - in addition to regular care and main-
tenance - helps to retain its value and in many cases is also one of the
conditions for possible warranty claims.
The Service schedule
contains:
●
Vehicle data;
● Service intervals;
● Overview of the service work;
● Service proof;
● Confirmation of mobility warranty (only valid in certain countries);
● important information on the warranty.
The confirmations of the carried out service work are one of the condi-
tions for possible warranty claims.
Please always present the Service schedule when you take your car to a
specialist garage.
If the Service schedule is missing or worn, please contact the specialist
garage where your car is serviced regularly. You will receive a duplicate,
in which the previously carried out service work are confirmed.
Help on the road
Contains the most important telephone numbers in individual countries
as well as the addresses and telephone numbers of ŠKODA importers. 2
Introduction
Page 5 of 220
Table of Contents
Layout of this Owner's Manual
(explanations)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Using the system . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Cockpit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Instruments and warning lights . . . . . . . . . . . . . . . . . . 10
General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Overview of the instrument cluster . . . . . . . . . . . . . . . . . 10
Engine revolutions counter . . . . . . . . . . . . . . . . . . . . . . . . . 11
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Coolant temperature gauge . . . . . . . . . . . . . . . . . . . . . . . . 11
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Counter for distance driven . . . . . . . . . . . . . . . . . . . . . . . . 12
Service reminder indicator . . . . . . . . . . . . . . . . . . . . . . . . . 12
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Shift recommendation for changing gears . . . . . . . . . . . 13
Multi-functional indicator (onboard computer) . . . . . . . 14
MAXI DOT display (information display) . . . . . . . . . . . . . . 17
Auto Check Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Unlocking and locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Vehicle key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Locking/Unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Central locking system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Anti-theft alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Interior monitor and towing protection monitoring . . 36
Electrical power windows . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Electric sliding/tilting roof . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Lights and Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Windshield wiper and wash system . . . . . . . . . . . . . . . . . 48
Rear-view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Seats and Stowage
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Heating the front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Variable loading floor in the luggage compartment
(Combi) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Luggage net partition (Combi)
. . . . . . . . . . . . . . . . . . . . . . 61
Bicycle holder in the luggage compartment . . . . . . . . . 63
Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Front cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Rear cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Parking ticket holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Cigarette lighters and power sockets . . . . . . . . . . . . . . . 68
Storage compartments . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Heating and air conditioning system . . . . . . . . . . . . . 73
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Air outlet vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Air conditioning system (manual air conditioning
system) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Climatronic (automatic air conditioning)
. . . . . . . . . . . . . 79
Starting-off and Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Setting steering wheel position . . . . . . . . . . . . . . . . . . . . 82
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Switching off the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Shifting (manual gearbox) . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Cruise control system (CCS) . . . . . . . . . . . . . . . . . . . . . . . . 87
“START-STOP” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89 Automatic gearbox
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Multifunction steering wheel . . . . . . . . . . . . . . . . . . . . . . . 97
Universal telephone preinstallation GSM II . . . . . . . . . . 98
Voice control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Music playback via Bluetooth ®
. . . . . . . . . . . . . . . . . . . . . . 104
Inputs AUX-IN and MDI . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Passive Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Basic information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Correct seated position . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Why seat belts? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
The physical principle of a frontal collision . . . . . . . . . . 109
Important safety information regarding the use of
seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
How are seat belts correctly fastened?
. . . . . . . . . . . . . . 111
Belt tensioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Airbag system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Description of the airbag system . . . . . . . . . . . . . . . . . . . 113
Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Side airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Head airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Deactivating airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Transporting children safely . . . . . . . . . . . . . . . . . . . . . . 121
What you should know about transporting children! . 121
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Attaching a child seat using the “ISOFIX” system . . . . 126
Attaching child seat using the “Top Tether” system . . 127 3
Table of Contents Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data
Page 6 of 220
Driving Tips
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Intelligent Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Electronic stability programme (ESP) . . . . . . . . . . . . . . . . 128
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Brake booster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Antilock brake system (ABS) . . . . . . . . . . . . . . . . . . . . . . . . 131
Brake Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Uphill Start Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Electrohydraulic power steering . . . . . . . . . . . . . . . . . . . . 133
Tyre pressure monitoring system . . . . . . . . . . . . . . . . . . . 133
Diesel particle filter (diesel engine) . . . . . . . . . . . . . . . . . 134
Driving and the Environment . . . . . . . . . . . . . . . . . . . . . 135
The first 1 500 kilometres and afterwards . . . . . . . . . . . 135
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Driving in an economical and environmentally
conscious manner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Environmental compatibility
. . . . . . . . . . . . . . . . . . . . . . . . 139
Motoring abroad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Avoiding damage to your vehicle . . . . . . . . . . . . . . . . . . . 140
Driving through bodies of water on roads . . . . . . . . . . . 141
Towing a trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Towing a trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
General Maintenance . . . . . . . . . . . . . . . . . . . . . 144
Taking care of your vehicle and cleaning the
vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Care of the exterior of vehicle . . . . . . . . . . . . . . . . . . . . . . 144
Care of the interior of vehicle . . . . . . . . . . . . . . . . . . . . . . . 148
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Inspecting and Replenishing . . . . . . . . . . . . . . . . . . . . . . 153
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Cooling system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Brake fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159 Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Windshield washer system . . . . . . . . . . . . . . . . . . . . . . . . . 163
Wheels and Tyres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Accessories, changes and replacement of parts . 169
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Breakdown assistance . . . . . . . . . . . . . . . . . . . 170
Breakdown assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
First-aid box and warning triangle . . . . . . . . . . . . . . . . . . 170
Fire extinguisher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Vehicle tool kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Changing a wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Tyre repair kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
The vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Fuses and light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Electric fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Used abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Performances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Identification details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Fuel consumption according to the ECE standards and
EU guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Dimensions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Engine oil specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Engine 1.2 l/44 kW - EU5 . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Engine 1.2 l/51 kW - EU5/EU2 DDK . . . . . . . . . . . . . . . . . . 198
Engine 1.2 l/63 kW TSI - EU5 . . . . . . . . . . . . . . . . . . . . . . . . 199
Engine 1.2 l/77 kW TSI - EU5 . . . . . . . . . . . . . . . . . . . . . . . . 200
Engine 1.4 l/63 kW - EU5 . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Engine 1.6 l/77 kW - EU4, EU2 DDK . . . . . . . . . . . . . . . . . . 202
Engine 1.4 l/132 kW TSI - EU5 . . . . . . . . . . . . . . . . . . . . . . . 203 Engine 1.2 l/55 kW TDI CR DPF - EU5 . . . . . . . . . . . . . . . . 204
Engine 1.6 l/55 kW TDI CR - EU5 . . . . . . . . . . . . . . . . . . . . 205
Engine 1.6 l/66 kW TDI CR - EU5 . . . . . . . . . . . . . . . . . . . . 206
Engine 1.6 l/77 kW TDI CR - EU5 . . . . . . . . . . . . . . . . . . . . . 207
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2084
Table of Contents
Page 7 of 220
5
Table of Contents Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data
Page 8 of 220
Layout of this Owner's Manual (explanations)
The Owner's Manual has been systematically designed, in order to make it easy
for you to find and absorb the information you require.
Chapters, table of contents and subject index
The text of the Owner's manual is divided into relatively short sections which are
combined into easy-to-read chapters. The chapter you are reading at any particu-
lar moment is highlighted at the bottom right of the page.
The Table of contents is arranged according to the chapters and the detailed Sub-
ject index at the end of the Owner's Manual helps you to rapidly find the informa-
tion you are looking for.
Sections The majority of Sections apply to all models.
Since there is a wide range of different equipment and options available it is clear-
ly unavoidable, despite dividing the contents into sections, that mention may be
made of equipment which is not fitted to your vehicle.
Brief information and instructions Each section has a Heading.
This is followed by Brief information (in large italic lettering), which tells you the
subject which is dealt with in this section.
Most of the illustrations are accompanied by an Instruction (in relatively large let-
ters) which explains to you in a straightforward way the action you have to take.
Work steps which have to be carried out are illustrated with a hyphen.
Direction indications
All direction indications such as “left”, “right
”, “front”, “rear” relate to the direction
of travel of the vehicle.
Explanation of symbols End of a section.
£ The section is continued on the next page.
Notes
All four kinds of notes, which are used in the text, are always stated at the end of
the respective section. WARNING
The most important notes are marked with the heading WARNING. These
WARNING notes draw your attention to a
serious risk of accident or injury.
While reading the text you will frequently encounter a double arrow followed
by a small warning symbol. This symbol is intended to draw your attention to a
WARNING note at the end of the section to which you must pay careful atten-
tion. CAUTION
A Caution note draws your attention to the possibility of damage to your vehicle
(e.g. damage to gearbox), or points out general risks of an accident. For the sake of the environment
An Environmental note draws your attention to environmental protection as-
pects. This is where you will, for example, find tips aimed at reducing your fuel
consumption. Note
A normal Note draws your attention in a general way to important information. 6
Layout of this Owner's Manual (explanations)
Page 9 of 220
7
Layout of this Owner's Manual (explanations) Using the system Safety Driving Tips General Maintenance Breakdown assistance Technical data
Page 10 of 220
Fig. 1 Cockpit8
Cockpit
